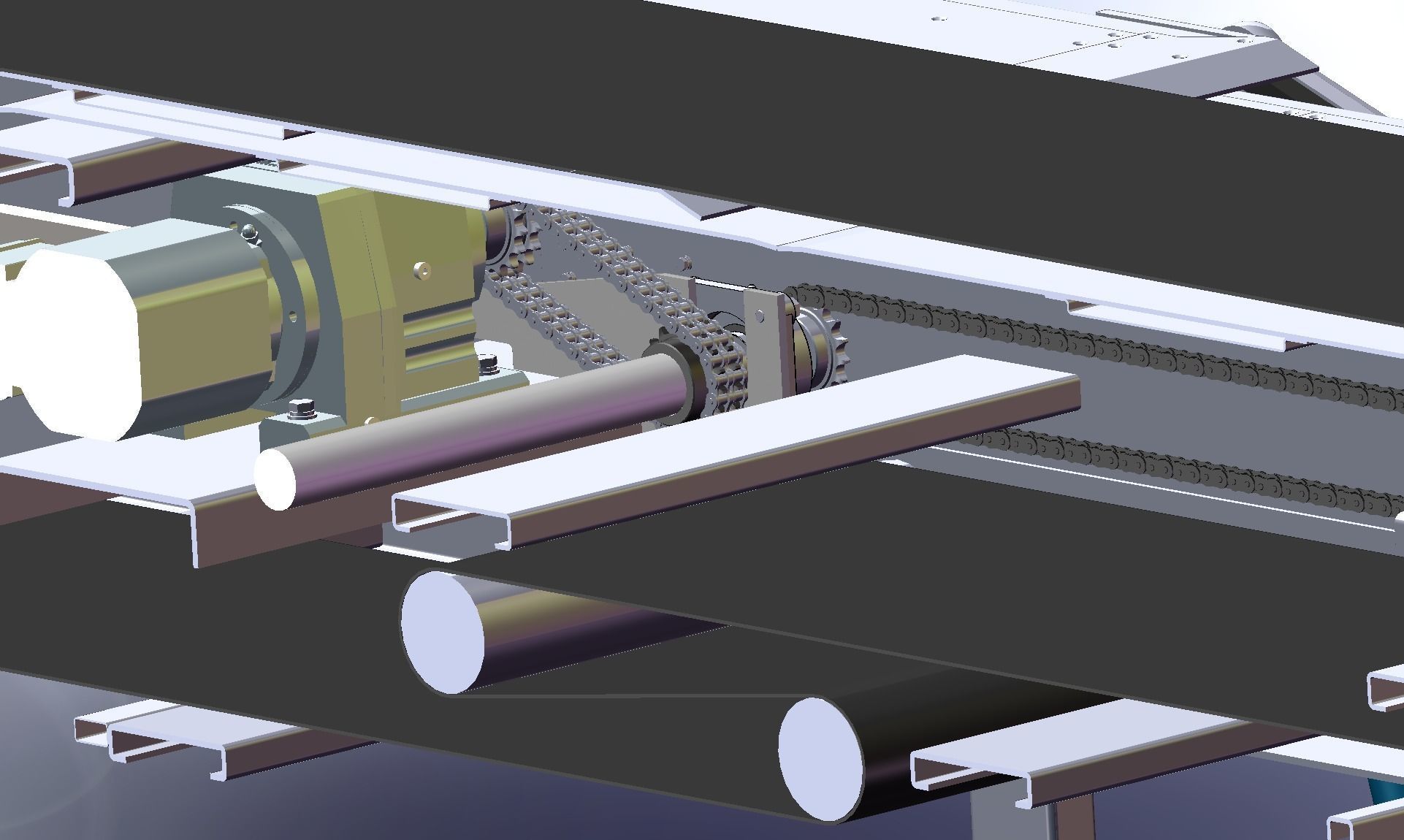

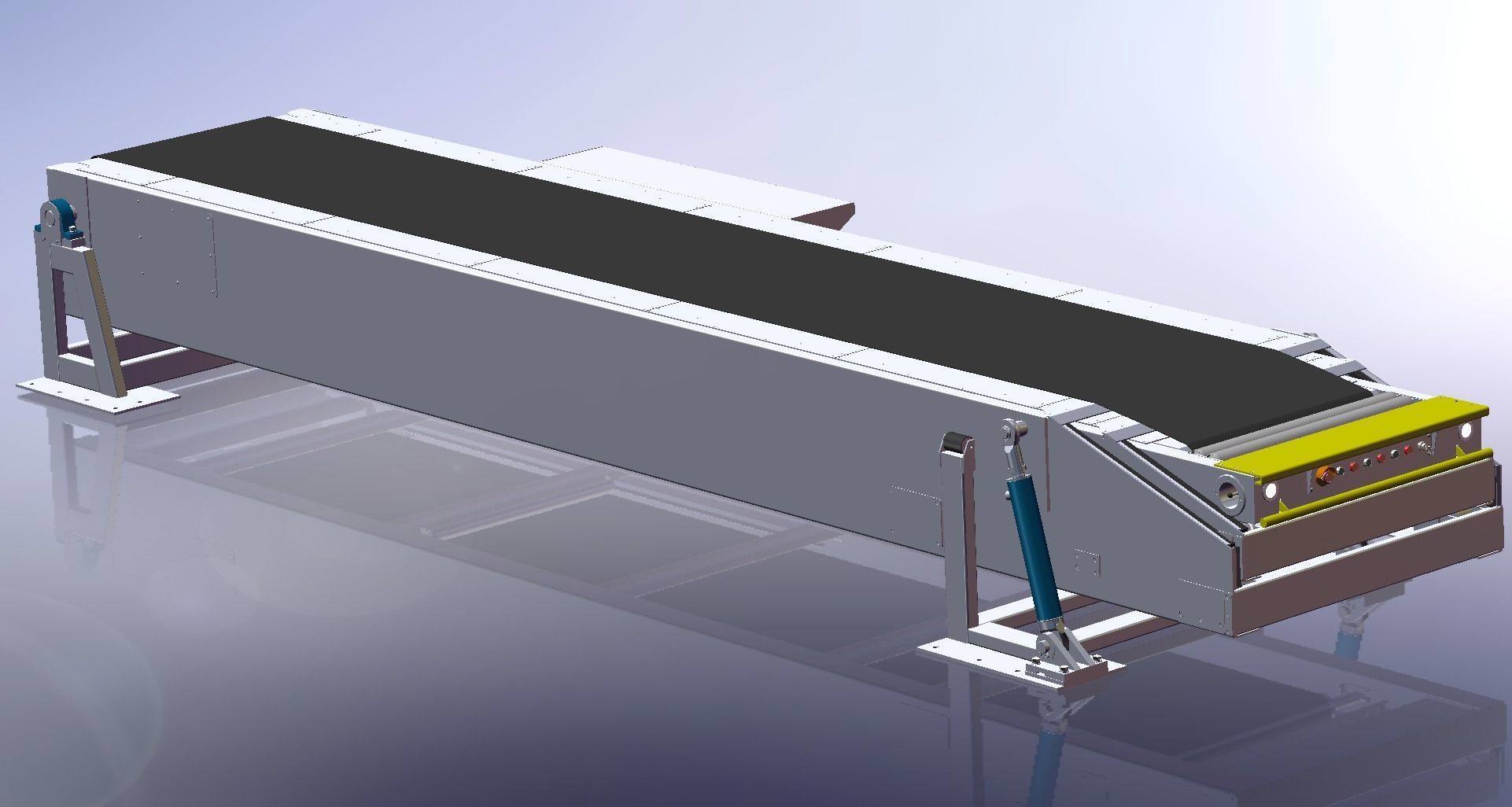

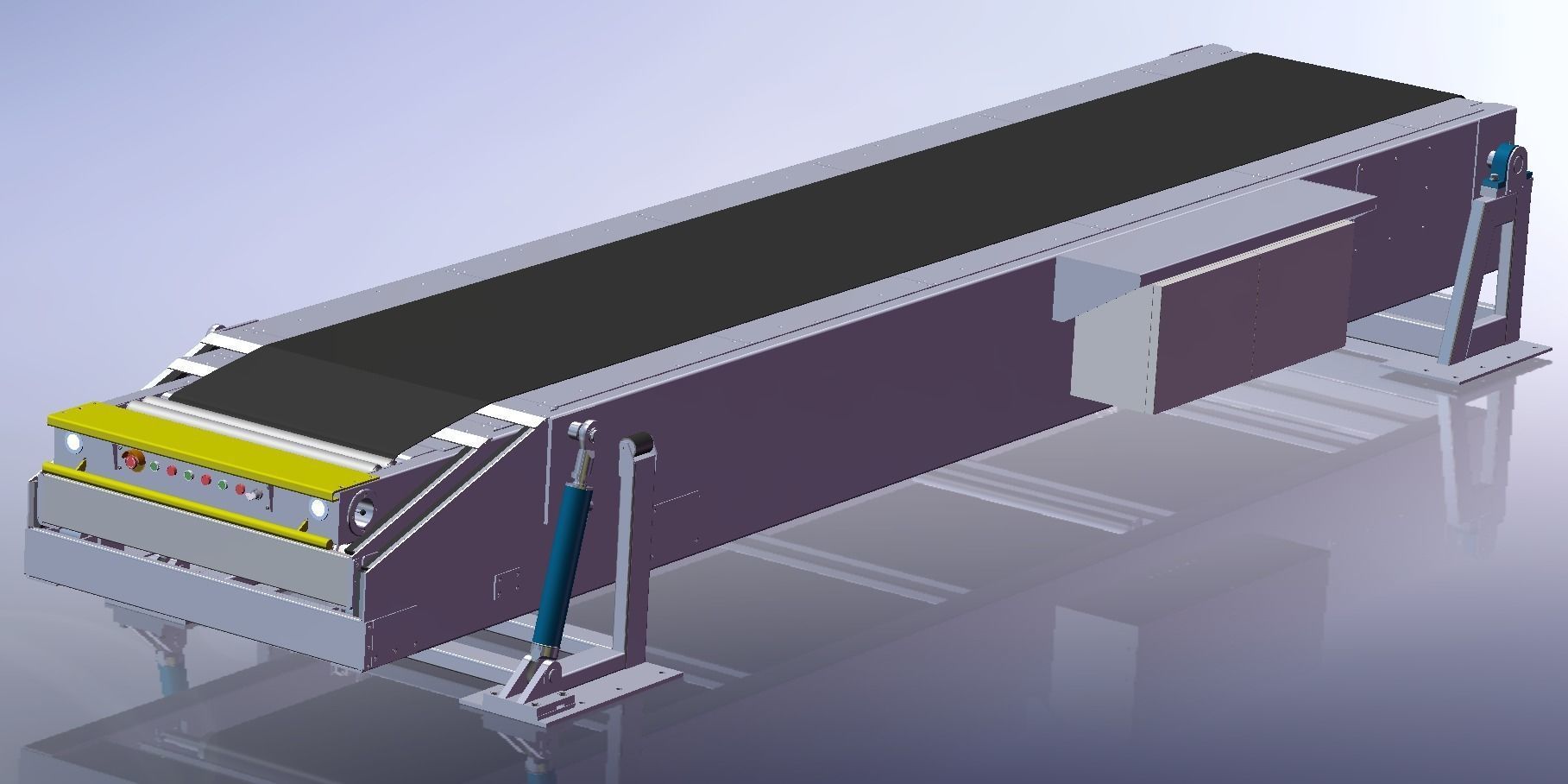

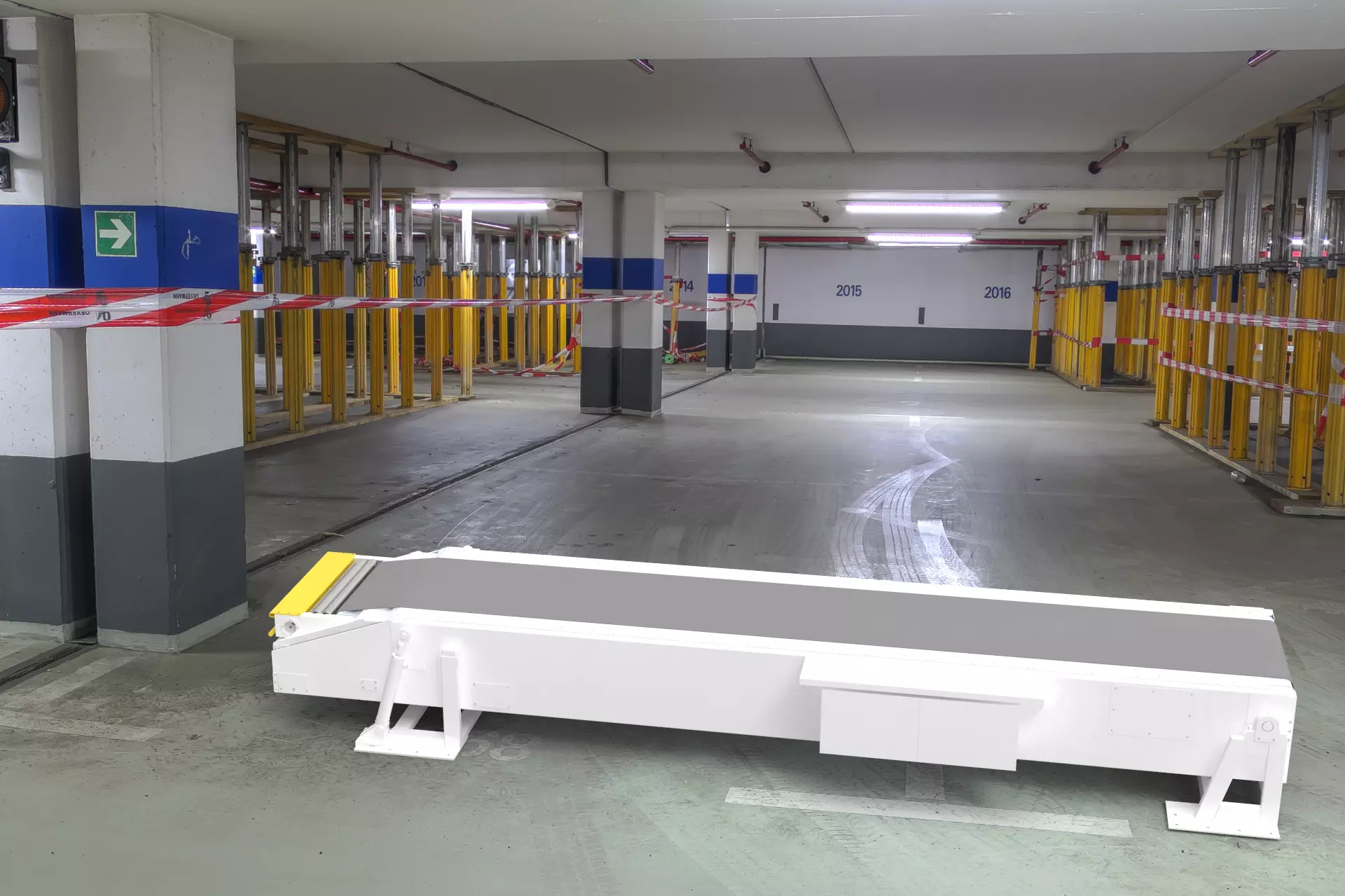

Three section telescopic belt loading conveyor 3D design 3D model

The design based on SolidWorks 2017, please use 2017 or above to open. The design is so detailed contains every single part. The file is about 230 MB.

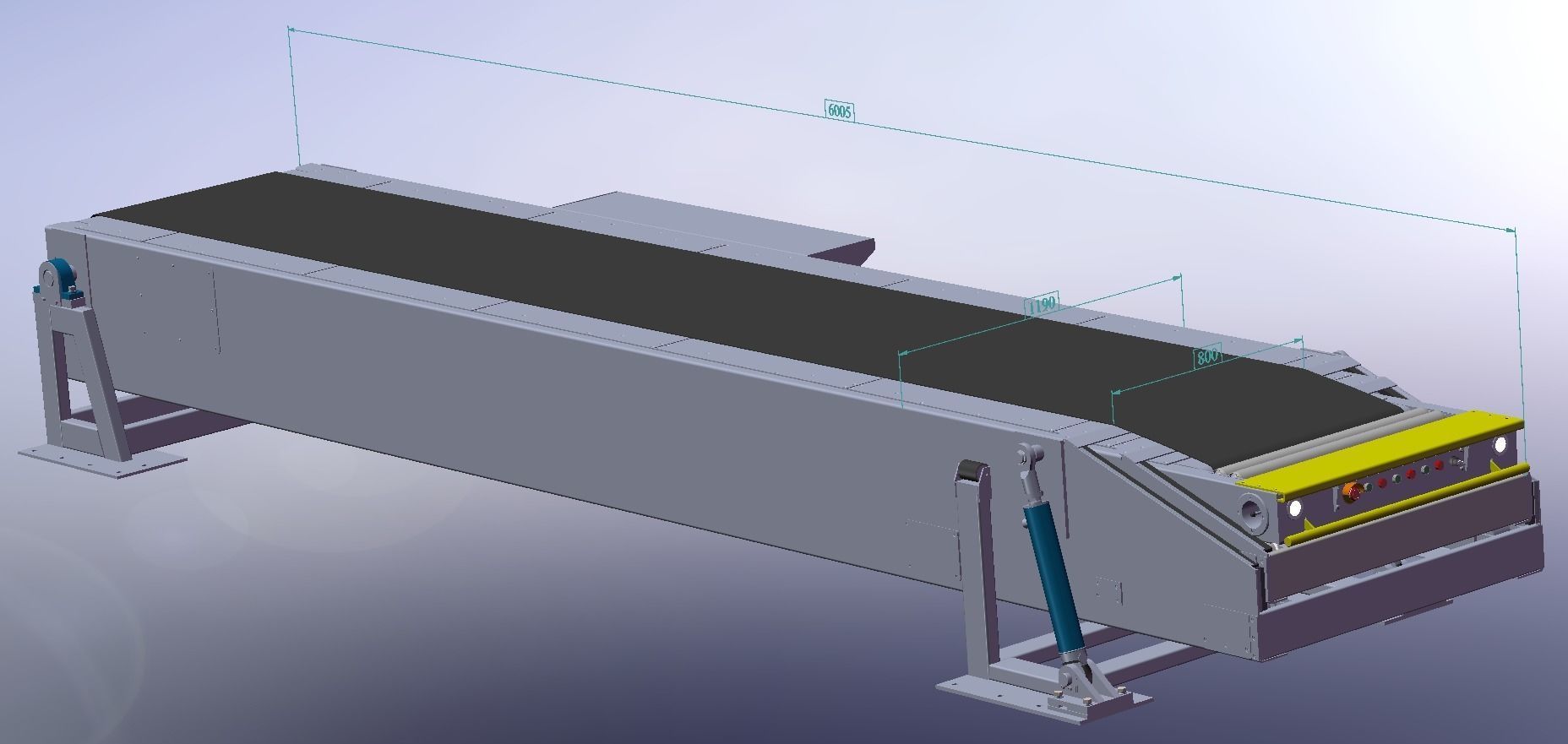

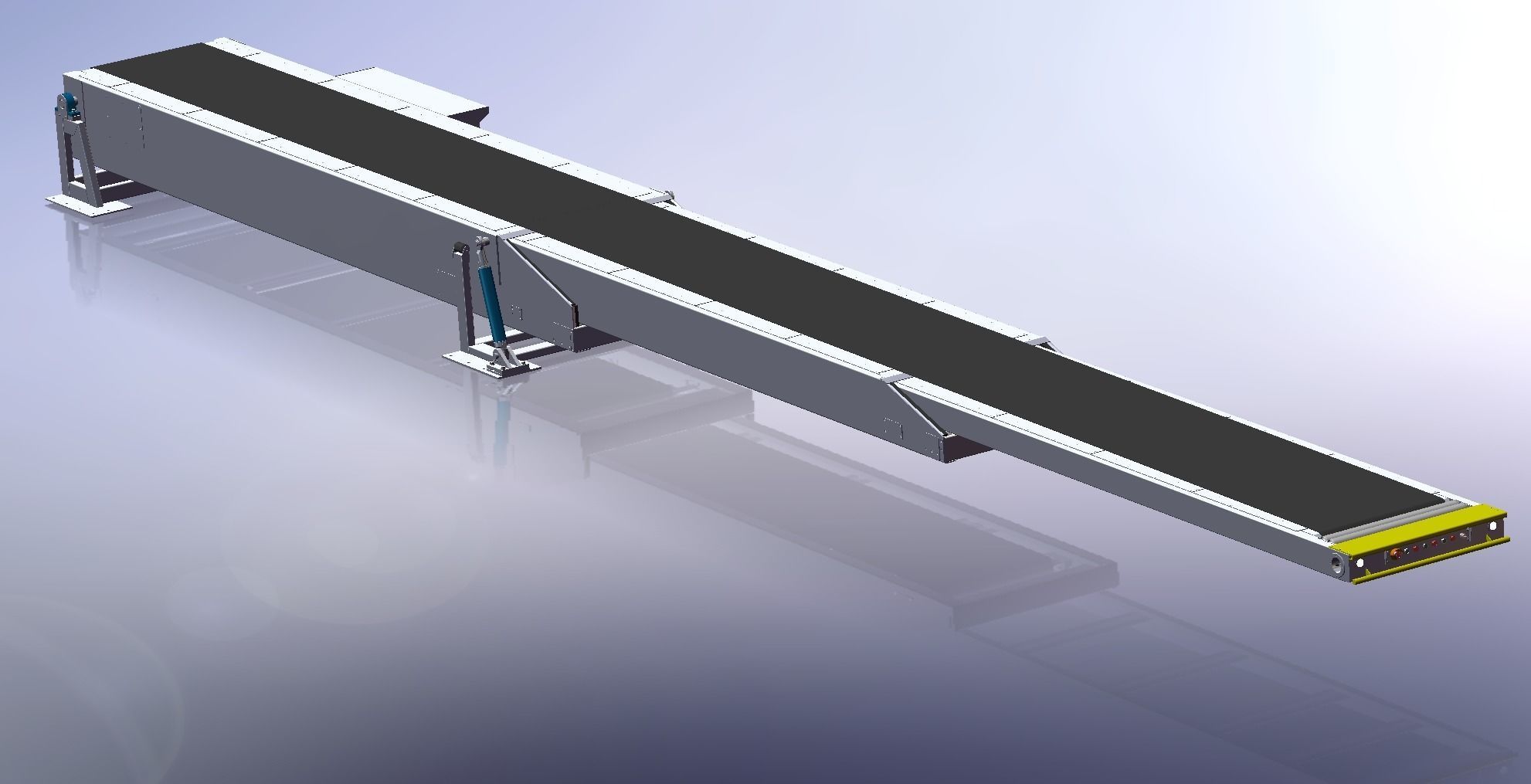

The conveyor is retracted to a length of 6 m and extended to a length of 16 m, and is used in express delivery and other fields.

Three section retracting conveyor is widely used in port, wharf, station, airport, warehouse, mine, post and telecommunications, electrical appliances, light industry, food, tobacco and other industries. It is suitable for the transmission and loading and unloading of goods, greatly shortens the distance between manual and back-to-back materials, improves working efficiency, reduces labor intensity, reduces the damage rate of goods and shortens loading and unloading time. It is an effective equipment to reduce the cost and quality of enterprise products and improve efficiency.

Features of belt conveyor:

1. Freely expandable and contractible in the length direction. Adjust the buttons according to your own requirements to control the length and height of the conveyor at any time;
2. PLC automatic collision avoidance. Humanized operation, equipped with LED lighting at the front end, complete safety protection measures;
3. The bearing capacity is up to 80 kg / m, which can be matched with the fixed conveyor, and will not bend and deform under long-term load operation;
4. Simple structure, easy to use and exquisite appearance.
