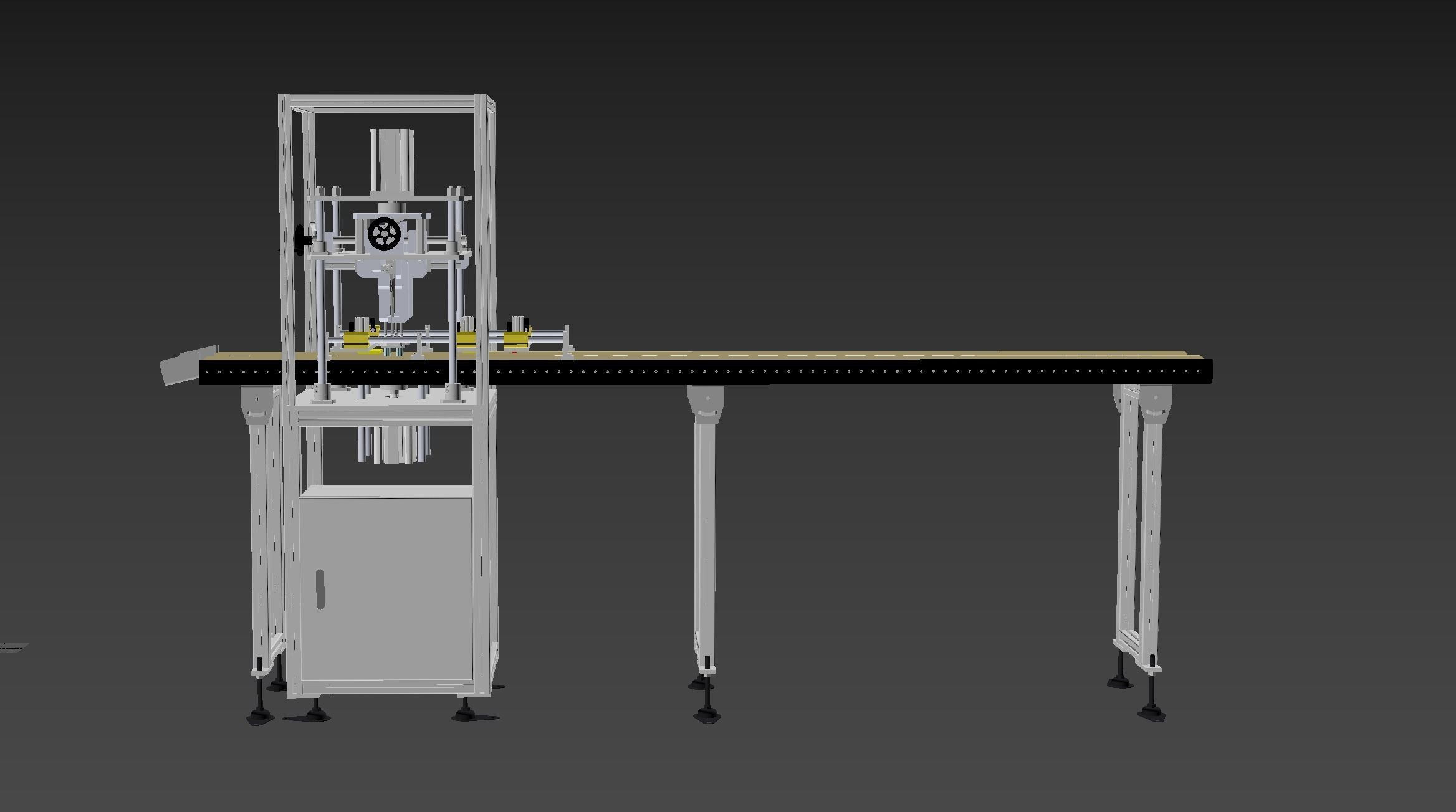

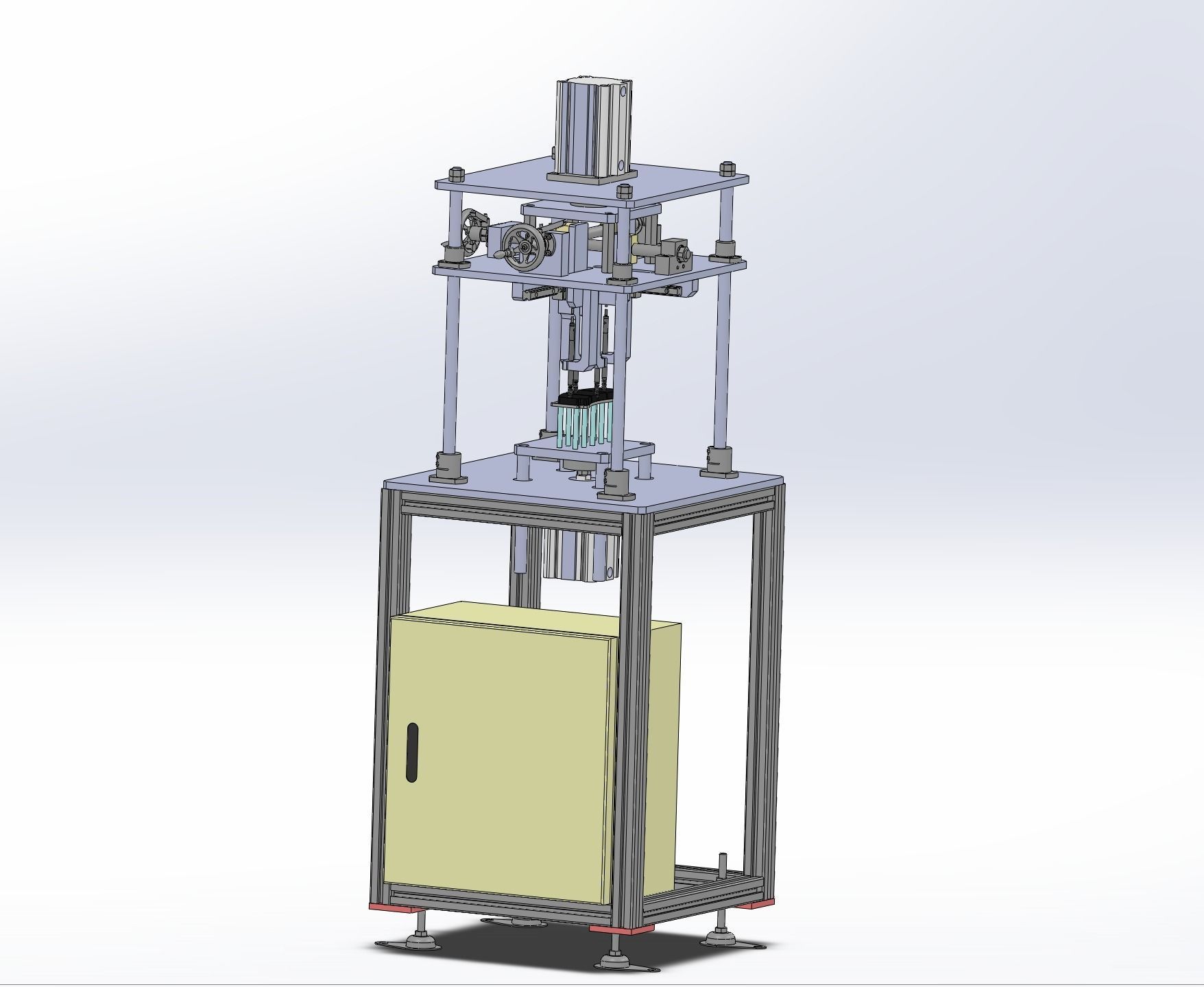

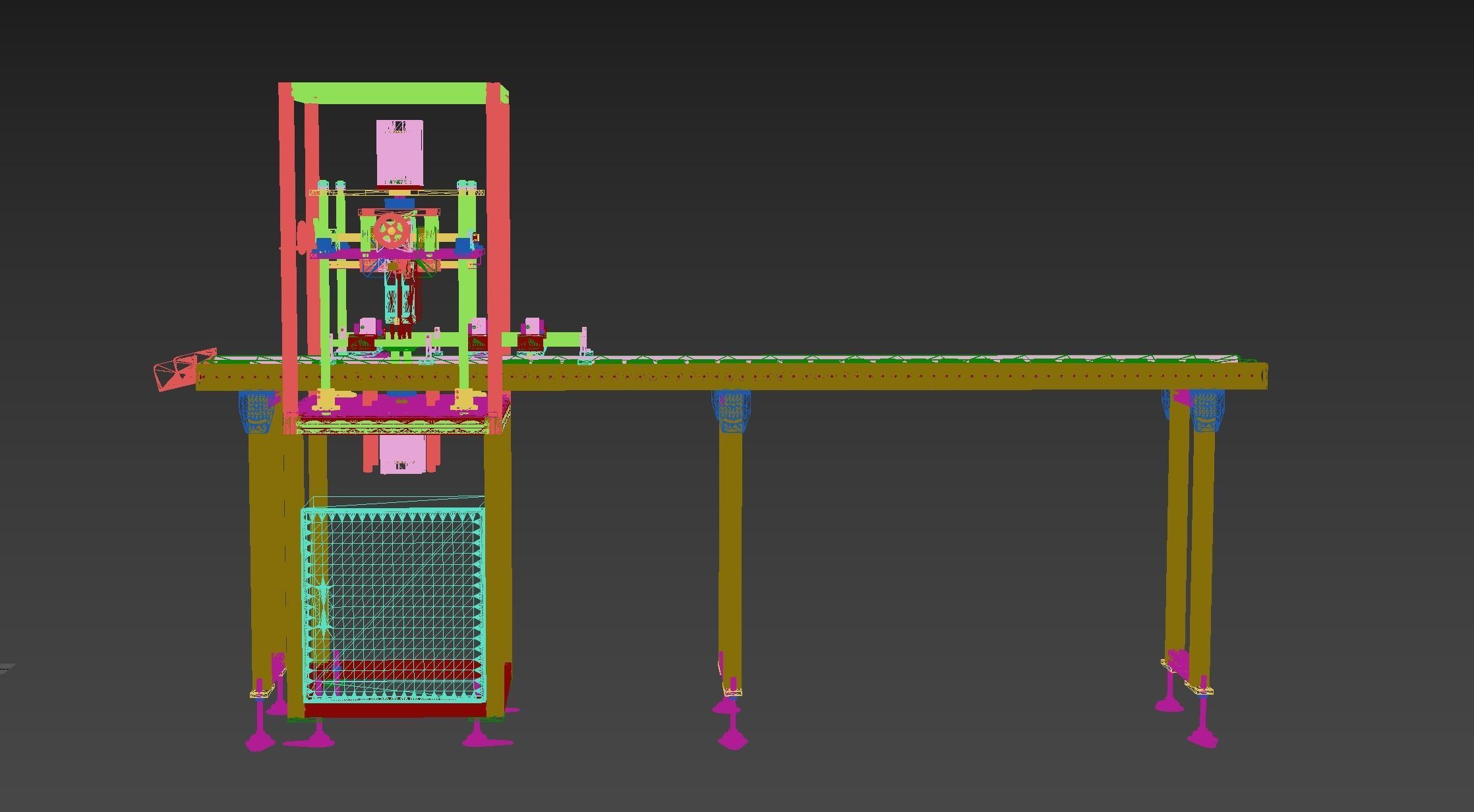

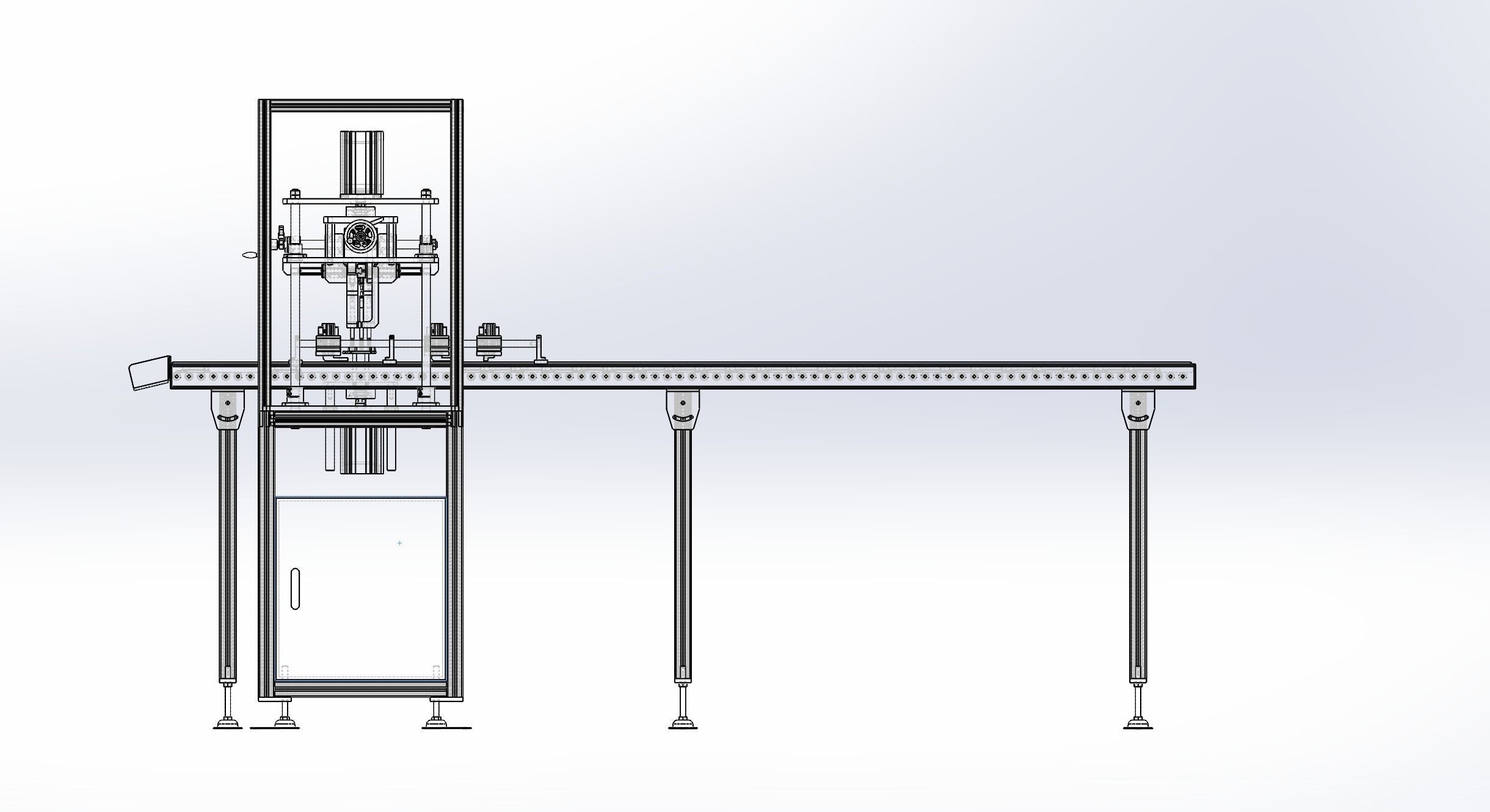

Thickness measuring device 3D model

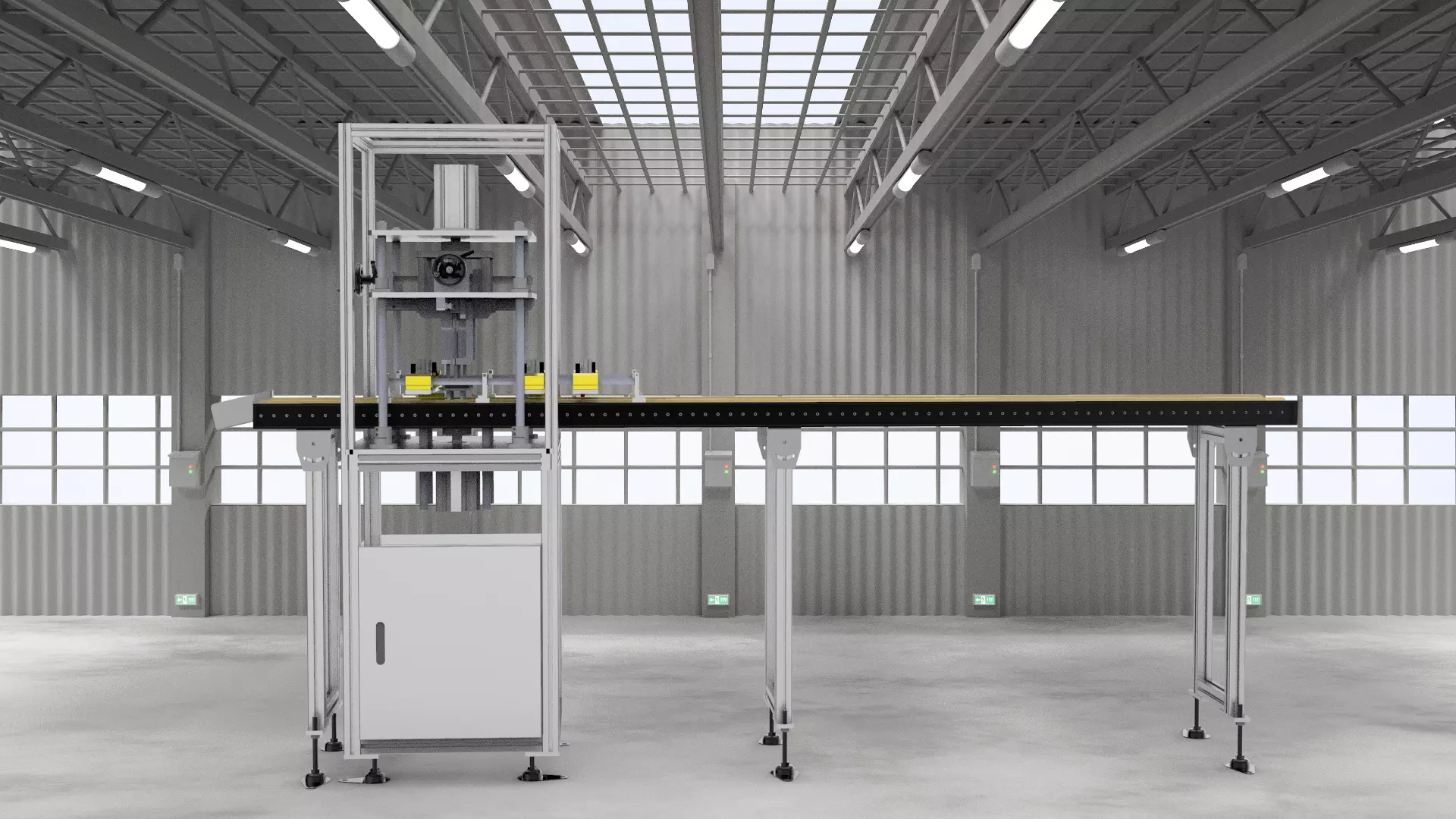

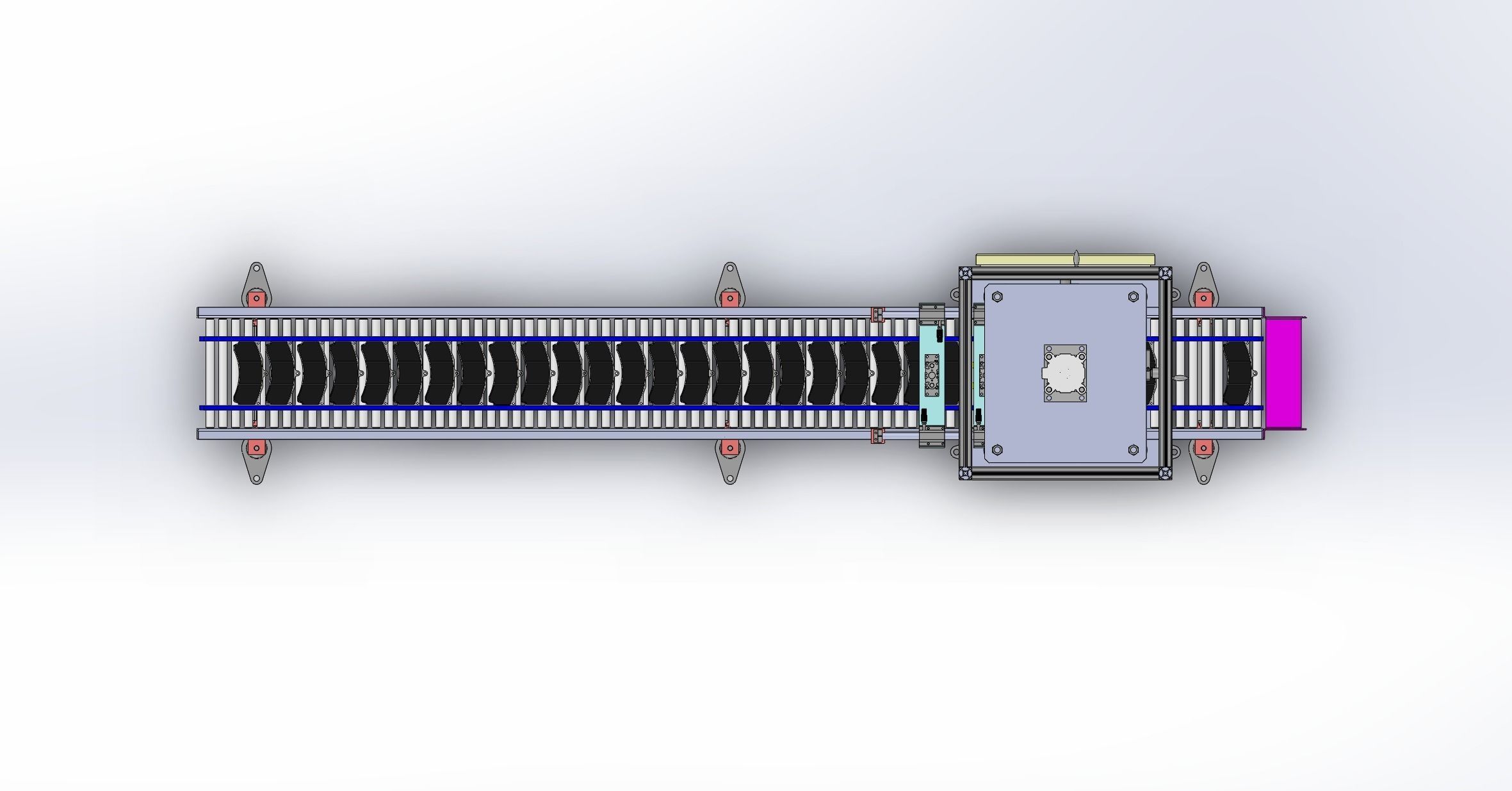

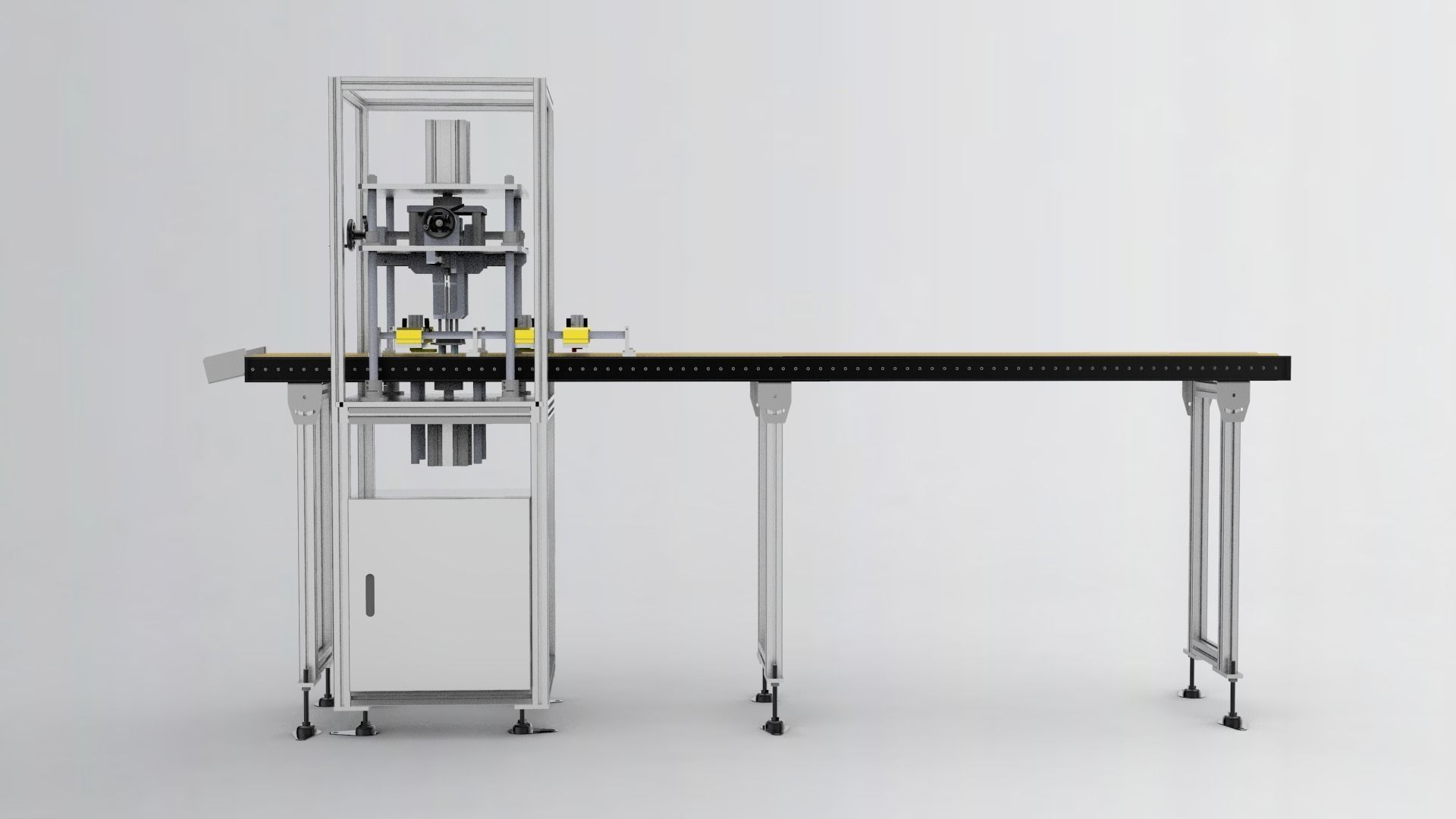

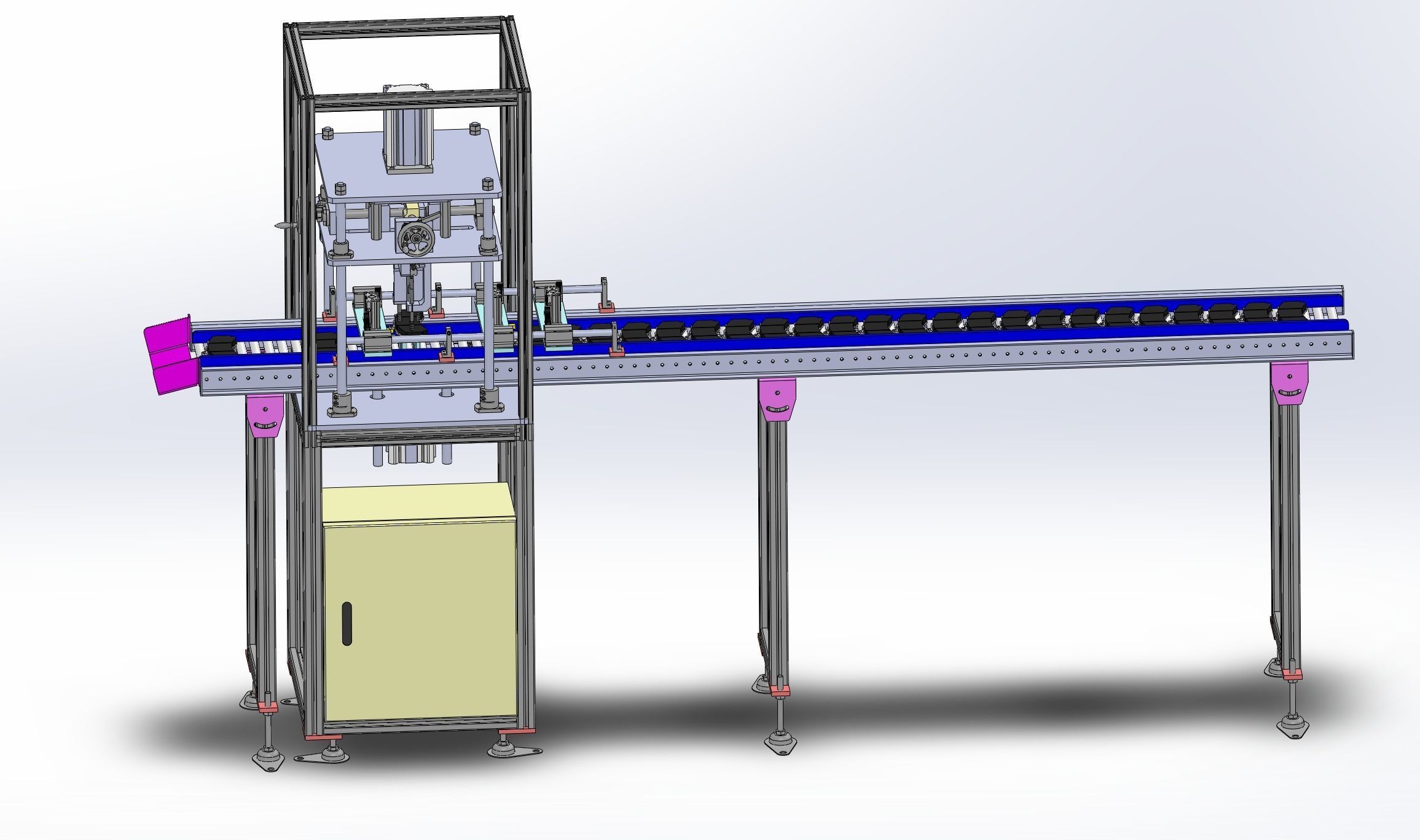

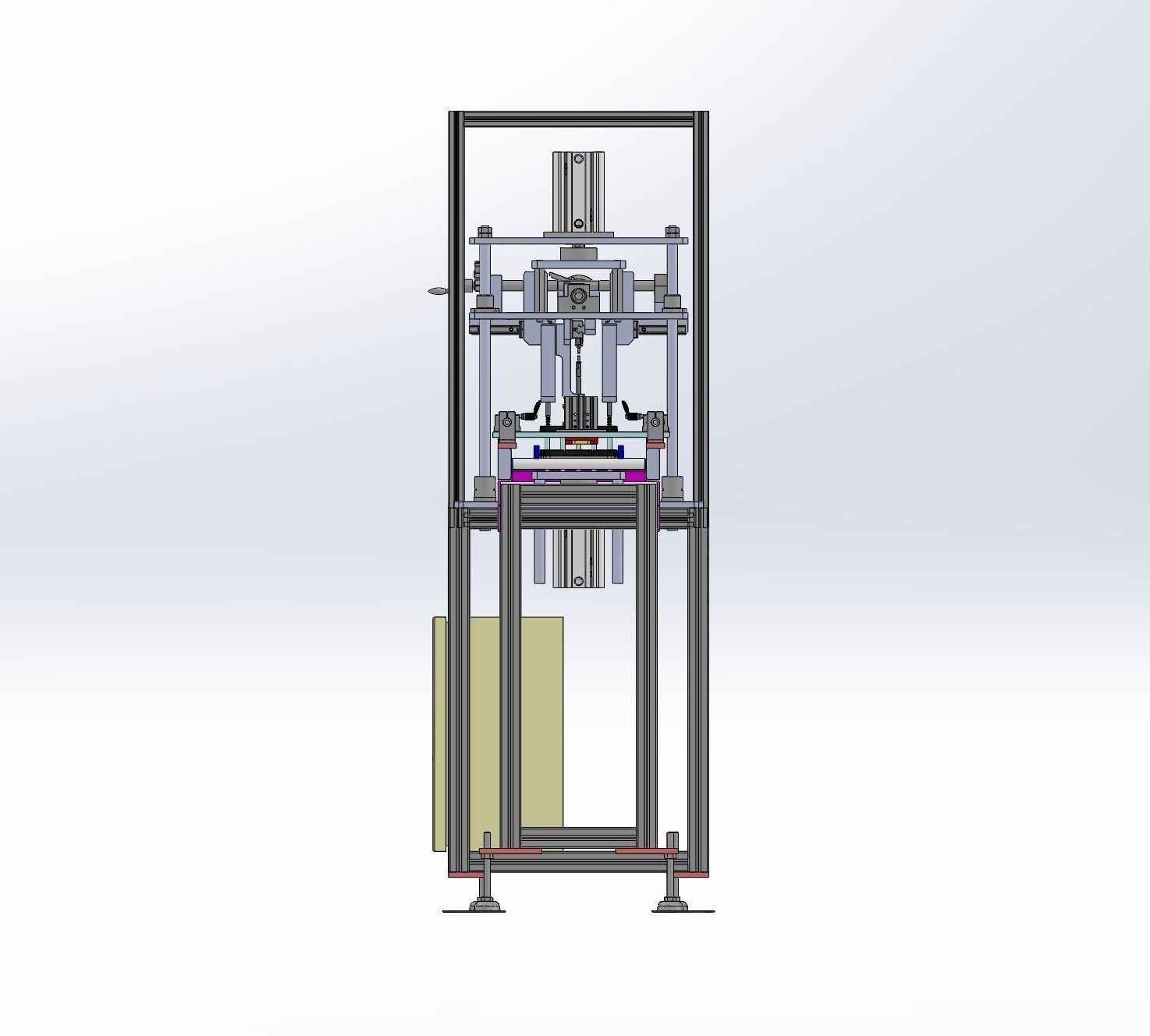

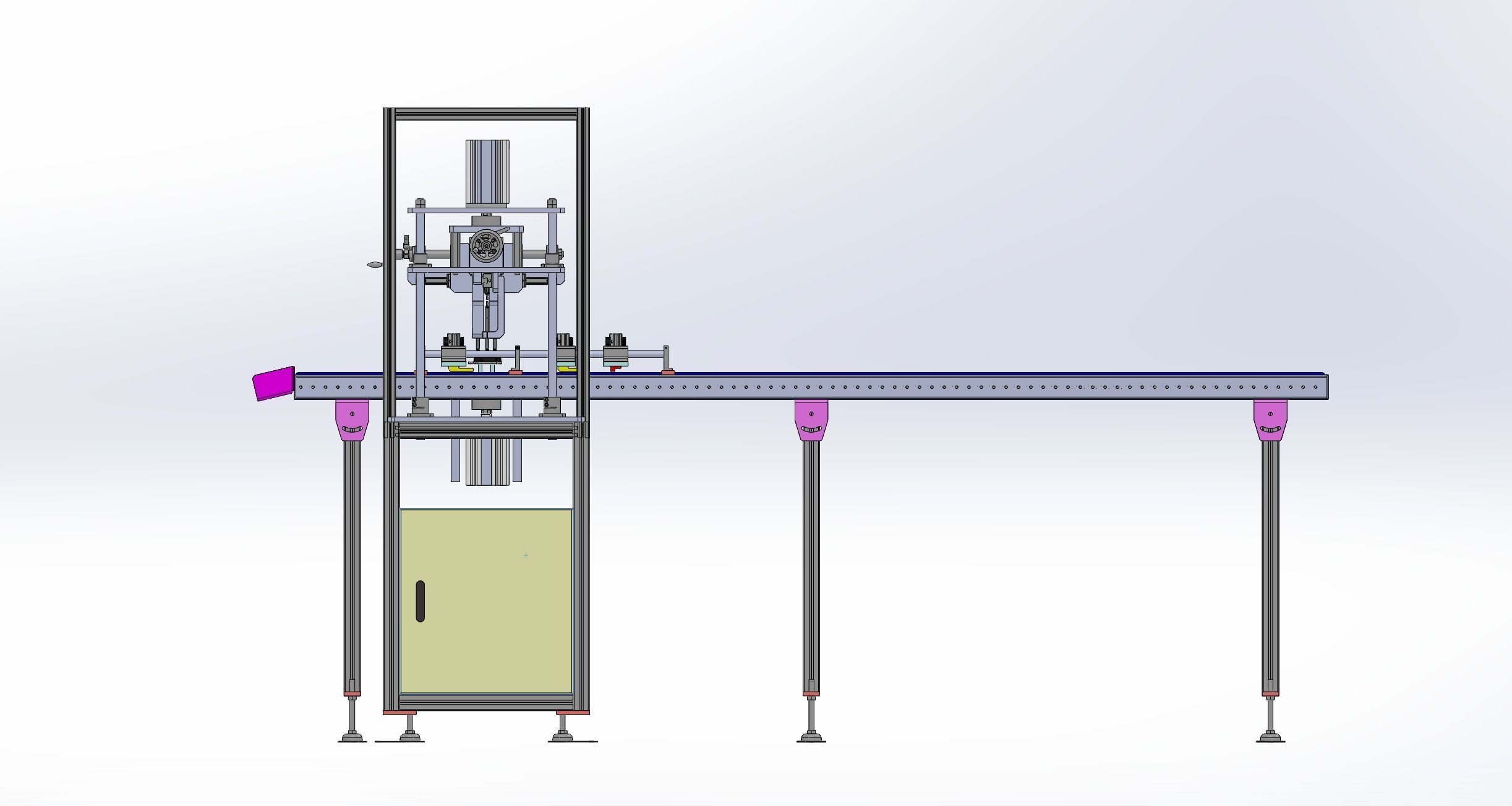

Thickness measuring device

The equipment is a kind of production equipment, the use of non-contact sensor, can measure the thickness of the product size, can be multi-point measurement, the accuracy can reach 1um, the assembly line is a continuous production equipment. Institutions include:

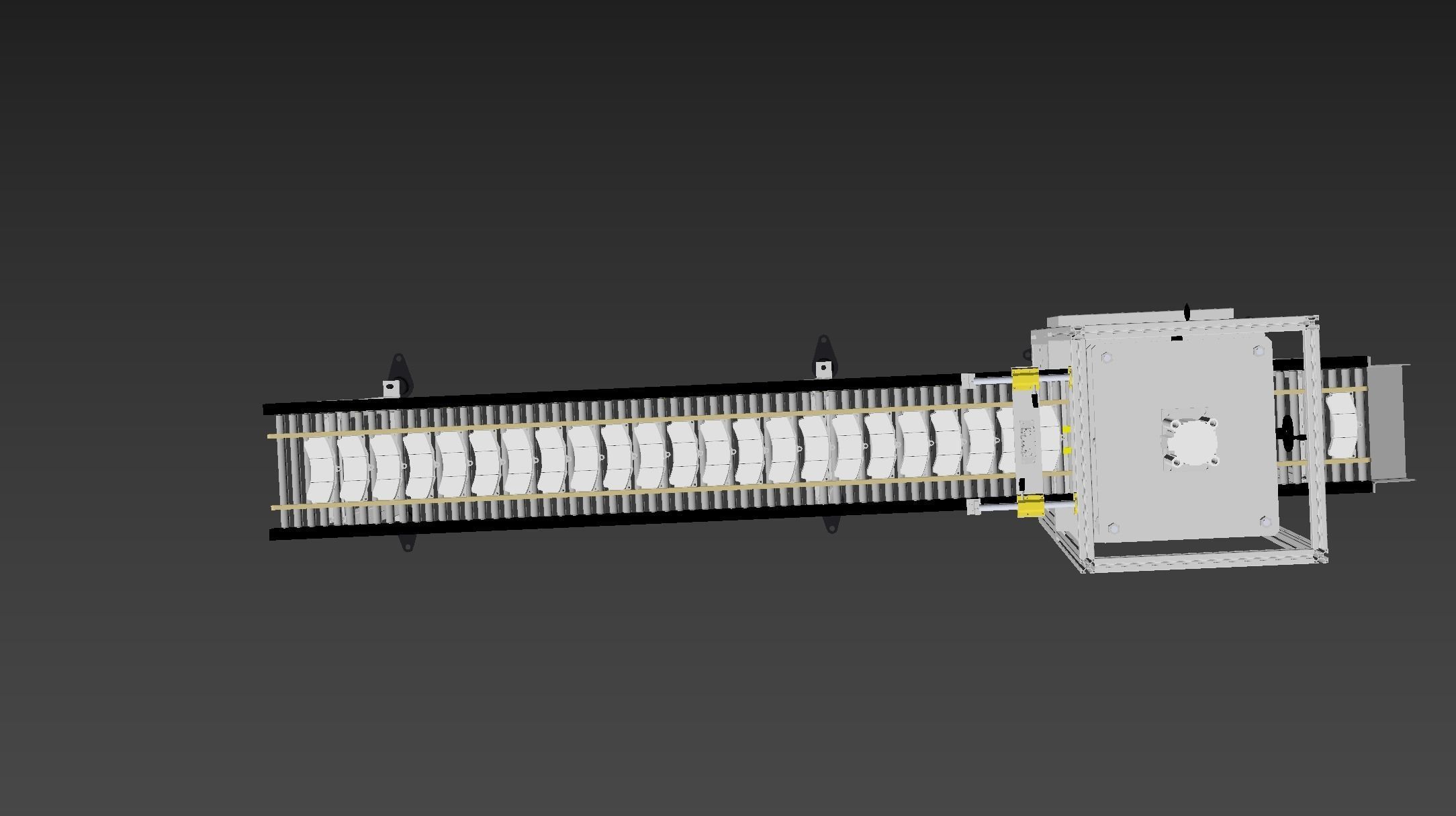

1. Belt assembly line

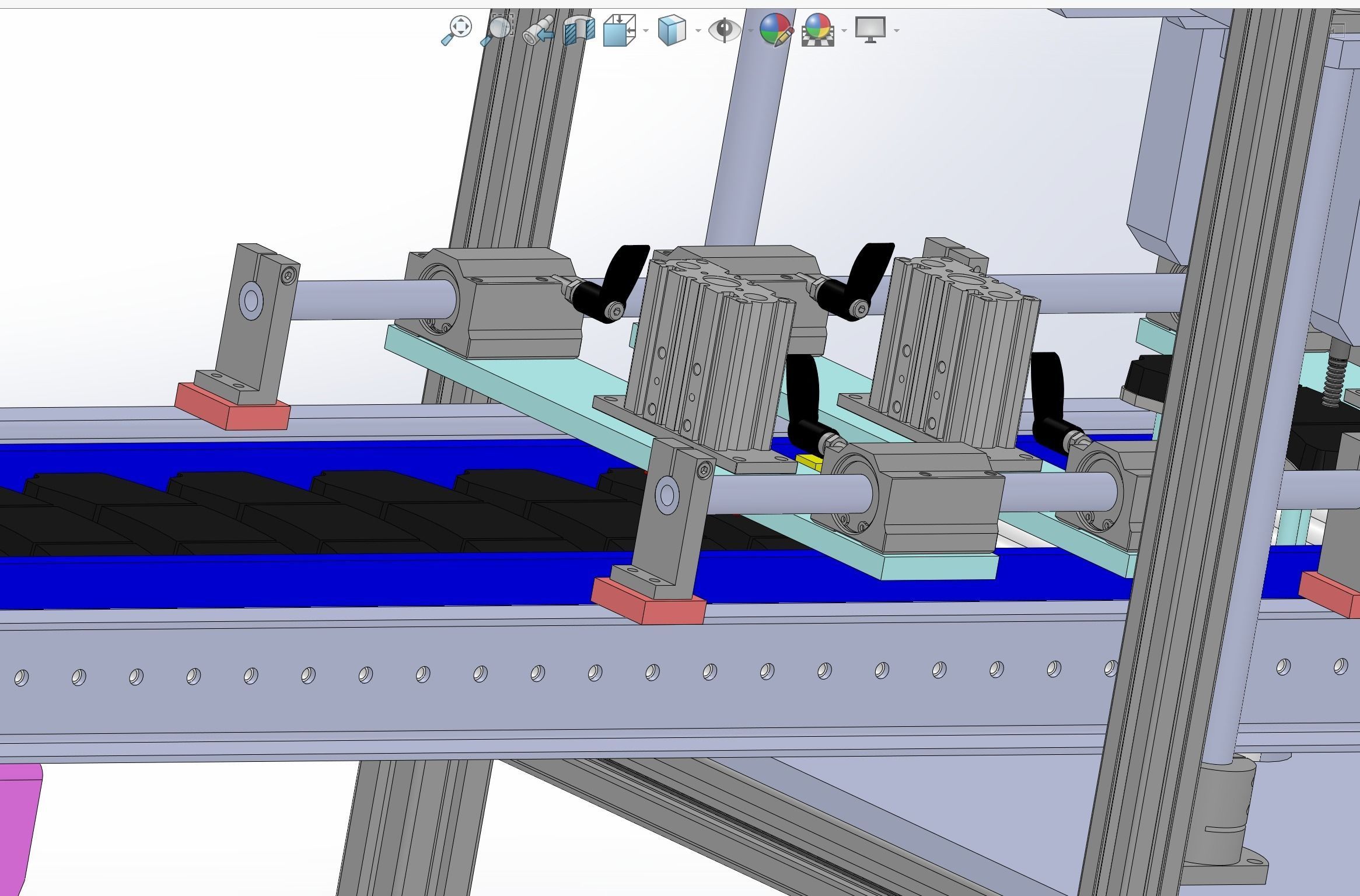

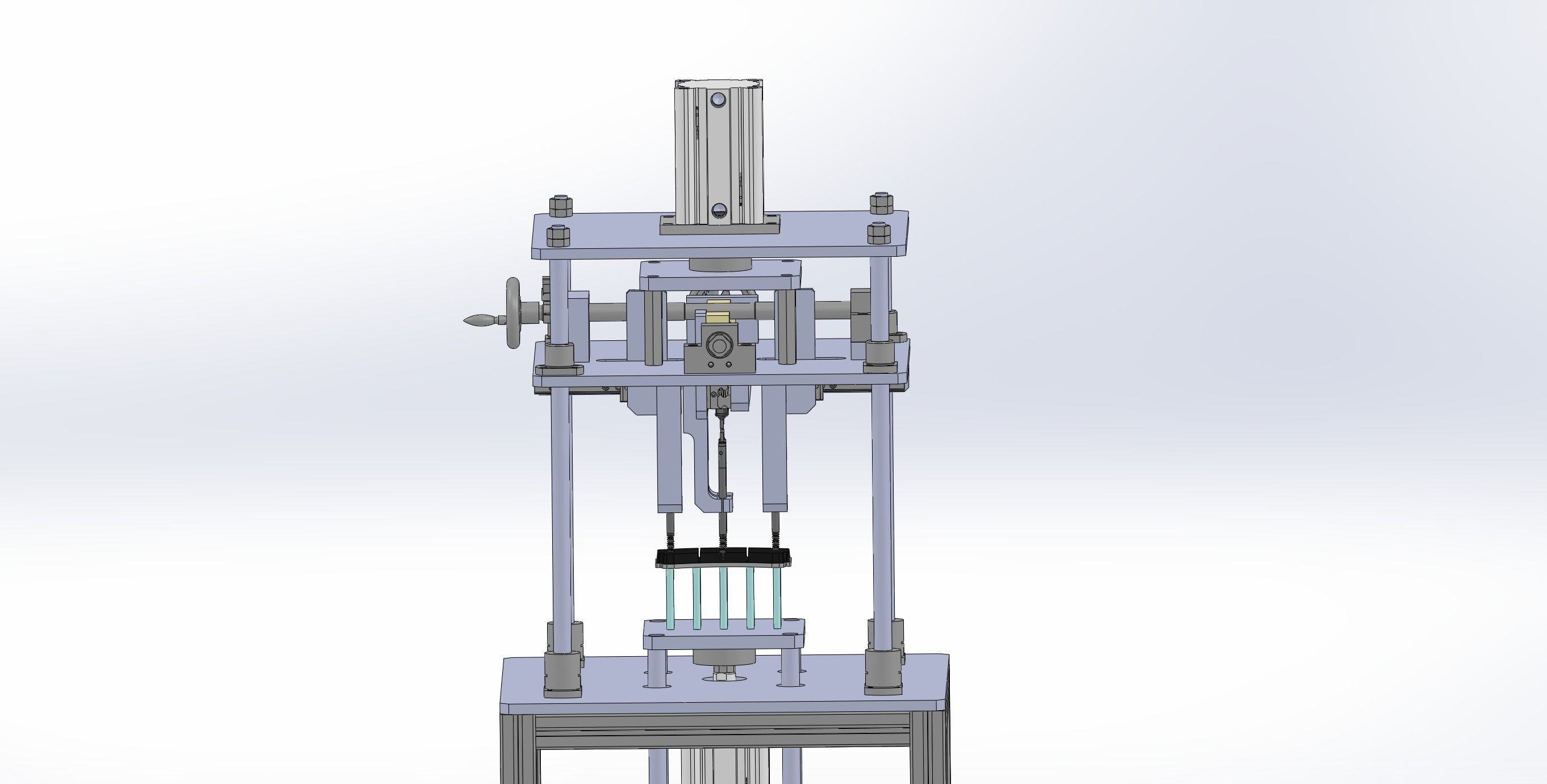

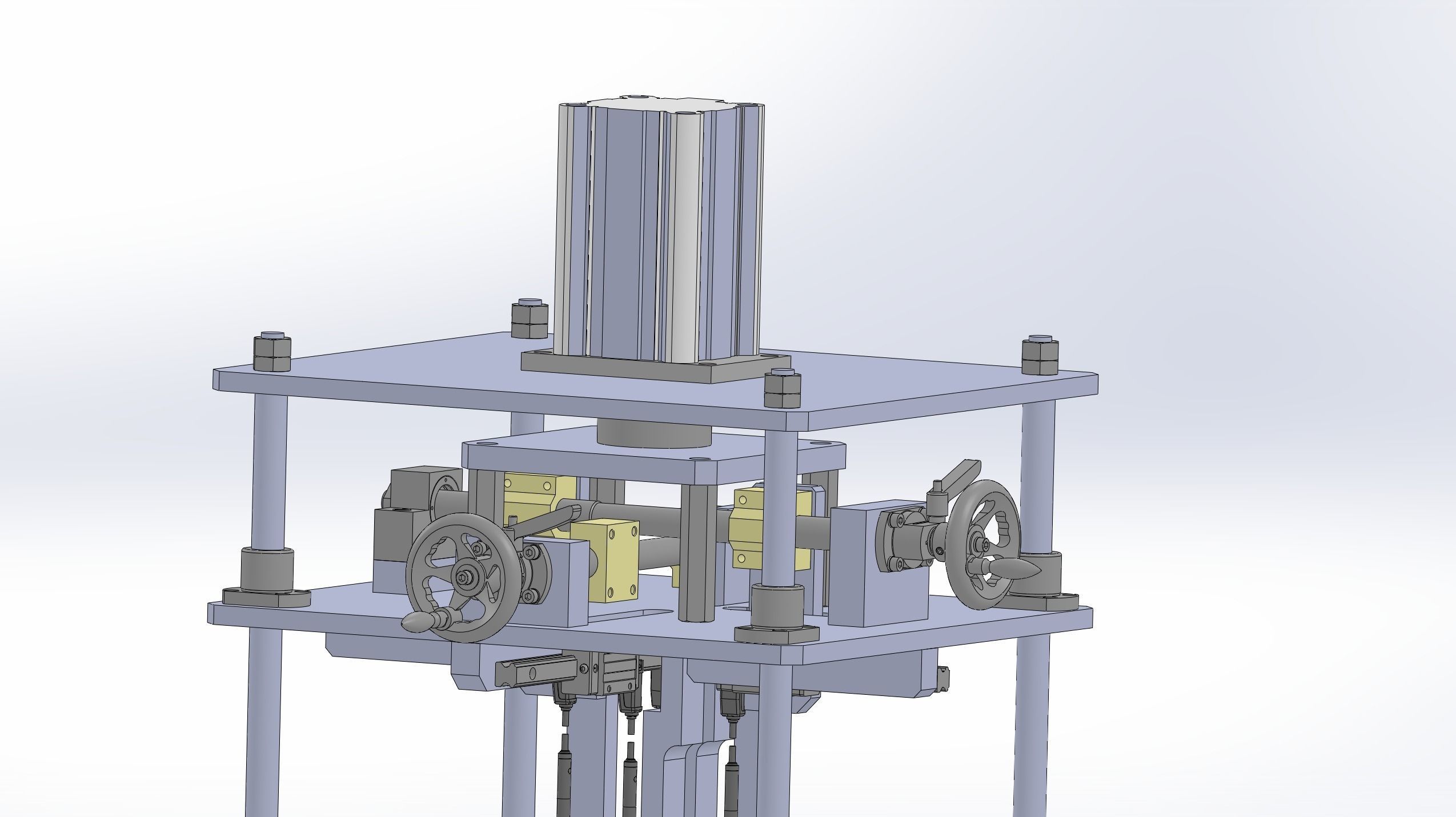

2. Positioning and pressing device
3. Position trimming device

**************************************

polygons:5776867

Vertice: 8820960

Files format contains

-solidworks 2017-step-iges-stl-obj-3ds-Fbx-3dmax

• and other formats

**************************************

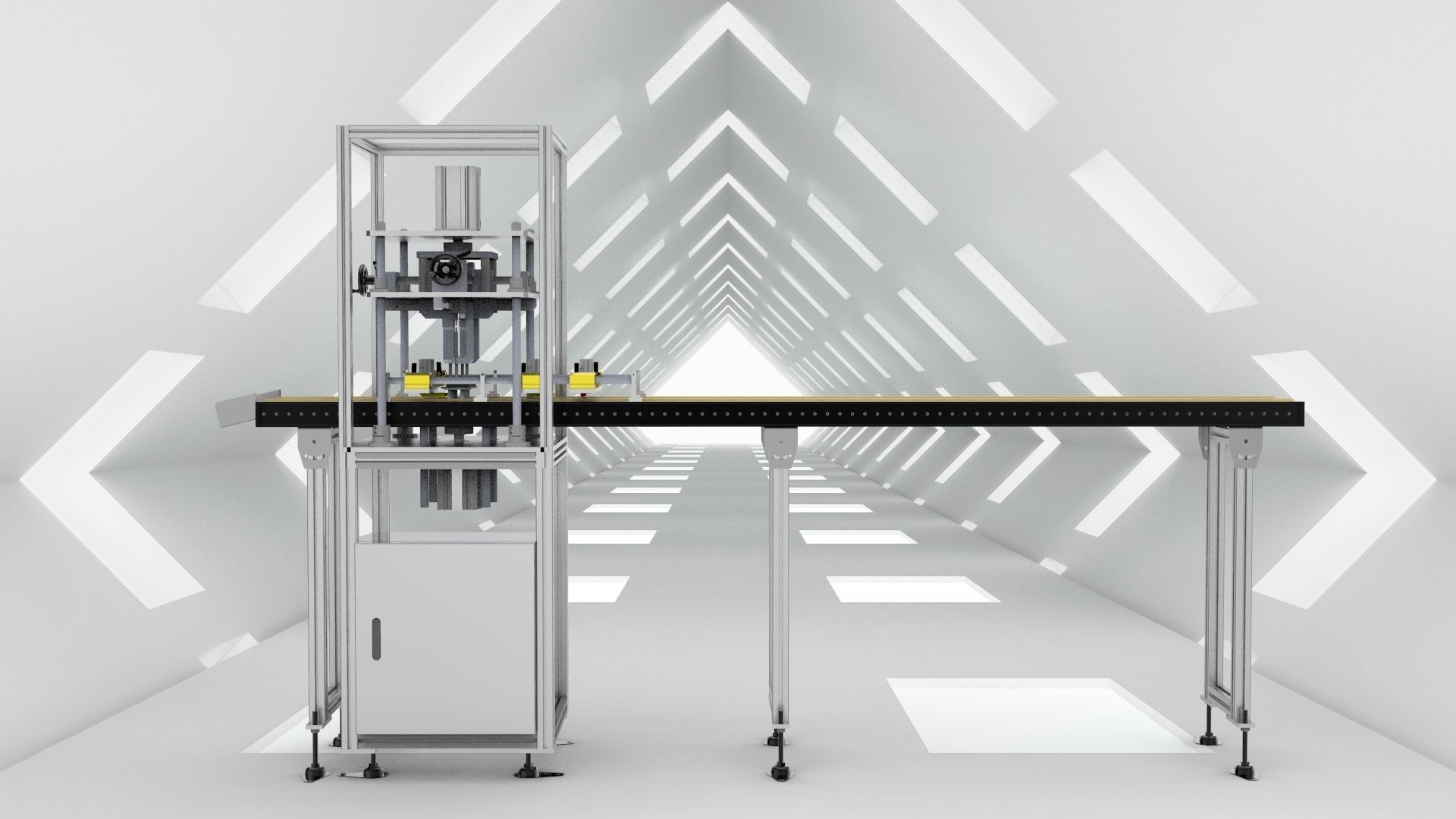

If you like,you can buy for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with Keyshot

**************************************
