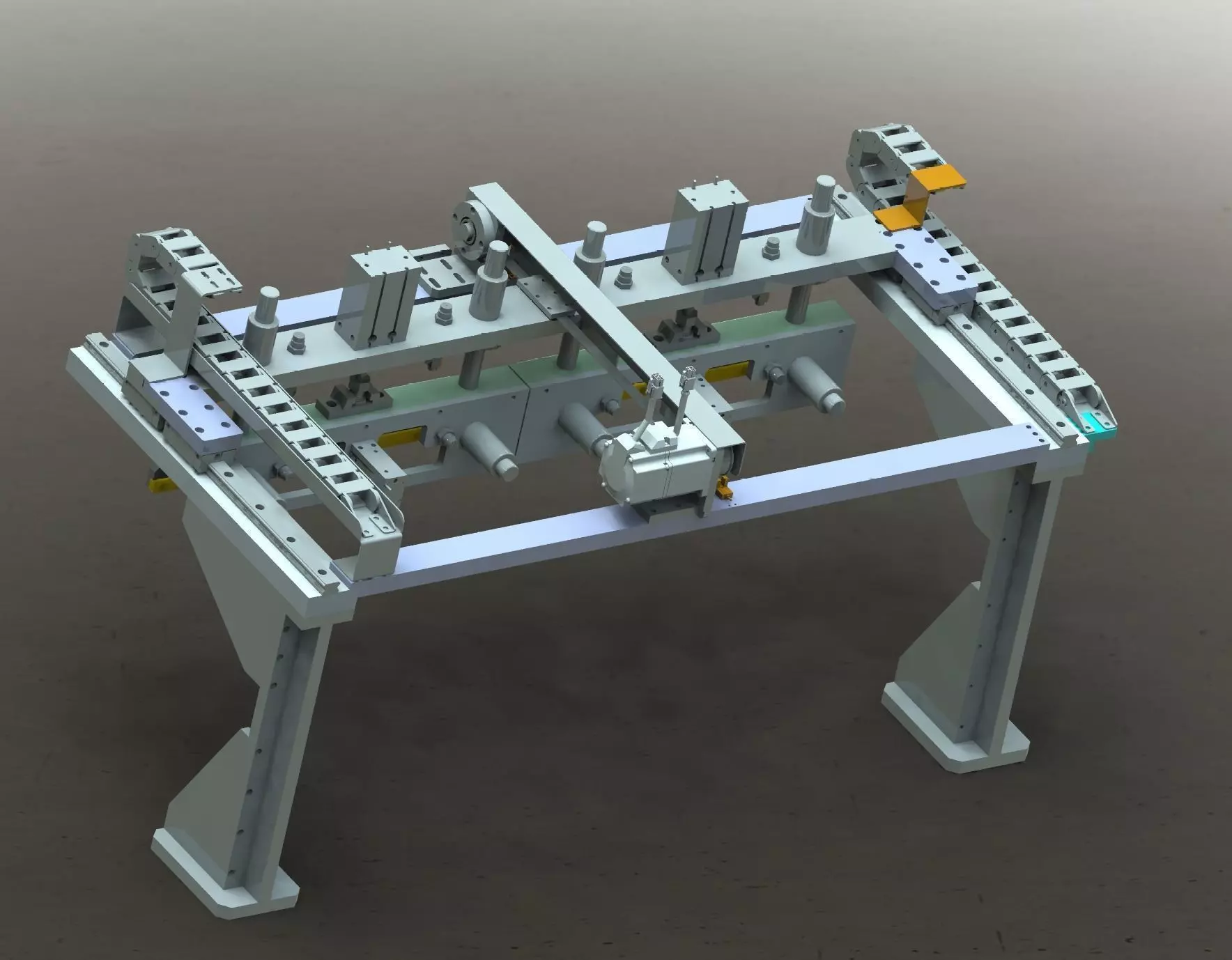

The gantry loading and unloading mechanism 3D model
Description
The gantry loading and unloading mechanism, which drives the overall Y-axis horizontal motion through a stepping motor shaft and drives up the X-axis and z-axis through the cylinder module to form a three-axis feeding mechanism, which is simple, effective and very classic feeding moduleInstitutions include
- Gantry structure
- Synchronous belt feeding mechanism
- Cylinder driving structure************************************** Files format contains-solidworks 2017-step-iges-stl-obj-3ds-Fbx-3dmax
- and other formats************************************** If you like,you can paypal for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with PhotoView 360**************************************
The gantry loading and unloading mechanism
Royalty Free License
The gantry loading and unloading mechanism
Royalty Free License
3D Model formats
Format limitations
- SolidWorks (.sldprt, .sldasm, .slddrw)25.1 MB
- IGES (.ige, .igs, .iges)21.1 MB
- Autodesk 3ds Max 2017 (.max)10.2 MB
- OBJ (.obj, .mtl)15.9 MB
- Autodesk FBX (.fbx)8.47 MB
- STEP (.stp)8.67 MB
- 3D Studio (.3ds)16.2 MB
- Stereolithography (.stl)18.4 MB
3D Model details
- Publish date2018-08-23
- Model ID#981052
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 192,276
- Vertices 385,944
- Textures
- Materials
- UV Mapping
- Unwrapped UVs
- Plugins used
- Ready for 3D Printing
