DESCRIPTION

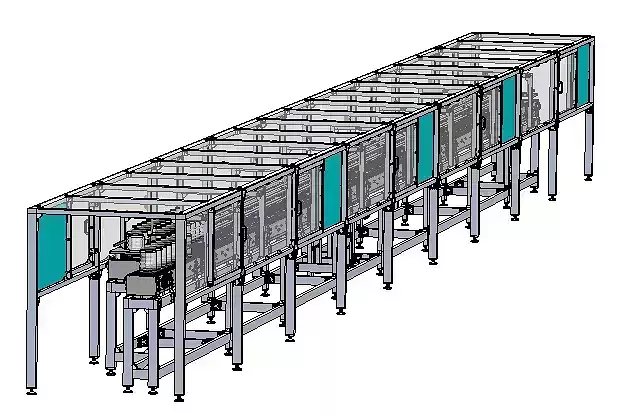

This conveyor consists of 3 modular belt conveyors of 17 meters, which are taken to cool the plastic bottles in water filling factories after they leave the blowing process, and are installed side by side on a stainless chassis. The two belts turn in one direction, the conveyor in the middle rotates in the opposite direction. Two AC motors are used in total. With the design for the conveyor design and the AC motor placement, the conveyor can run in two directions. The chassis consists of an aluminum sigma profile. As required by law, the conveyor top and sides are surrounded by a protective chassis with plexiglass covers. This chassis also consists of sigma profile. Its side covers are movable and sliding. Design files are loaded with all the details. The material list and technical drawings are in the files with all their details.

www.mhsmakine.com

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.
BEST PRICE GUARANTEED
Found this model cheaper on another marketplace? Let our support team know - we’ll match it.

Stainless triple modular conveyor belt 3D model

Royalty Free License
Hire
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
File formats
IGE
IGES<br />File Size: 11.1 MB
DXF
DXF<br />File Size: 173 KB
SLDPRT
SolidWorks<br />File Size: 143 MB
PDF
PDF | 2 files<br />File Size: 17 MB
DWG
AutoCAD<br />File Size: 22 MB
STP
STEP<br />File Size: 14.9 MB
CATPRODUCT
CATIA<br />File Size: 4.22 MB
Provided by designer
