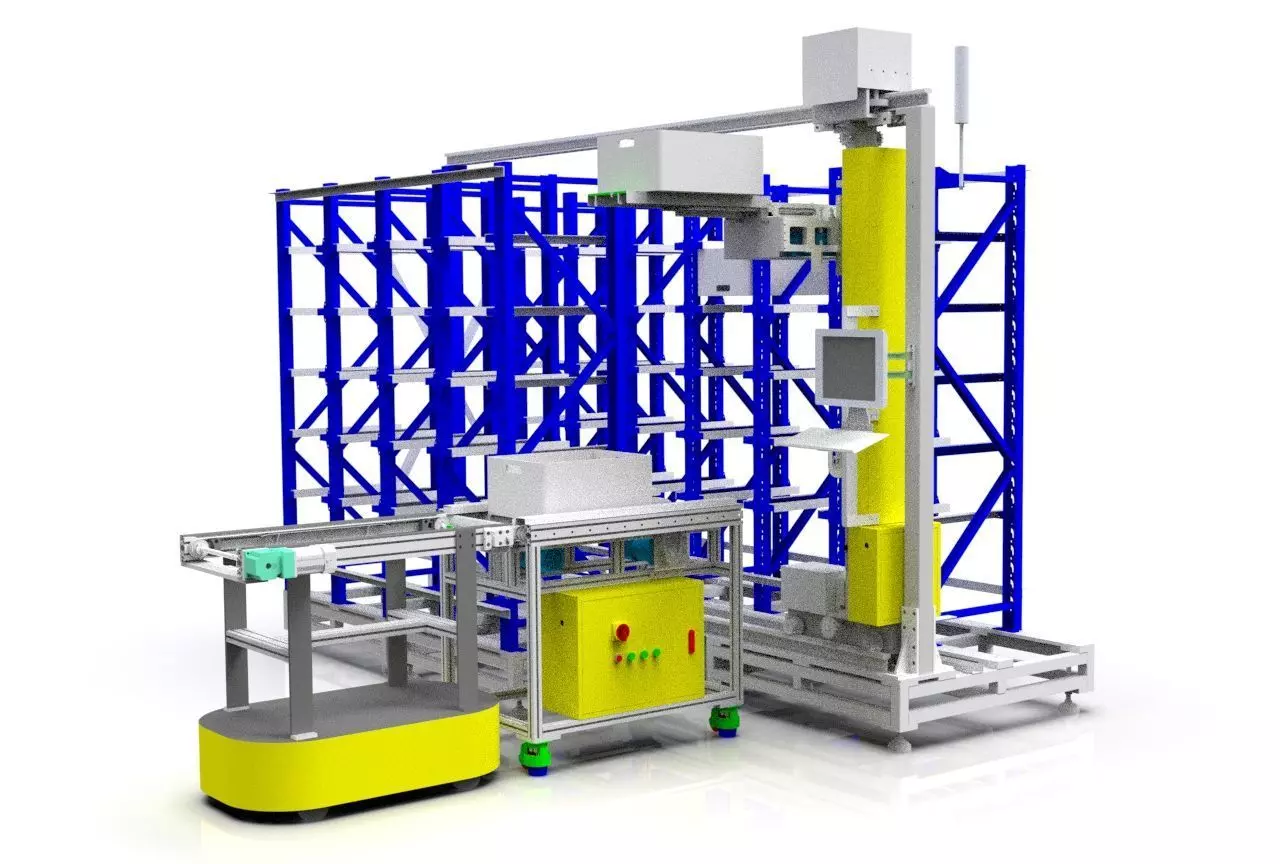

Small-sized Automated Warehouse 3D model

The small automated warehouse takes the bin as the storage unit and stores the bin on the shelf through the stacker. The fork sends the bin to the production line.

The main body of the micro automatic stereoscopic warehouse is composed of shelves, roadway stacking cranes, in (out) warehouse workbenches, and automatic in (out) and operation control systems.

It is widely used in the production logistics and distribution logistics of electronics, machinery, medicine, cosmetics, tobacco, automobile, and other industries. It has the ability to improve the level of logistics management, improve operational efficiency, reduce the loss of goods, save land, and save human, material, and financial resources.

CharacteristicsFast access, average reclaiming time: 20s;In and out of a single box, the storage unit can be directly connected to the AGV conveyor line;Customized multiple entrances and exits can realize the circulation of logistics;It can be docked with the manipulator to realize unmanned operation;Fully enclosed, temperature and humidity controllable;Seamless connection with ERP/SAP/MES, etc.This 3D is designed by SolidWorks2017, the file totals 109 MB, including the step file for other 3D software open.
