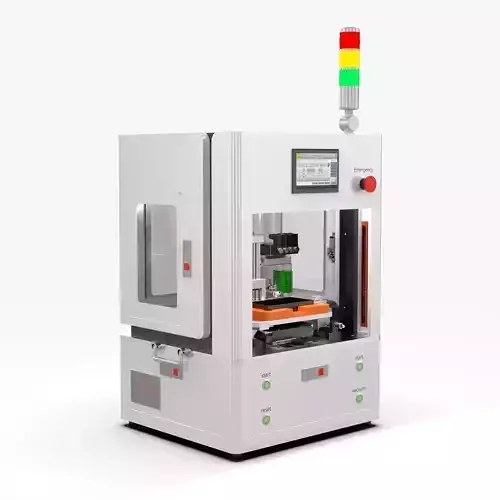

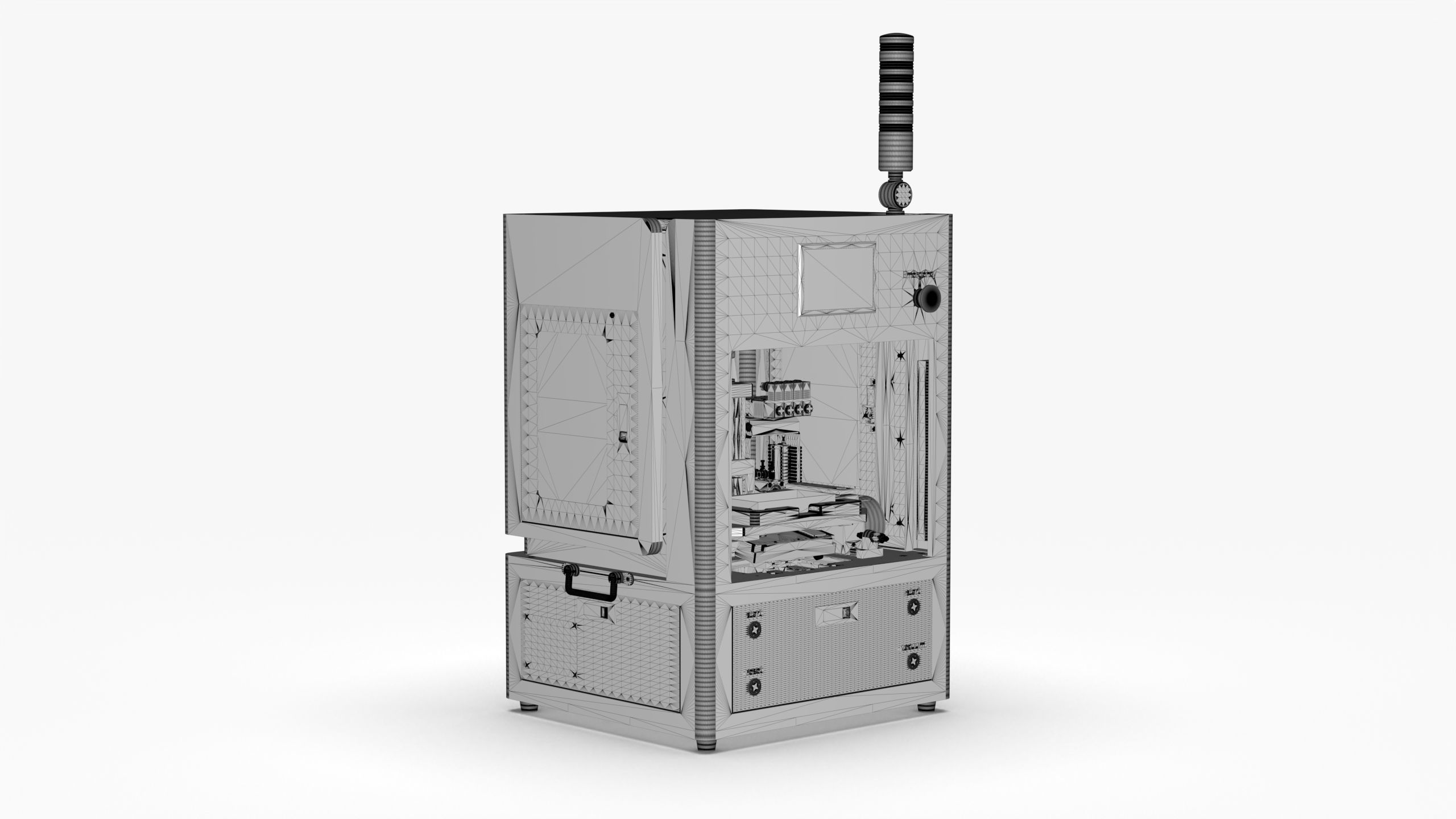

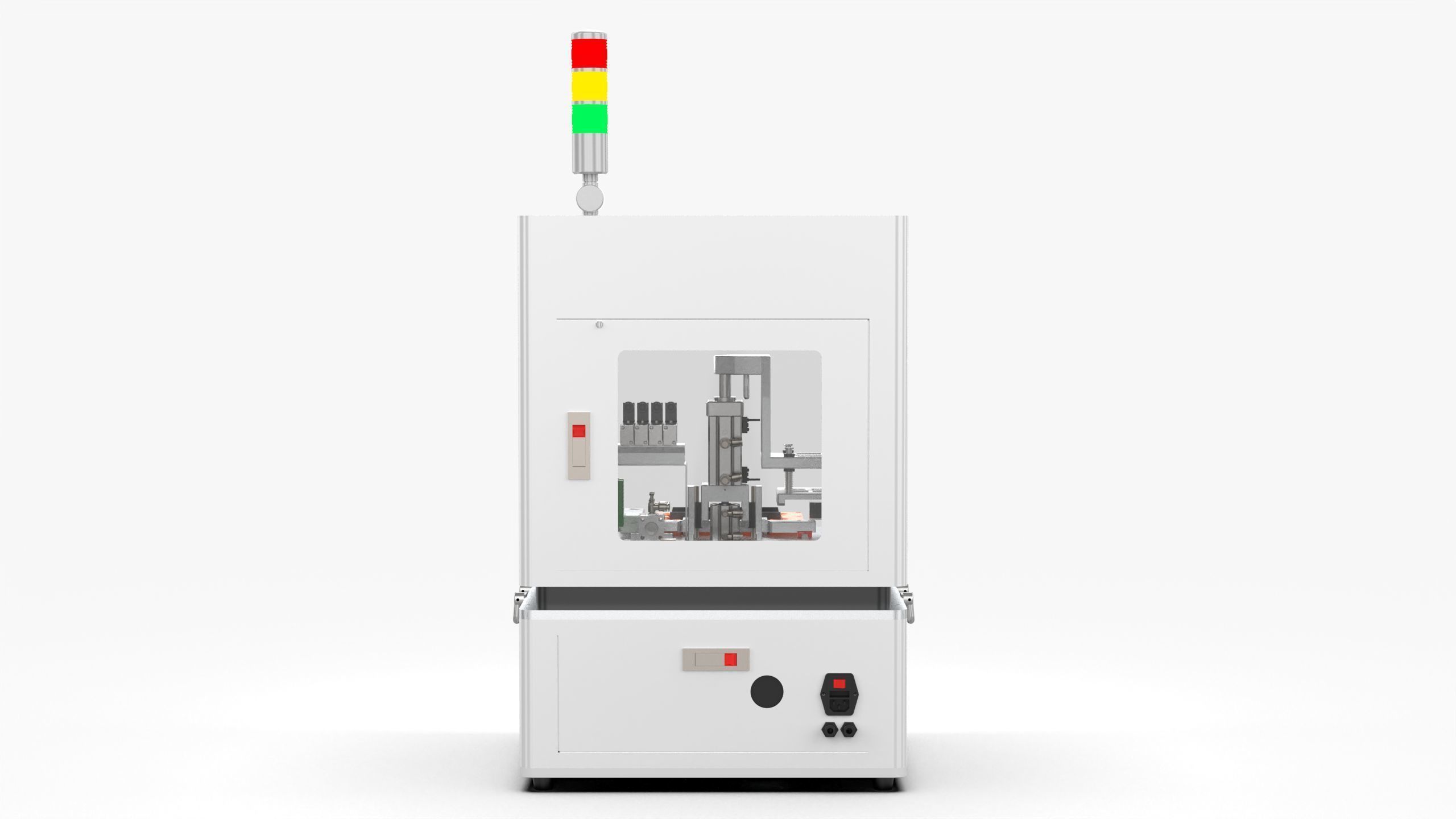

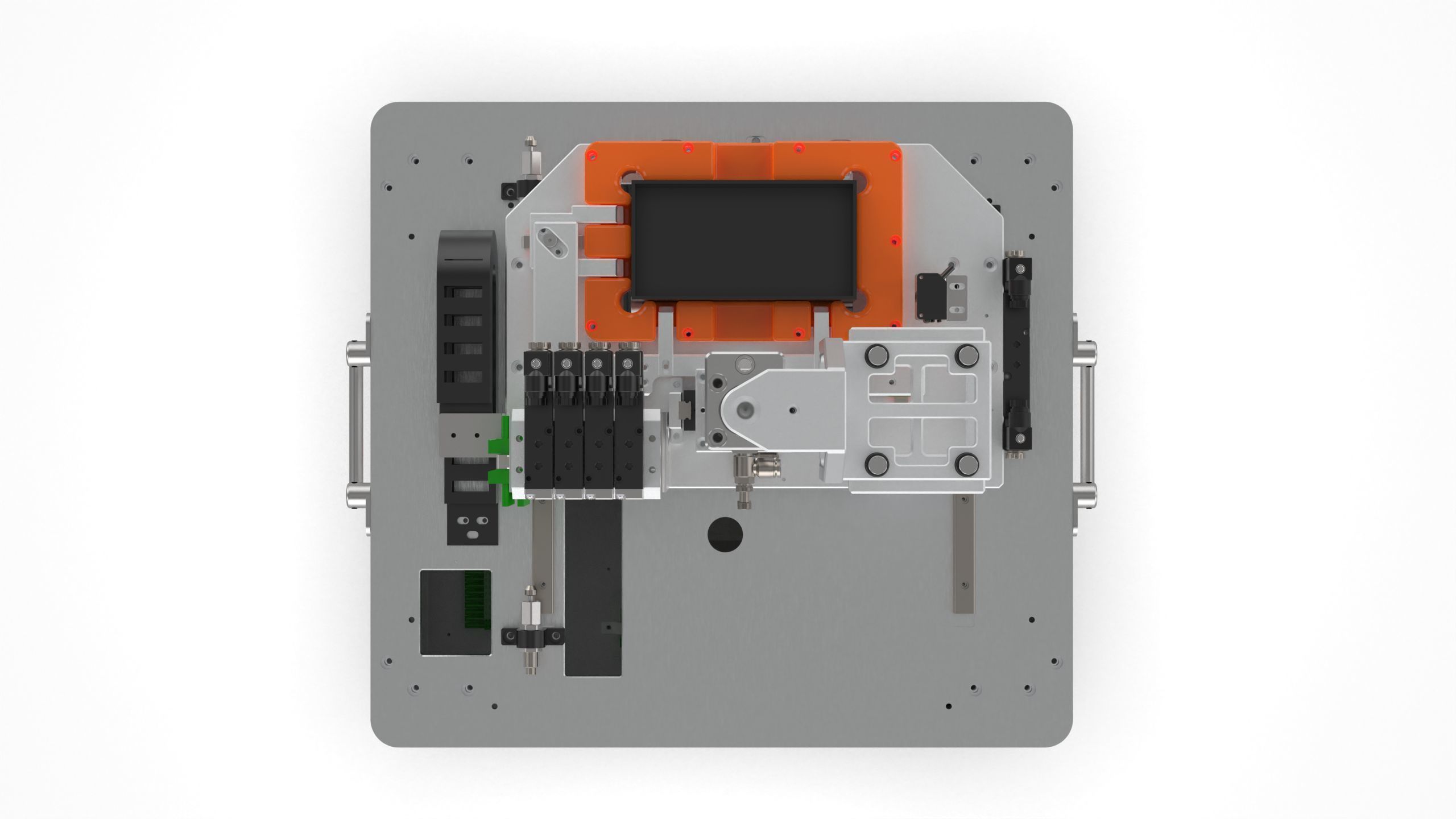

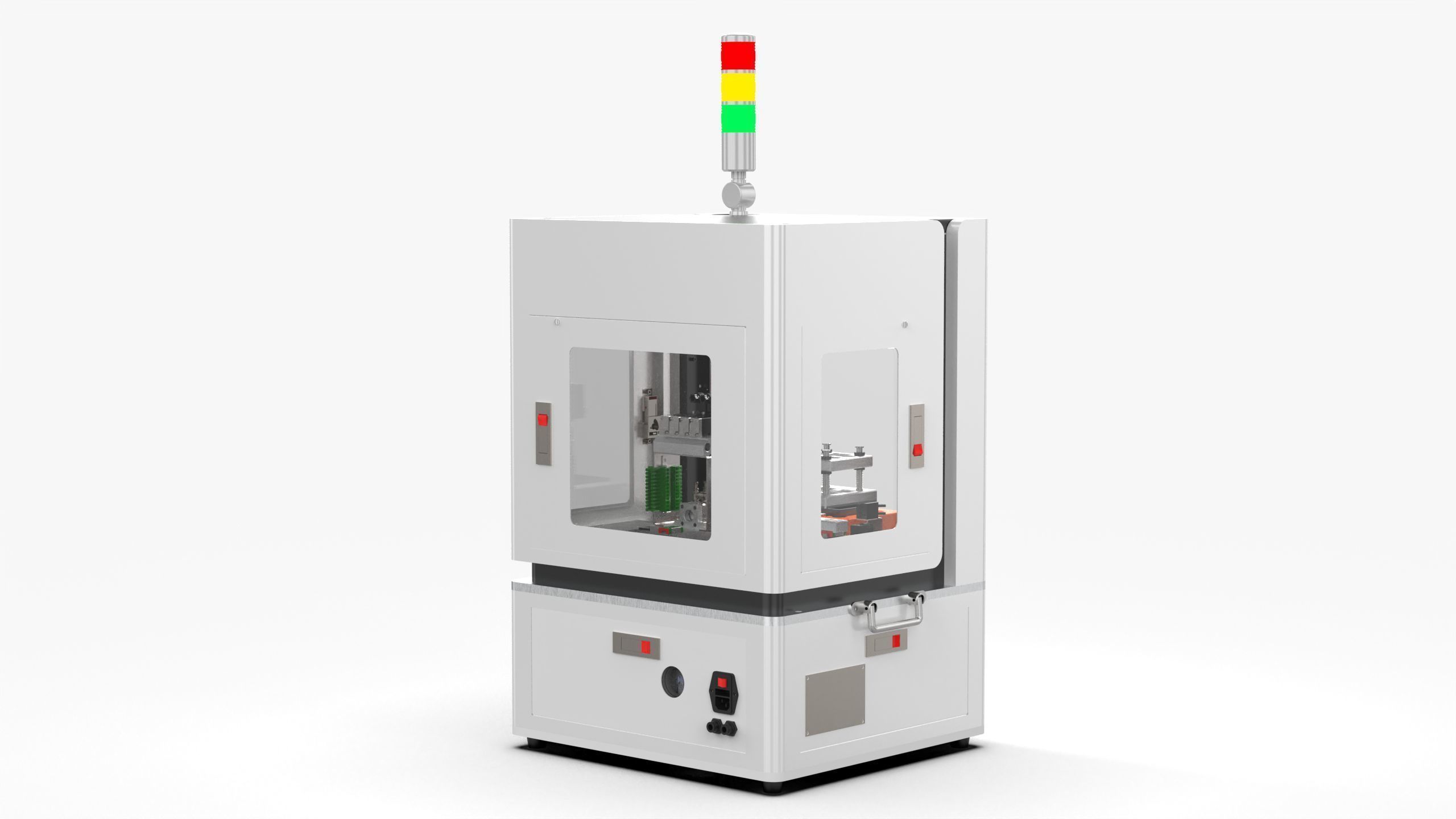

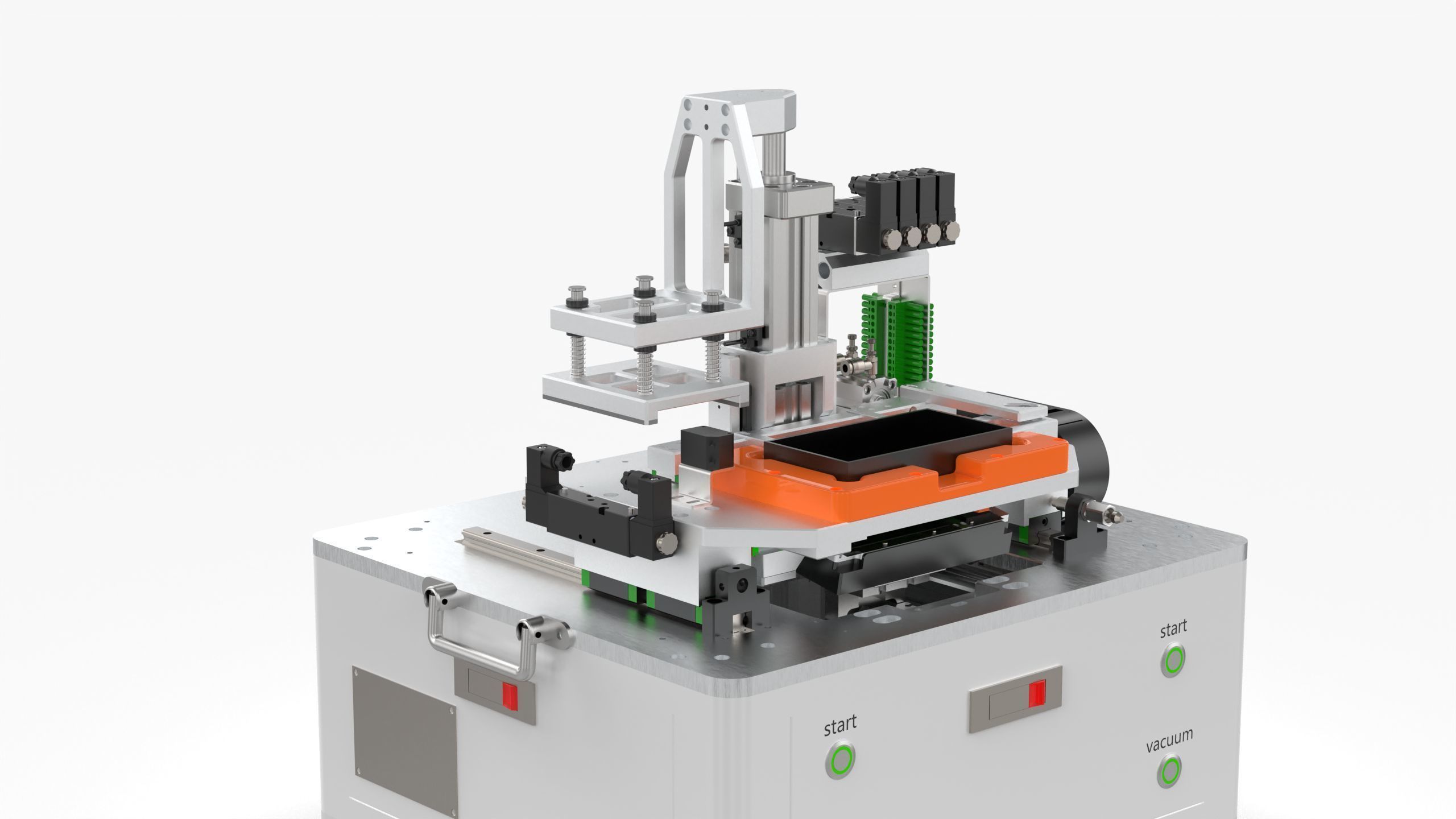

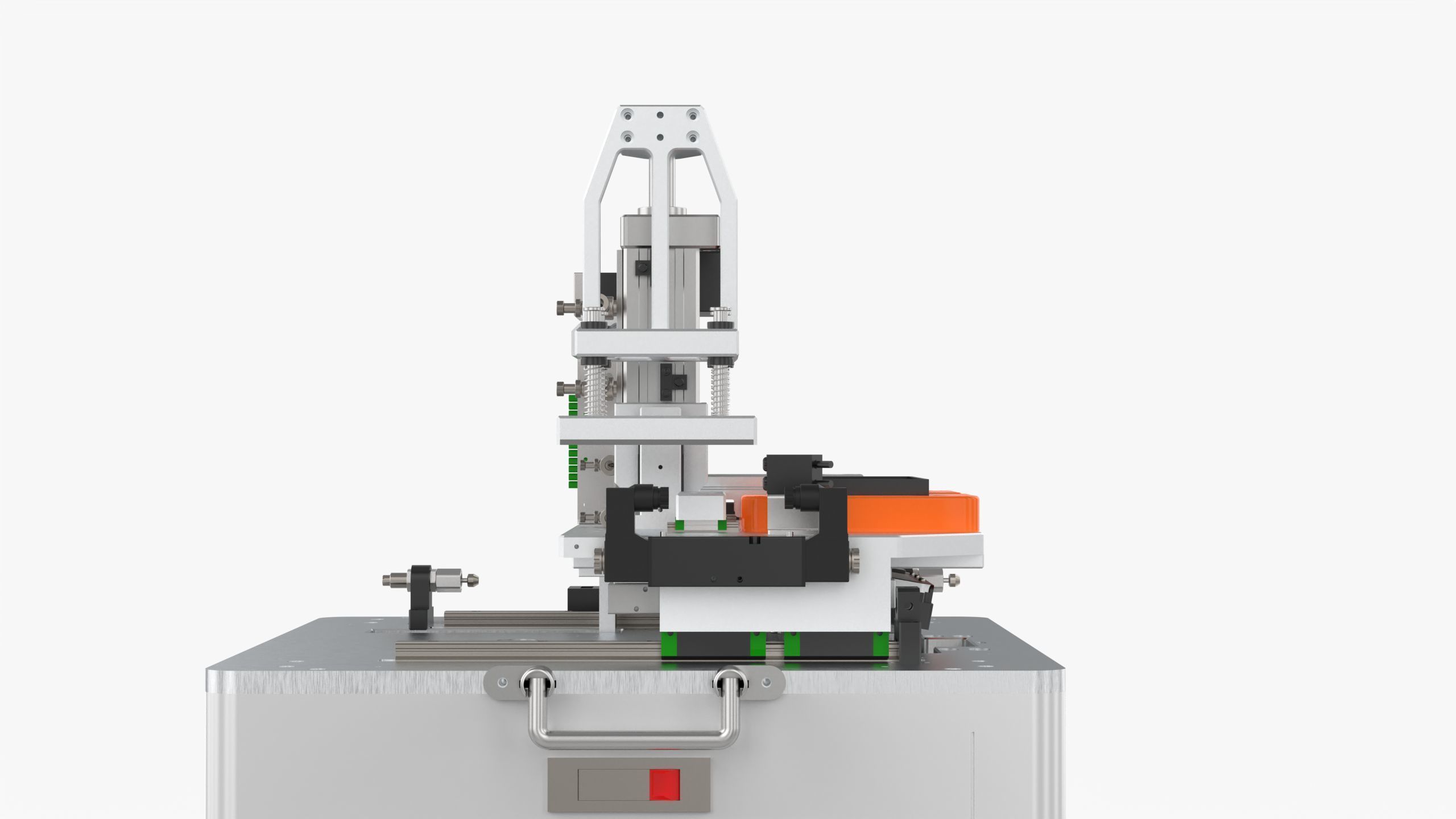

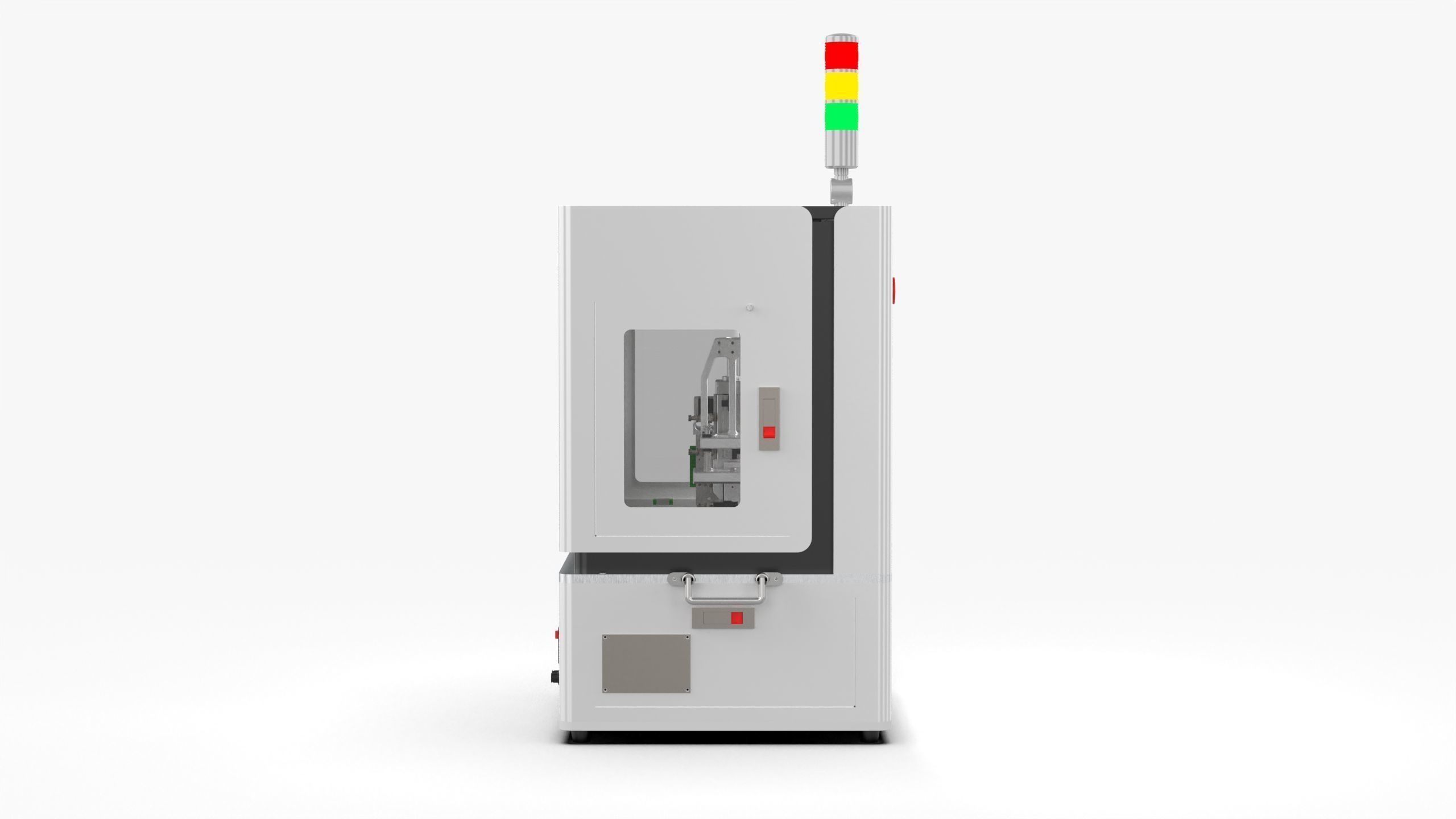

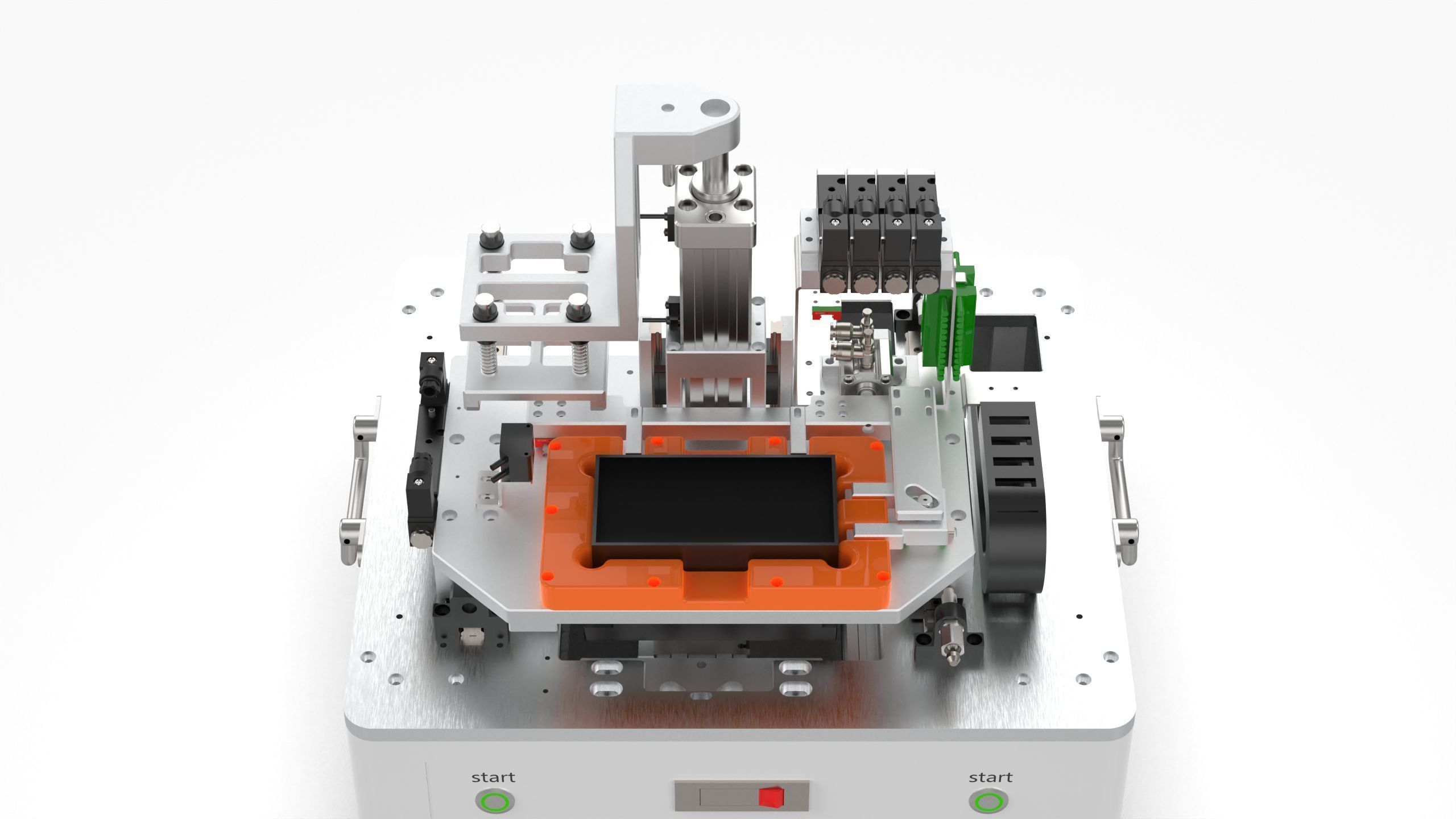

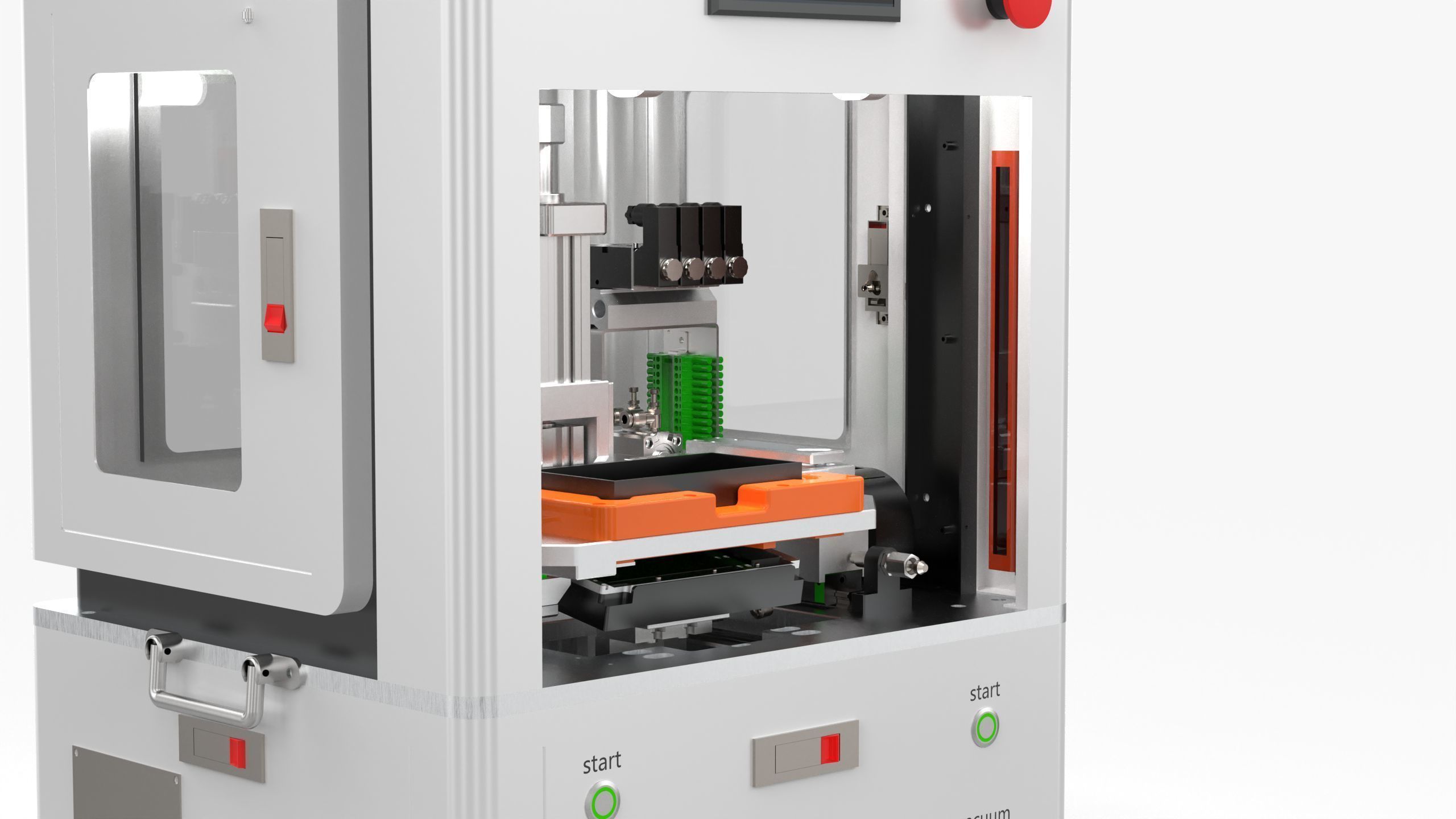

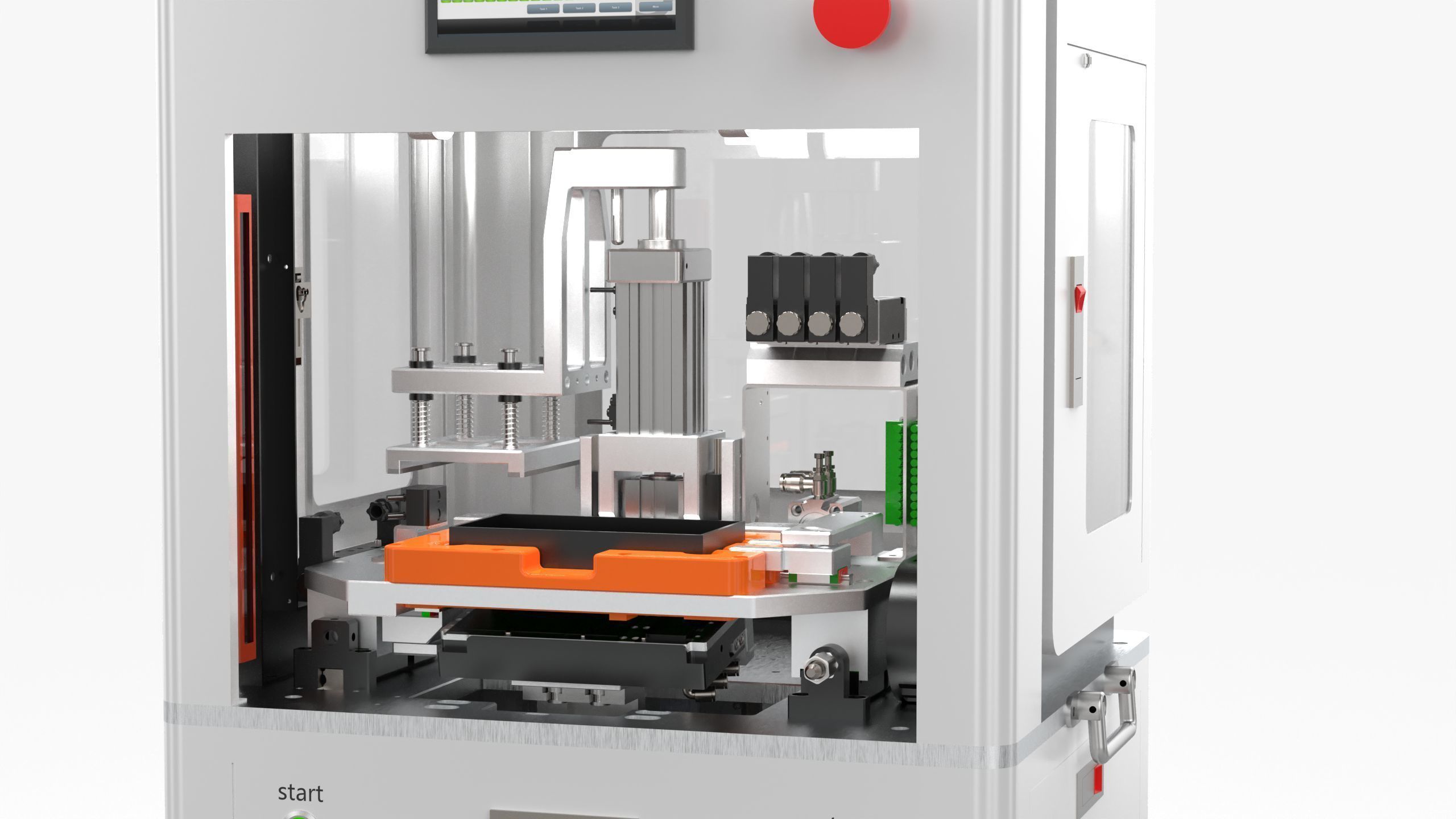

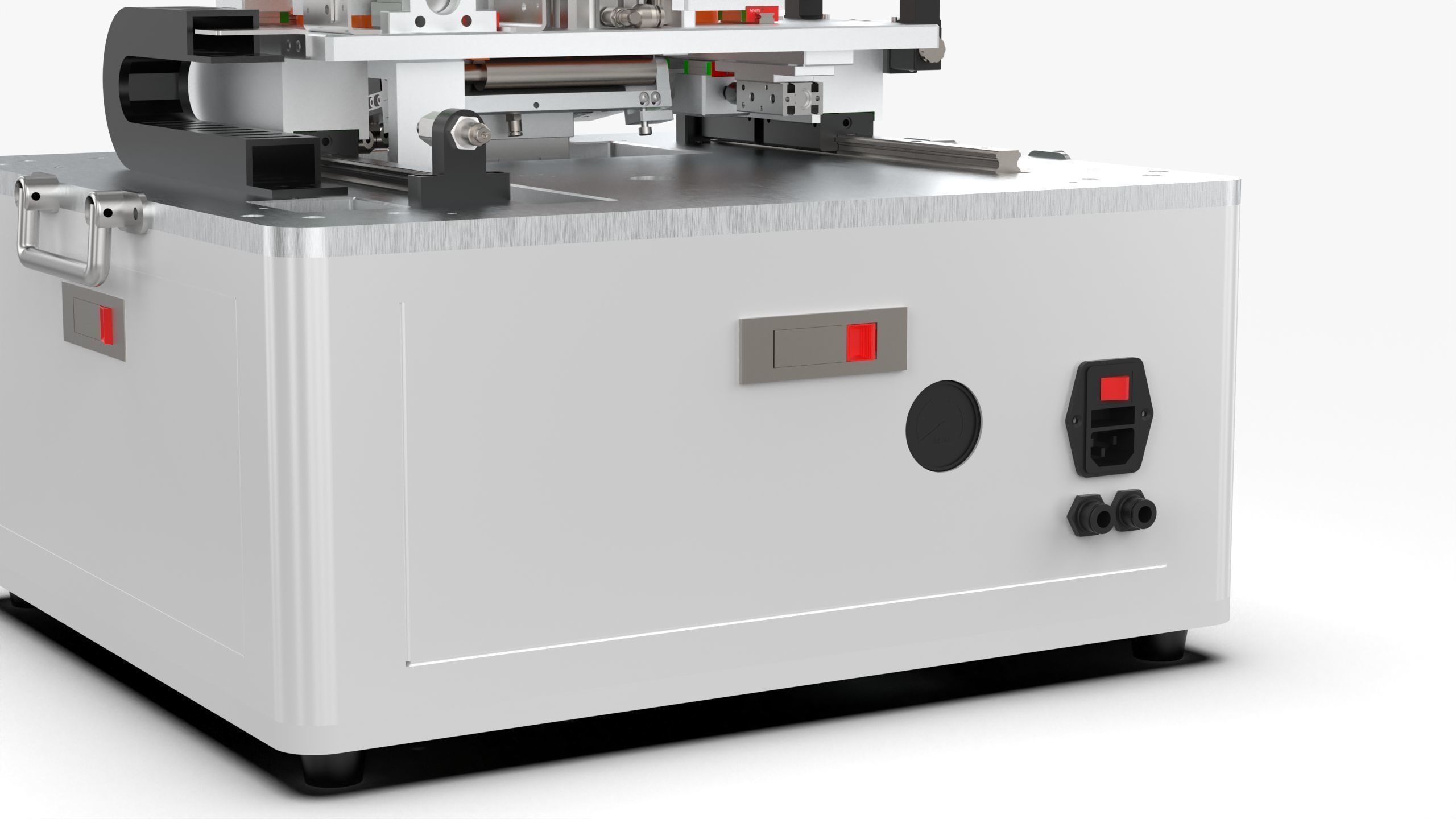

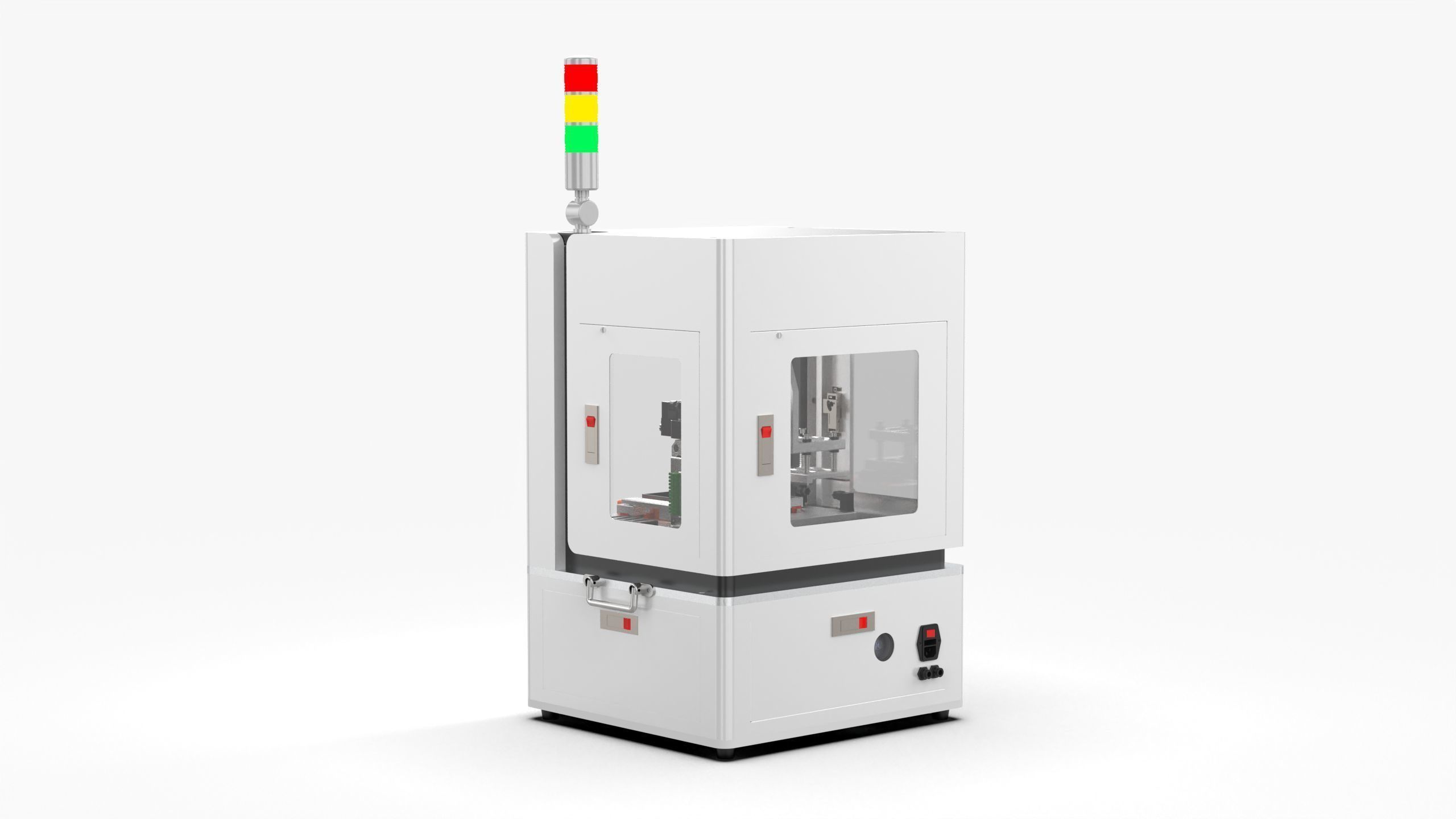

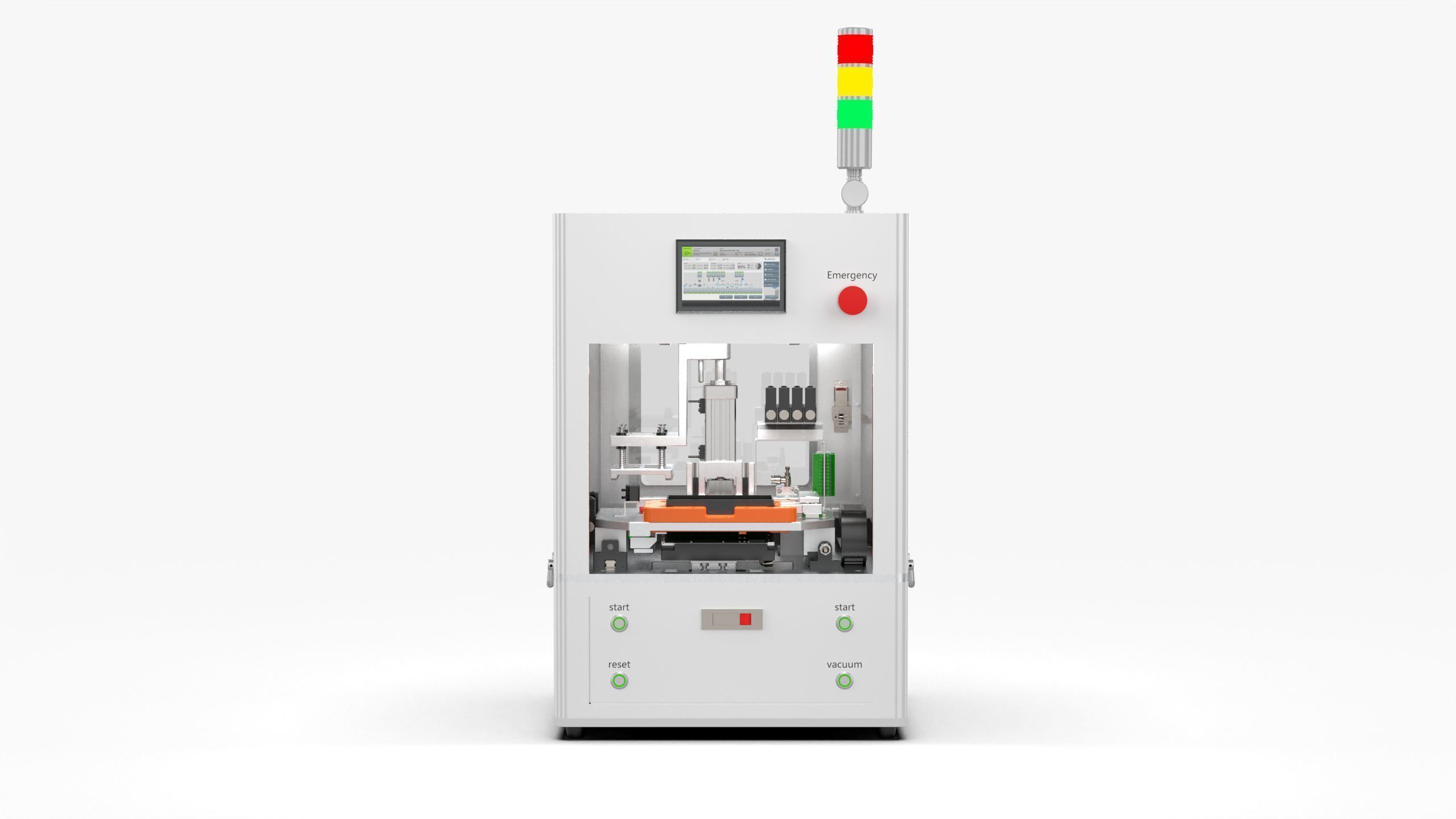

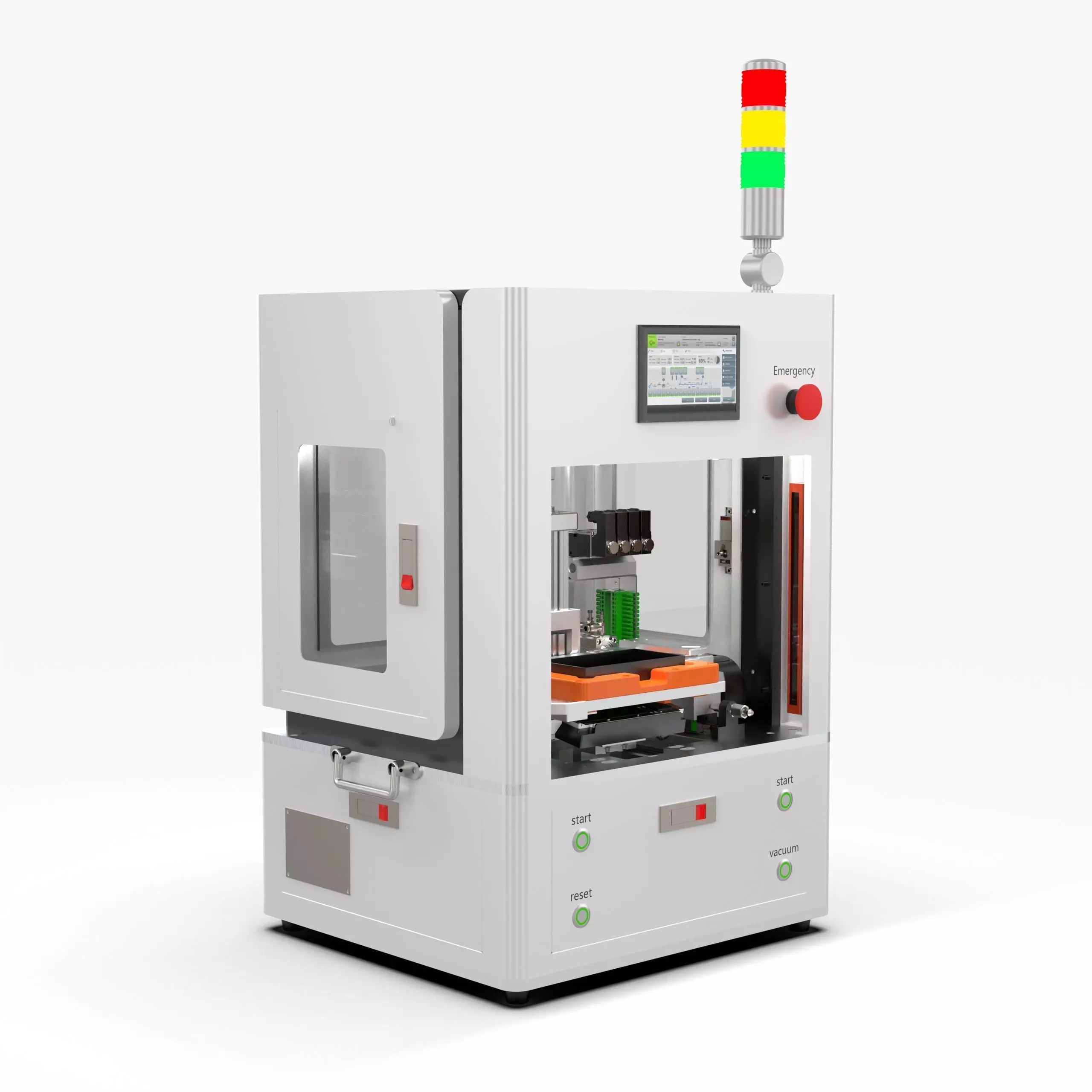

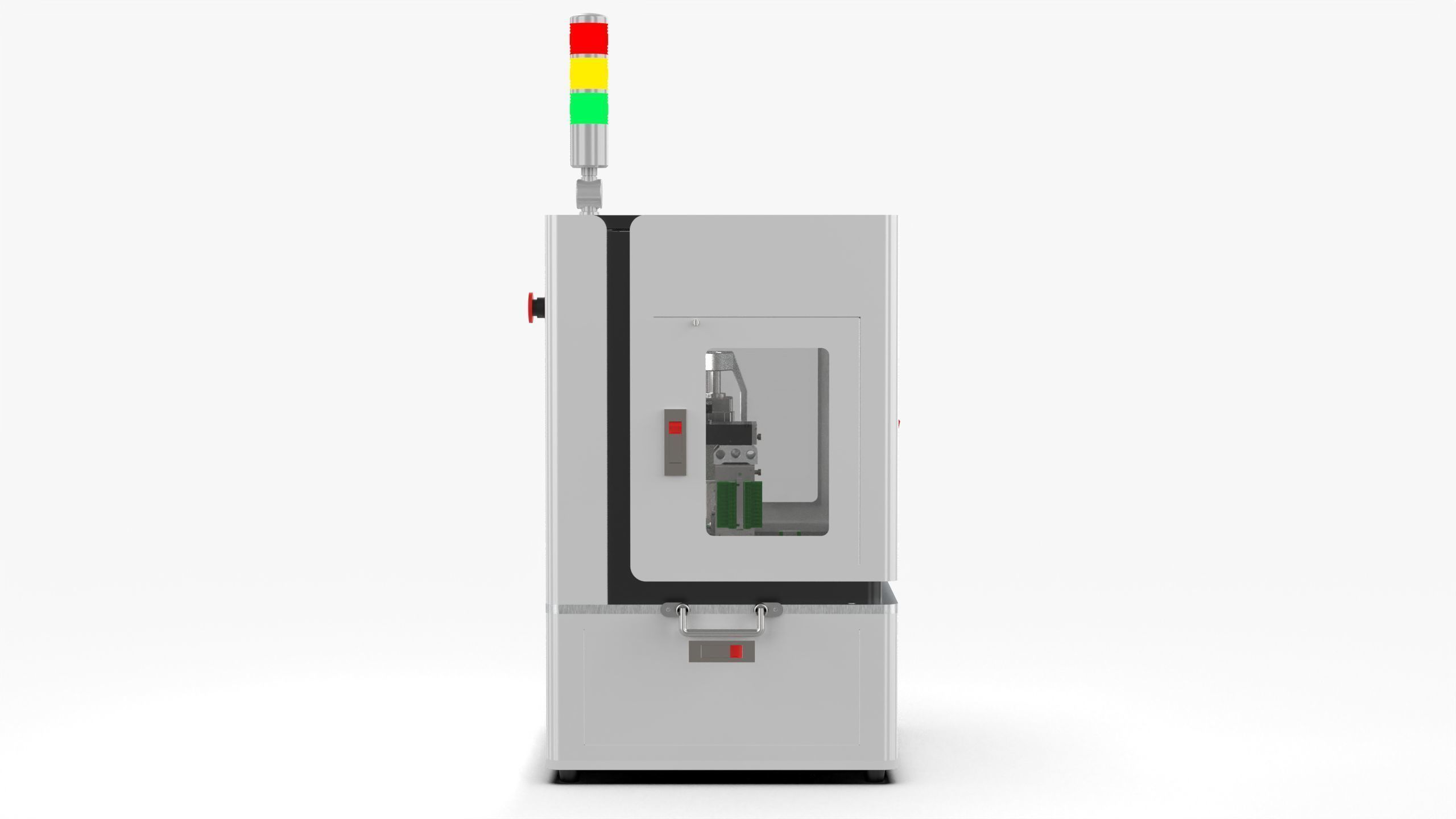

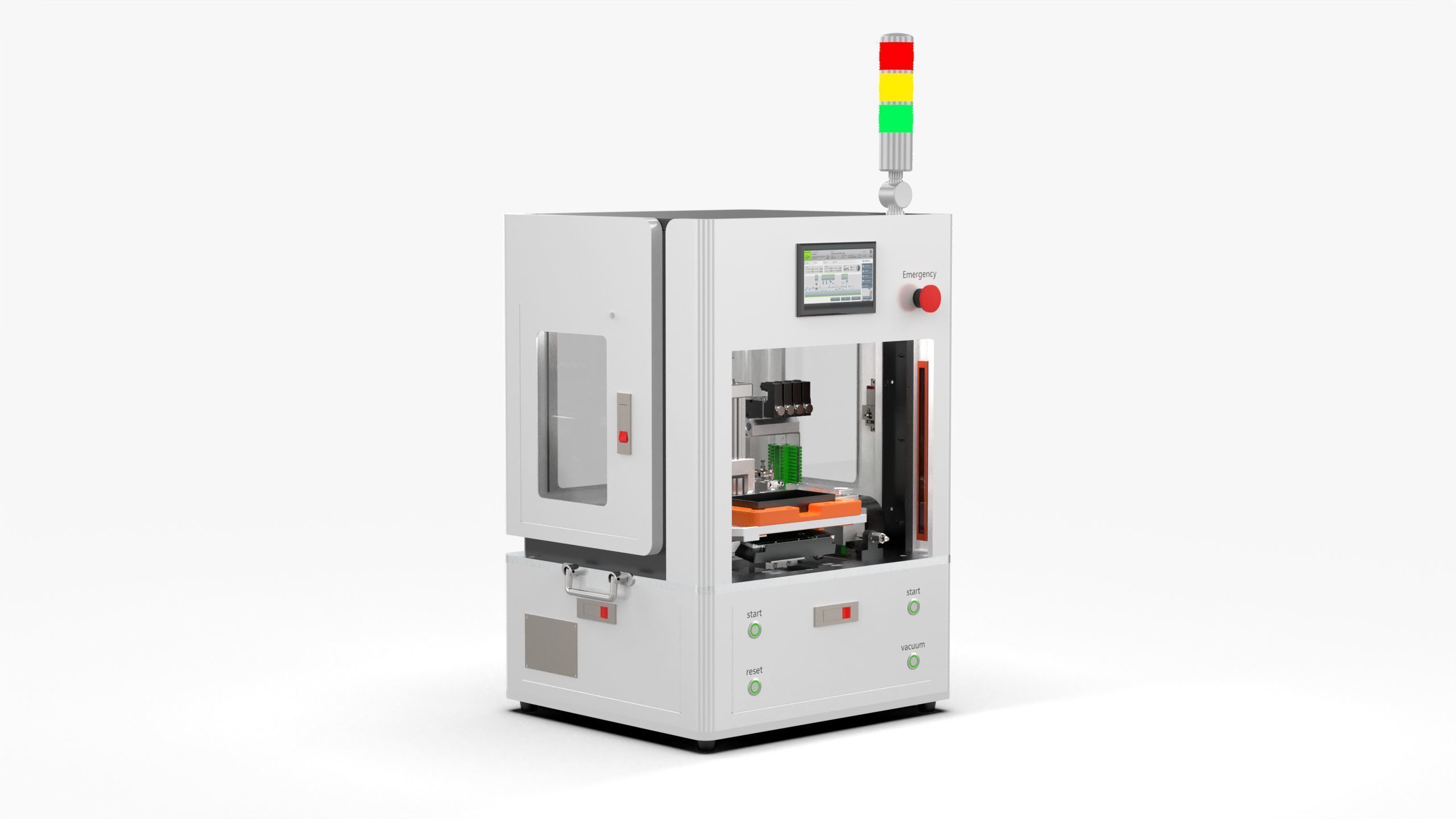

Semi Automatic Labeling Machine 3D model

Semi Automatic Labeling Machine

Introduction

Equipment parameters of semi-automatic labeling machine for film release suction plate

1. Power supply: 220VAC 50HZ
2. Size: L455 x W495 x H734mm
3. Speed: 150pcs/h
4. Weight: 35kg
5. Air pressure: 4-6kg/cm²

Equipment characteristics

1. Labeling accuracy 0.1mm (excluding product labels Error)
2. Applicable products: high and low mobile phone boxes are common;
3. Label size; length 20x200 width 20x220 (unit: mm)
4. The display screen has automatic monitoring screen; alarm screen; easy to set parameters and view information;

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 1,107,515
• Vertice: 3,322,545
