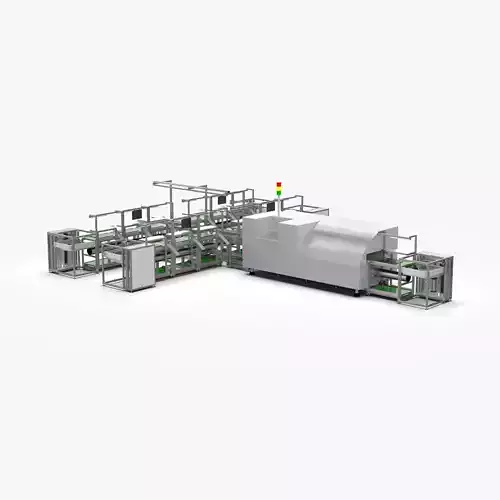

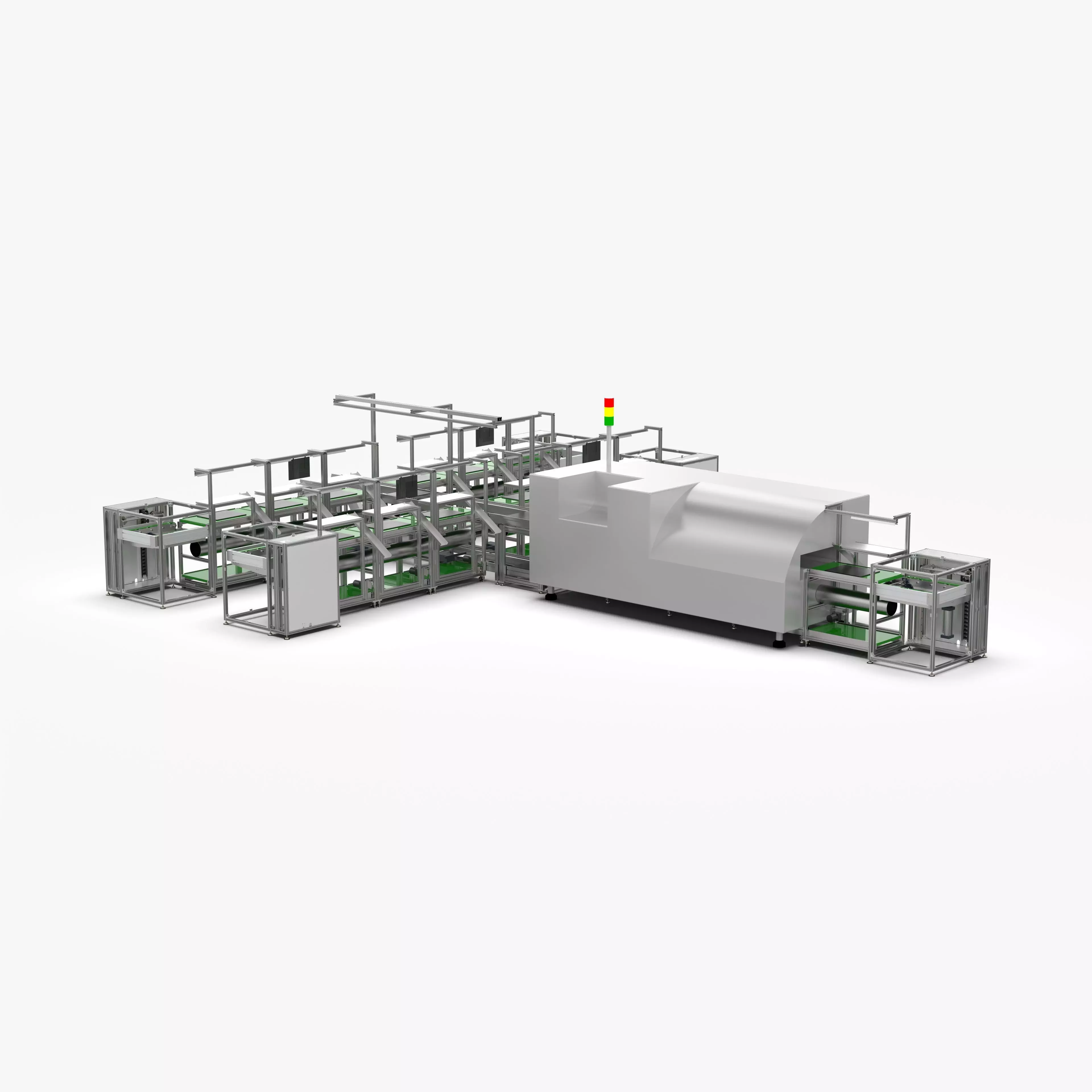

Selective Soldering Production Line 3D model

Selective Soldering Production Line

Introduction

Plug-in welding production line

1. Adopt the method of passing tin furnace to realize the simultaneous passing of multiple PCBs of different styles.
2. Use the up and down walking plate type.
3. After the product is welded, when the fixture is returned to the board, it will automatically return to the corresponding position according to the type of barcode.
4. There is no moving action after the plug-in is completed, and the direction of the plug-in is 90 degrees to the direction of the furnace.
5. The line body is modularized, that is, each branch line can be combined at will under the condition that the site is not restricted.
6. There is a clamp protection cover at the position of the working pedal to prevent the clamp from being damaged.
7. The plug-in material rack adopts a double-layer design, and the plug-in material box has a recycling function.
8. The lighting adopts integral lampshade lighting.
9. Add an exhaust duct and integrate it into the line body, and use a splicable duct.
10. One of the workbenches in each set of plug-in lines has a concealable workbench, which can realize thedual functions of plug-in/holding tin.
11. Each plug-in station has a monitor to display the indicator card.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 7,377,514
• Vertice: 22,132,542
