Roller Conveyor 3D model

Description

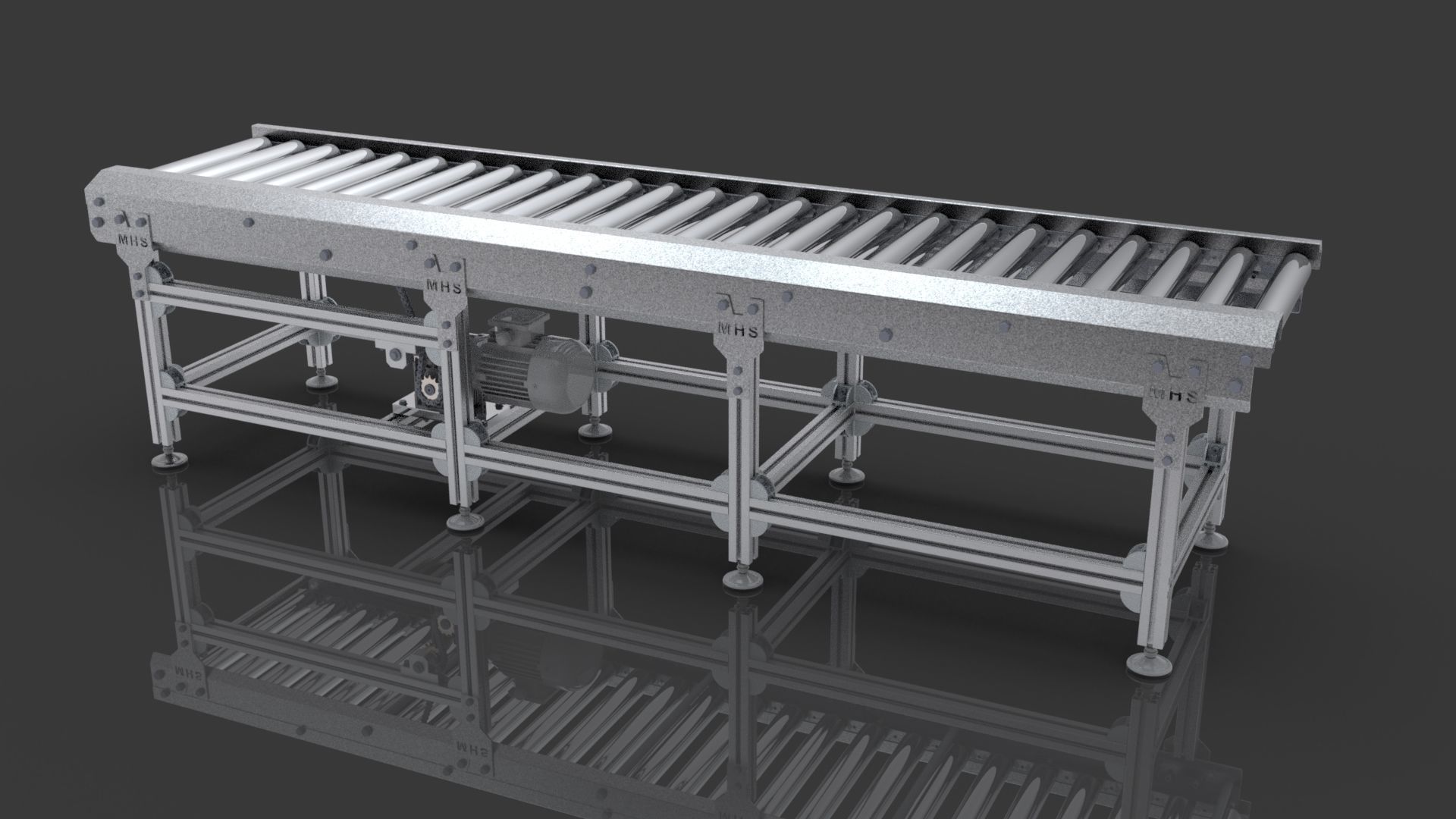

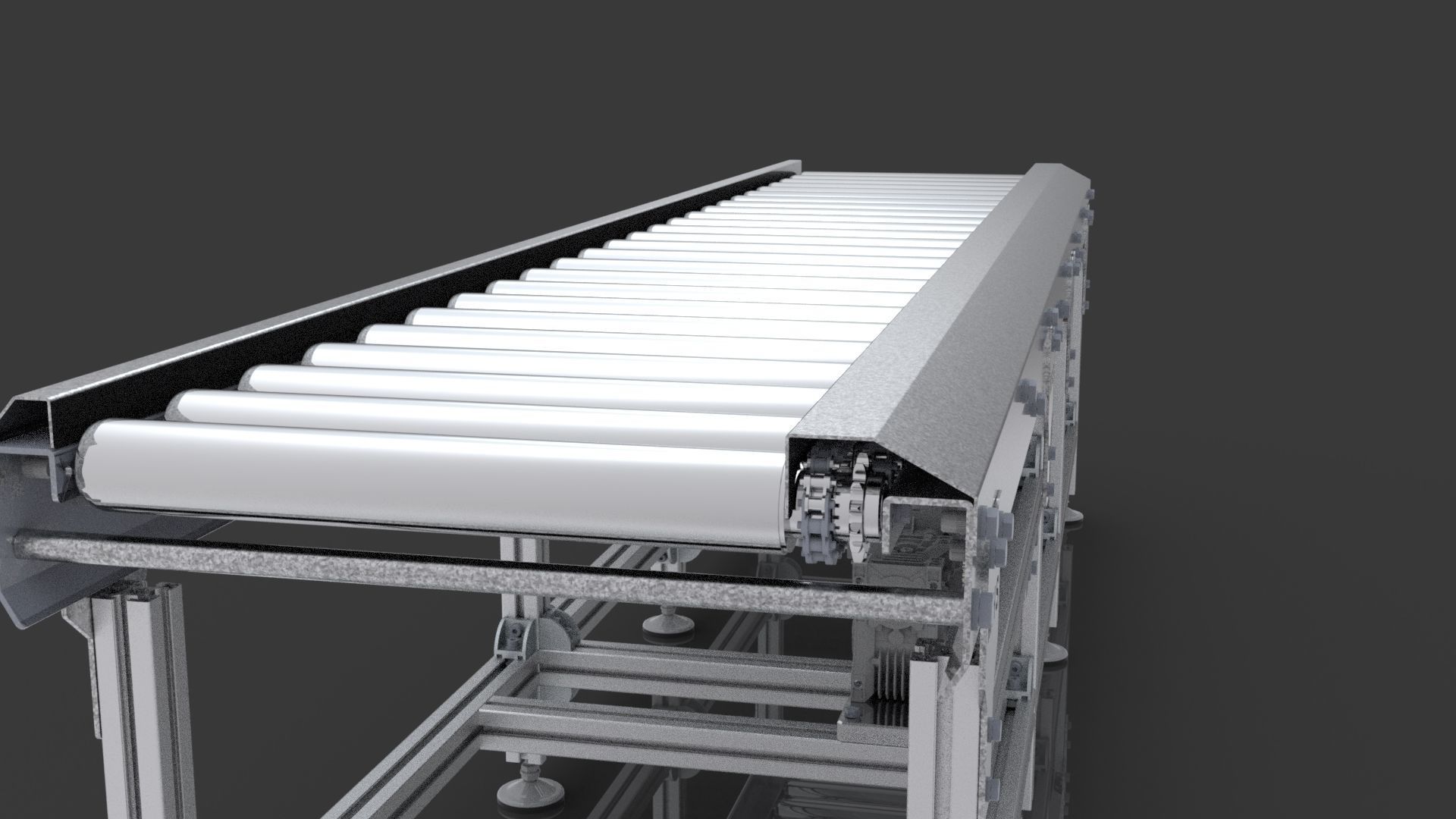

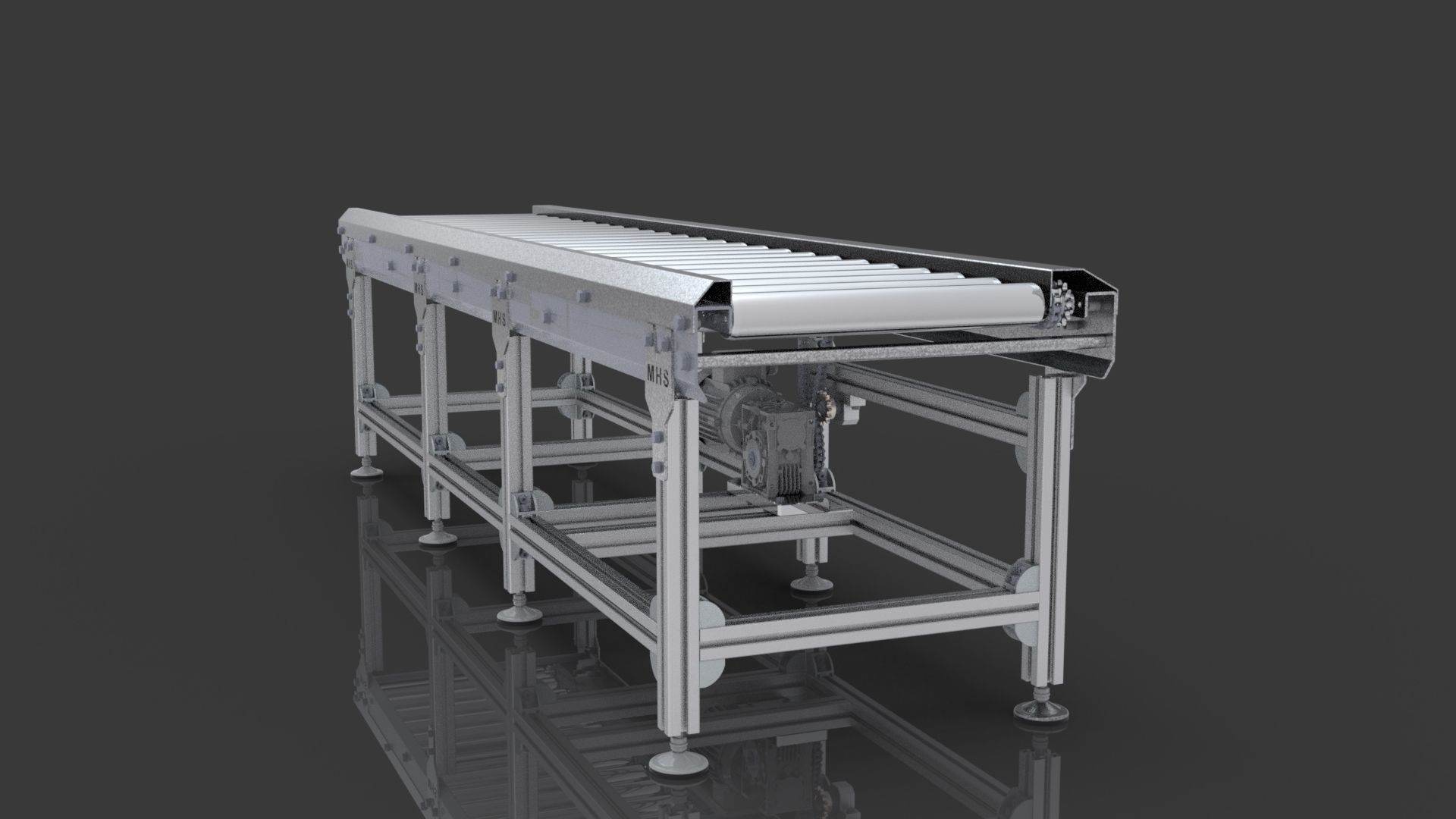

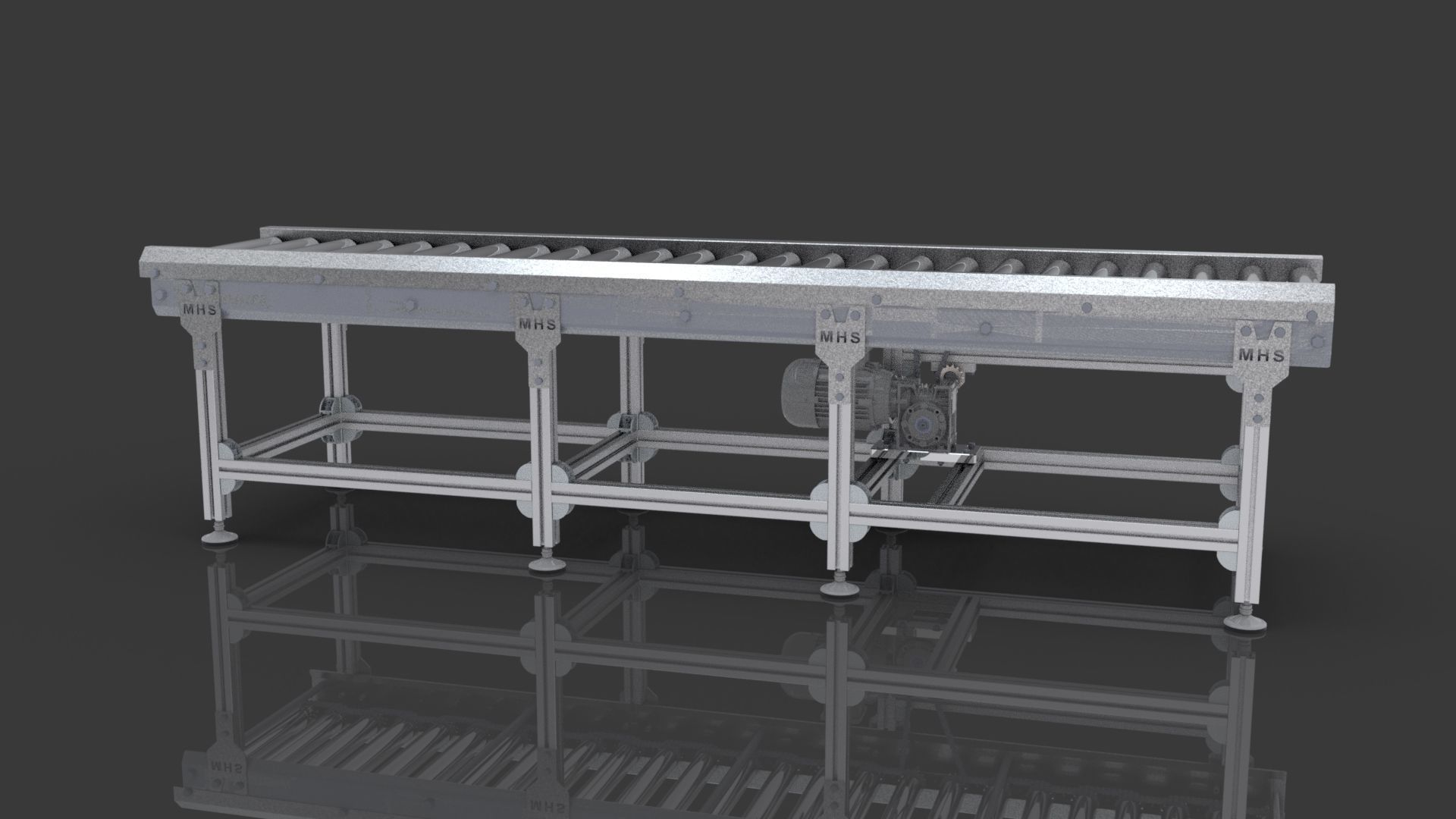

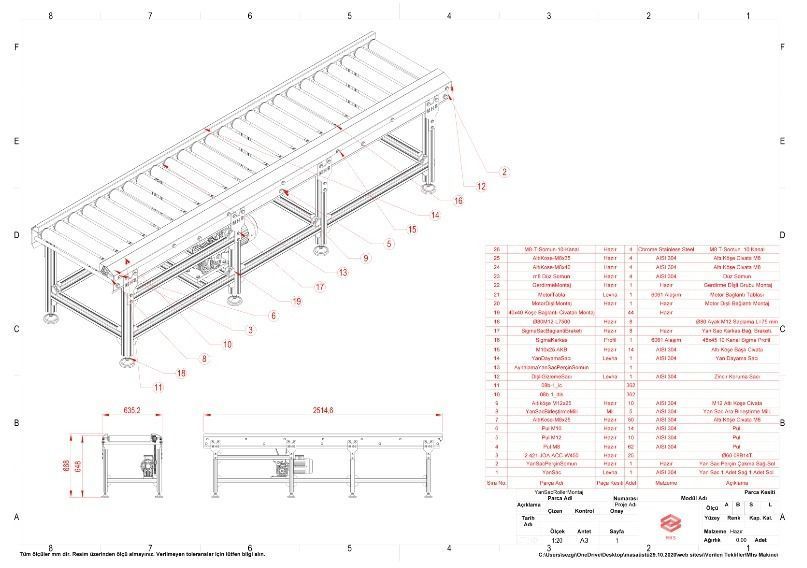

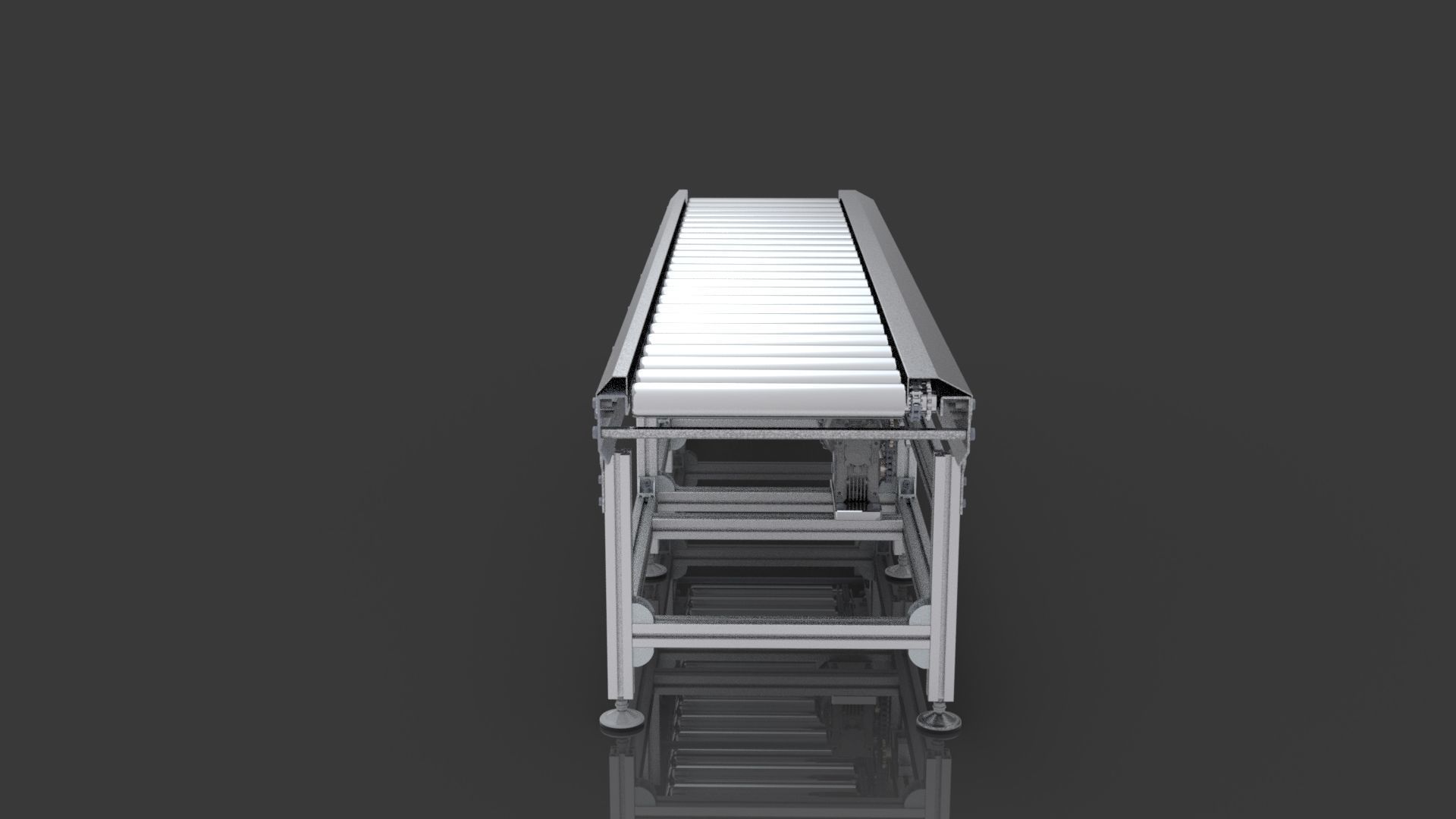

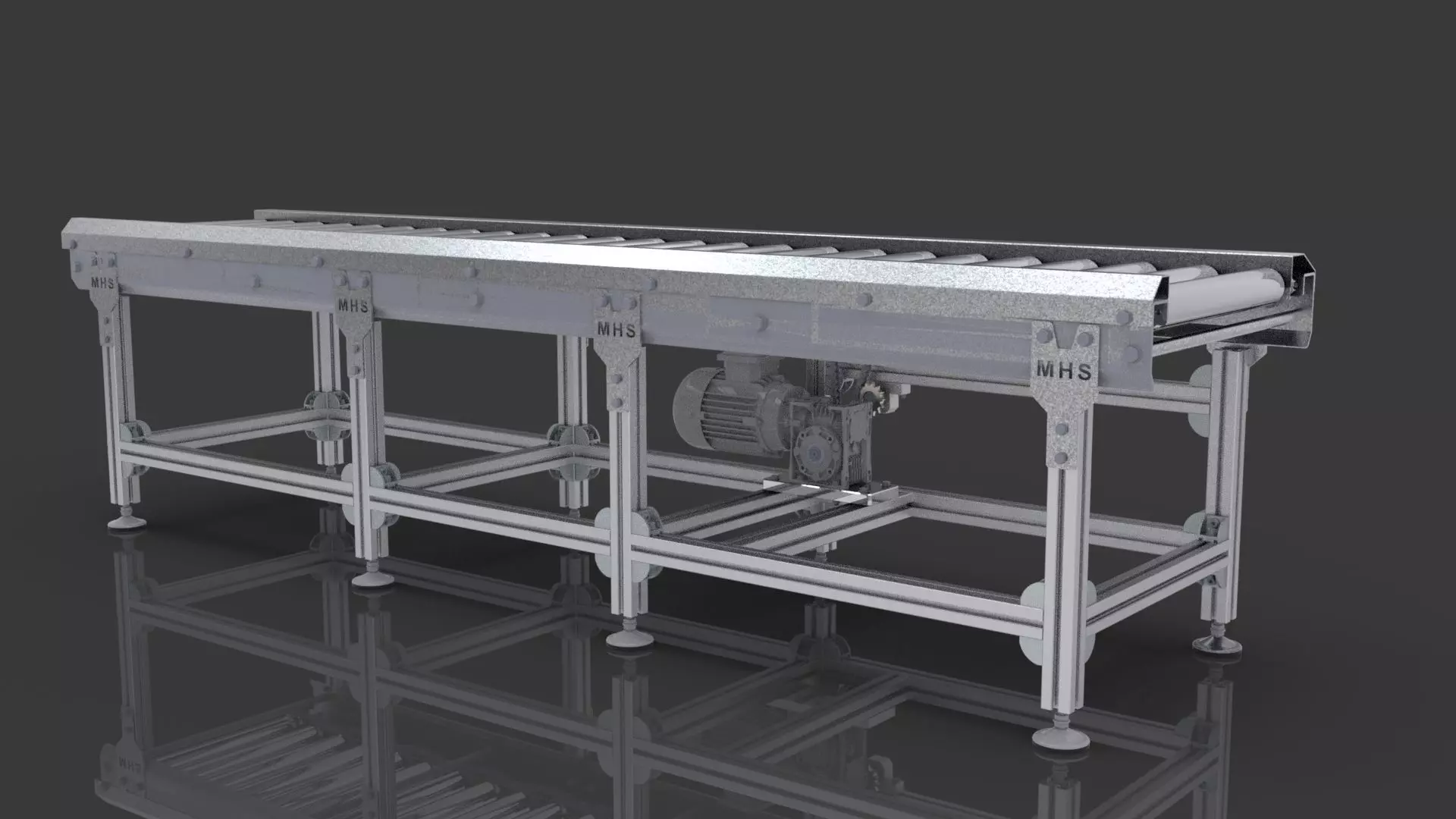

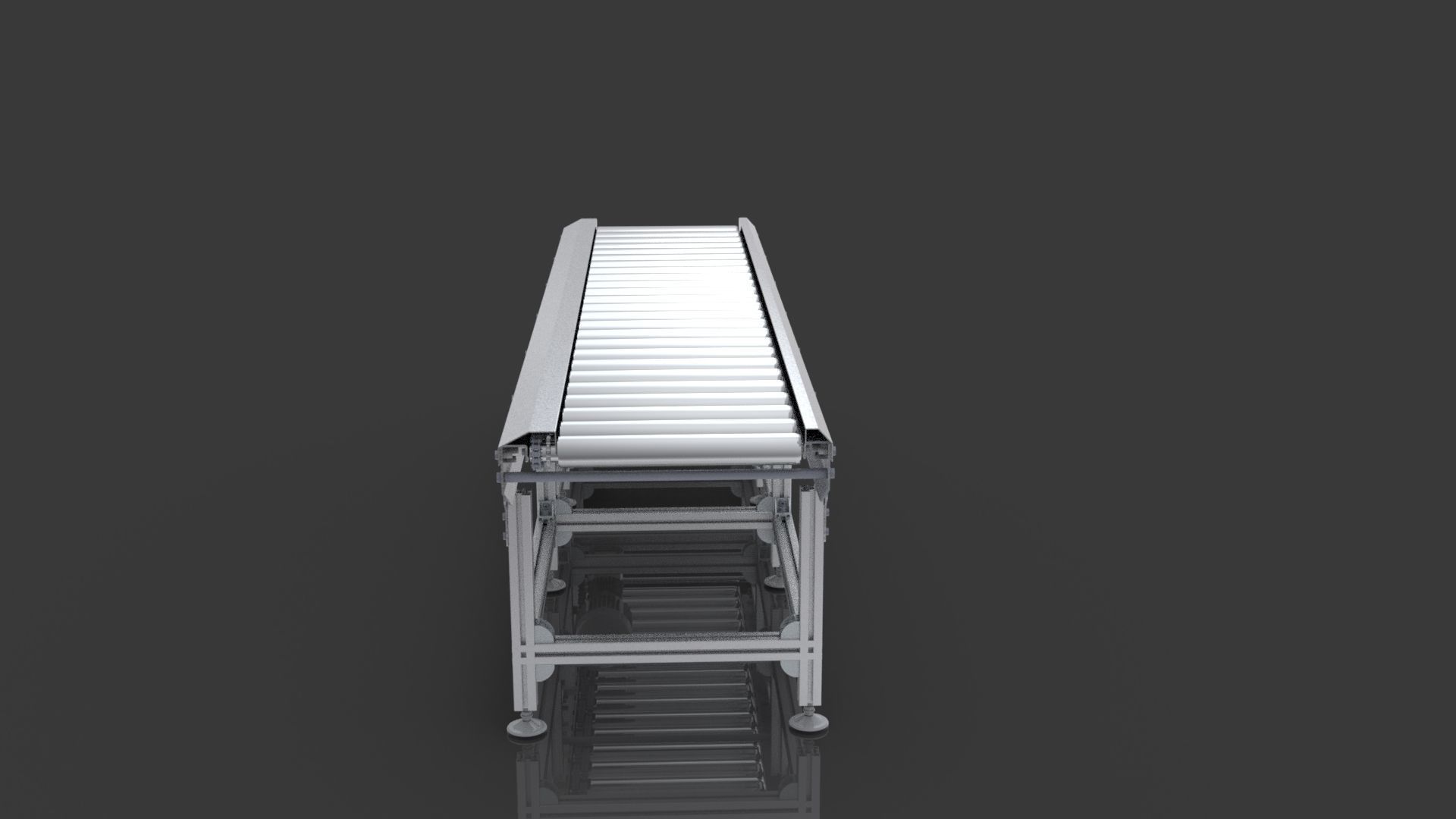

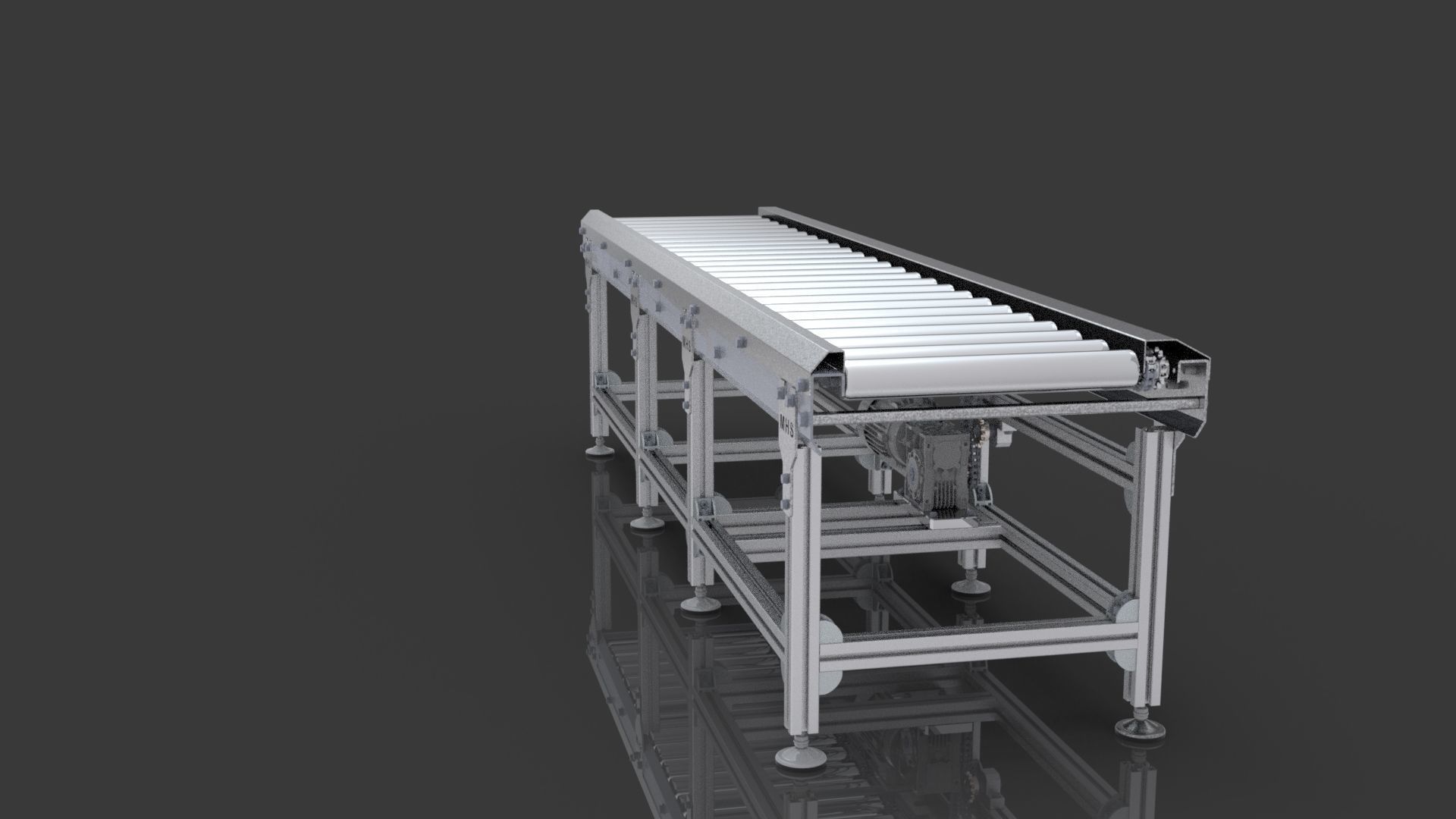

Chain driven roller conveyor. It is installed on a Sigma profile chassis. The gear code used is 08b1 z14. The drive motor used is ev50 case 110 rpm reducer motor. The roll diameter used is 60 mm and the width is 450 mm. Carrying capacity is maximum 1500 kg. Side sheets can be used as 4 mm stainless steel or painted st-37 quality sheet.

www.mhsmakine.com

Write comment
Item rating
1 0
K
keyframefactory
keyframefactory2022-04-20 09:53:38 UTC
Recommended
Roller Conveyor
$12.00

Royalty Free License
Roller Conveyor
$12.00

Royalty Free License
S
sezgincelik2
(2 reviews)
Response 17% in 28.9h
3D Modeling
Rendering

3D Model formats

Format limitations
  • AutoCAD (.dwg)1.71 MB
  • DXF (.dxf)1.53 MB
  • SolidWorks (.sldprt, .sldasm, .slddrw) (2 files)52 MB
  • PDF (.pdf)1.69 MB
  • STEP (.stp)6.16 MB

3D Model details

  • Ready for 3D Printing
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry -
  • Polygons 0
  • Vertices 0
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Publish date2021-04-04
  • Model ID#2965493
