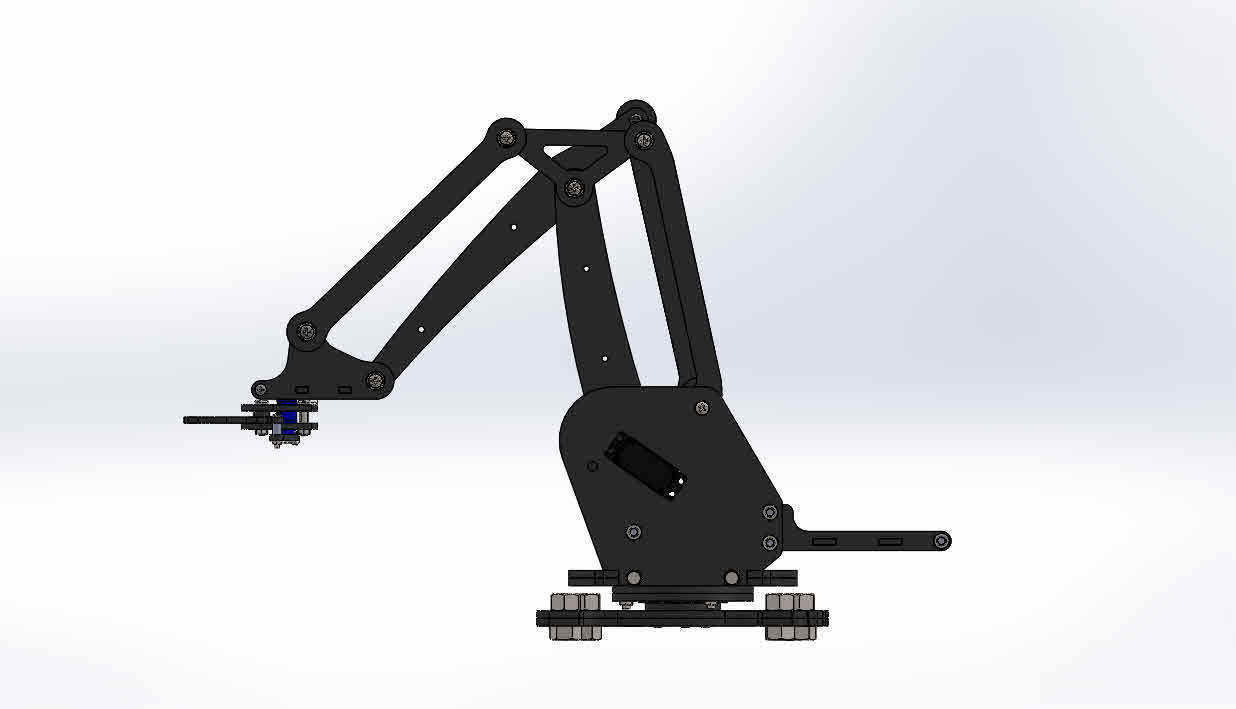

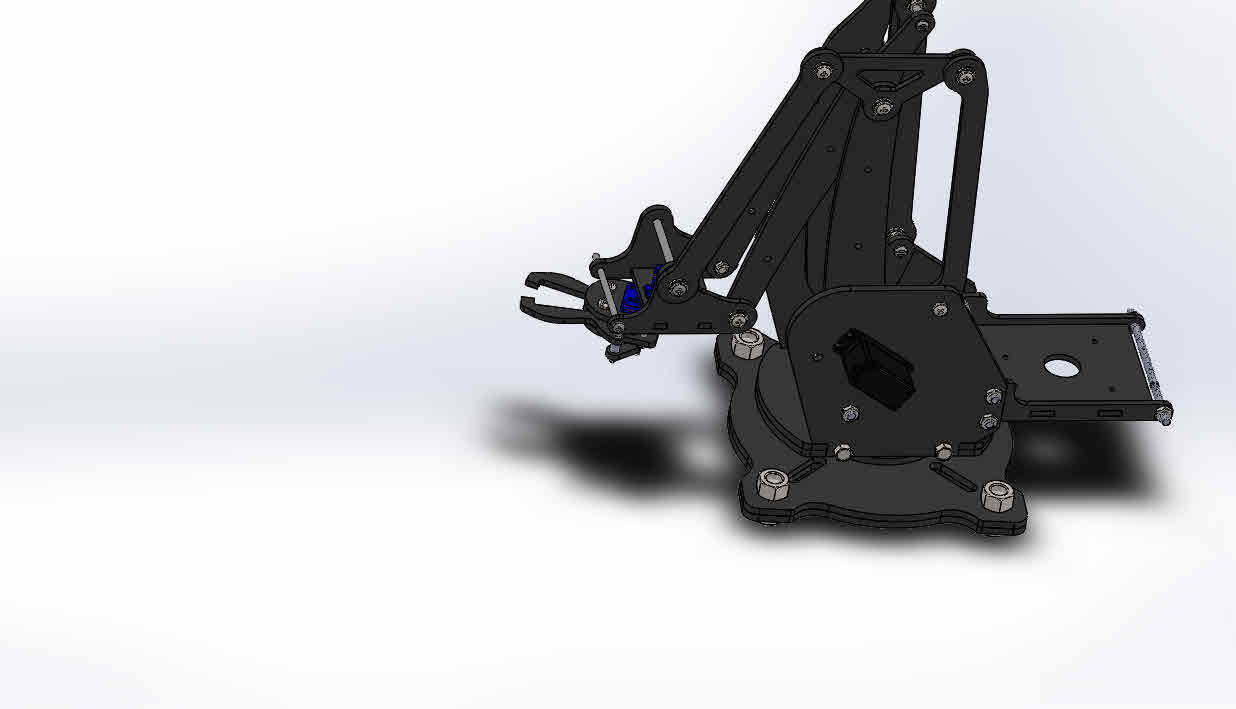

Robotic Arm Design 3D model

Description

Robotic arm like Uarm

4 DOF

parts and assembly by solidworks 2018

Dxf Files for Laser cut

2 X DC servo motor 20 kg.cm

1 X DC servo motor 15 kg.cm

2 X micro servo 1.8 kg.cm (MG90S)

with PDF Collective drawing

Arduino Code (Firmware)

Control Program

Receive Gcode

Laser Cut on 4 and 5 mm Acrylic
