Quantitative packaging machine 3D design model

Quantitative packaging machine 3D design model 3D model

Description

This machine is widely used to pack granular materials, such as sugar, coffee, salt, MSG, flavouring, sunflower seeds, puffed food, nuts, tea, herbs, peanuts, beans, rice, grains, washing powder, etc.

WORKING PRINCIPLE:

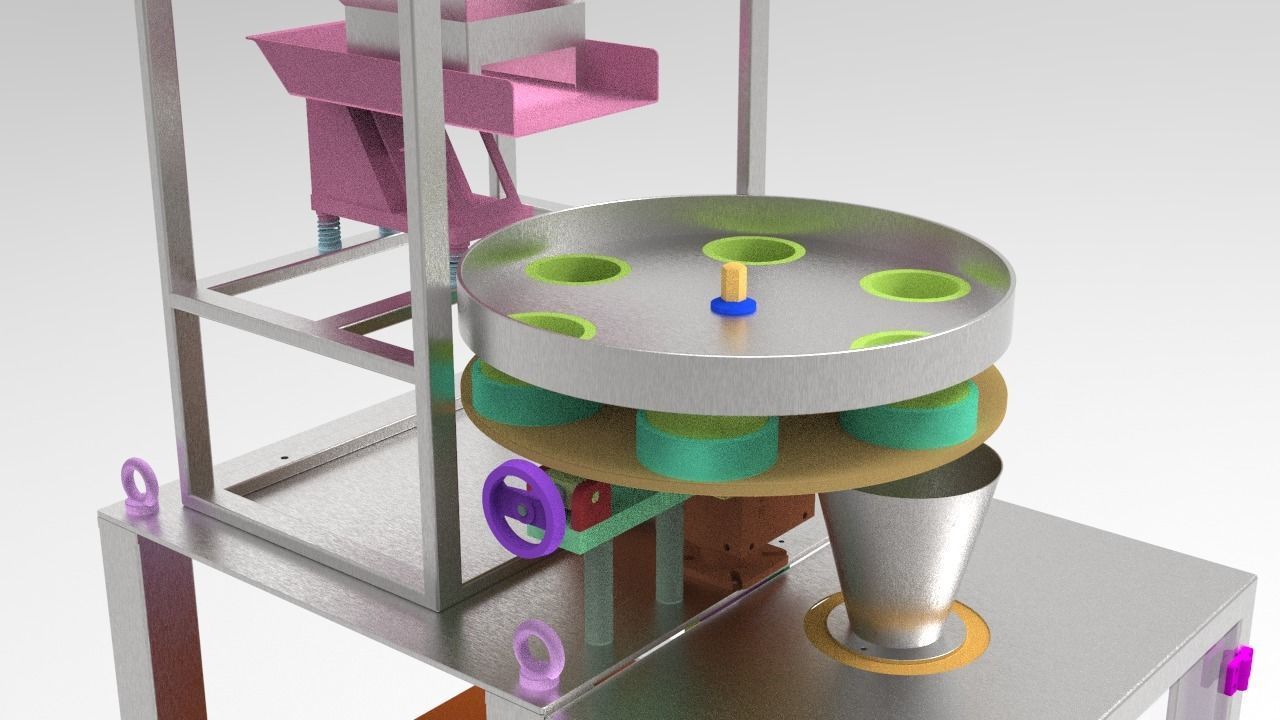

1.Workflow: cup volumetric filler measuring,coding(optional),bag making,filling,gas injection/exhaust(optional),sealing,couting.

2.Computer control, photoelectric tracking, has fault display system, easy to operate and maintain.

3.Can make hole punching blade(round/euro hole), linked bags device or easy tear notch device and so on according to customer’s request.

4.Machine body and all product touching parts are made of stainless steel.

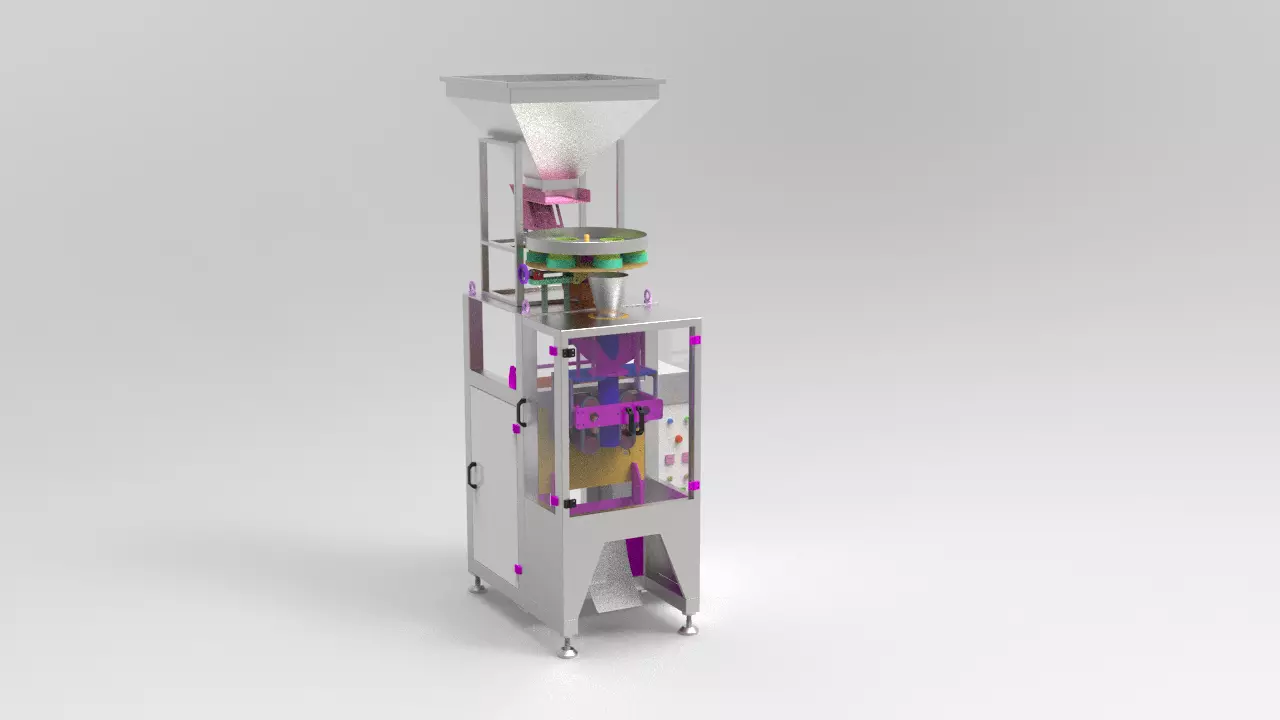

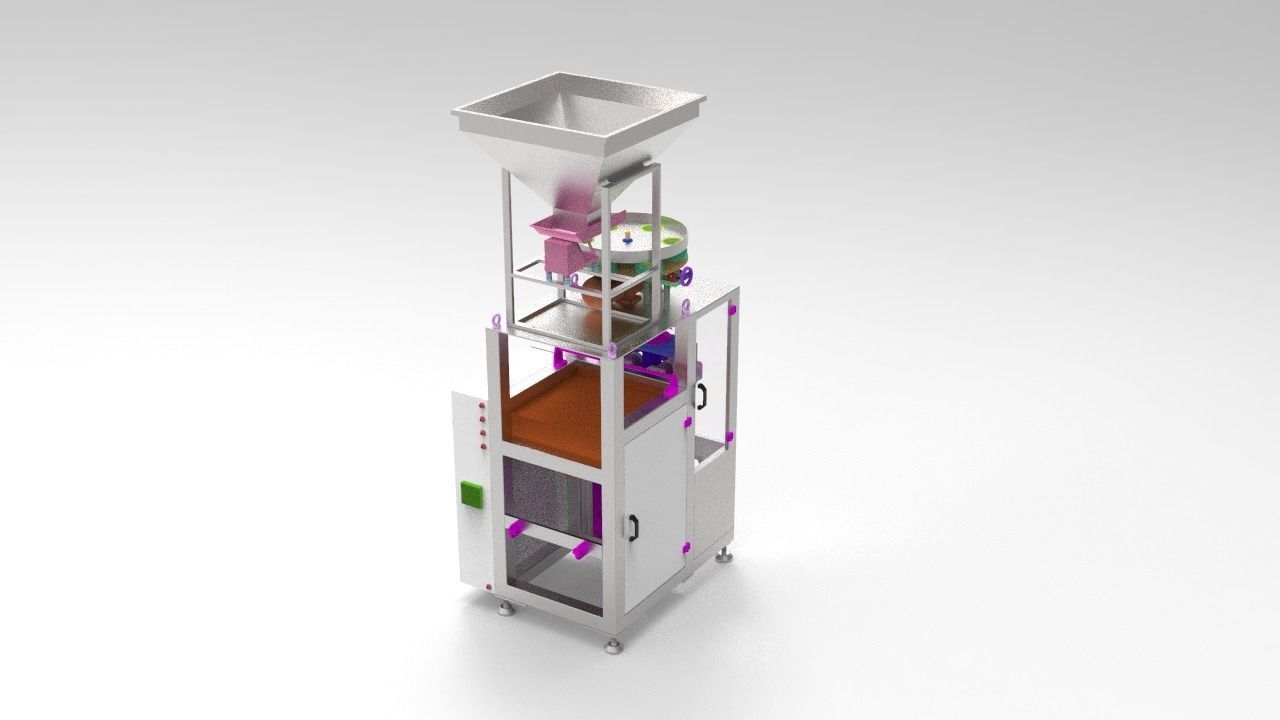

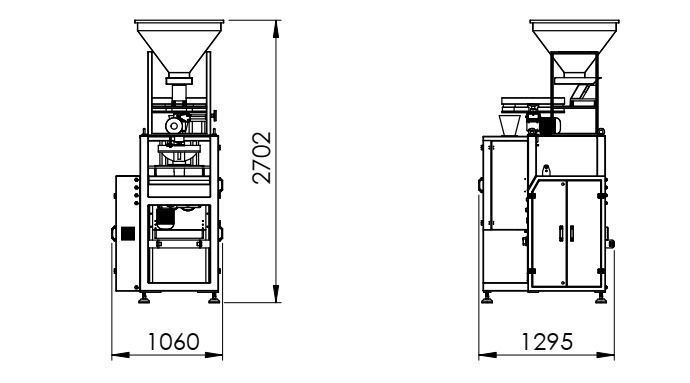

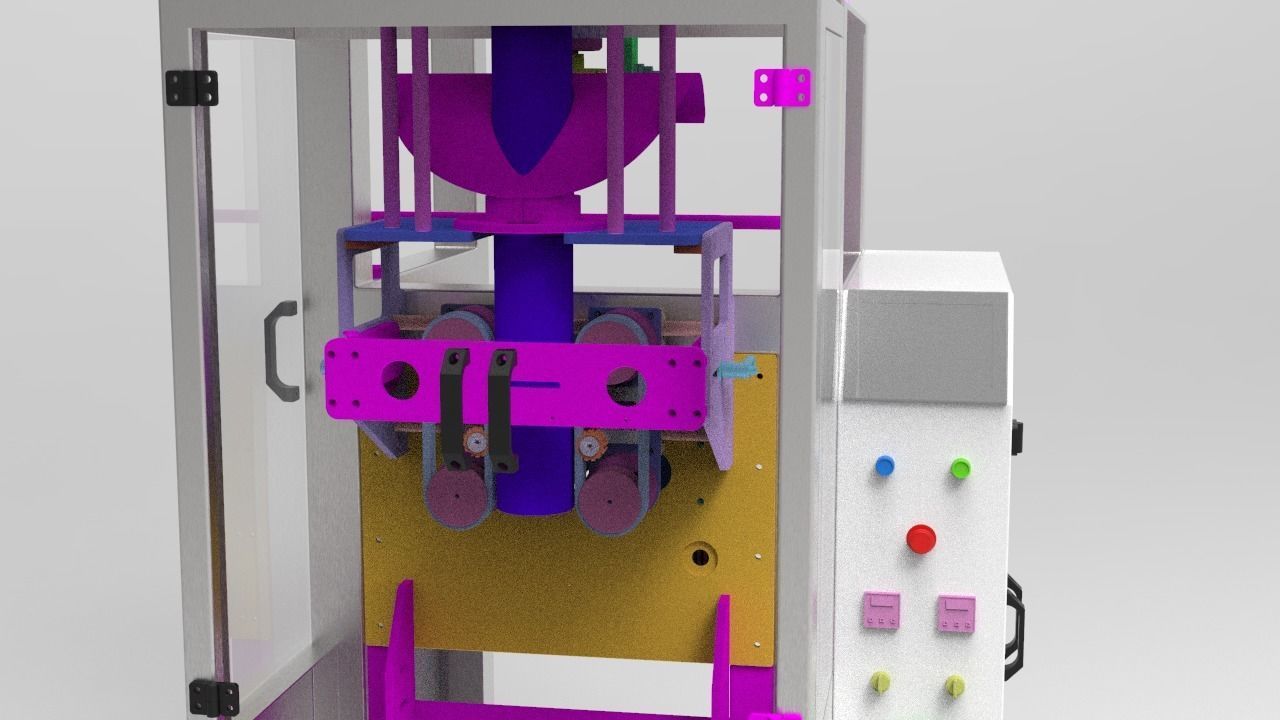

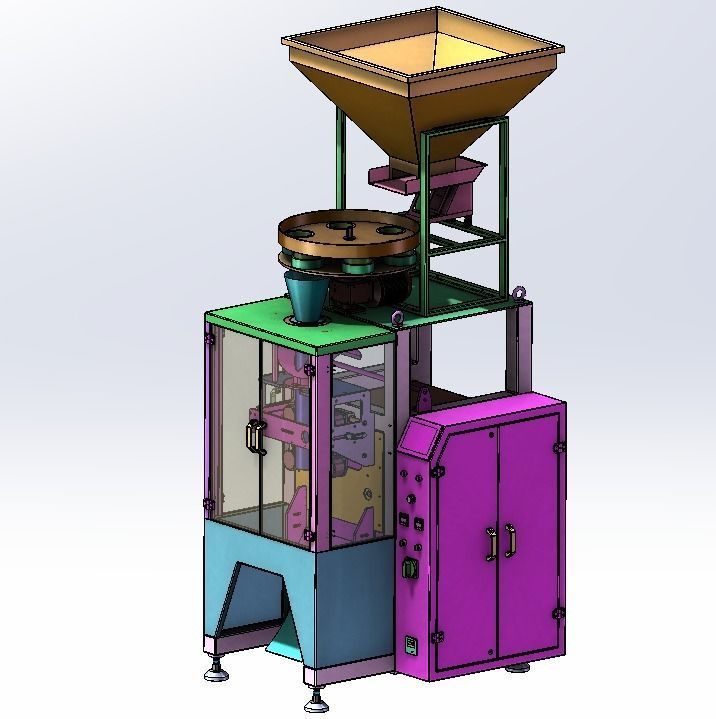

This 3D model designed by SolidWorks 2017, detailed design including every part like pictures below, step files included for you.

Item rating
0 0
Quantitative packaging machine 3D design model
$9.00

Royalty Free License
Quantitative packaging machine 3D design model
$9.00

Royalty Free License
Response - % in - h
3D Modeling

3D Model formats

Format limitations
  • SolidWorks 2017 (.sldprt, .sldasm, .slddrw)32.2 MB
  • STEP 214 (.stp)30.8 MB

3D Model details

  • Ready for 3D Printing
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry -
  • Polygons 0
  • Vertices 0
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Publish date2020-12-06
  • Model ID#2743512
