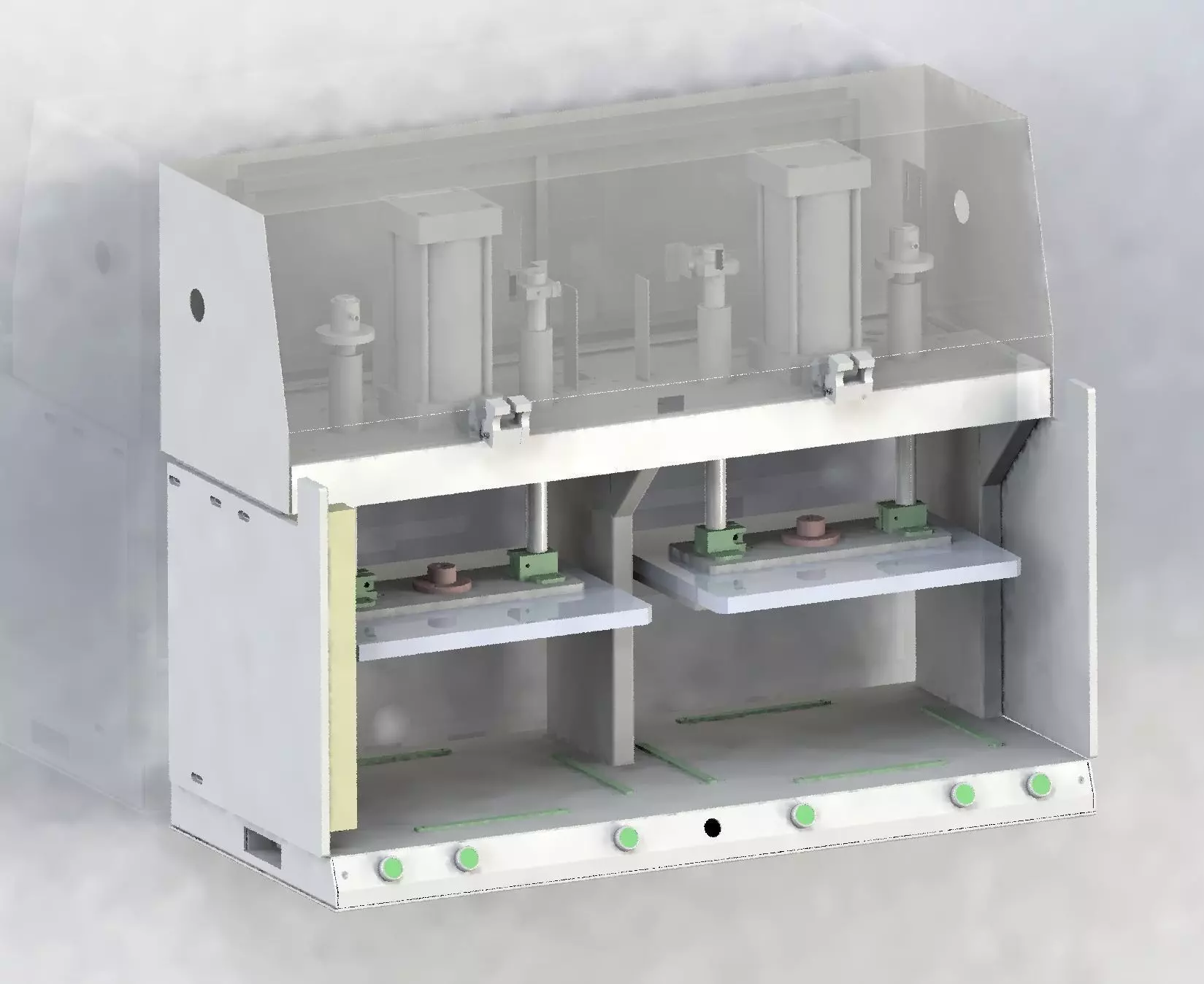

Pressure test platform 3D model
Description
Pressure test platform. The device performs pressure test on the product through the pressure plate controlled by the cylinder, including the test induction sensor in the two-station test platform mechanism
Mechanism include
1. Cylinder downward pressure mechanism
2. Test platform
3. Electric control box structure
**************************************
Files format contains
-solidworks 2017
-step
-iges
-stl
-obj
-3ds
-Fbx
-3dmax
- and other formats
**************************************
If you like,you can buy for you to get this models or if you have any questions also you can email to me.
Designed with SolidWorks 2017, render with PhotoView 360
**************************************
Pressure test platform
Royalty Free License
Pressure test platform
Royalty Free License
3D Modeling
3D Model formats
Format limitations
- OBJ (.obj, .mtl) (2 files)86.5 MB
- SolidWorks (.sldprt, .sldasm, .slddrw) (2 files)15.4 MBVersion: 2017Version: 2017
- STEP (.stp)6.9 MB
- 3D Studio (.3ds)18.4 MB
- Autodesk FBX (.fbx)19.1 MB
- Stereolithography (.stl)43.6 MB
- Autodesk 3ds Max 2017 (.max)50.5 MBVersion: 2017Renderer: Default (Scanline)
- IGES (.ige, .igs, .iges)1.31 MB
3D Model details
- Publish date2018-10-31
- Model ID#1025133
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 456,331
- Vertices 914,364
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
