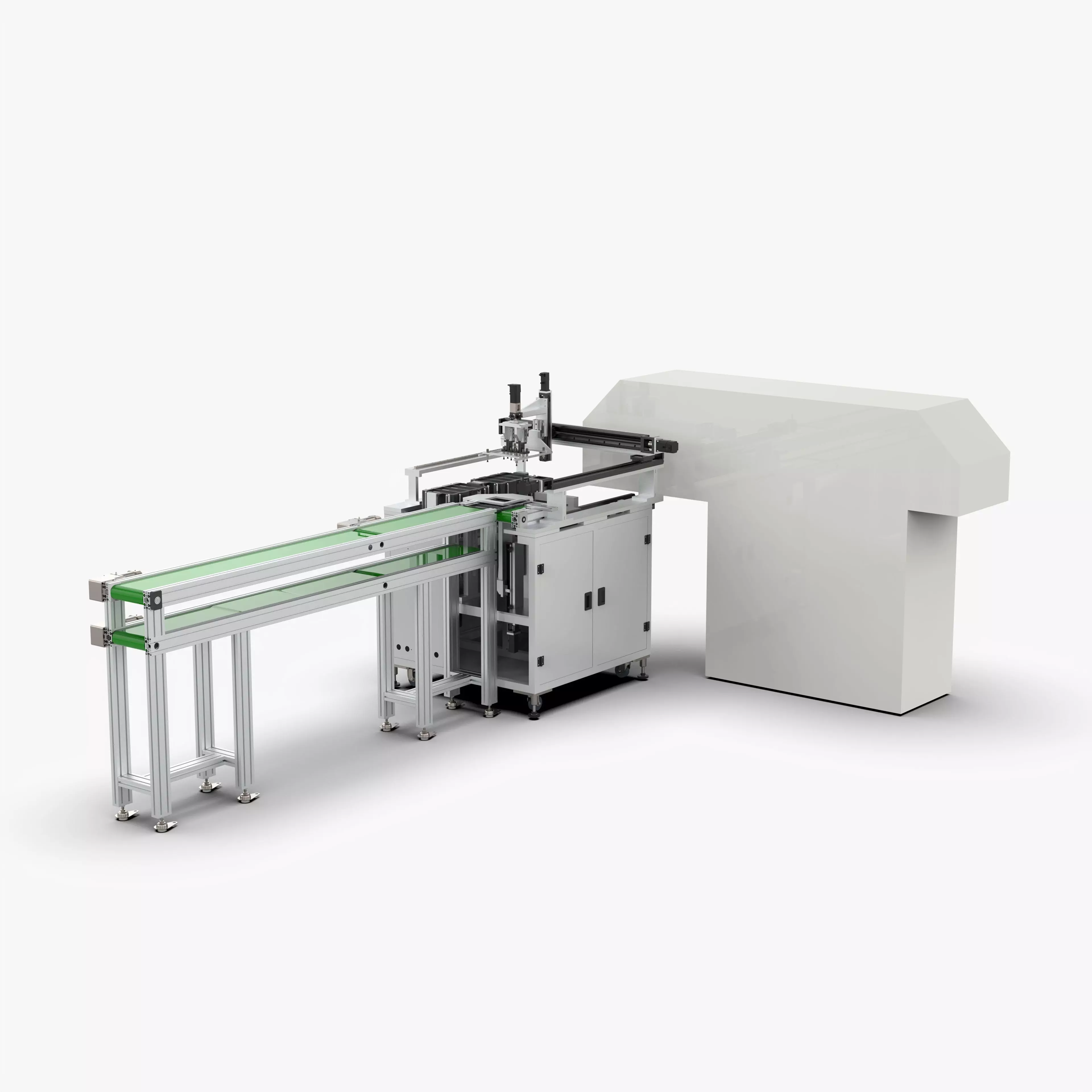

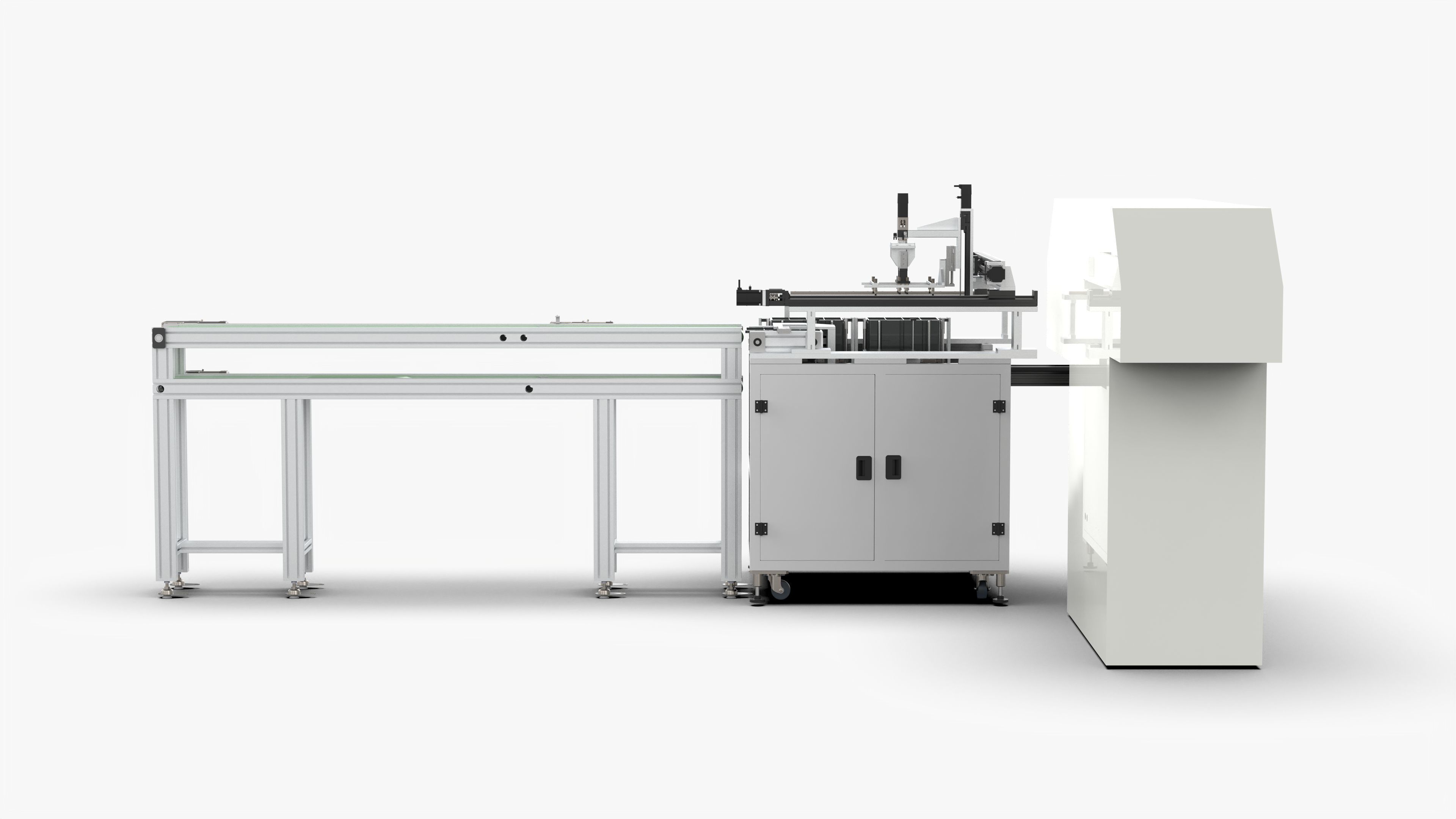

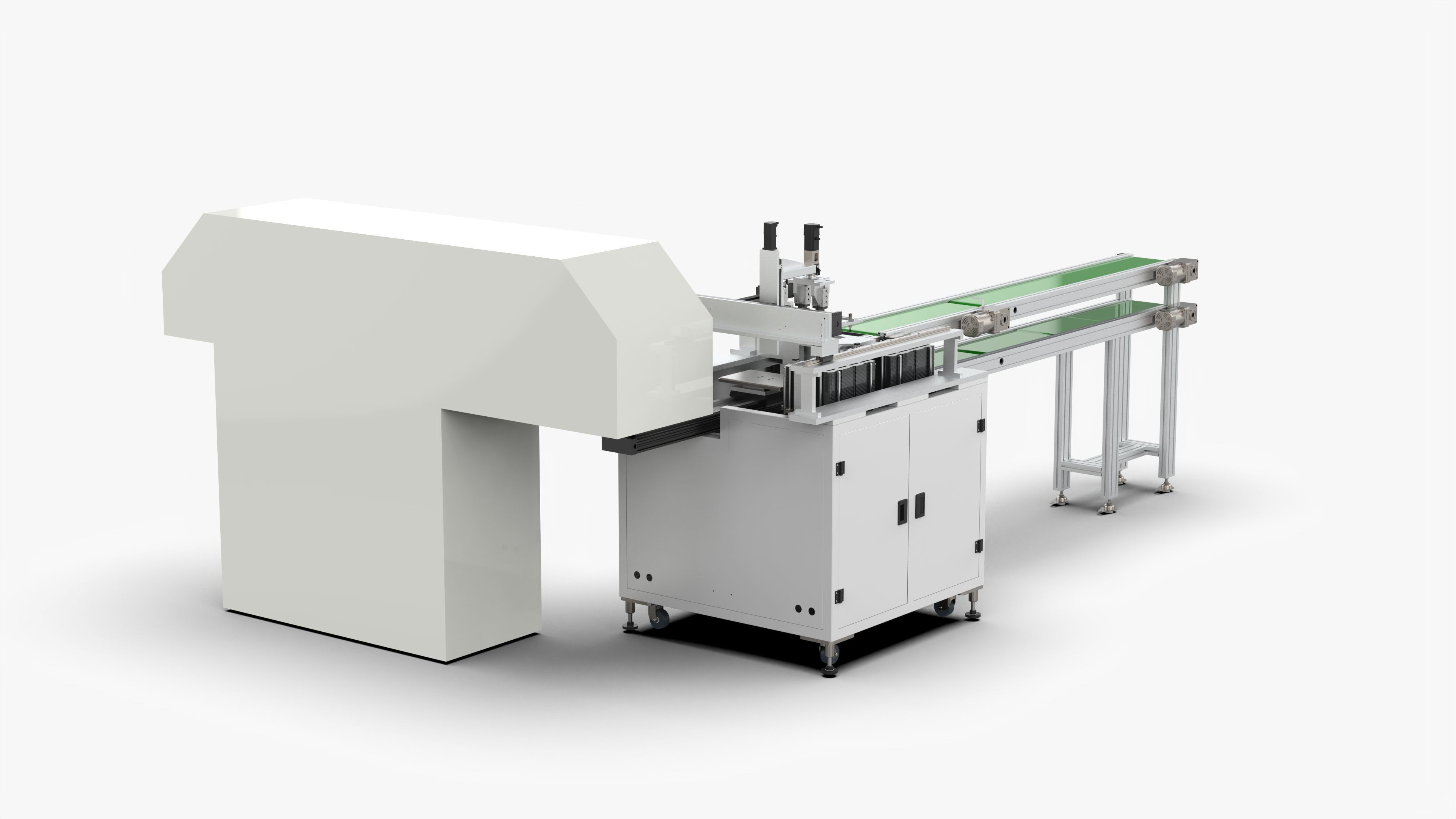

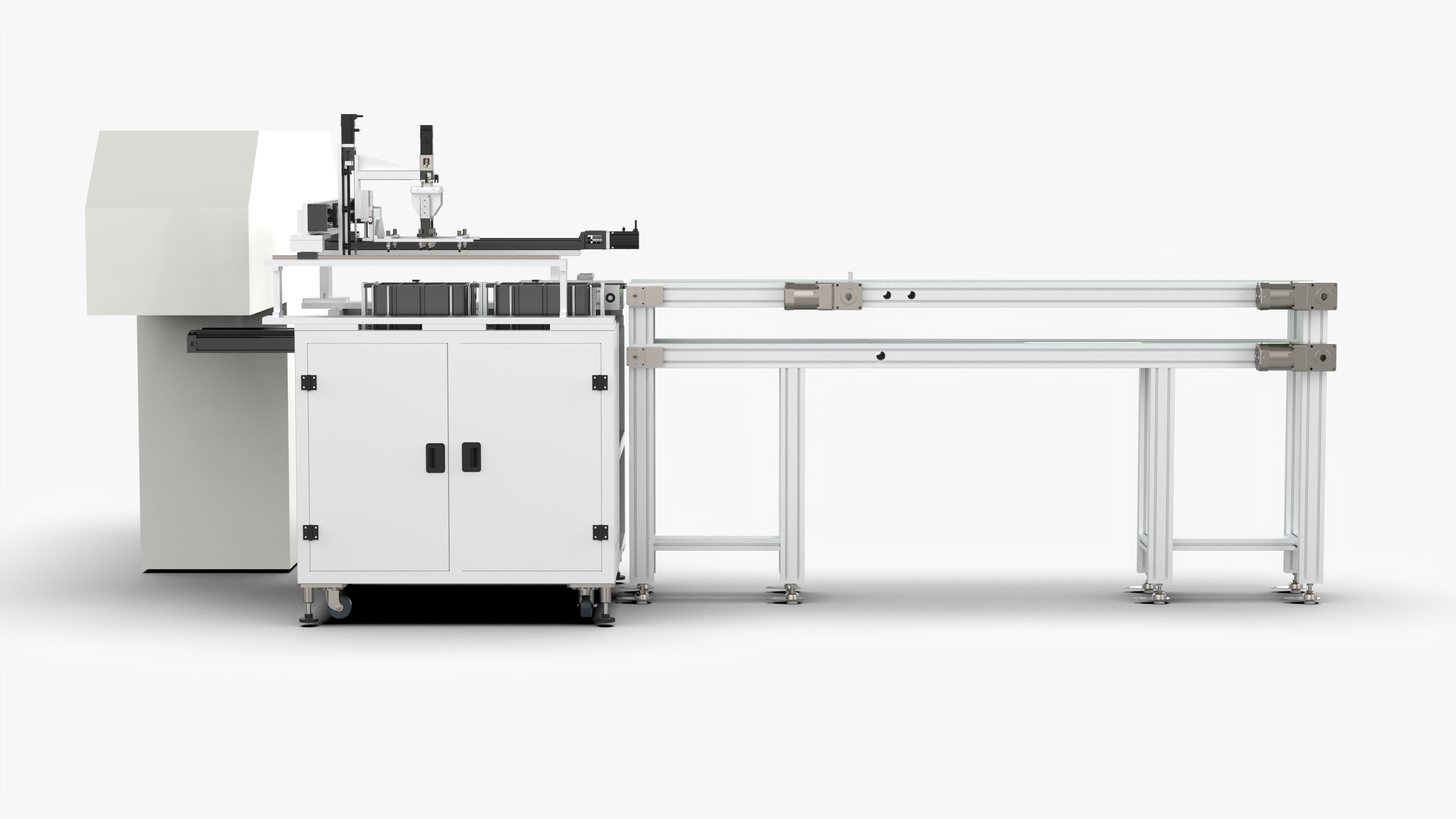

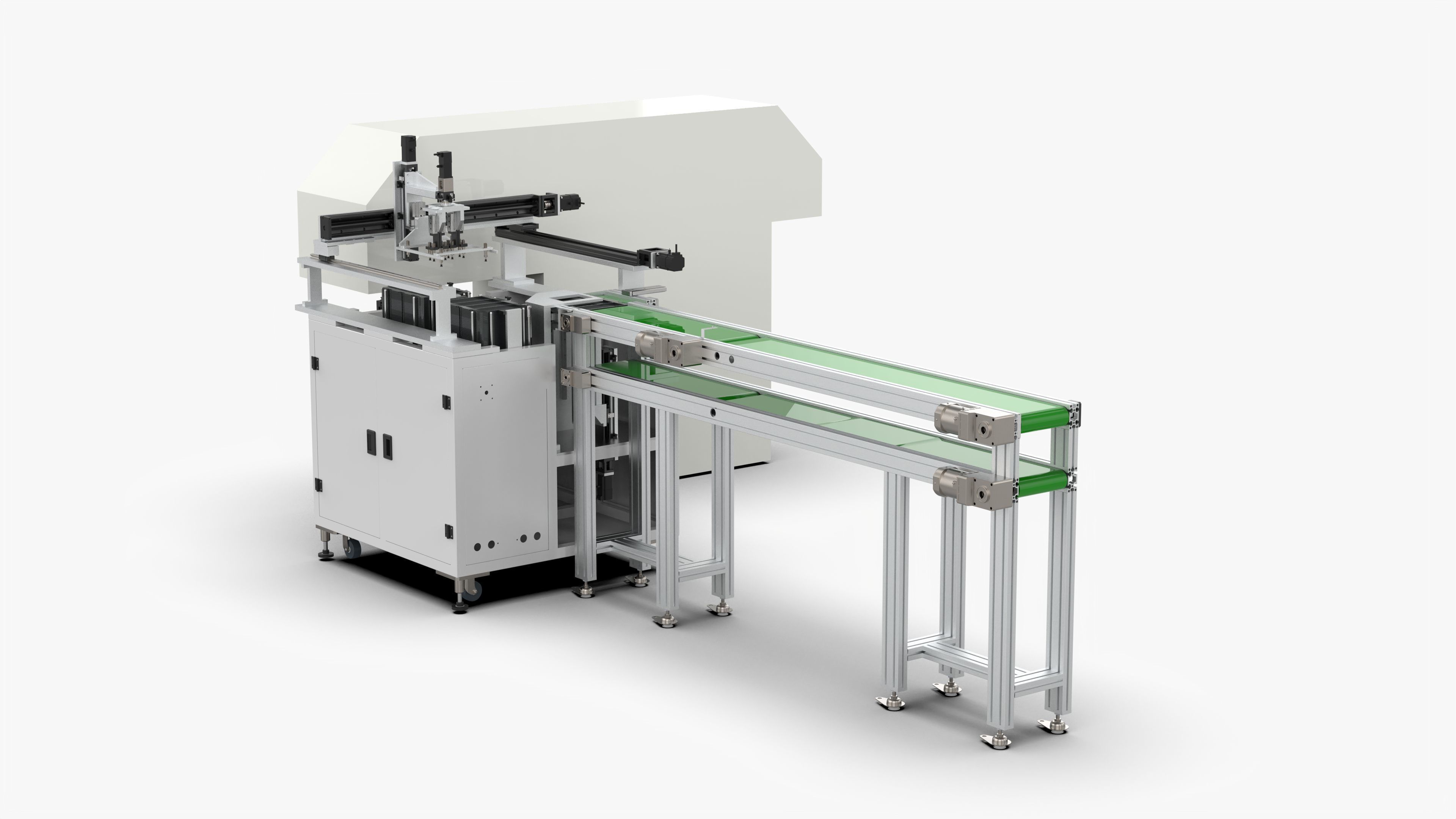

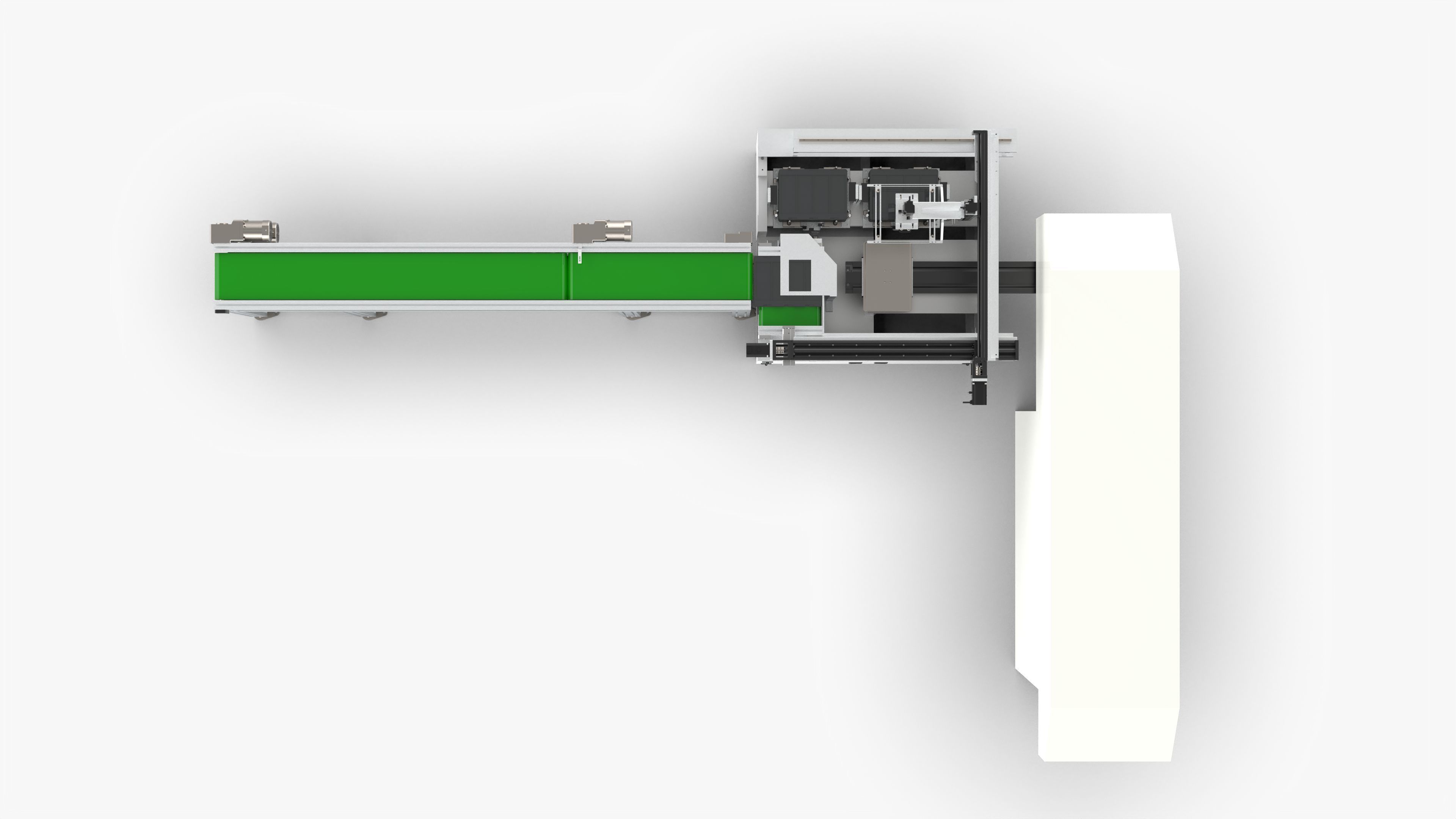

On Line Transfer Machine 3D model
Description
On Line Transfer Machine
Introduction

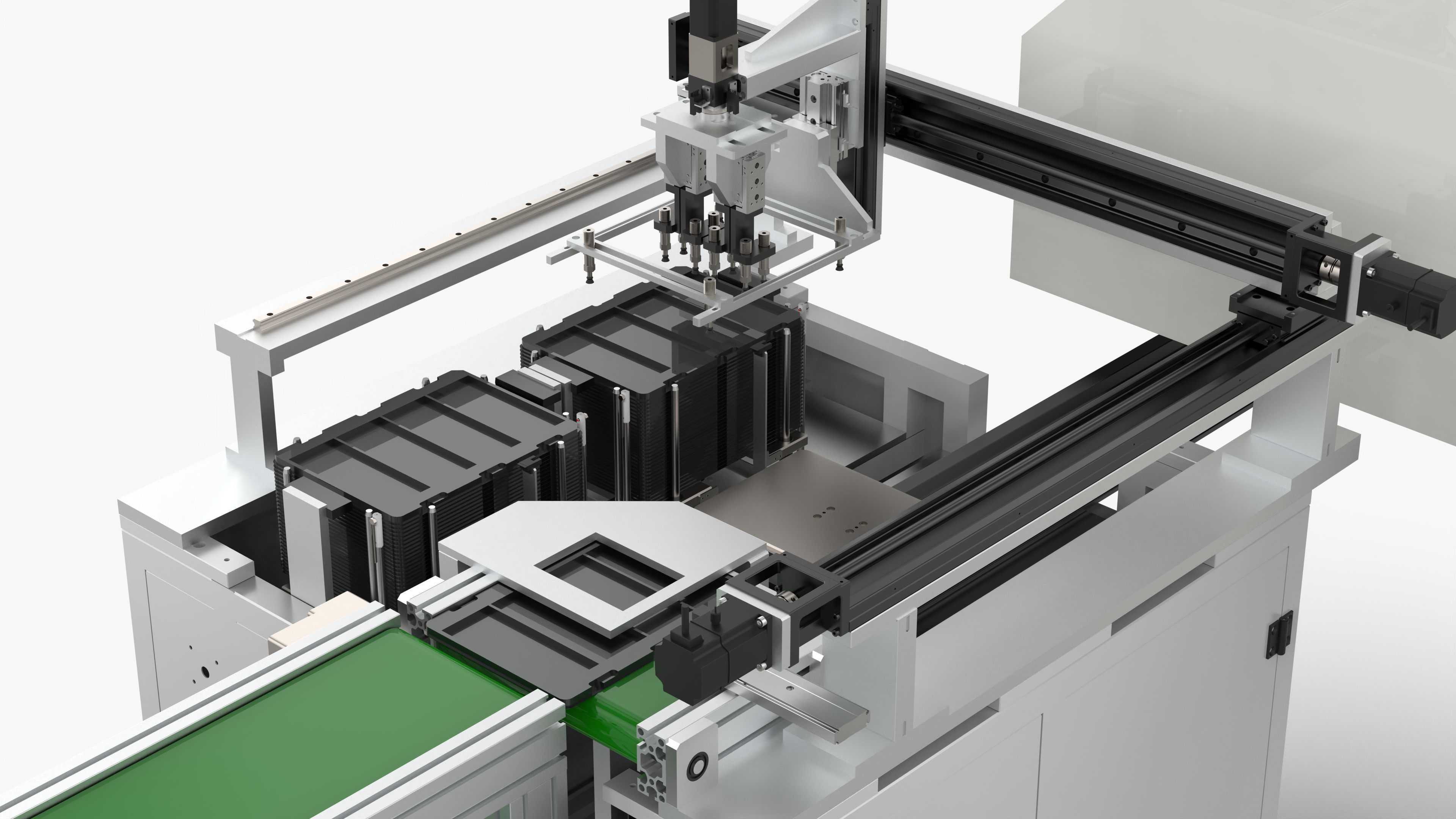

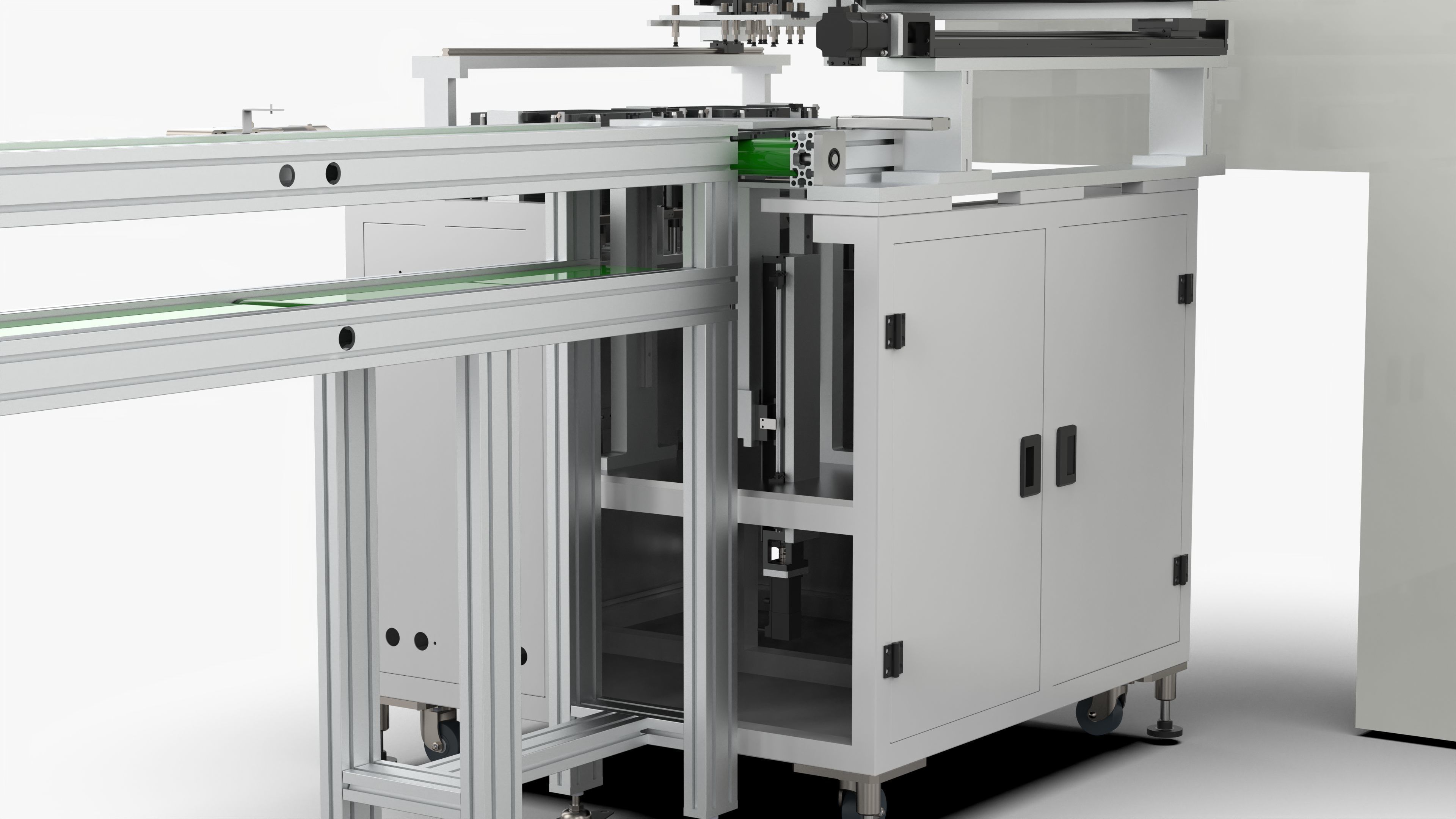

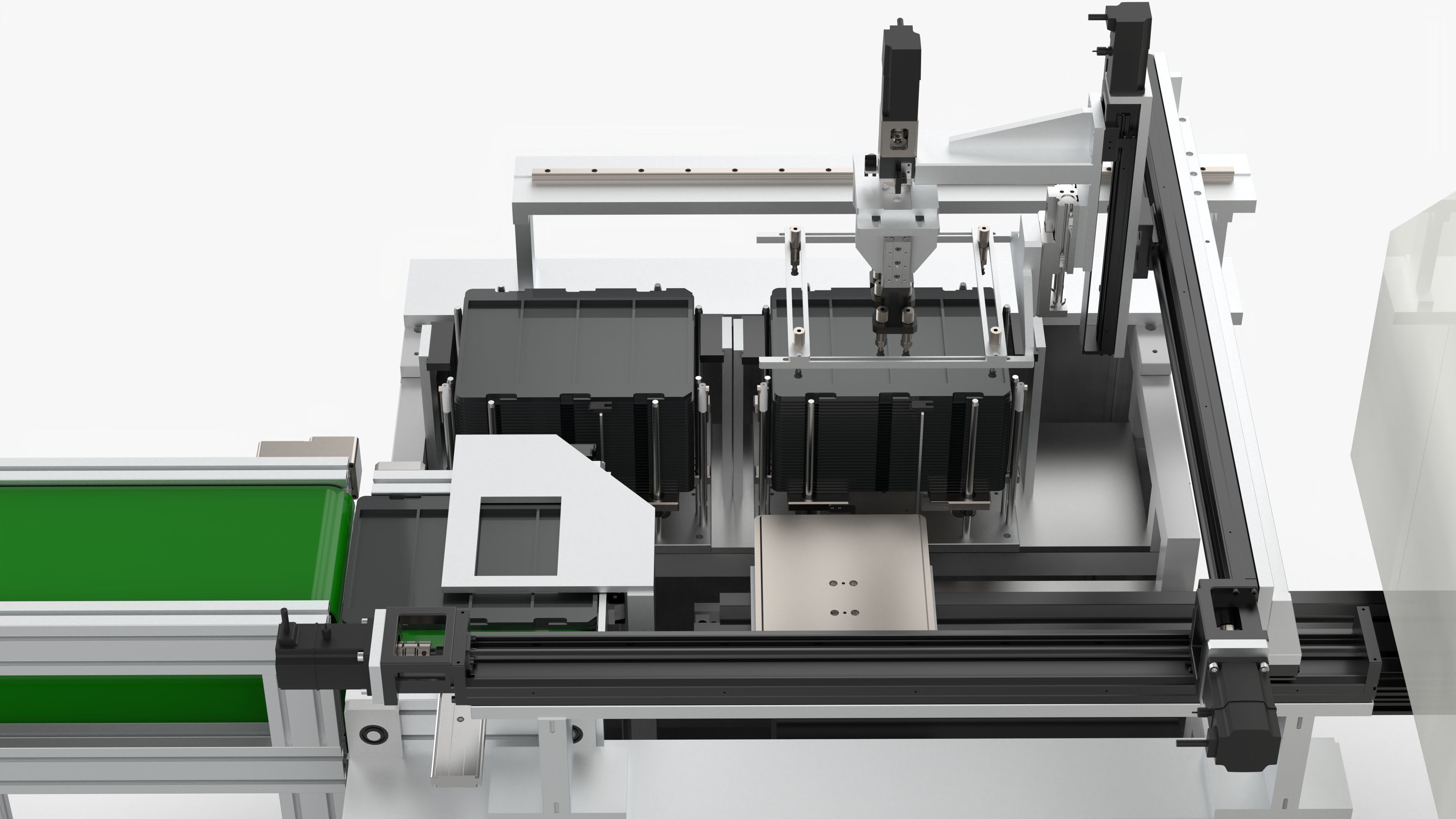

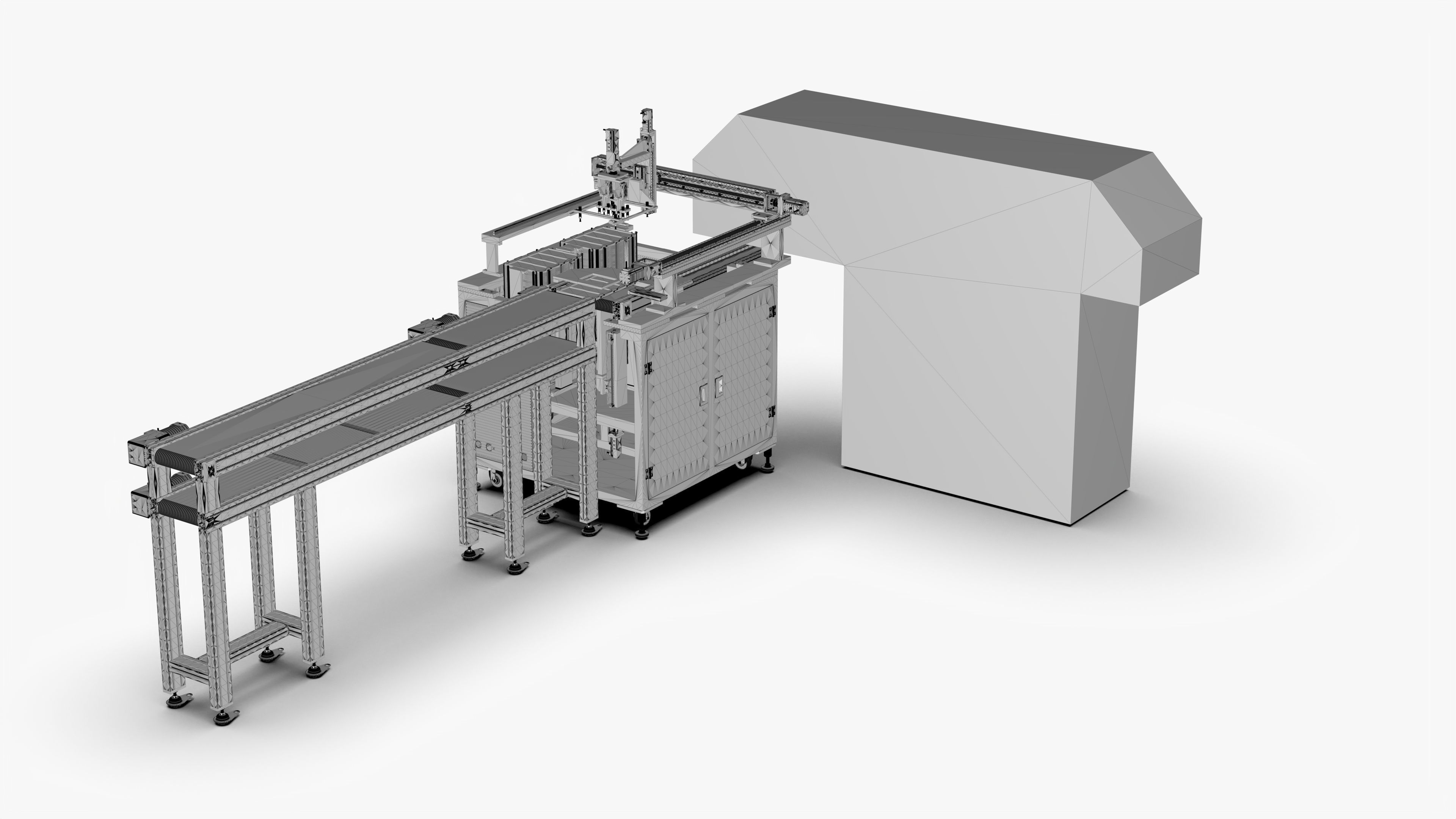

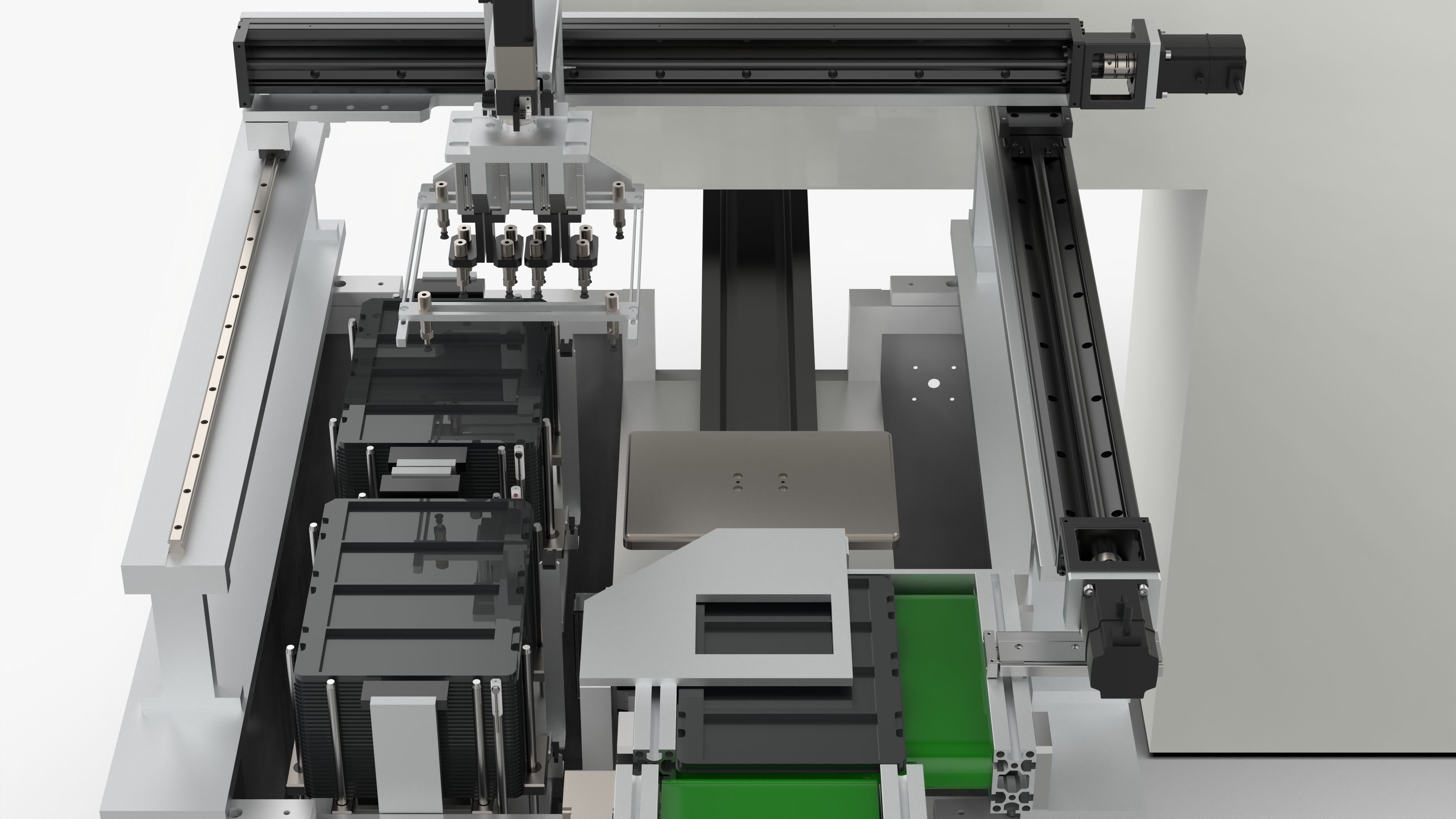

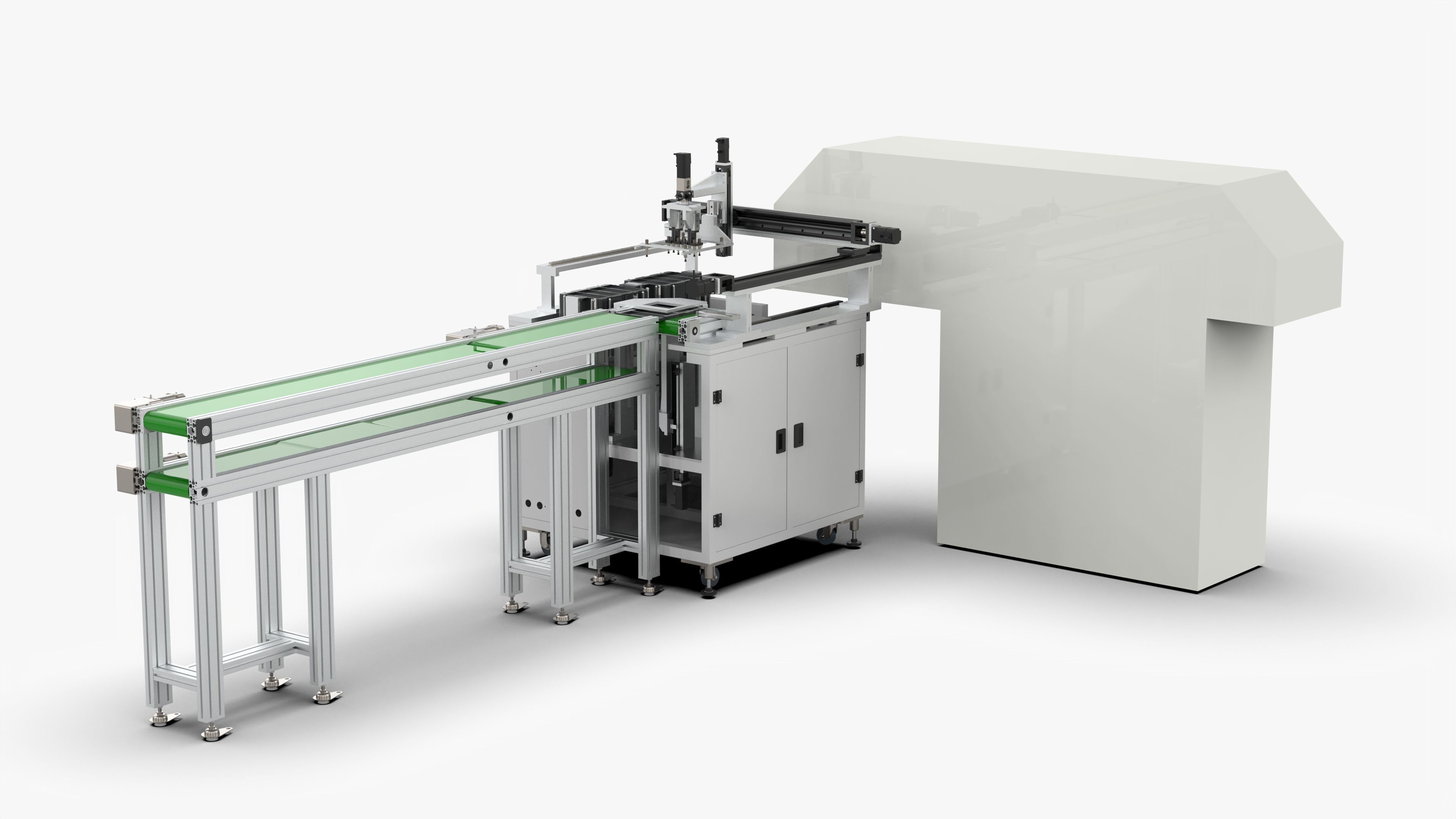

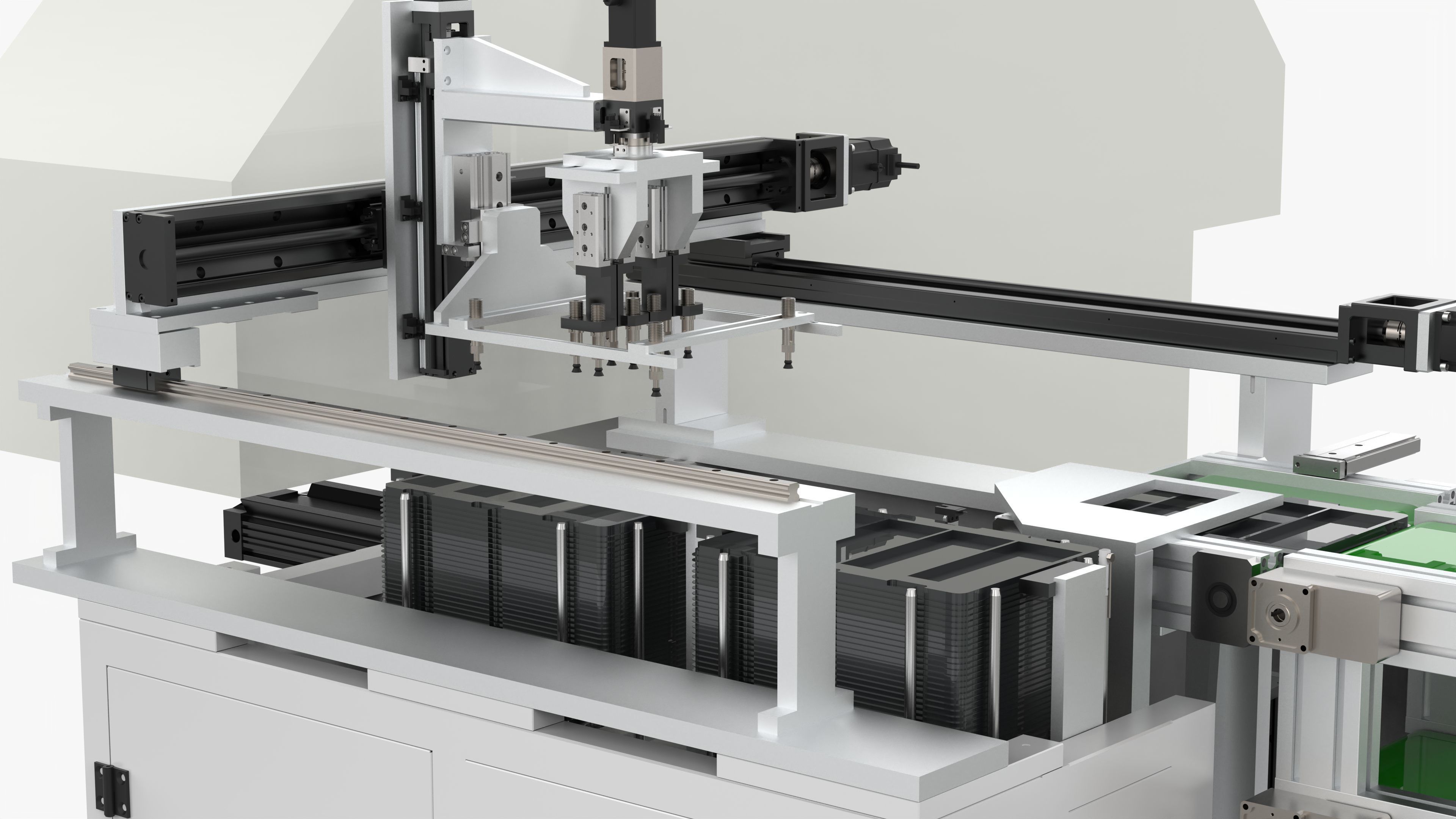

This equipment is an online transfer machine. The original Tray is fed by the upper equipment through the assembly line and enters the transfer machine for positioning. The new Tray is fed by double silos. The independent silo can be used to load the Tray without stopping. It is carried by the screw guide rail and the servo motor. The XYZU axis and the suction nozzle complete the product turntable action.
File Formats
- SolidWorks 2018 | Keyshot 10
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
Geometry
- Polygons: 1,454,013
- Vertice: 4,362,039
On Line Transfer Machine
Royalty Free License
On Line Transfer Machine
Royalty Free License
3D Modeling
Rendering
Post Production
PBR modeling
3D Model formats
Format limitations
Native
- SolidWorks 2018 (.sldprt, .sldasm, .slddrw)51.6 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
- STEP (.stp)22.1 MB
- Stereolithography (.stl)69.3 MB
- IGES (.ige, .igs, .iges)90 MB
- OBJ (.obj, .mtl)104 MB
3D Model details
- Publish date2023-03-10
- Model ID#4351515
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 1,454,013
- Vertices 4,362,039
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
