Multi-axis Automatic Locking Screw Machine 3D model

Multi-axis Automatic Locking Screw Machine

Introduction

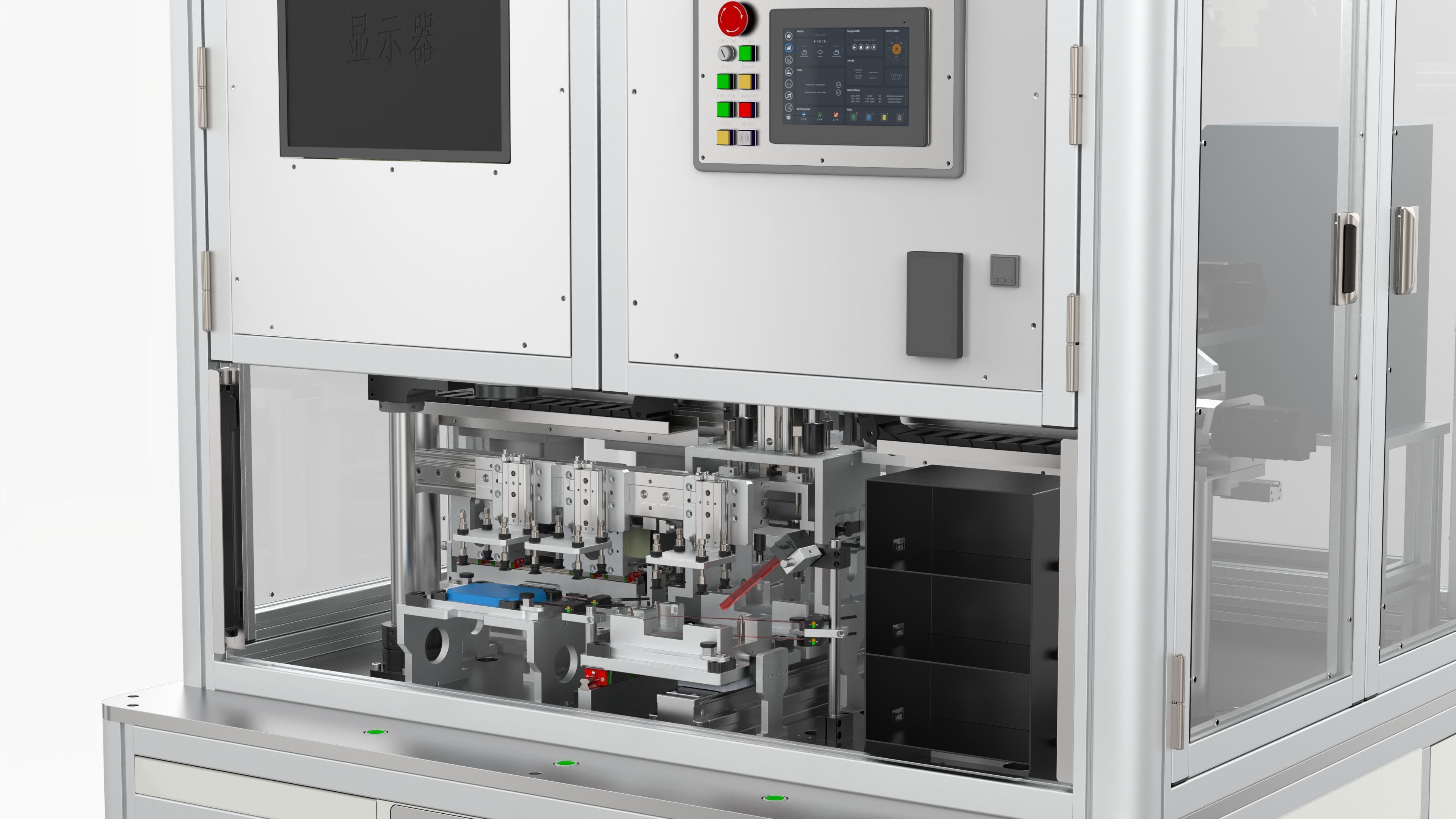

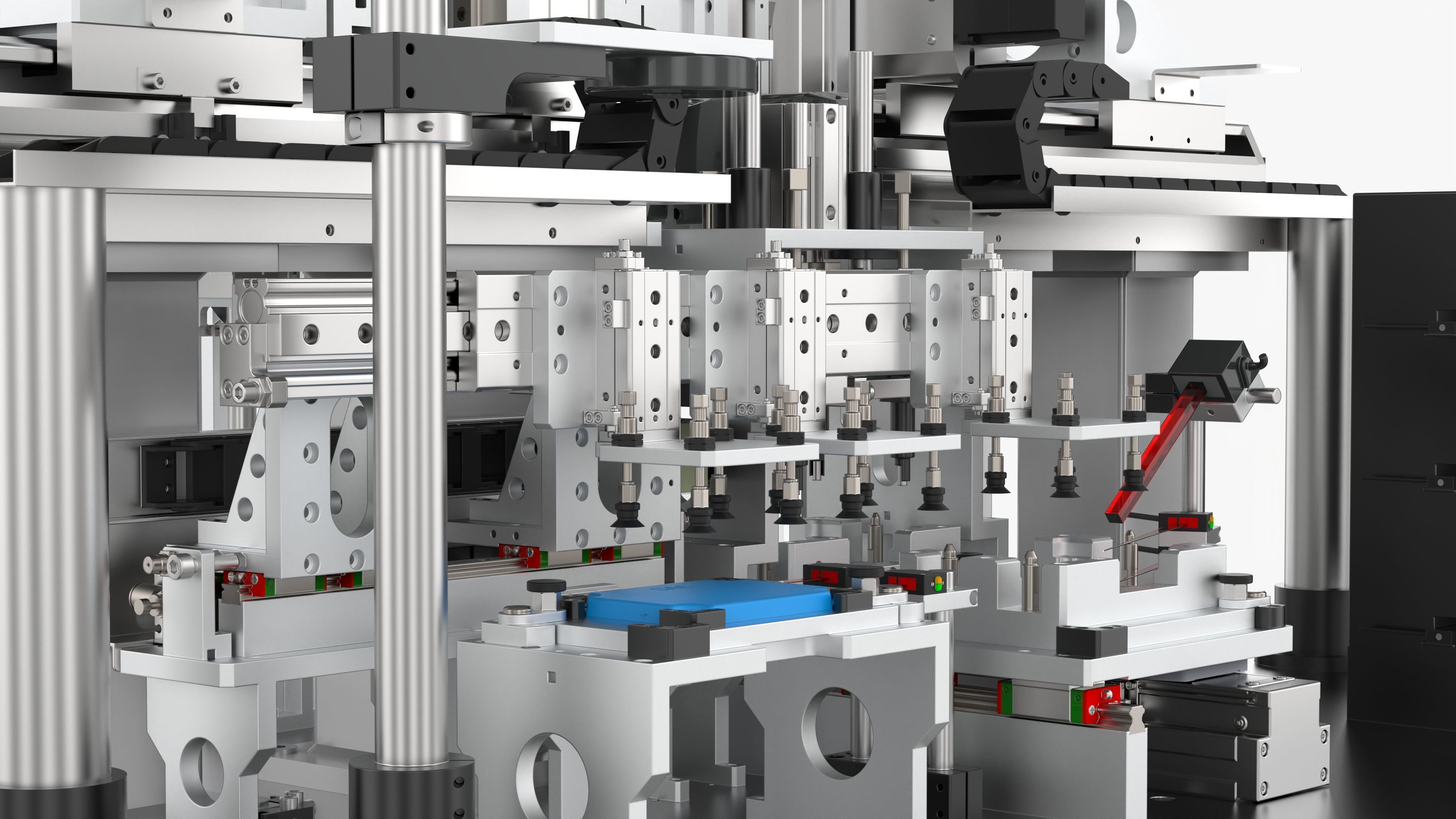

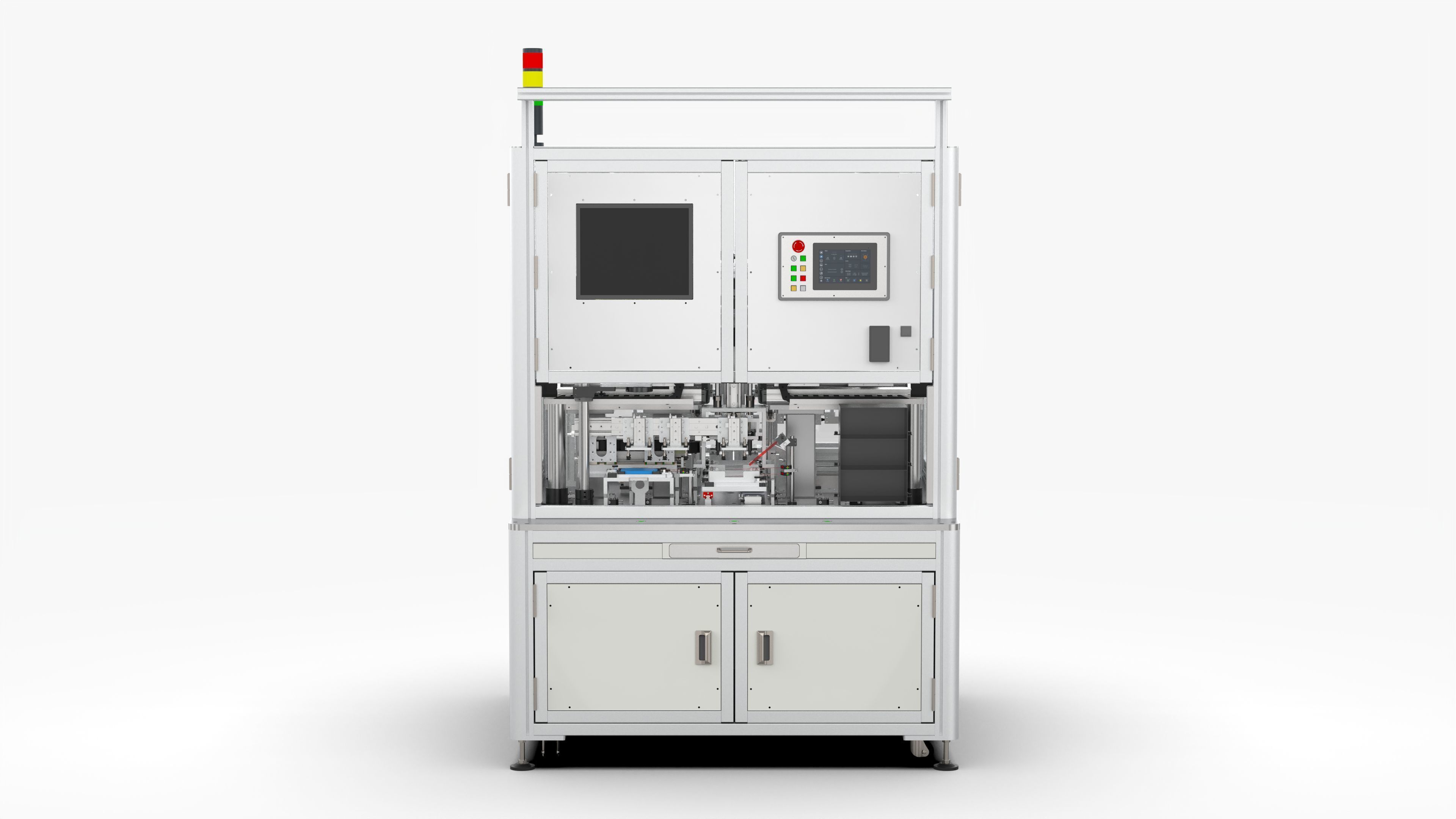

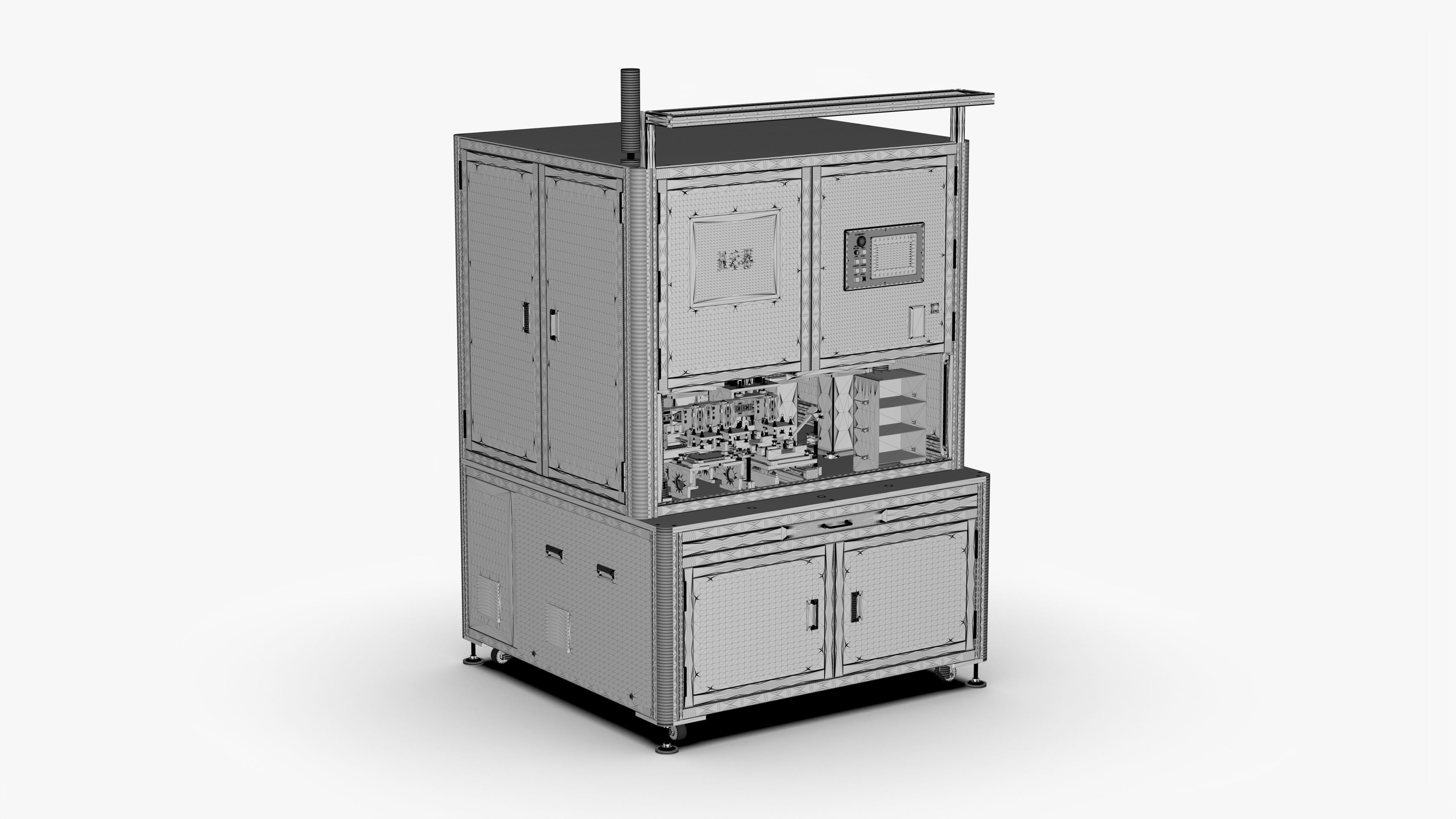

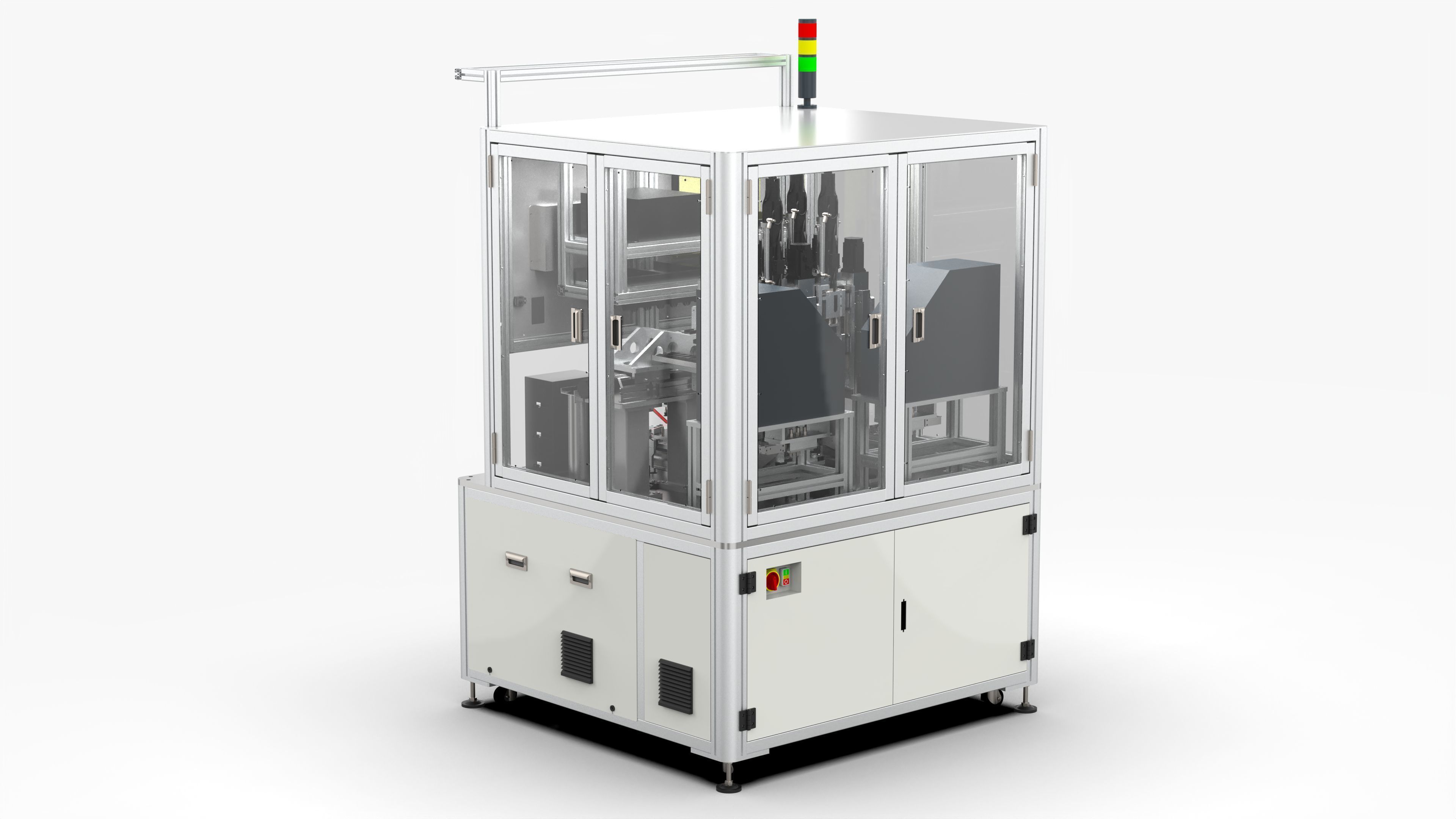

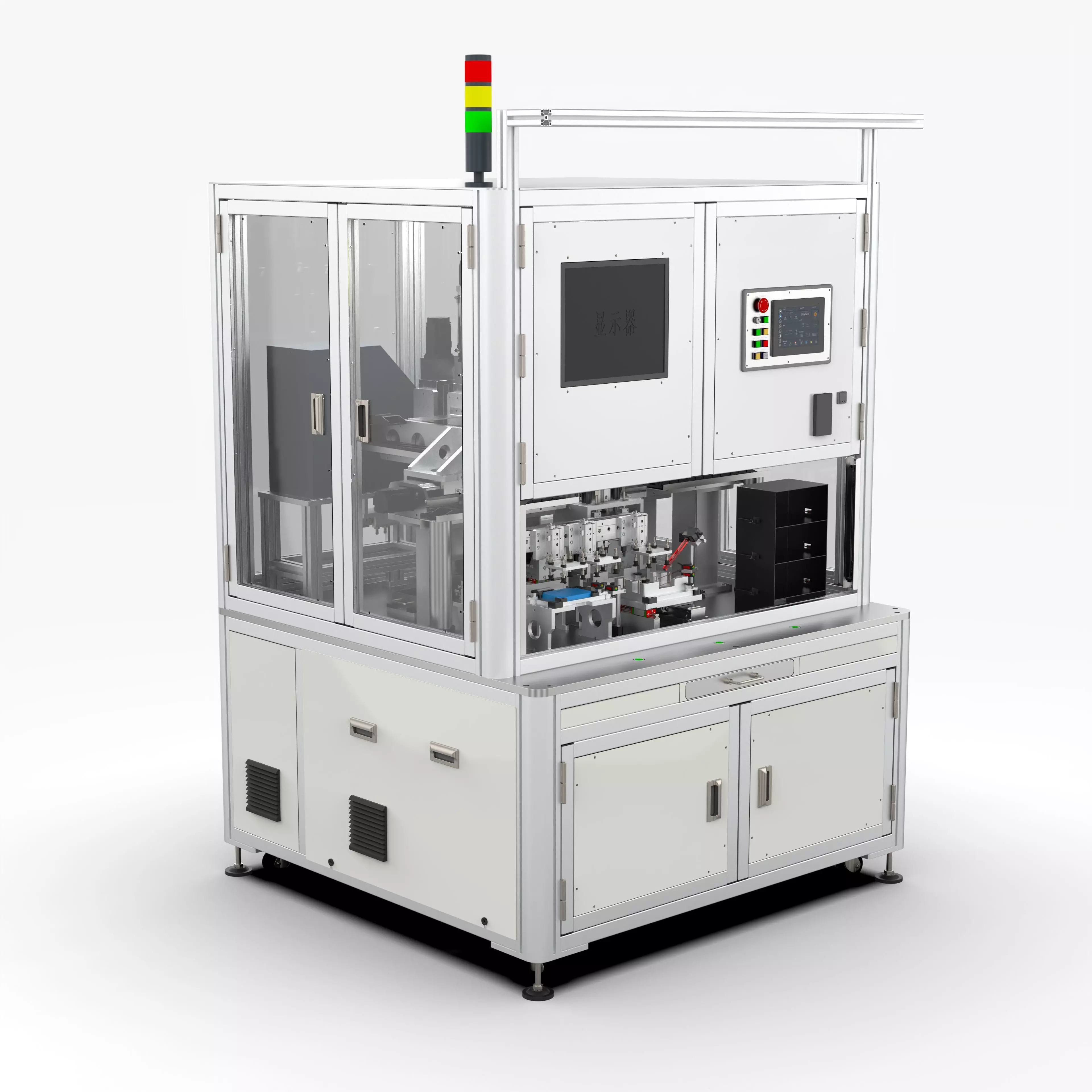

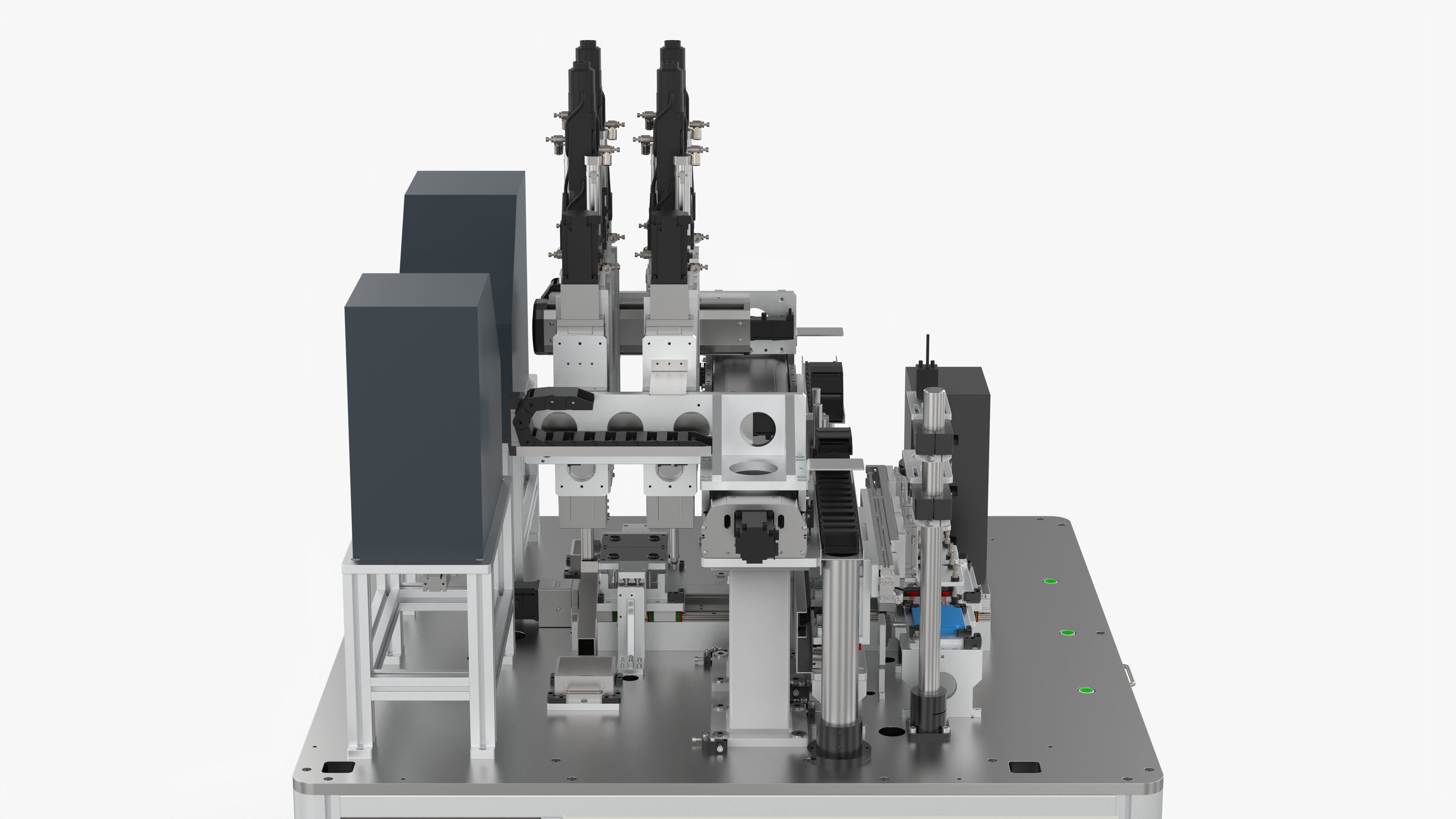

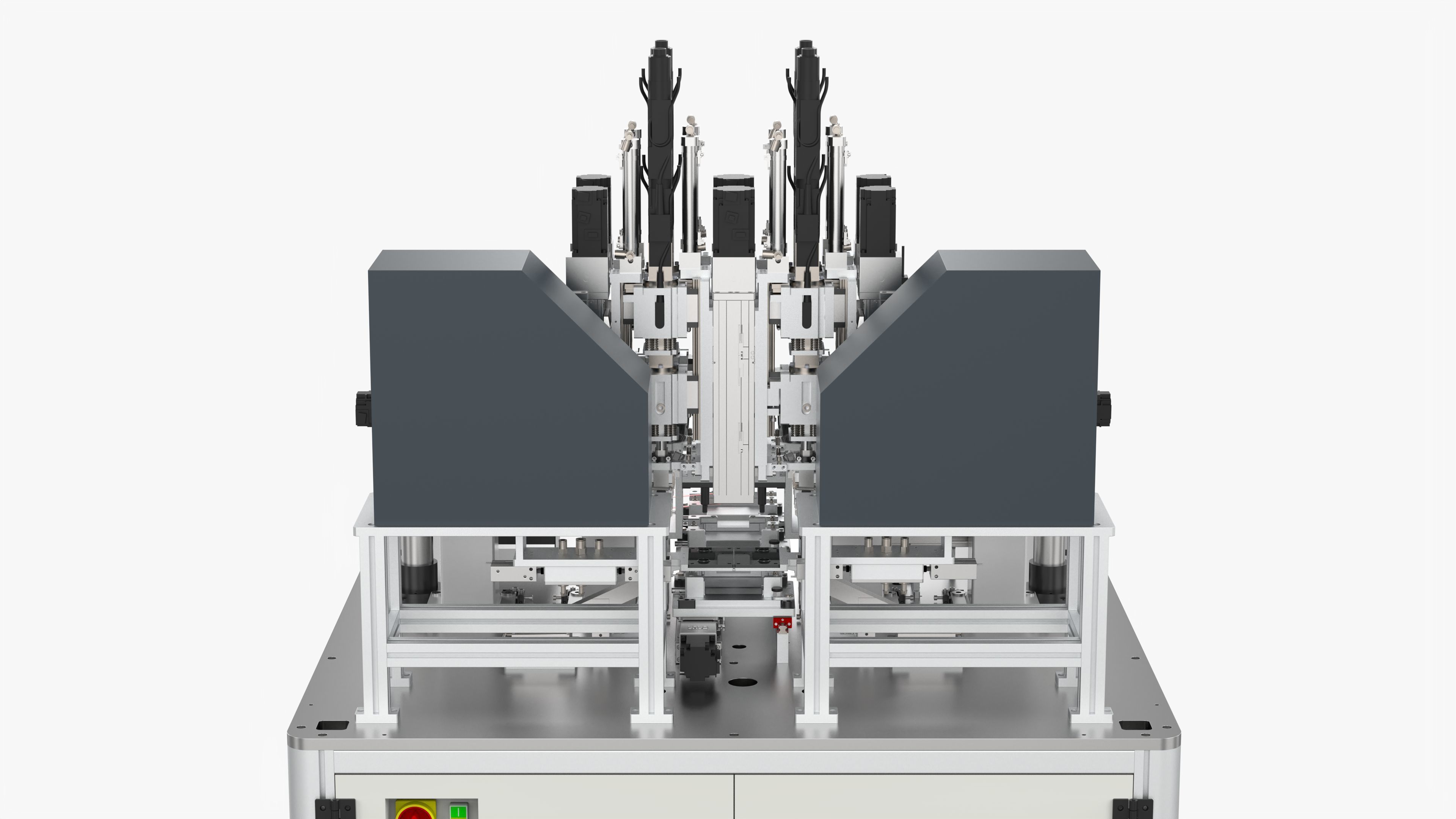

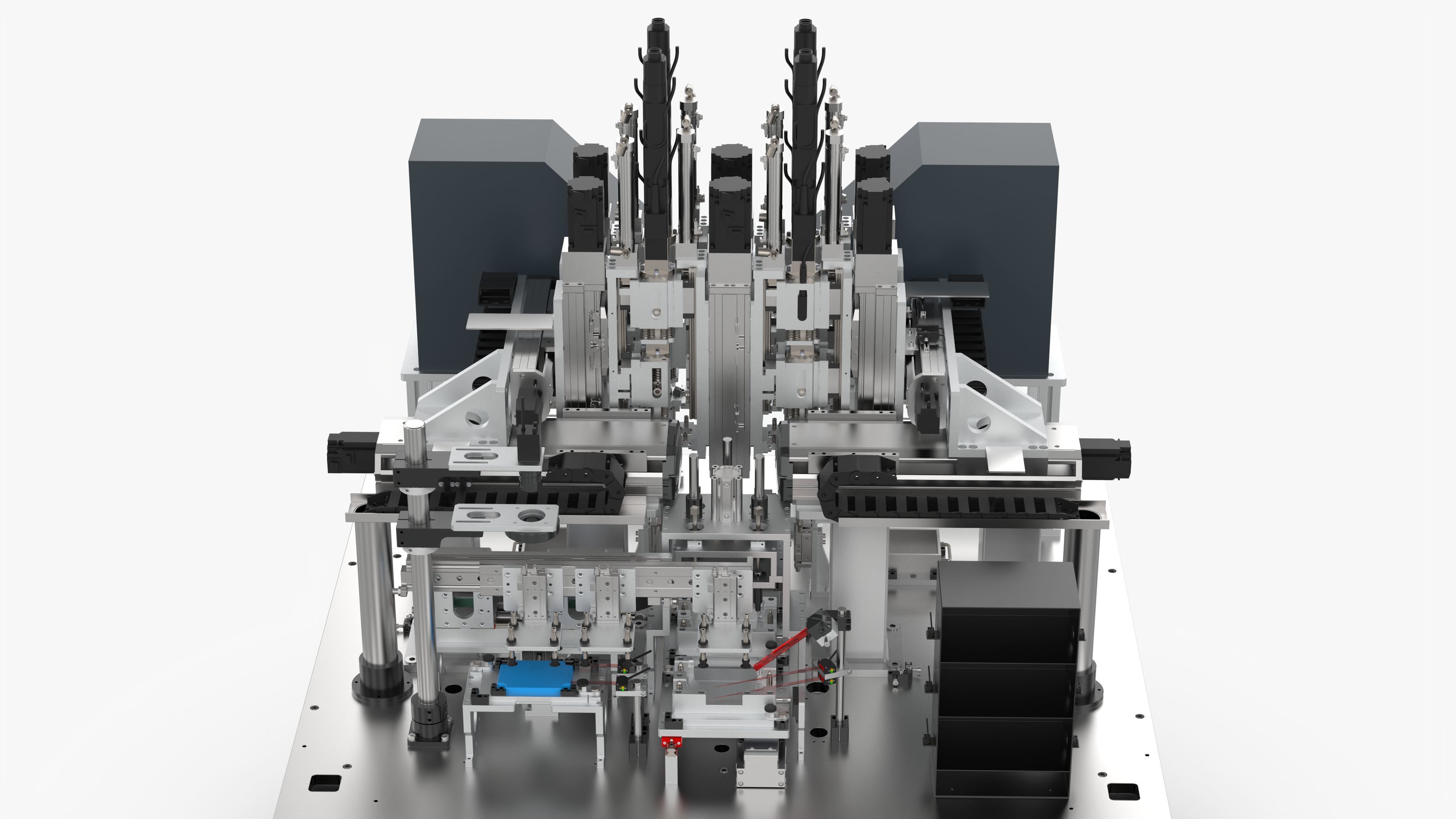

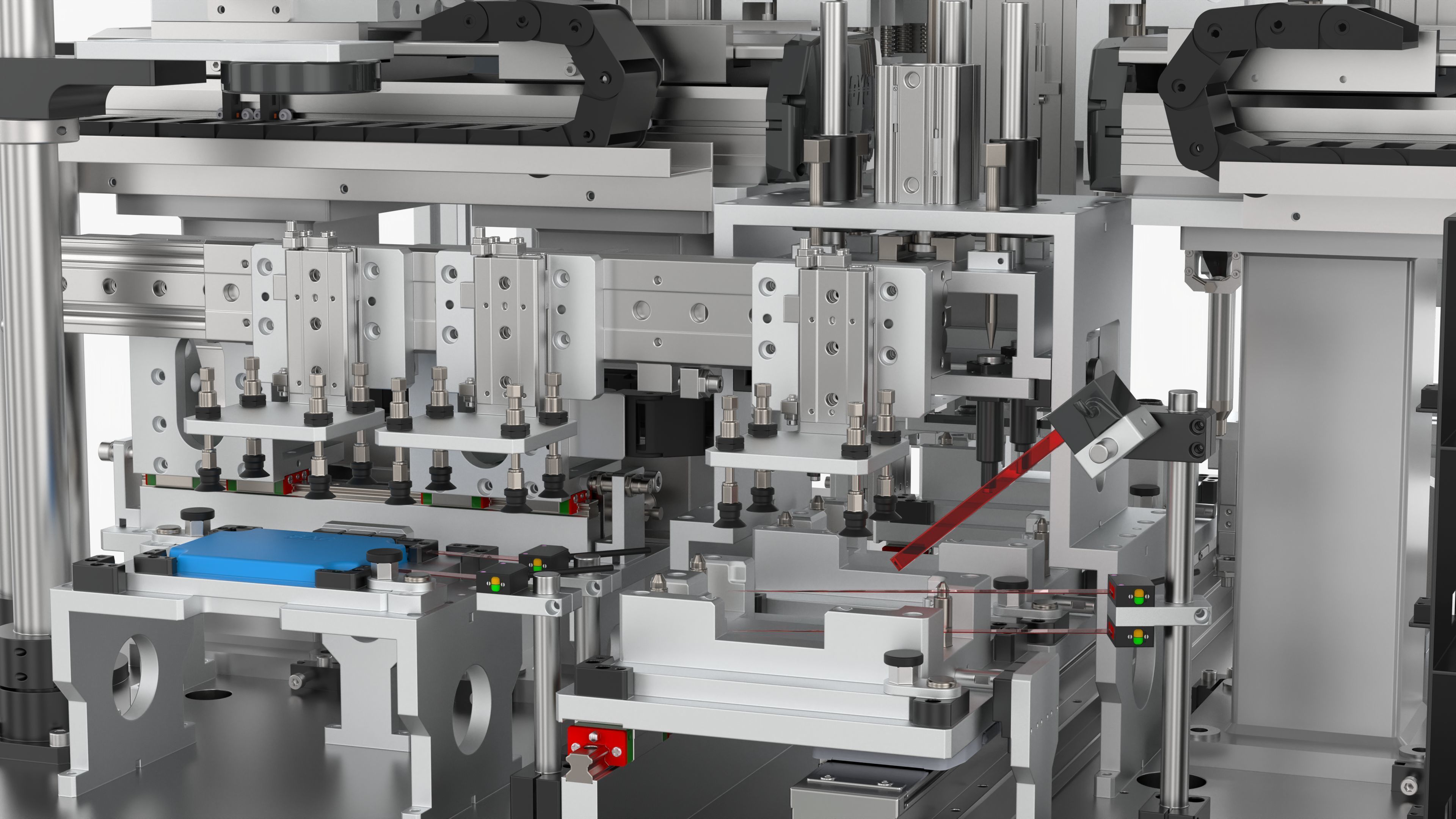

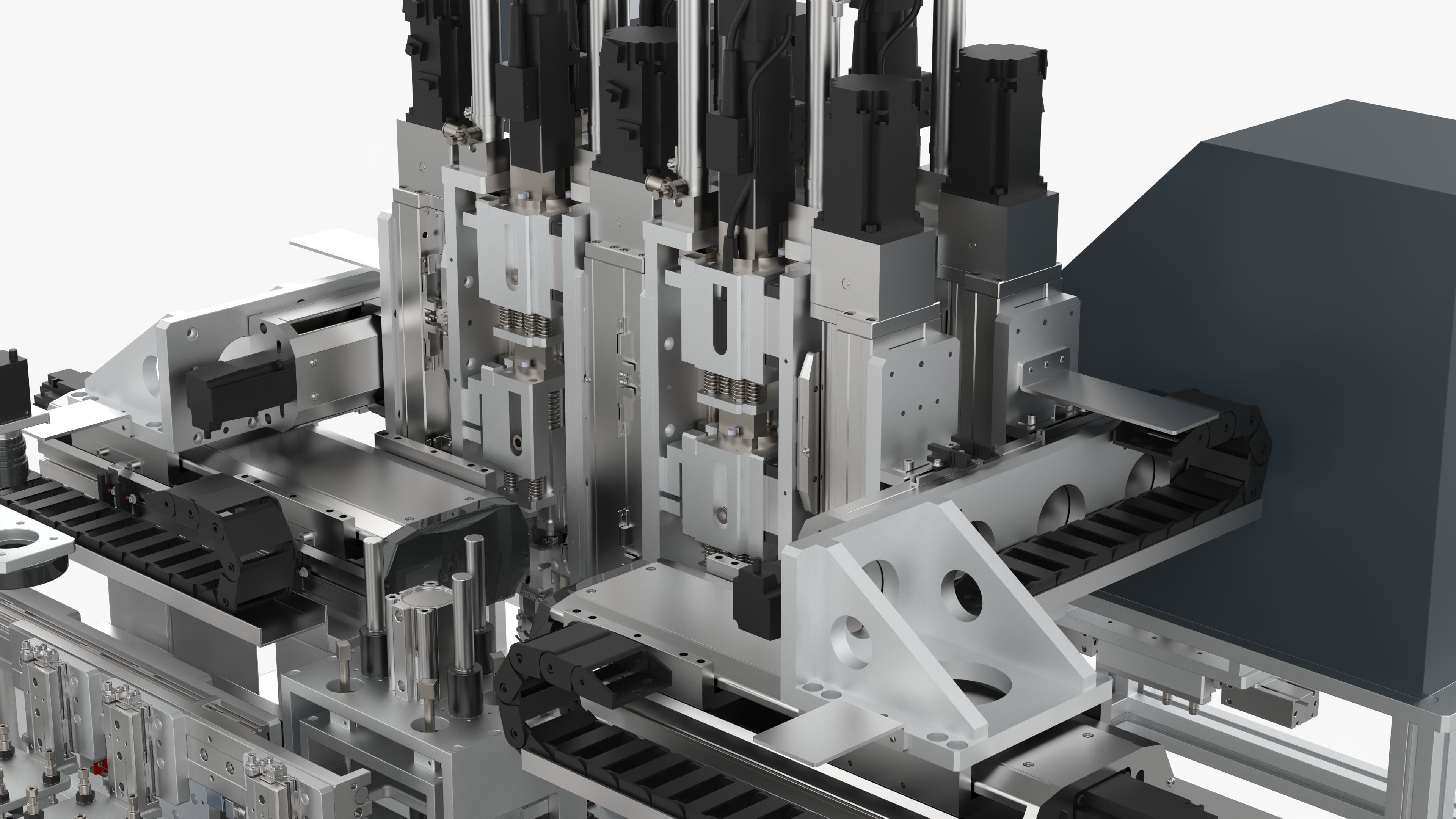

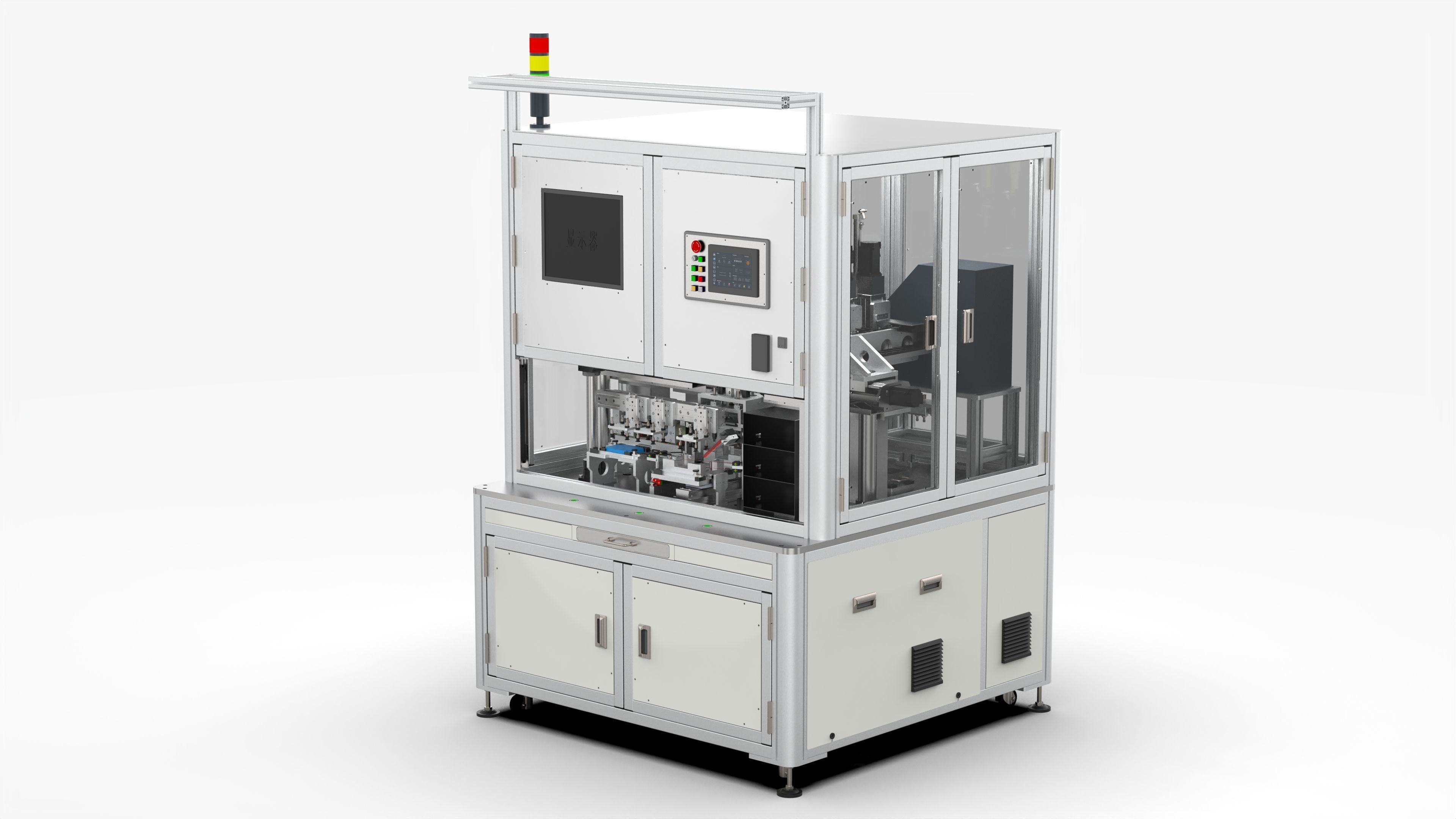

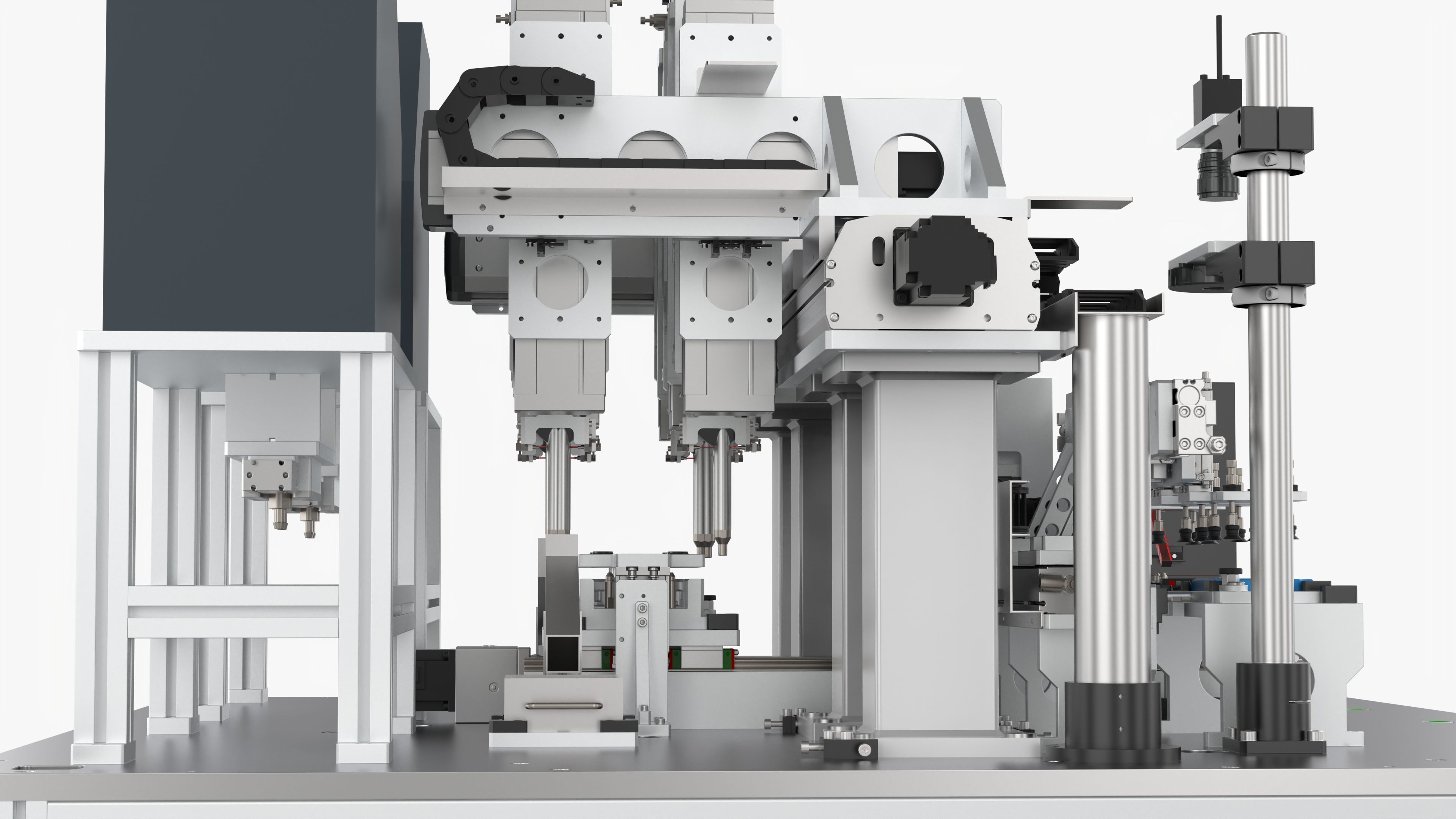

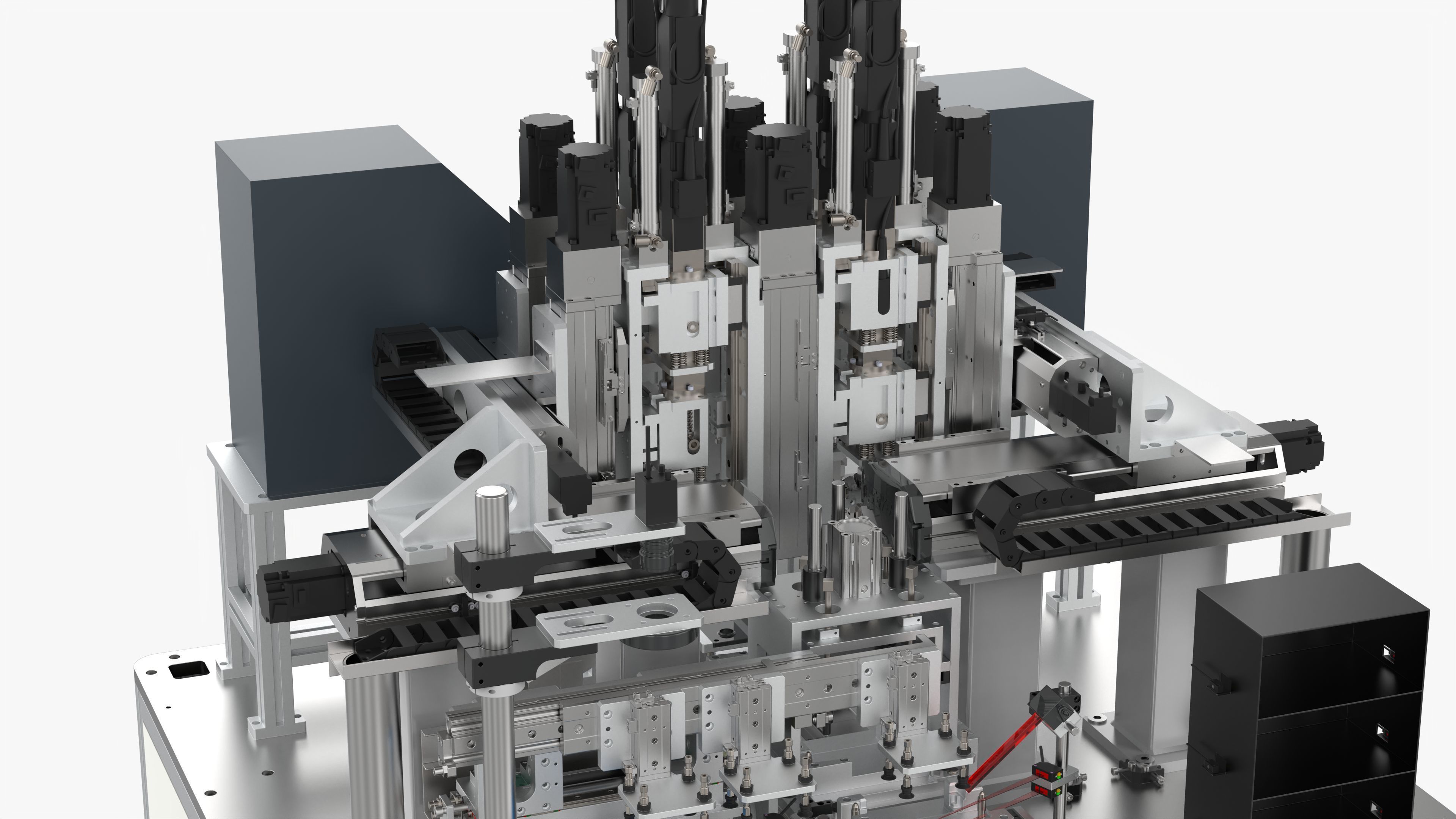

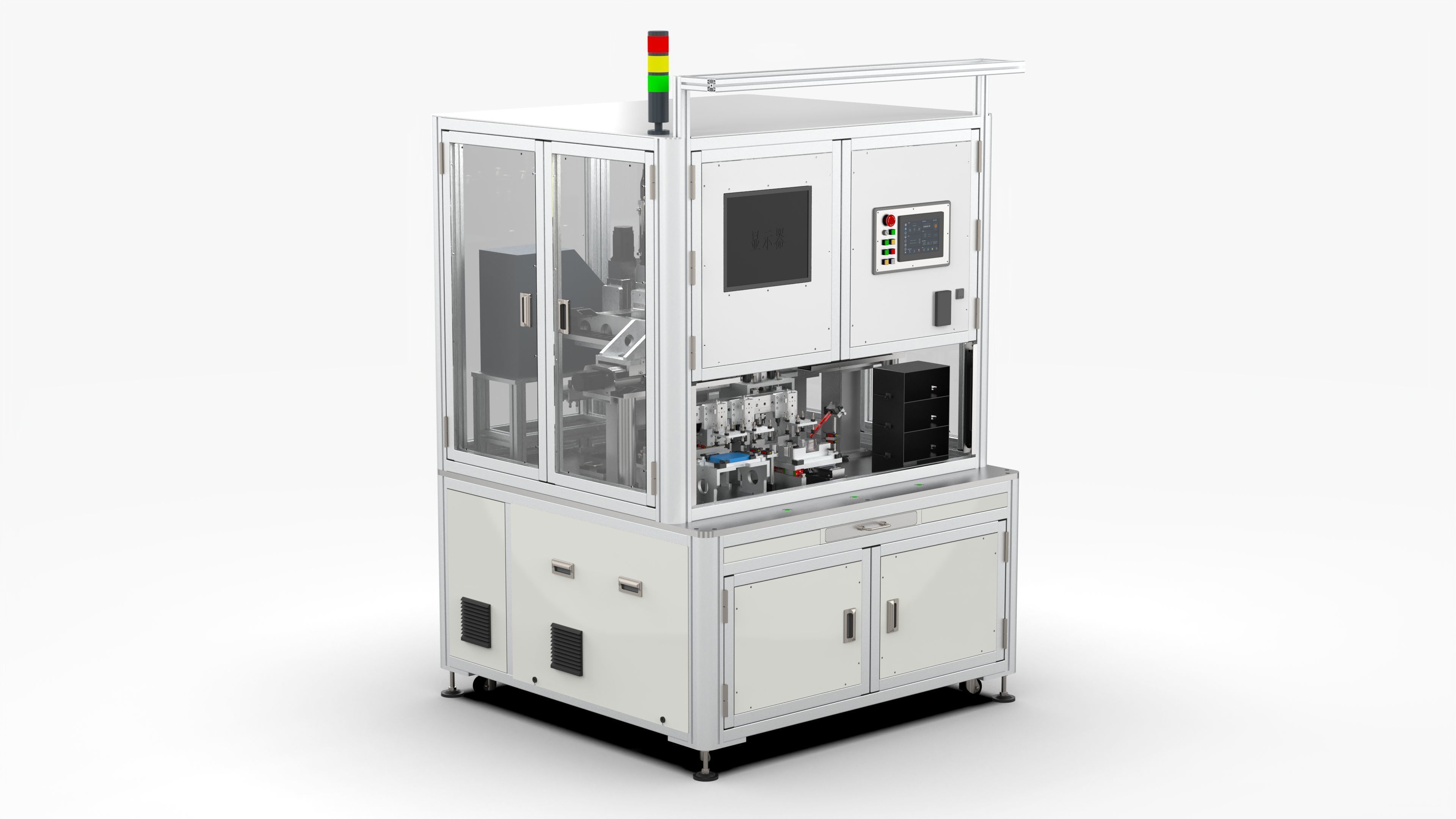

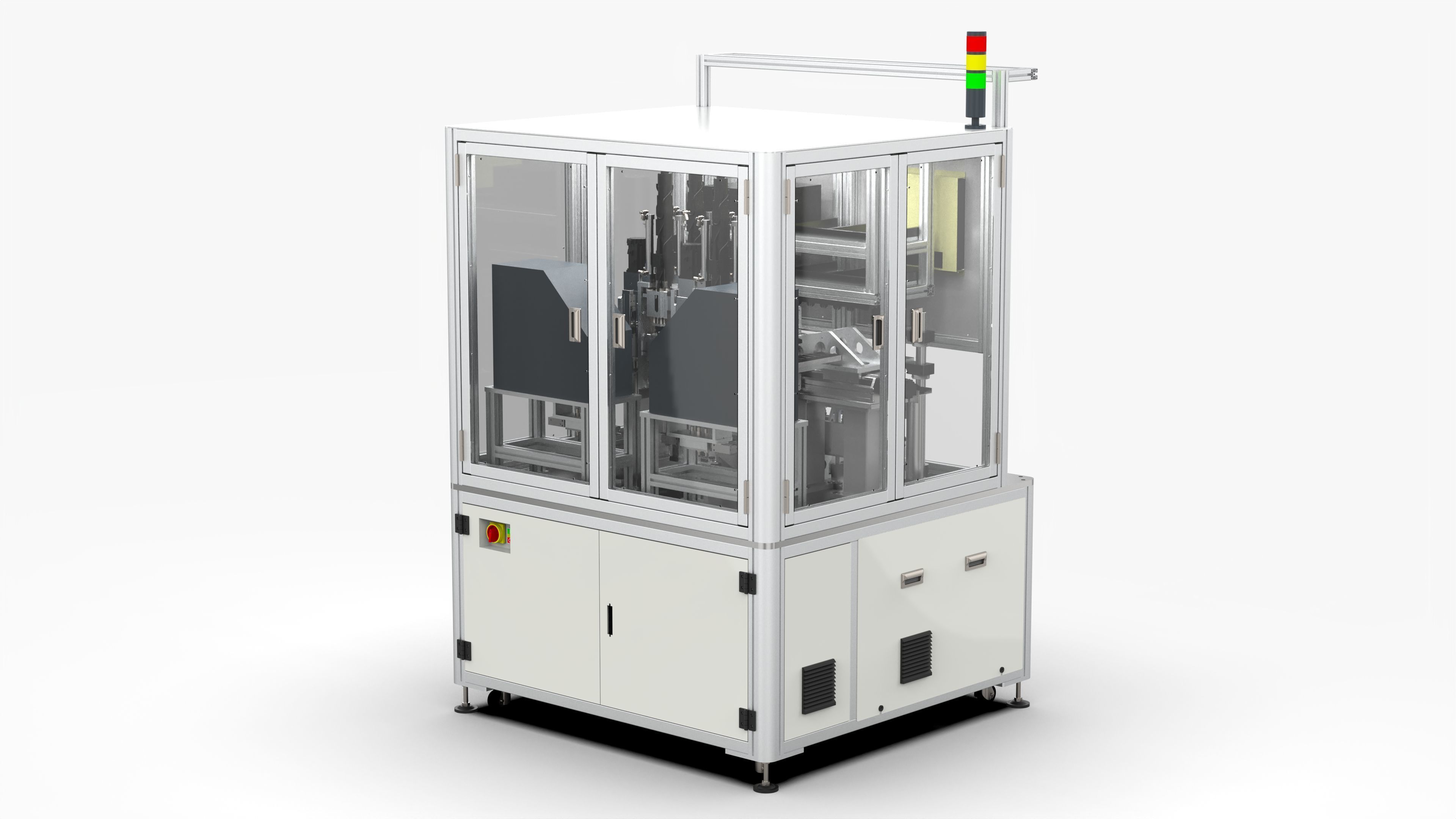

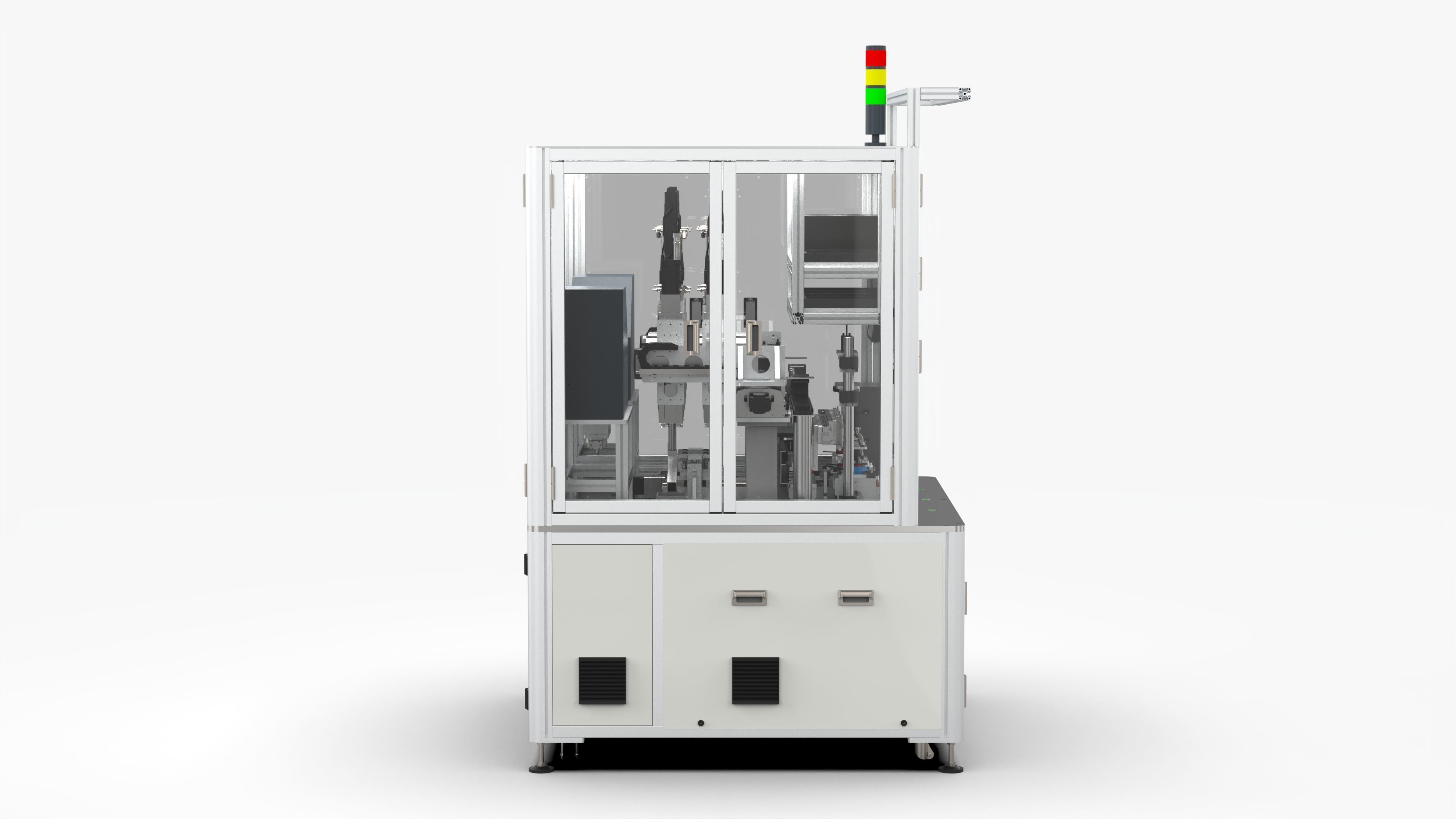

The 3D model of a non-standard automatic screw-driving machine and automatic screw-locking equipment includes parameters that can be edited. This picture is a complete design drawing of the automatic screw-driving machine. The assembly is completely in the mechanism mode, and you can simulate it yourself. This machine has been delivered to use, and the functional parts can be roughly divided into.

1. The vibrating plate automatically organizes and sends the screws to the electric screwdriver nozzle;
2. Checks whether the screwdriver has been fed into the screw;
3. Checks whether the product is loaded into the fixing position;
4. Driving the screw to check whether the screw is in place;

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 5,132,958
• Vertice: 15,398,874
