Machine Design Exercise 3D model

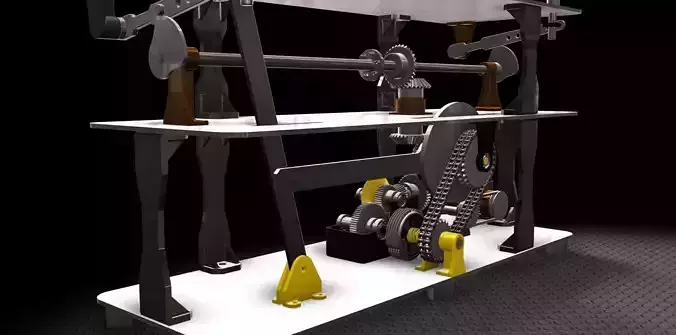

This machine is an exercise for practicing Inventor’s Design Accelerator Module. It’s based in a Cream Filler Machine. The design has many simplified elements and it's not the most efficient, but the idea of the project was to incorporate the core Machine Element design tools in one model.

If you find the part "Disc Cam:1" in the browser, expand it and drive the angle constraint called: "Giro_Leva_01", you will see an animation of the nozzle stand movement.

I used my Speed Reduction System model in this assembly.
