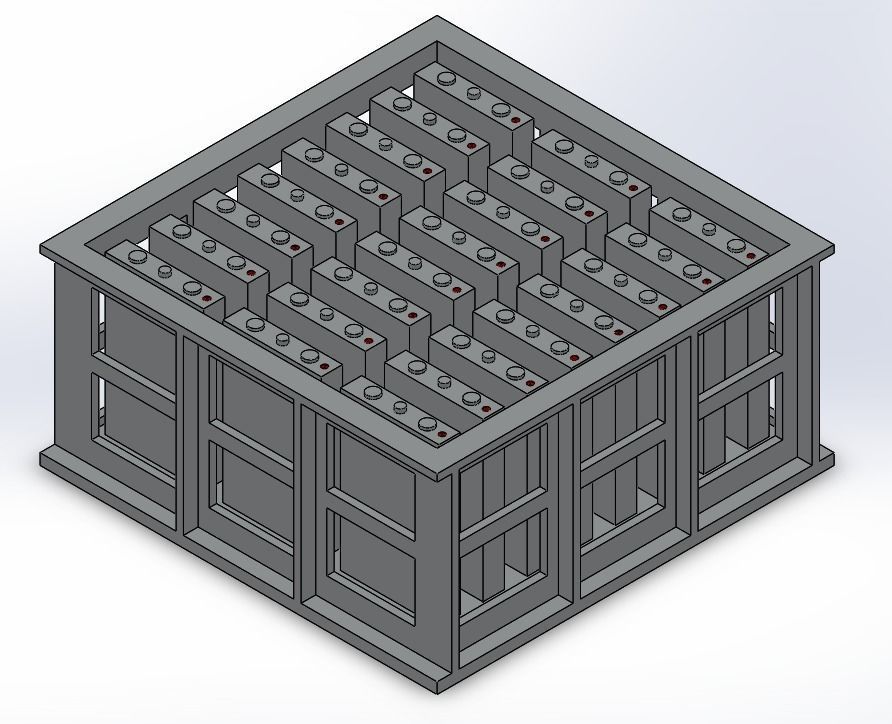

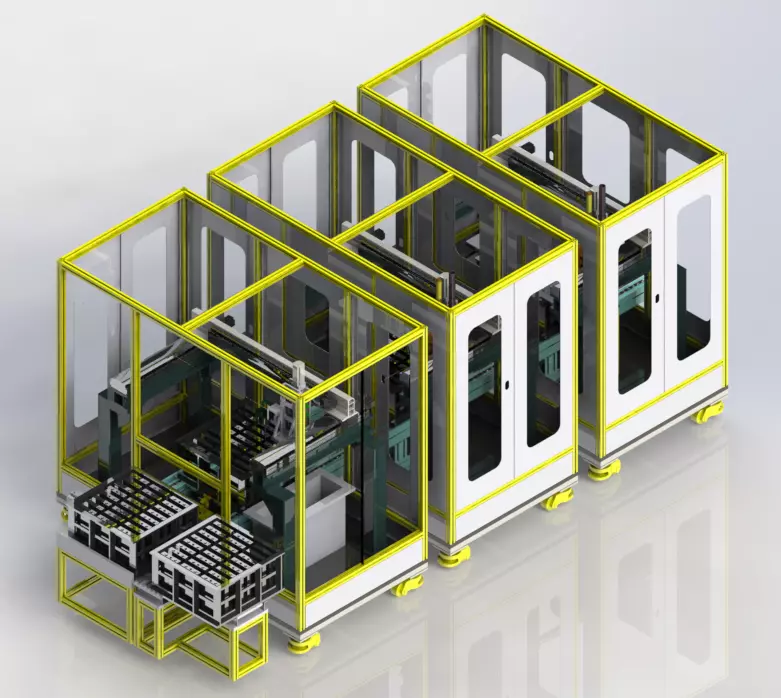

Lithium battery injection hole laser welding automatic machine 3D model

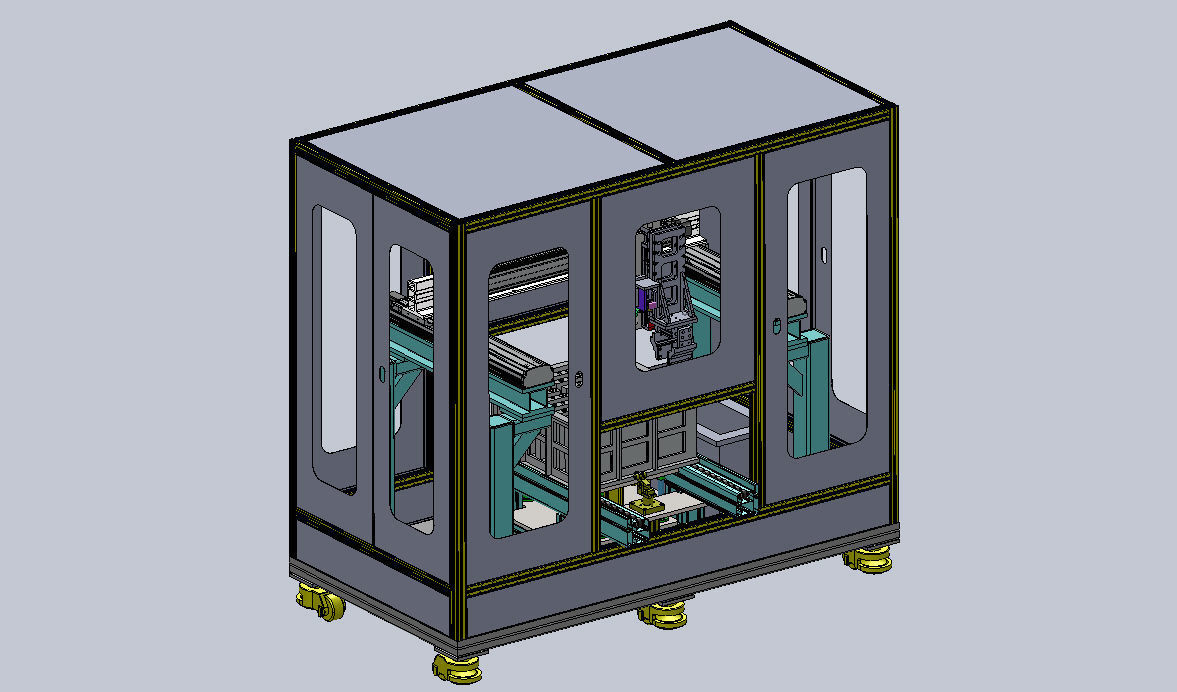

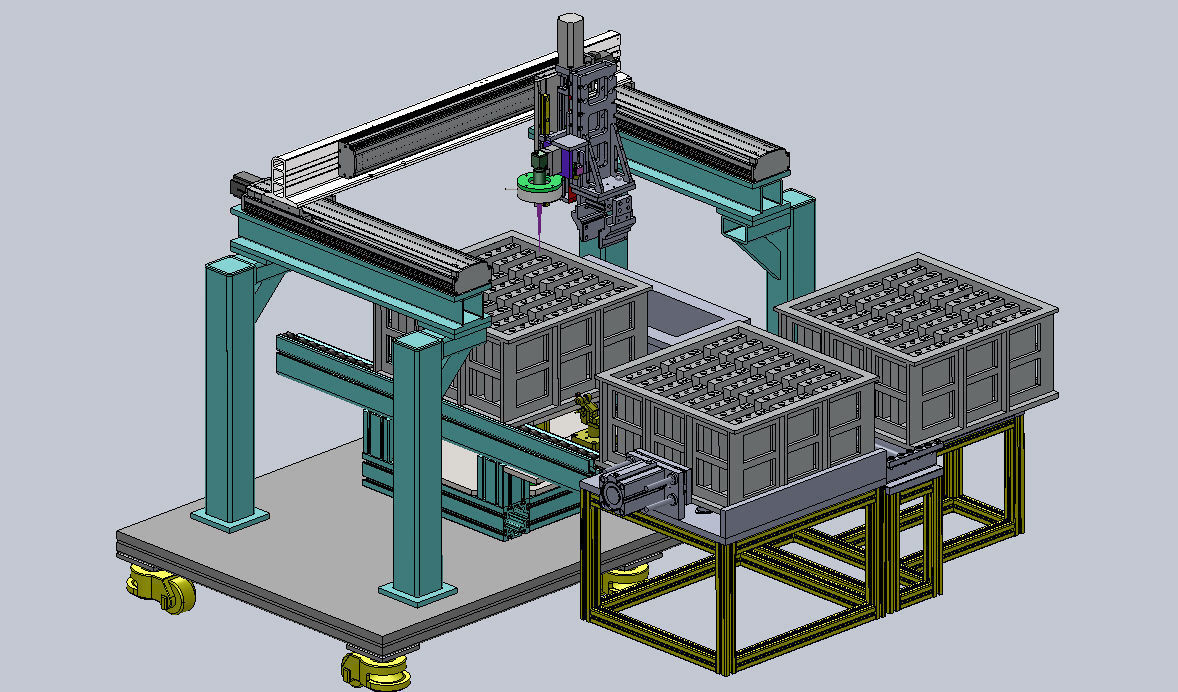

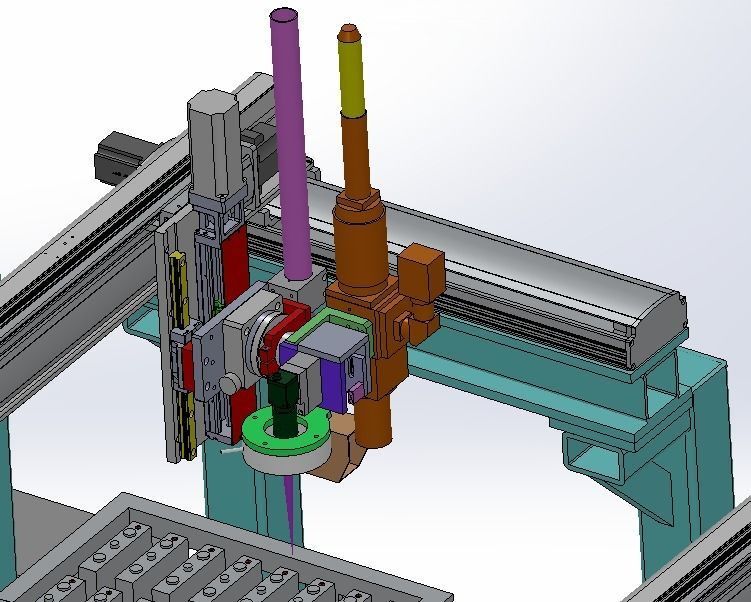

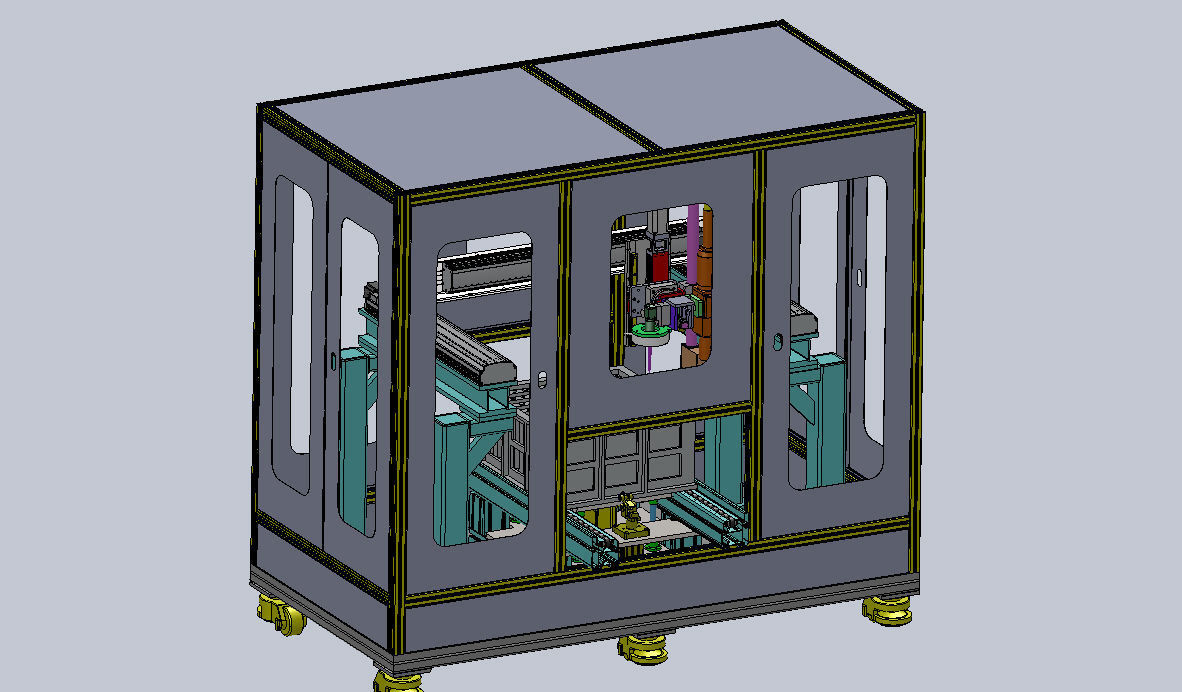

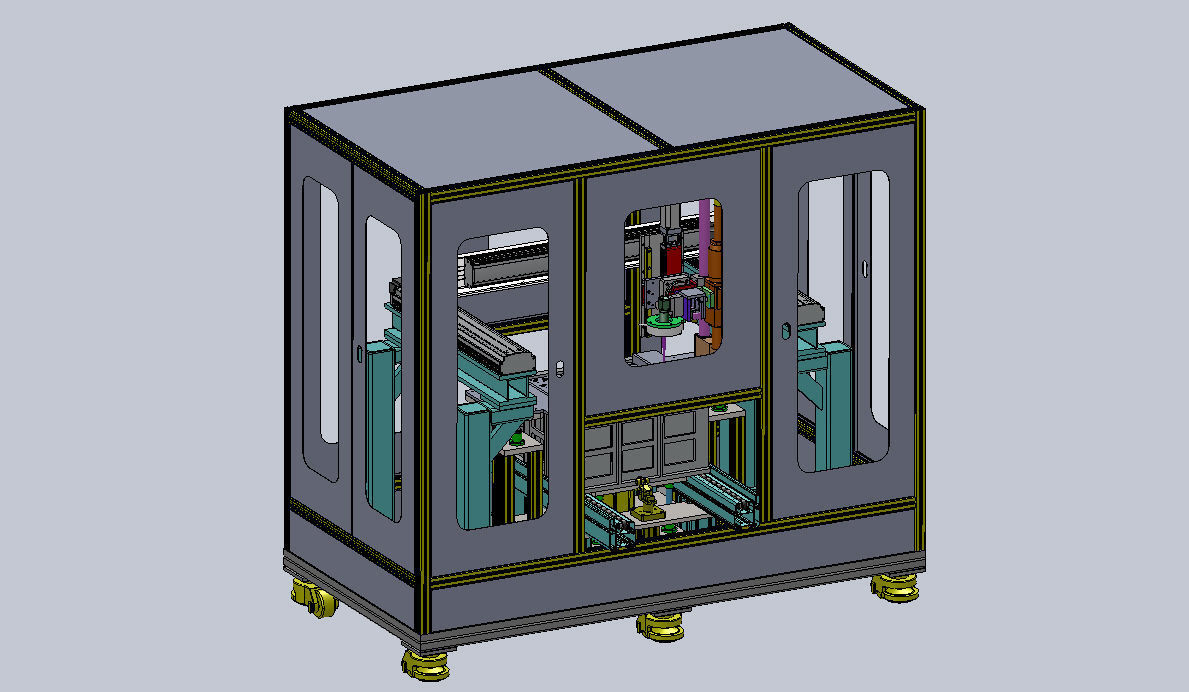

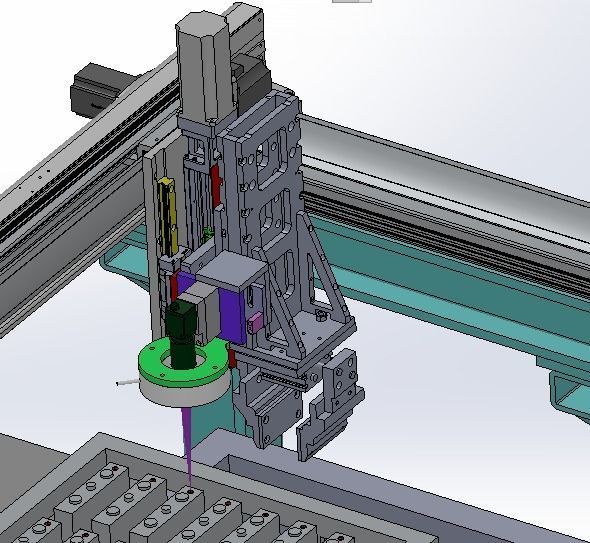

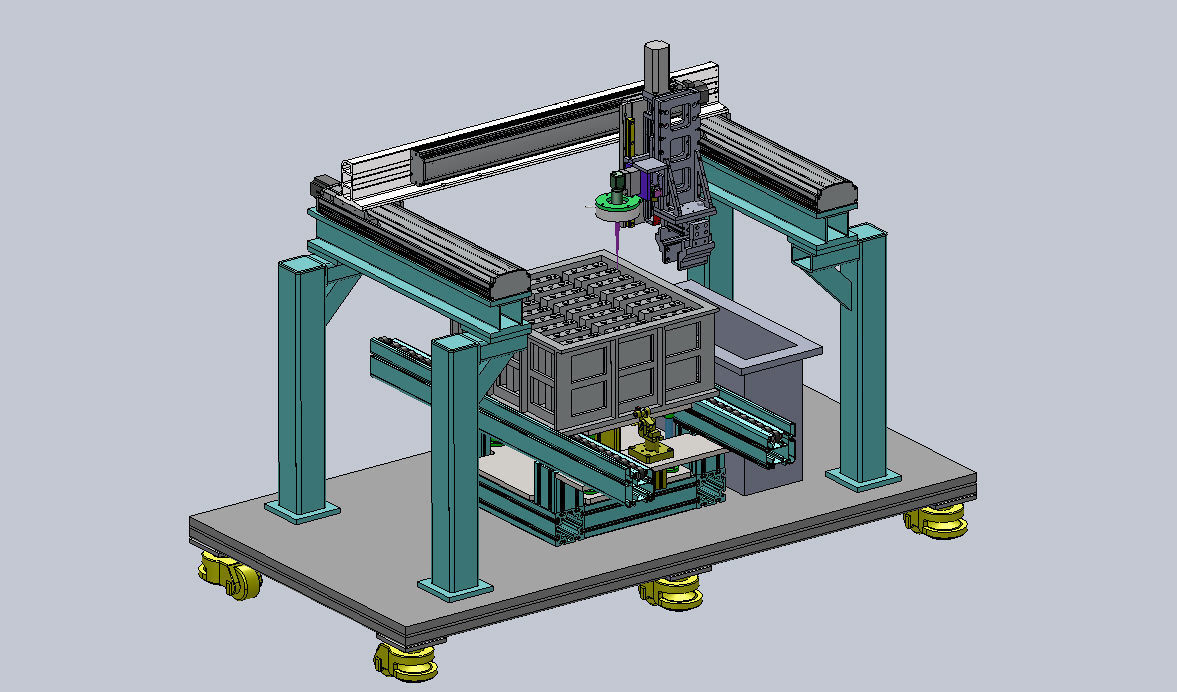

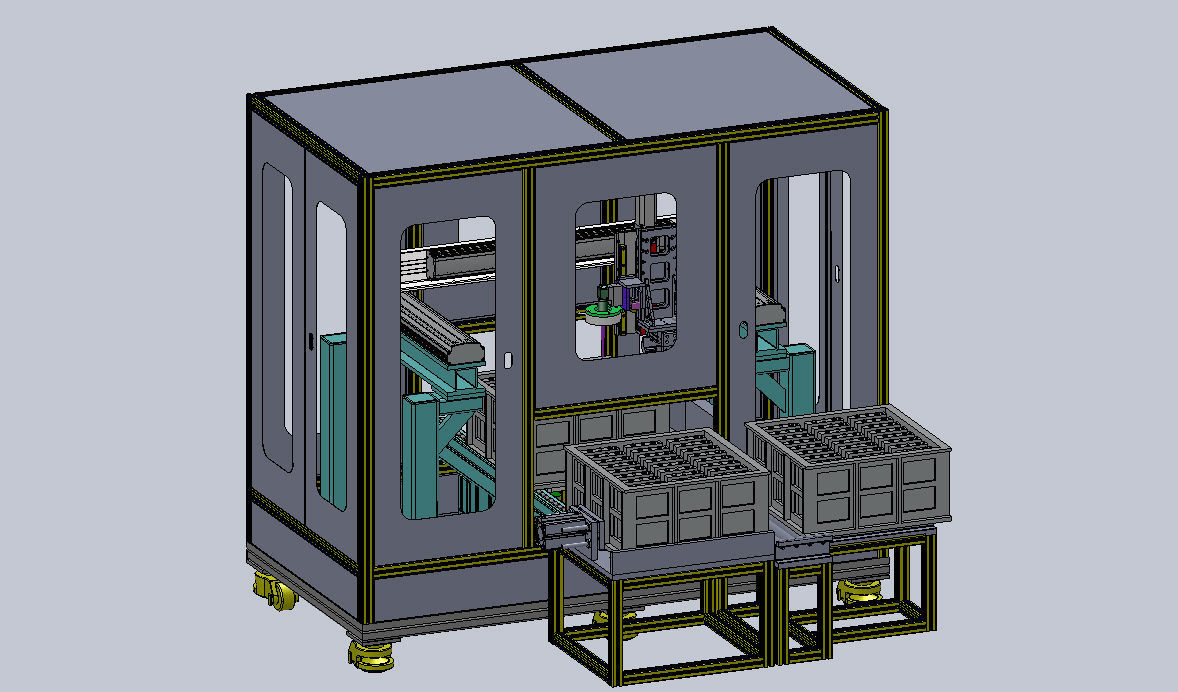

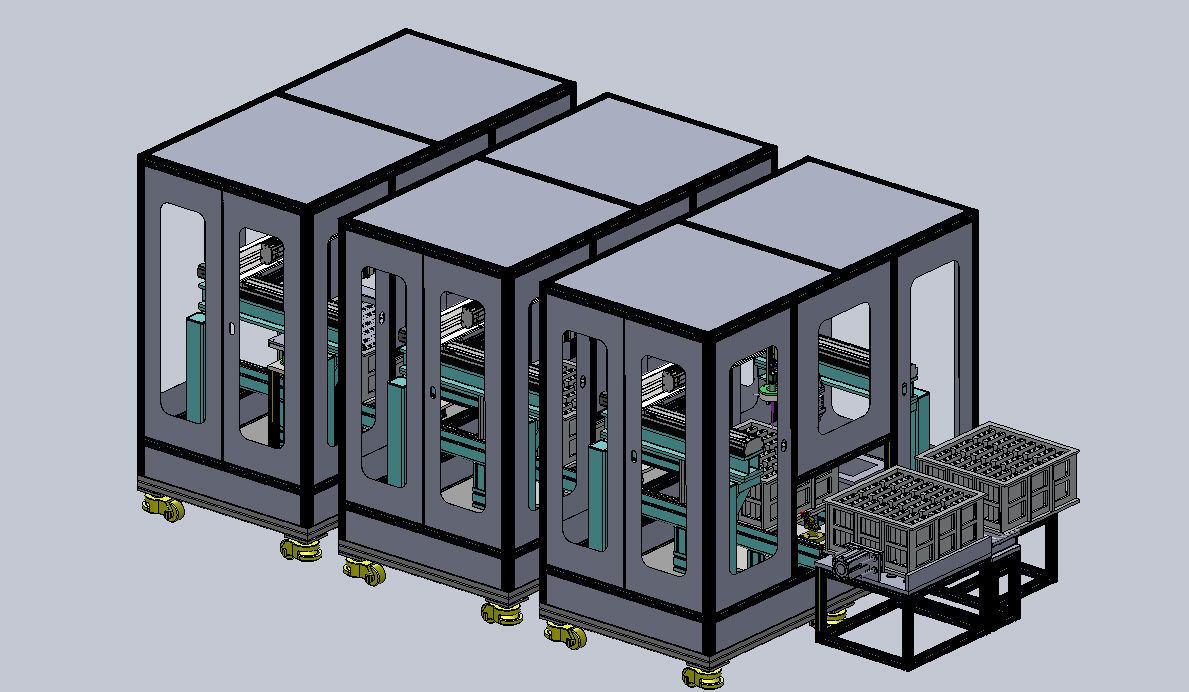

Lithium battery injection hole laser automatic sealing machineFiber transmission laser: 600W Use gas: compressed air Rated pressure: 0.6MPa Electrical requirements: Rated output voltage: 380VAC This equipment is specially used to realize automatic laser spot welding, automatic continuous laser welding, automatic detection for the sealing nails of the lithium battery injection hole Welding quality, using a manipulator to realize automatic rejection of NG products, the equipment is mainly composed of conveying trough, XYZ three-axis numerical control axis, welding laser, laser welding head, CCD vision positioning system, height detection sensor, fixed positioning mechanism, smoking dust removal mechanism, etc. The equipment is divided into a compression automatic spot welding part, an automatic continuous welding part, an automatic rejection part of NG products after welding and a blanking area after welding detection. Voltage frequency: 50Hz three-phase voltage stability +5% output voltage adjustment rate: <2% Machine size: length 4.16mm, width 1.95m, height 1.8m Maximum power consumption of the machine: 43KW (including two lasers) Machine weight: 400Kg/m2

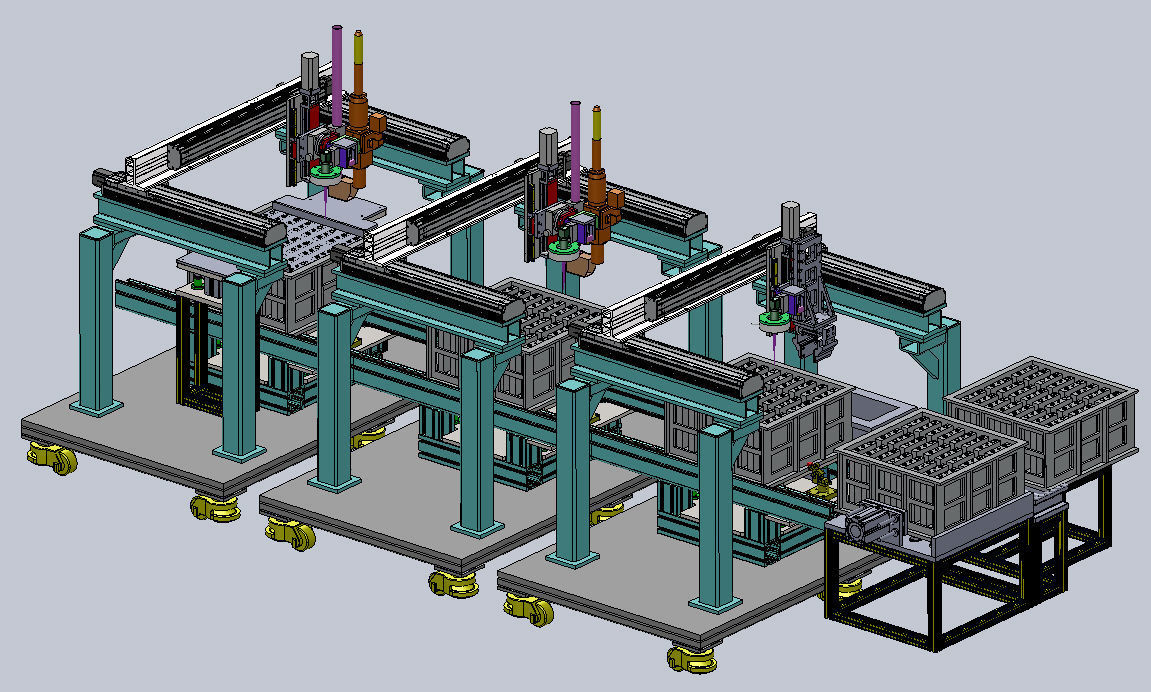

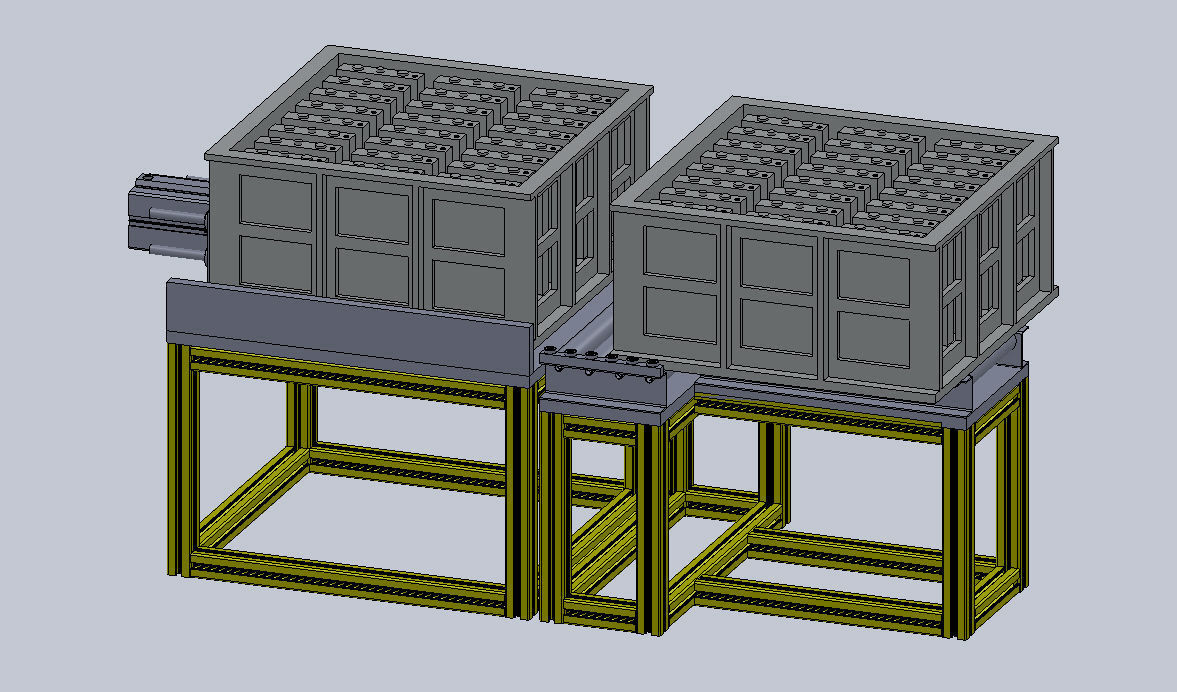

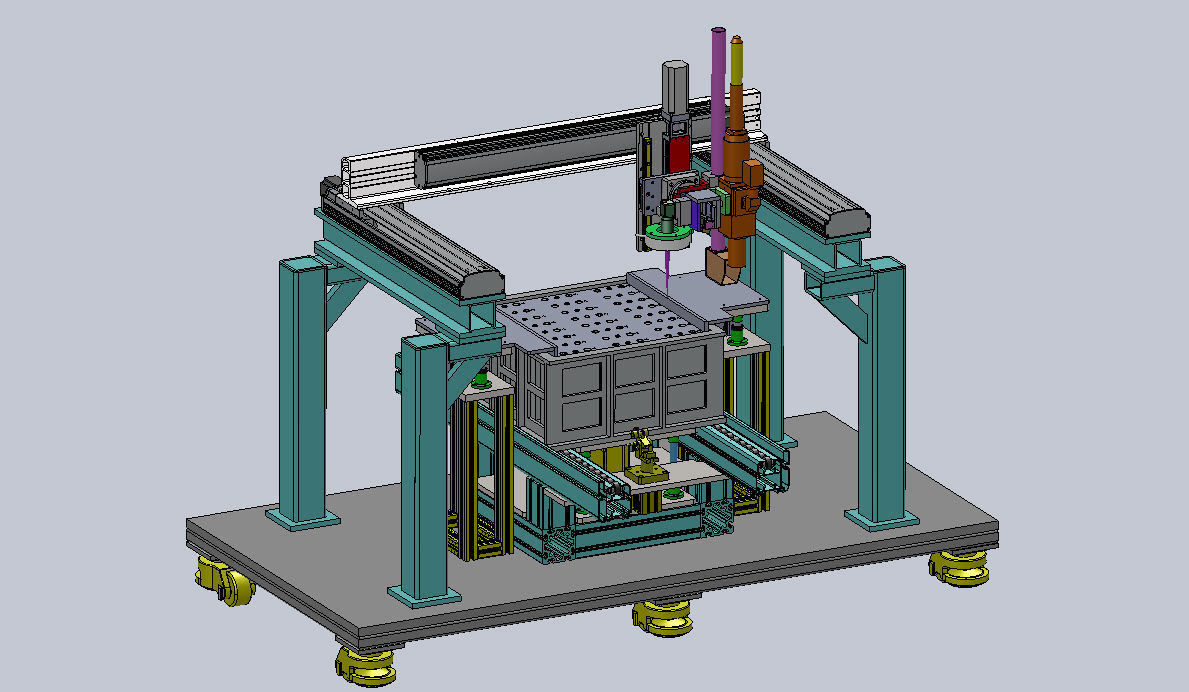

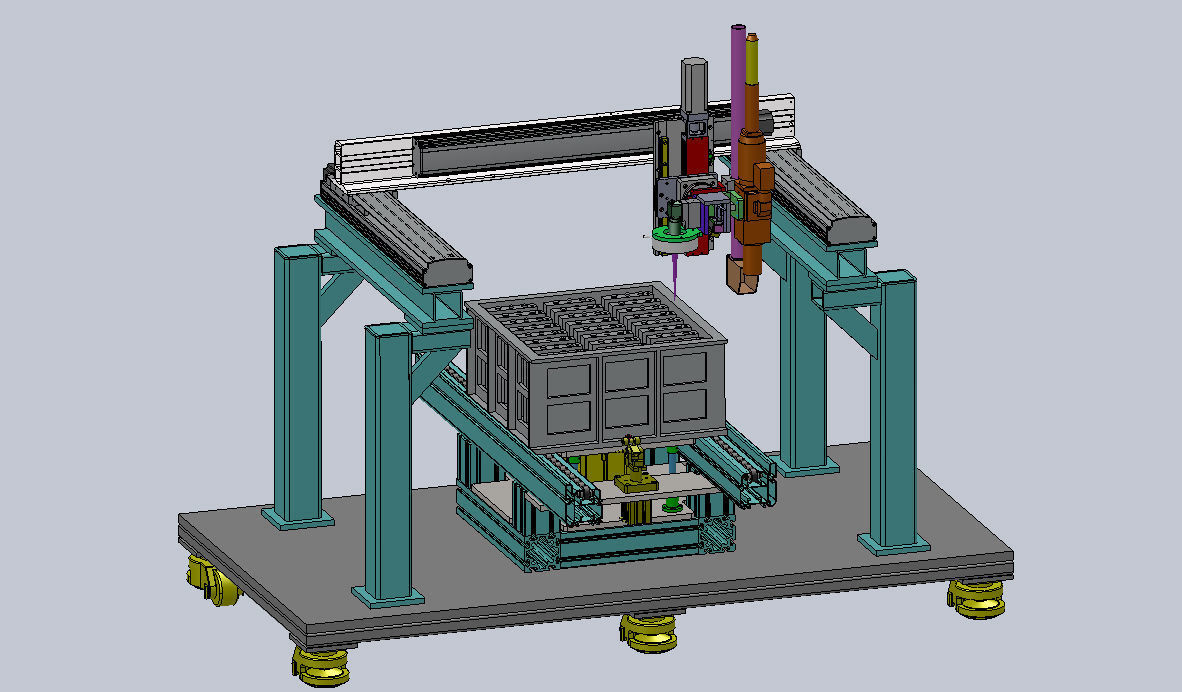

Post-weld inspection and NG rejection partPost-weld inspection and NG rejectionPost-weld inspection, NG product rejection and blanking partPost-weld inspection, NG product rejection and blanking partLithium battery injection hole laser sealing machineContinuous welding partCutting partPress the spot welded partPress the spot welded part
