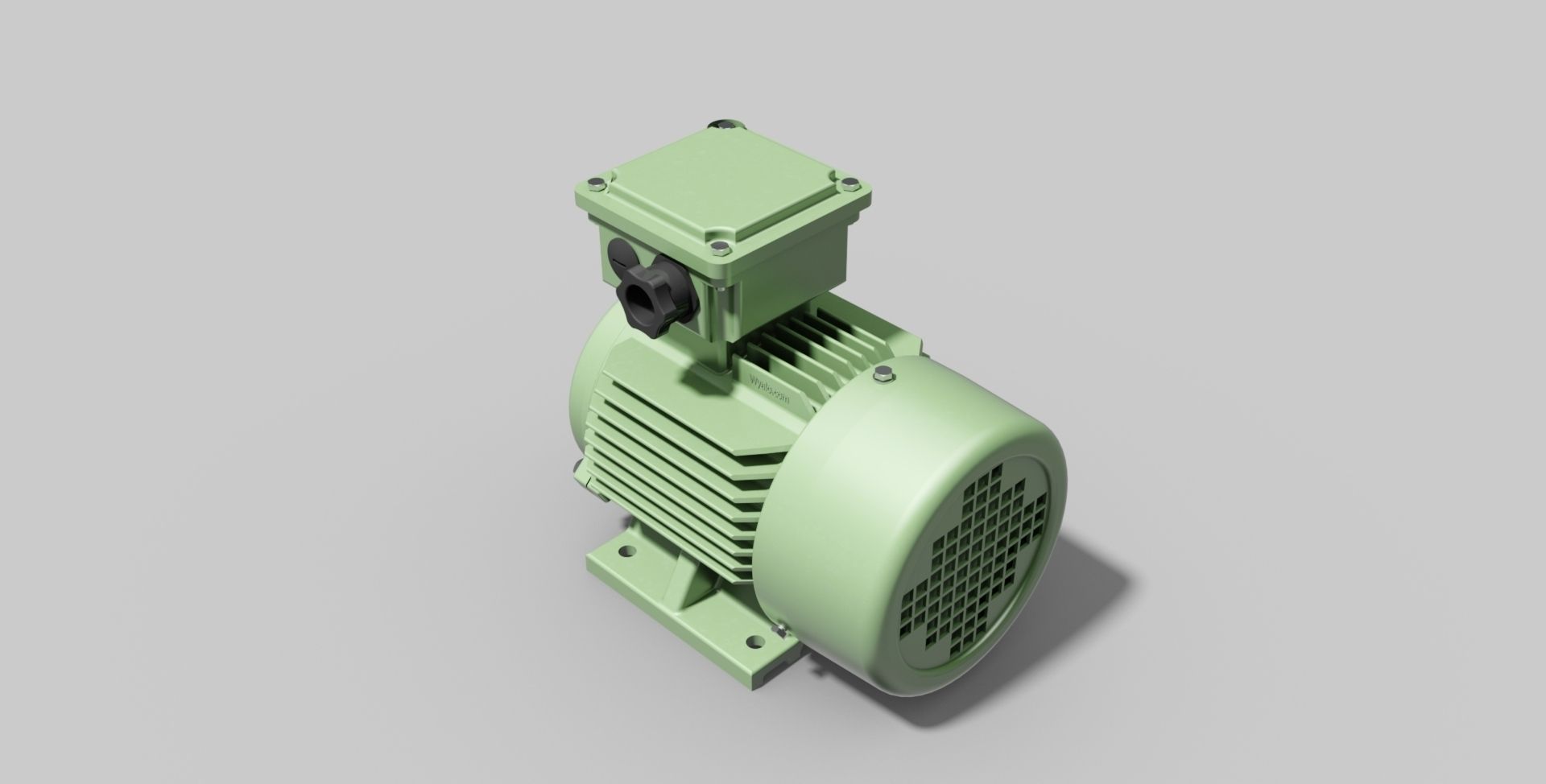

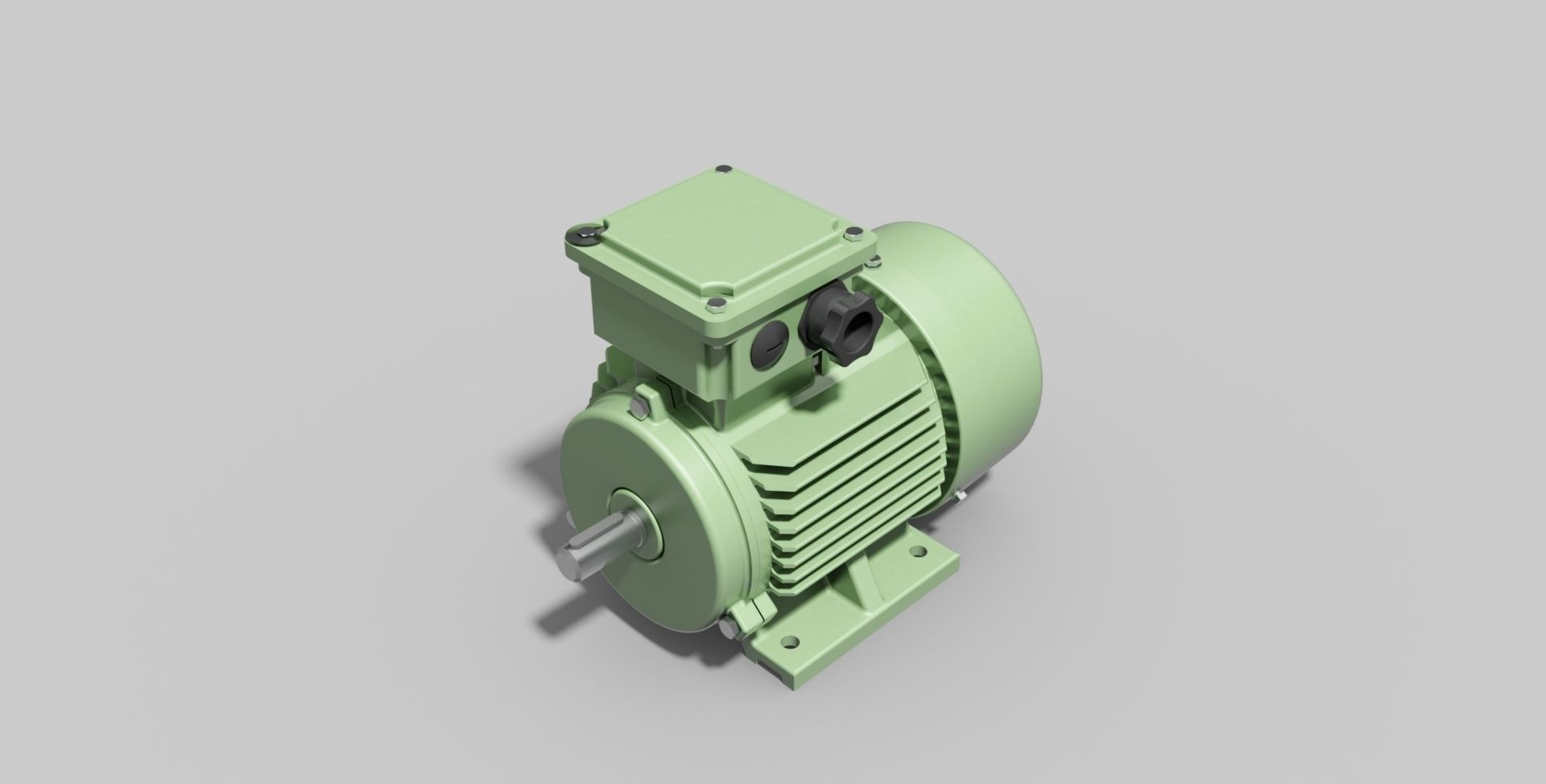

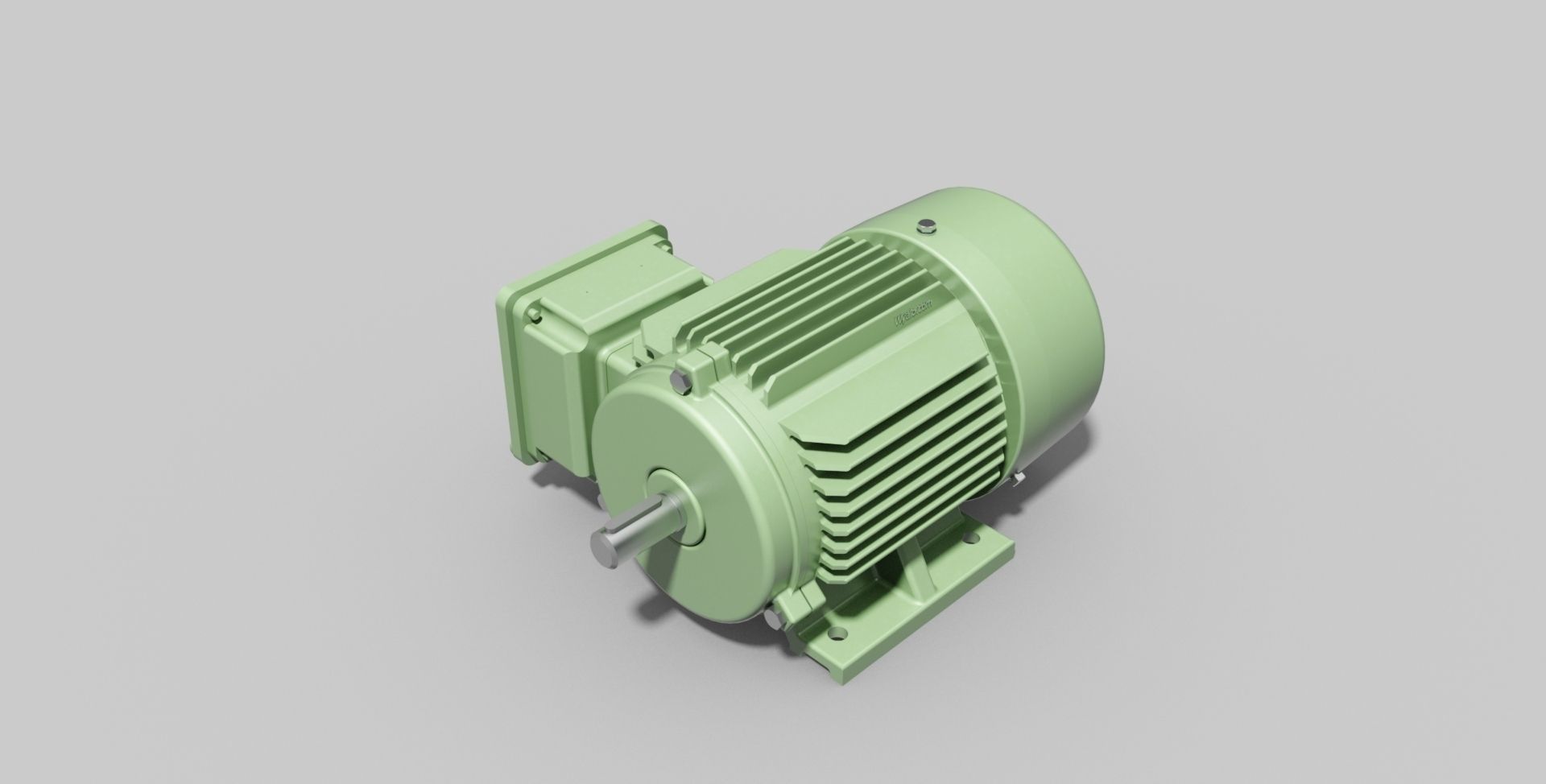

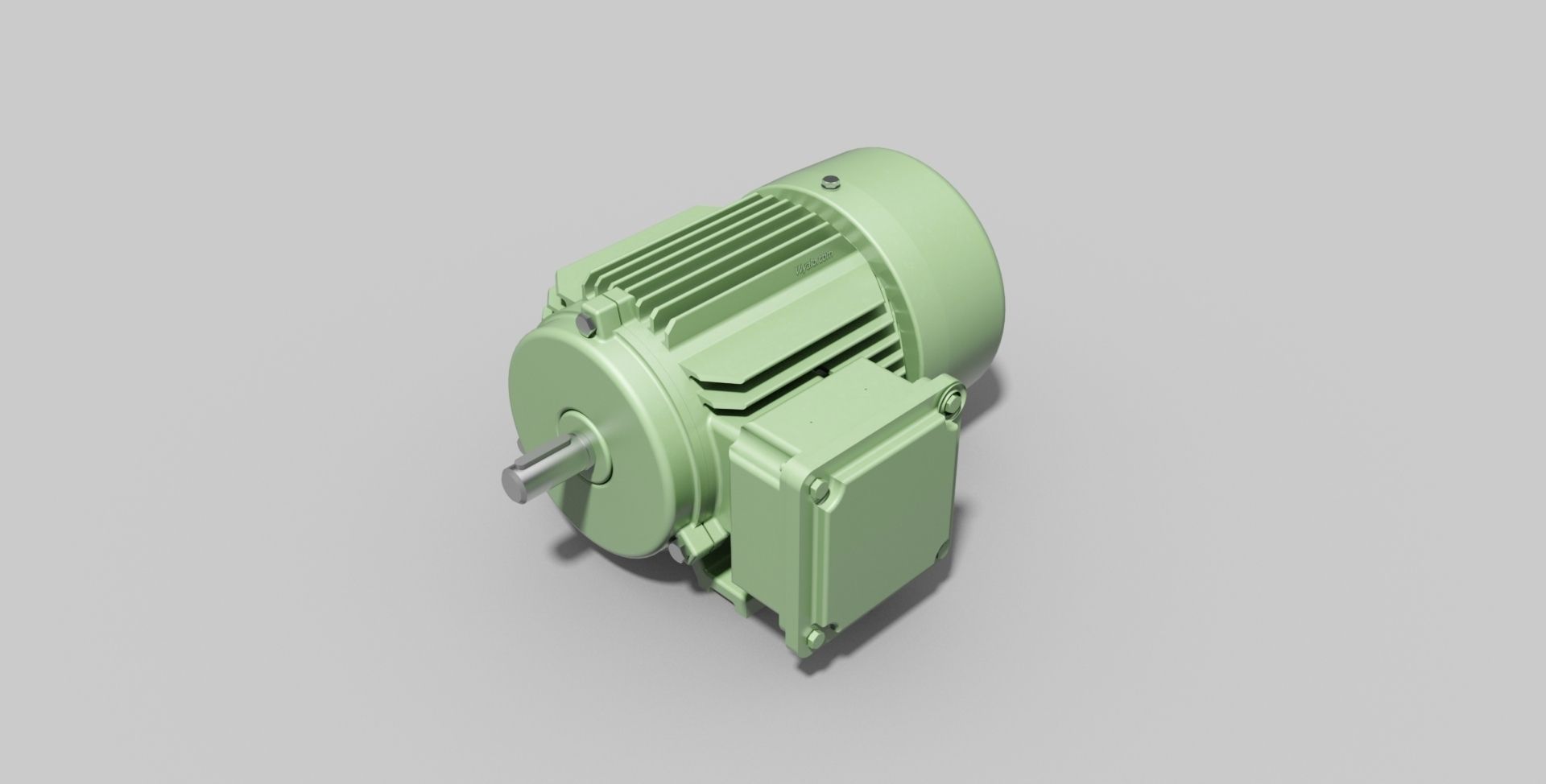

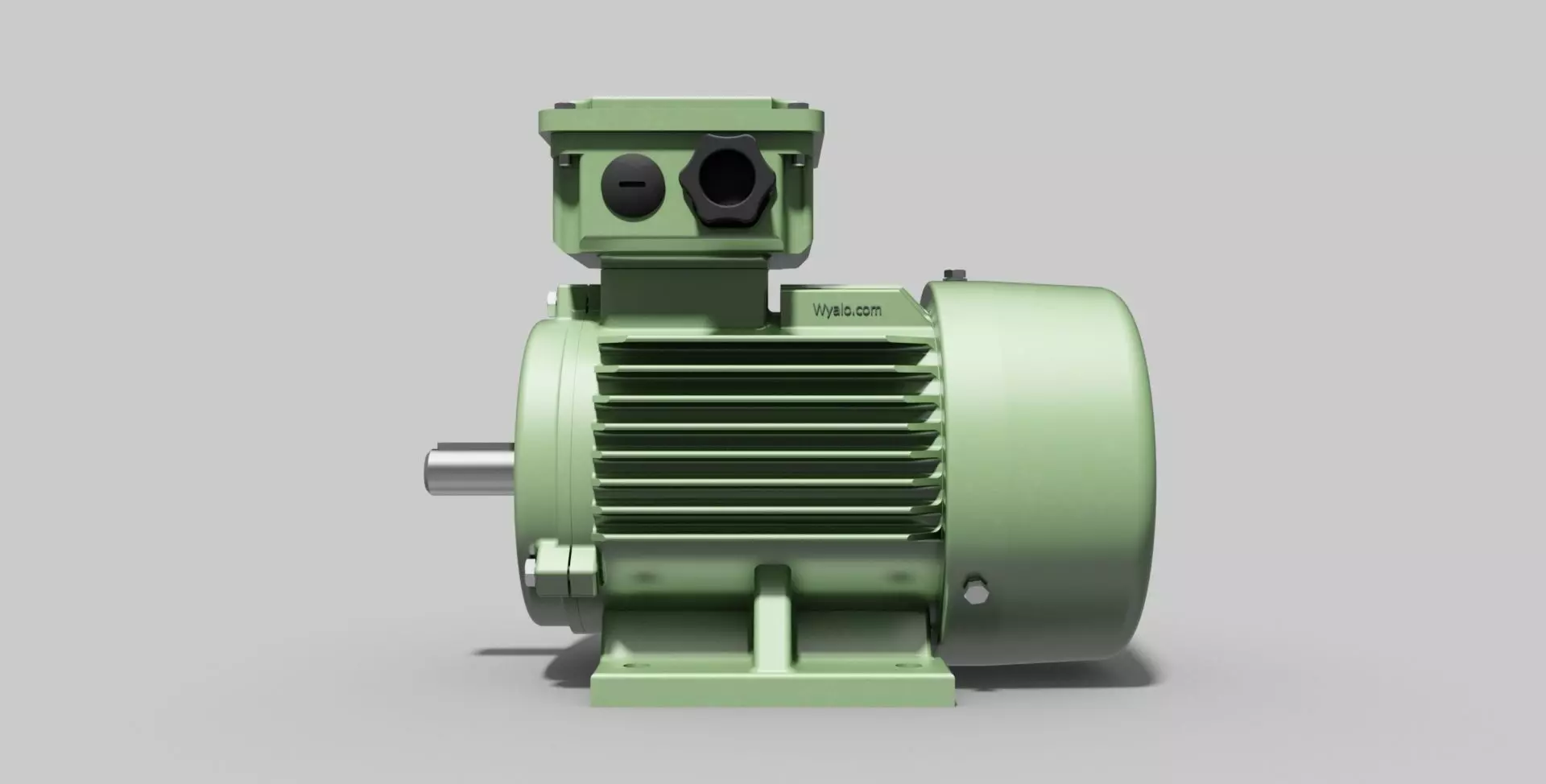

IEC80 B3 - Electric motor 3D model
Description
IEC Three phase asynchronous AC motor.
Frame size 80 - 2-8 Pole
Frame type B3 (Foot mount)
Power range 80 IEC motors (50Hz):
0,75-1,1kW - 3000 r.p.m. / 0,55-0,75kW - 1500 r.p.m. / 0,37-0,55kW - 1000 r.p.m.
This free 3D CAD model is part of a full range (72 parts) 3D CAD library
File formats: ■ Autodesk Inventor .ipt ■ STEP (.stp) file format, for direct import in: - Autodesk Inventor - Autodesk Fusion 360 - Dassault Solidworks - Dassault Catia - Siemens Solid Edge - ISMI Turbocad Professional ■ Autocad (.dwg) ■DATASHEET in pdf file format is included!
I hope you can use the 3D models! Freerk de With Wyalo 3D CAD models
C
crayon97 2023-01-12 16:53:15 UTCcrayon97
Nice
piyushp7879
Nice
H
hajdulehel12 2016-09-19 08:04:25 UTChajdulehel12
https://sellfy.com/p/rtnn/

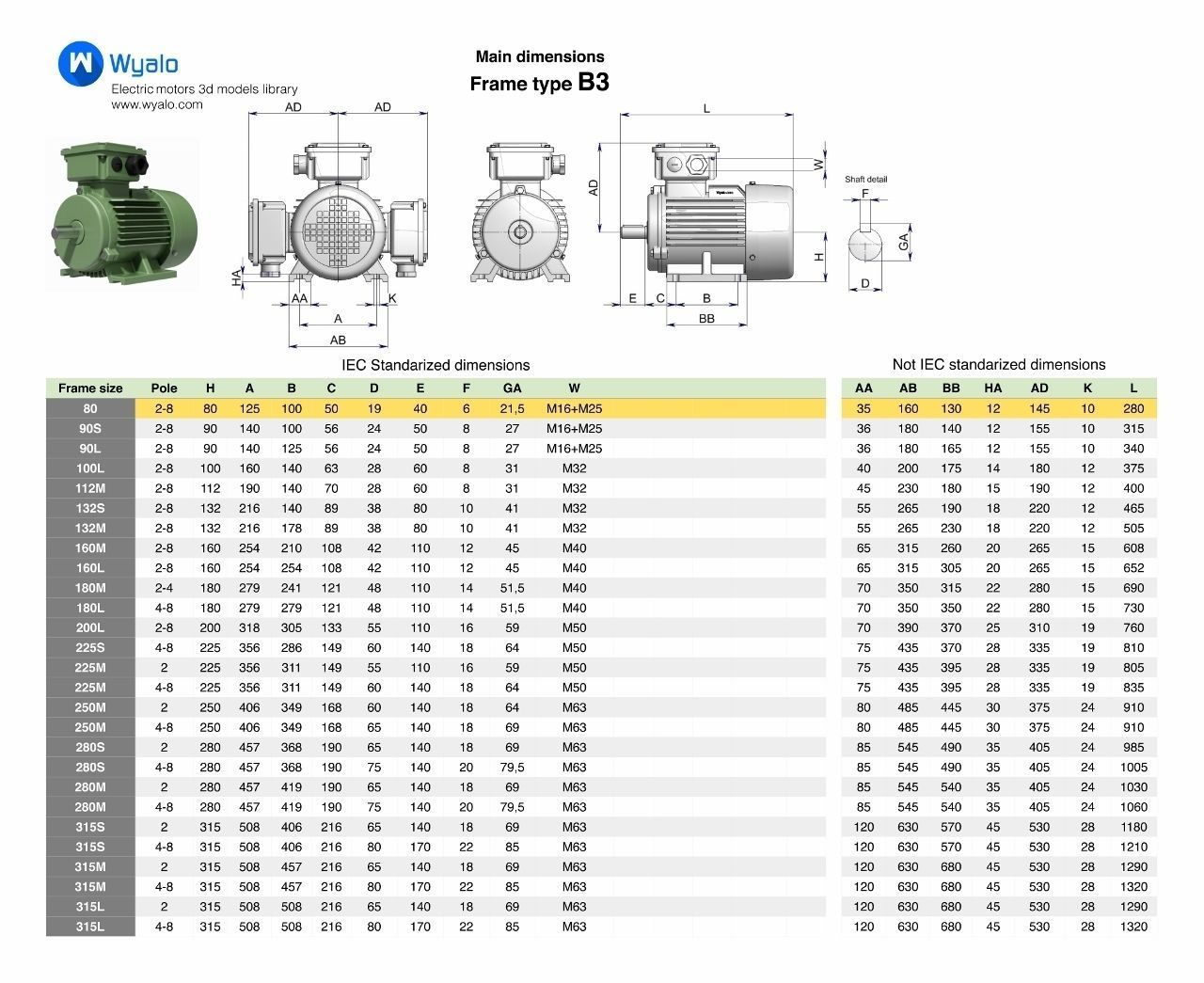

The sizes are wrong in the pdf. (like: 100L B14B, the size: "P", "M", "S" are wrong (not just the 100L)
