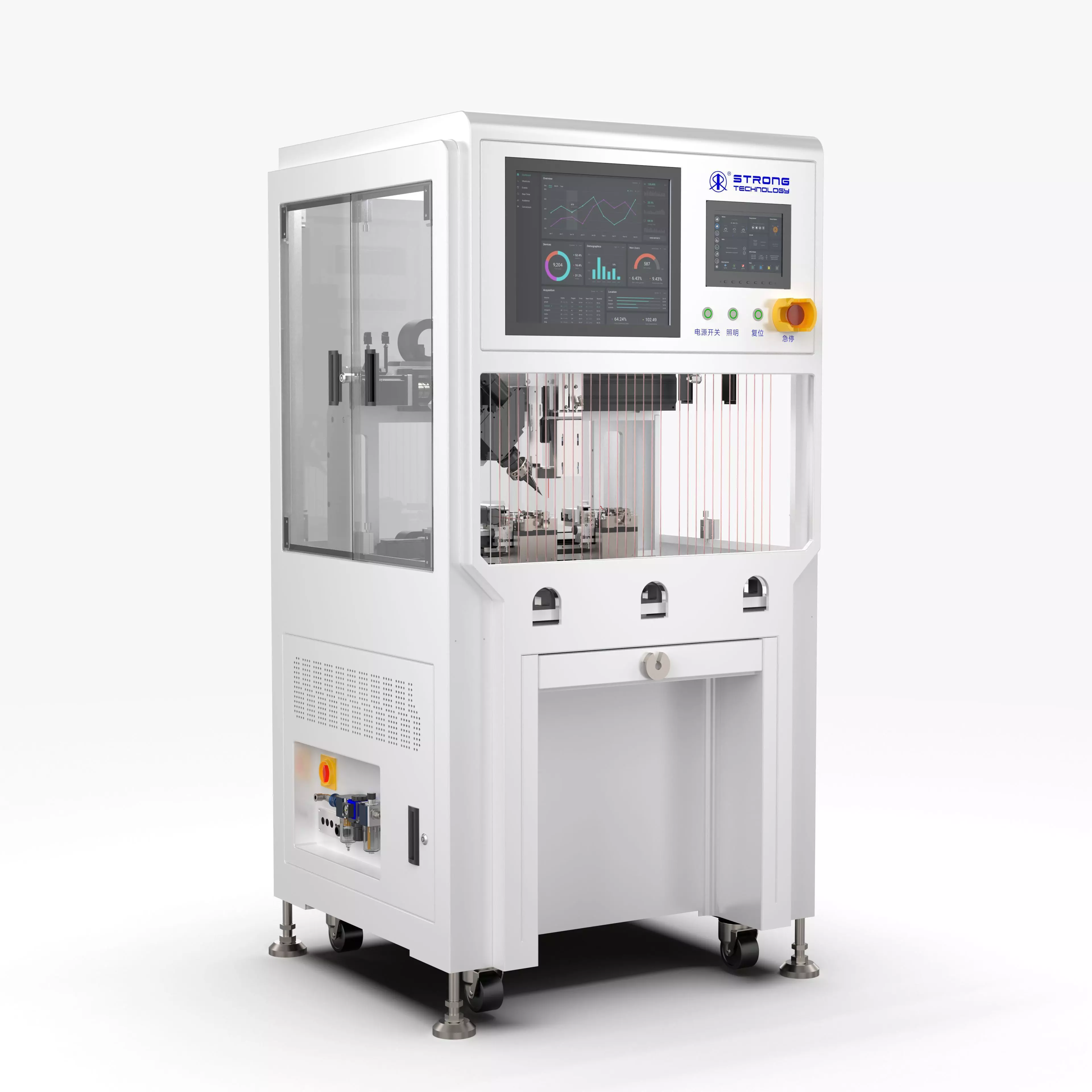

High Precision Laser Welding Machine

Introduction

Equipment parameters

• Power supply: 220VAC 50HZ
• Dimensions: L791 x W851 x H1682mm
• Weight: 350kg
• Power: 3000W
• Air pressure: 4-6kg/cm²

Equipment characteristics

1. The equipment uses high-precision XIYZ manipulators for operations to ensure the stability of the equipment;
2. Through high-precision CCD detection, adjust the working position of the material to ensure the welding accuracy and yield;
3. Intelligent control interface, flexible and fast debugging and product switching;
4. Multiple protective measures to avoid direct contact with personnel during welding.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 2,056,890
• Vertice: 6,170,670
