Gate Valve Gearbox - Continuous Rotation Bevel Type 3D model
Description

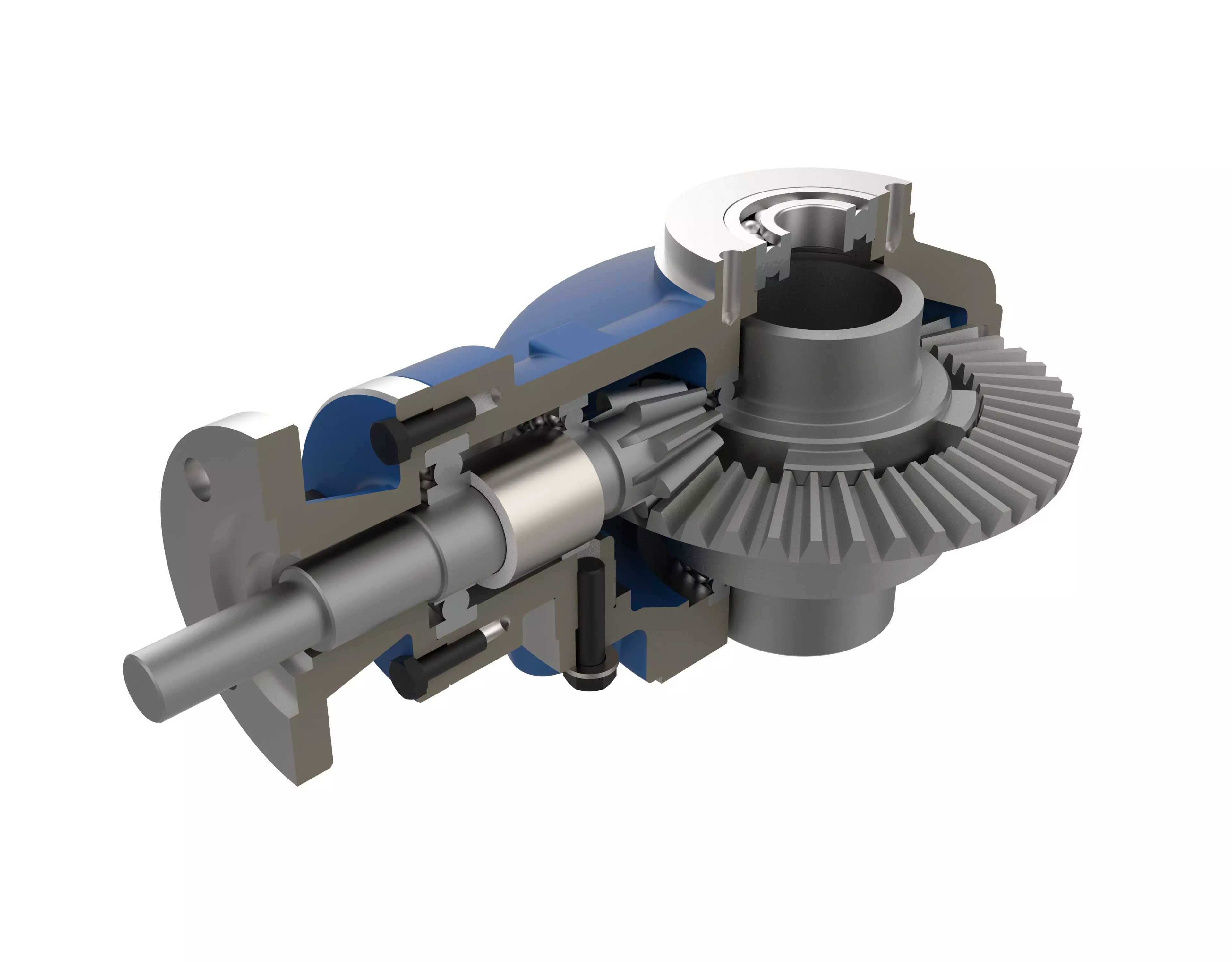

This design is reverse engineered from an actual gearbox that controls the opening of a size 700mm gate valve. Dimensions are accurate and can be used to manufacture a working gearbox.Solidworks 2020 is the native file format, with all parts editable and properly defined in terms of sketches, features and mechanical mates in the assembly.Animation for the gear motion is included in the assembly file, which is used to generate the video included in the youtube preview.As for the specifications for this particular gearbox:
- Reduction ratio: 5.625
- Input shaft diameter: 30 mm
- Input flange PCD: 140 mm
- Total length: 608.1 mm
- Total width: 385.4 mm
- Total height: 238.8 mm
- Aproximate weight (drained): 115.5 kg
Gate Valve Gearbox - Continuous Rotation Bevel Type
Royalty Free License
Gate Valve Gearbox - Continuous Rotation Bevel Type
Royalty Free License
3D Modeling
3D Print Modeling
3D Model formats
Format limitations
Native
- SolidWorks 2020 (.sldprt, .sldasm, .slddrw)11.6 MB
Exchange
- Autodesk FBX (.fbx) (2 files)99.9 MB
- OBJ (.obj, .mtl) (4 files)656 MB
- KeyShot (.bip, .ksp)180 MB
- Stereolithography (.stl) (2 files)69.6 MB
- STEP (.stp)4.6 MB
- IGES (.ige, .igs, .iges) (2 files)21.3 MB
3D Model details
- Publish date2022-12-21
- Model ID#4180399
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
