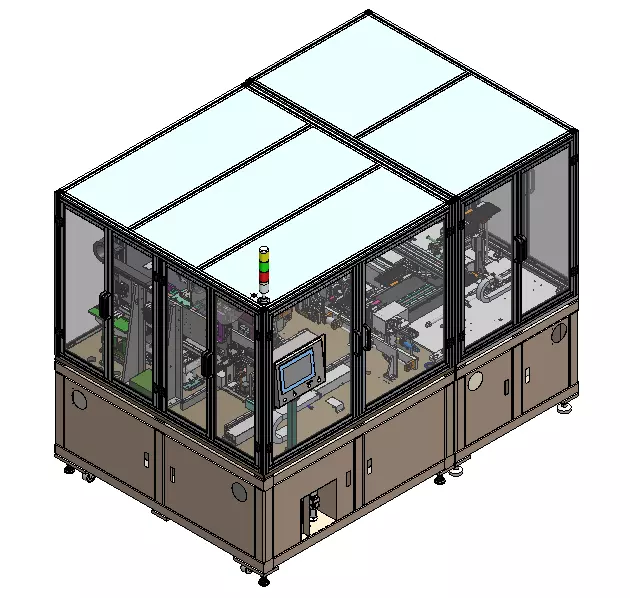

Fully automatic power lithium battery lamination machine 3D model

This equipment is a stacking machine for power batteries, which is used to produce automotive lithium batteries and important equipment for power batteries. The equipment can realize a series of actions such as automatic zigzag lamination of a certain size square material with tabs, automatic film winding, side sticking and unloading, etc. This type is a diaphragm thermal cutting with tail winding speed-up mechanism. The equipment is stable and mature, and has been mass-produced. It can produce models with different configurations according to different specifications and realize high-speed full automation. It is a very high level in the lithium battery equipment industry. The information is relatively complete. There are pictures of equipment, videos of equipment operation, and a full set of BOM tables, etc. Not only has a high reference value, but also provides source files, including parameters, which can be modified and edited. If there are customers, you can directly produce as shown below. Many mechanisms are ingeniously designed and run stably. In short, it is a mature and value-added mass production model. The above is a personal arrangement, for learning purposes only，design reference learning.
