Fully Automatic Extrusion Welding Plate and Deburring Machine 3D model

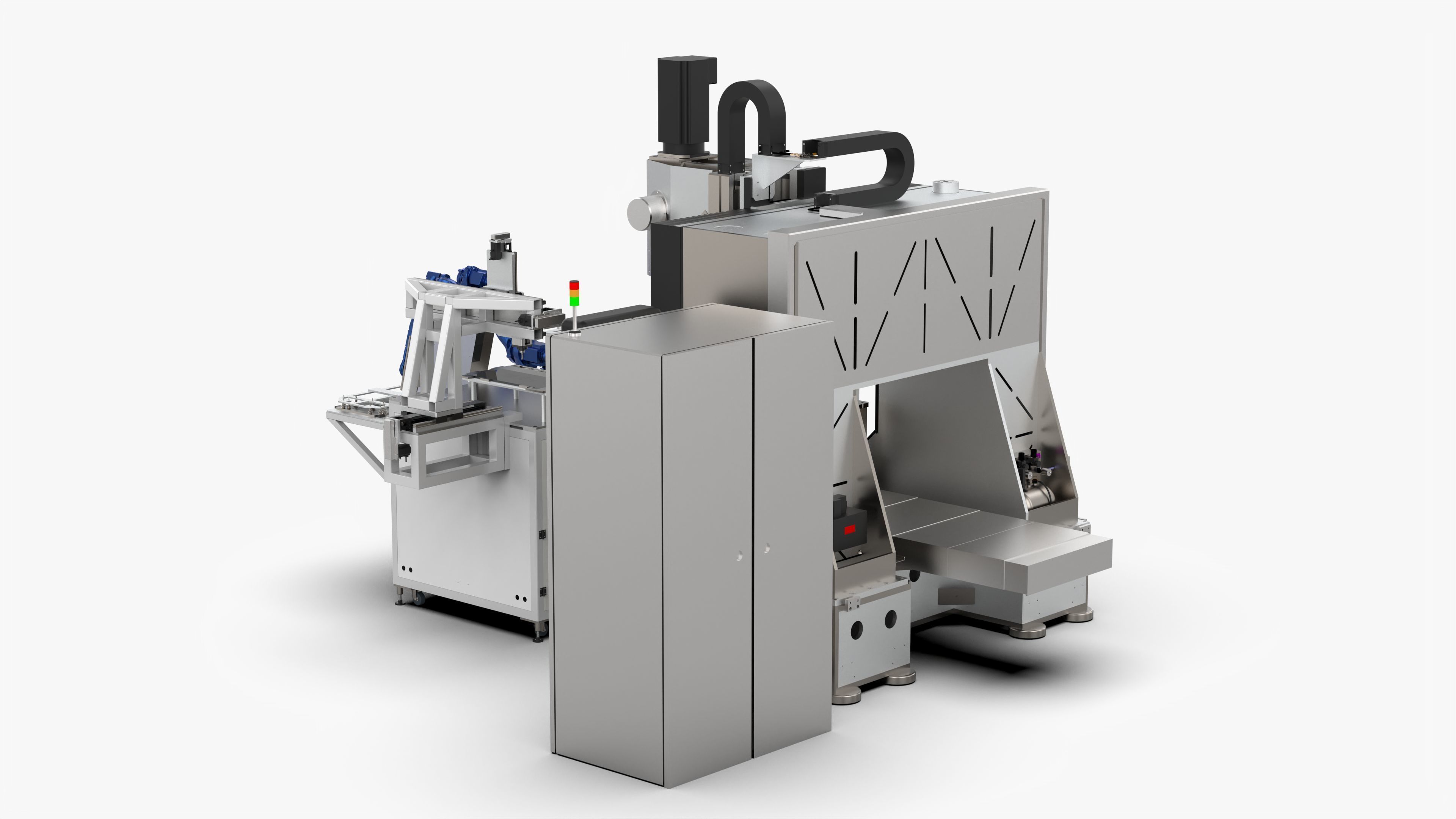

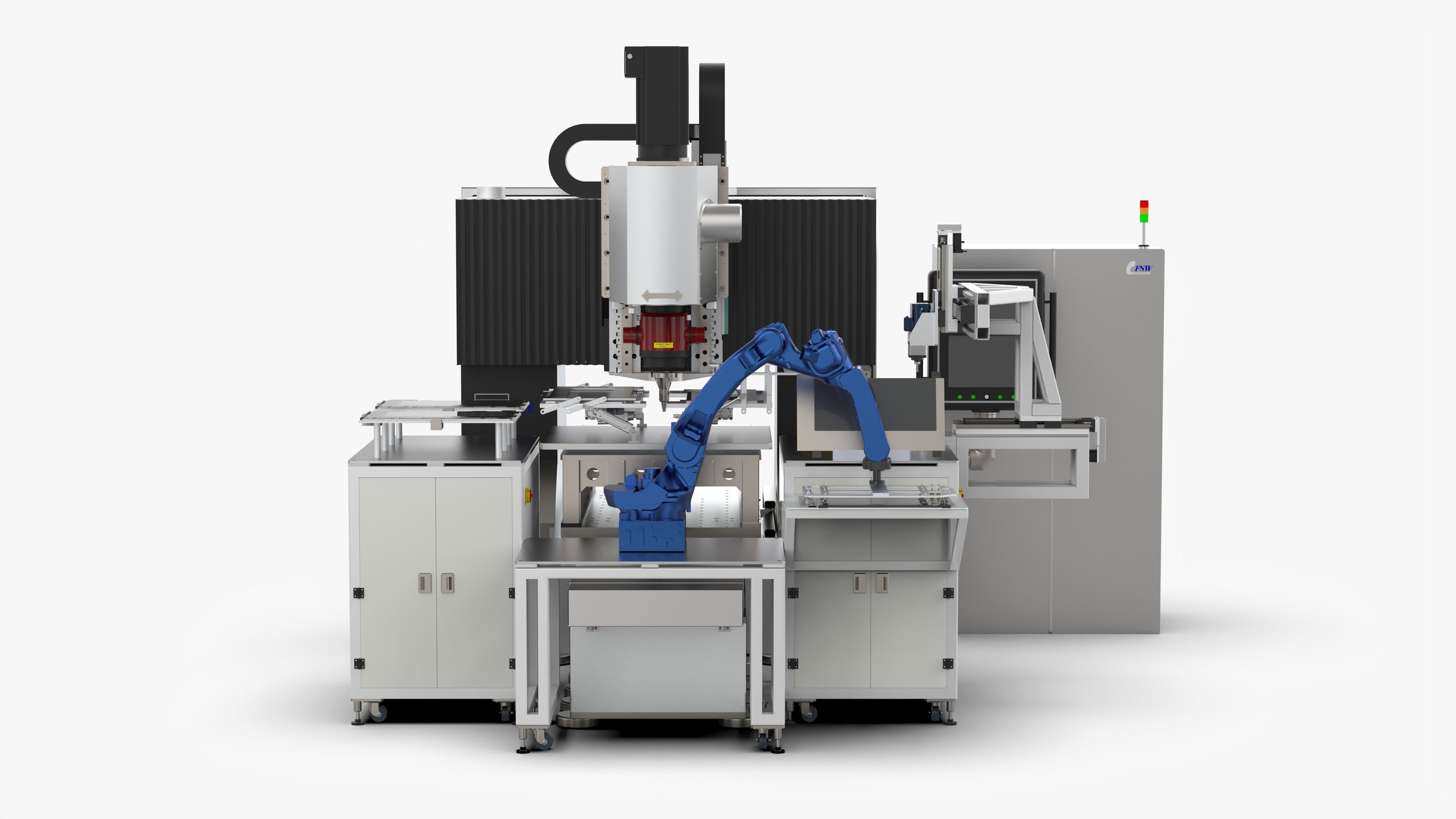

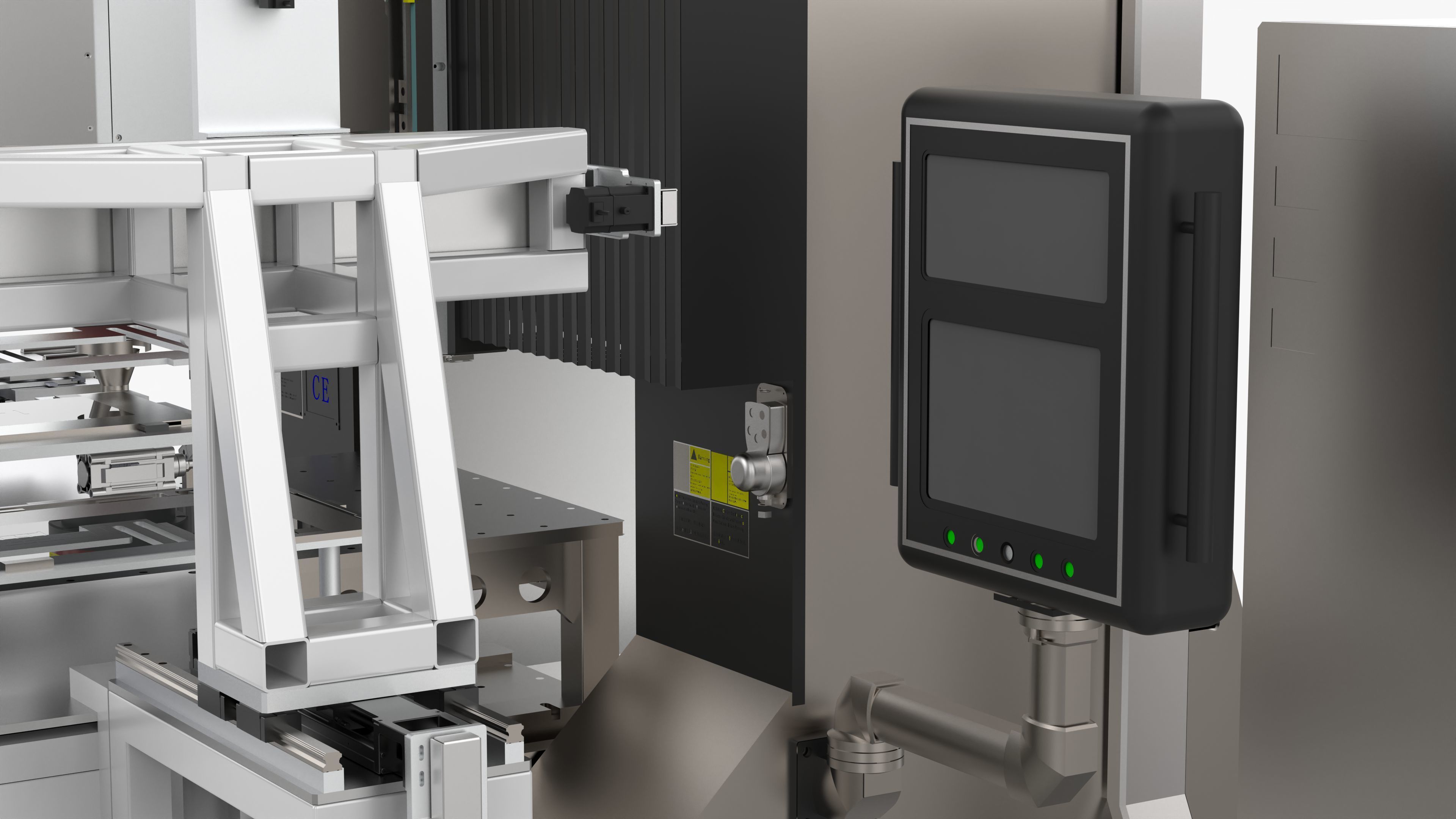

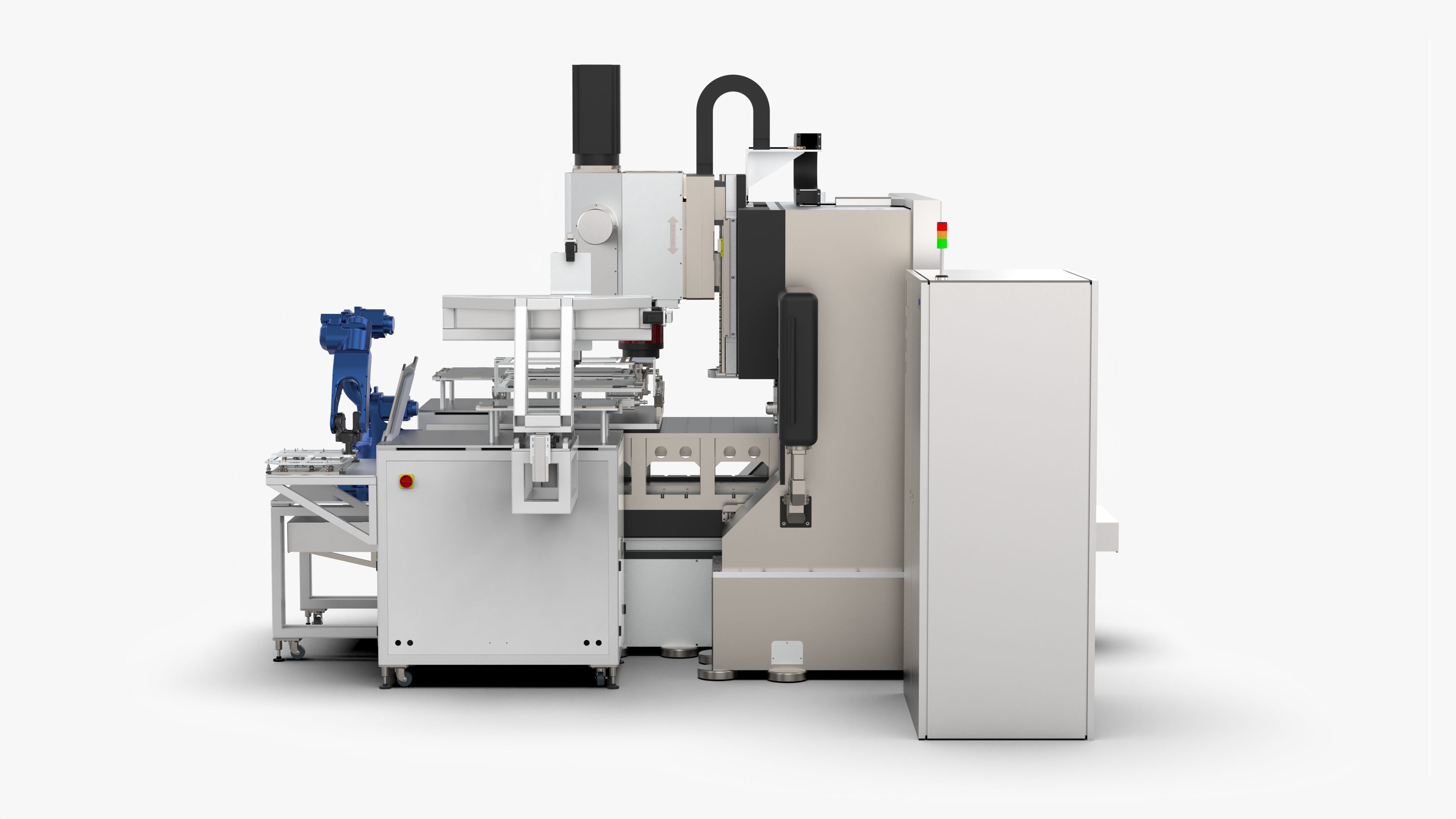

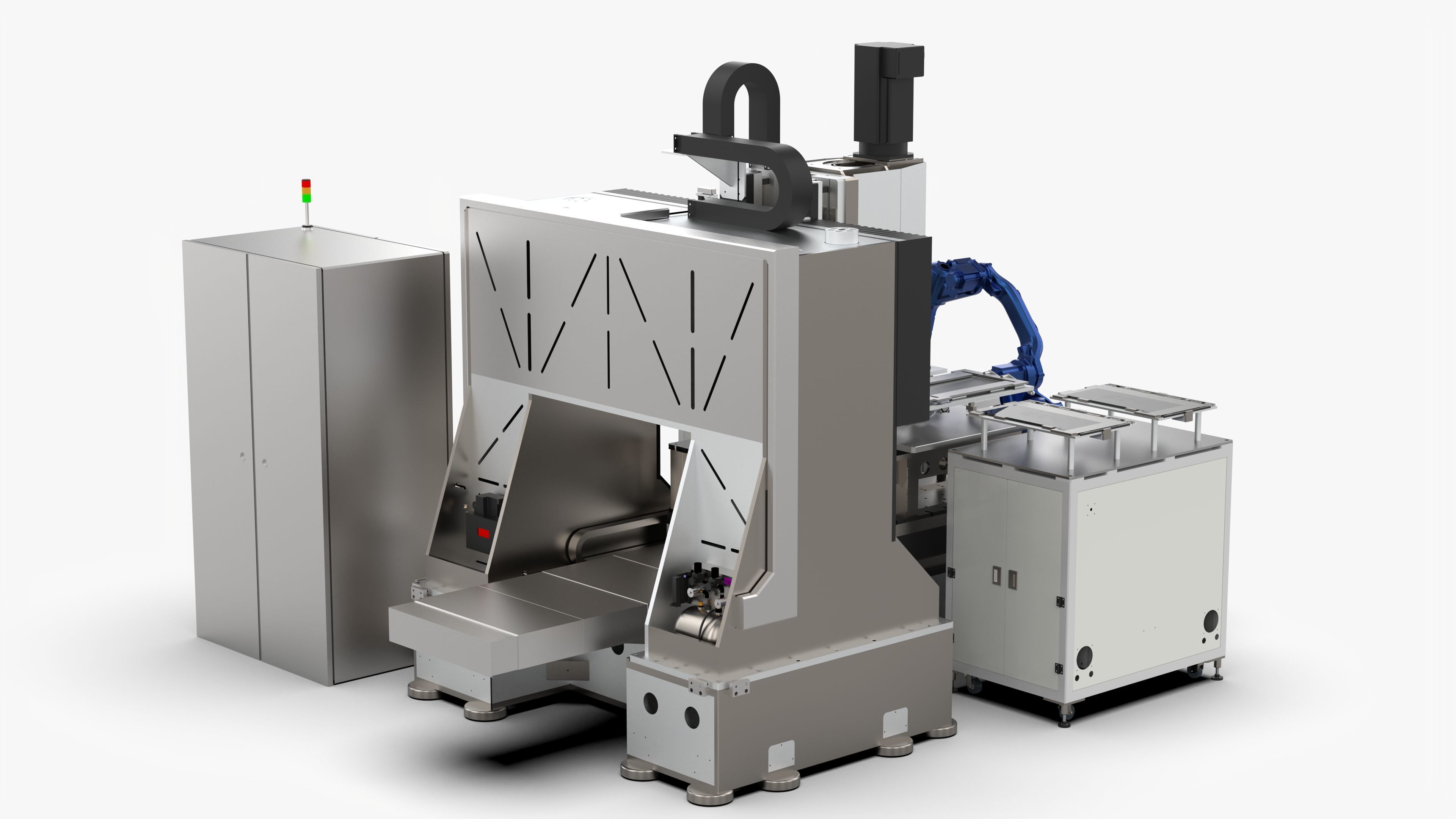

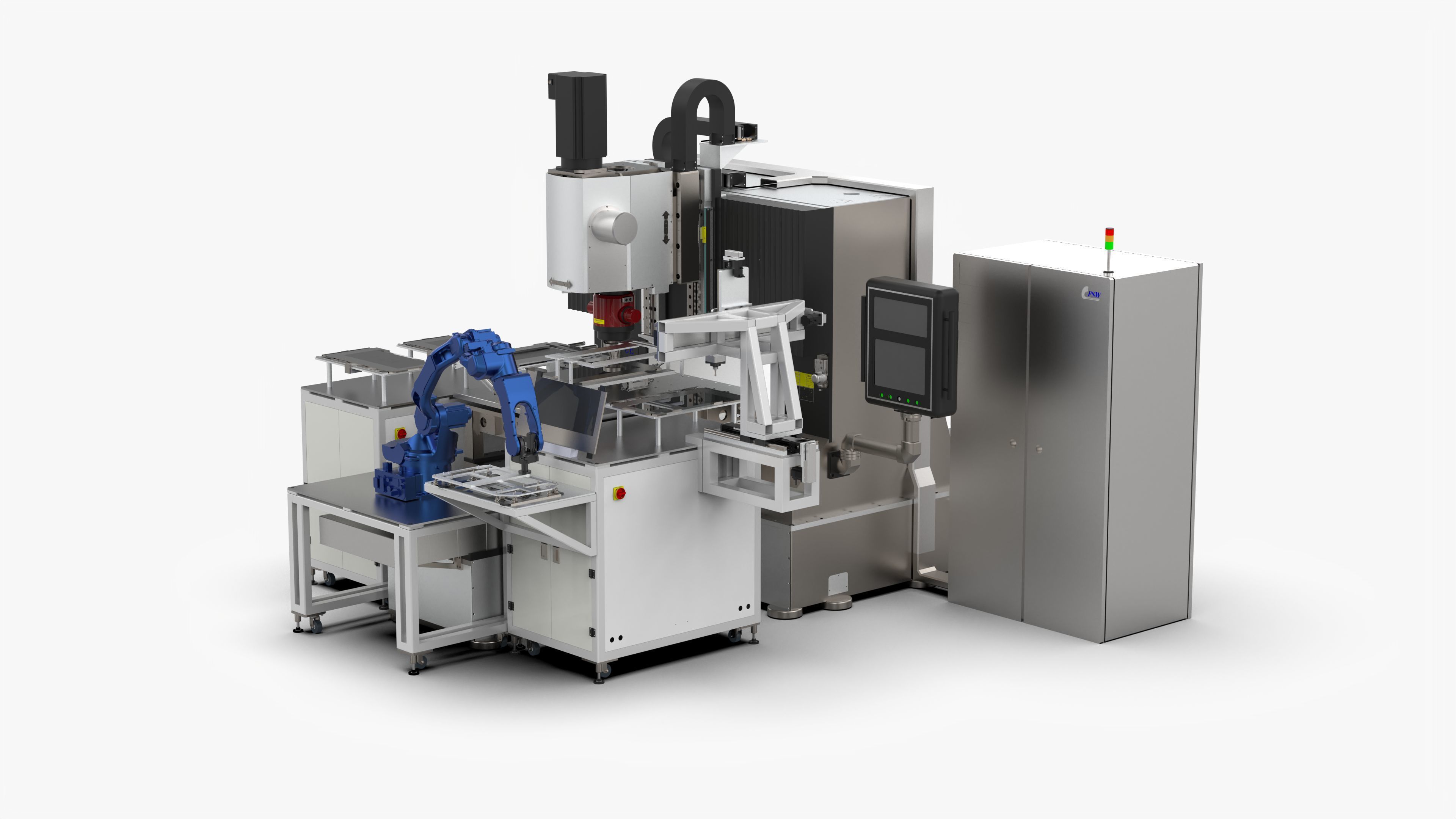

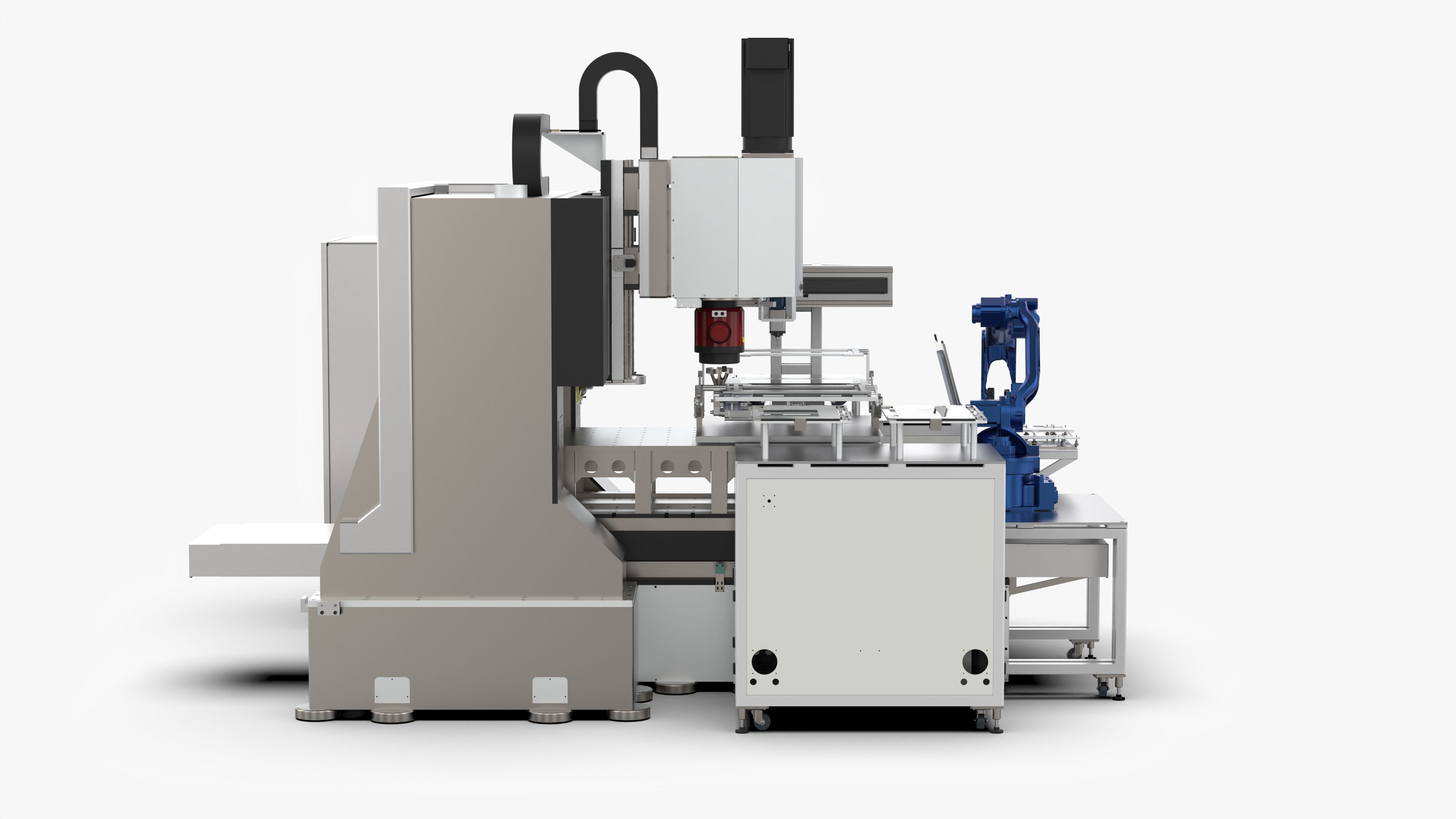

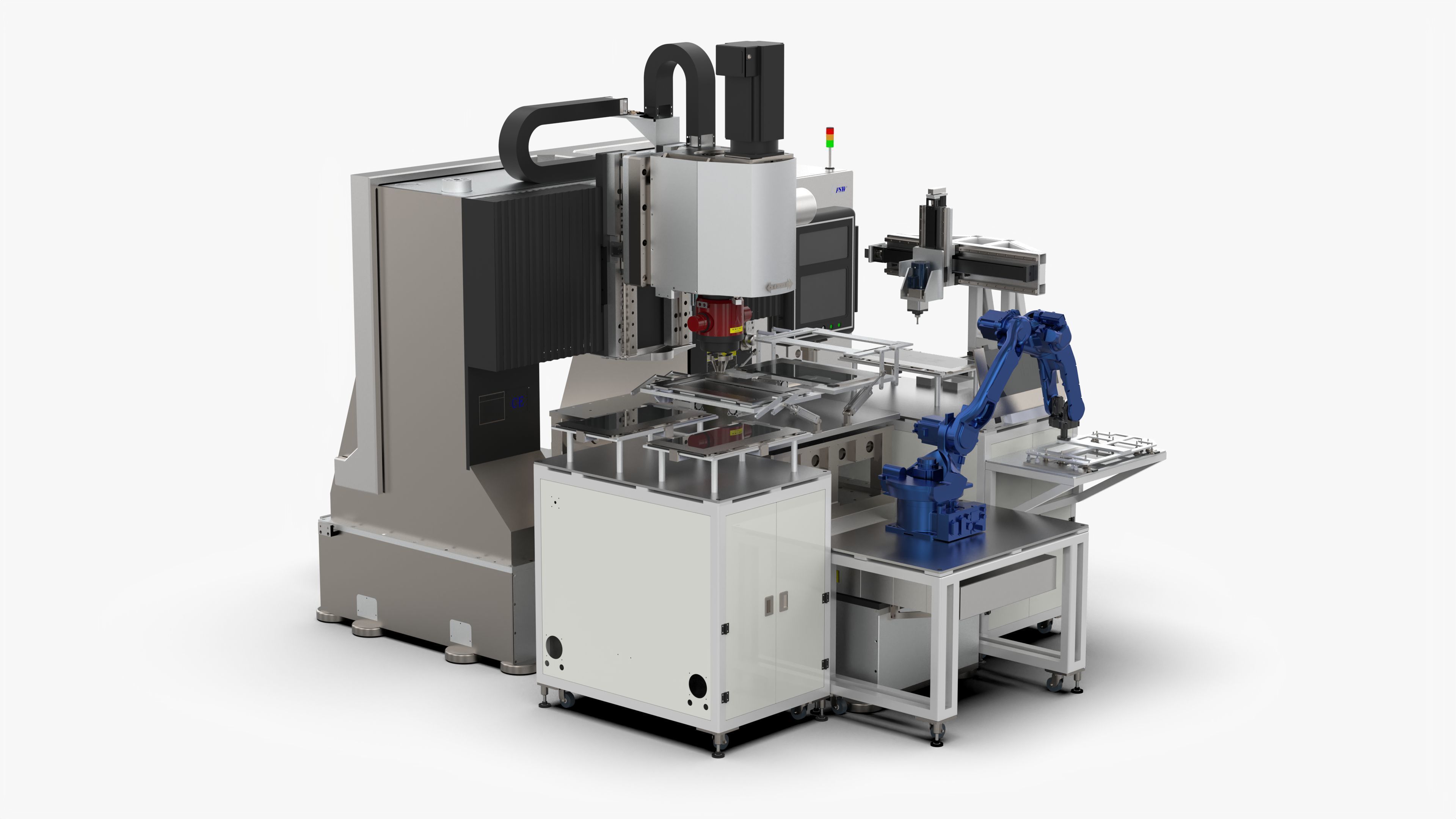

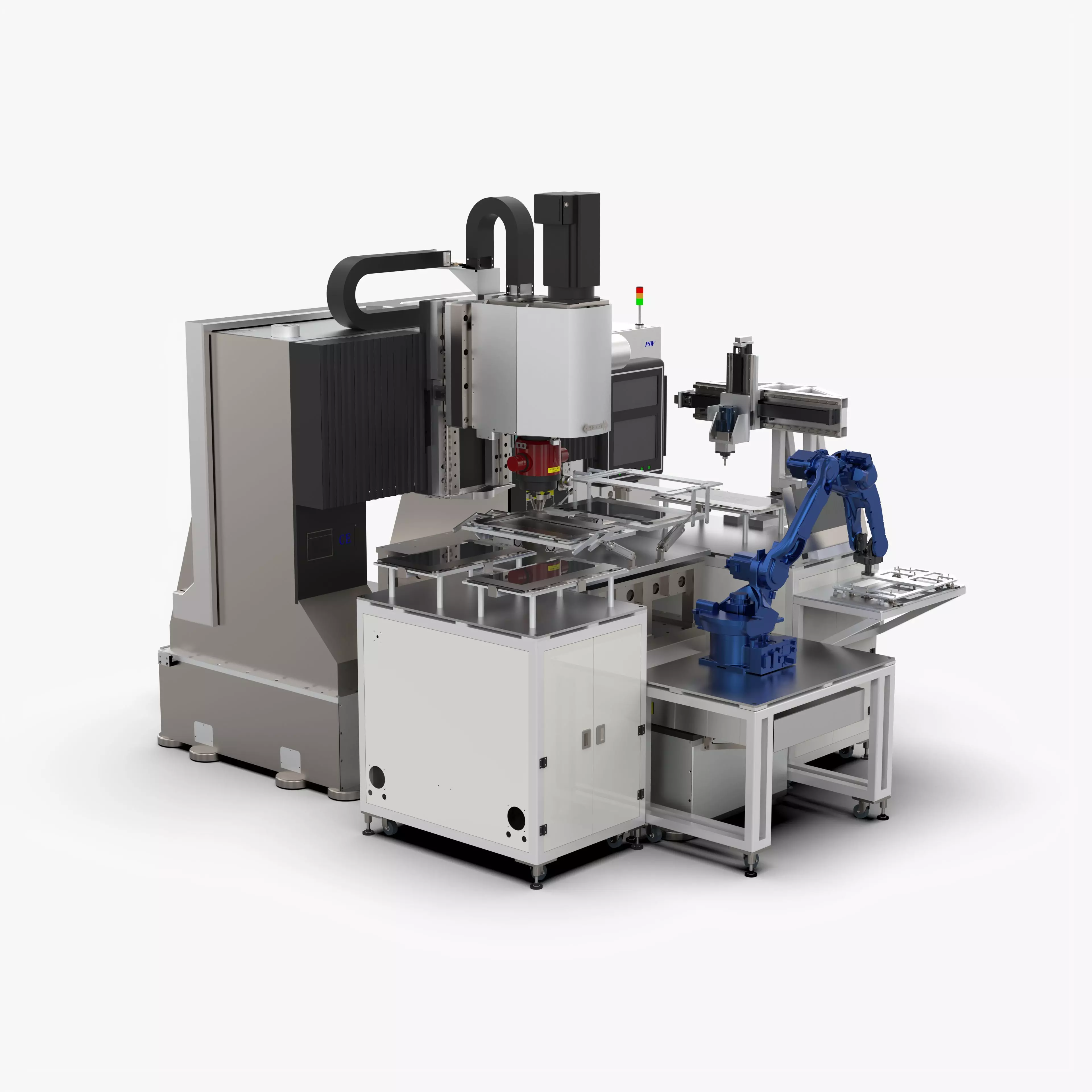

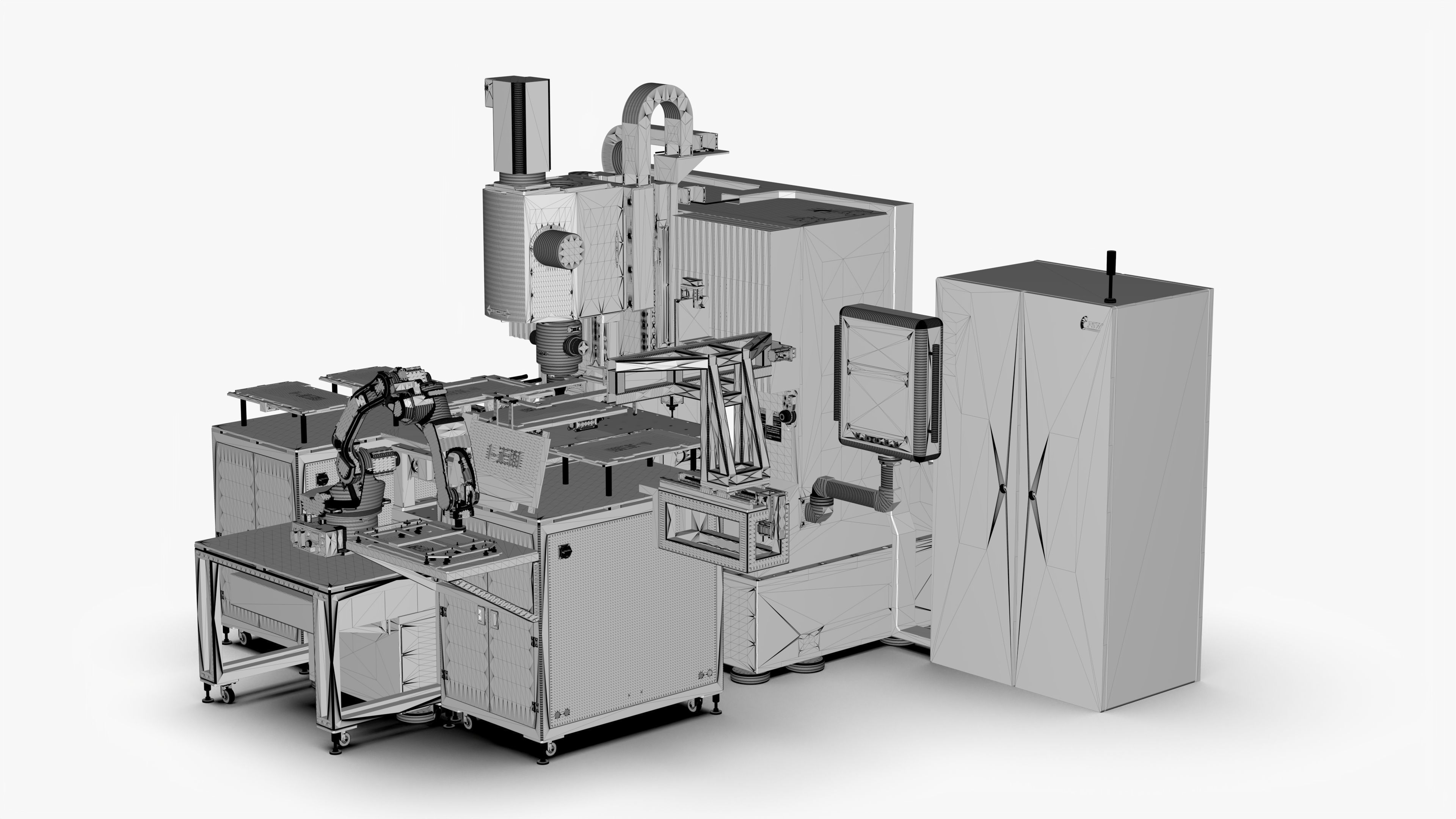

Fully Automatic Extrusion Welding Plate and Deburring Machine

Introduction

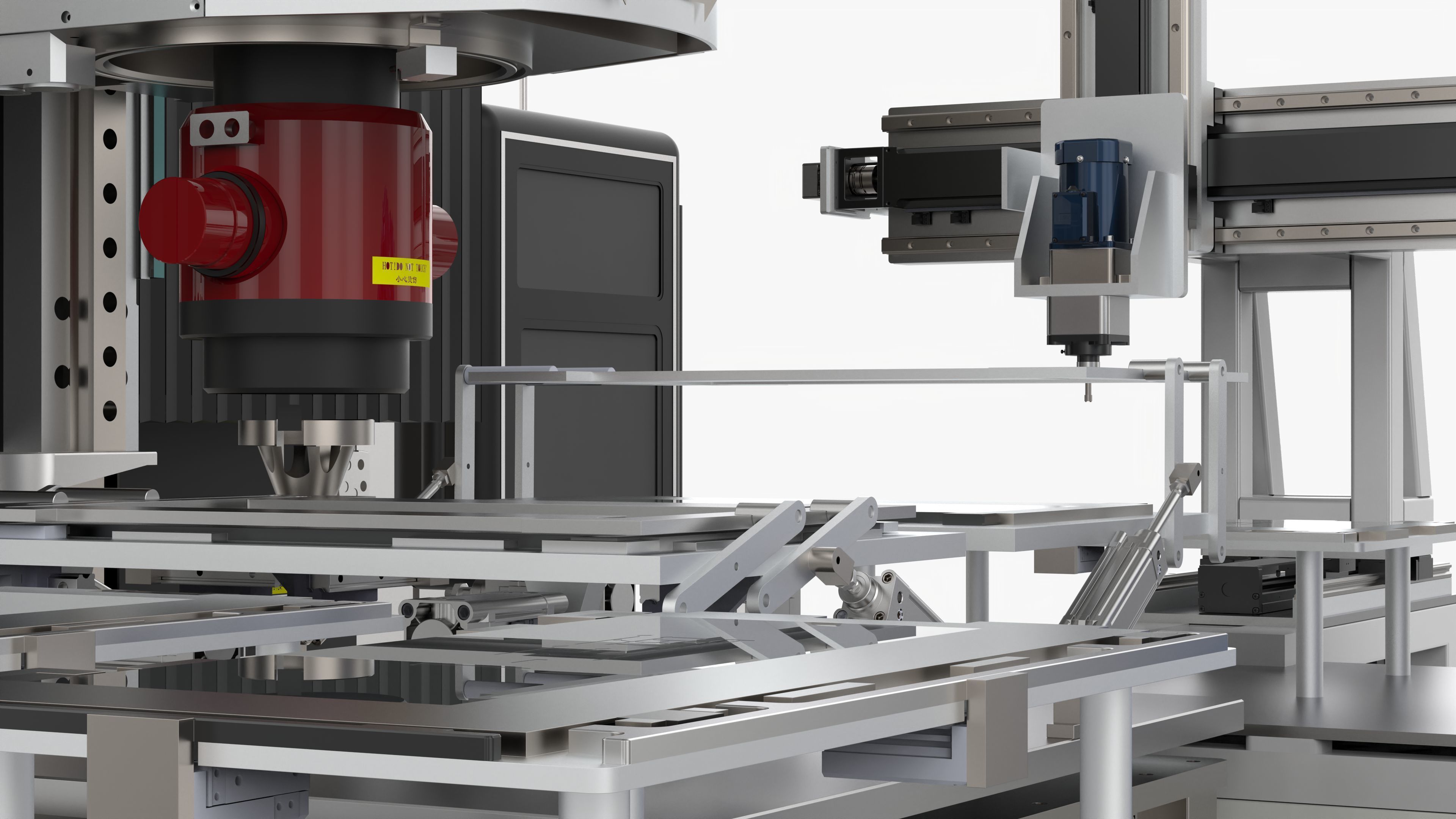

Fully automatic extrusion welding and deburring equipment, the manipulator grabs and places the materials in the loading station 1 and 2 for cold welding, and the manipulator grabs and places them in the cold welding station 1/2, and the side cylinder clamps Positioning, pressing down the cylinder to press the manipulator in the welding station to grab and place it to the deburring station. The deburring cold welding machine continues to cold weld the materials in station 1 (at the same time), and the manipulator grabs the materials in cold welding station 1 to the deburring station. The opposite side of the material in cold welding station 1 is deburred. After the deburring is completed, the robot grabs it and puts it in the unloading storage area. The robot then grabs new materials and puts them in cold welding stations 1 and 2 (repeat action).

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 1,940,689
• Vertice: 5,822,067
