Fluxo Plate Heat Exchanger CAD Model 3D model

Description

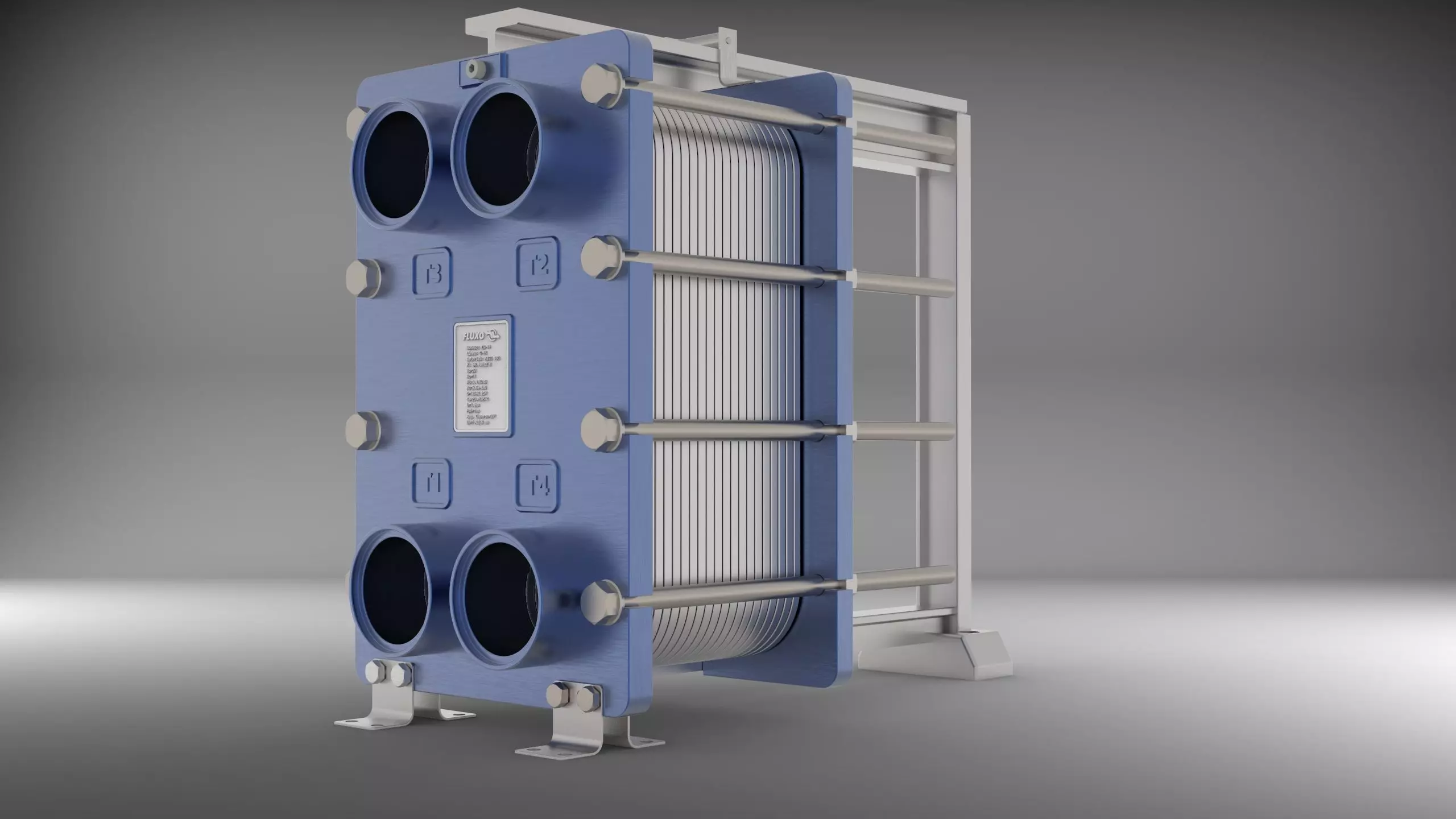

Fluxo Plate Heat Exchanger (PHE) CAD Model.

  • Designed and modeled in CATIA V5 R21.

Approximate Dimensions: W155mm x H253mm x D308mm

Recapitulation of: Fluxo PHE

  • Different parts: 16
  • Total parts: 88

3D Model in Blender:

  • Vertices: 276,287
  • Edges: 820,346
  • Faces: 543,810
  • Triangles: 543,810
Write comment
Item rating
0 0
Fluxo Plate Heat Exchanger CAD Model
$12.00

Royalty Free License
Fluxo Plate Heat Exchanger CAD Model
$12.00

Royalty Free License
T
Torza-14
(0 reviews)
Response - % in - h

3D Model formats

Format limitations
Native
  • CATIA V5 R21 (.CATProduct, .CATMaterial, .CATAnalysis)35.4 MB
Exchange
  • STEP (.stp)35.4 MB
  • KeyShot 9 (.bip, .ksp)35.4 MB
  • Blender 3.0 (.blend)35.4 MBVersion: 3.0Renderer: Default

3D Model details

  • Publish date2022-04-19
  • Model ID#3686083
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 543,810
  • Vertices 276,287
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
