Flat Top Tower Crane 3D model

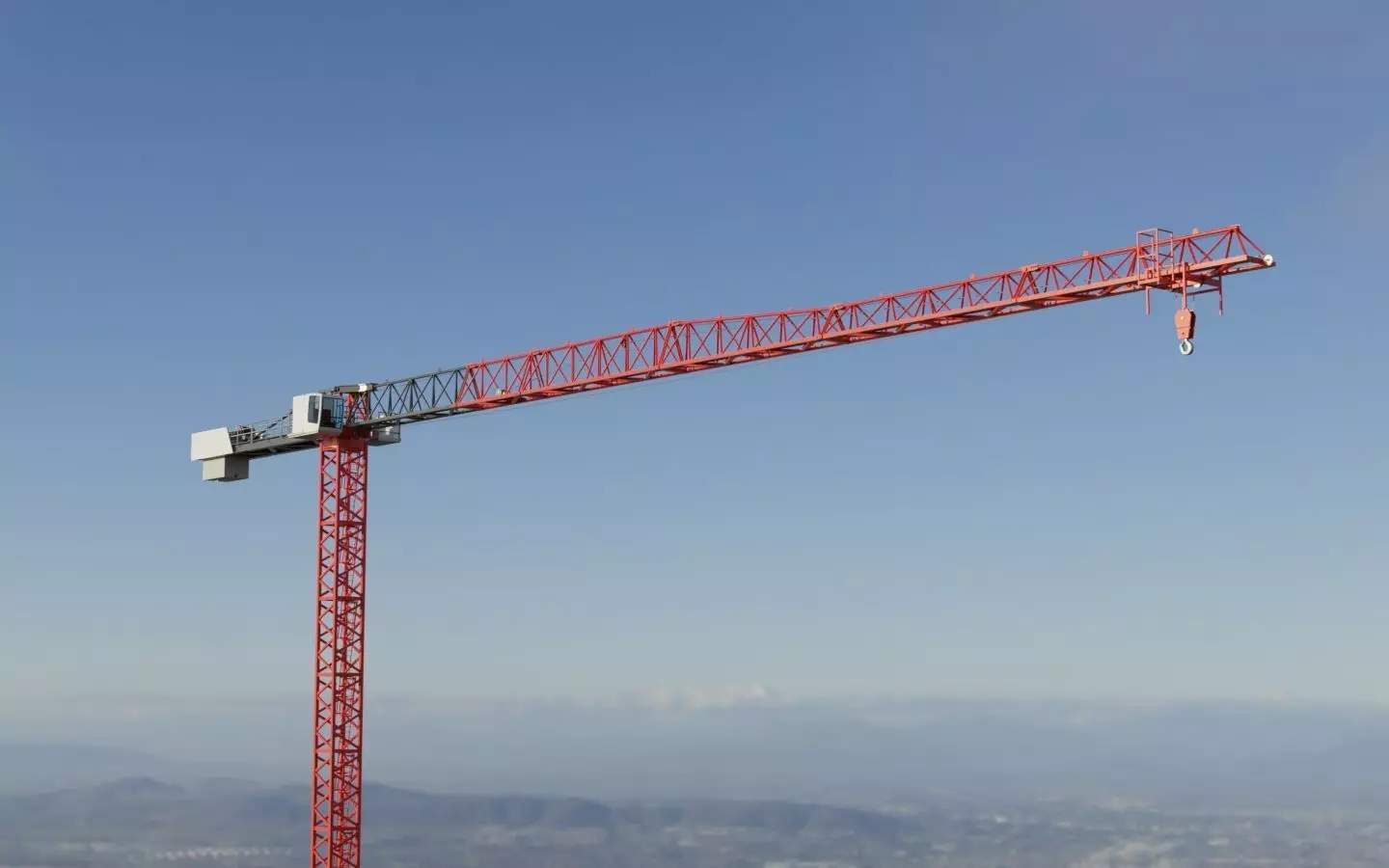

Flat Top Tower Crane - 3D model

Big tower crane for building sites. Modern, flat top design, very efficient and good looking.Flat top cranes don't have the apex and for that reason they are ideal for congested work sites where cranes need to overlap.This type of crane is easier, quicker and cheaper to assemble compared to a traditional hammerhead tower crane.

Good level of detail. This 3D model is based on a real flat top crane.Very good for exterior architectural scenes.The crane is realistic and includes two main ropes: the hoist line, to move the load up and down, and the trolley line, to movethe trolley along the jib.9 concrete blocks act as counterweight.This crane has thick, solid railings.The model is NOT rigged or ready for 3d print (additional work is required if that is your goal)Some objects overlap.

File formats:

Blend 2.79 (Native)

FBX 7.4 Binary

OBJ

Features:

More than 150 objects

Total Height: about 56m

Total Length: about 70m

Jib length: about 55m

Counterweight: about 20000 kg

Max tip Load: about 1800 kg

Every part is properly named in english

Mast is Centered at the origin

The mast is modular, so you can adjust the height by adding/subtracting sections

Scale 1:1 for FBX and Blend files

Units: Centimeters (cm)

No textures included

Materials are included only in Blend file (basic Cycles shaders)

Modeled in Blender 2.79 and exported in different formats

Rendering previews: Cycles

Tested in 3ds Max 2013, Blender 2.79, Windows 10 3D Viewer and MeshLab 2016.

Polygon count:

Verts: 712234

Faces: 840786
