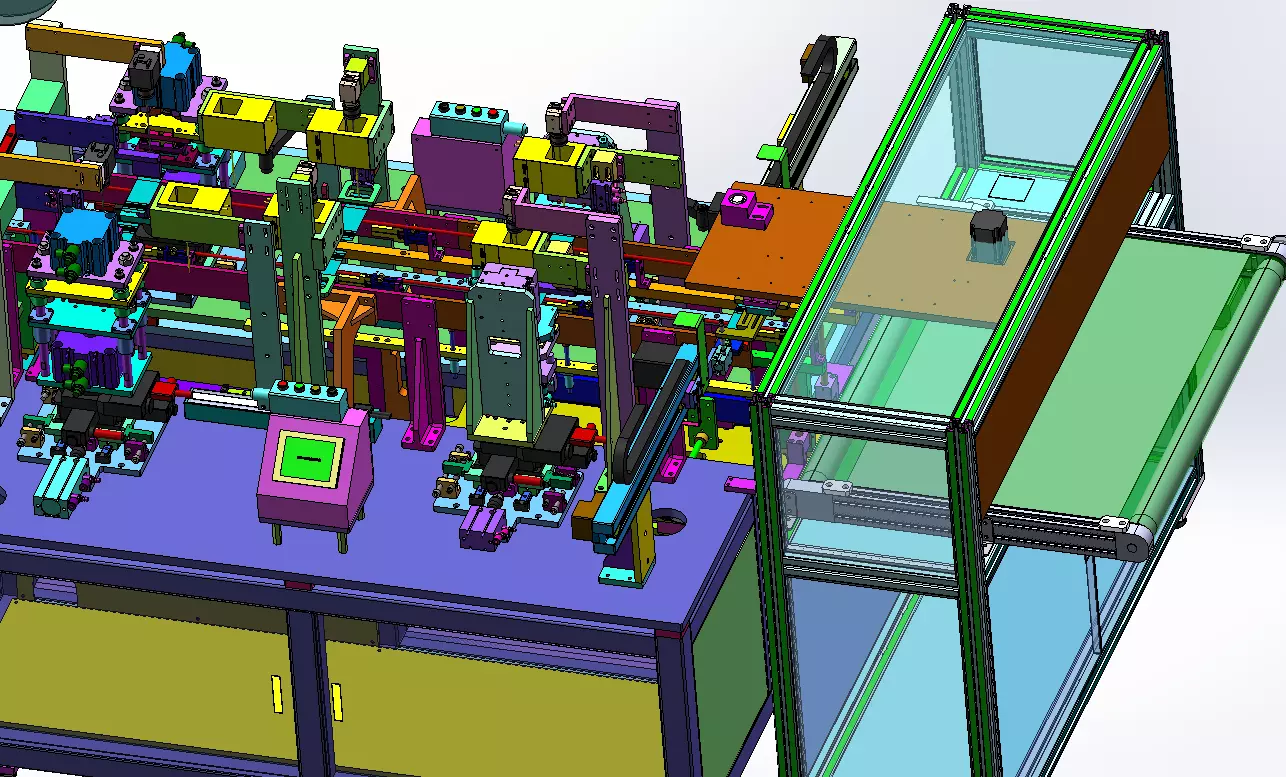

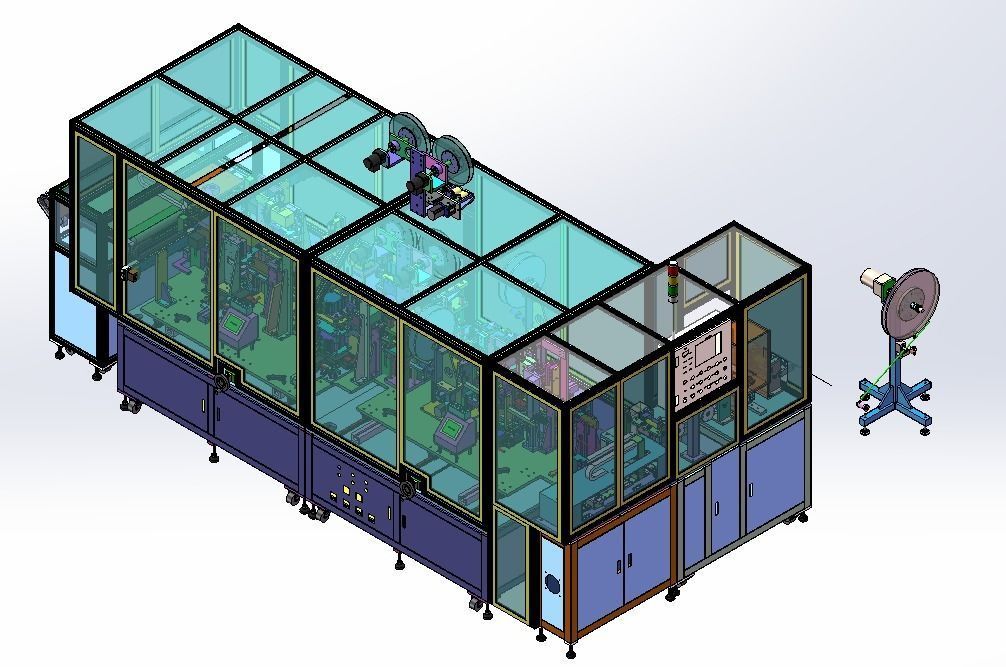

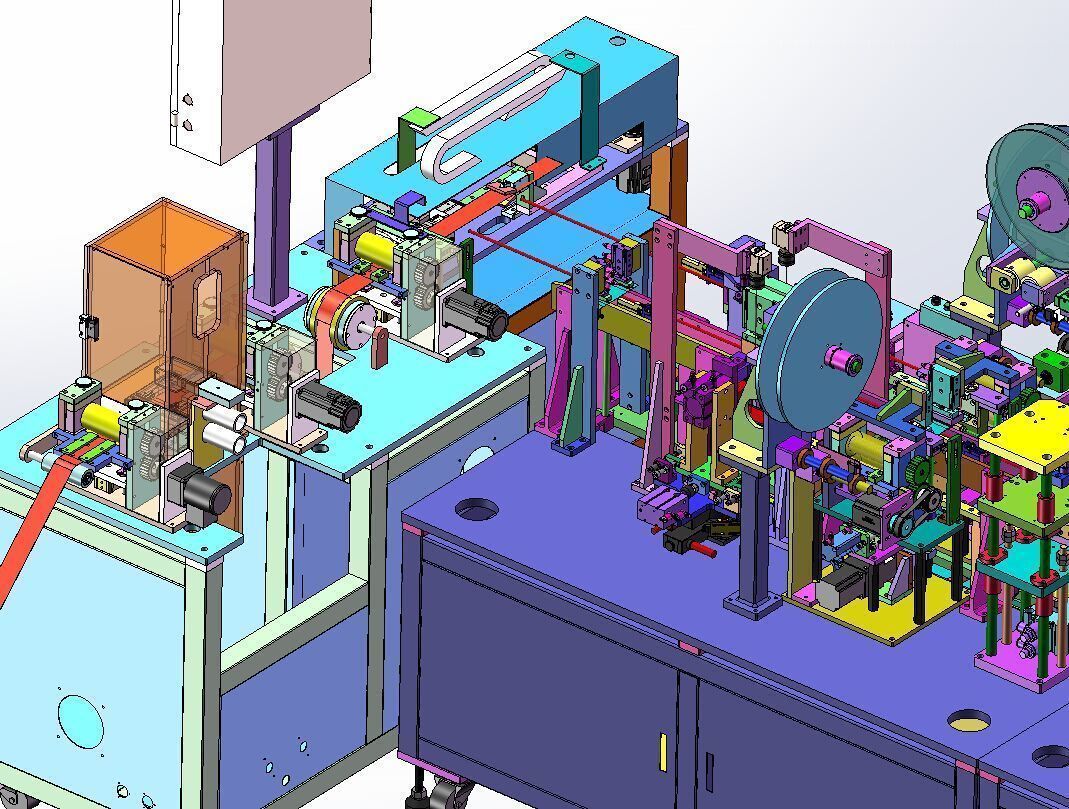

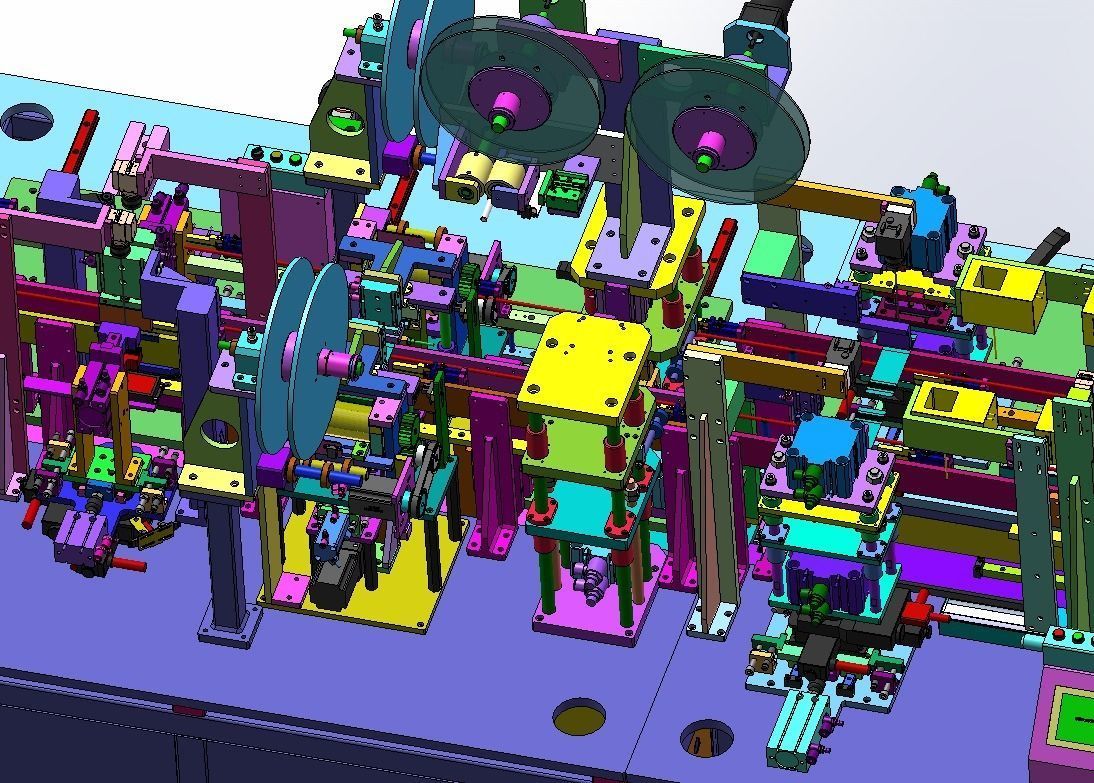

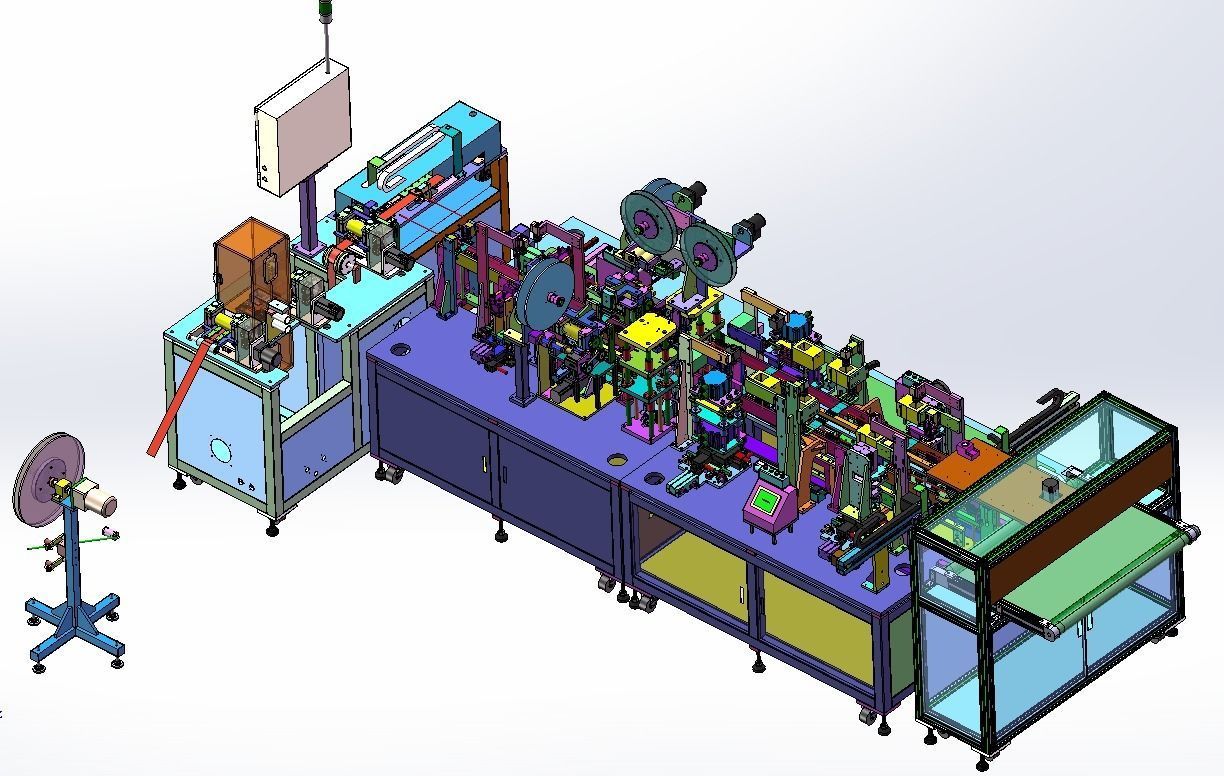

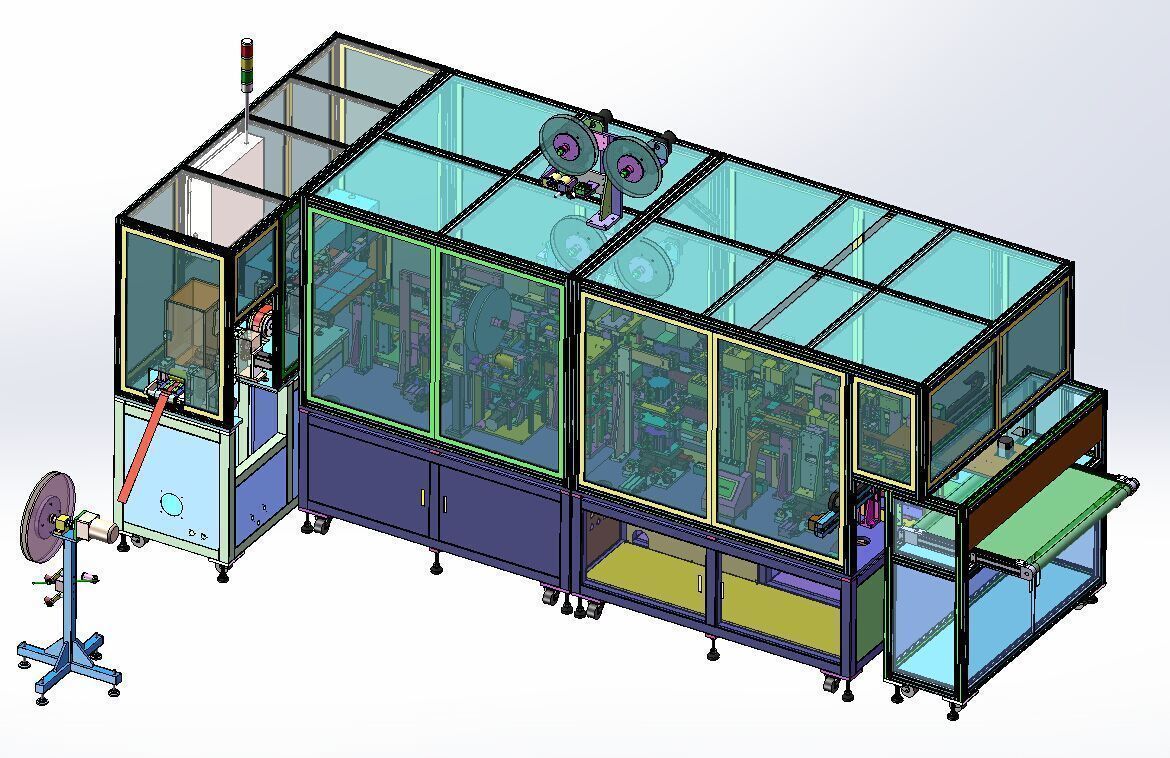

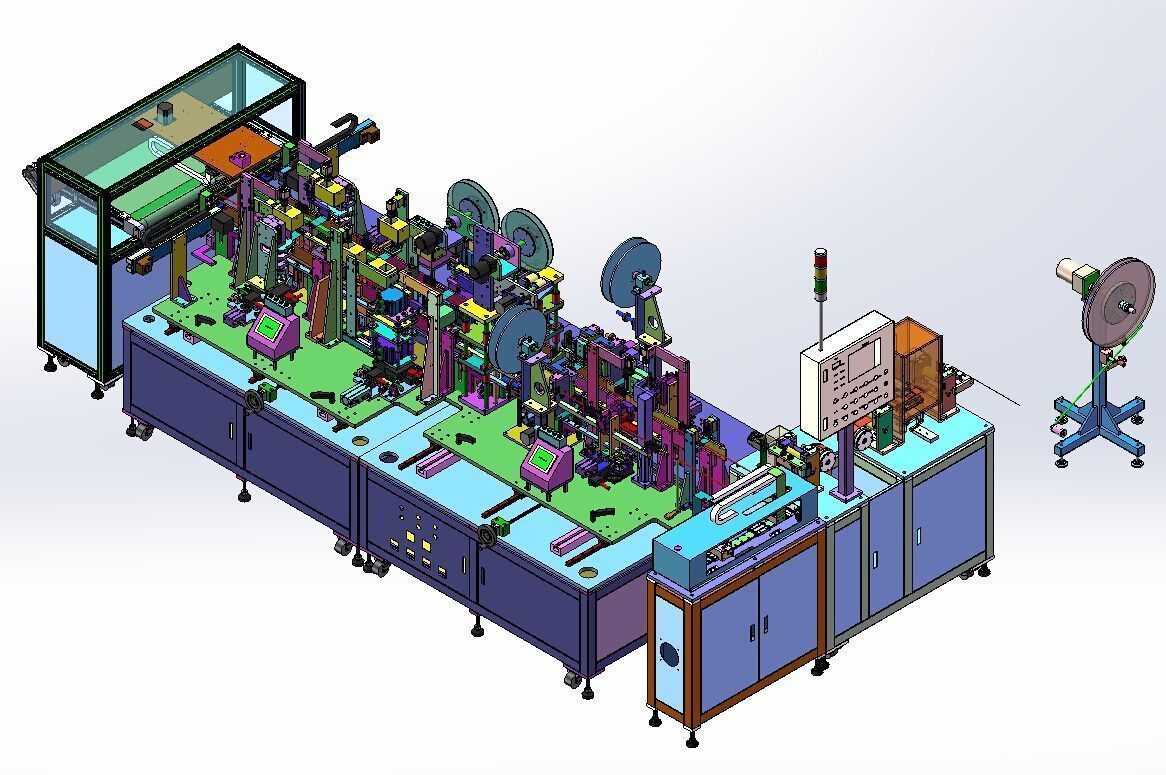

FFC flexible cable production line 3D model

This is a machine designed for Apple FPC cables. It is used to cut and separate PFC and then inspect it on an automated production line. If you want to know more, you can download it. FFC mobile phone flexible cable automatic peeling, hot pressing, cutting, cutting and testing production line Includes the following components Peeling hot press ----Peeling the hot-pressed substrate assembly ----Transfer components ----Reinforcement plate assembly (movement) ----Reinforcement plate assembly (fixed) ---- Stripping components ----Reinforcement plate feeding rack ----Small operation panel components ----Hot press cleaning mechanism (movement) ----Hot Press Mold ----Heat pressure protection cover Blanking inspection machine ----Blanking electrical inspection frame ----Blanking and testing substrate components ----Blanking components (fixed) ----Blanking components (movement) ----Dimension check assembly (fixed) ----Dimension check component (movement) ----Electrical inspection components (fixed) ----Electrical inspection components (movement) ----Pulling component (fixed) ----Pulling component (movement) ----Small operation panel components ----Blanking protective cover Intermediate handling components ----Intermediate handling of substrate components ----Intermediate handling and fixed jaws ----Moving gripper for middle handling (rear) ----Moving gripper for middle handling (front) ----Long Pini Guide Components Cutting machine ----Frame ----Laser guide assembly ----Cutter ----Feeding ----Supporting roller ----Operation Panel ----Laser protective cover ----Cutting machine safety cover Handling machine Splicer Unwinding rack
