Electrical Power Transformer - Electrical Engineering 3D model
Description

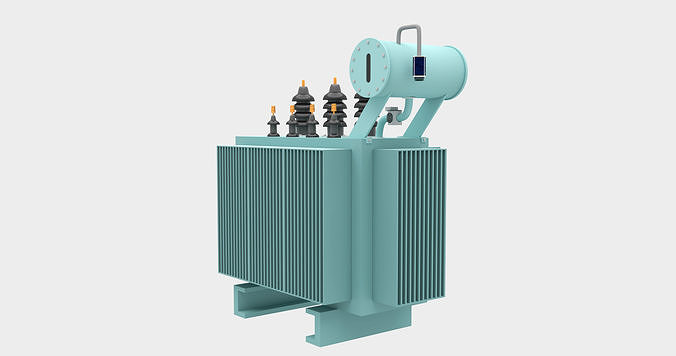

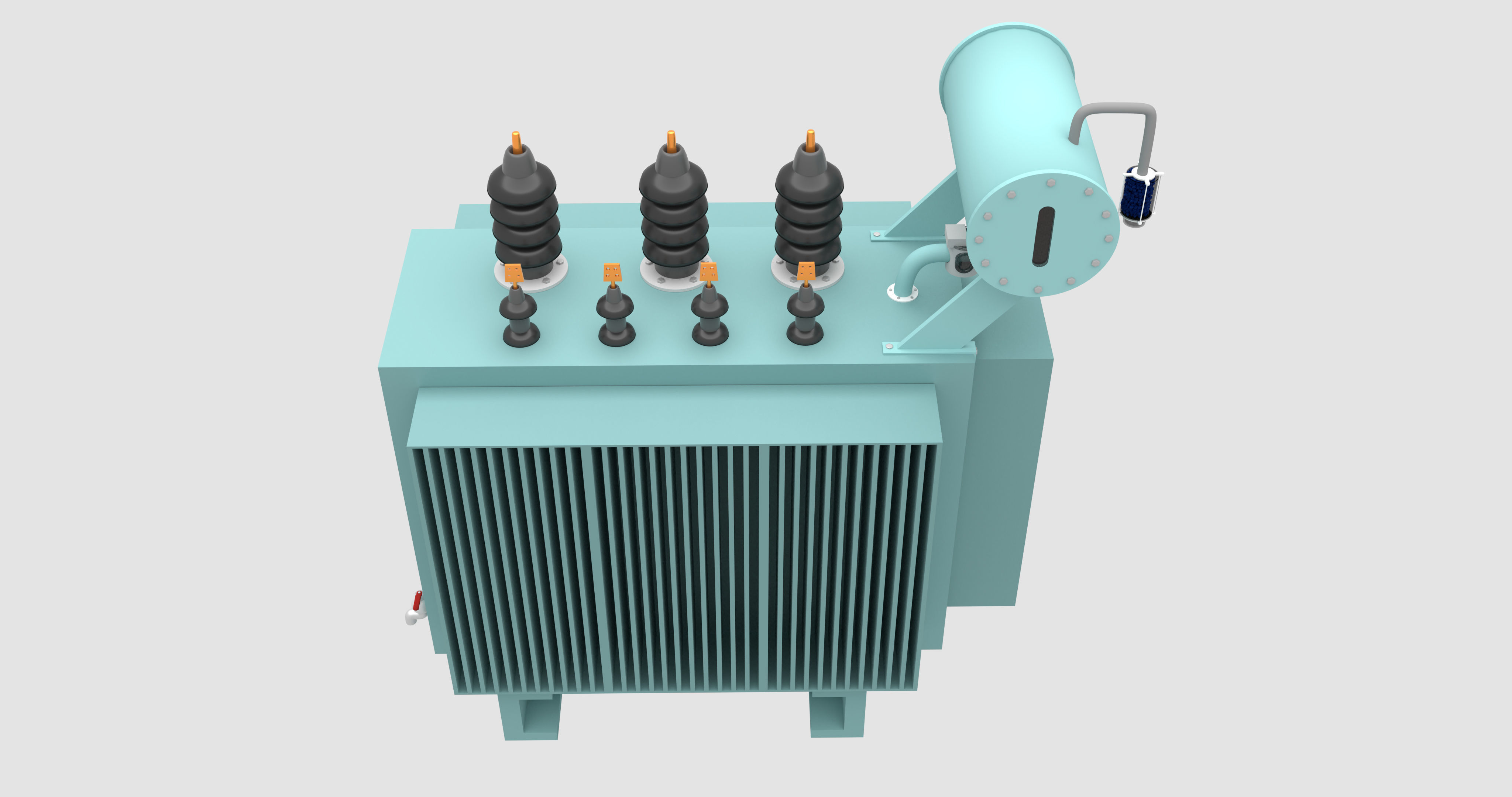

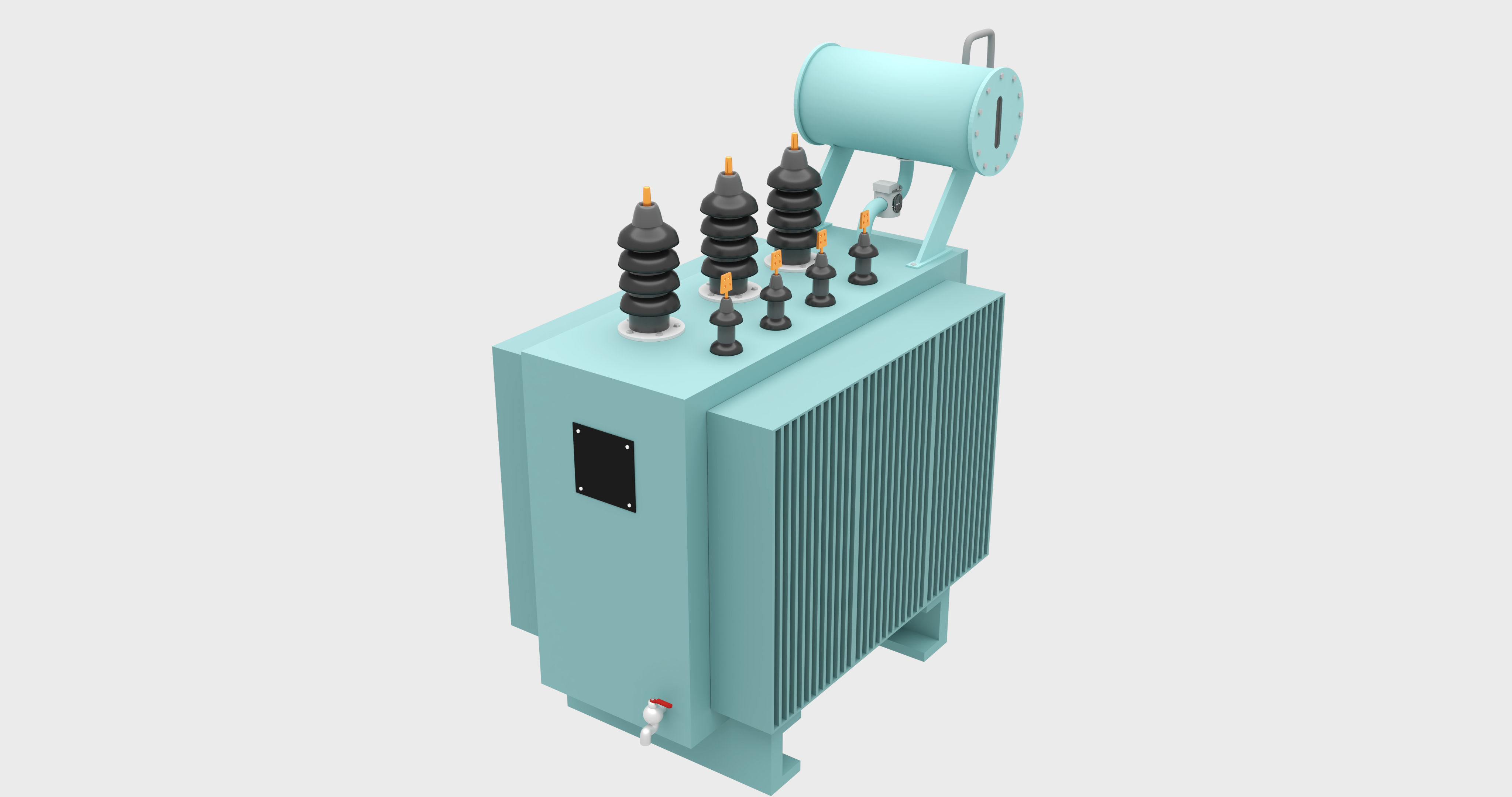

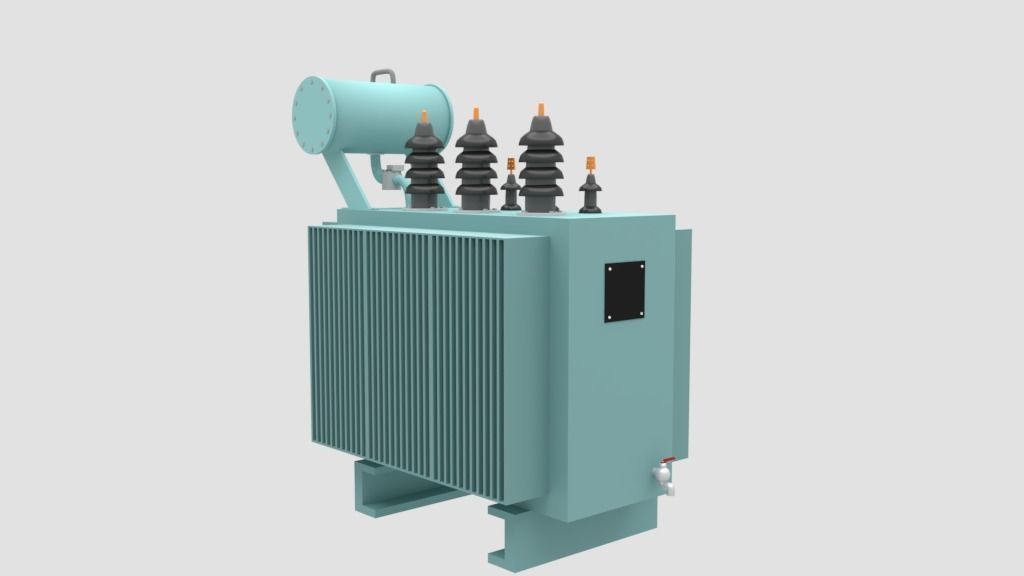

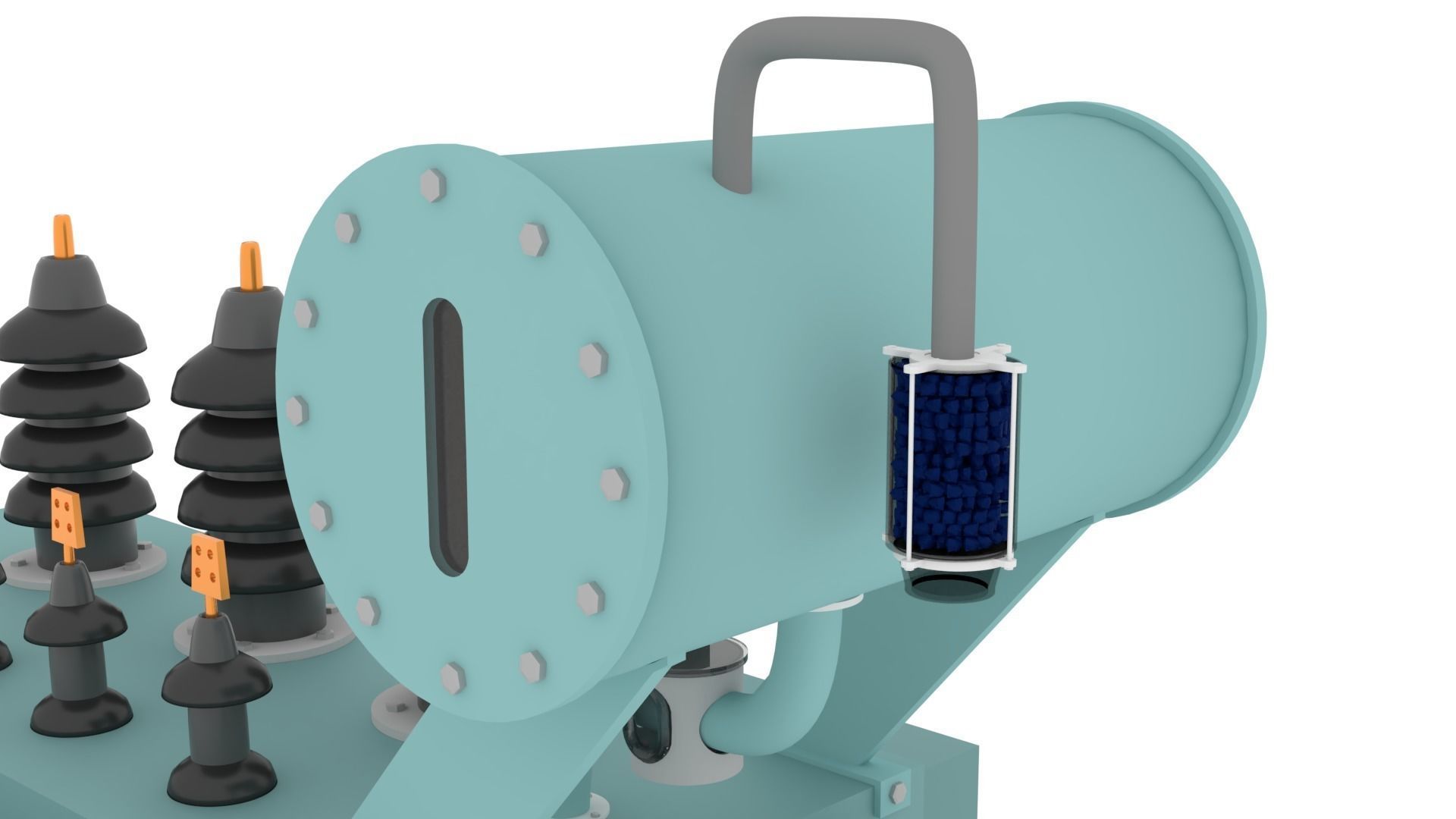

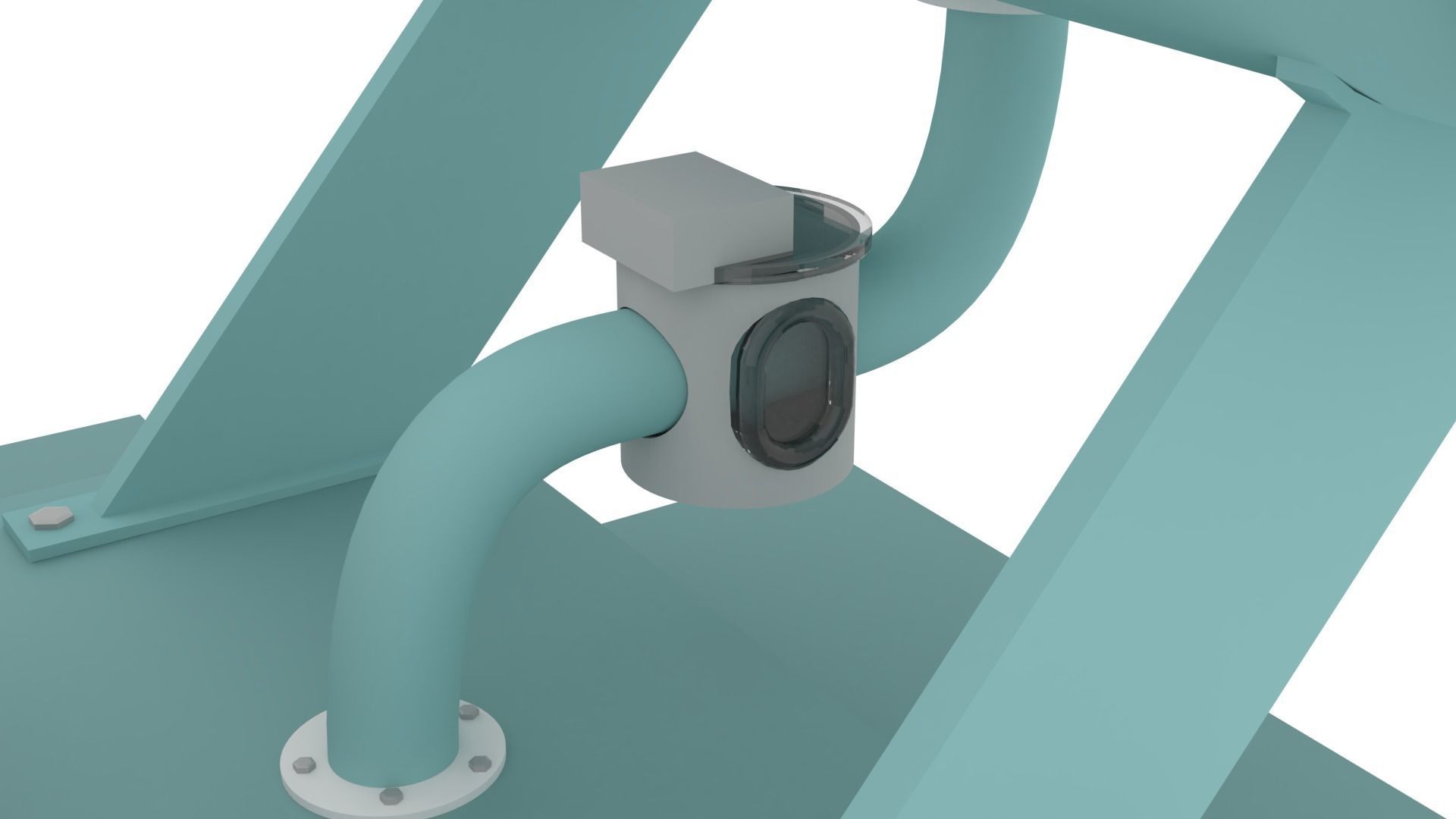

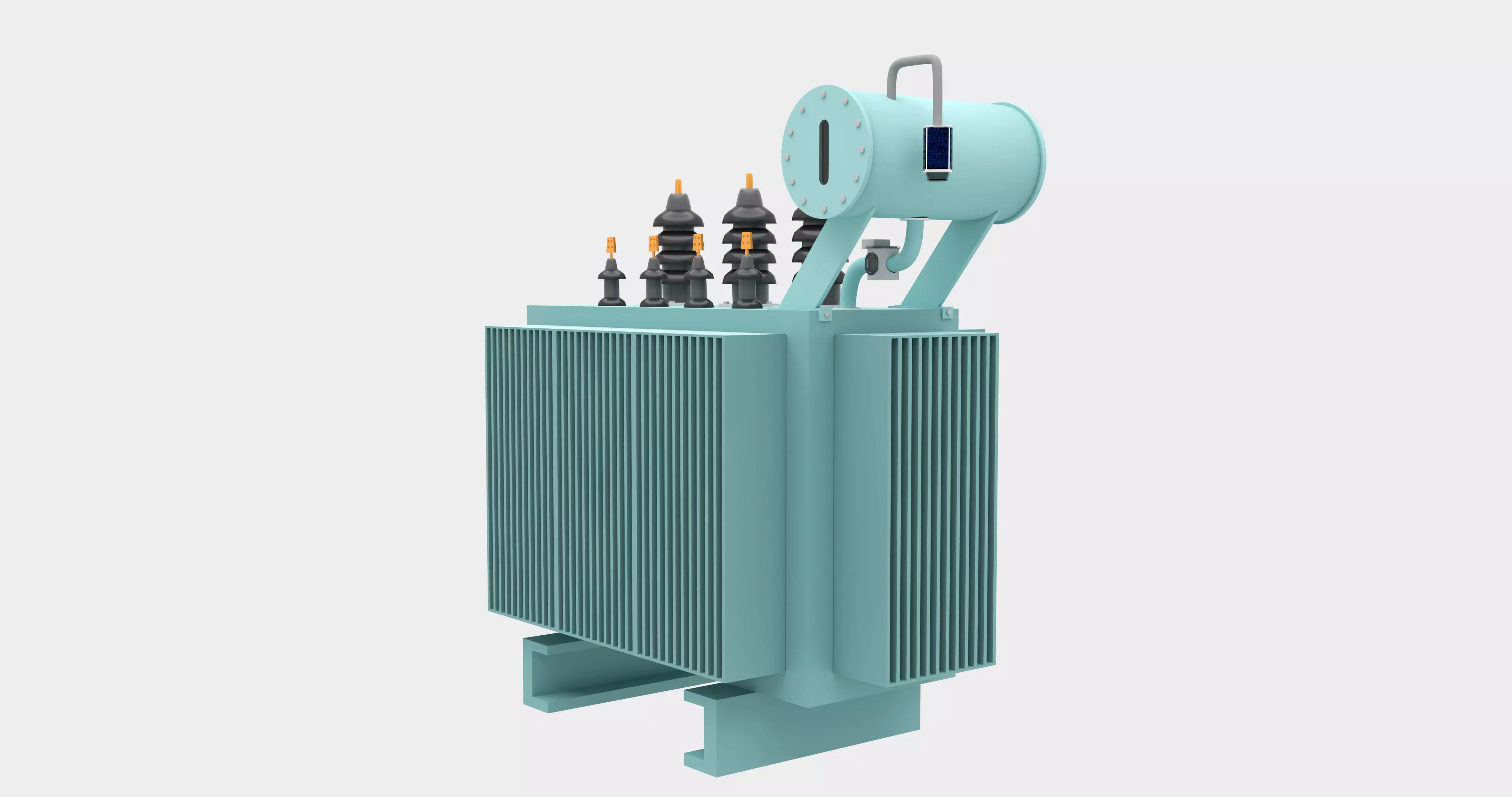

This 3D model is done in Blender by keeping every single constructional part of an electric tranformer in mind. As I'm an Electrical Engineer, I have done this model for my project. This model also include windings(3 phase), laminations, bushes, Conservator and Buchcholz's relay. No UV textures are used (not required). Material color is used ( Same as shown in pictures - also check out the video from given link). This 3D model can be used for Educational purpose for Electrical Engineering Students and also in Industries.
Features of the Model:
- High Quality Constructional Details.

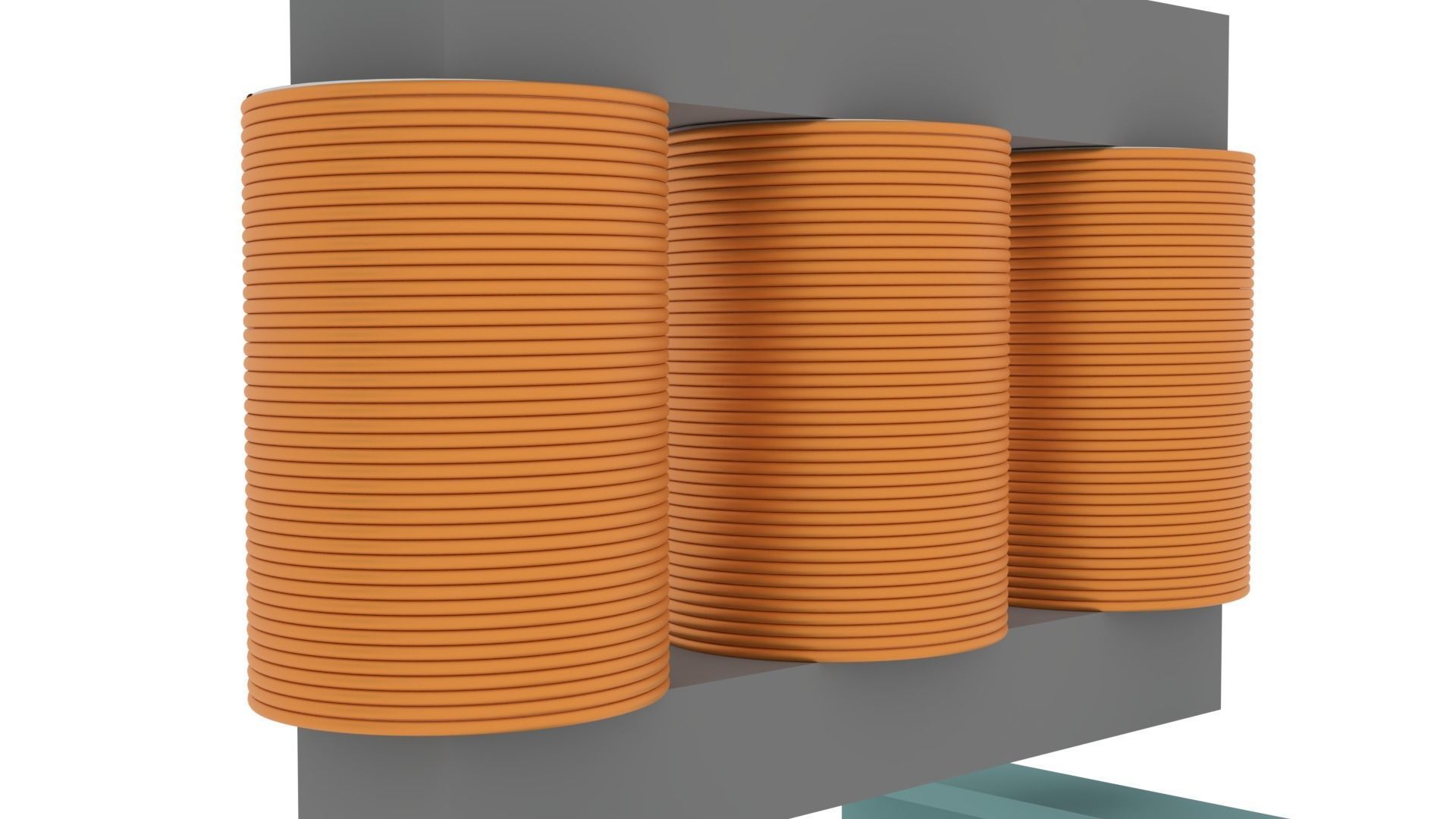

- Internal Windings (3-Phase + Copper Materials) are also included in the model.

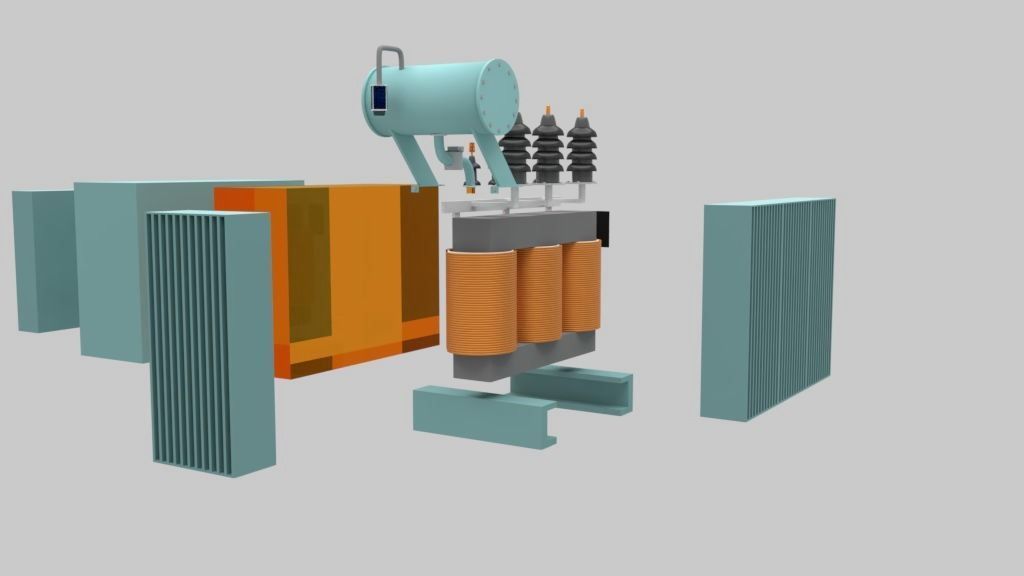

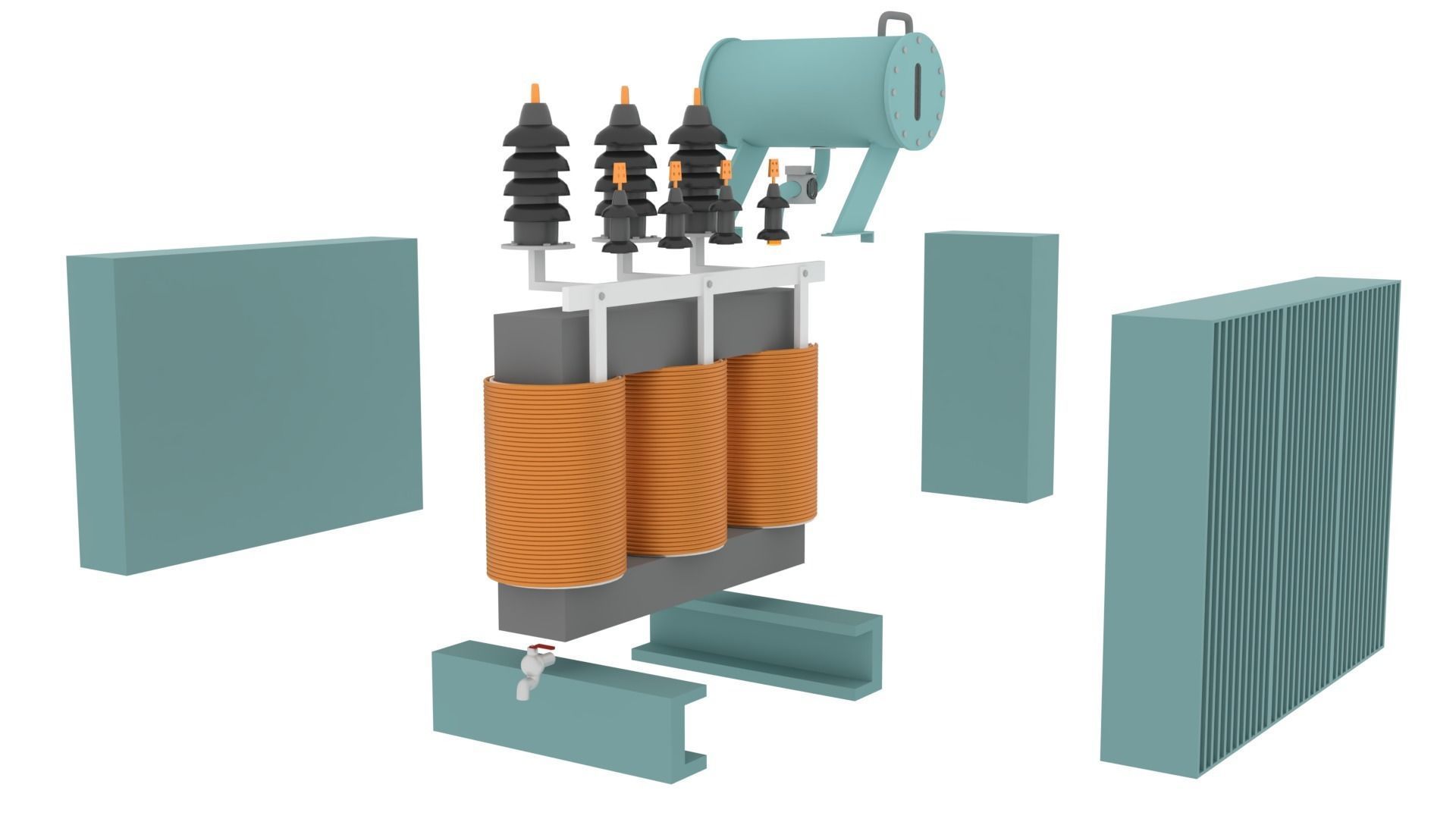

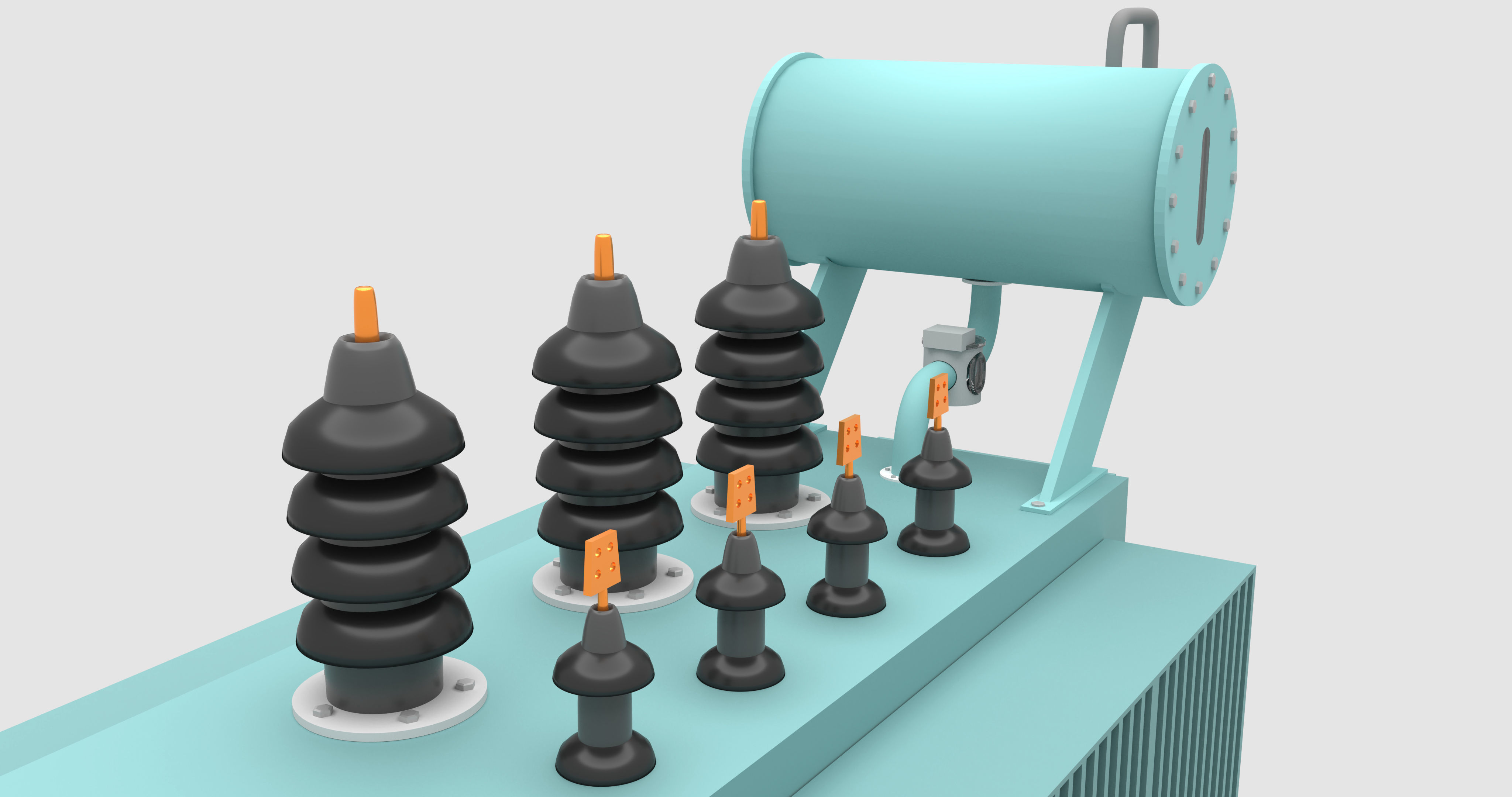

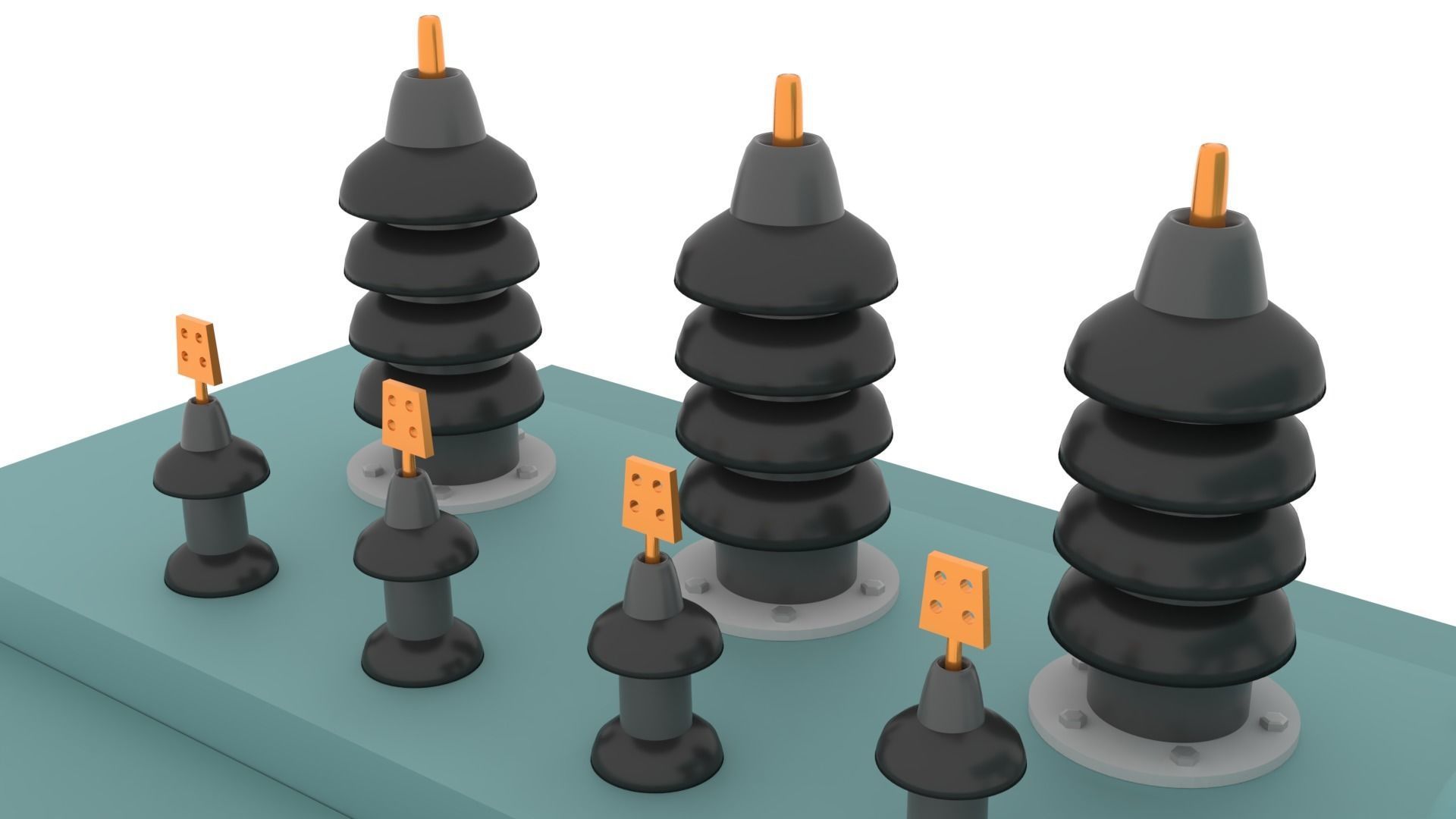

- Seperate Models for Bushes, Conservator, Buchholz's relay, Windings etc. so that you can edit it later as you want.
Please Review This Model After Download/Purchase. Thank You!
Electrical Power Transformer - Electrical Engineering
Royalty Free License
Electrical Power Transformer - Electrical Engineering
Royalty Free License
3D Modeling
Low-poly Modeling
Lighting
Rendering
Rigging
UV mapping
Particles
Animating
3D Model formats
Format limitations
Native
- Blender 2.8 (.blend)16.8 MBVersion: 2.8Renderer: Cycles
Exchange
- OBJ (.obj, .mtl) (2 files)99.7 MB
- Stereolithography (.stl)103 MB
- Collada (.dae)16.2 MB
3D Model details
- Publish date2019-11-19
- Model ID#2165044
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 1,026,250
- Vertices 1,032,757
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
