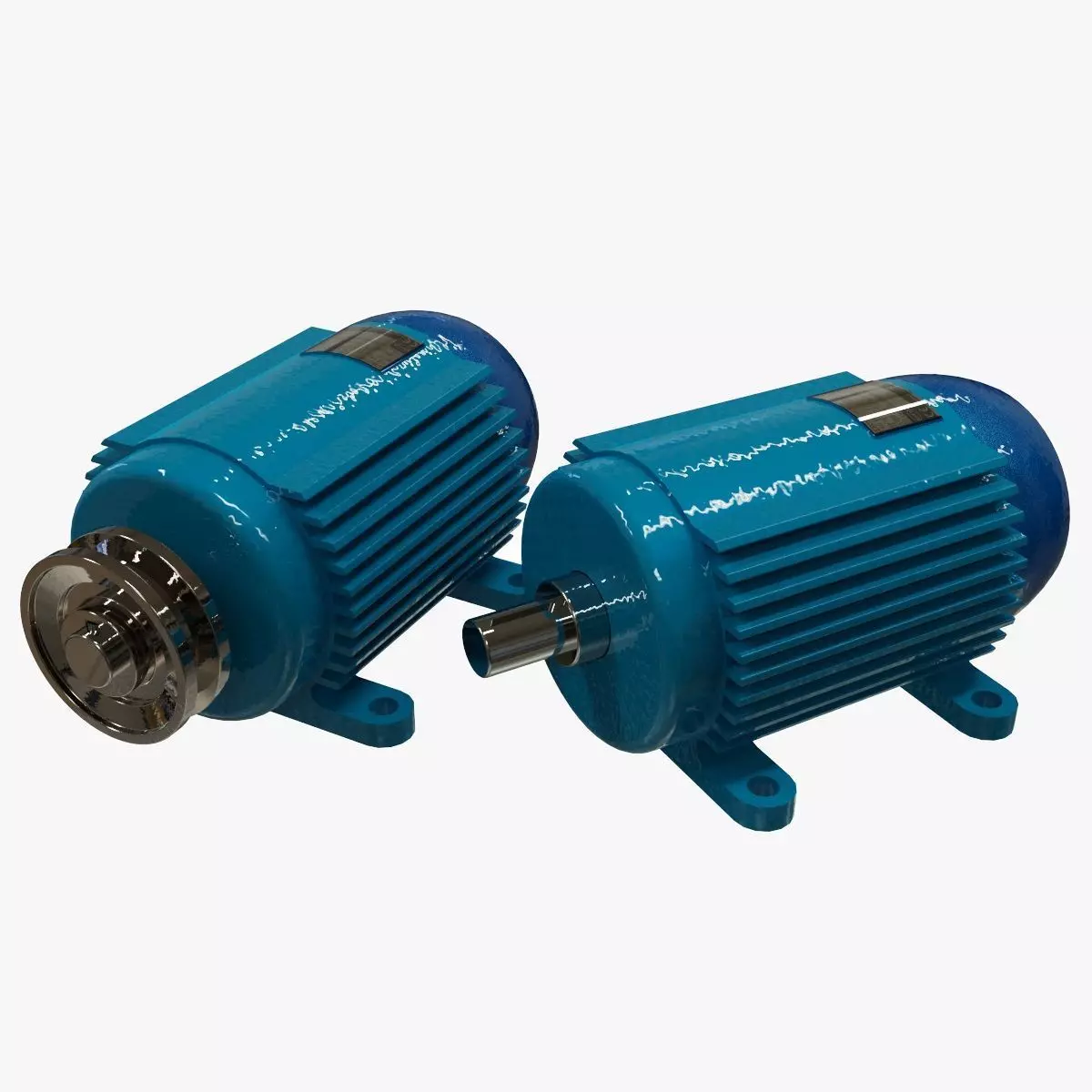

Electric Motor 3D model
The model was made and animated in Solid Edge ST10 and rendered in Solid Edge, SolidWorks, Inventor and KeyShot.
Includes Solid Edge Part files (.par), Solid Edge Assembly file (.asm) and Solid Edge Draft file (.dft). SolidWorks Part files (.sldprt), SolidWorks Assembly file (.sldasm), Autodesk Inventor Part files (.ipt) and Autodesk Inventor Assembly file (.iam) of the model are added as well.
Other converted file formats are also included. File formats (.step, .iges, .sat, .x_t, .3mf) were exported using SolidWorks 2022. File formats (.obj, .stl) were exported using Autodesk Inventor 2023. File formats (.fbx, .glb) were exported using Marmoset Toolbag 4. Also included are the KeyShot 11 Package files (.ksp) which include the used materials, textures and HDRI files in the KeyShot renders.
All of the above rendered images as well as turntable and explosion animations of the model are included in zip files.
A 3D pdf file of the model is added as well.
3D Model formats
Format limitations
- Solid Edge ST10 (.asm, .par, .psm, .dft)4.26 MB
- SolidWorks 2022 (.sldprt, .sldasm, .slddrw)907 KB
- Autodesk Inventor 2023 (.iam, .ipt)1.34 MB
- OBJ (.obj, .mtl)253 KB
- glTF (.gltf, .glb)784 KB
- 3D Manufacturing File (.3mf)609 KB
- Stereolithography (.stl)788 KB
- Parasolid (.x_t, .x_b)679 KB
- 3D ACIS (.sat)977 KB
- IGES (.ige, .igs, .iges)3.82 MB
- KeyShot 11 (.bip, .ksp)27.4 MB
- PDF (.pdf)229 KB
- High-Res Renderings (.hrd) (2 files)8.73 MB
- Autodesk FBX (.fbx)439 KB
3D Model details
- Publish date2023-07-11
- Model ID#4630246
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Nurbs
- Polygons 16,146
- Vertices 14,590
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Non-overlapping
- Plugins used
- Ready for 3D Printing
