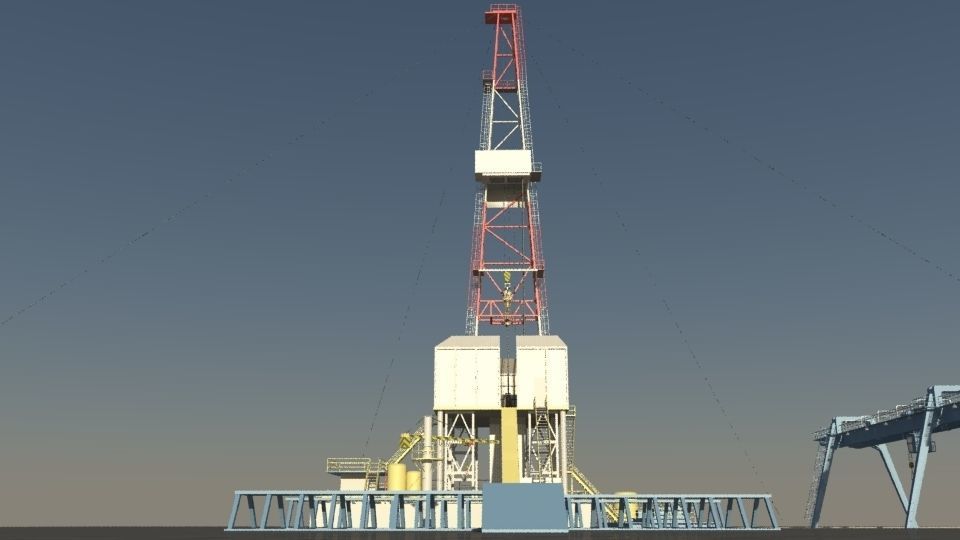

Drilling Rig Low-poly 3D model

The drilling rig for geological or seismological investigation.The drilling rig consists of a complex of the constructions intended for collaboration:

• Derrick
• Equipment for descent and raising: winches, cranes, hooks.The Talevy system turns on two blocks: crown block and talevy block.
• Equipment for a stage and circulation of liquid: pumps, capacities, shackle elements.
• Constructions for drilling process: towers, bridges, rack designs.
• Devices of power type (engines).
• Bodies for providing a construction with energy: electric, petrol or diesel motors, drives of various type, hydraulic system, pneumatic devices.
• Additional parts (auxiliary type). Mechanisms for transportation, metal products, spare winches belong to them.

• Information bodies which are responsible for adjustment, adjustment and tracking of parameters of process of drilling.
• Governing bodies - the driller's cabin, the room of management and control.
• Means of fire safety and health and safety - the announcer of a flame.
• Planked footway and warehouse of storage of boring pipes.
• Vibrosieve
• Pneumatic compressor.
• Booster pump.
• In a complex distributing device.
• Top drive.

All maps are in Texture folder. Extract it from the Texture WinRAR ZIP and put it into the same folder you put the fbx files.

It was created with Autodesk Maya 2015

Previews were rendered with mental ray

Hope you like it !
