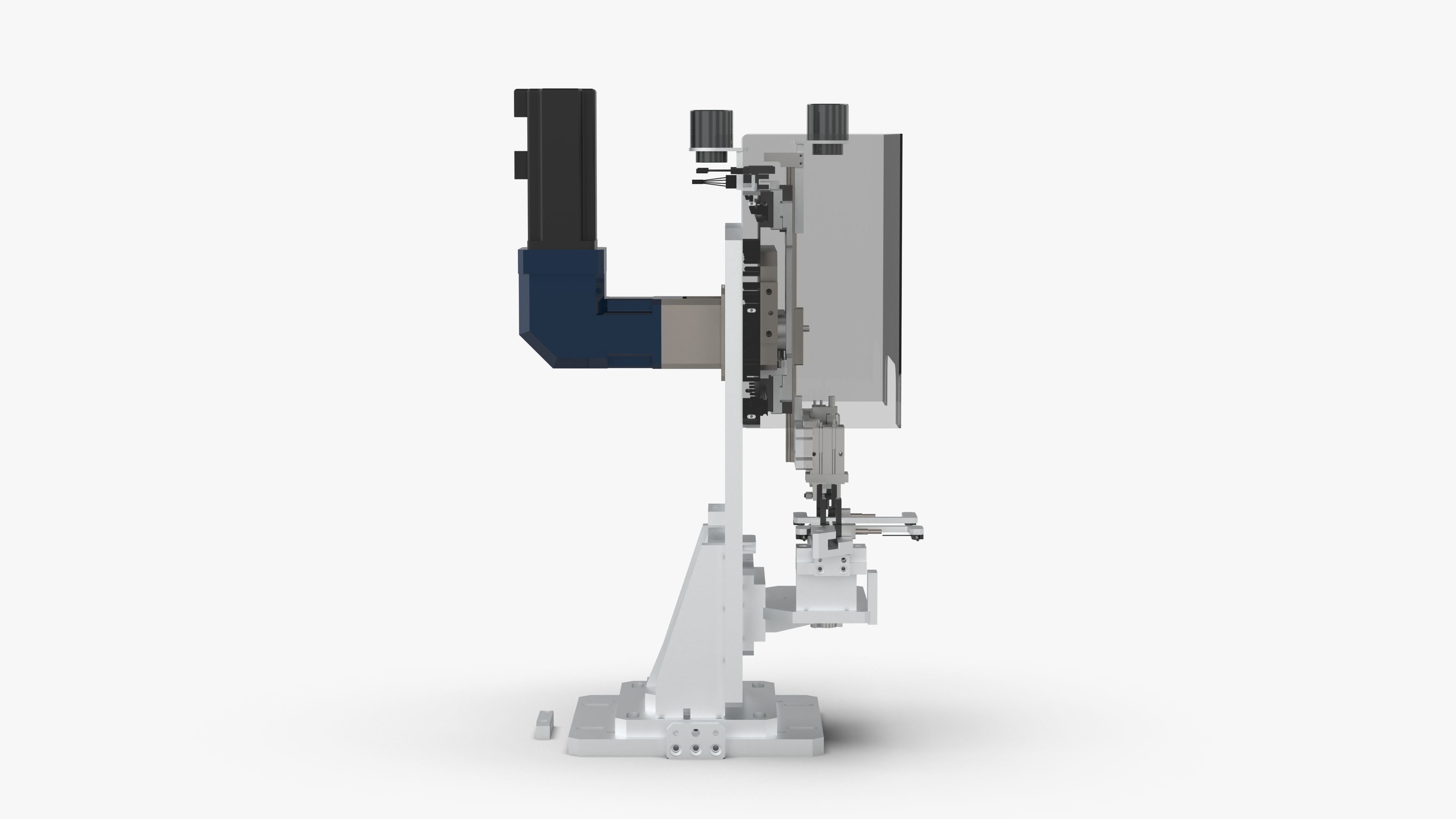

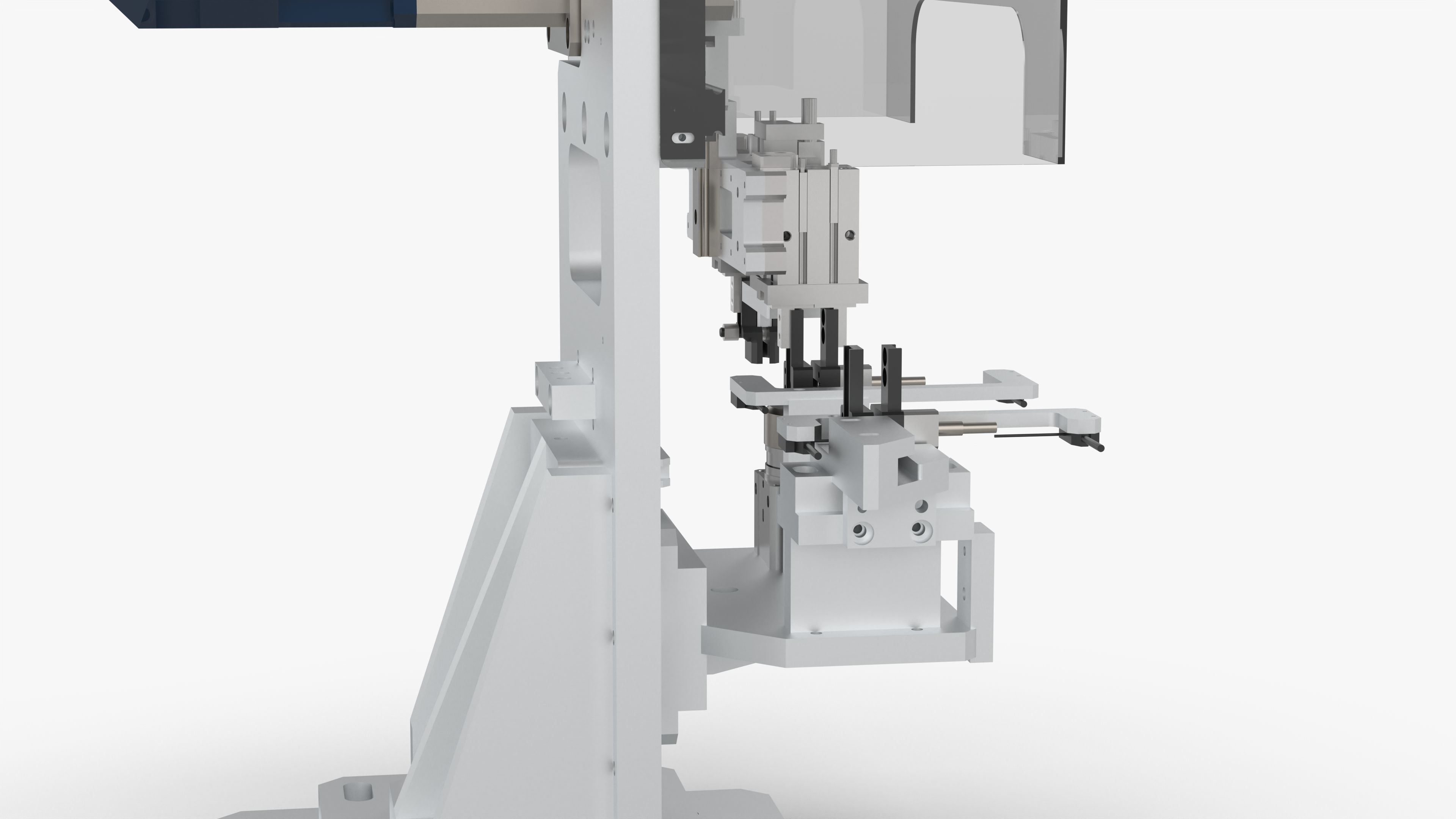

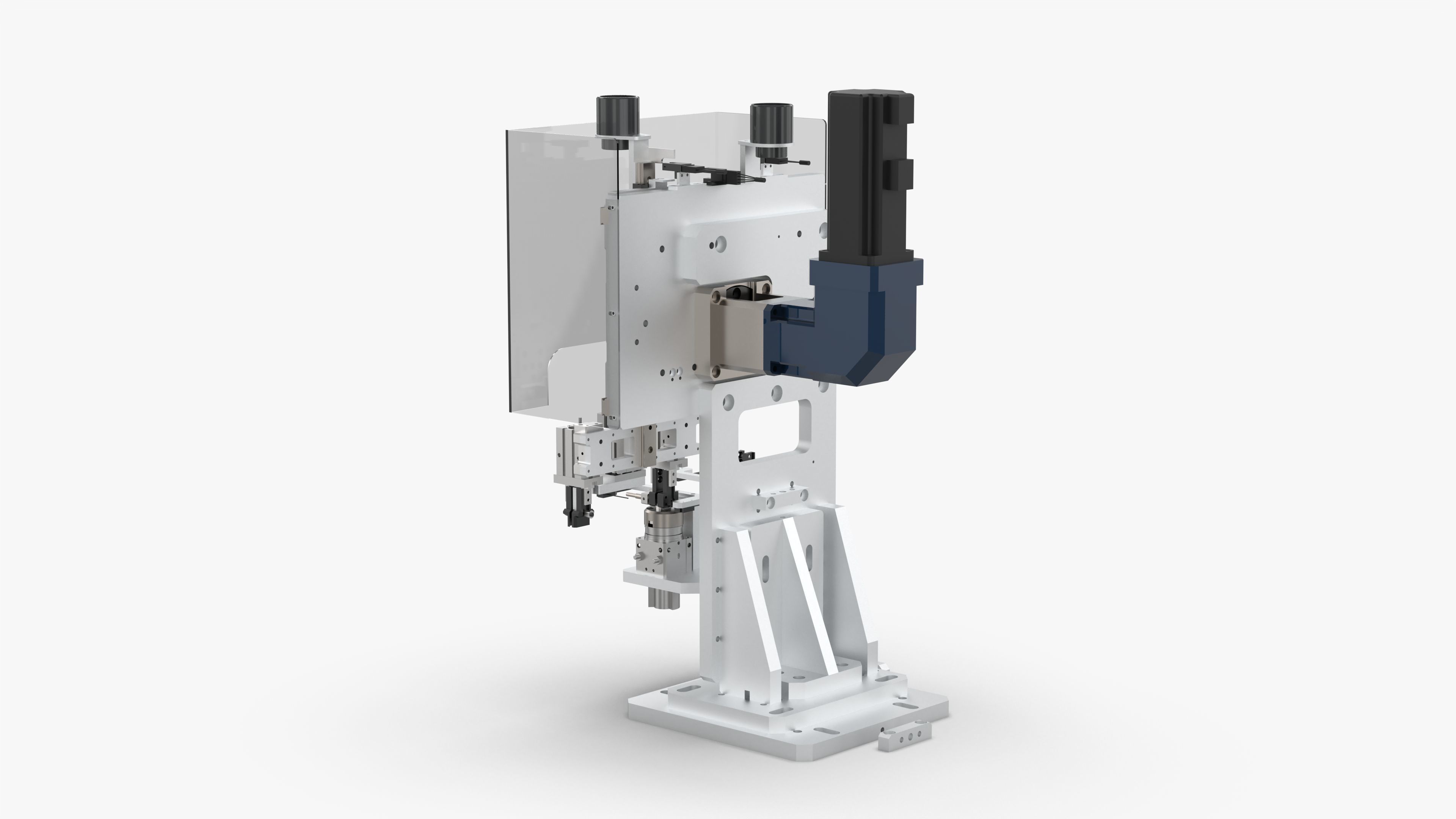

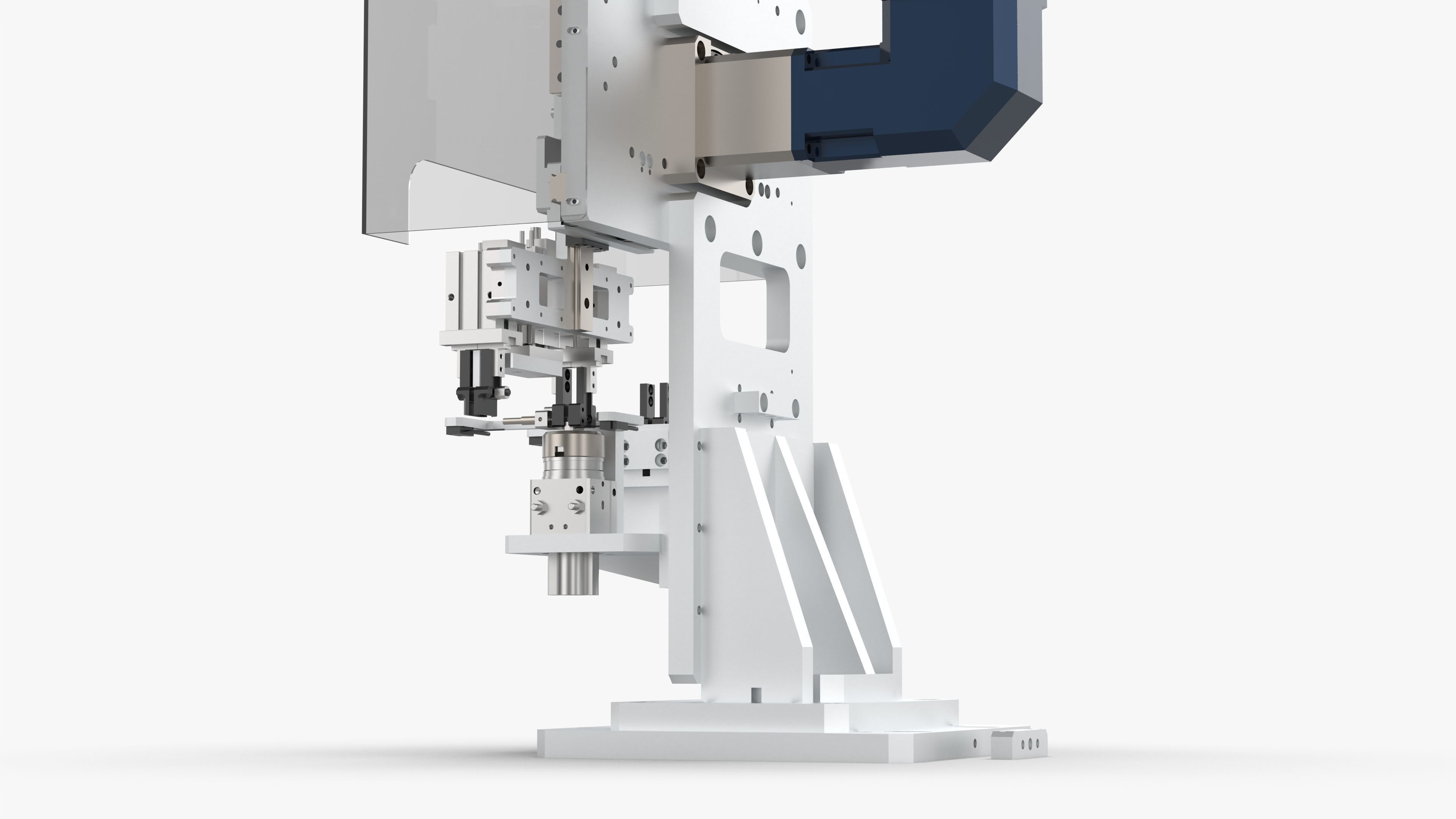

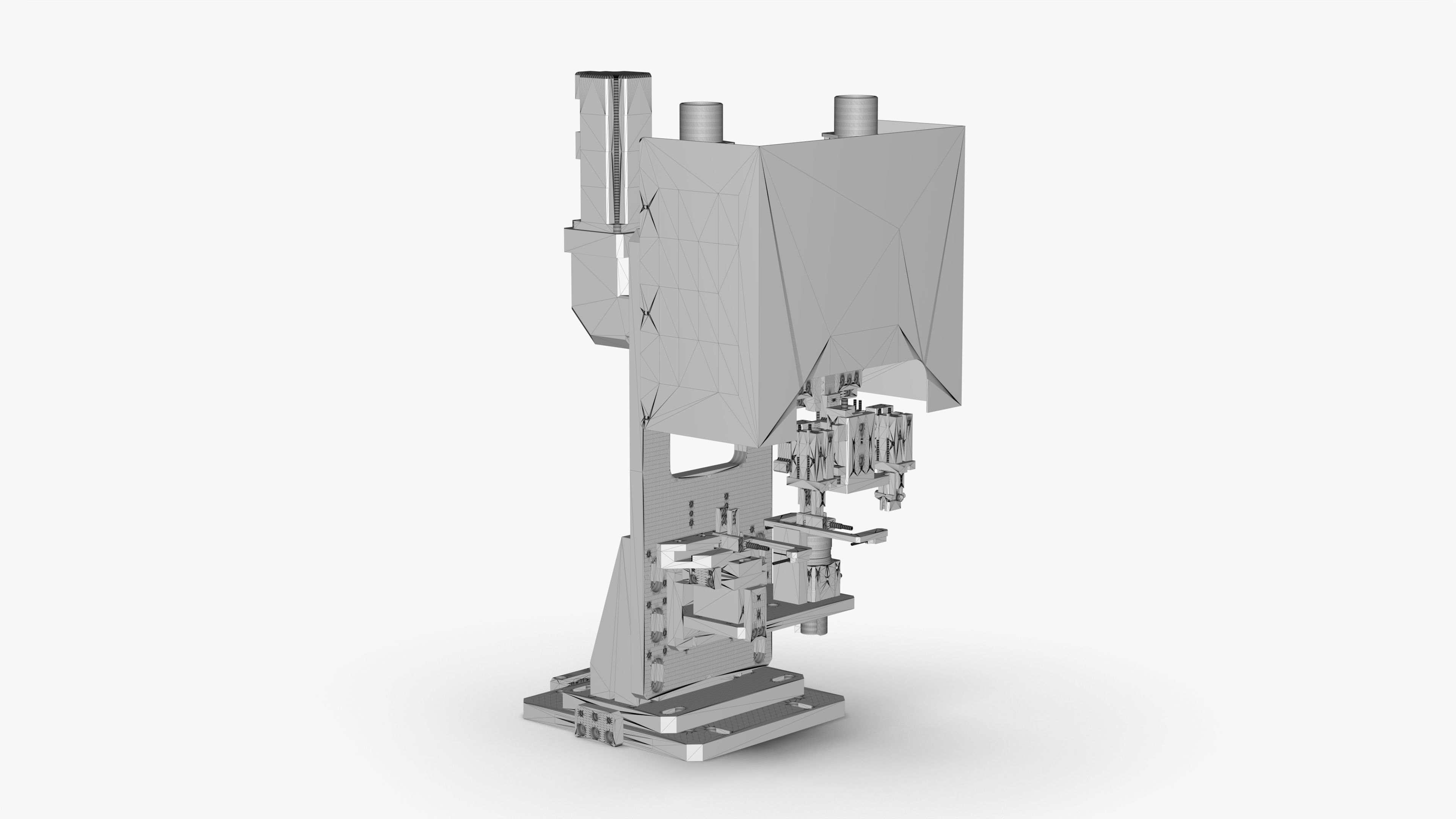

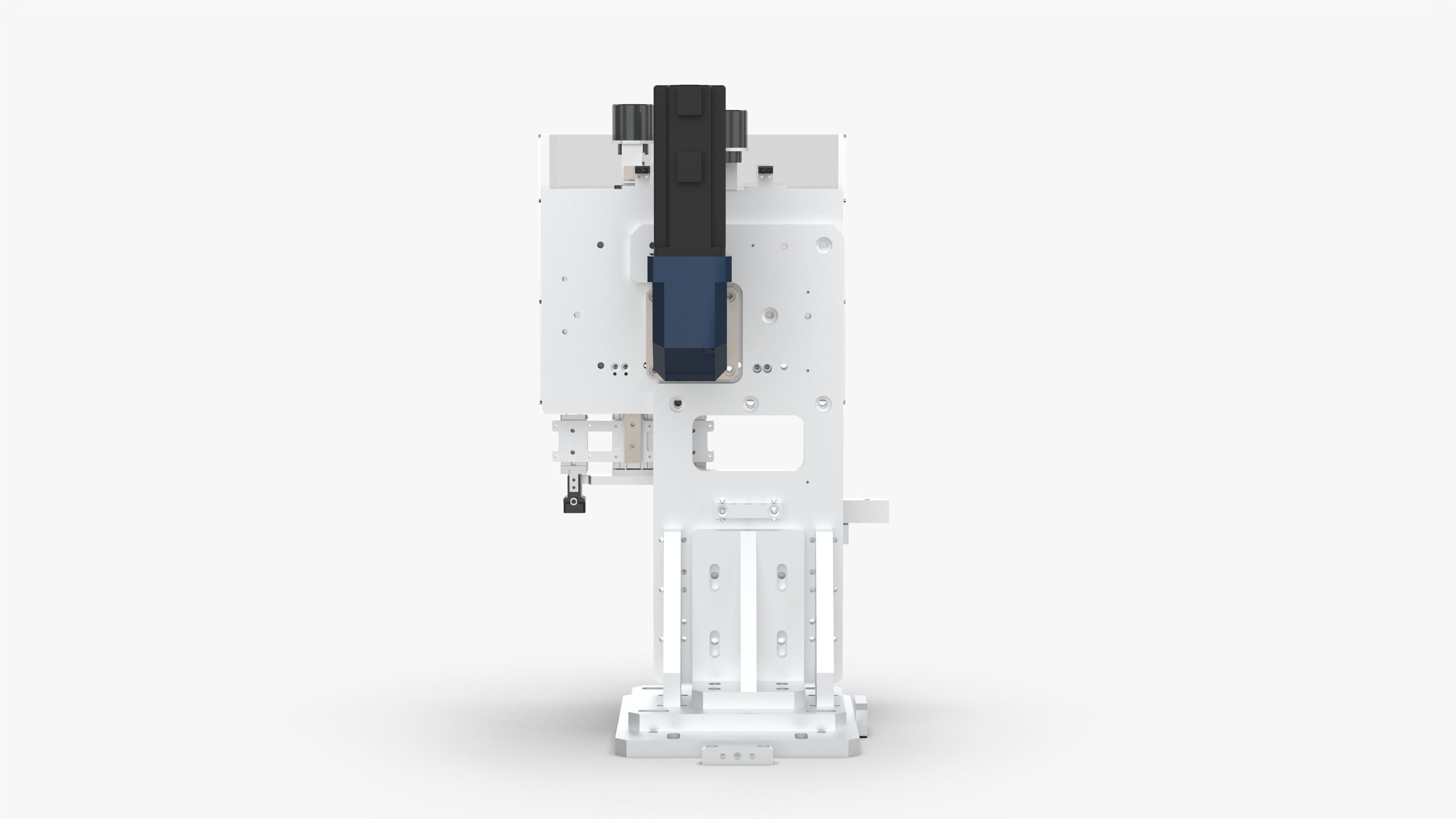

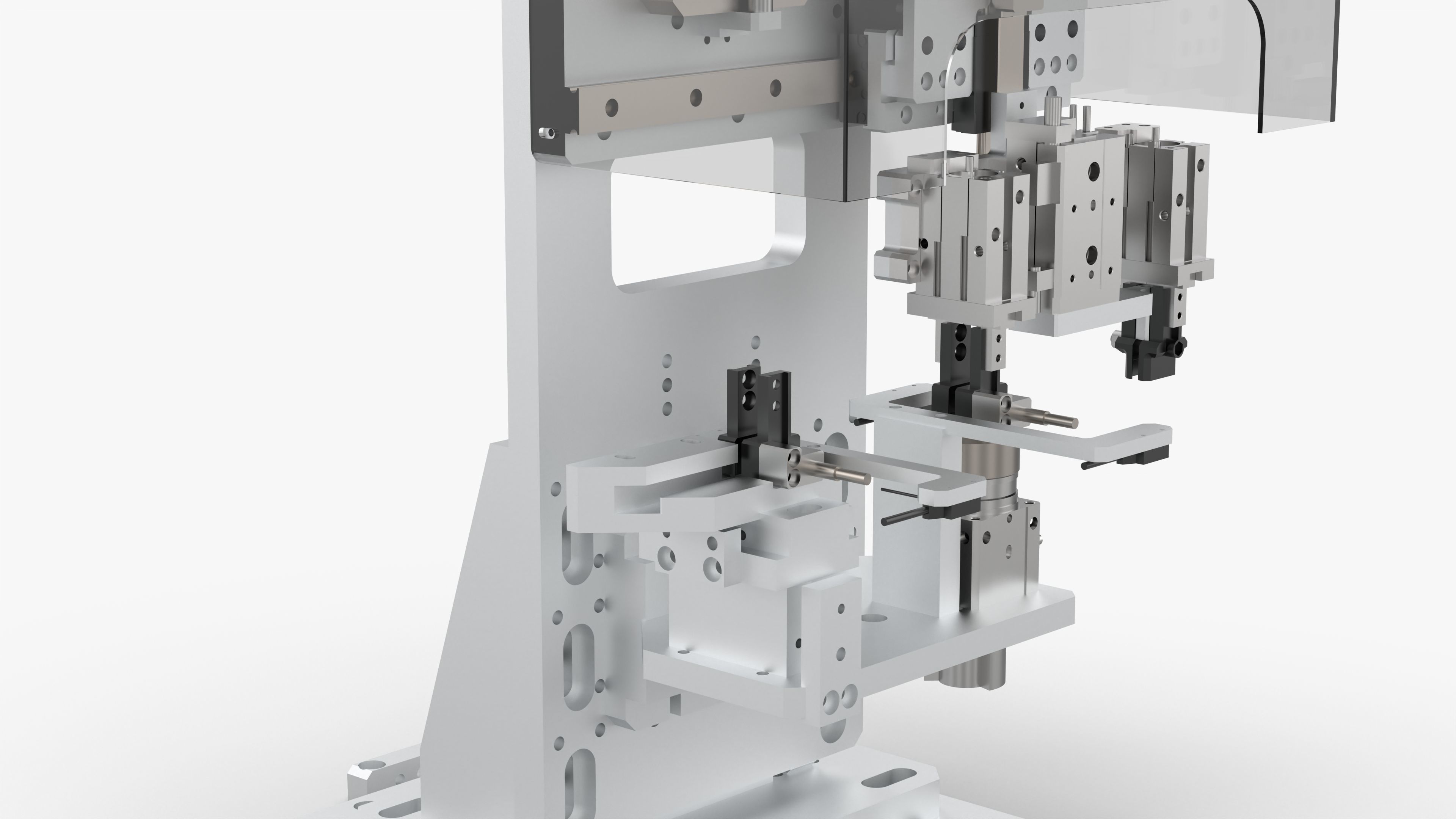

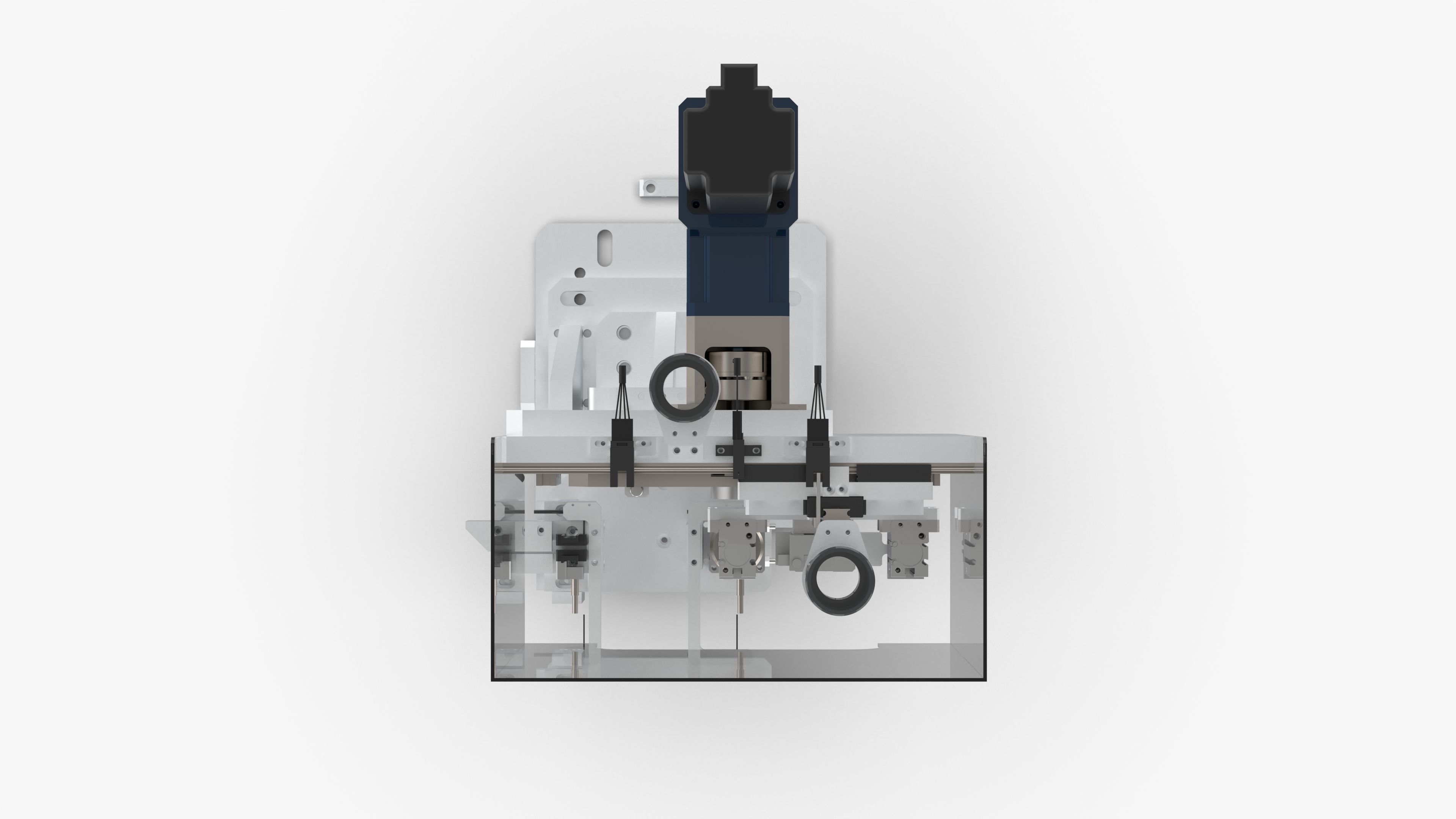

Double Station Cam Manipulator Mechanism 3D model
Description

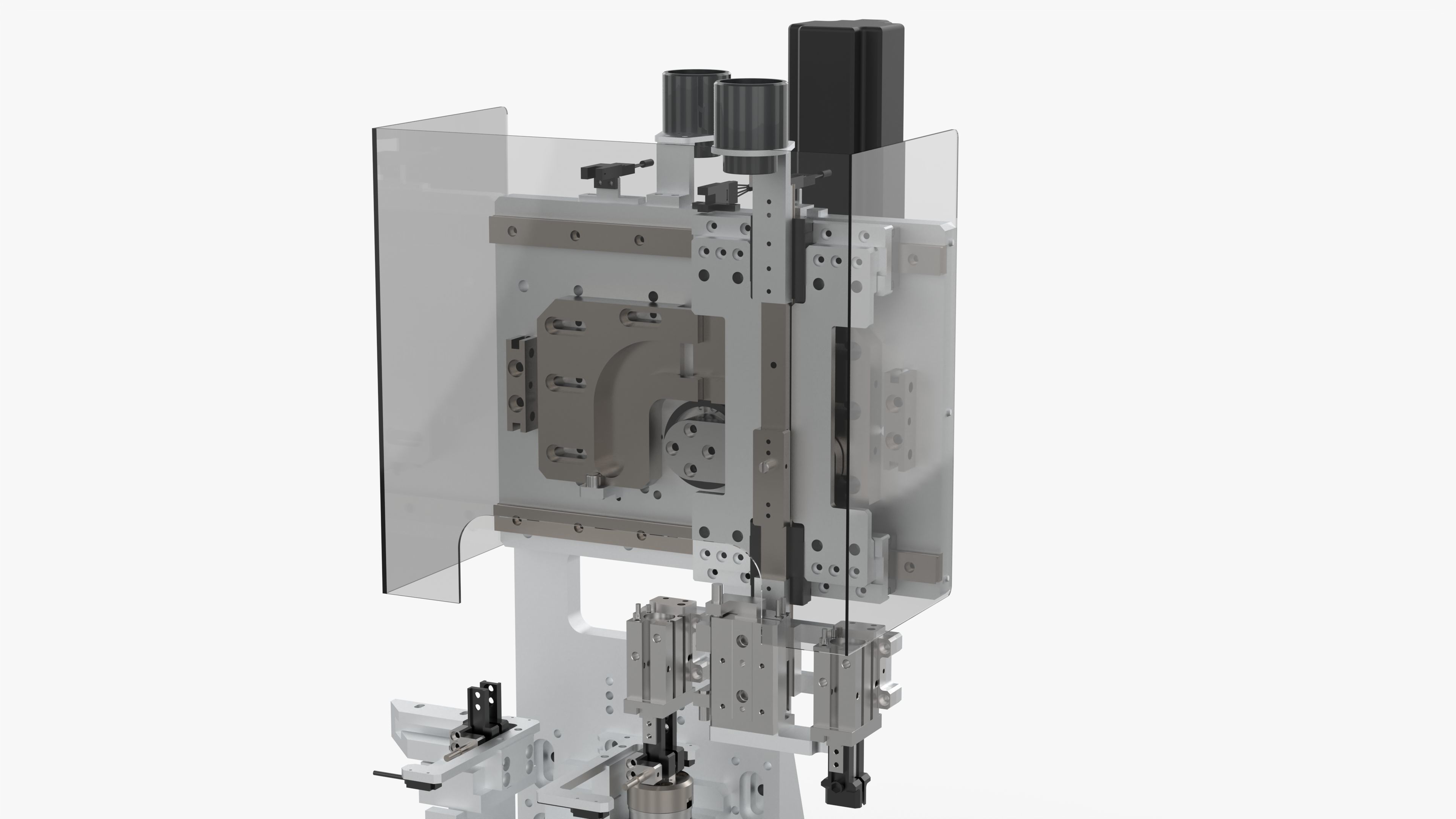

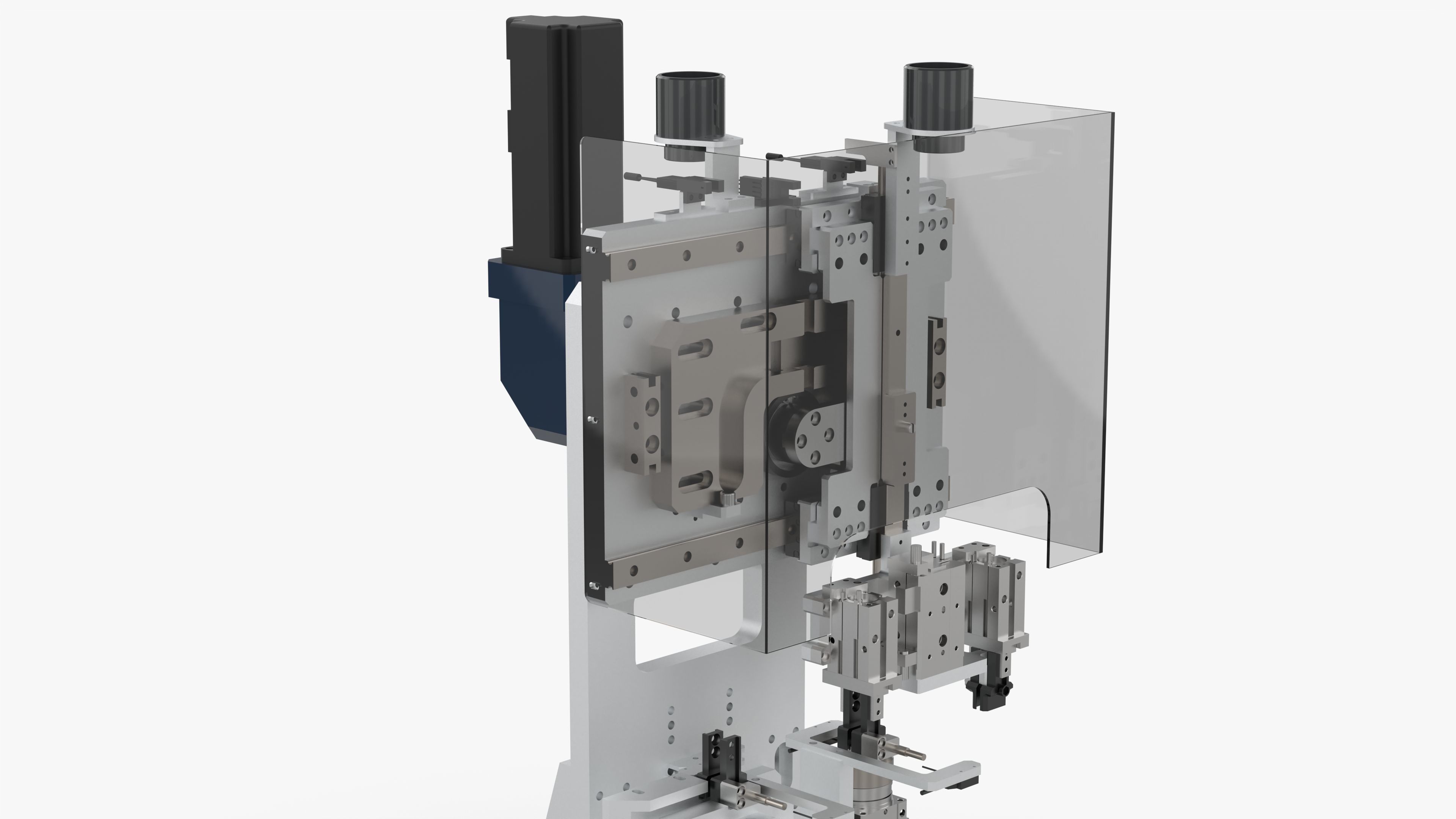

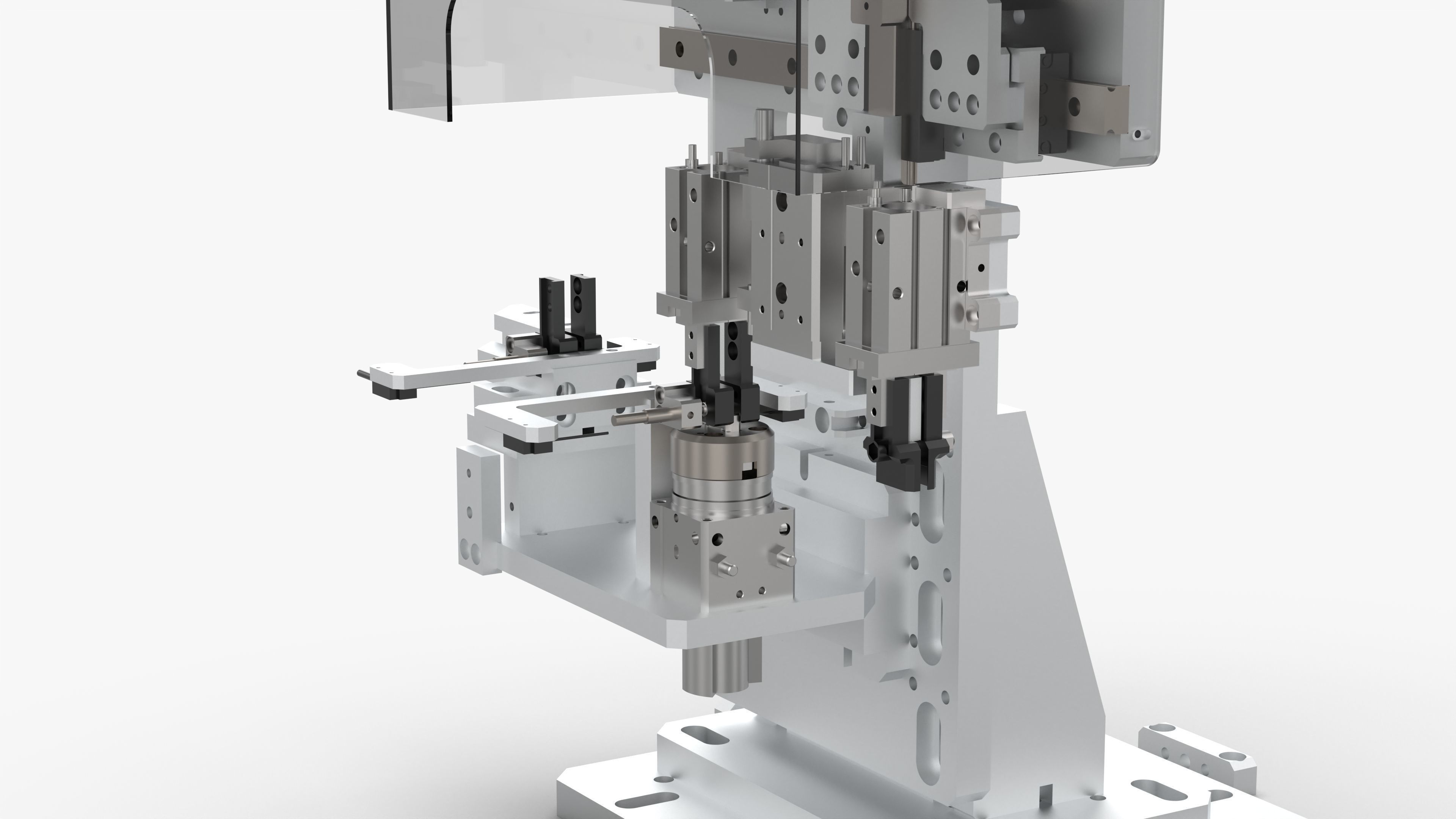

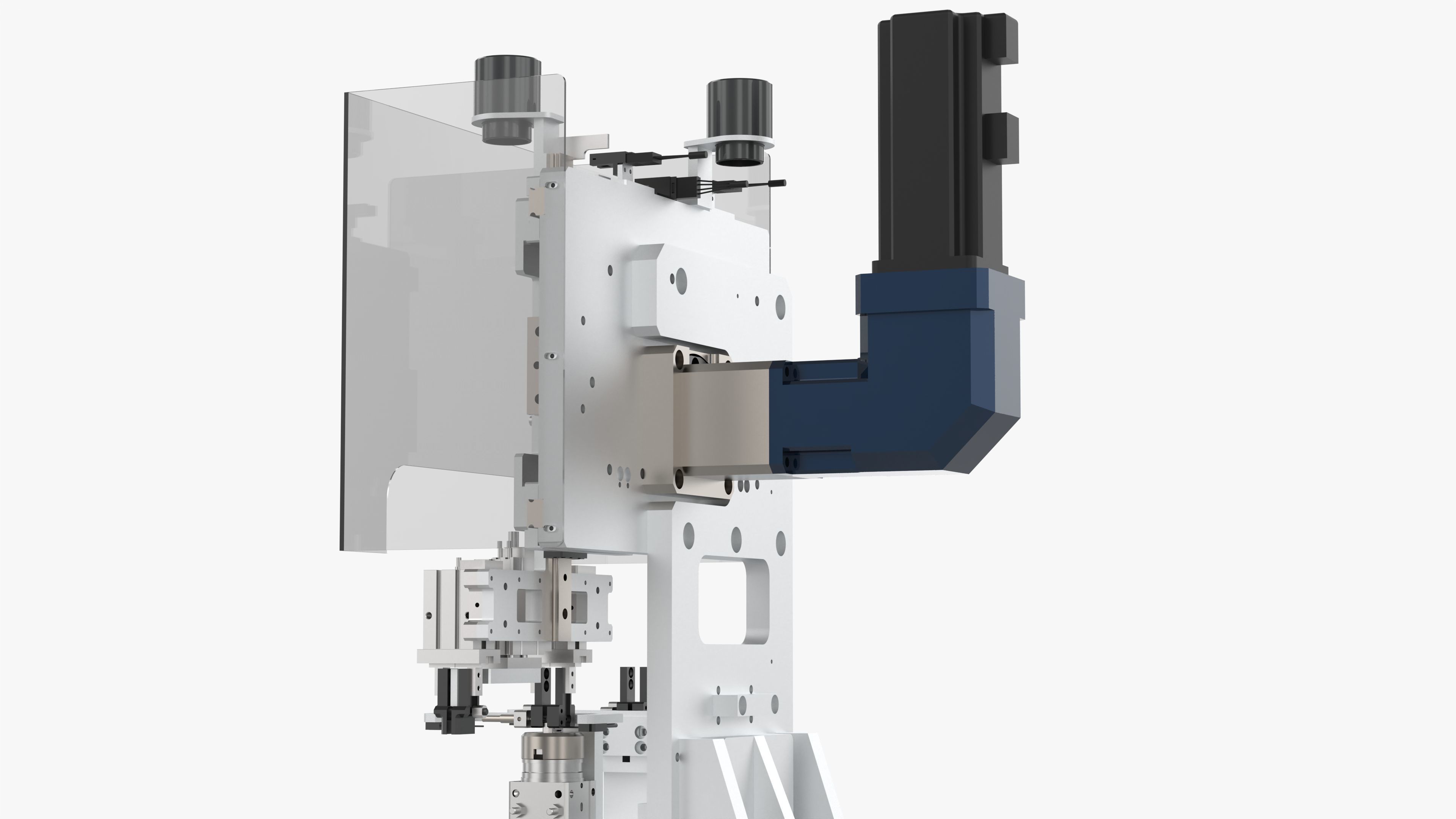

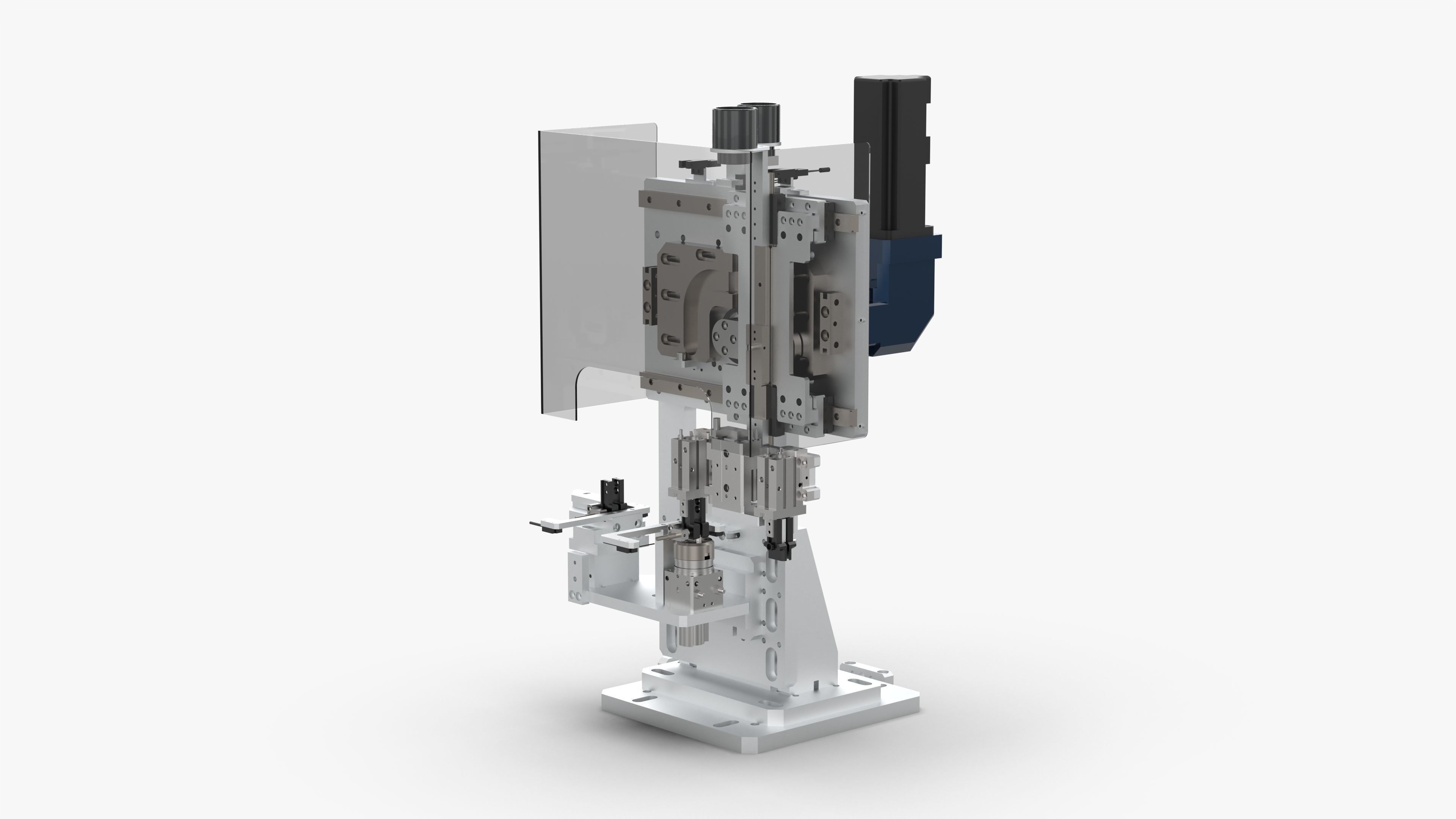

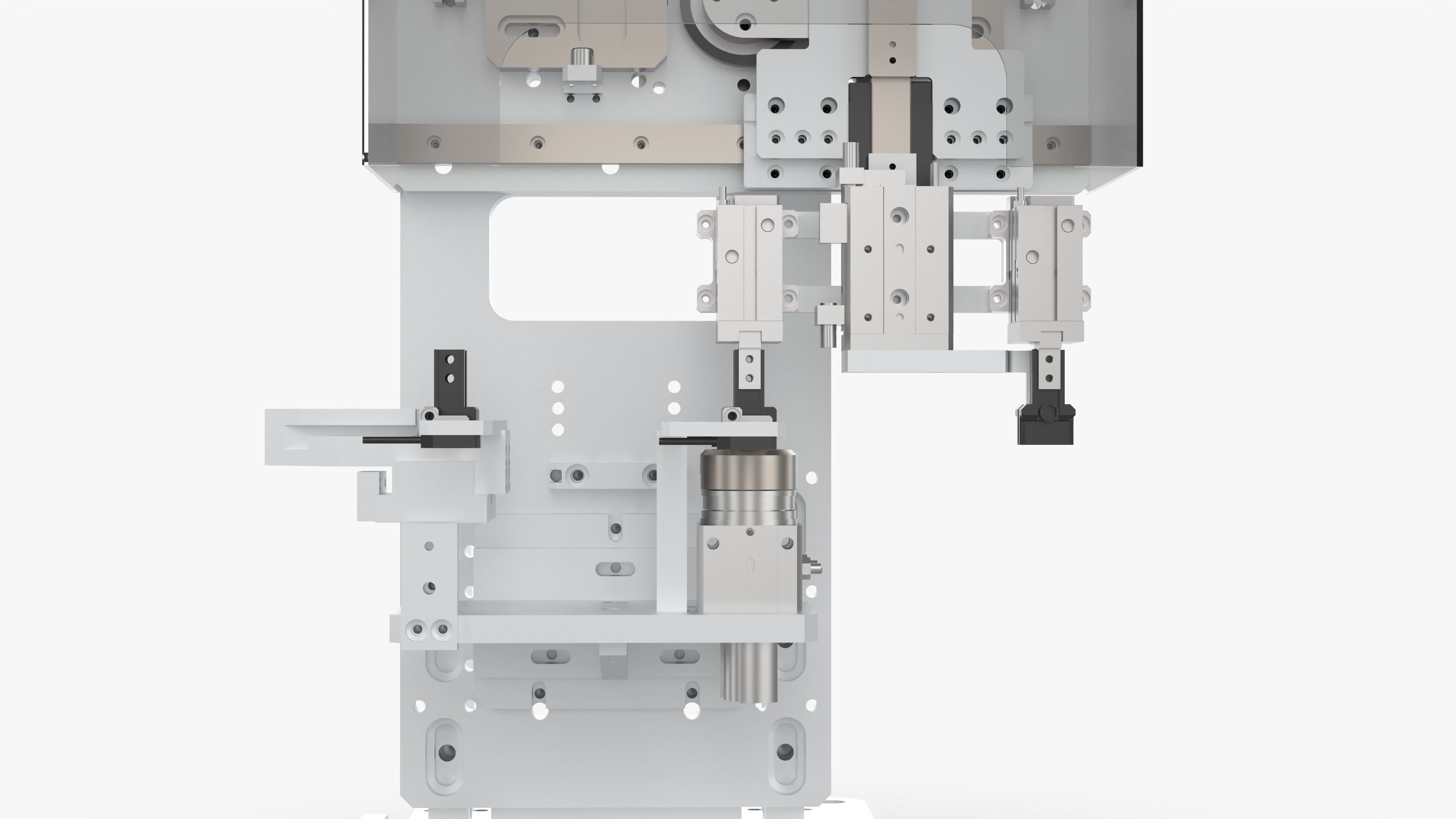

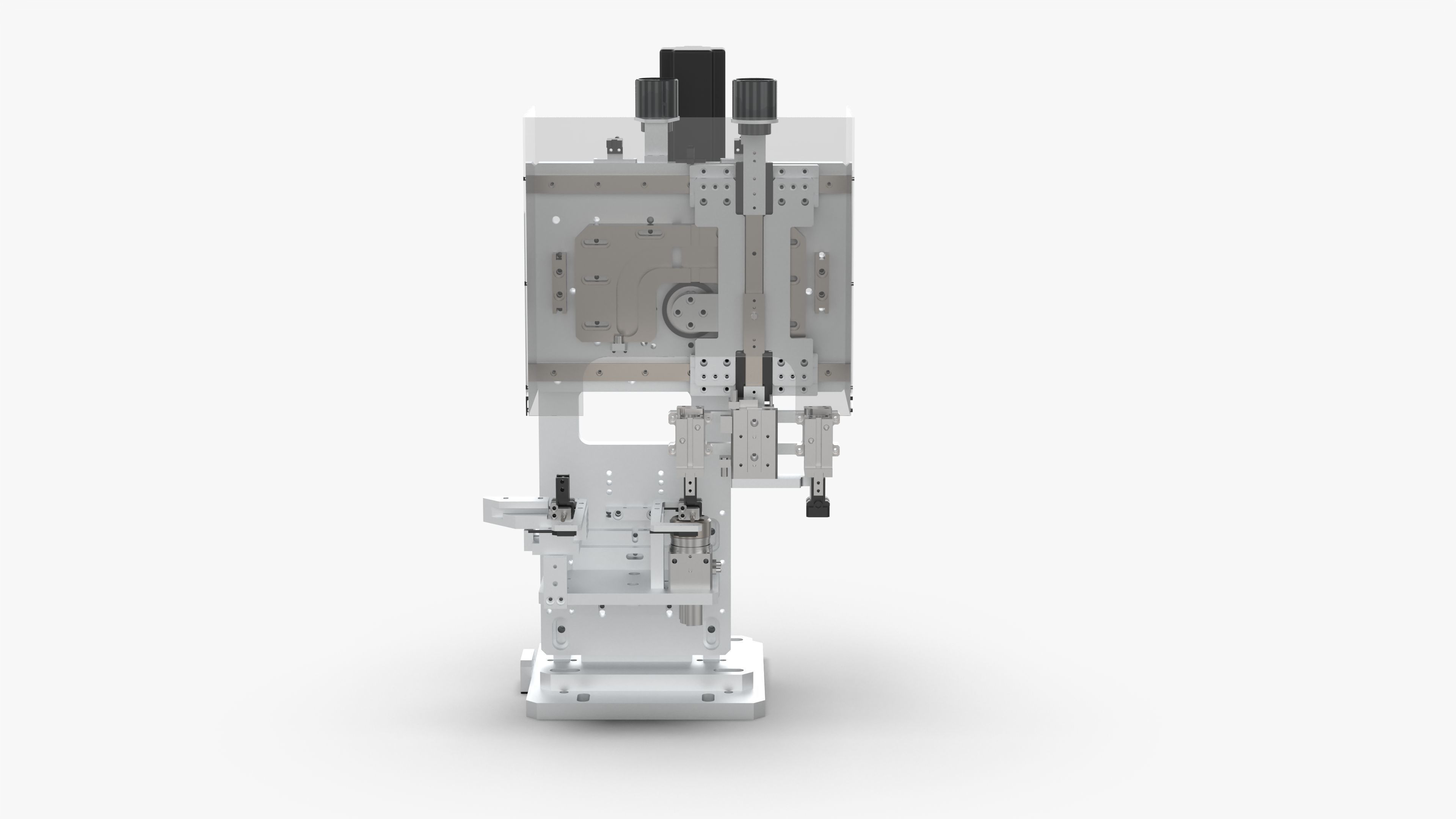

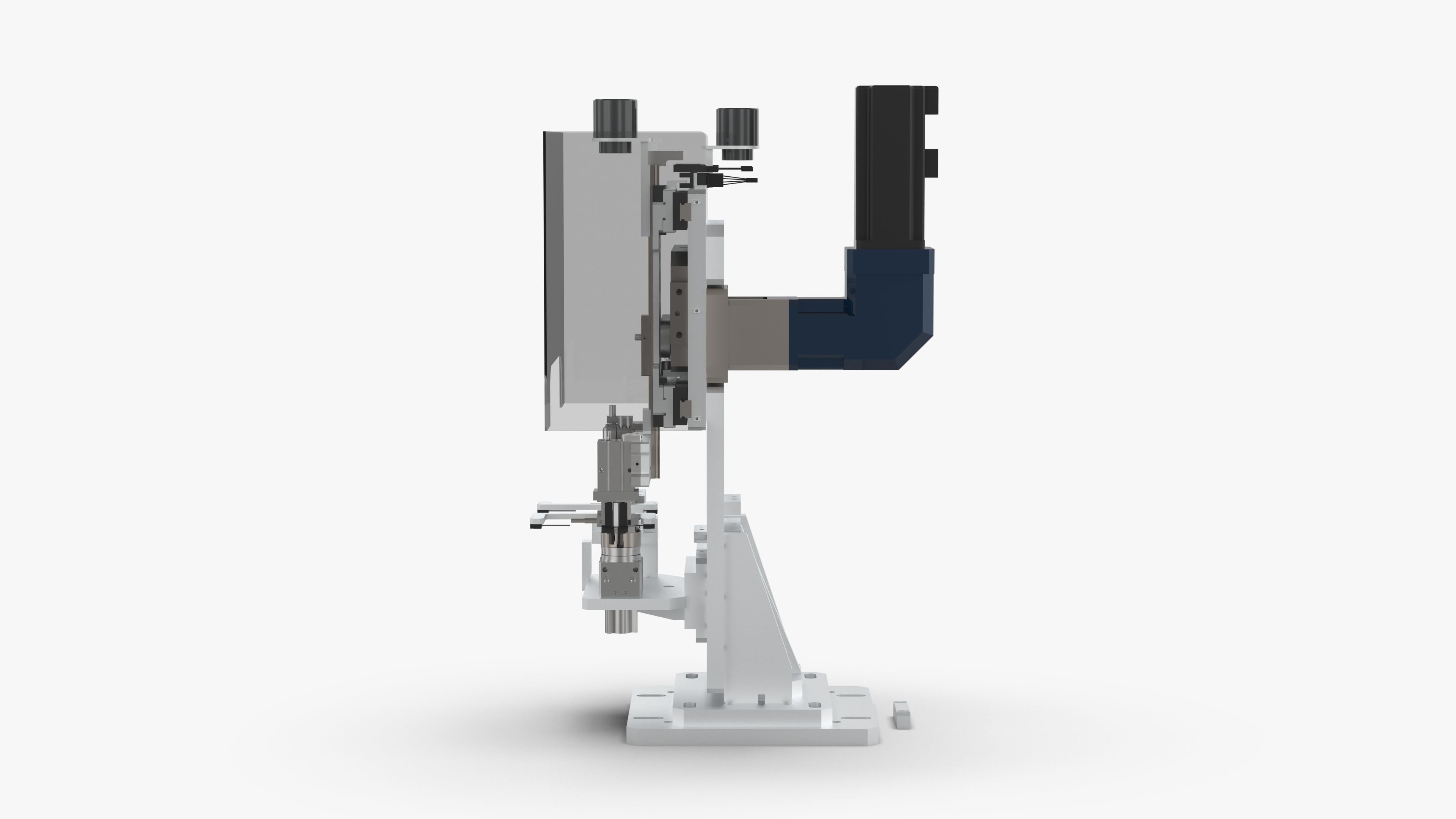

Double Station Cam Manipulator Mechanism
Introduction

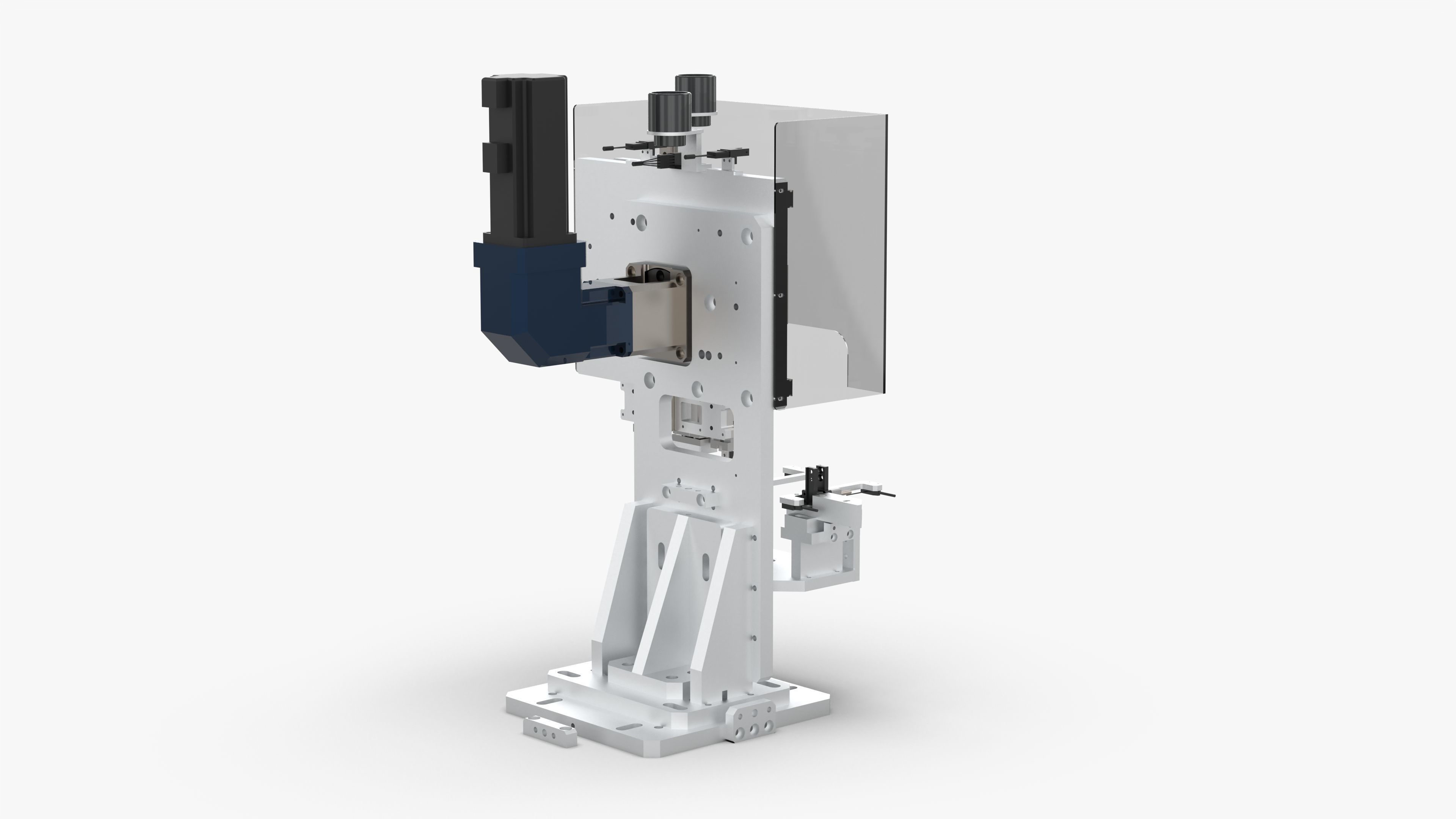

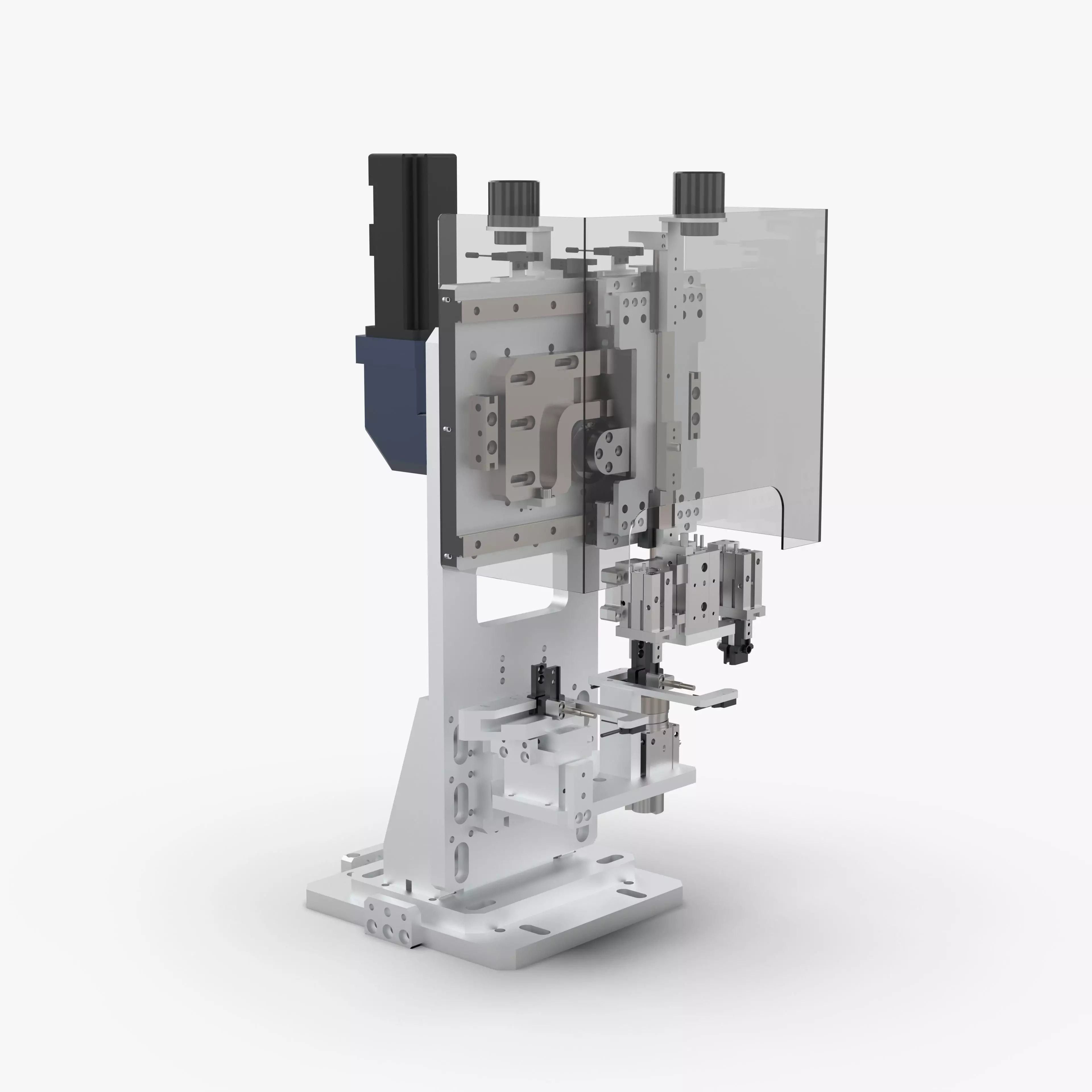

This is a double station for fast directional transplanting. After the workpiece is positioned, select the 180-degree mechanism. The classic mechanism commonly used in non-standard automatic fully automatic assembly lines. The cam mechanism is driven by the servo motor to quickly transplant the workpiece up and down horizontally to the positioning seat and rotate. The cylinder rotates after the workpiece is in place to meet the subsequent assembly requirements
File Formats
- SolidWorks 2018 | Keyshot 10
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
Geometry
- Polygons: 233,262
- Vertice: 699,786
Double Station Cam Manipulator Mechanism
Royalty Free License
Double Station Cam Manipulator Mechanism
Royalty Free License
3D Modeling
Rendering
Post Production
PBR modeling
3D Model formats
Format limitations
Native
- SolidWorks 2018 (.sldprt, .sldasm, .slddrw)13 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
- OBJ (.obj, .mtl)14.7 MB
- IGES (.ige, .igs, .iges)23.3 MB
- Stereolithography (.stl)11.1 MB
- STEP (.stp)5.08 MB
3D Model details
- Publish date2023-03-28
- Model ID#4394648
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 233,264
- Vertices 699,786
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
