Details of embeddment for a 6m Dia Kaplan Turbine 3D model

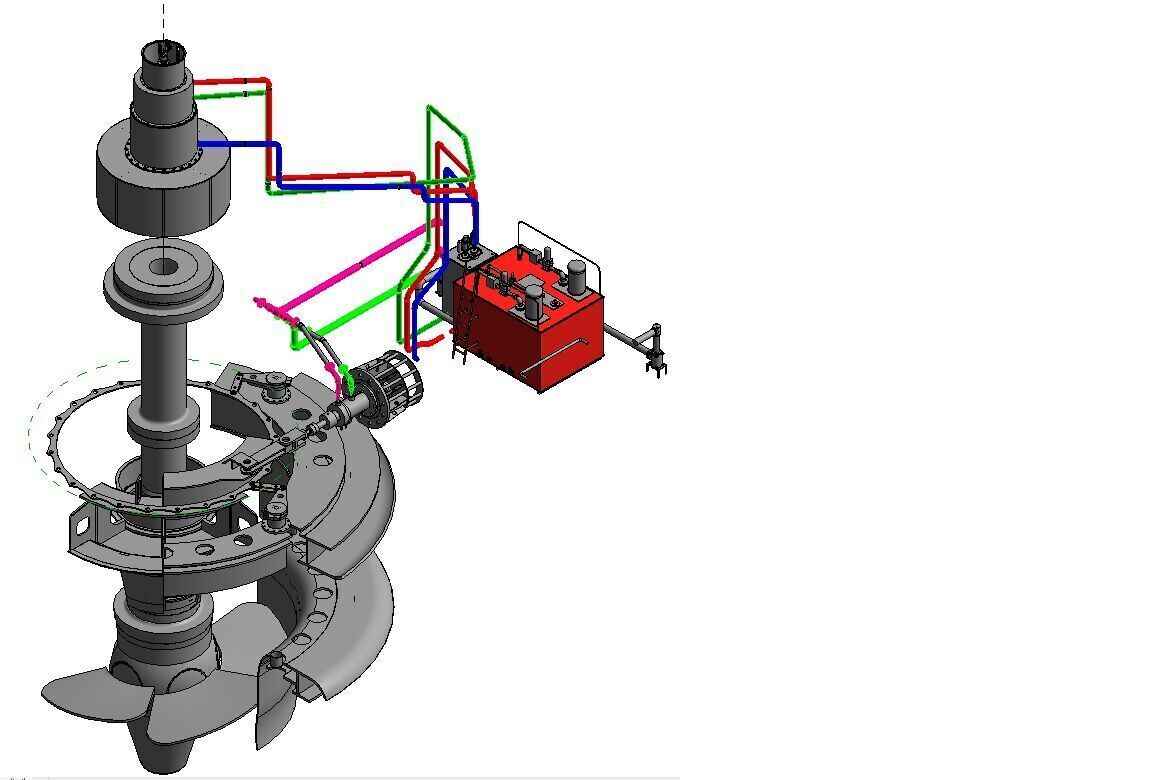

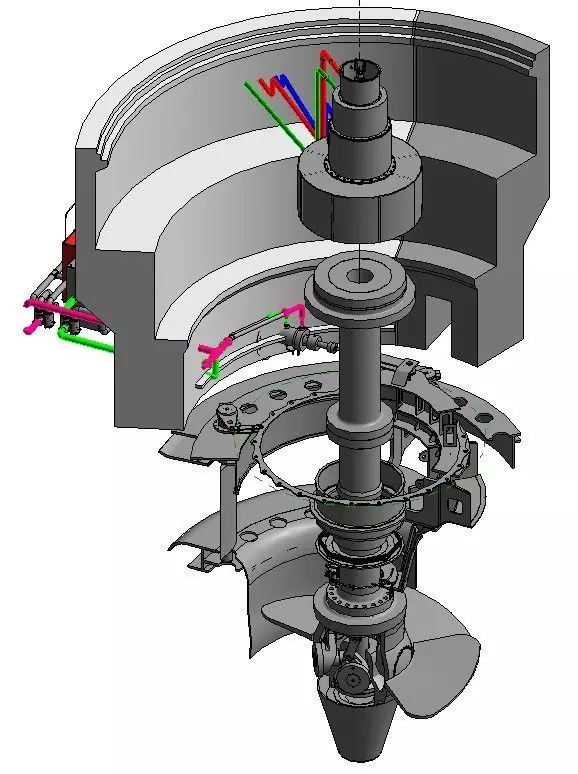

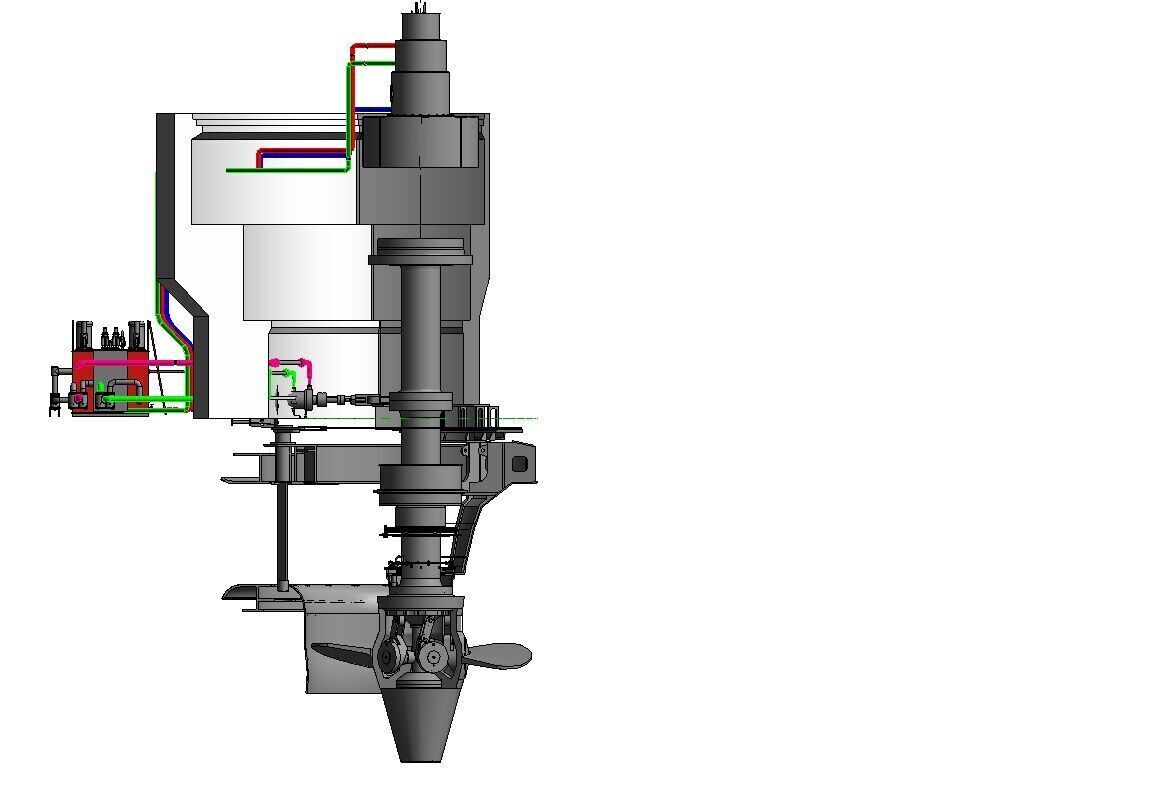

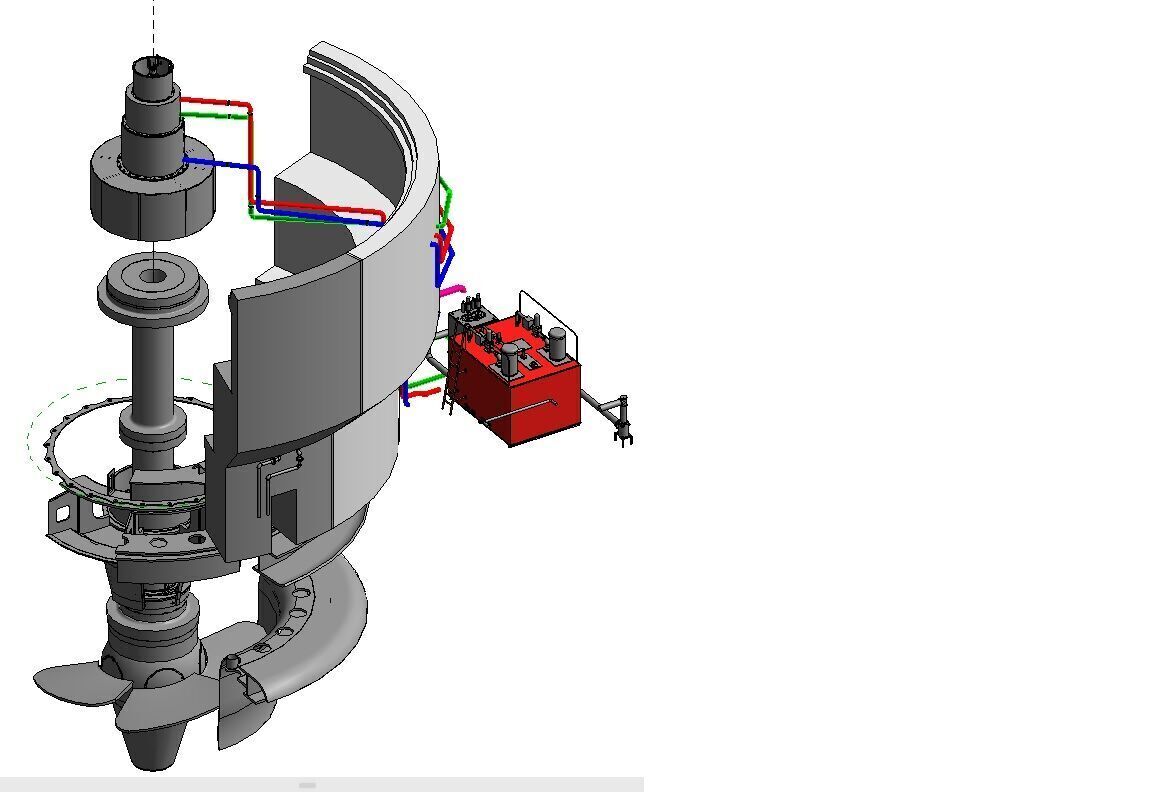

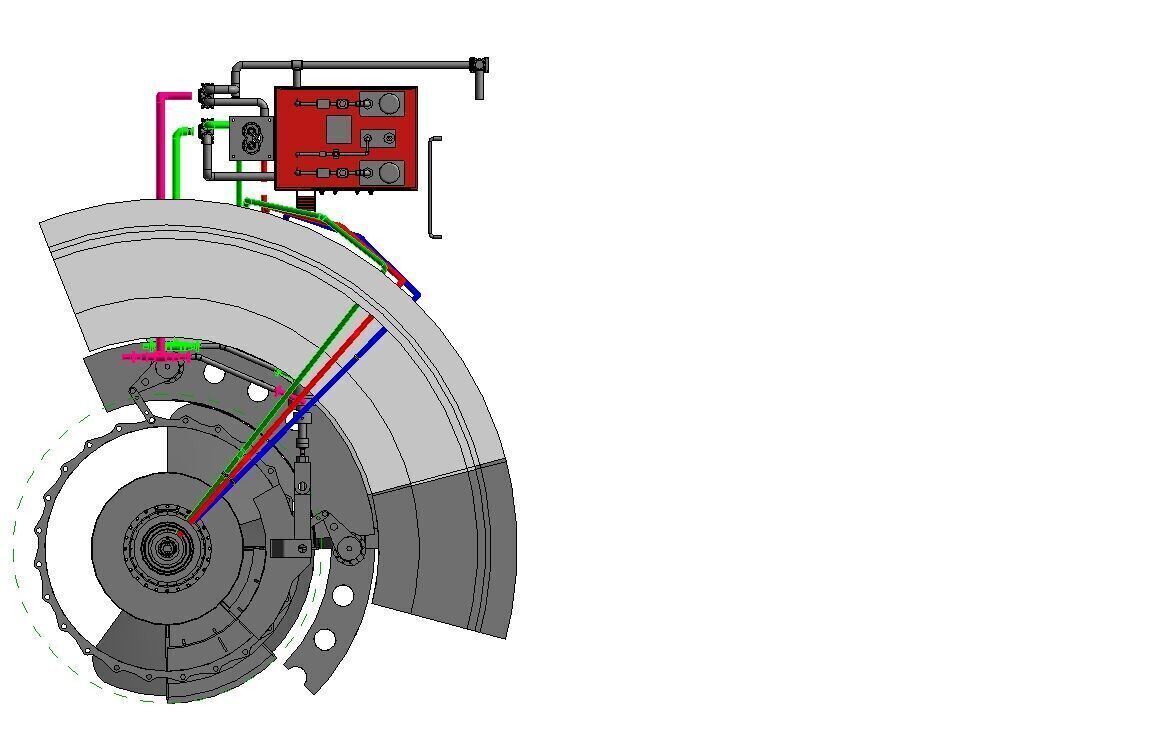

Turbine assembly for a 6m Dia Kaplan Turbine implemented in Revit using native Revit Family elements and Custom created items as per detail drawings derived from Technical Specifications. This model is intended as a template that can be used in for deriving detail drawings that are normally used in the operation and mainetenance manuals.The Electromechanical components comprising the assembly are modelled from detail drawings provided during the design phase and may obviously vary from the final detail designs that would be result after project implementation.
