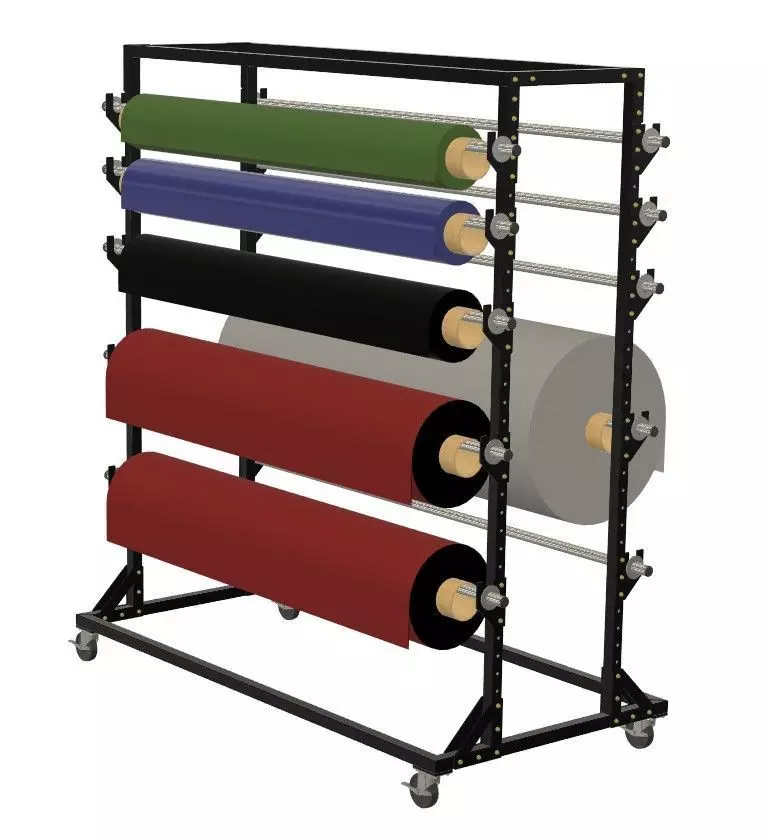

Composite Material Storage Rack 3D model

Designed for storage and access of materials used in the fabrication of composite parts, such as carbon fiber, fiberglass, release films, bagging films, and breather felt. This design is also perfectly suitable for other rolled goods like vinyl, paint protection film, tinting film, etc.

72wide, 36 deep, and 80tall. Maximum roll length of 69.

Tubular steel construction welded top and bottom frames and bolted uprights and rod cradles for easy assembly, disassembly, and rack layout adjustment. All hardware including casters, threaded inserts, screws, etc. are available readily from McMaster-Carr using the part numbers placed in the .STEP assembly.
