CNC Wood Routing Machine

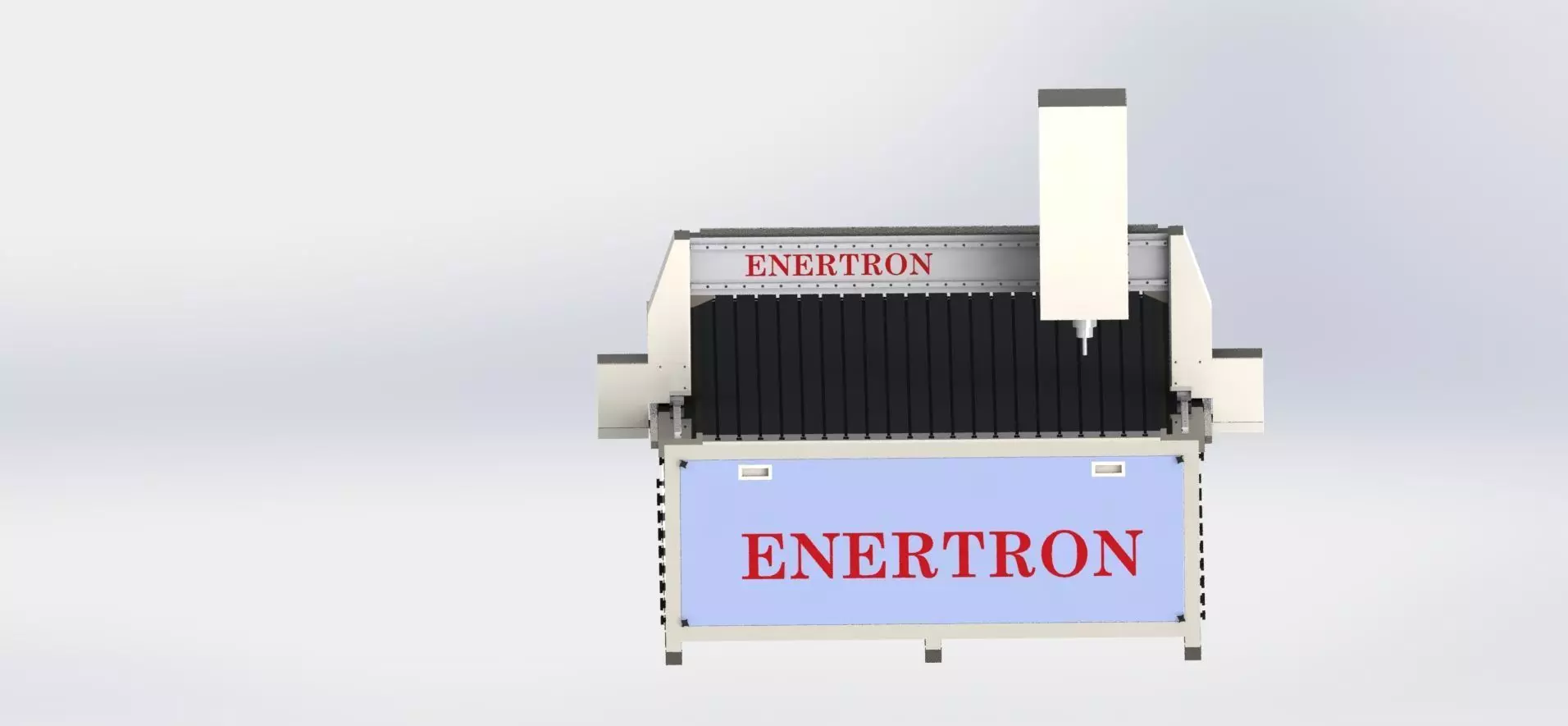

CNC Wood Routing Machine 3D model

Description

This machine can be used for wood working. Dimensions: 2100 mm × 3250 mm × 1765 mm
X-axis travel(Rack & Pinion Mechanism): 1220mm Y-axis travel (Rack & Pinion Mechanism): 2850mm Z-axis travel (Ball Screw Mechanism): 280mm Cutting Spindle : 1.5KW Air – Cooled Spindle ER11 Collet Tool Diameter: 3 to 7 mm Variable Speed 6000 to 24000 rpm XY-Travel speed : 5500 mm/min (Variable) Ports USB 2.0 Control language: Standard G-Code, M-Code Programming Language Electrical Drive : Hybrid Servo motor 2- PHASE 22KG-CM 1000 LINE ENCODER Mechanical Drive : Ball screw with linear- guideways & Rack and Pinion Mechanism Interpolation : Linear and circular Command Type : Absolute and Incremental Programming : G Code Input System : Metric/Inch Control Axis : Simultaneous axis Type Of Control System : PC/Laptop based system Addressable Resolution : 0.025 mm Power supply Input Voltage: 230V-240V AC Input Current: 2.5 A – 3A Frequency: 50HZ , 1 Phase

Item rating
0 0
CNC Wood Routing Machine
$120.00

Royalty Free License
CNC Wood Routing Machine
$120.00

Royalty Free License
Response - % in - h

3D Model formats

Format limitations
  • IGES (.ige, .igs, .iges)56 MB

3D Model details

  • Publish date2019-07-09
  • Model ID#2028485
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry -
  • Polygons 0
  • Vertices 0
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
