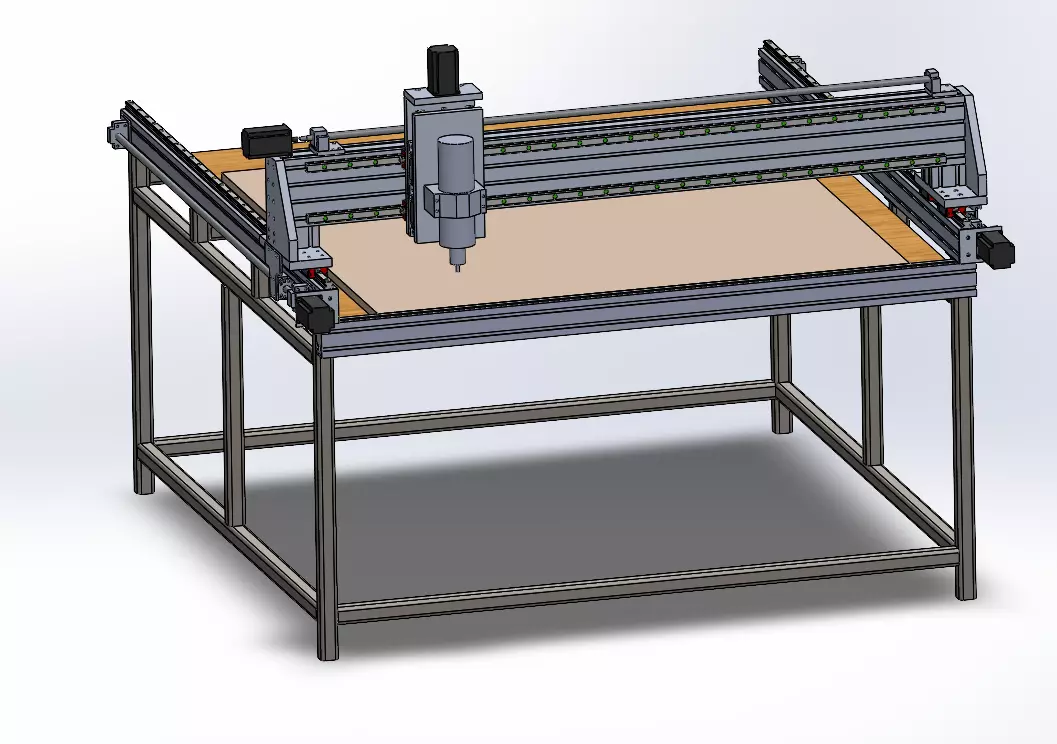

CNC Router - 1500x1500mm 3D model

Description

Compleat 3D Design of CNC Router with size 1500x1500mm.Working area:1350x1350x120mm.Design made only with standard components.Motors: Nema 24Linear Carriage Slides: Hiwin HGH20CA and HGW20CC( it may be used also the chinese version )Linear Rail : Hiwin HGR20R 2x1600mm, 2x1500mm and 300mmBall screw: SFU1605 3x1500mm 1x300mmExtrude Aluminium profile used : 80x160mm, 40x80mmAluminium plate thickness: 5mm, 10mm and 20mm.

Write comment
Item rating
0 0
CNC Router - 1500x1500mm
$10.00

Royalty Free License
CNC Router - 1500x1500mm
$10.00

Royalty Free License
G
georgeion88
(0 reviews)
Response - % in - h
Hire meView all Designer's Models

3D Model formats

Format limitations
Native
  • SolidWorks (.sldprt, .sldasm, .slddrw)5.83 MBVersion: undefinedRenderer: Mental Ray
Exchange

    3D Model details

    • Publish date2021-01-19
    • Model ID#2819805
    • Animated
    • Rigged
    • VR / AR / Low-poly
    • PBR
    • Geometry Other
    • Polygons 0
    • Vertices 0
    • Textures
    • Materials
    • UV Mapping
    • Unwrapped UVs Unknown
    • Plugins used
    • Ready for 3D Printing
