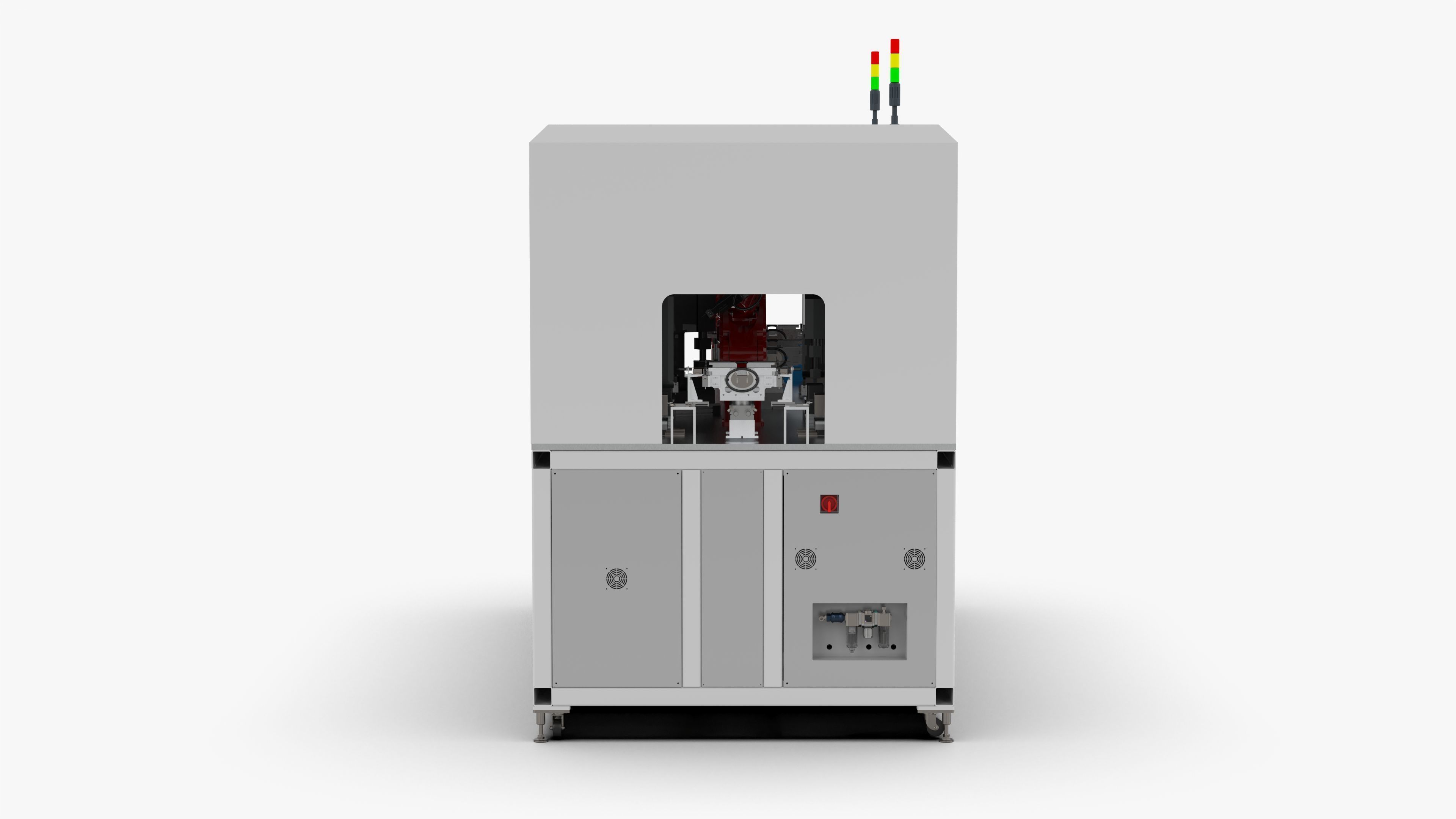

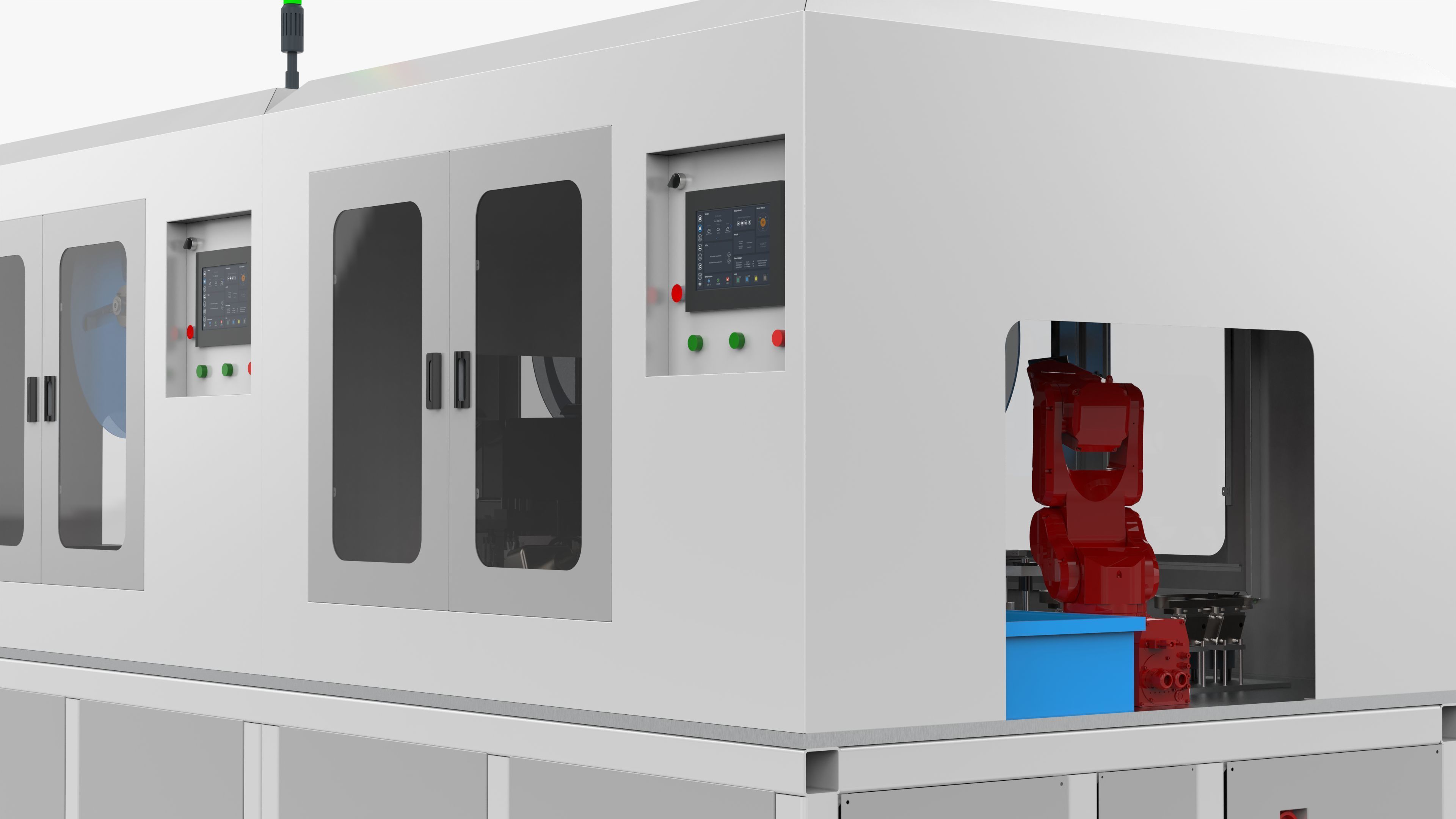

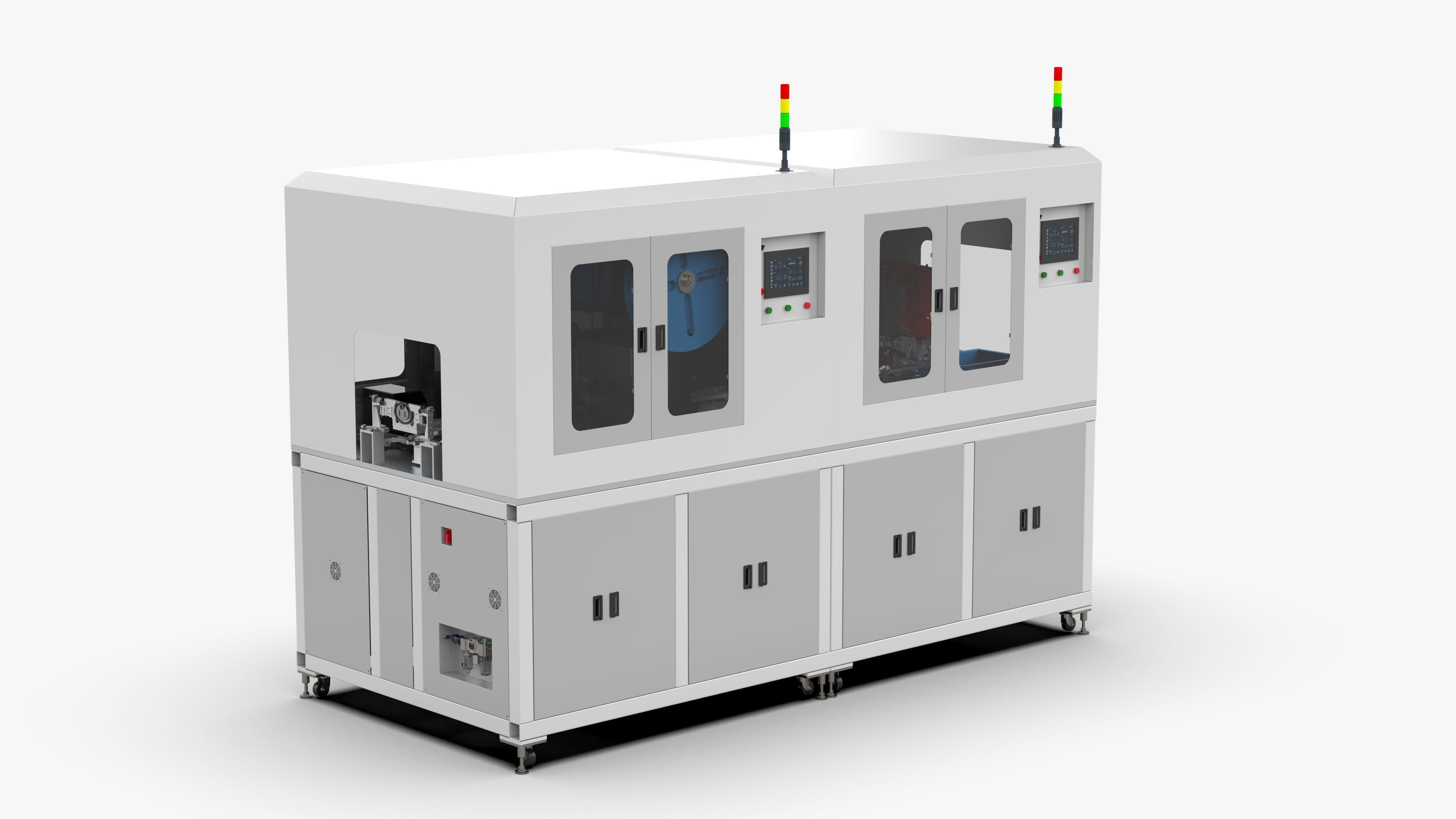

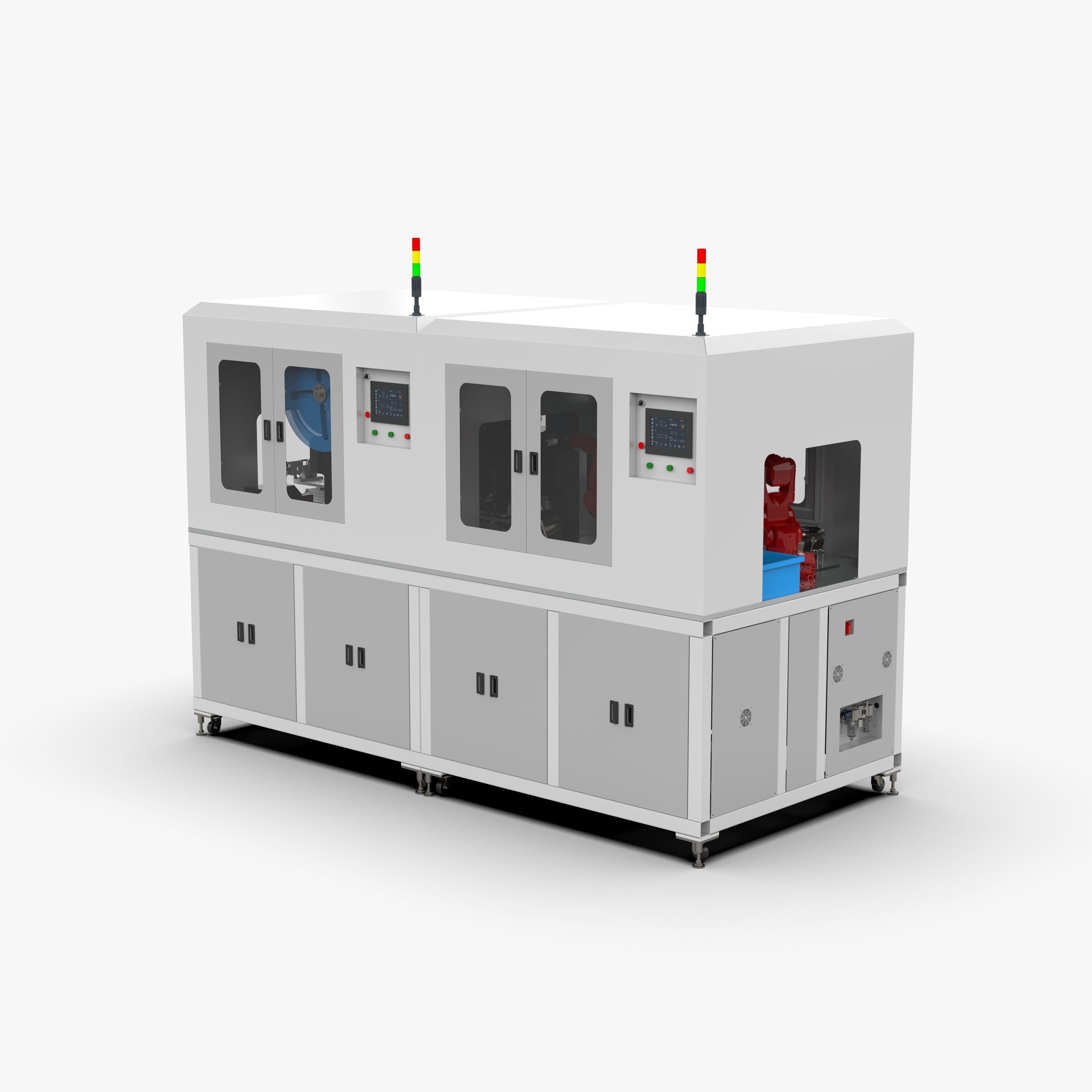

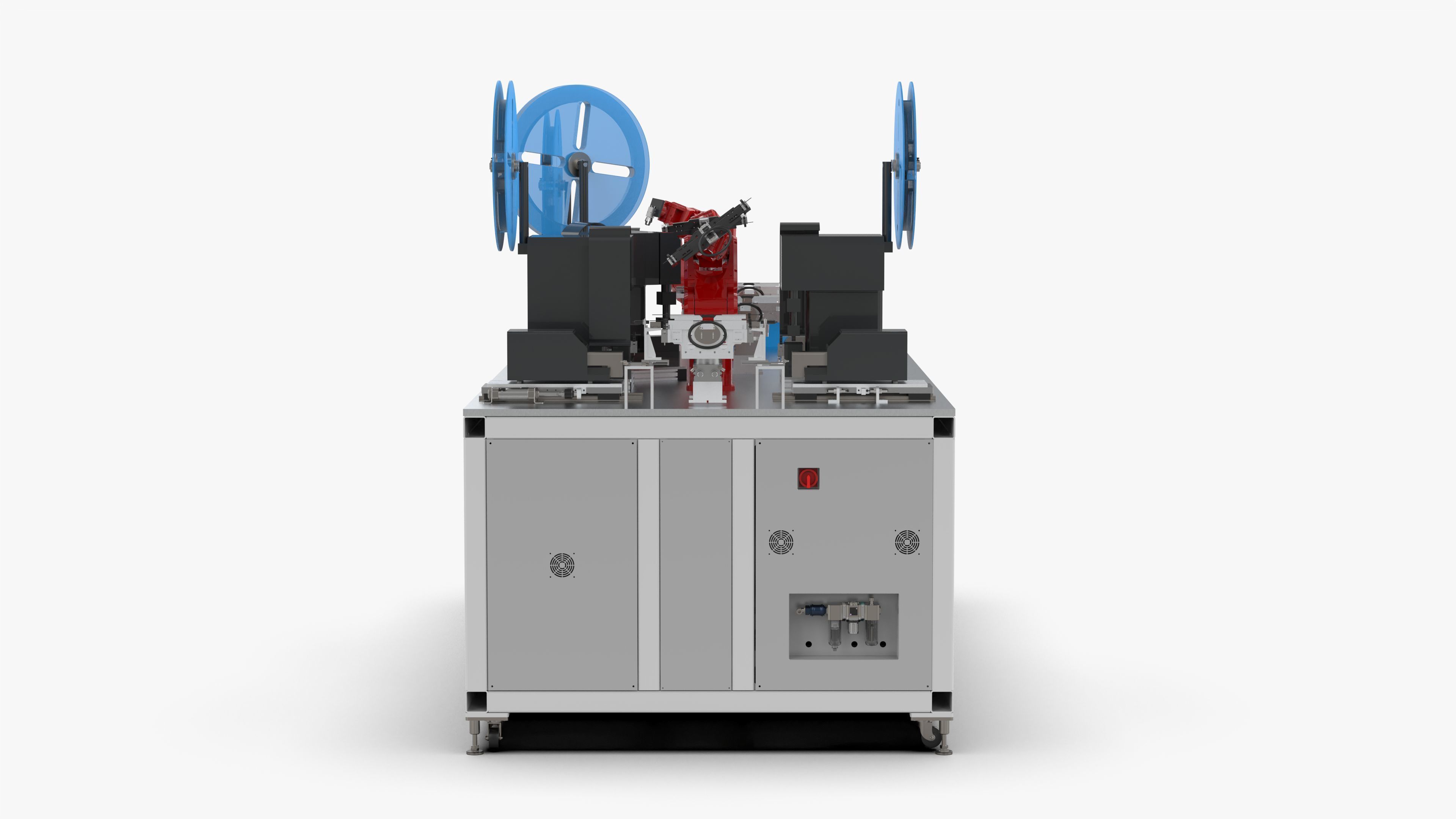

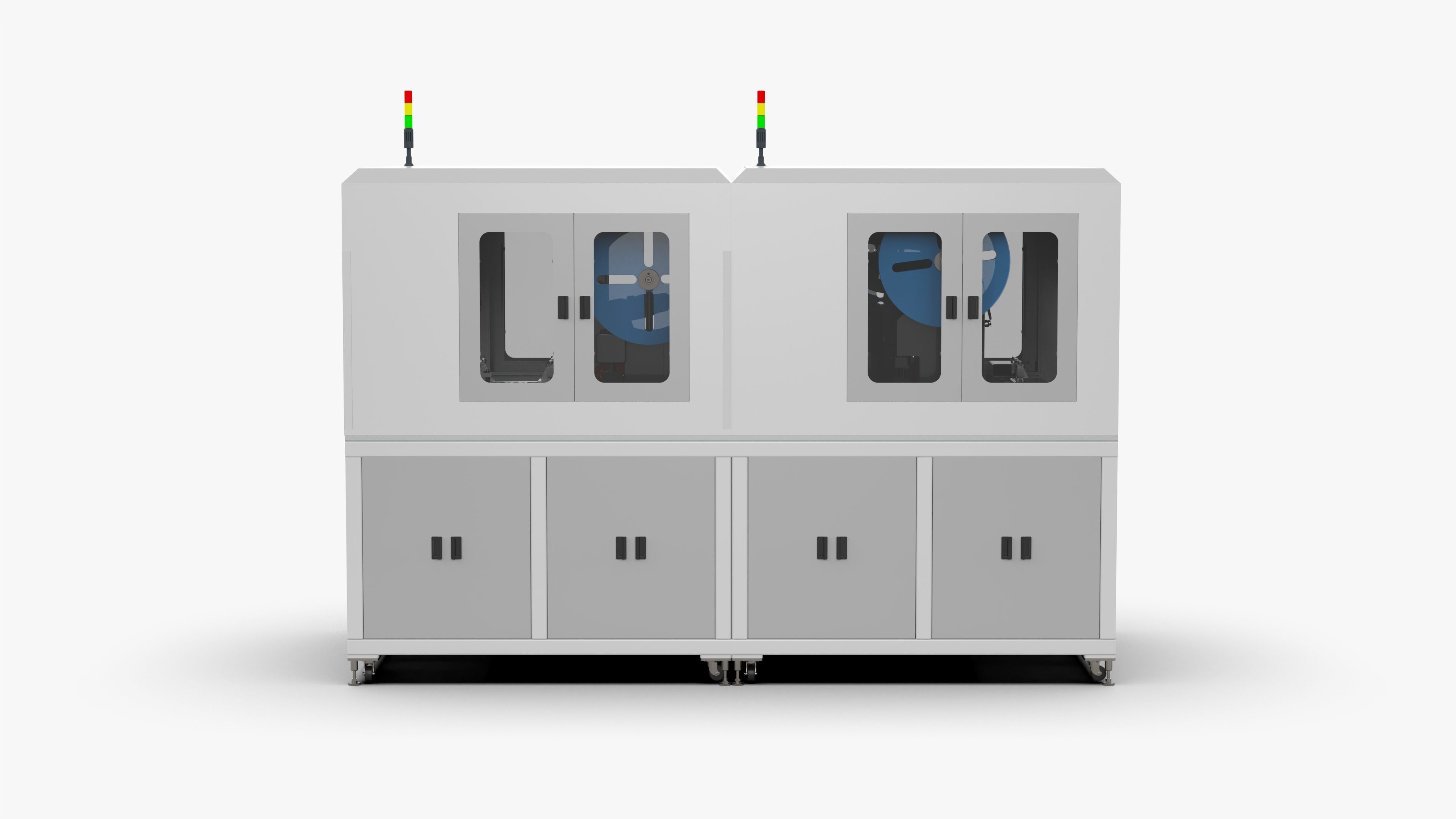

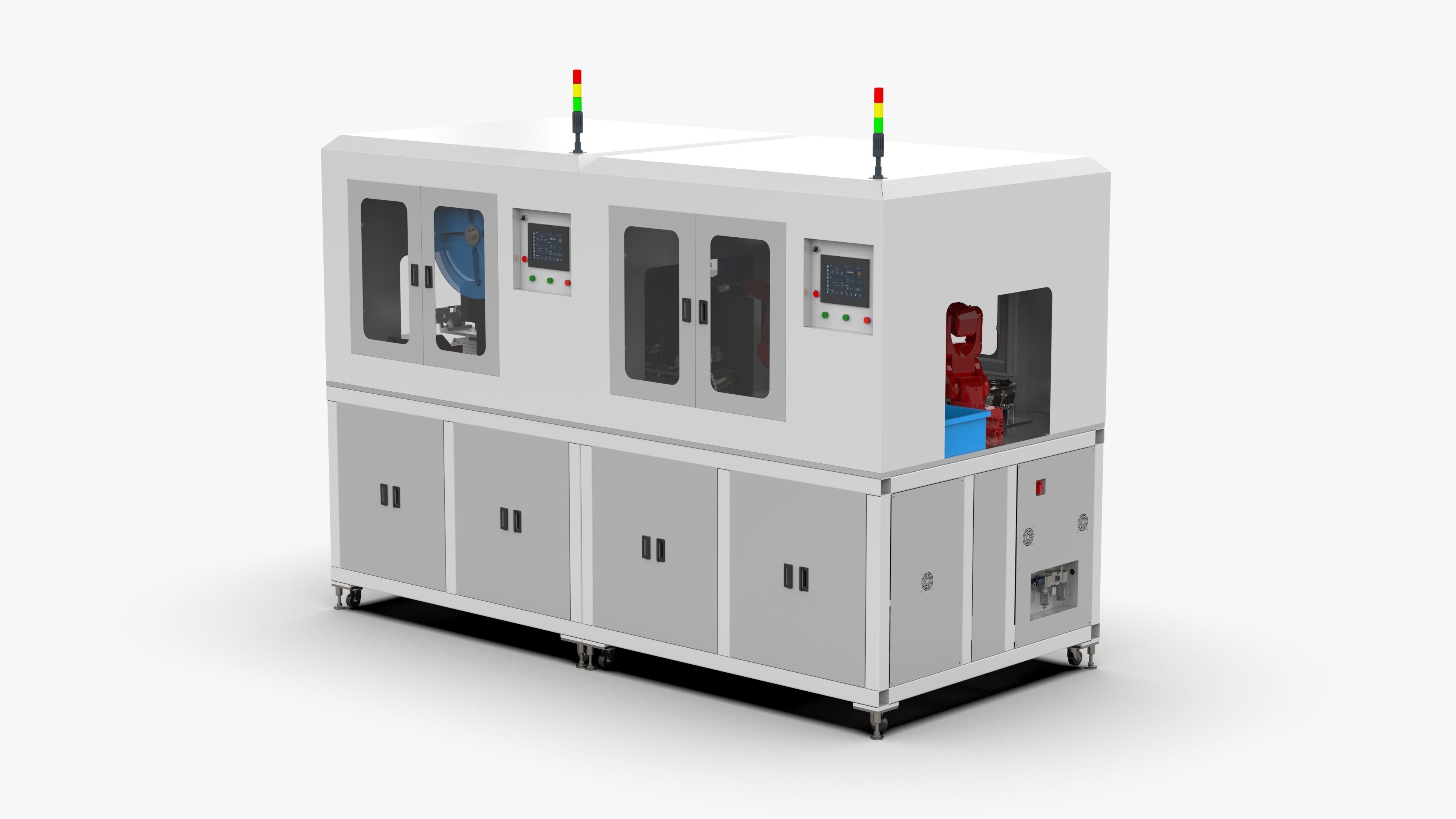

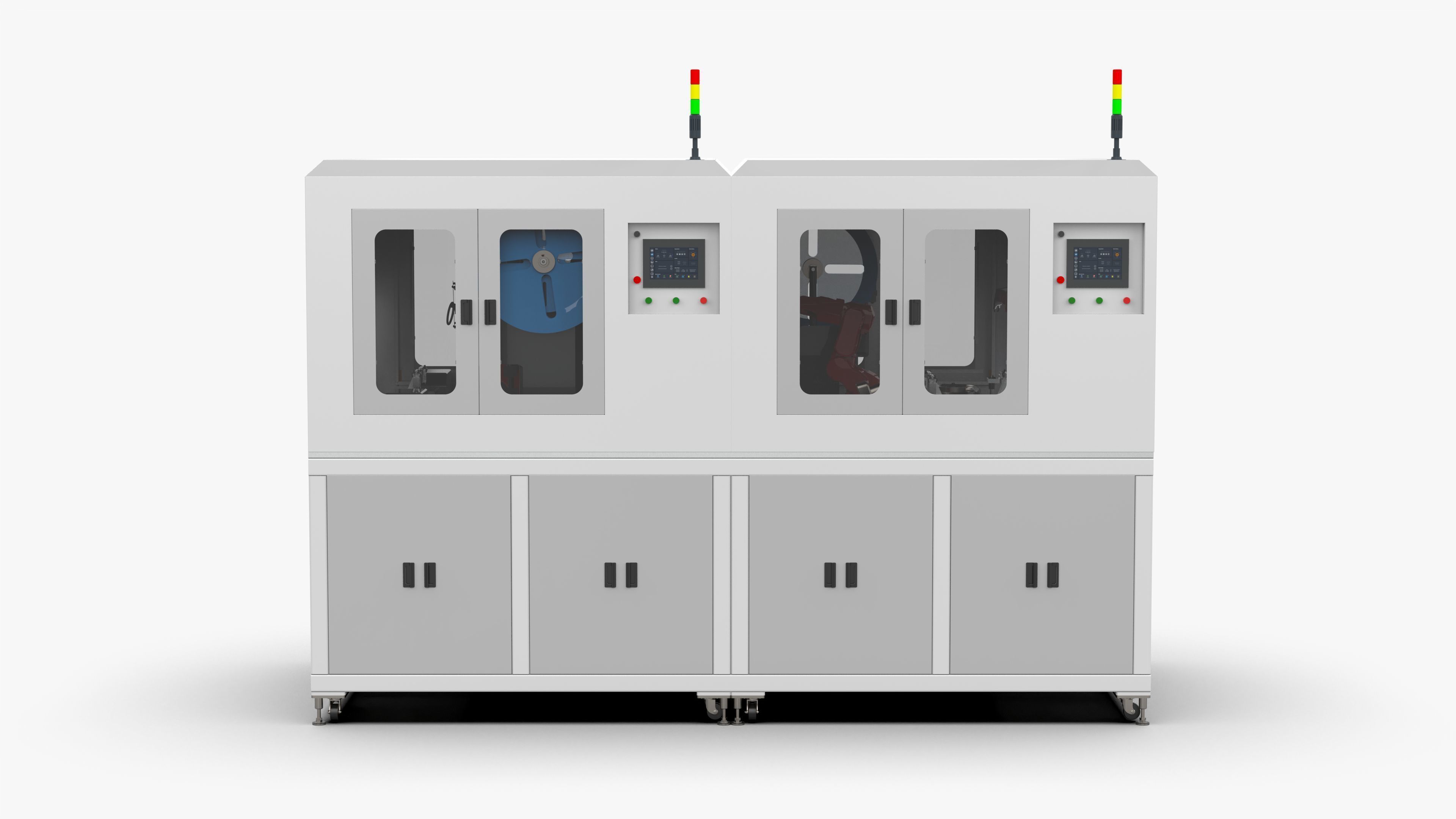

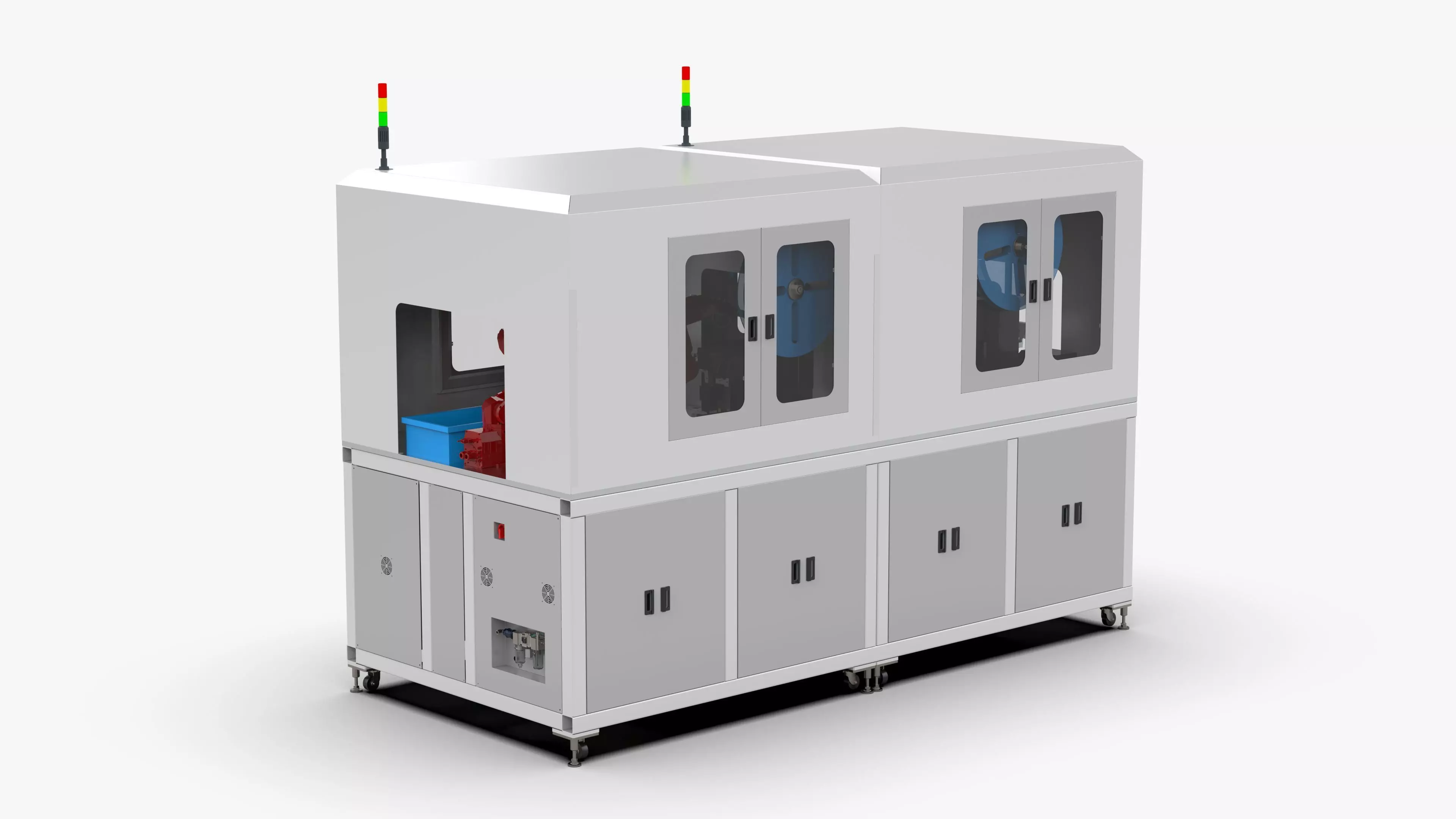

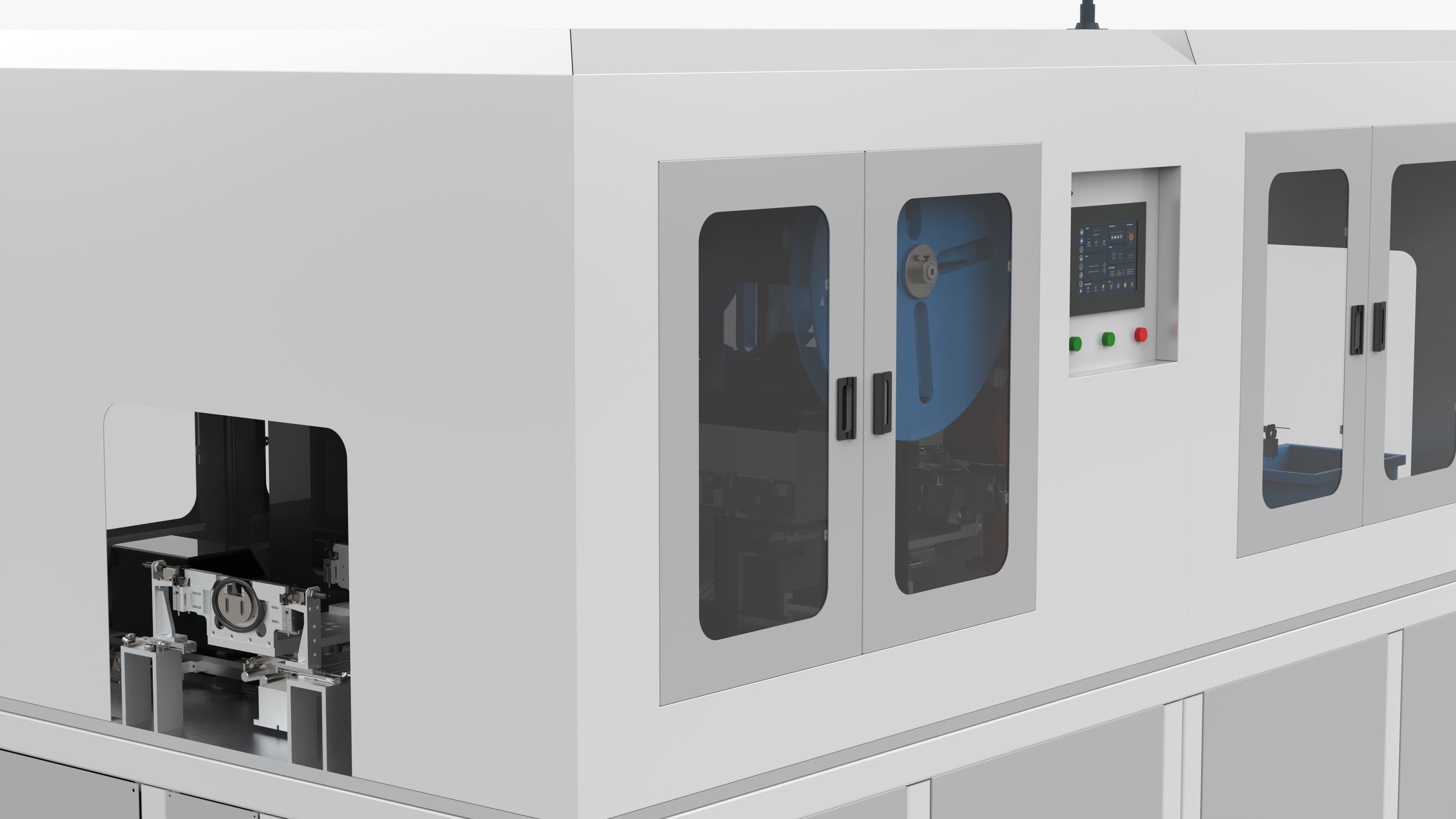

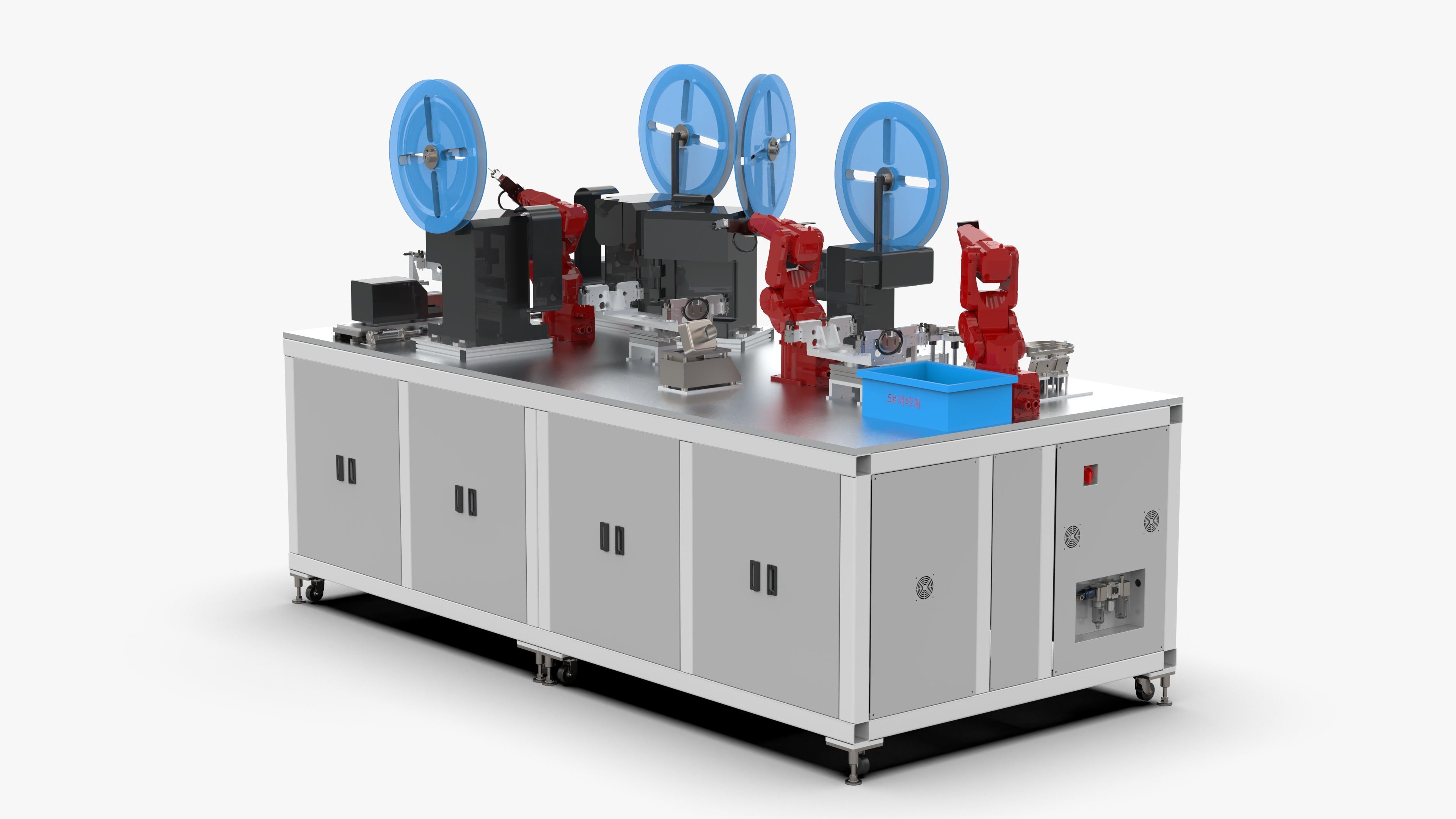

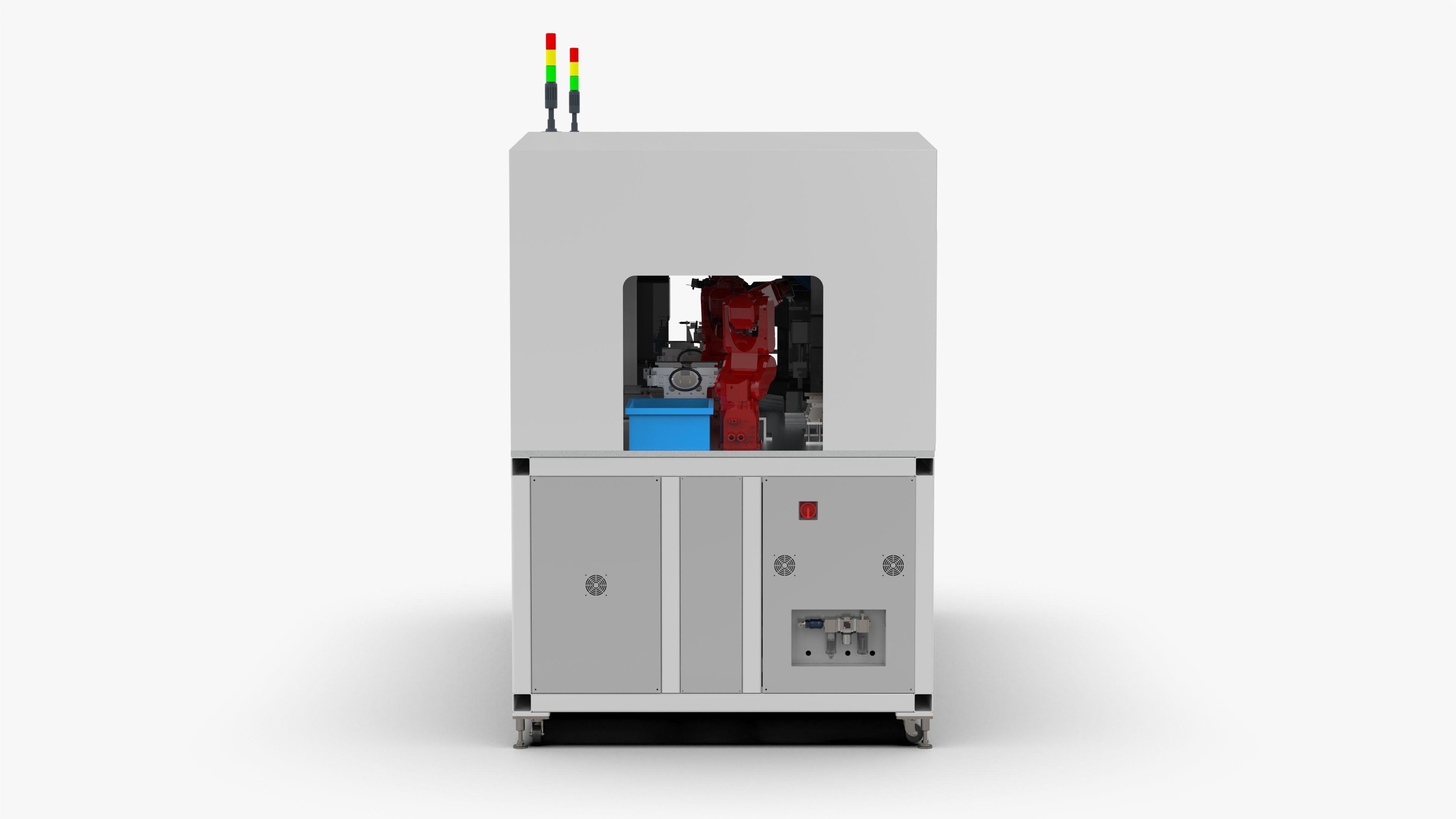

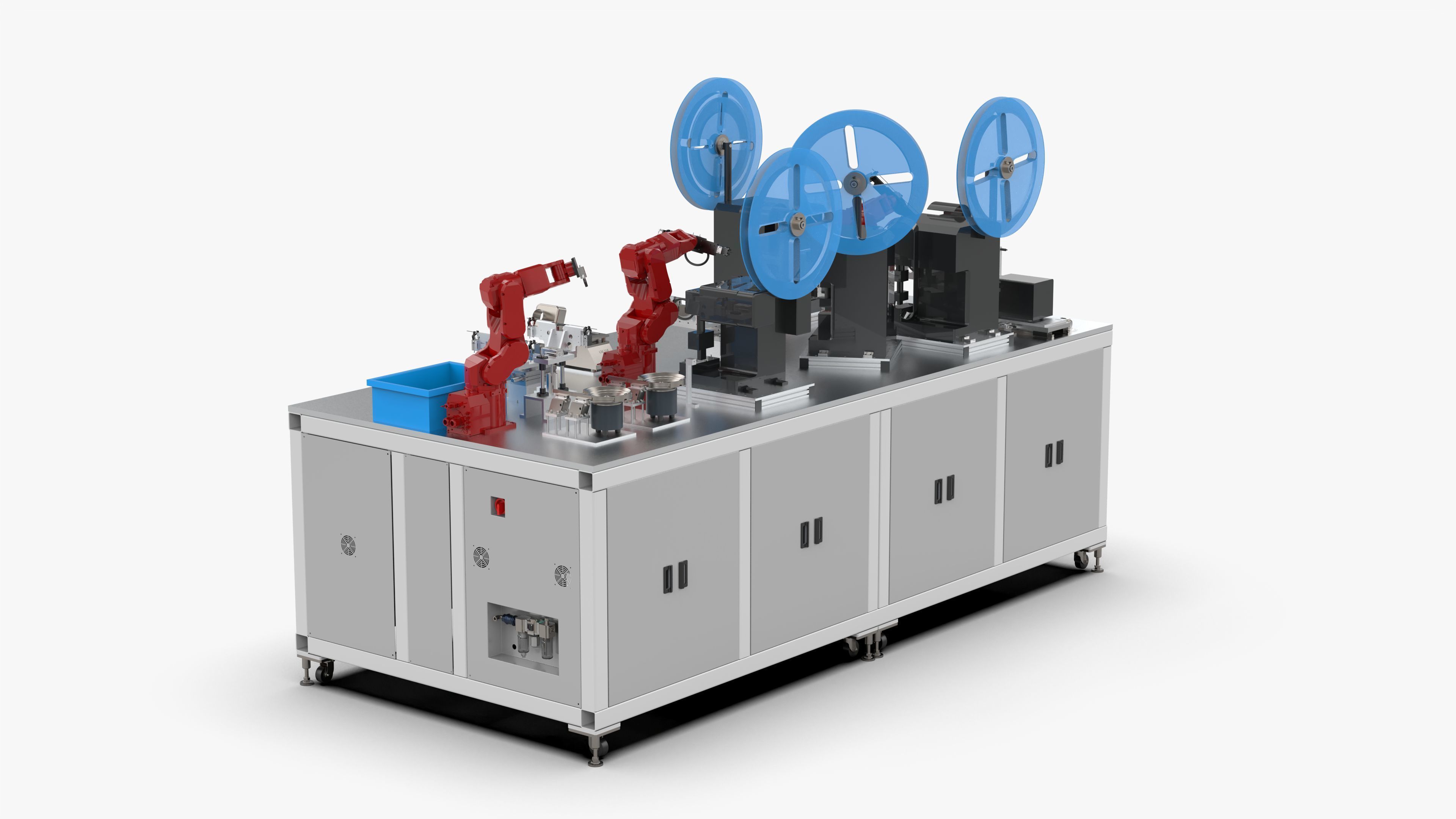

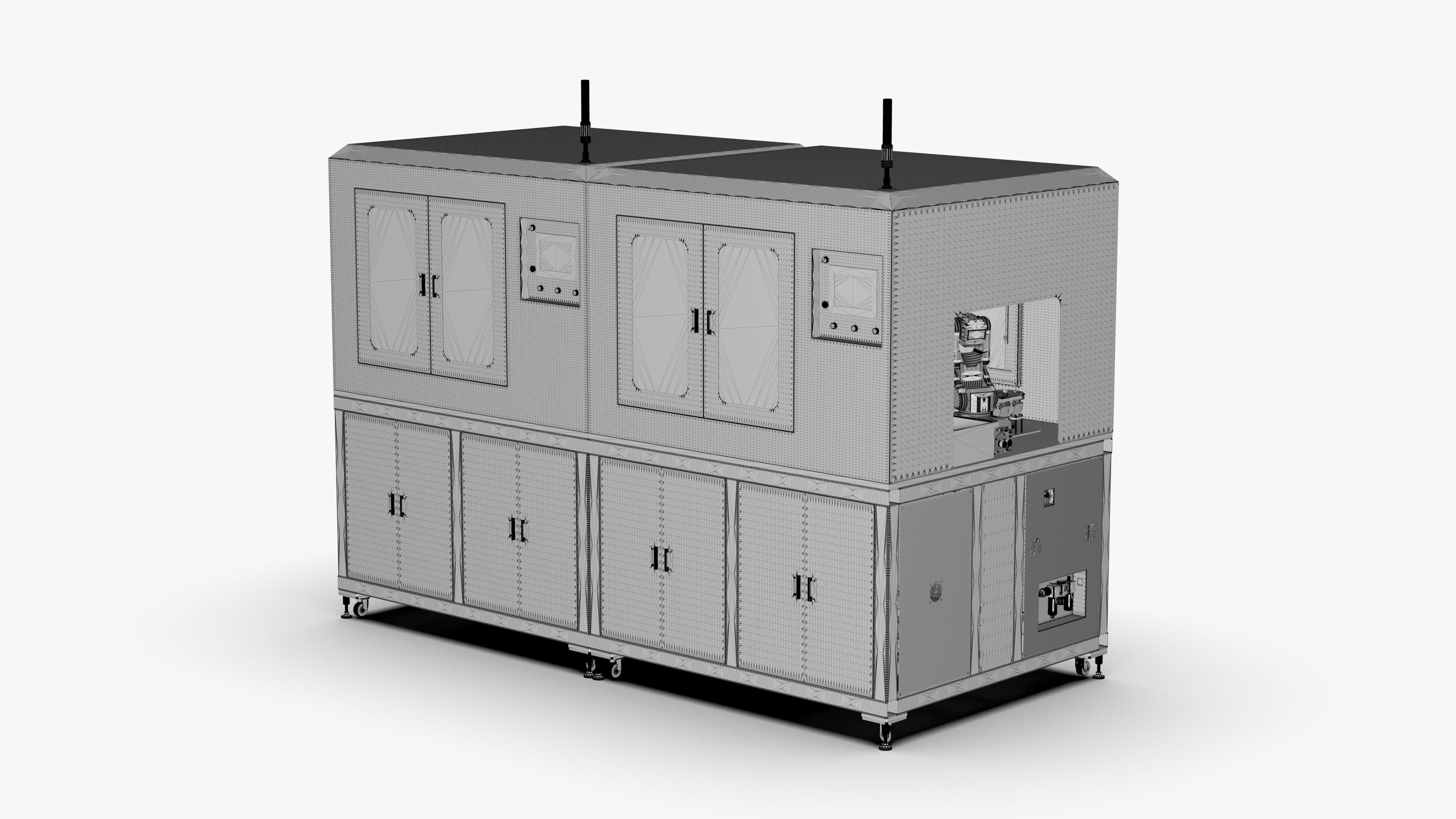

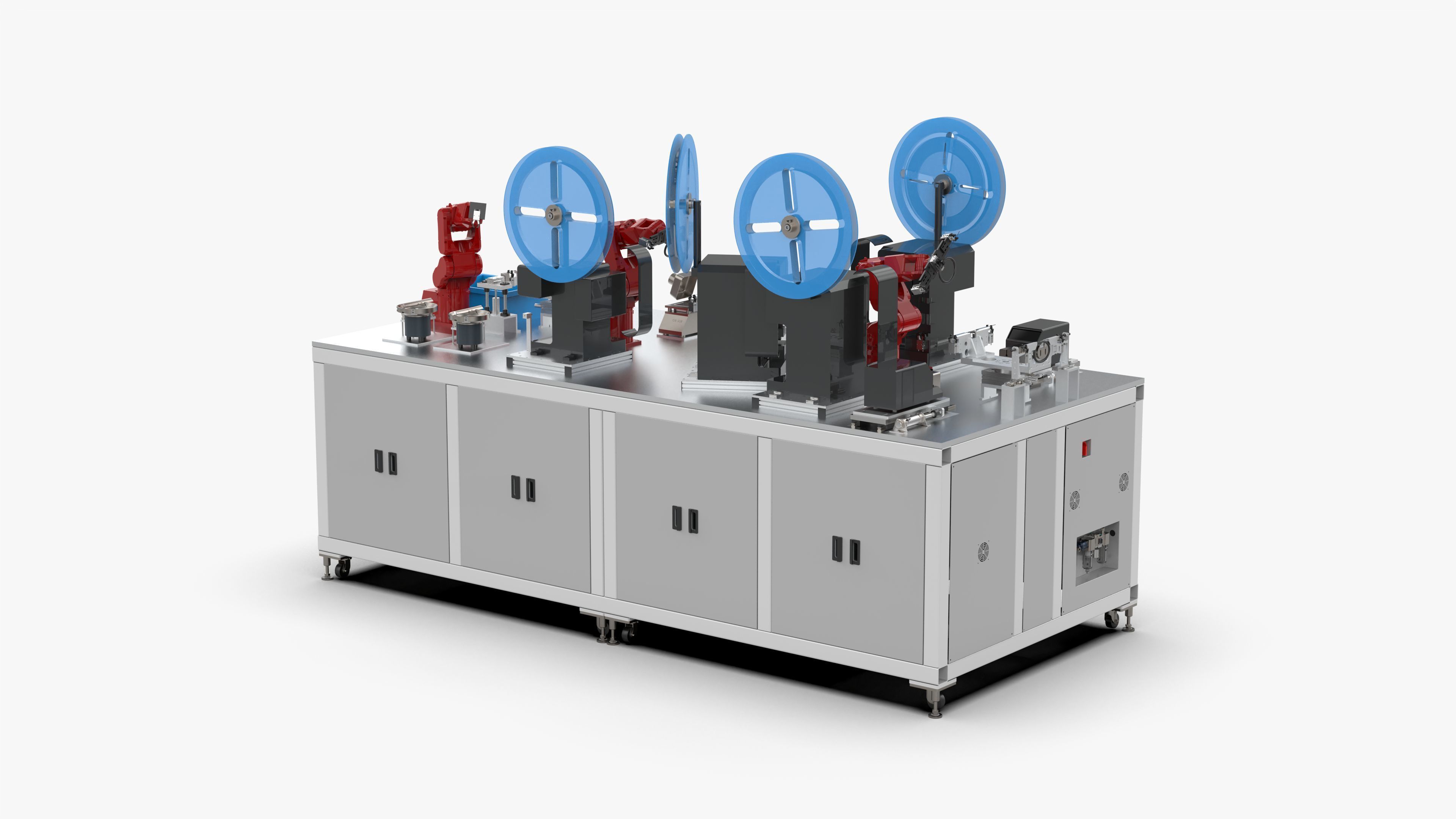

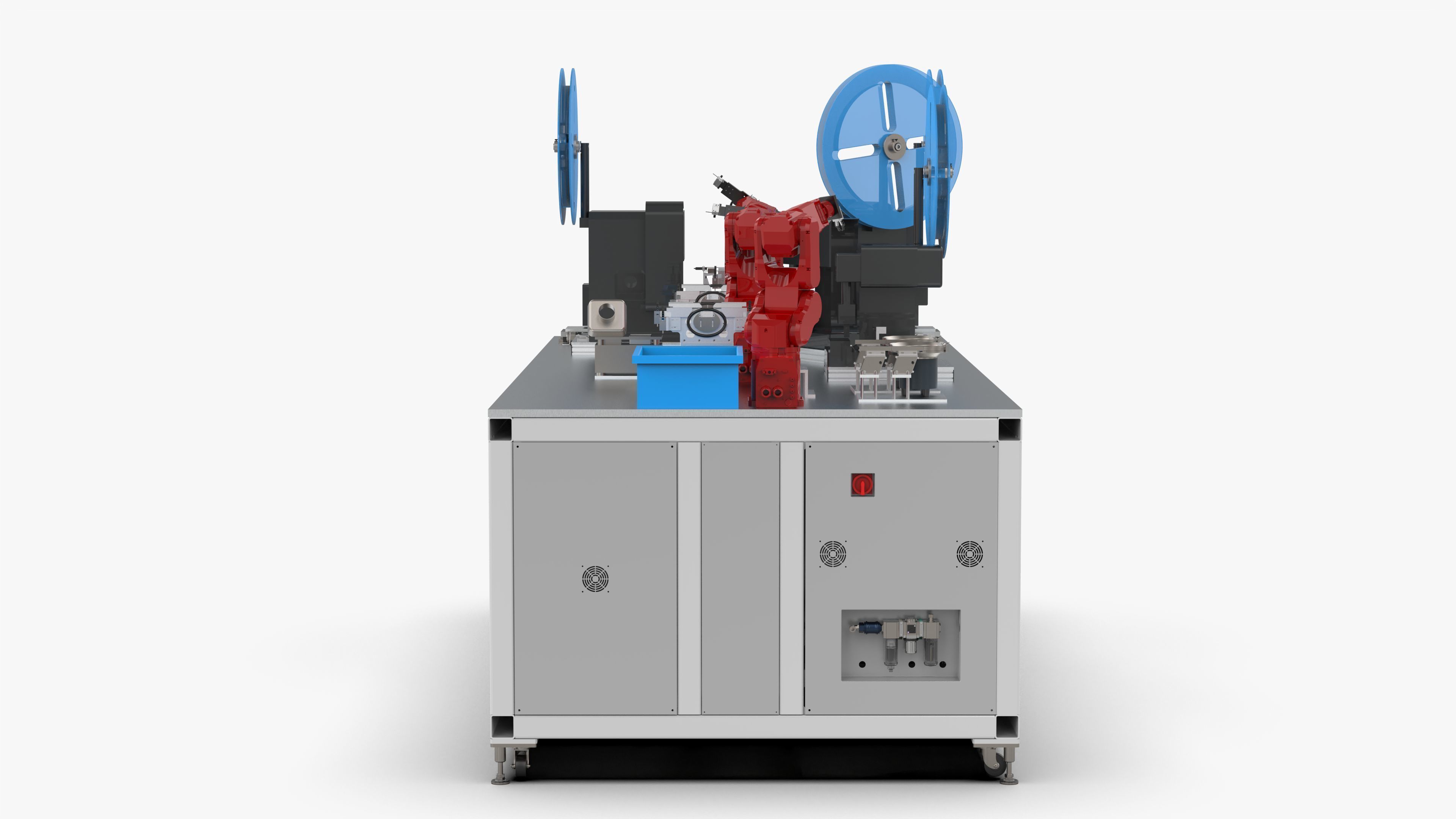

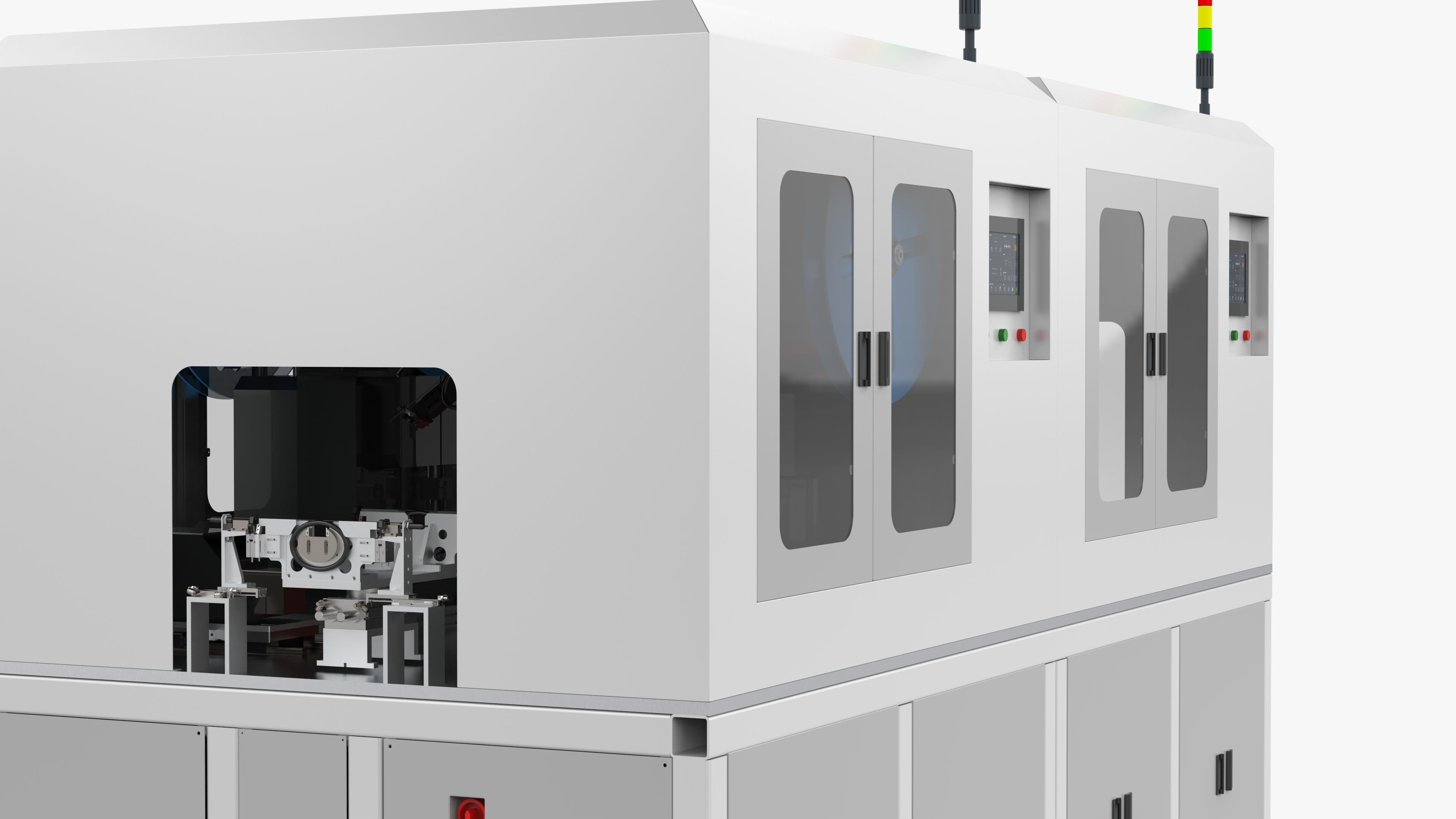

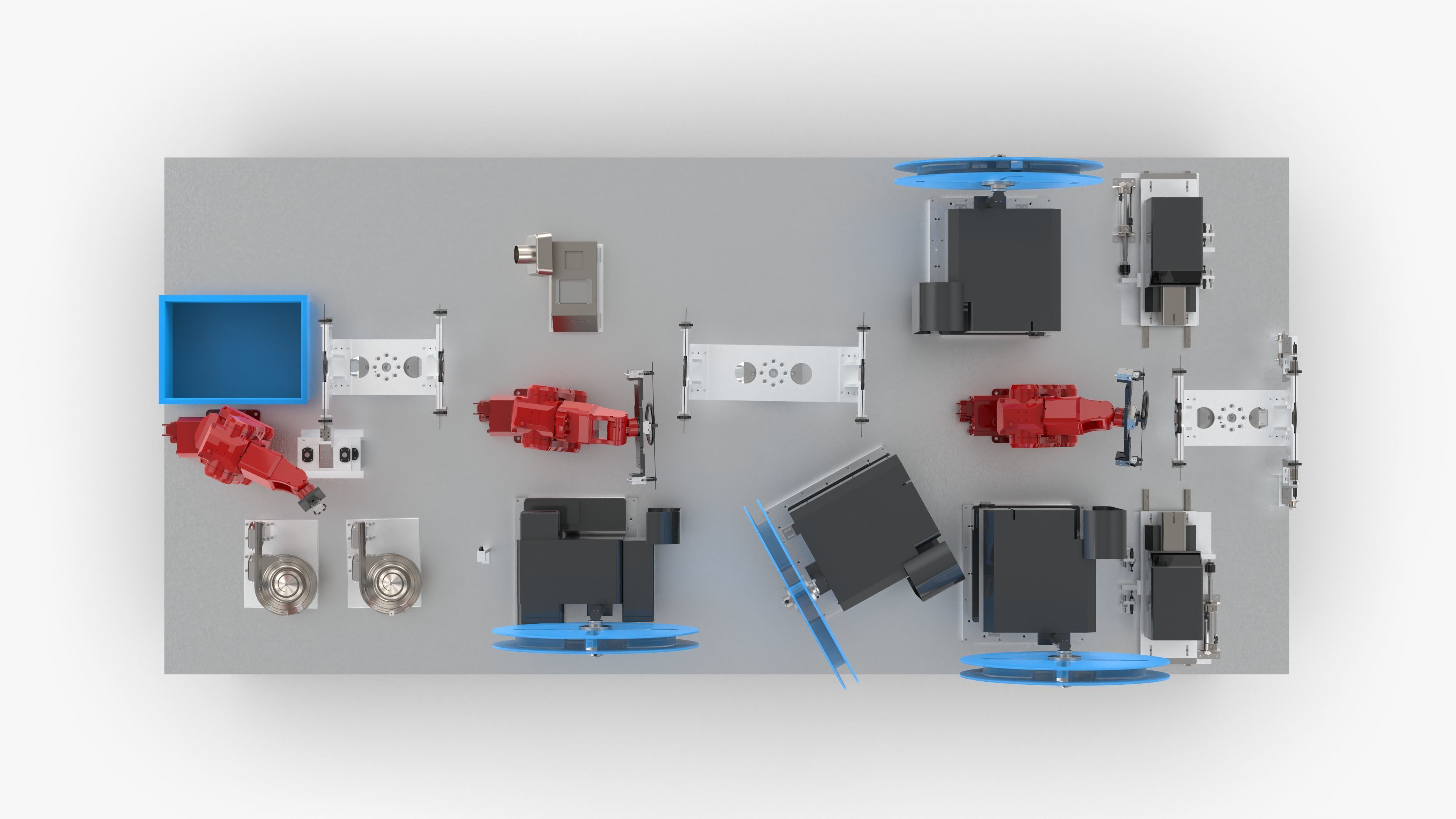

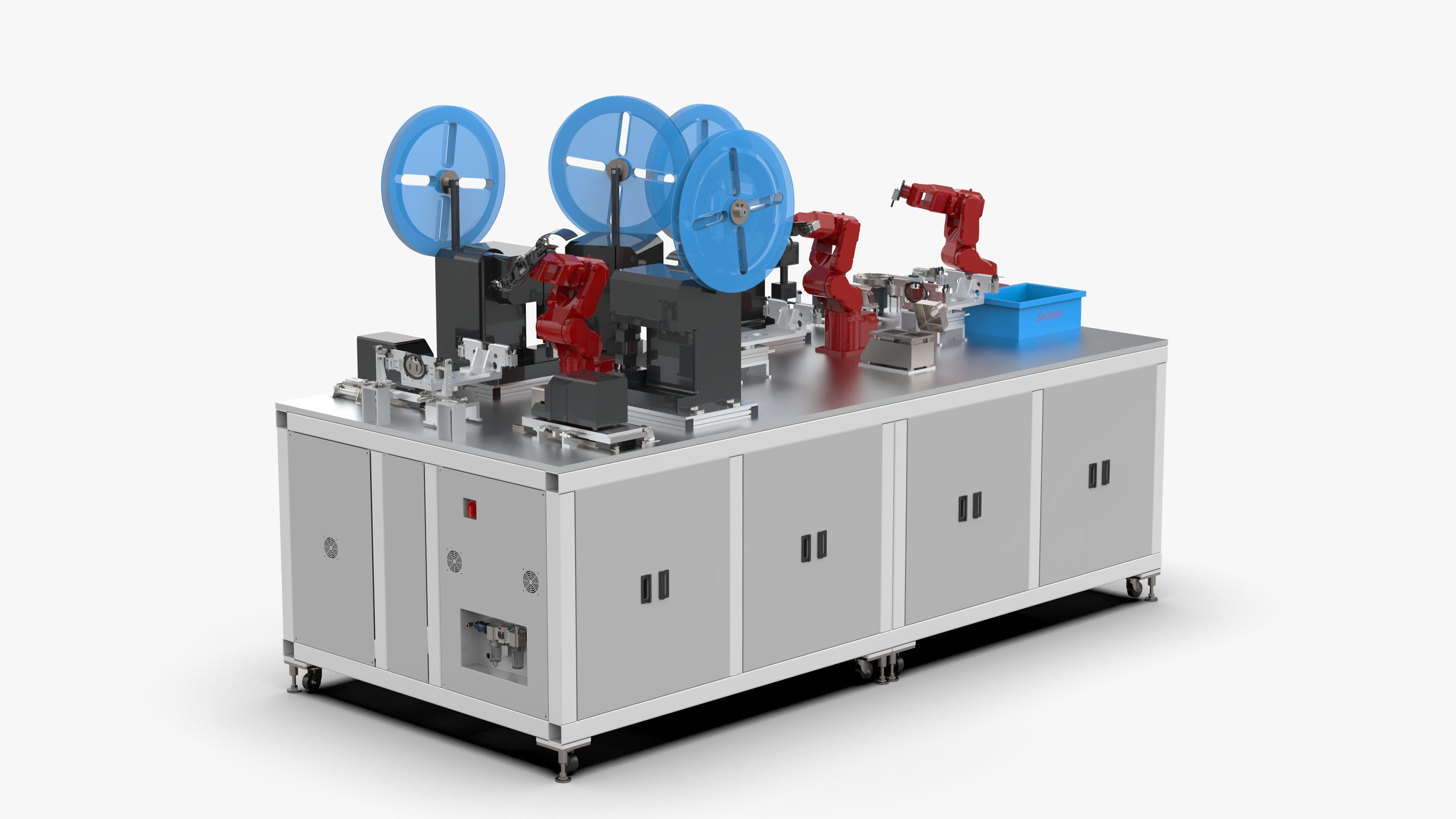

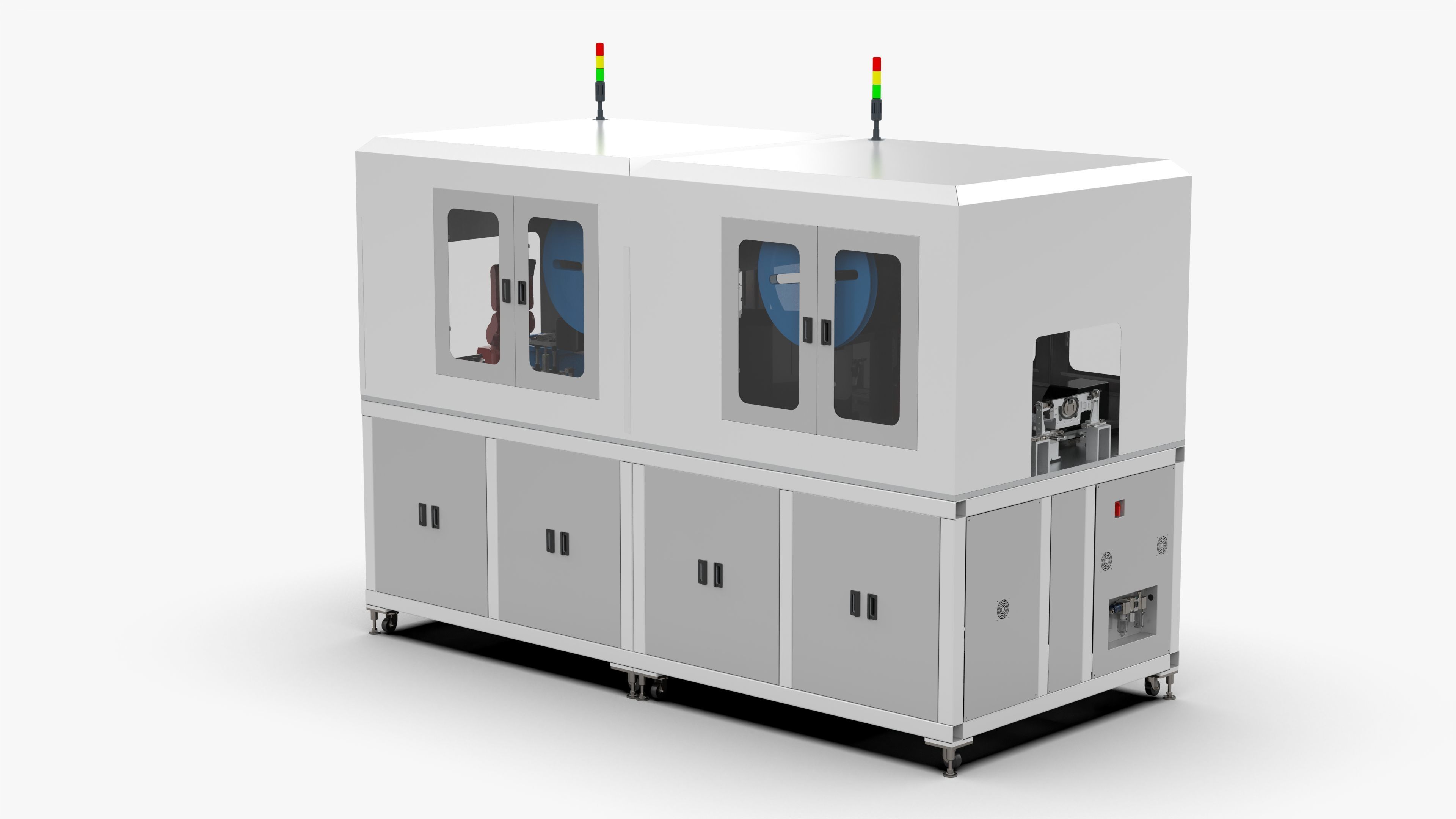

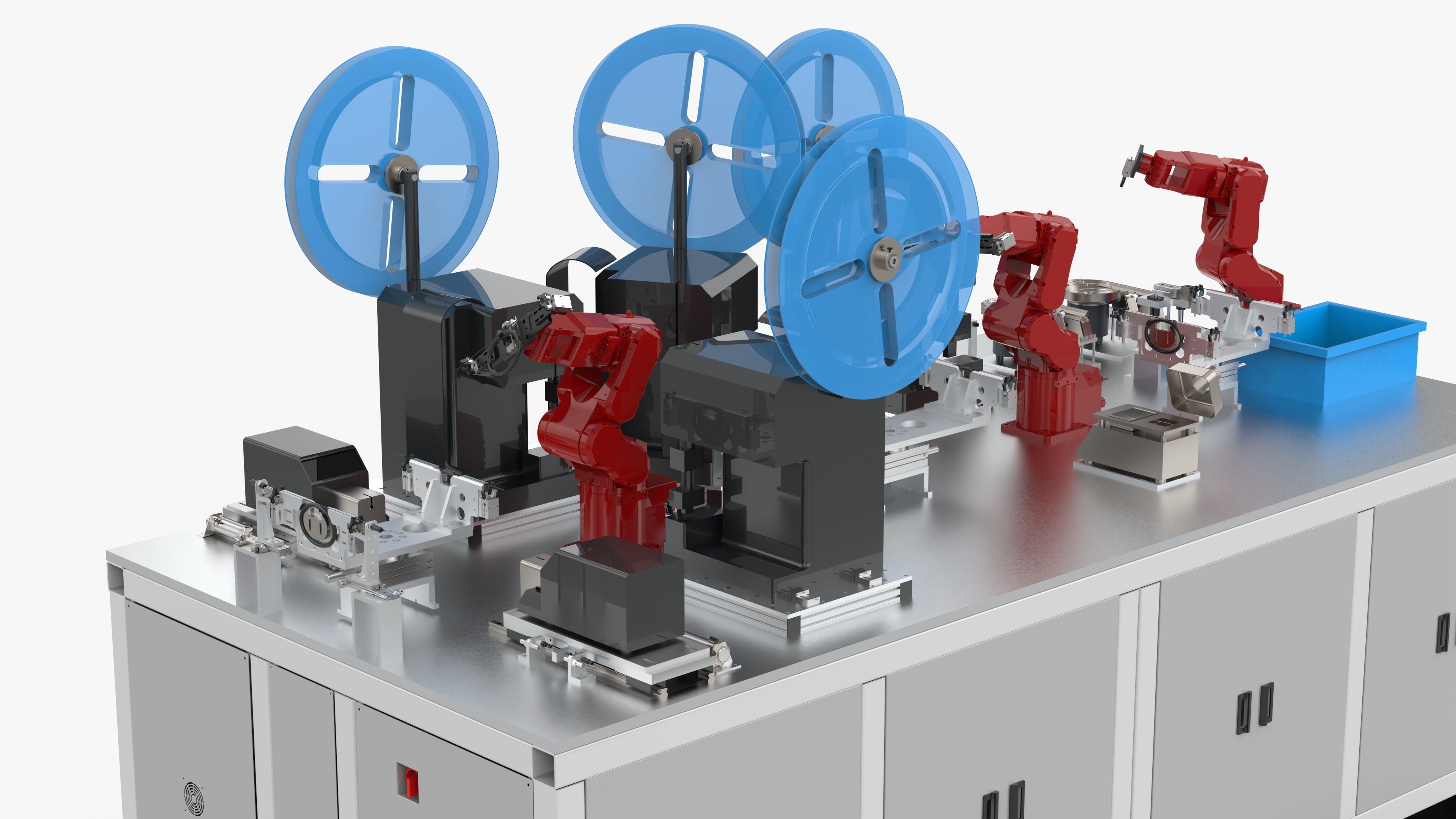

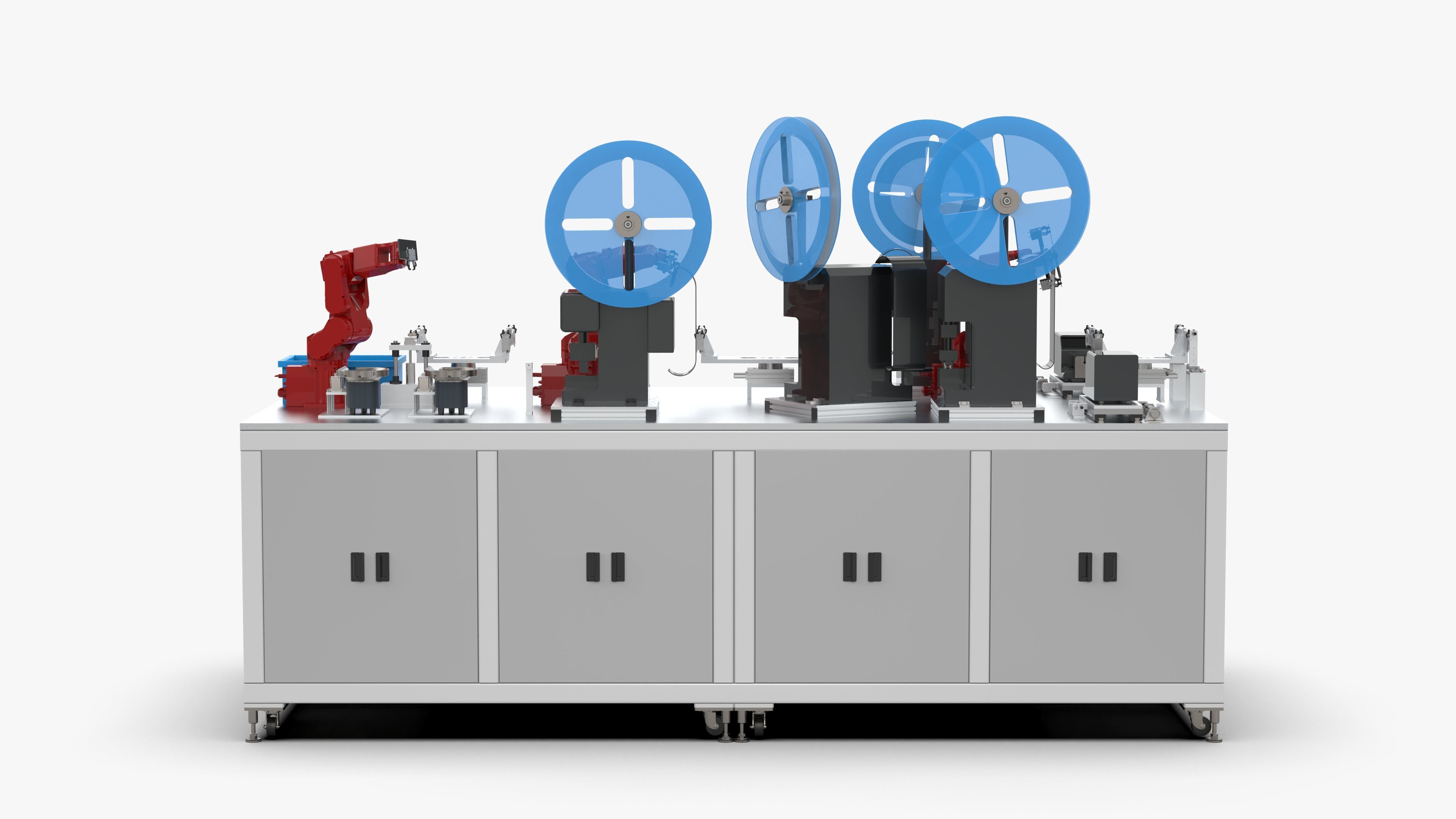

Automatic Wire Processing Machine 3D model

Automatic Wire Processing Machine

Introduction

Wire processing equipment:

1. Dimensions: length (L) × width (W) × height (H) = 3700mm × 1700mm × 2485mm
2. Power supply voltage: 220V;
3. Air pressure: 0.4~0.6MPa.

Working principle:

1. Loading
2. Stripping wire

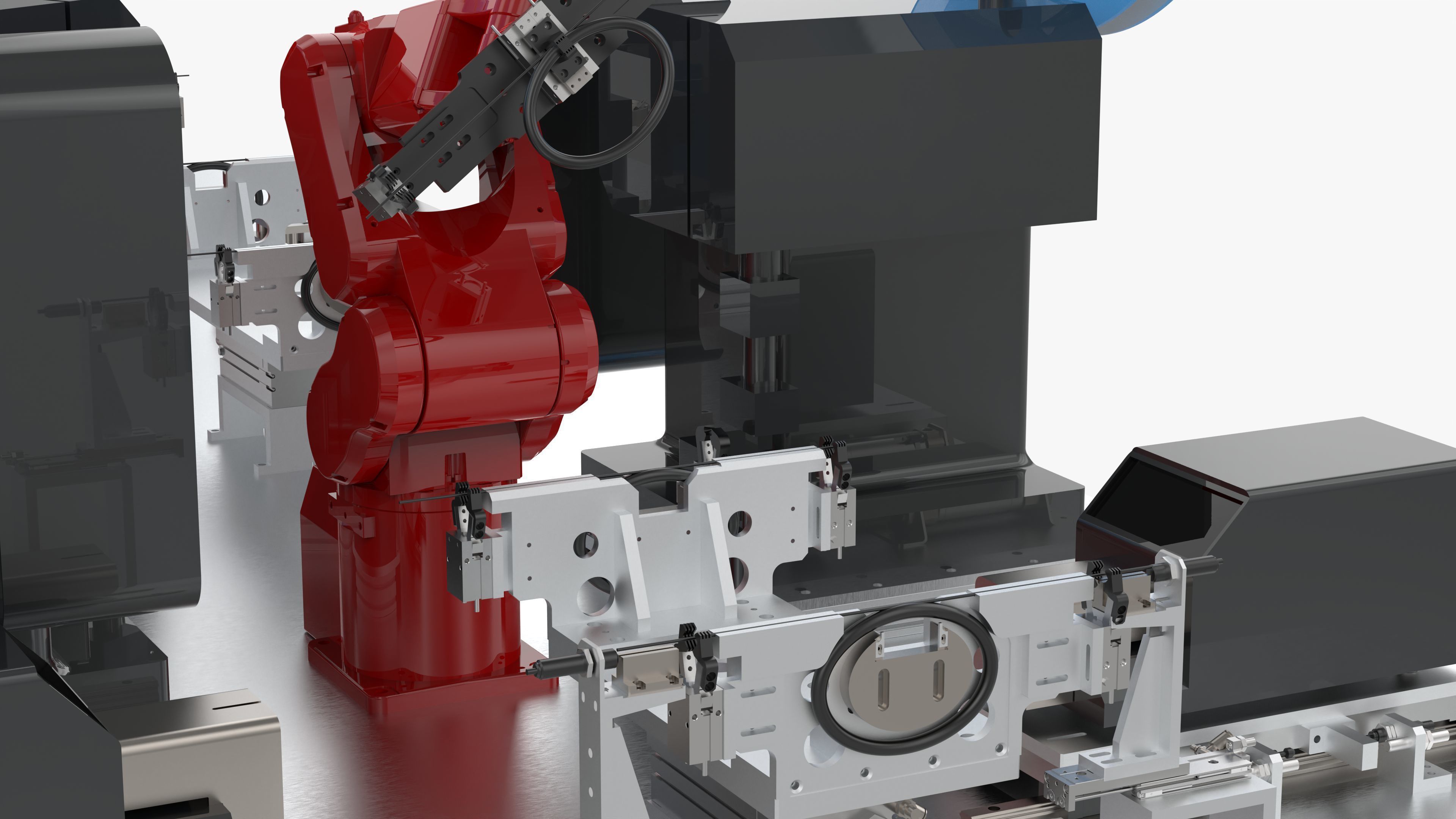

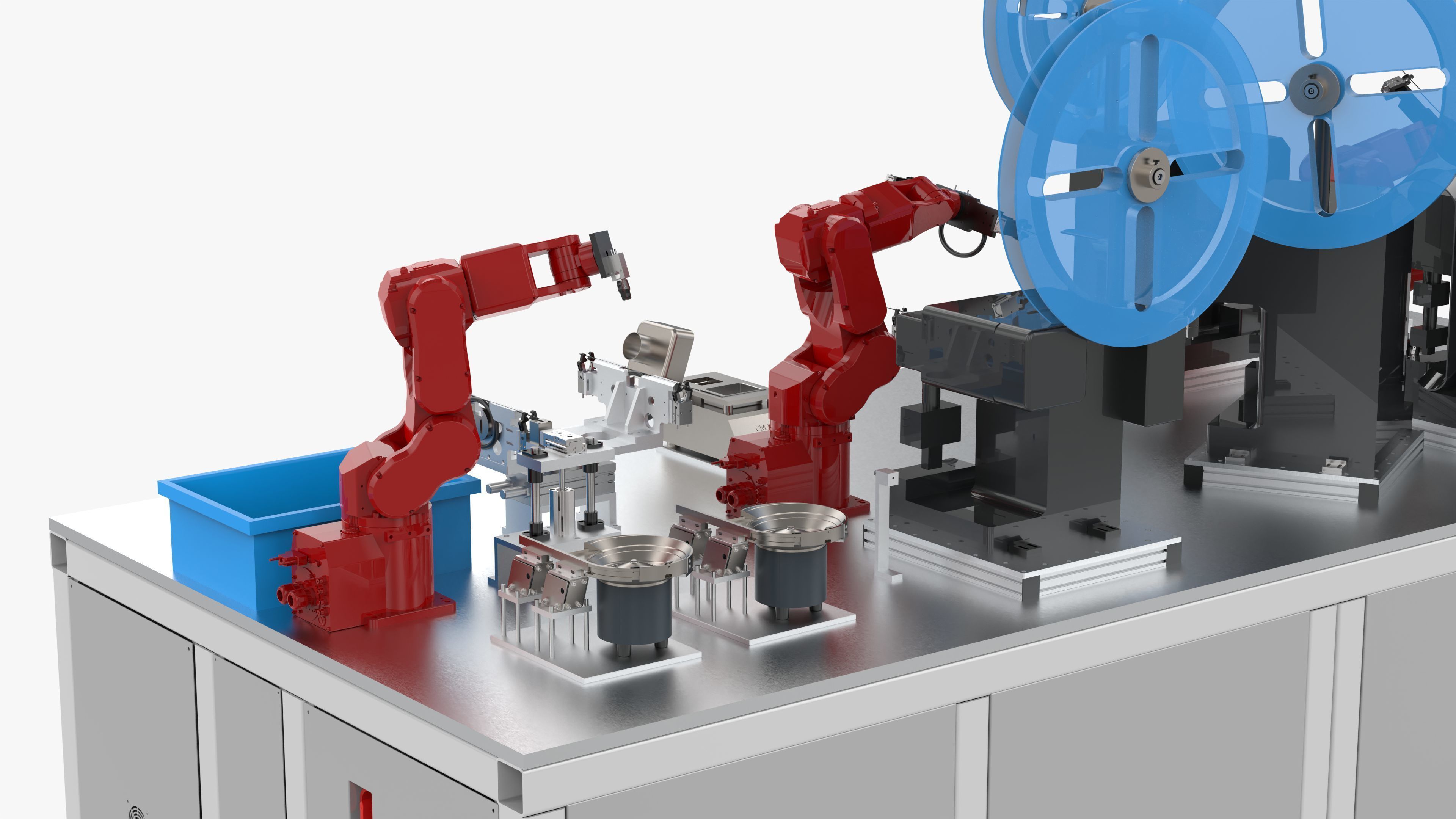

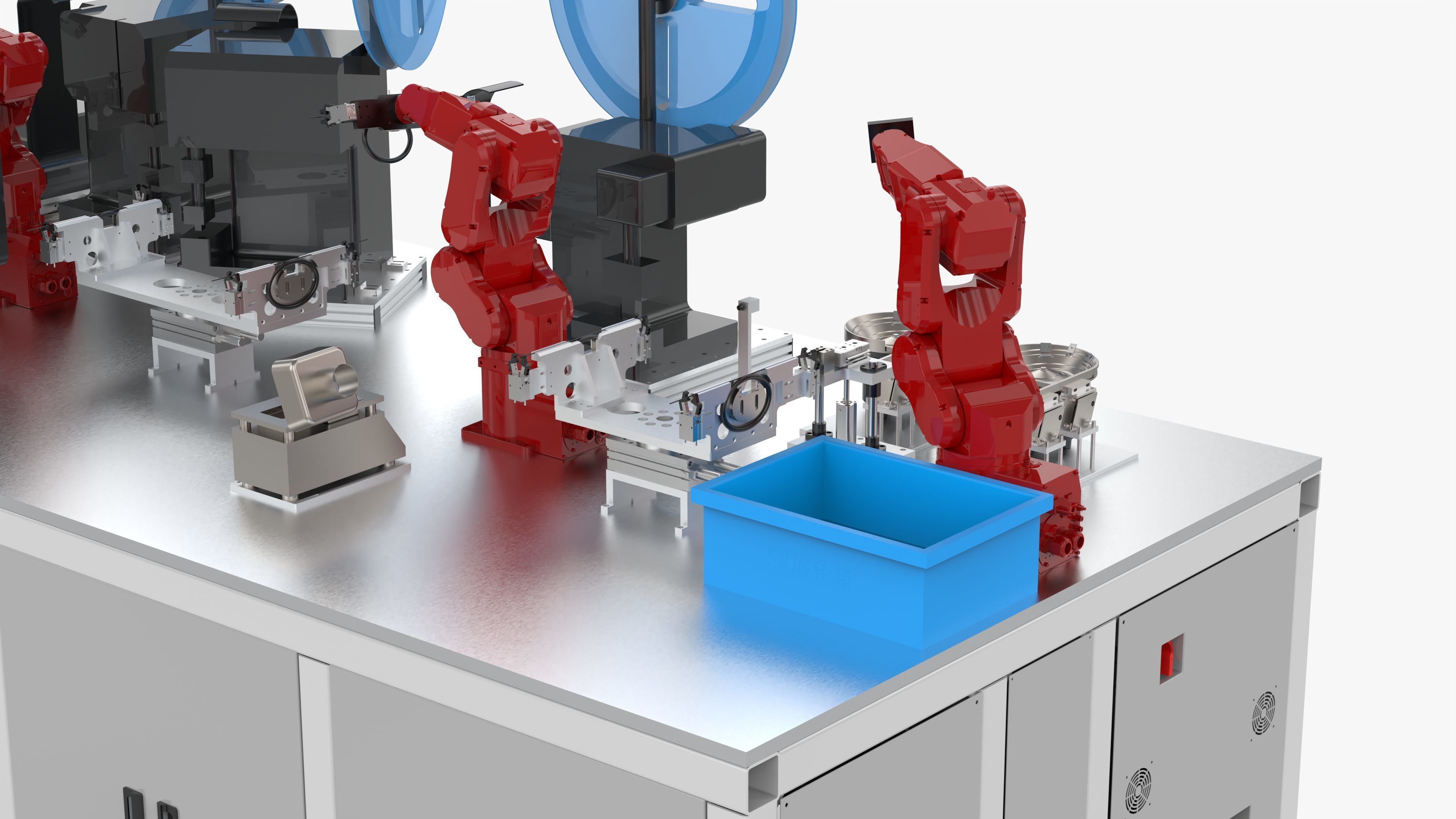

3. Manipulator A action assists in crimping terminal copper sleeve
4. Relay table 1 discharges and rotates
5. Manipulator B assists crimping terminal sticking tin
6. Relay table 2 discharges and rotates
7. Manipulator C takes Auxiliary assembly of plug accessories
8. Plug assembly
9. Receiving

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 2,602,222
• Vertice: 7,806,666
