Automatic Square Battery Size Measuring Machine 3D model
Description

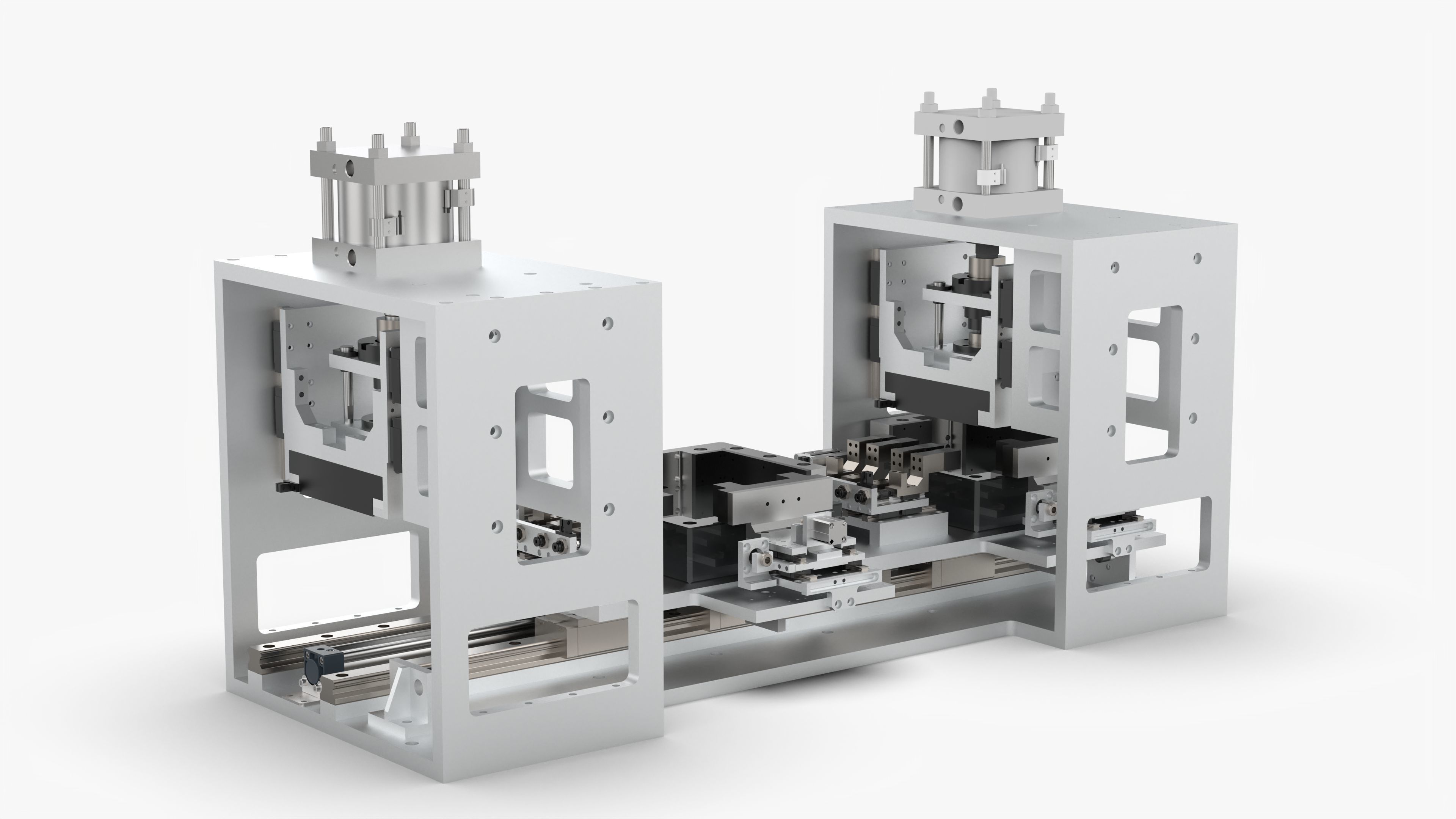

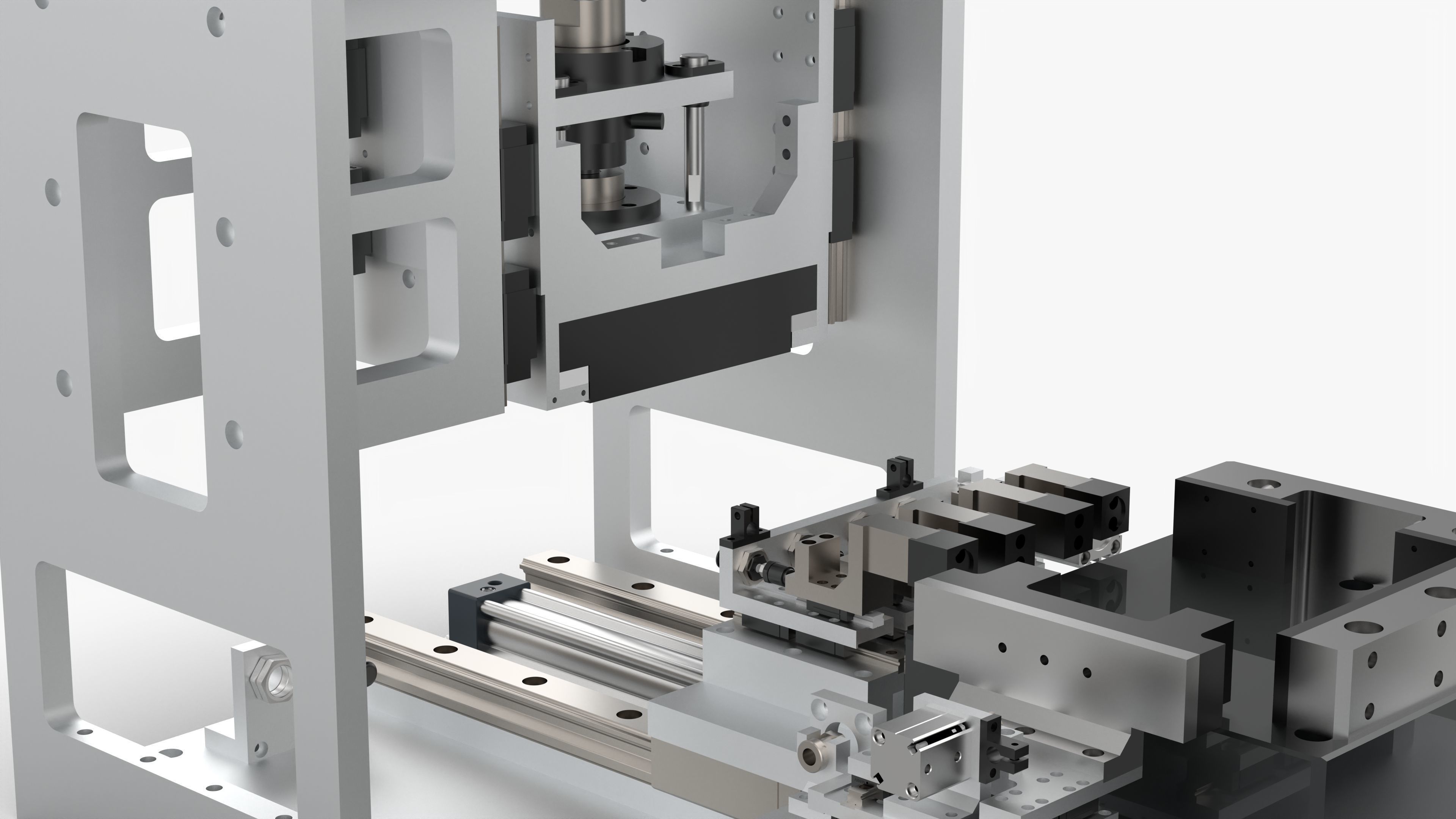

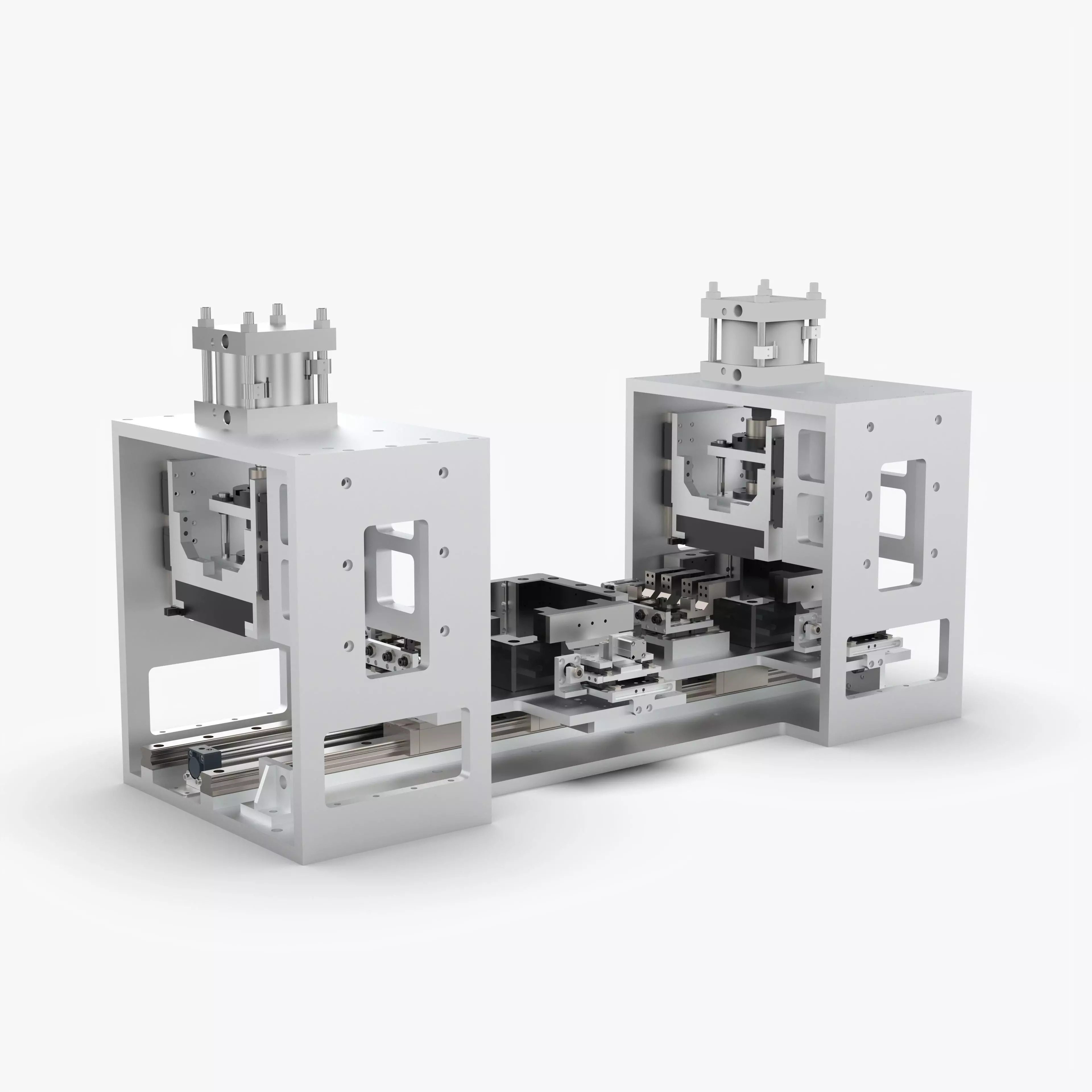

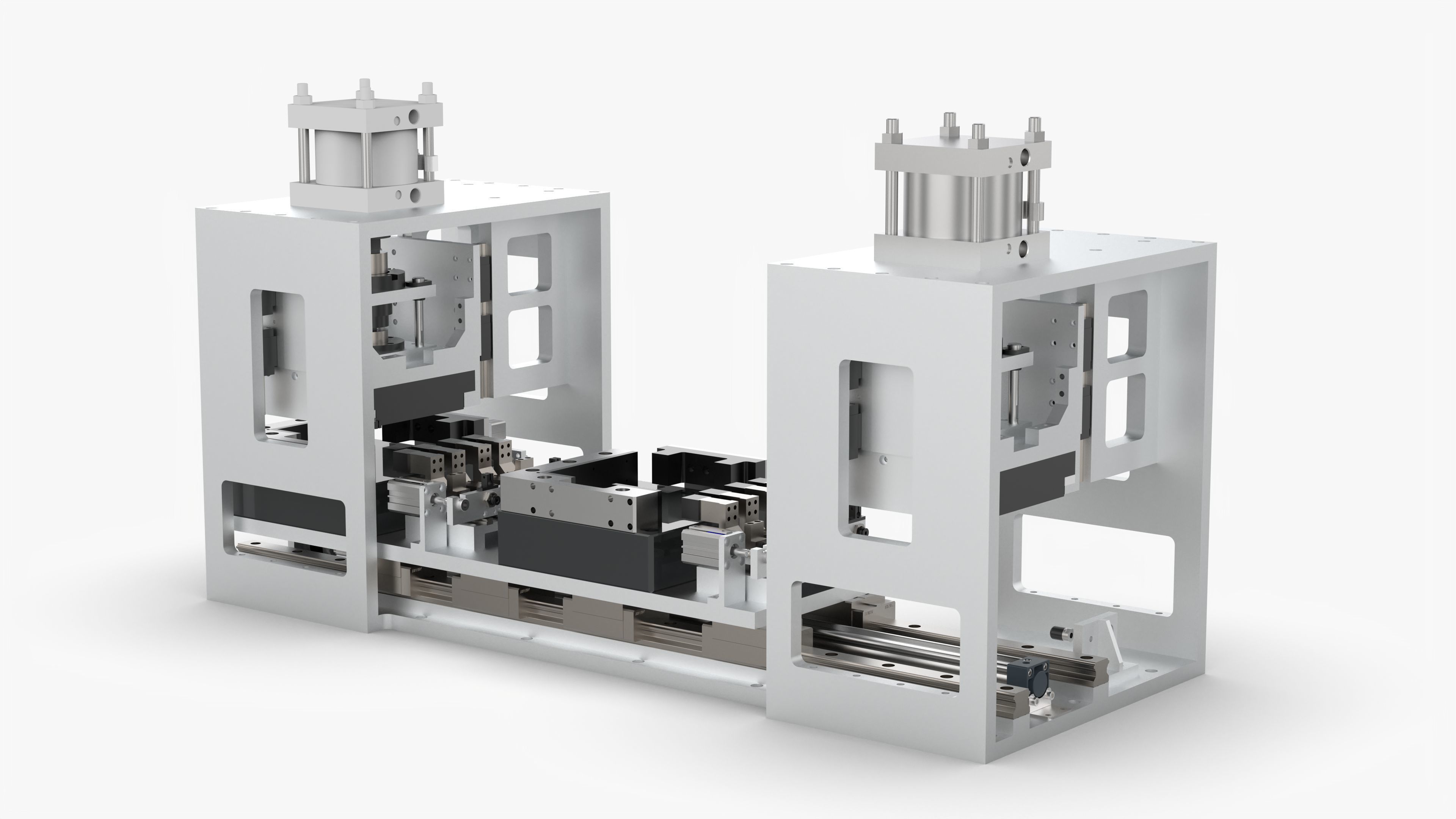

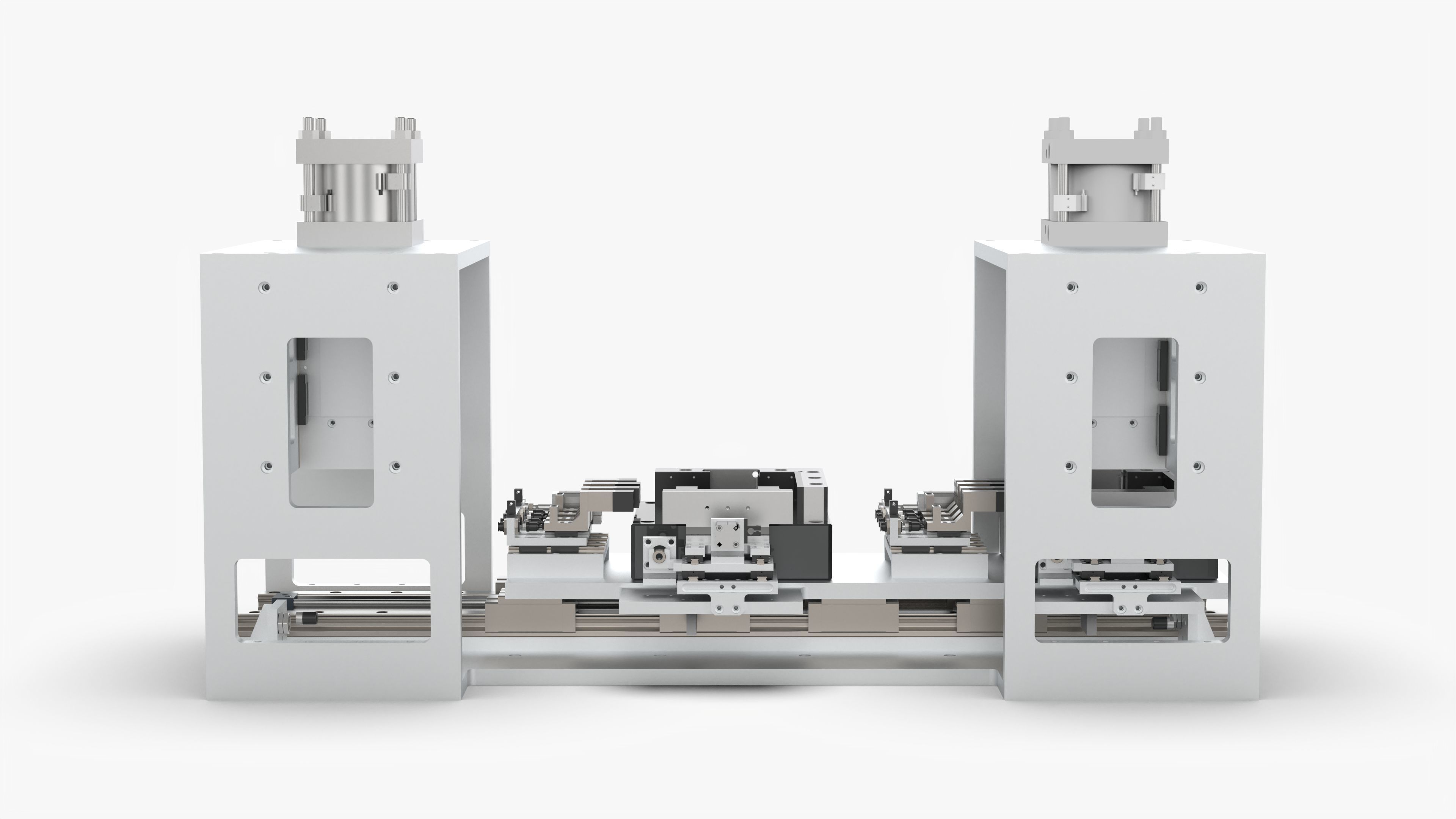

Automatic Square Battery Size Measuring Machine
Introduction

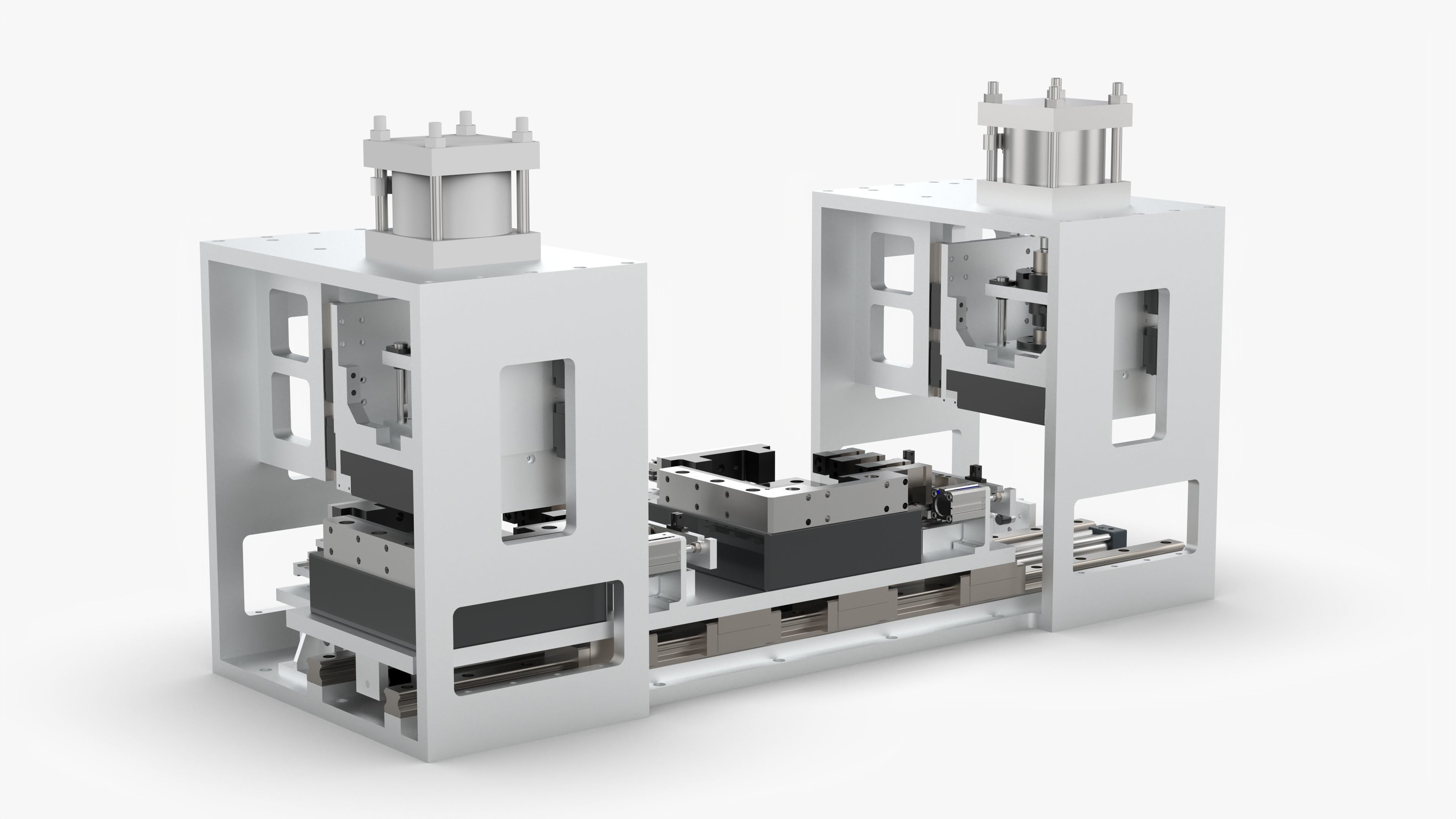

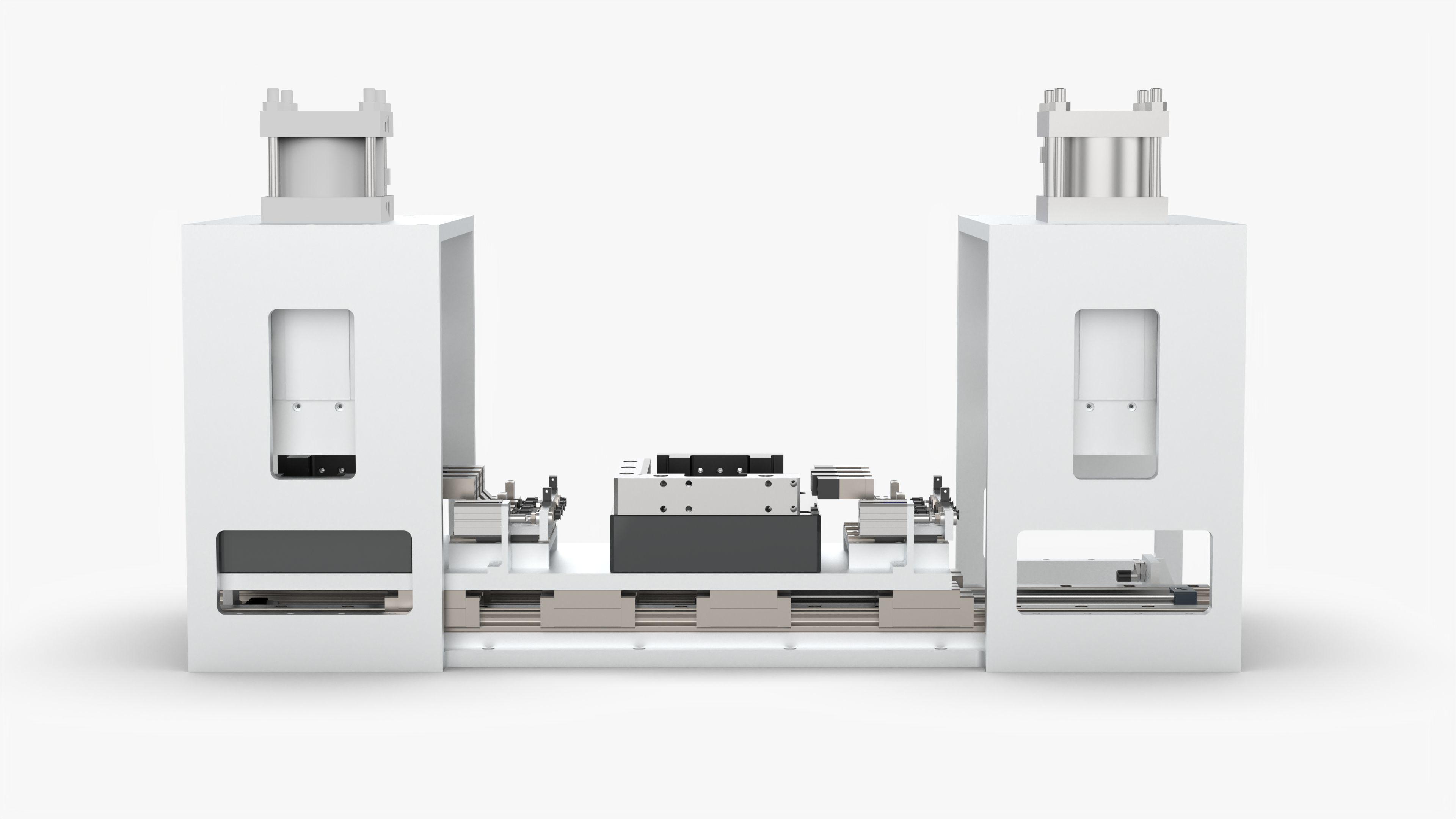

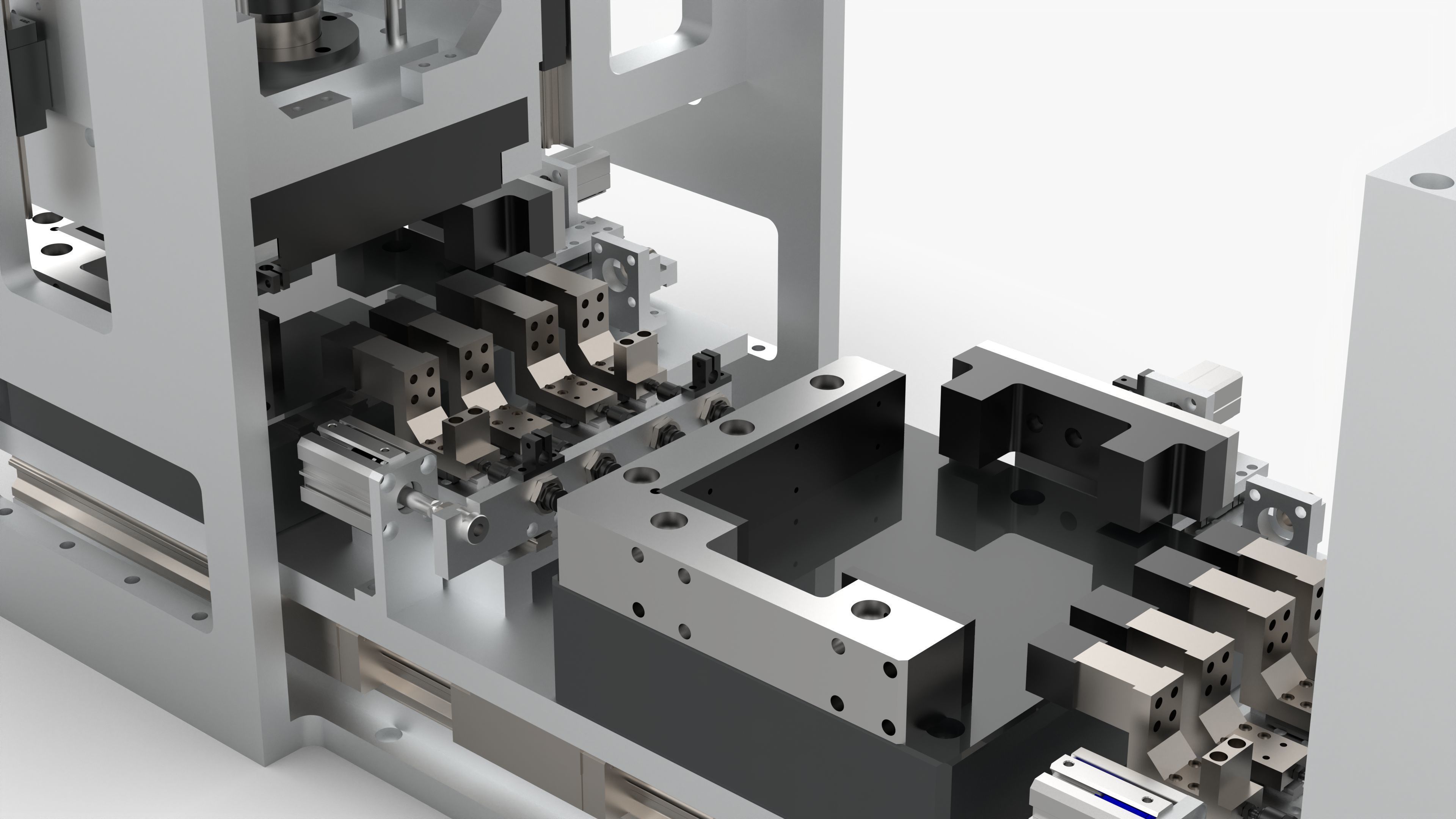

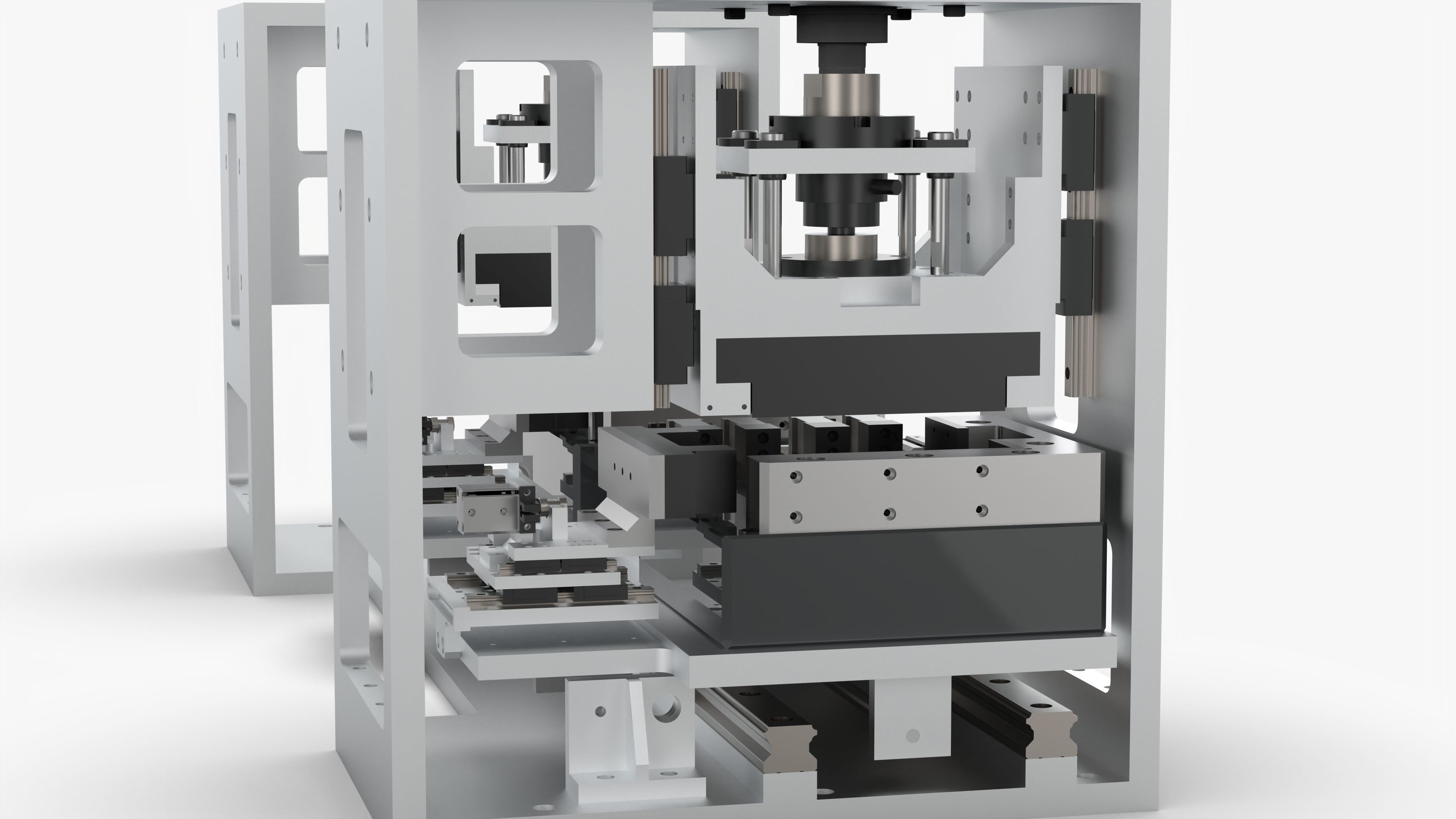

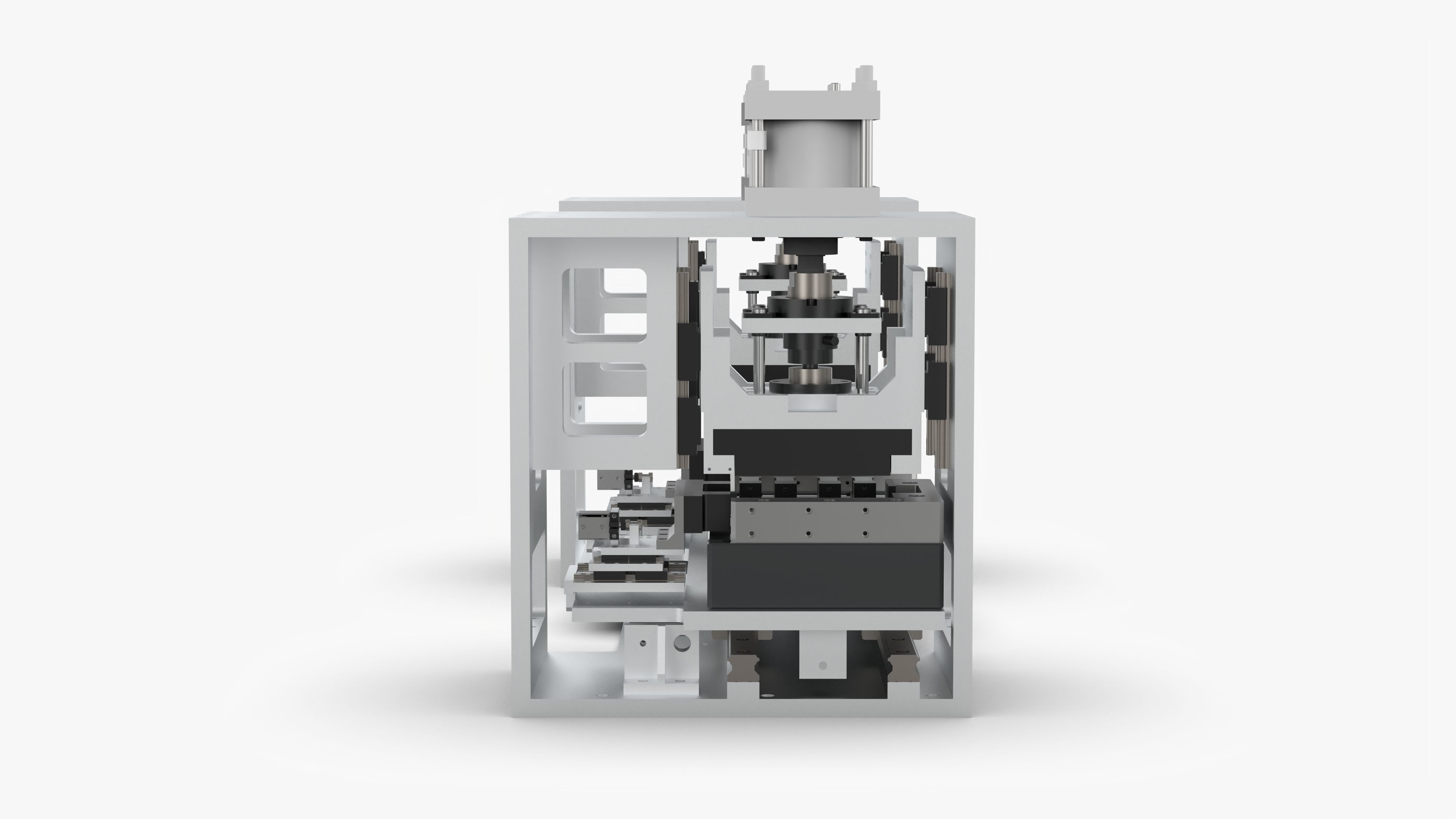

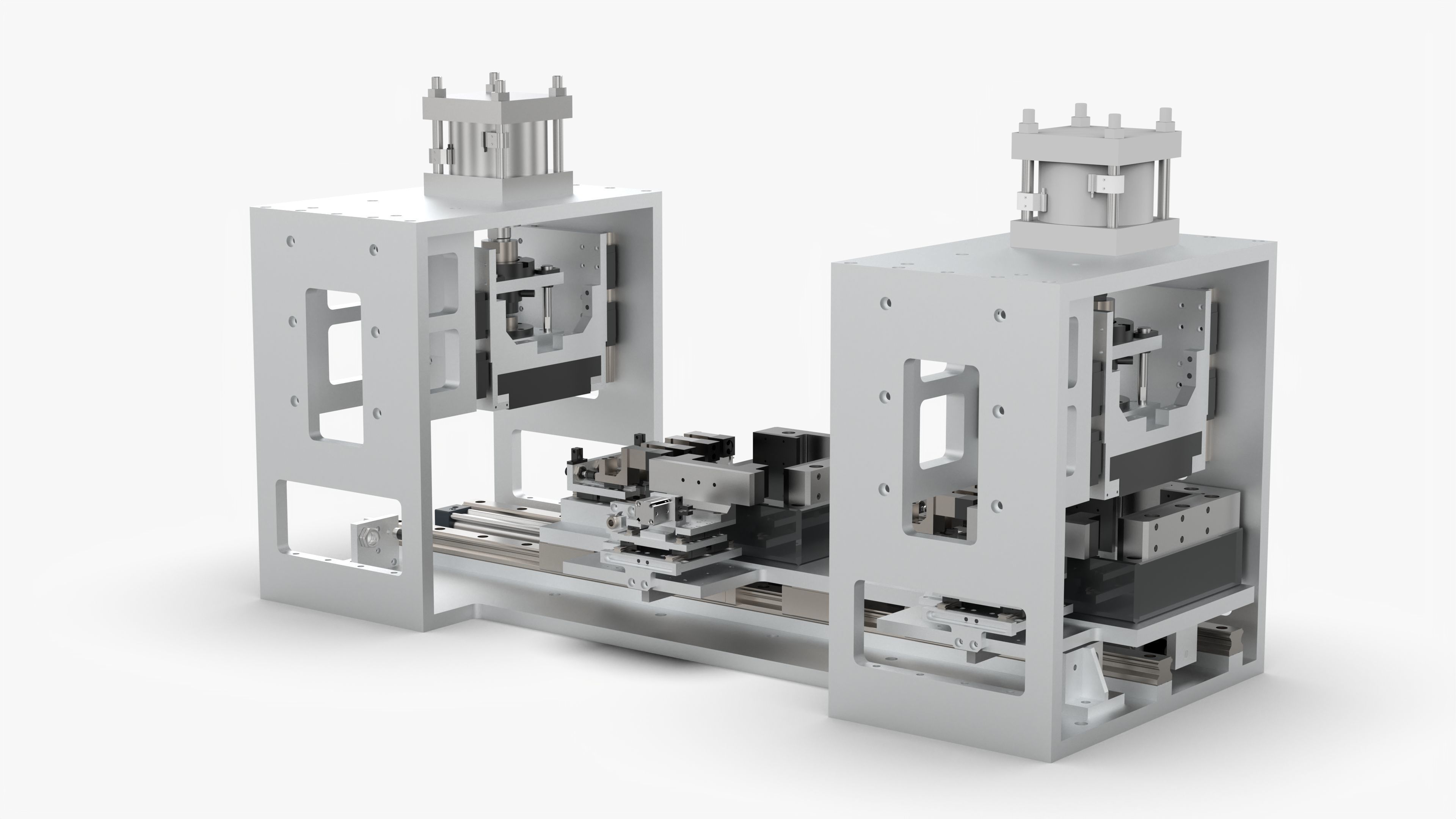

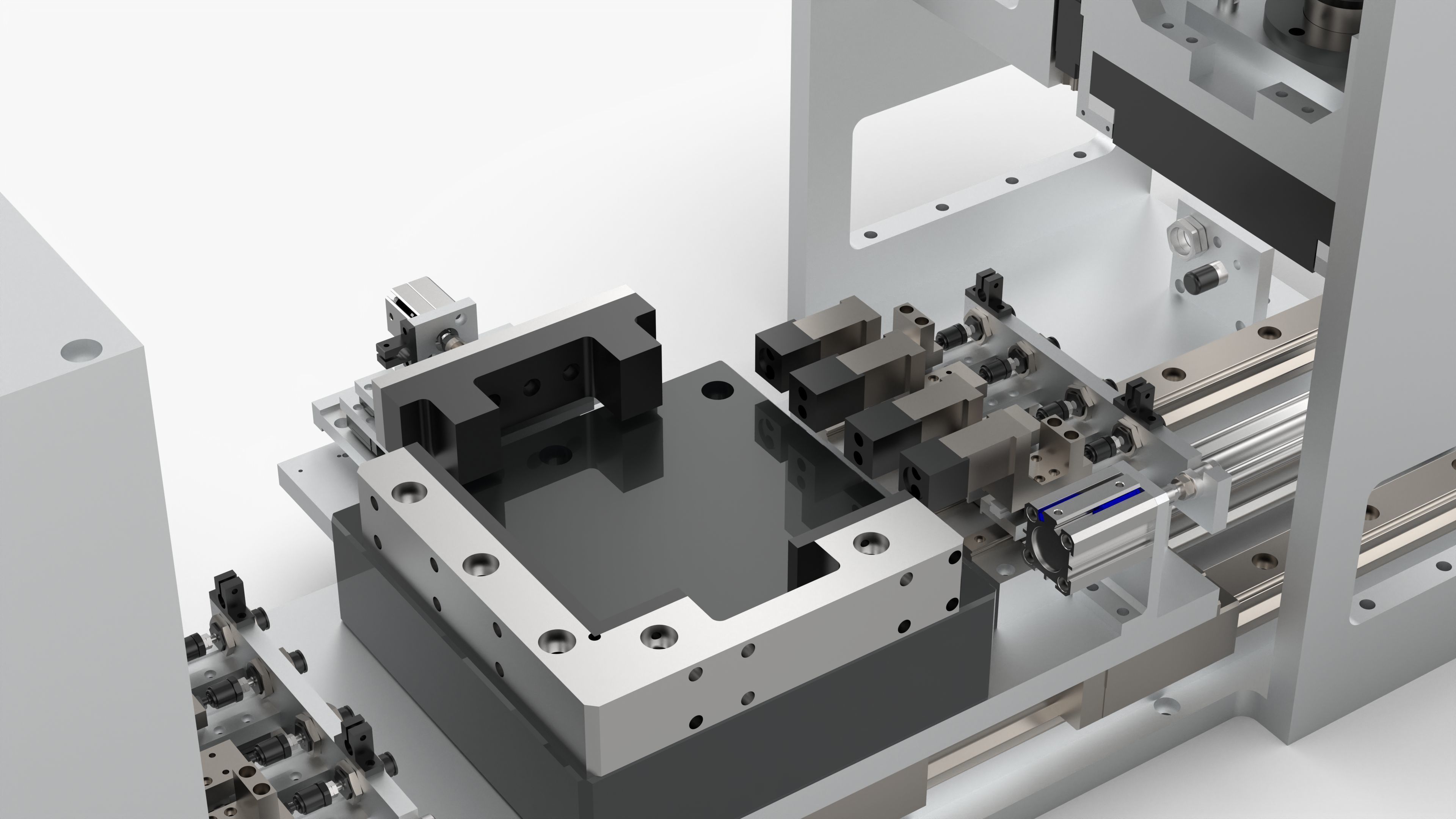

This mechanism is a special mechanism for power square battery size measurement and shaping. The battery is placed in the middle measuring fixture, and the cylinder is pushed into the measuring position for shaping and size measurement. Another station continues to put the battery. The dimension measurement accuracy is plus or minus 0.005mm.
File Formats
- SolidWorks 2018 | Keyshot 10
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
Geometry

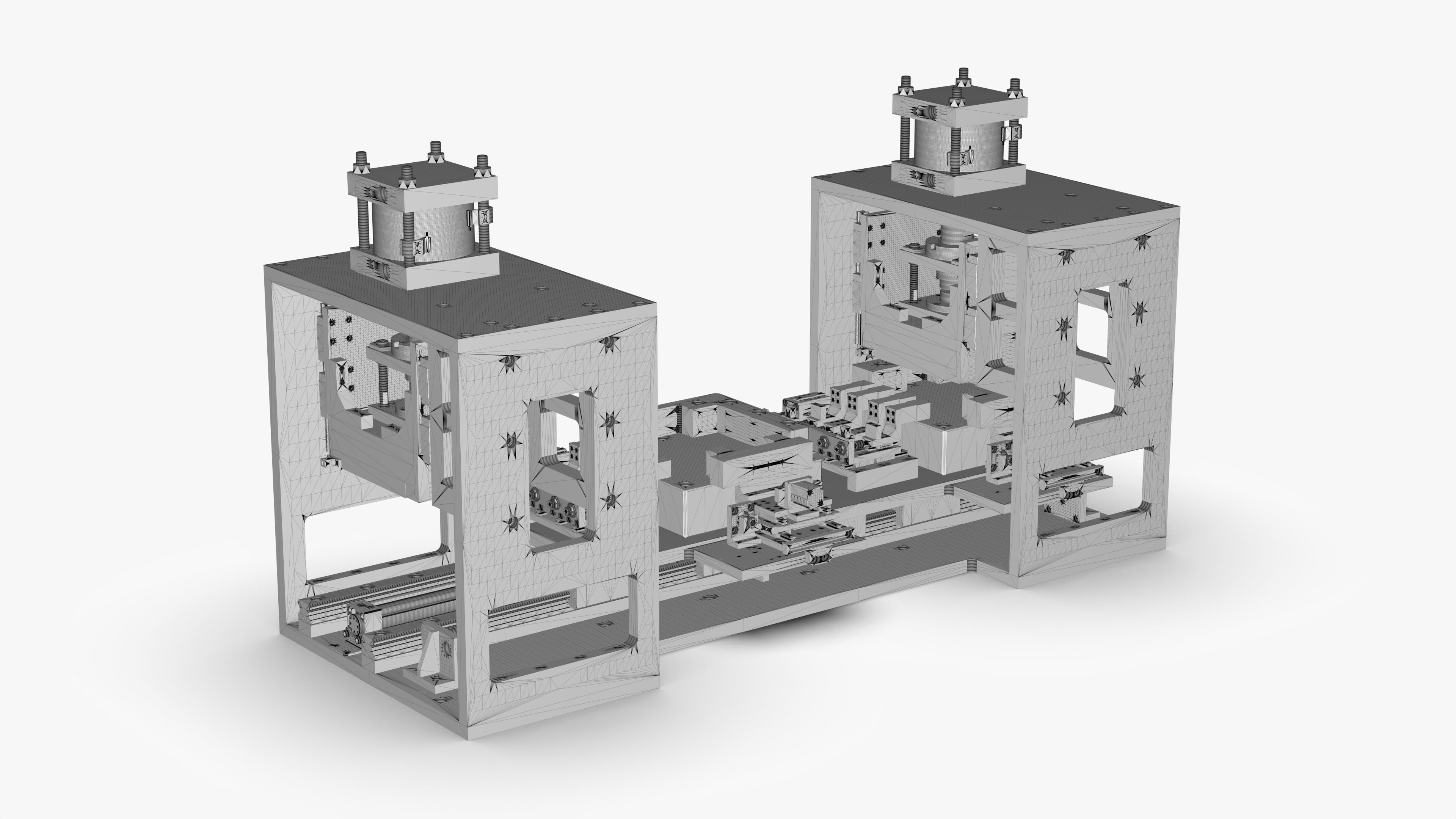

- Polygons: 854,068
- Vertice: 2,562,204
Automatic Square Battery Size Measuring Machine
Royalty Free License
Automatic Square Battery Size Measuring Machine
Royalty Free License
3D Modeling
Rendering
Post Production
PBR modeling
3D Model formats
Format limitations
Native
- SolidWorks 2018 (.sldprt, .sldasm, .slddrw)21.8 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
- Stereolithography (.stl)40.7 MB
- IGES (.ige, .igs, .iges)83.8 MB
- OBJ (.obj, .mtl)59.3 MB
- STEP (.stp)21.8 MB
3D Model details
- Publish date2023-02-18
- Model ID#4304822
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 854,068
- Vertices 2,562,204
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
