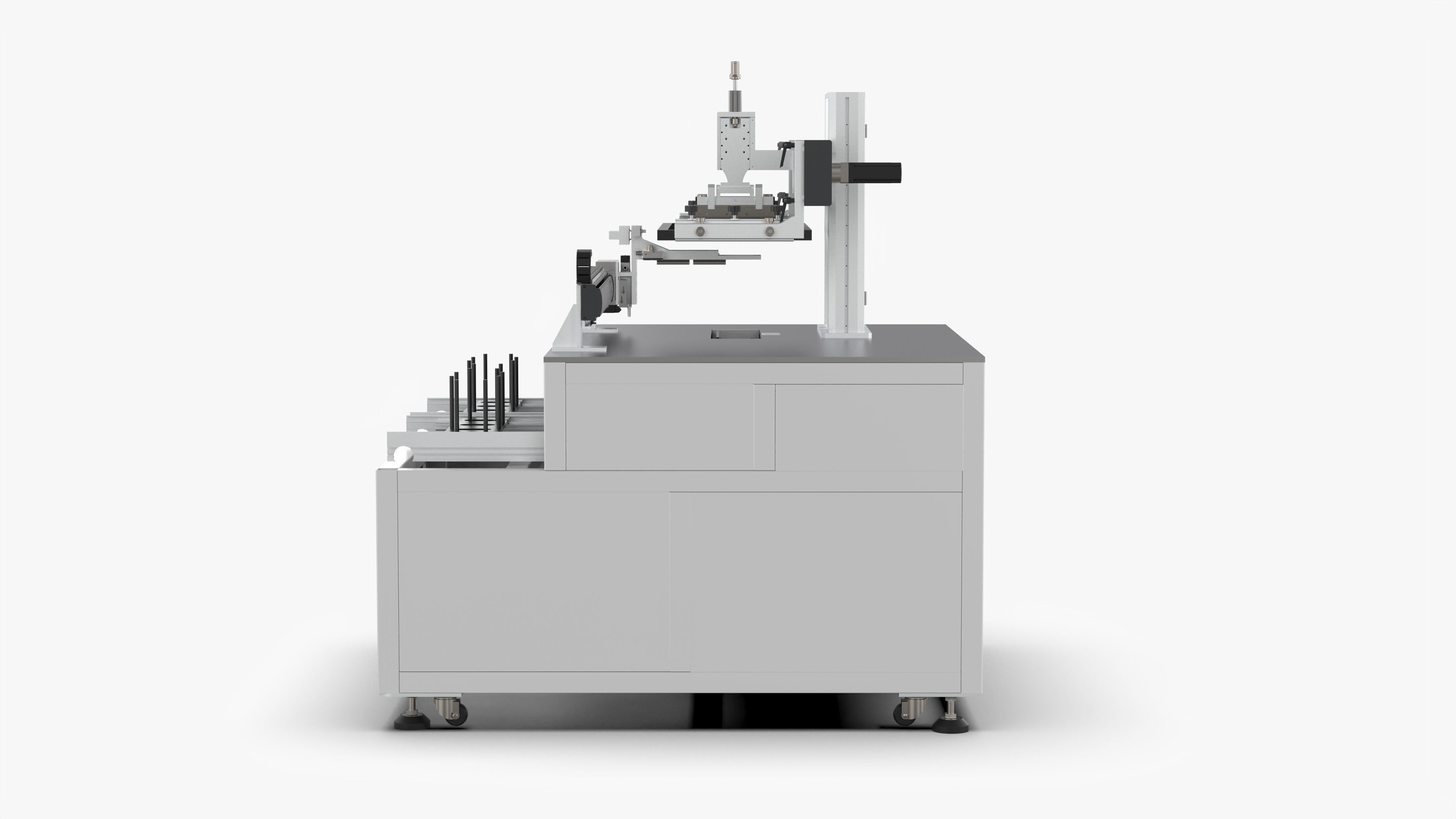

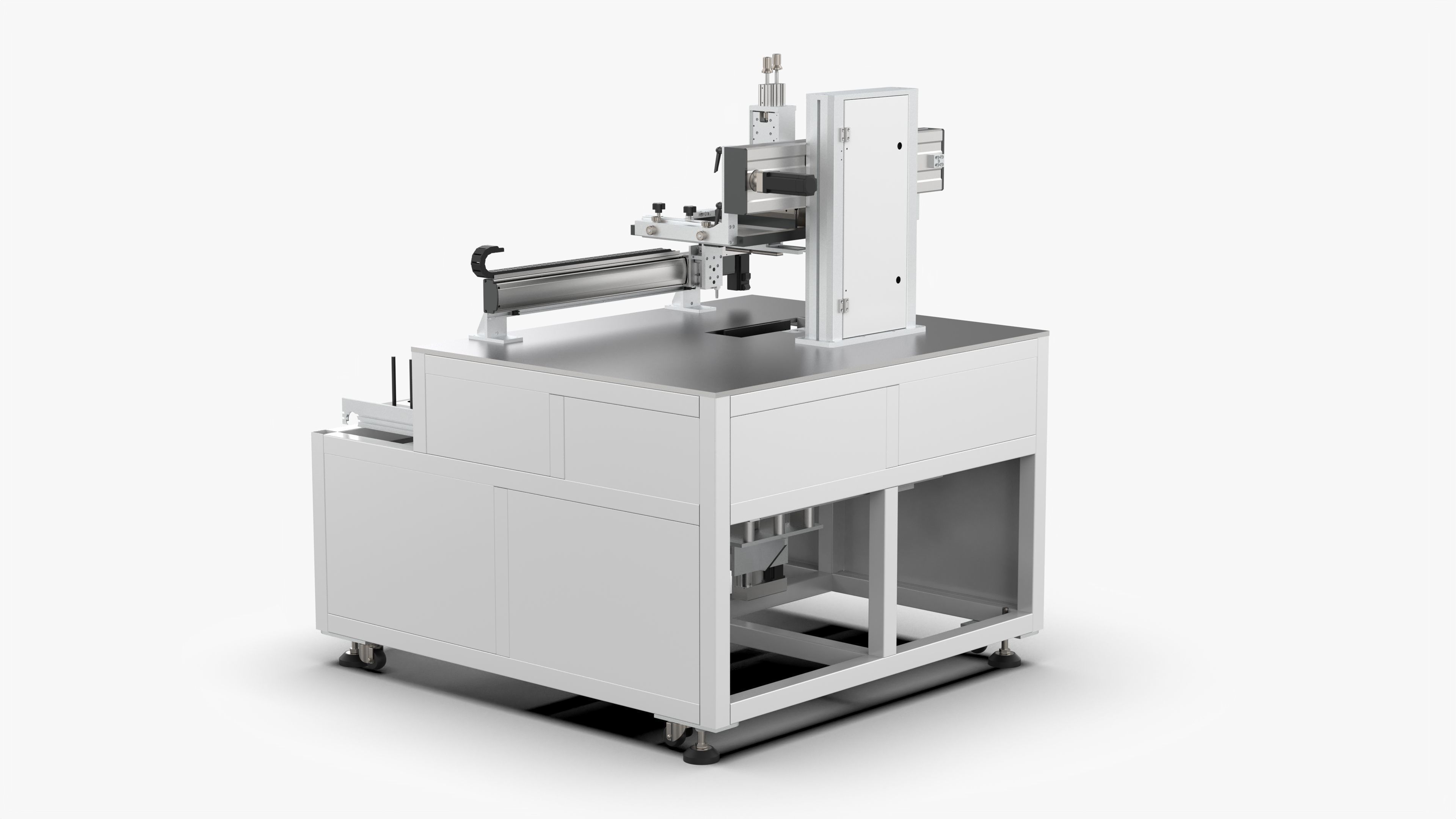

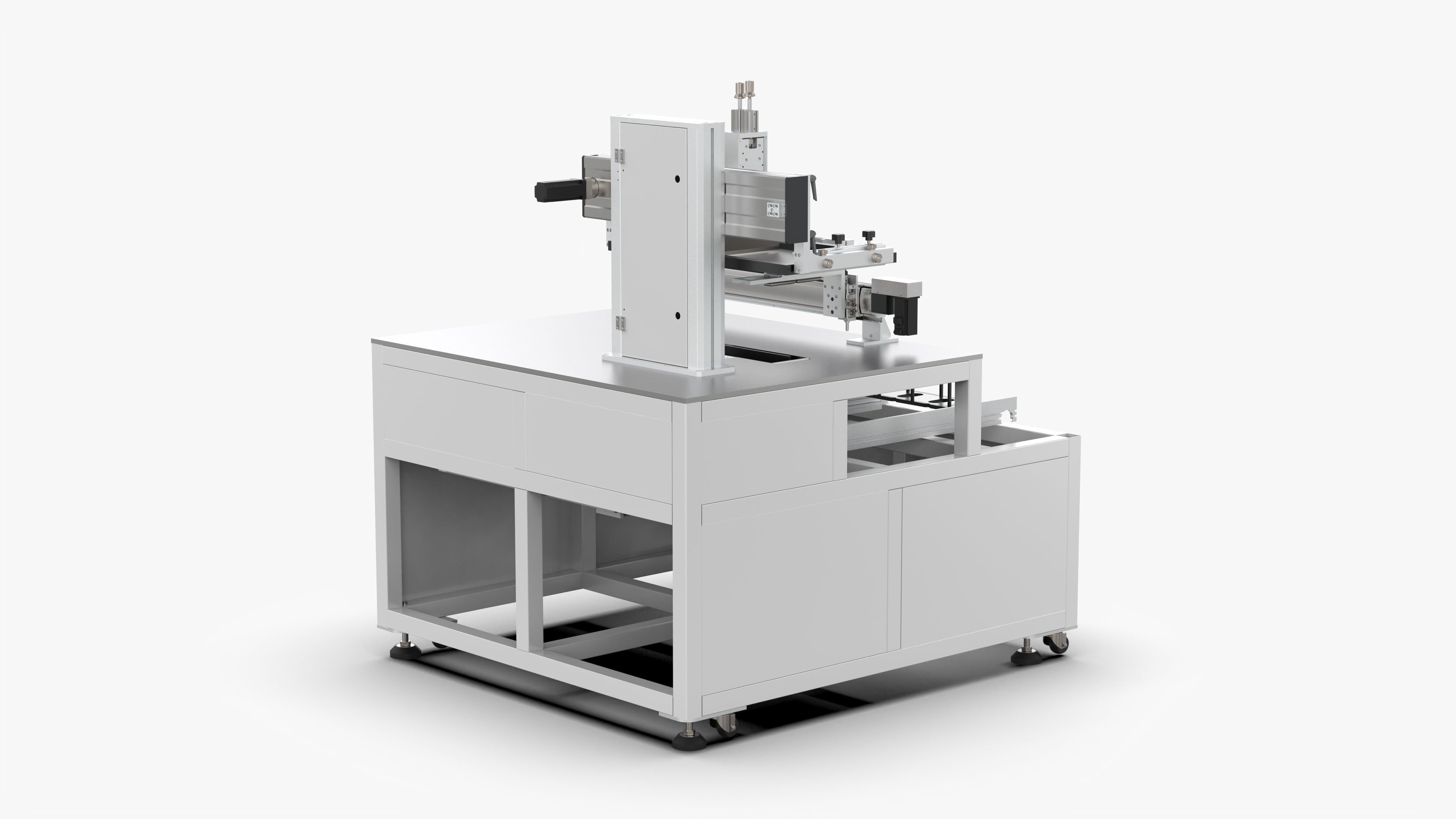

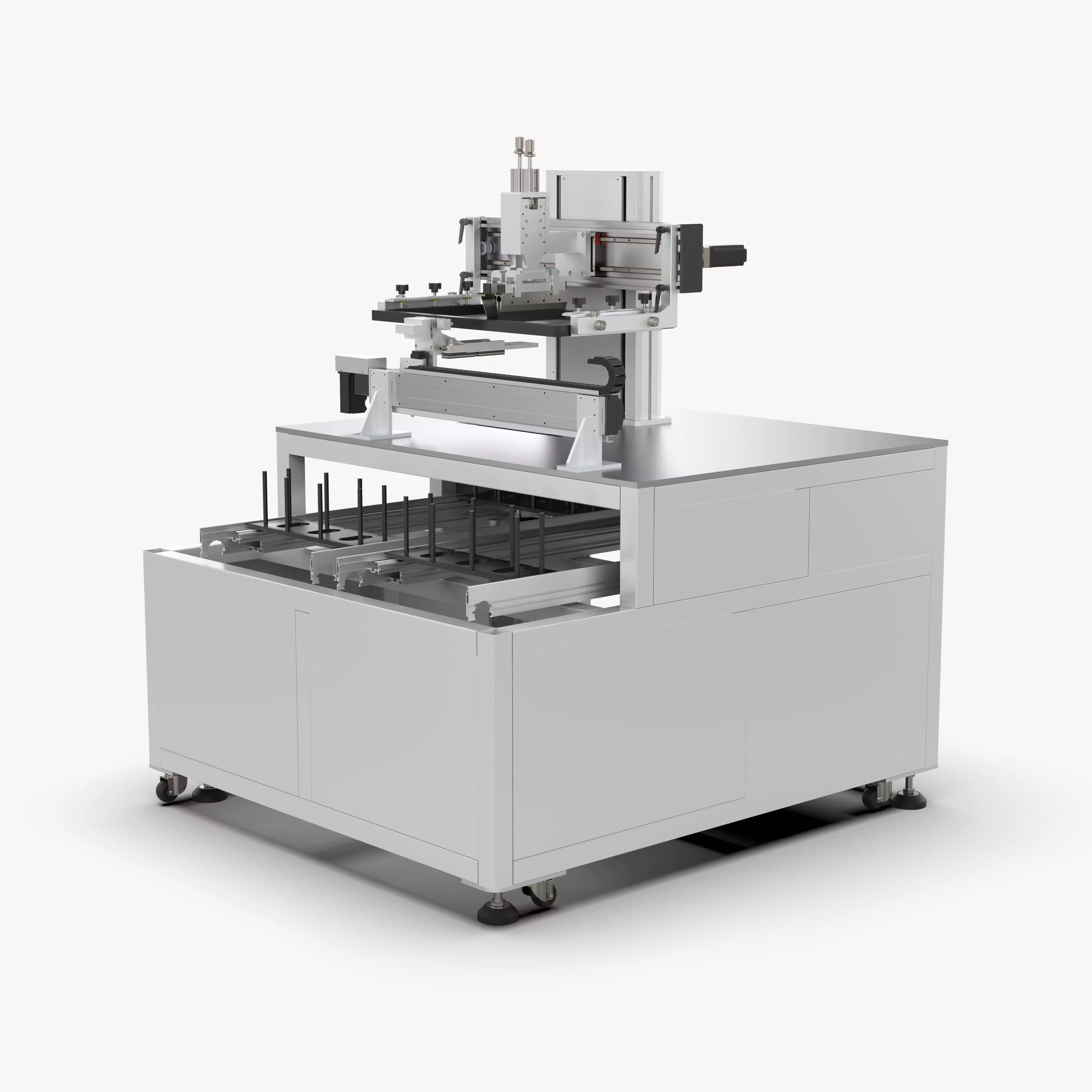

Automatic Screen Printing Equipment 3D model

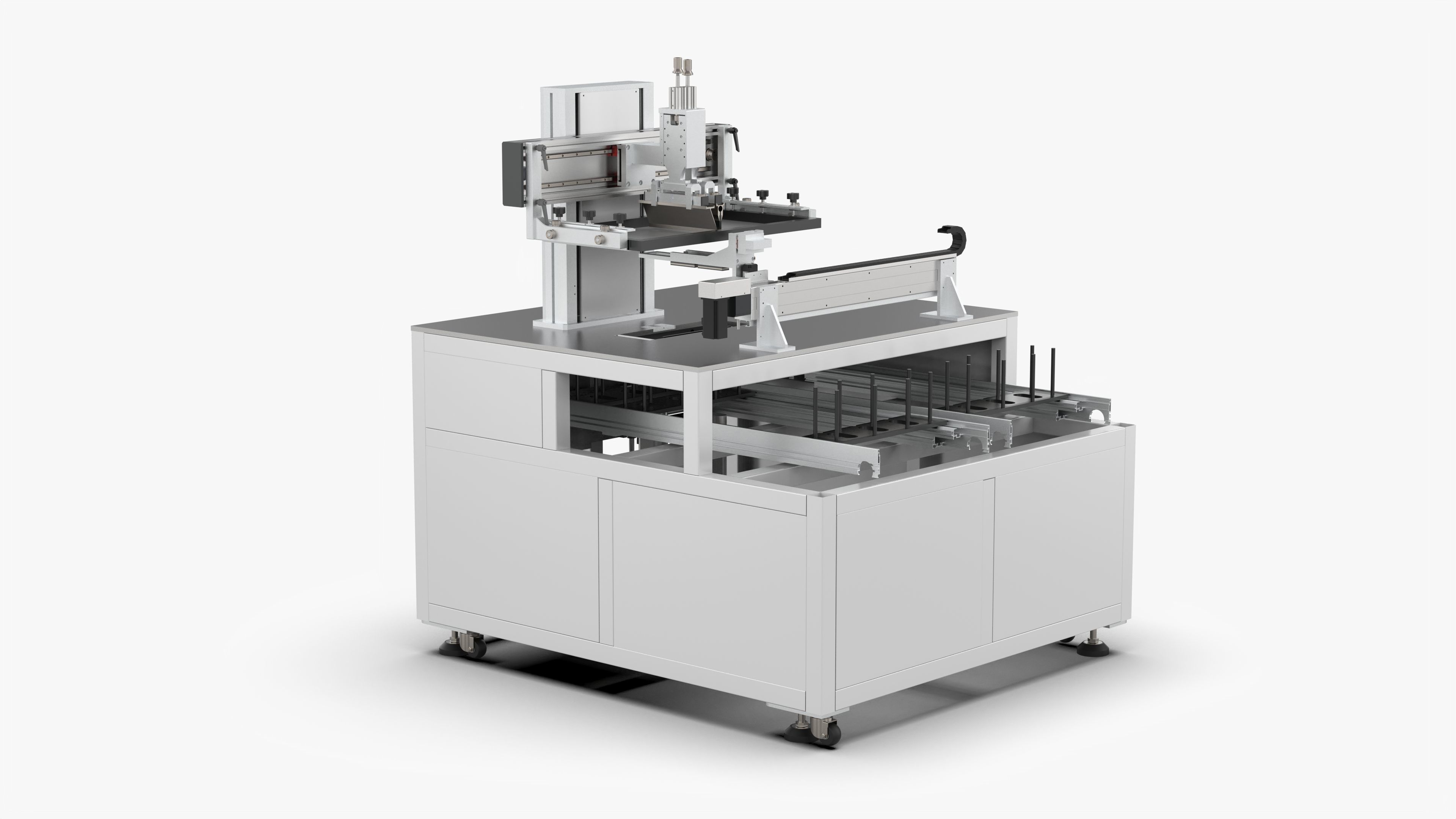

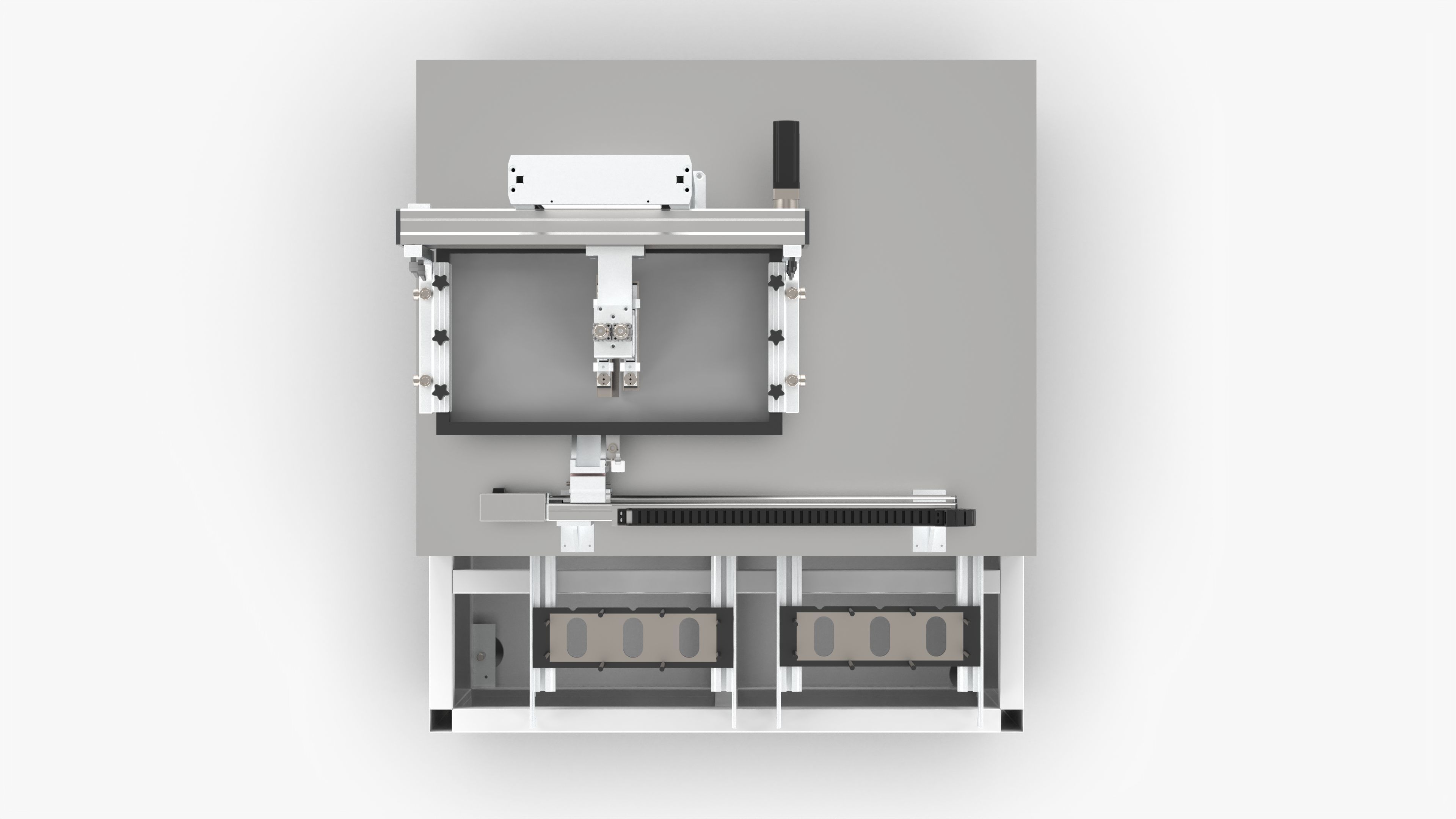

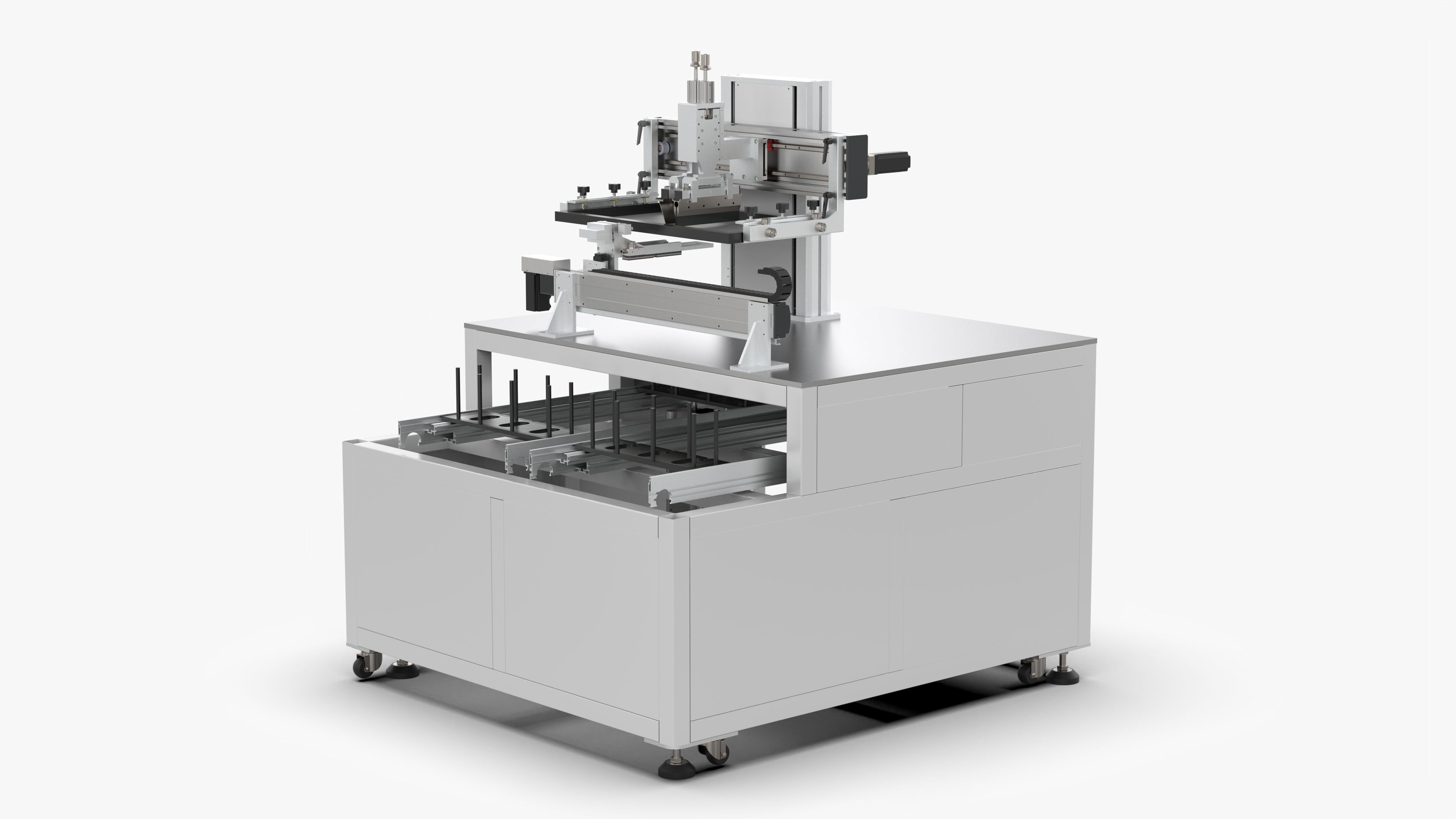

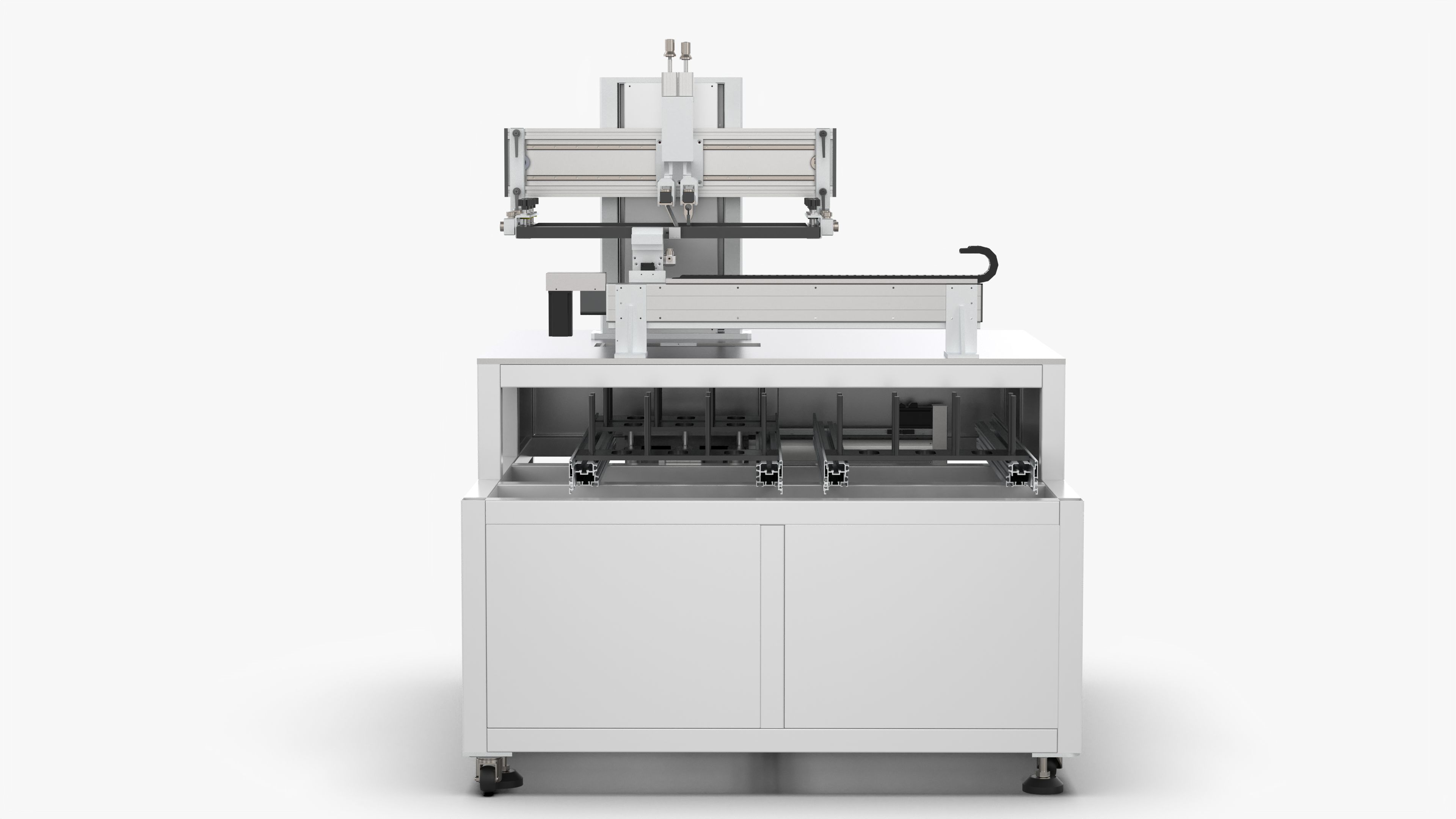

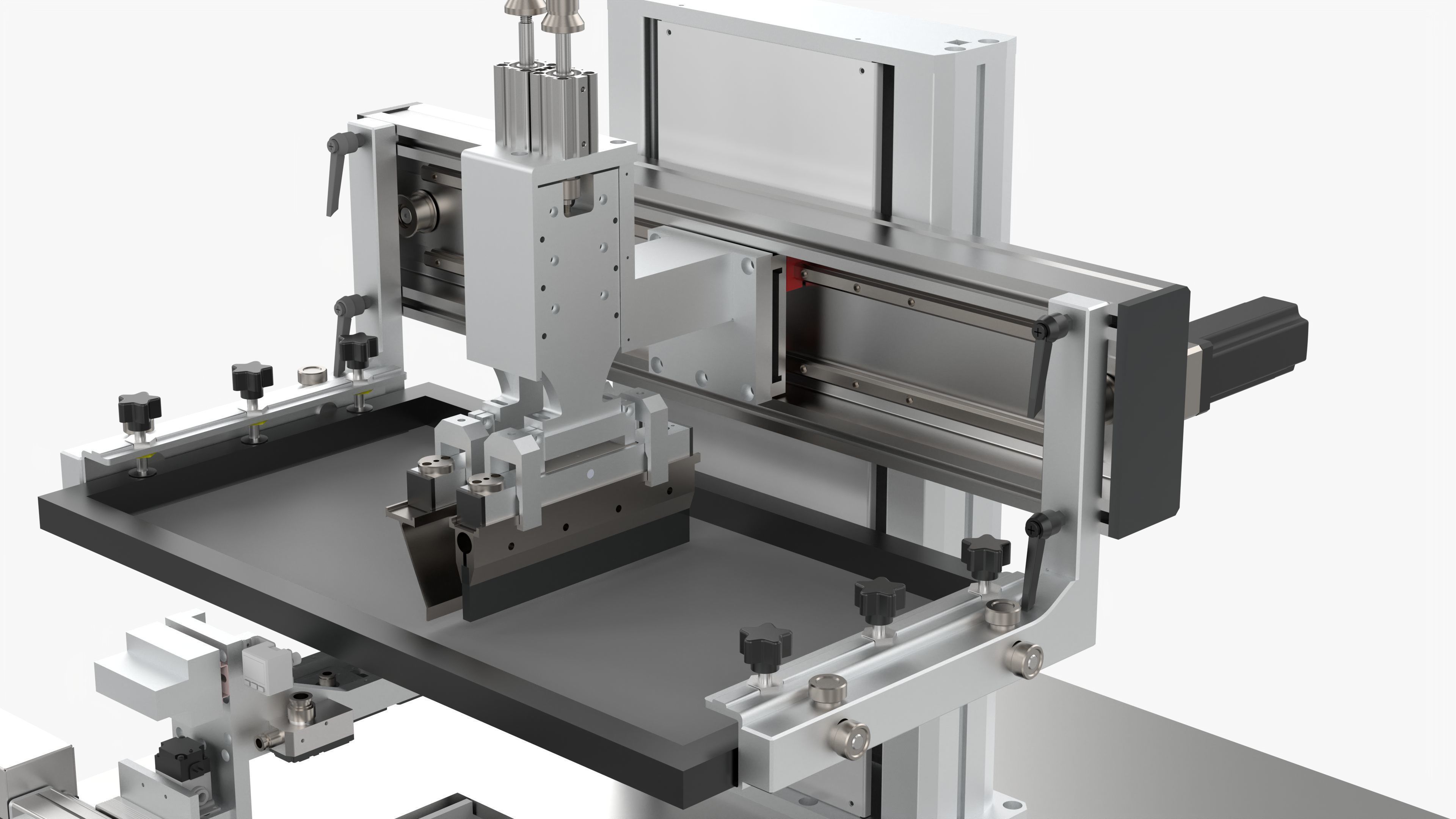

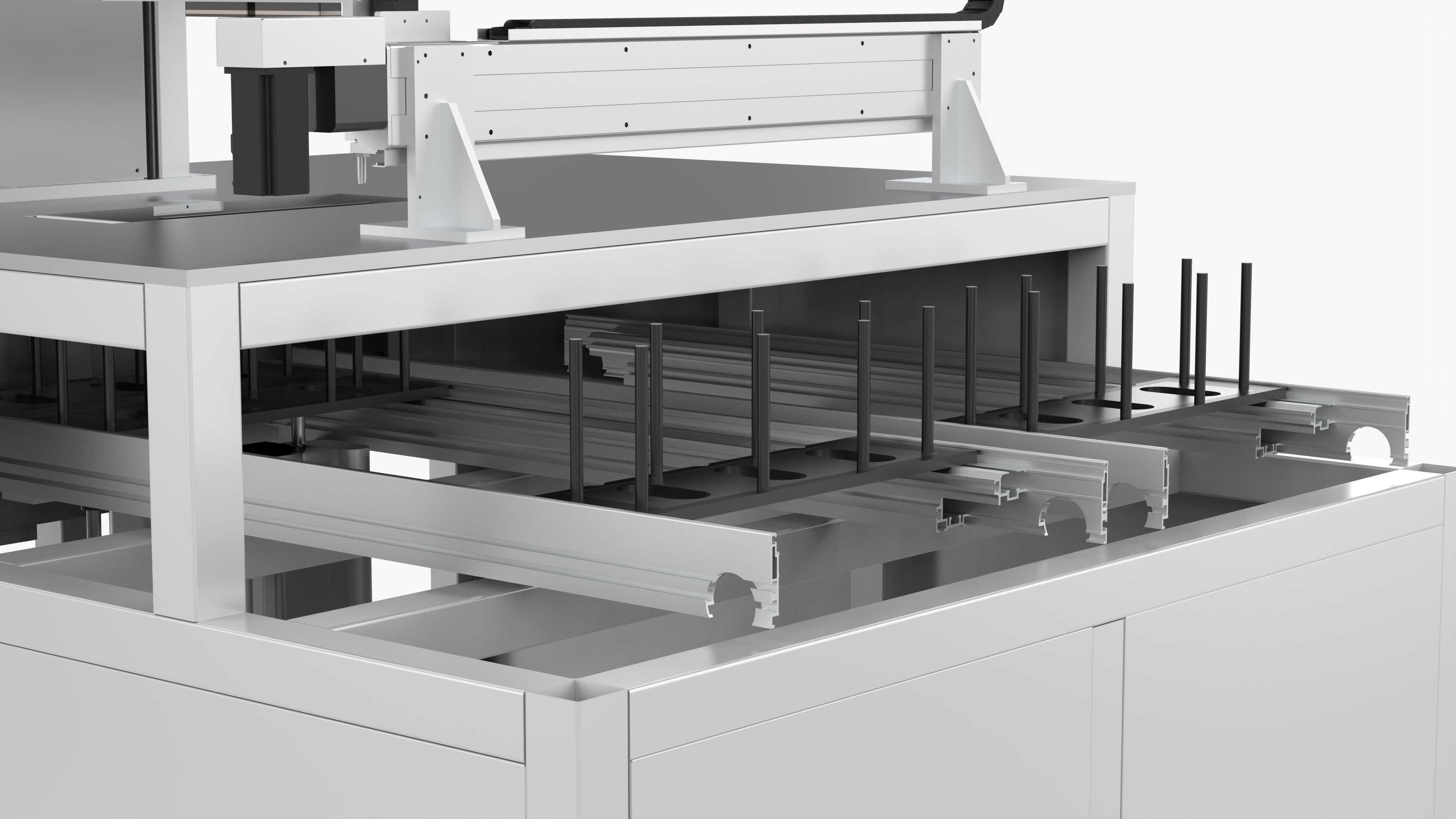

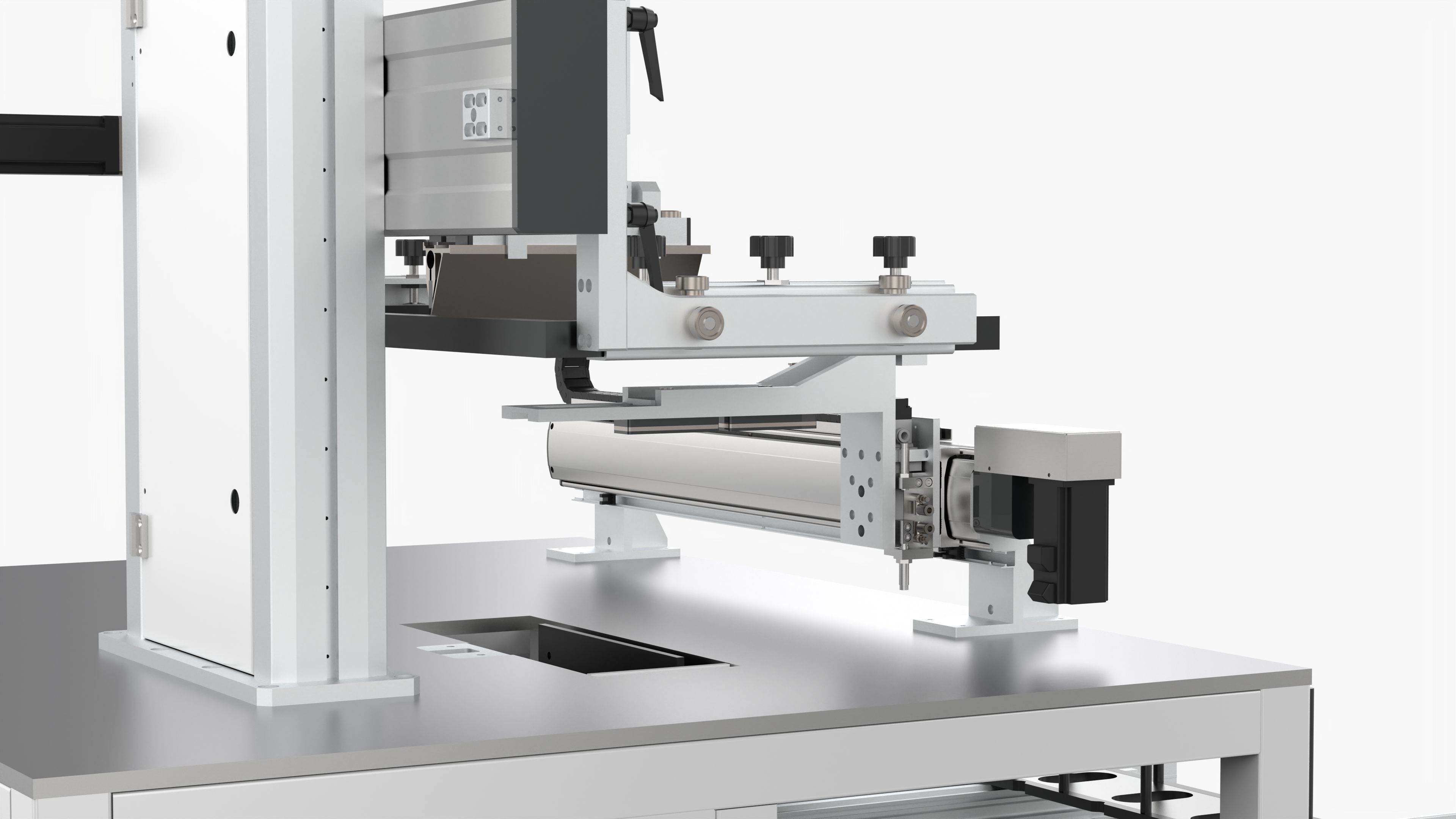

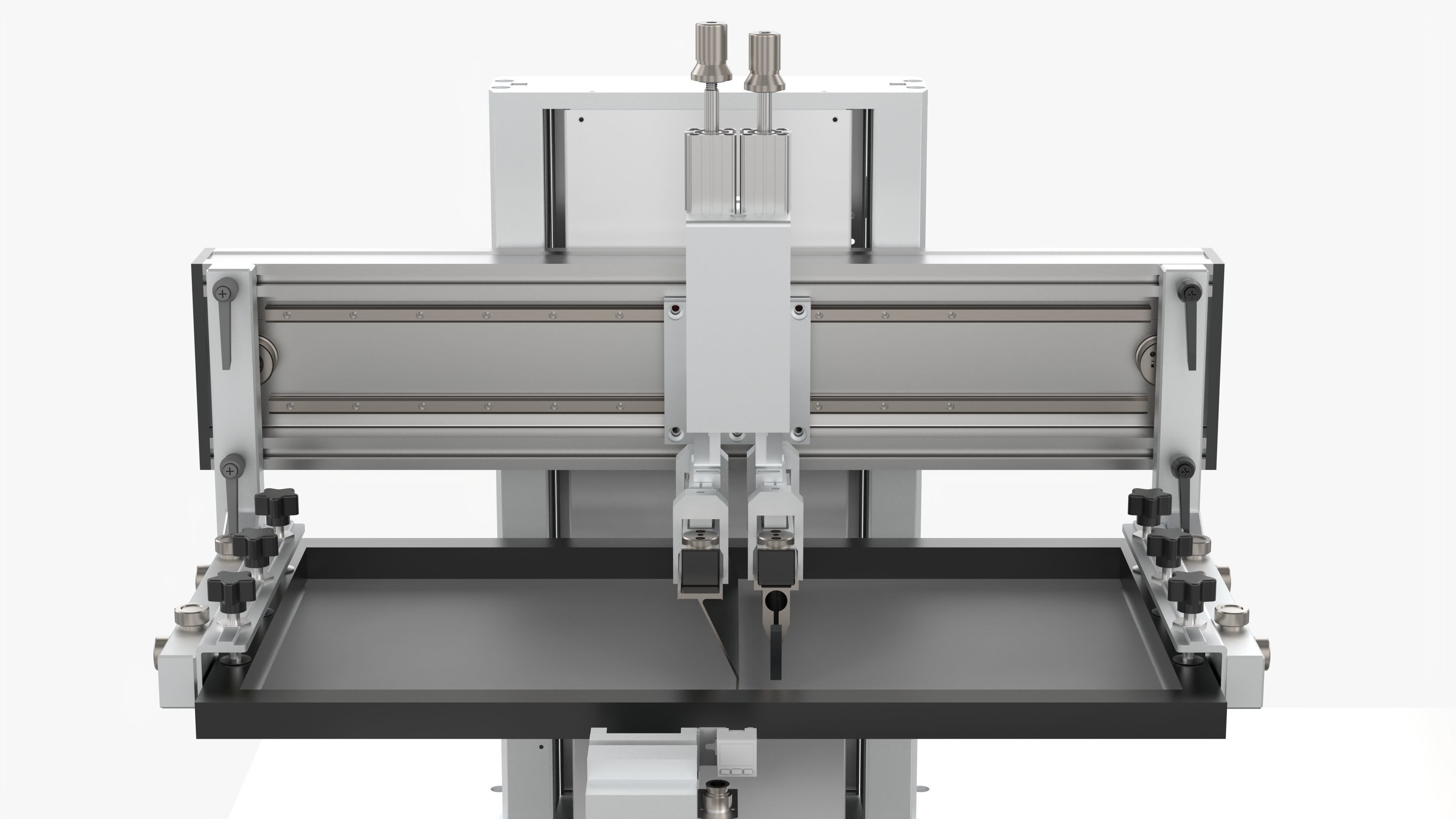

Automatic Screen Printing Equipment

Introduction

At present, the equipment in the screen printing industry is basically the same. This equipment is a flat screen printing equipment for thin plates. It uses fixtures and reflow lines for fully automatic feeding production, and can be connected to fully automatic production lines. It can be converted into any required flat screen printing equipment through the principle and idea of ??this equipment, eliminating many troubles of self-design.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 1,430,000
• Vertice: 4,290,000
