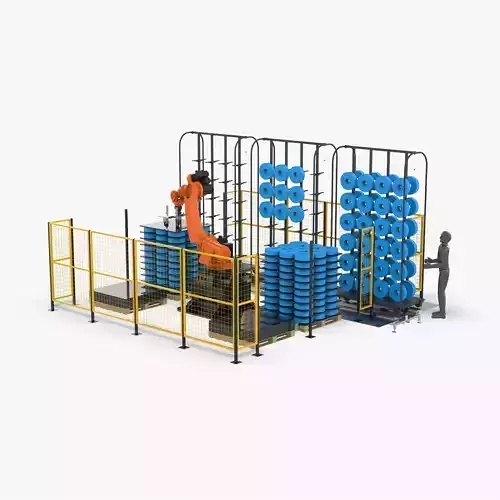

Automatic Robot Bobbin Loading Workstation 3D model
Description

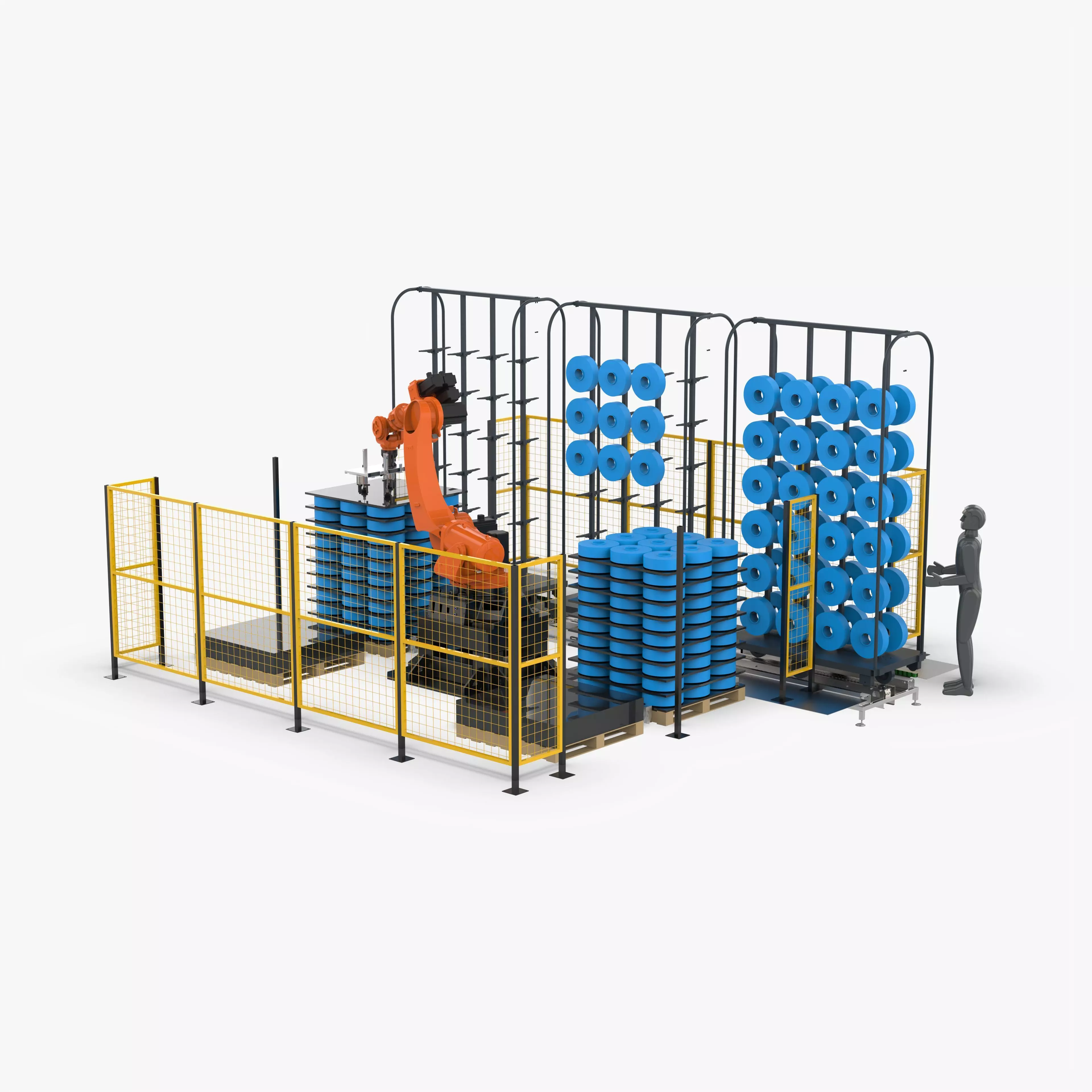

Automatic Robot Bobbin Loading Workstation
Introduction
A robotic automatic bobbin loading workstation for the textile industry. The robot automatically unstacks the yarn bobbin and each layer of partitions, and the robot places the yarn bobbin on the transfer conveyor rack. The tooling rack is manually pushed into the loading table. The feeding table is equipped with a rotating mechanism, which can cooperate with the robot to complete the two-sided feeding.
File Formats
- SolidWorks 2018 | Keyshot 10
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
Geometry
- Polygons: 3,653,086
- Vertice: 10,959,258
Automatic Robot Bobbin Loading Workstation
Royalty Free License
Automatic Robot Bobbin Loading Workstation
Royalty Free License
3D Model formats
Format limitations
Native
- SolidWorks 2018 (.sldprt, .sldasm, .slddrw)103 MBVersion: 2018Renderer: Mental Ray
Exchange
- STEP (.stp)63 MB
- OBJ (.obj, .mtl) (2 files)1.1 GB
- IGES (.ige, .igs, .iges)201 MB
- Stereolithography (.stl)174 MB
- Parasolid (.x_t, .x_b)56.3 MB
3D Model details
- Publish date2023-03-27
- Model ID#4391876
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 3,653,086
- Vertices 10,959,258
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
