Automatic Resistance Plug-in Machine 3D model
Description

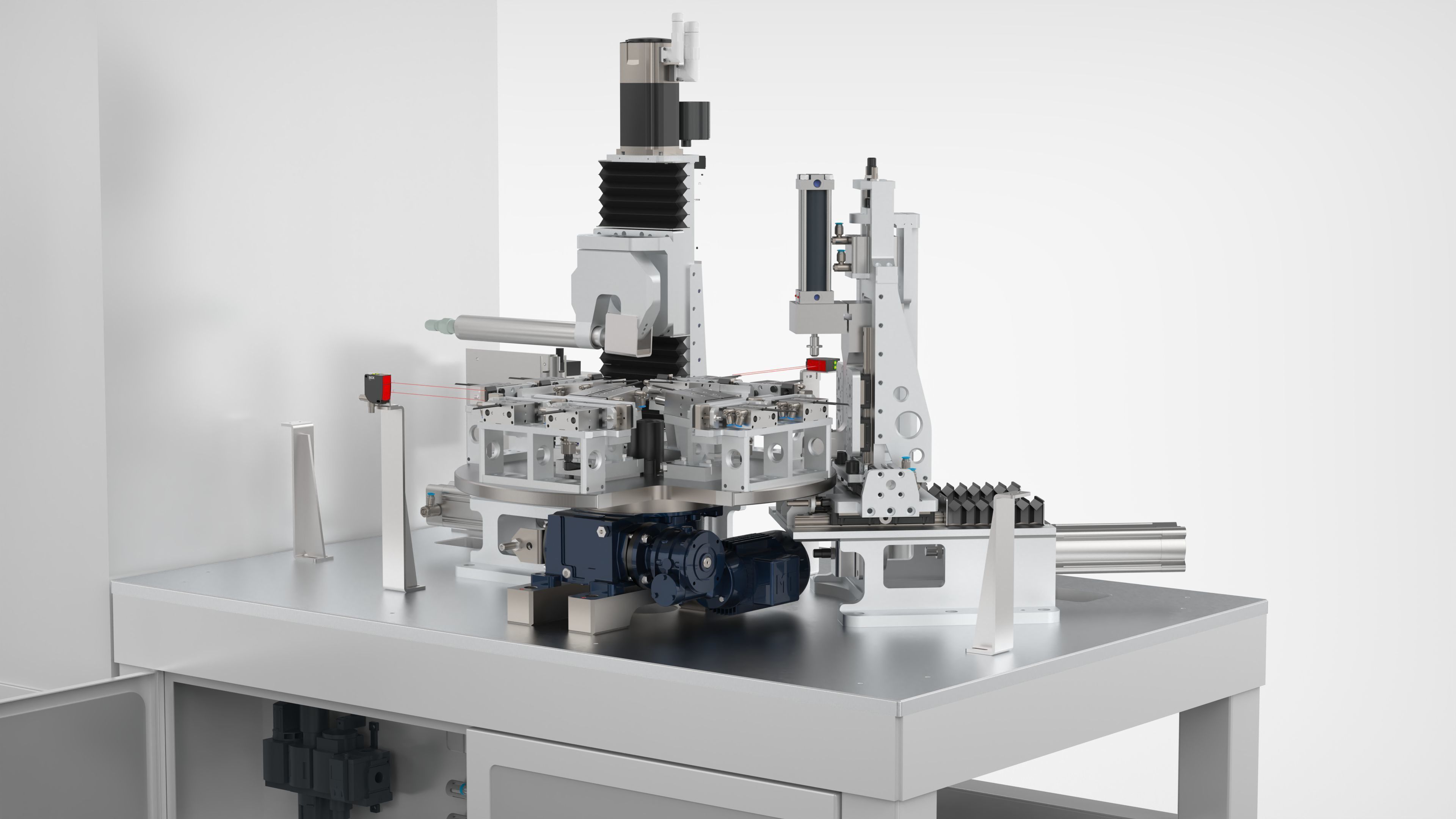

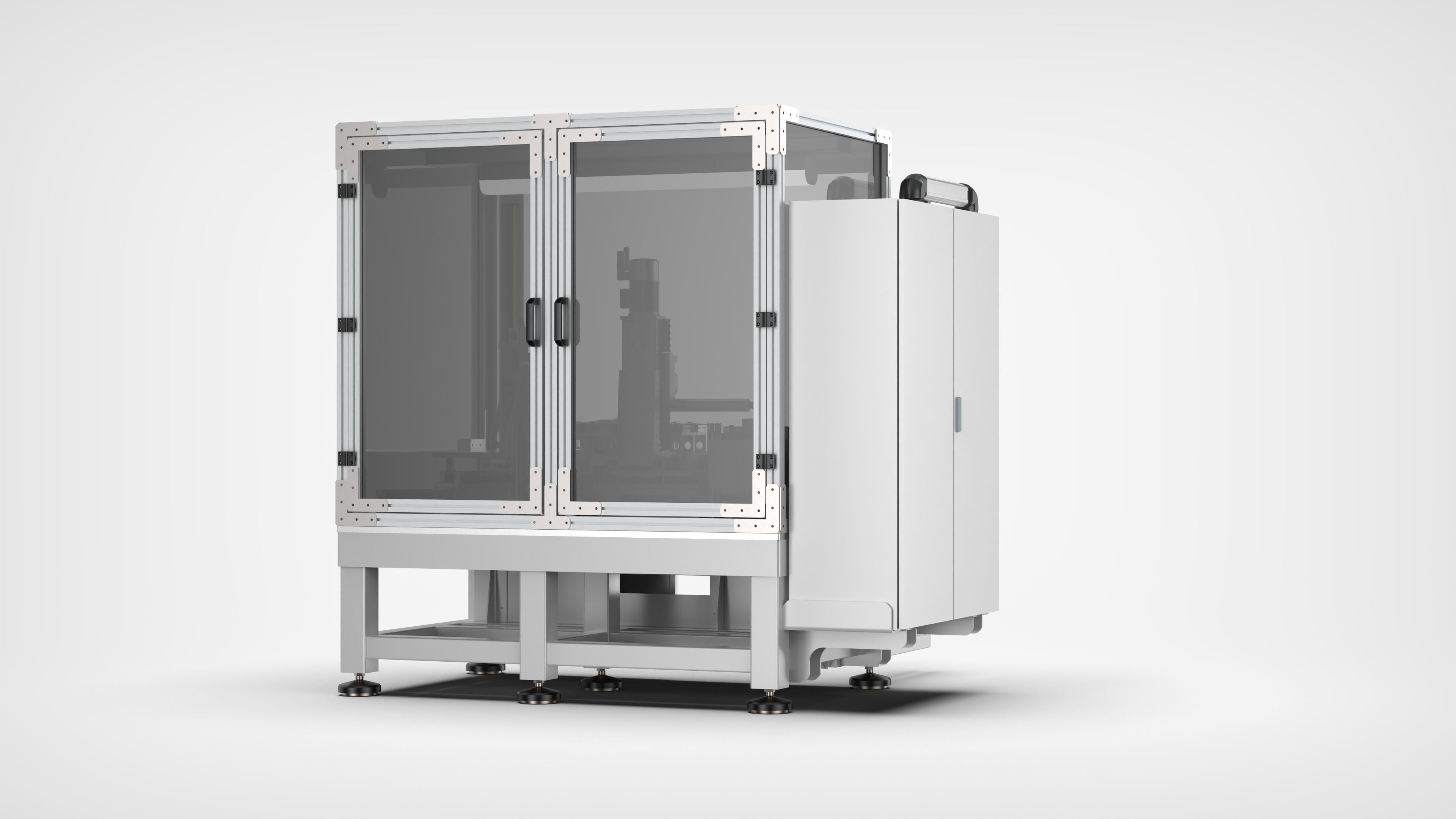

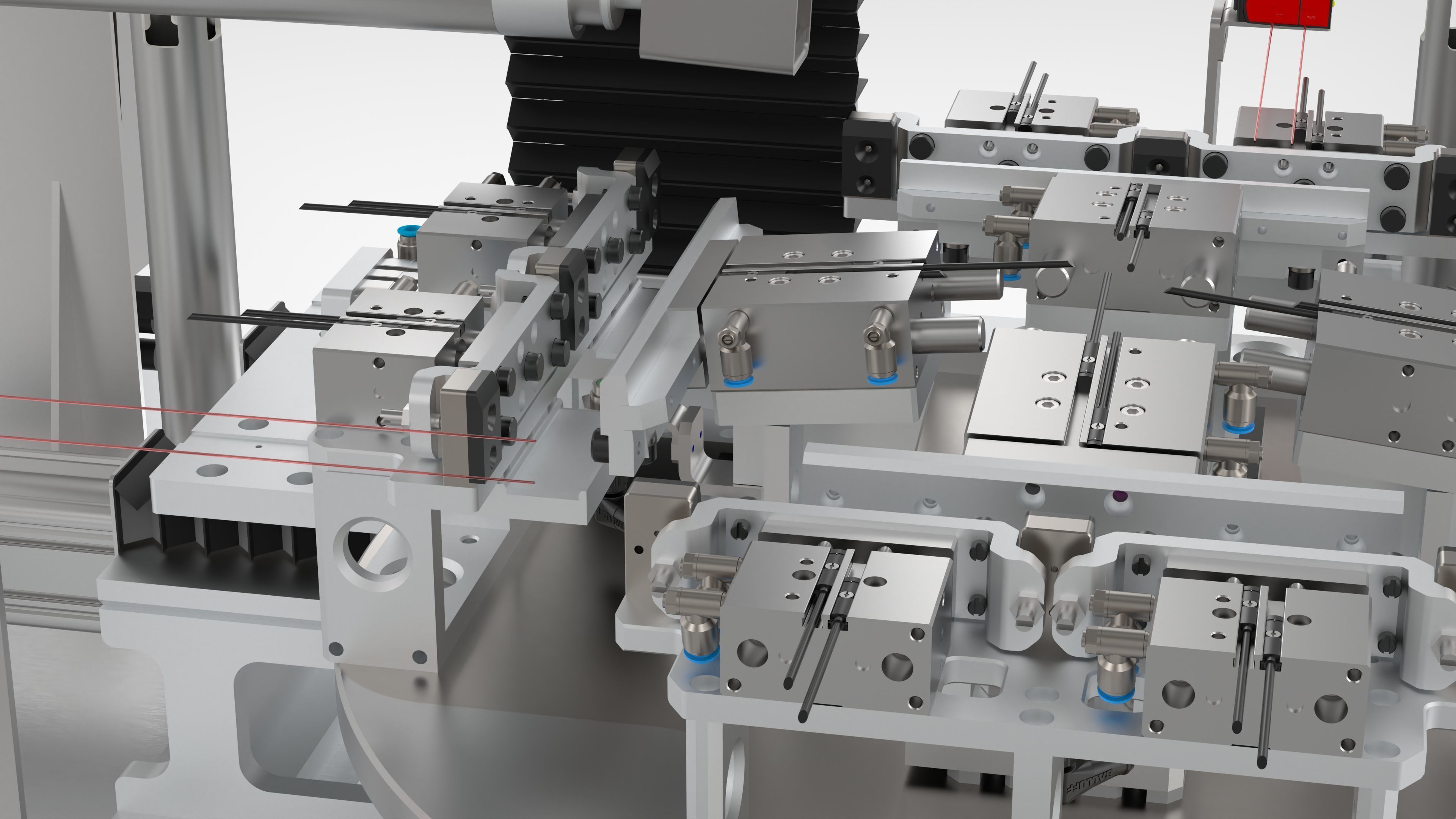

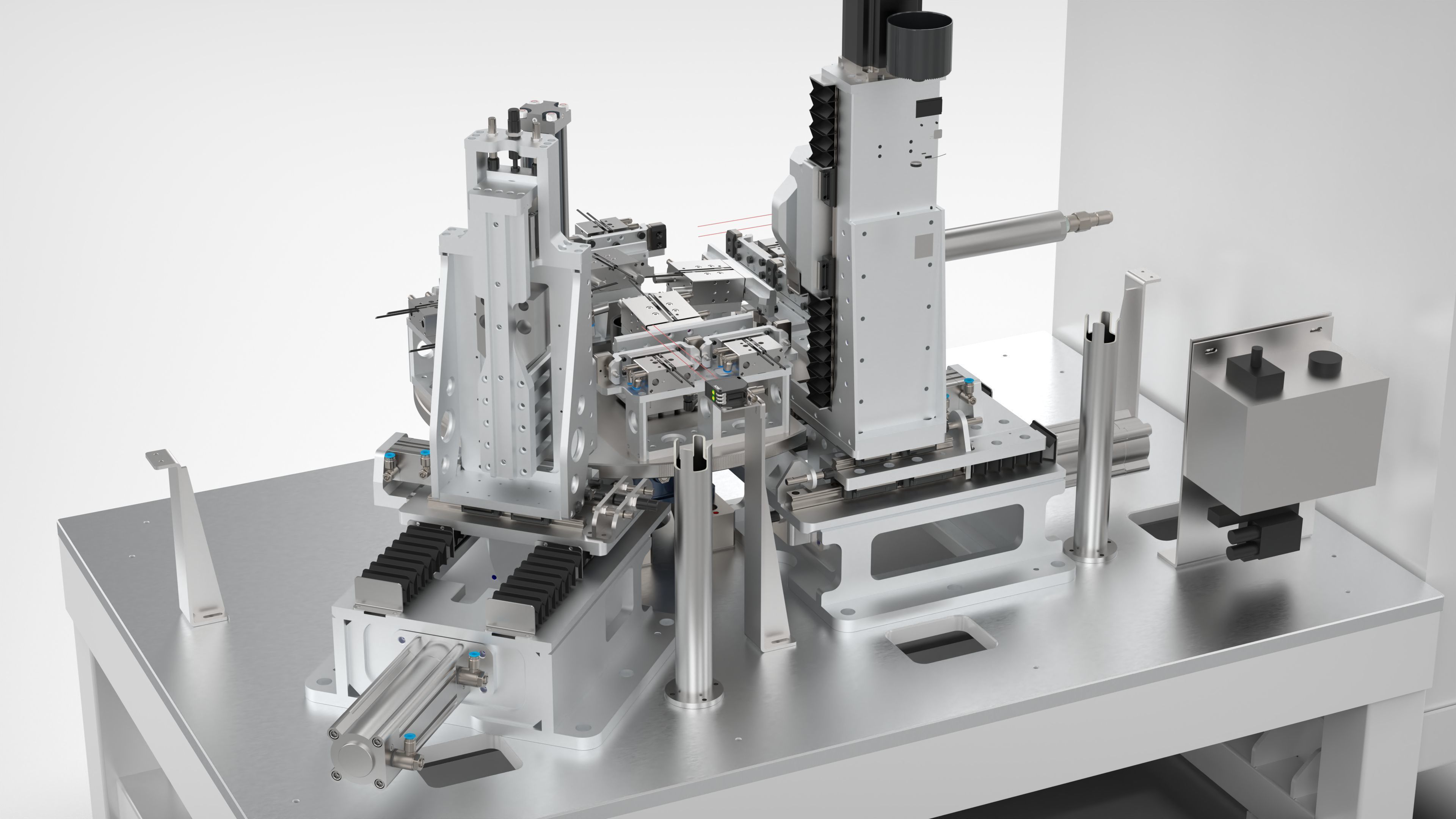

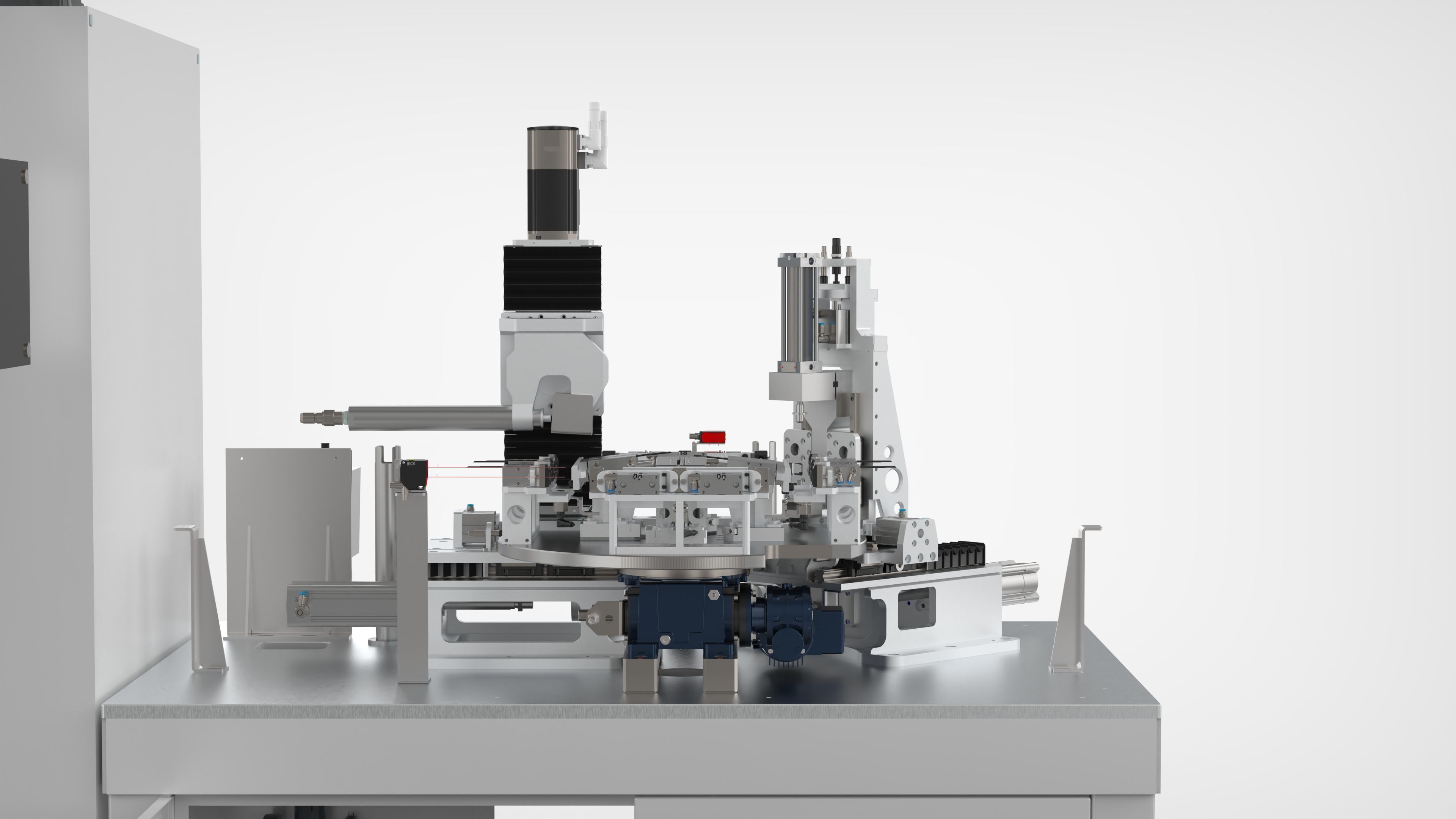

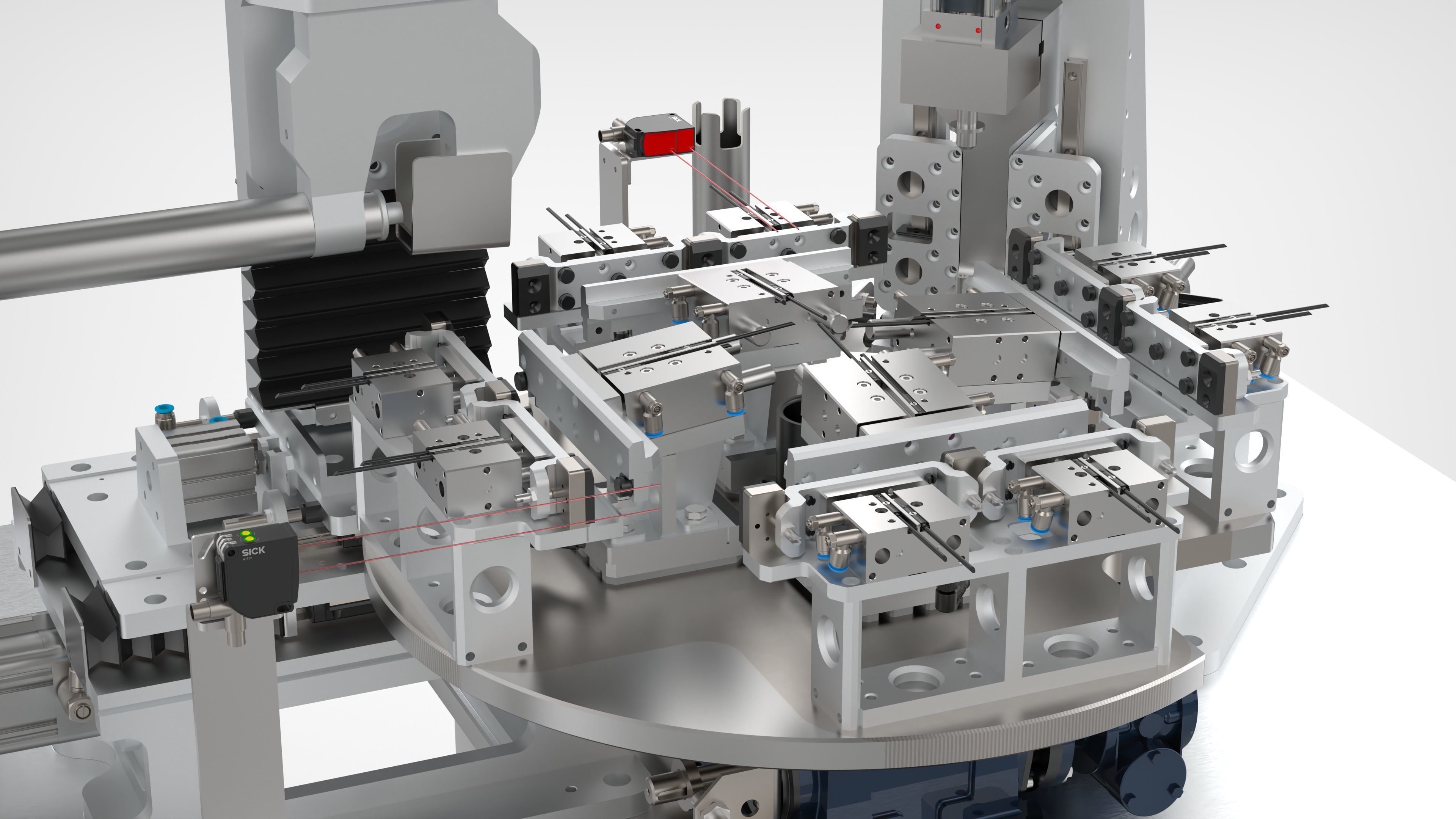

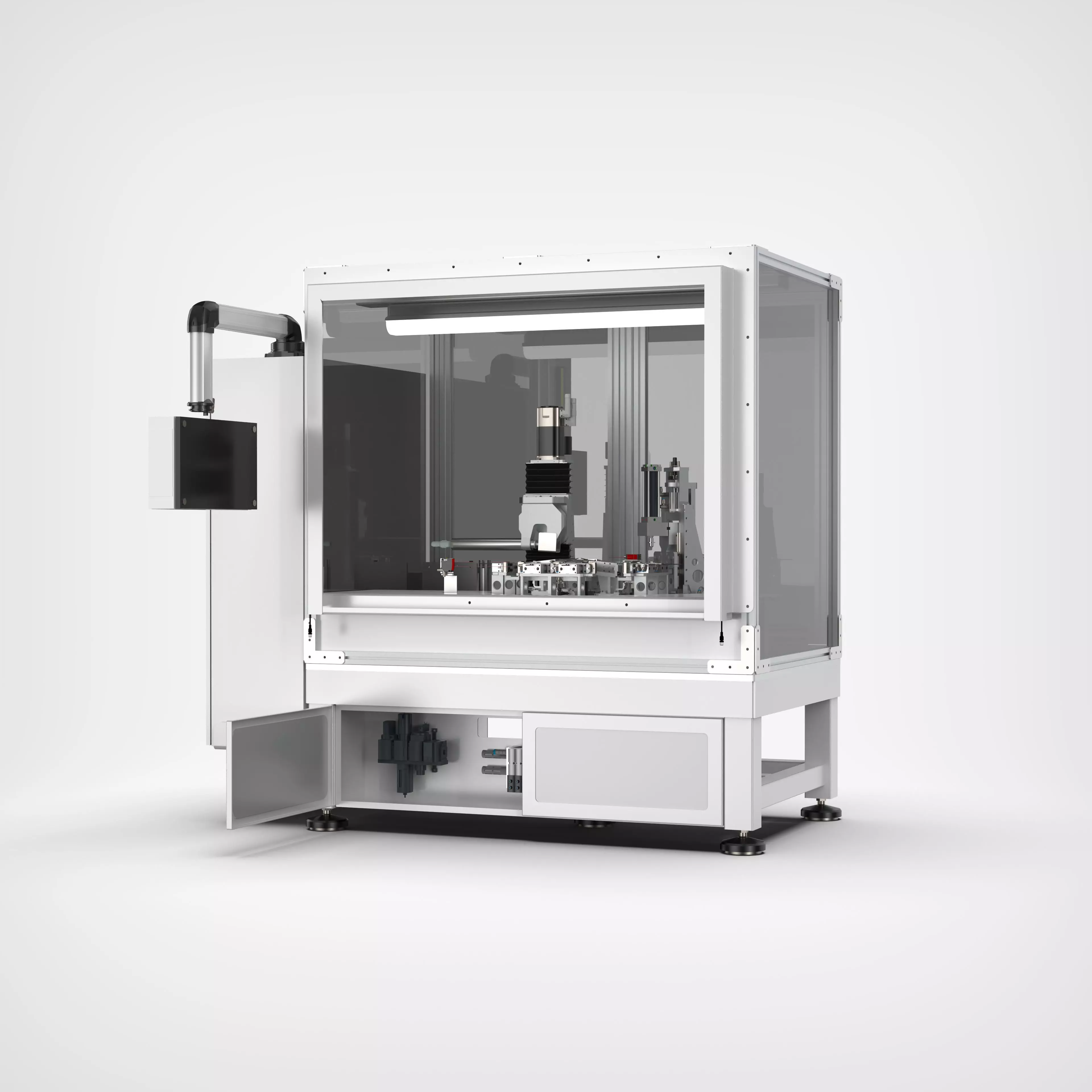

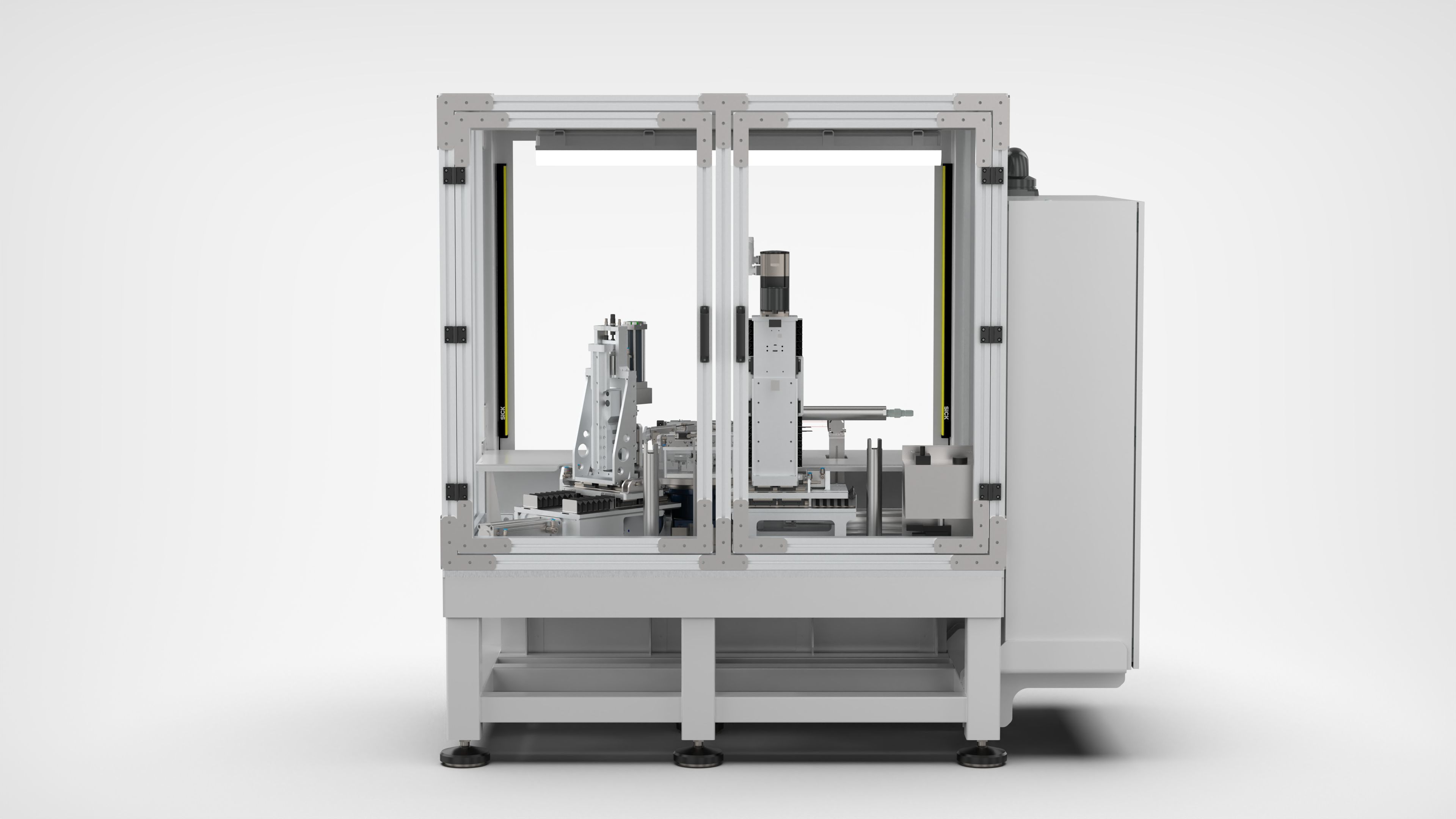

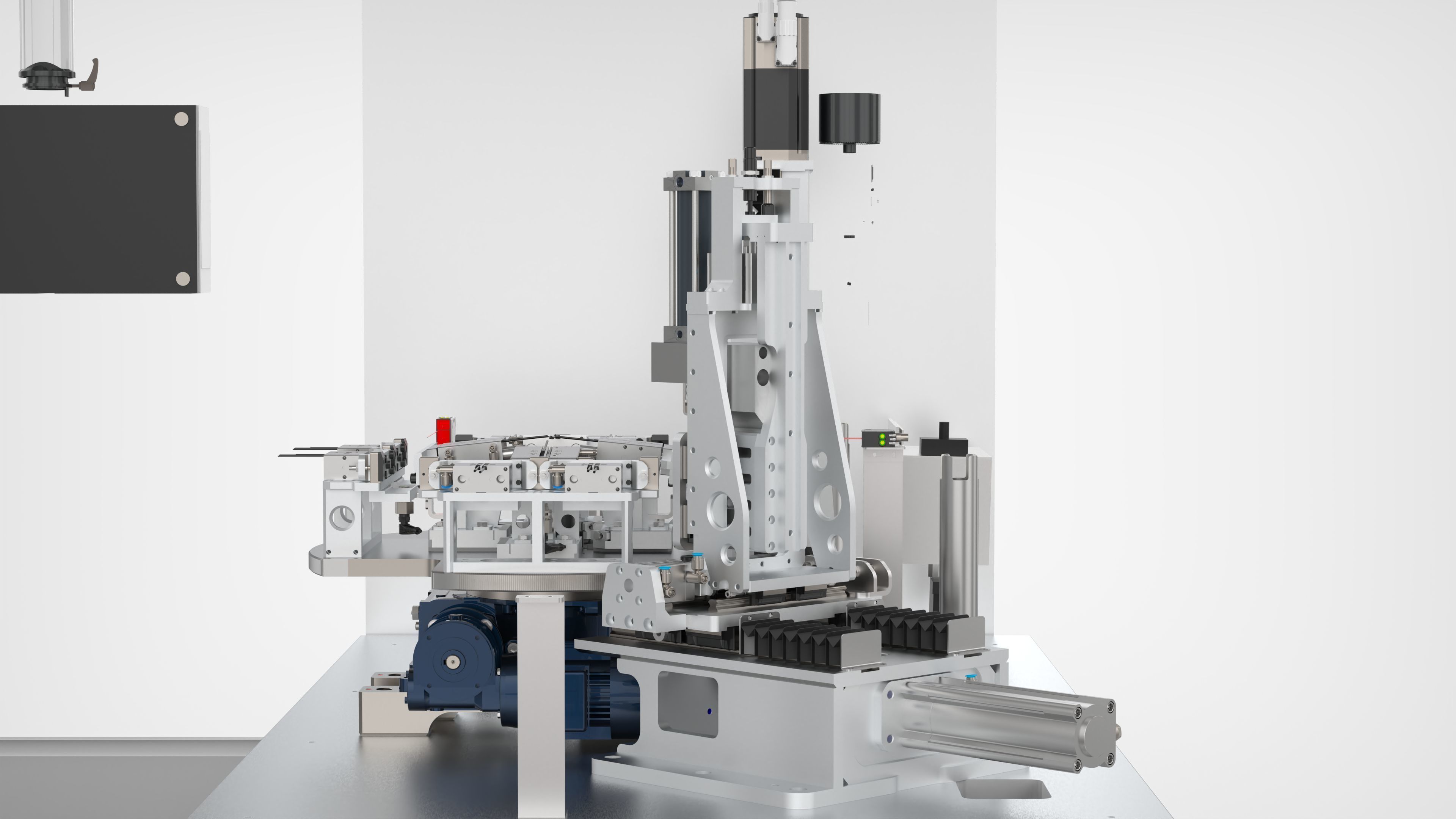

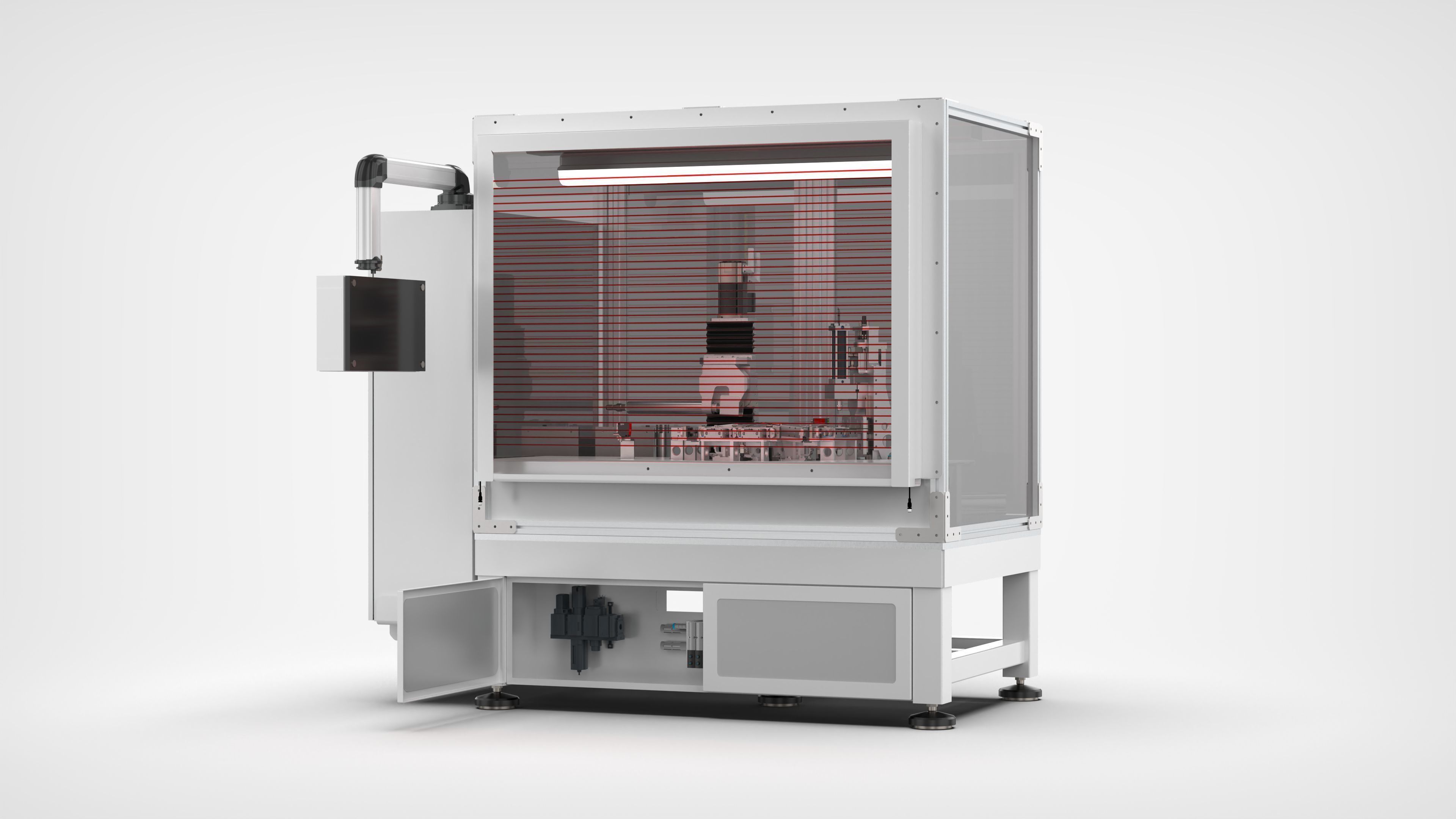

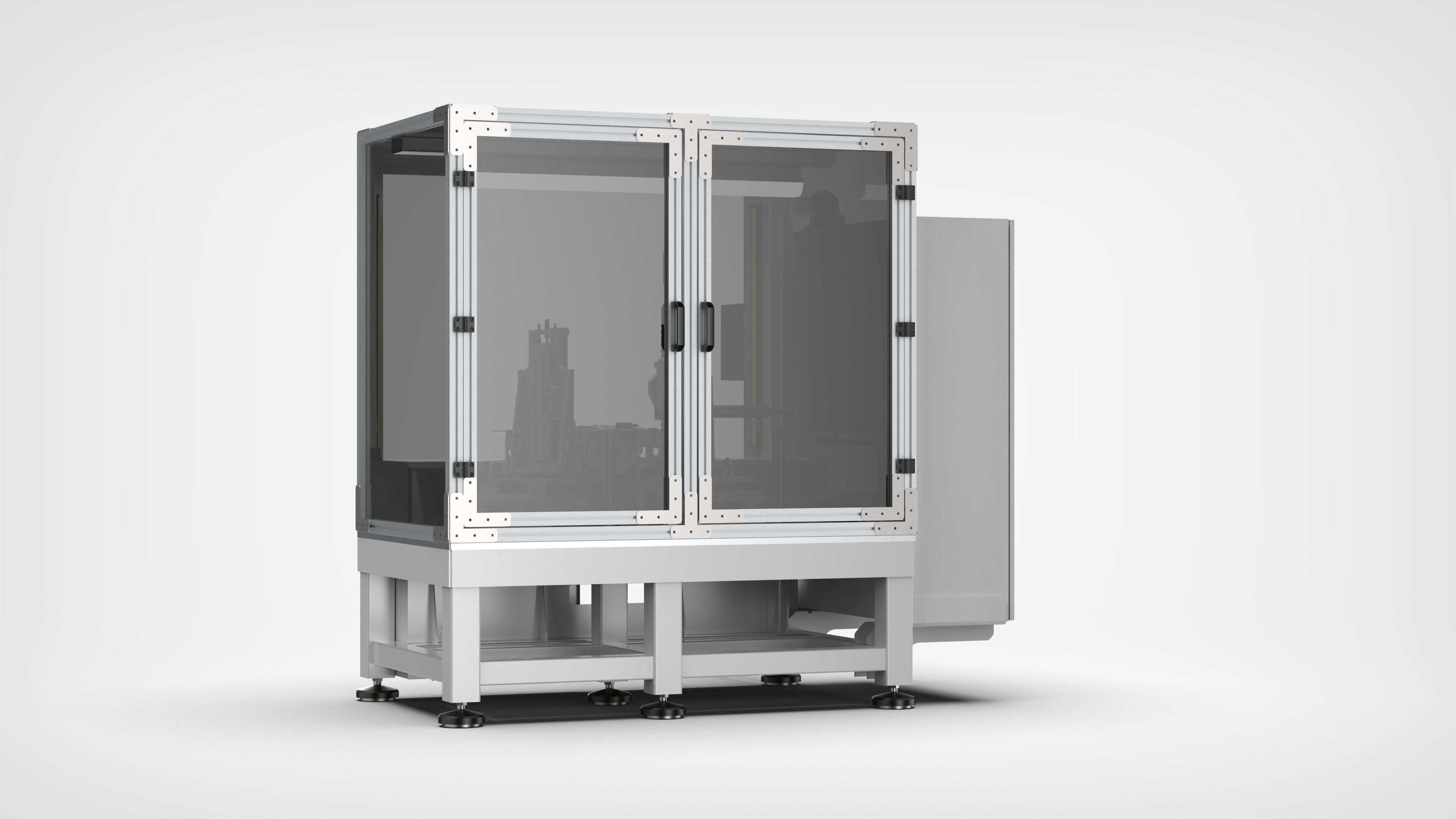

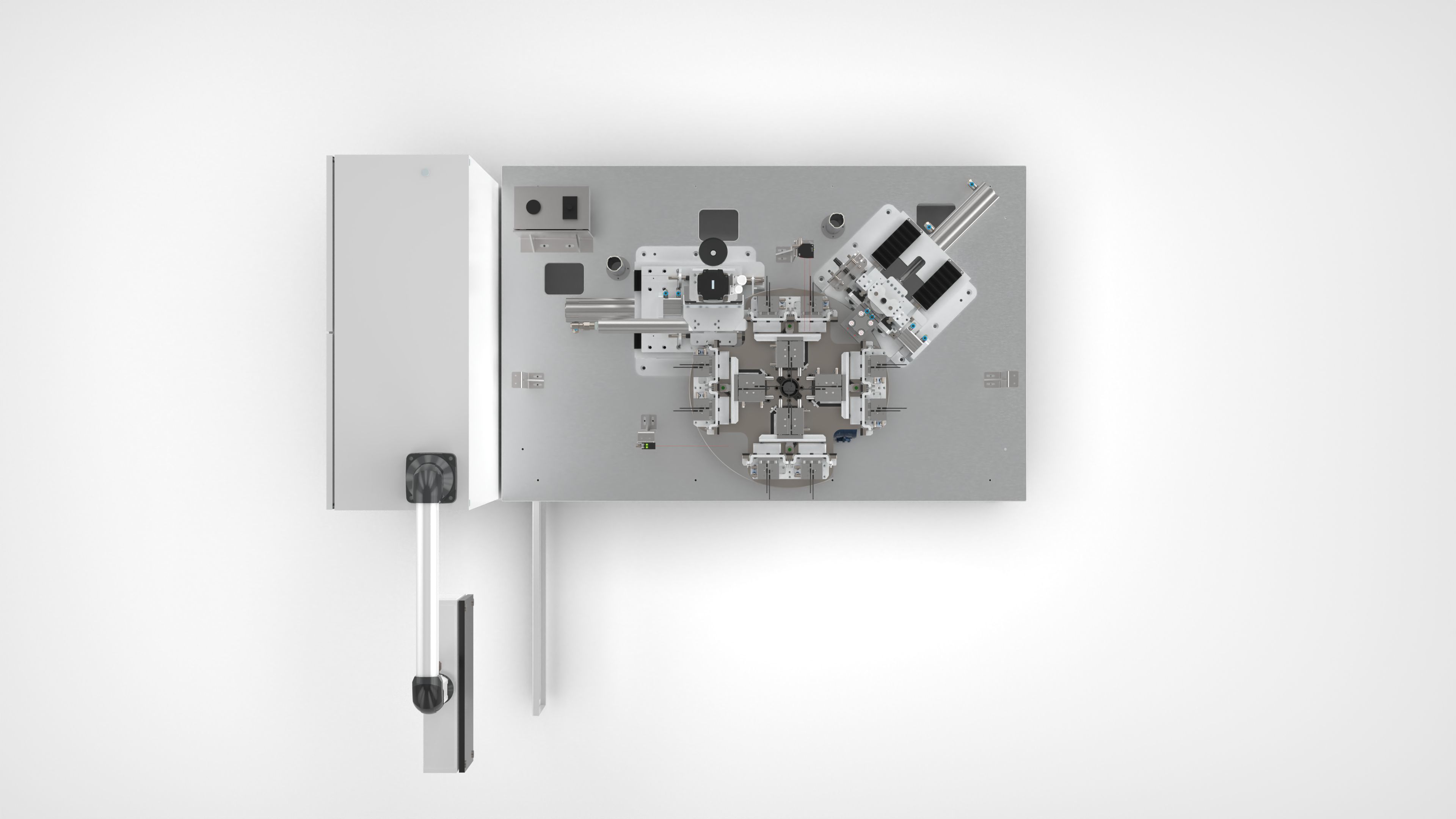

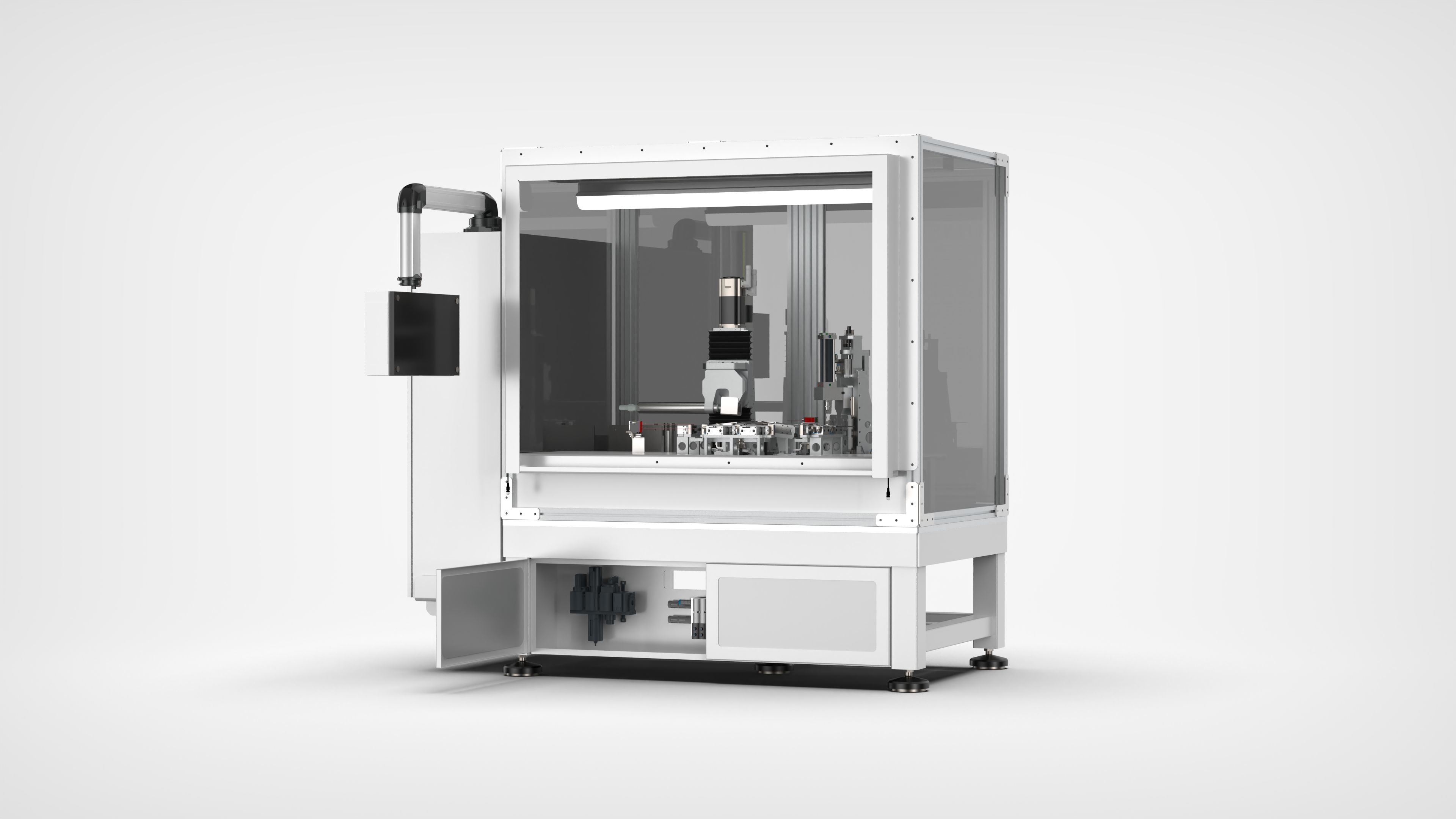

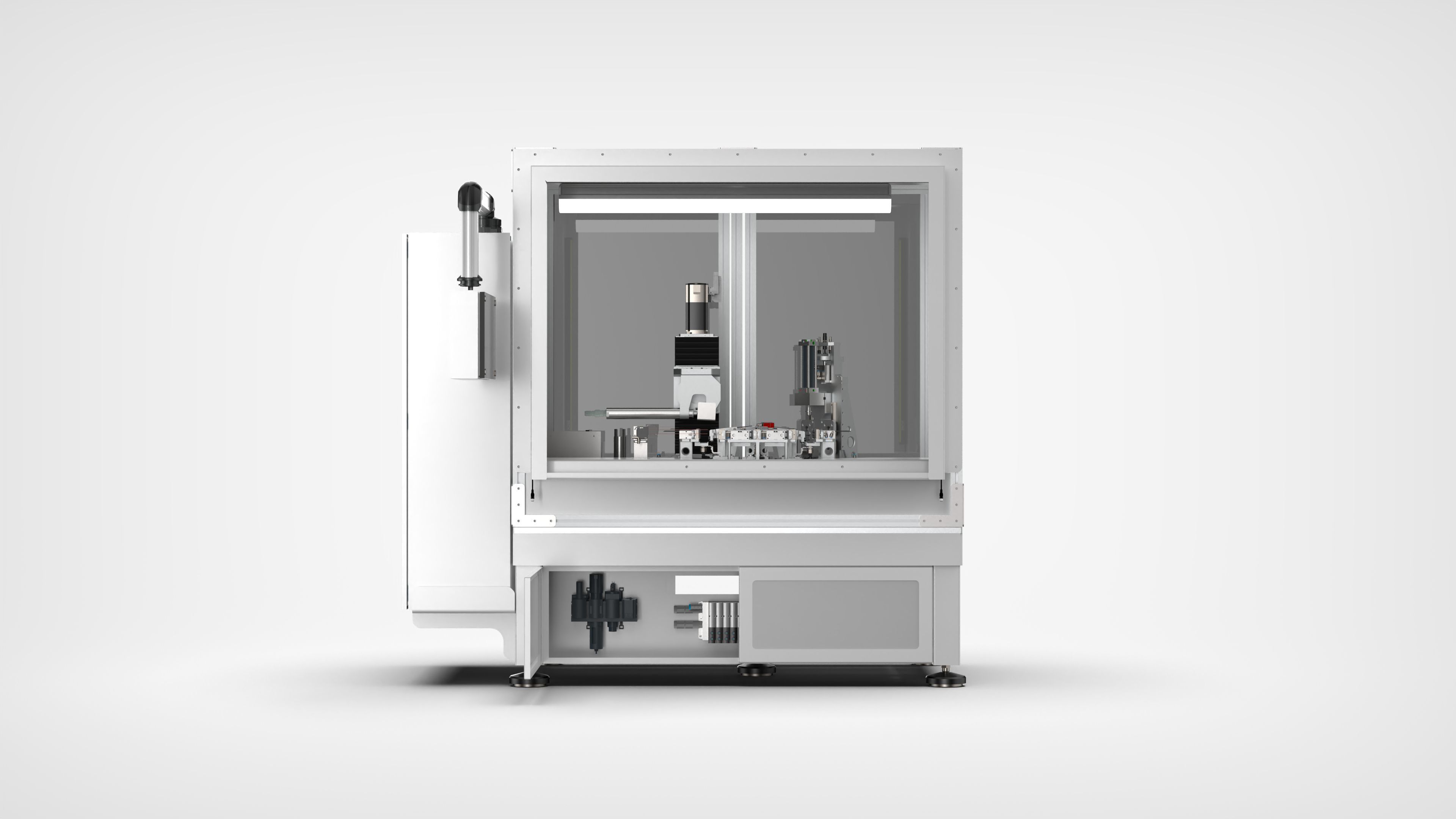

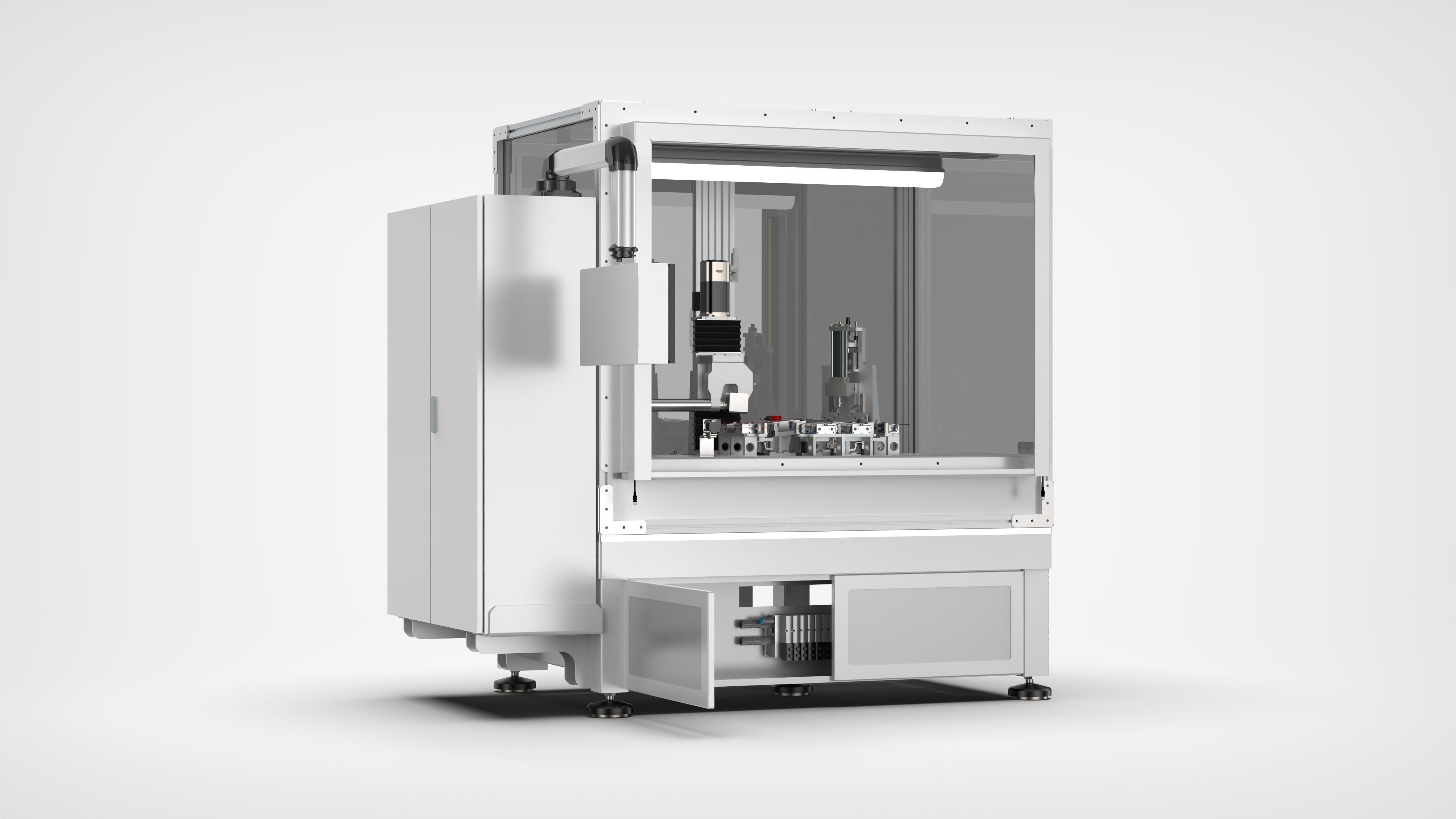

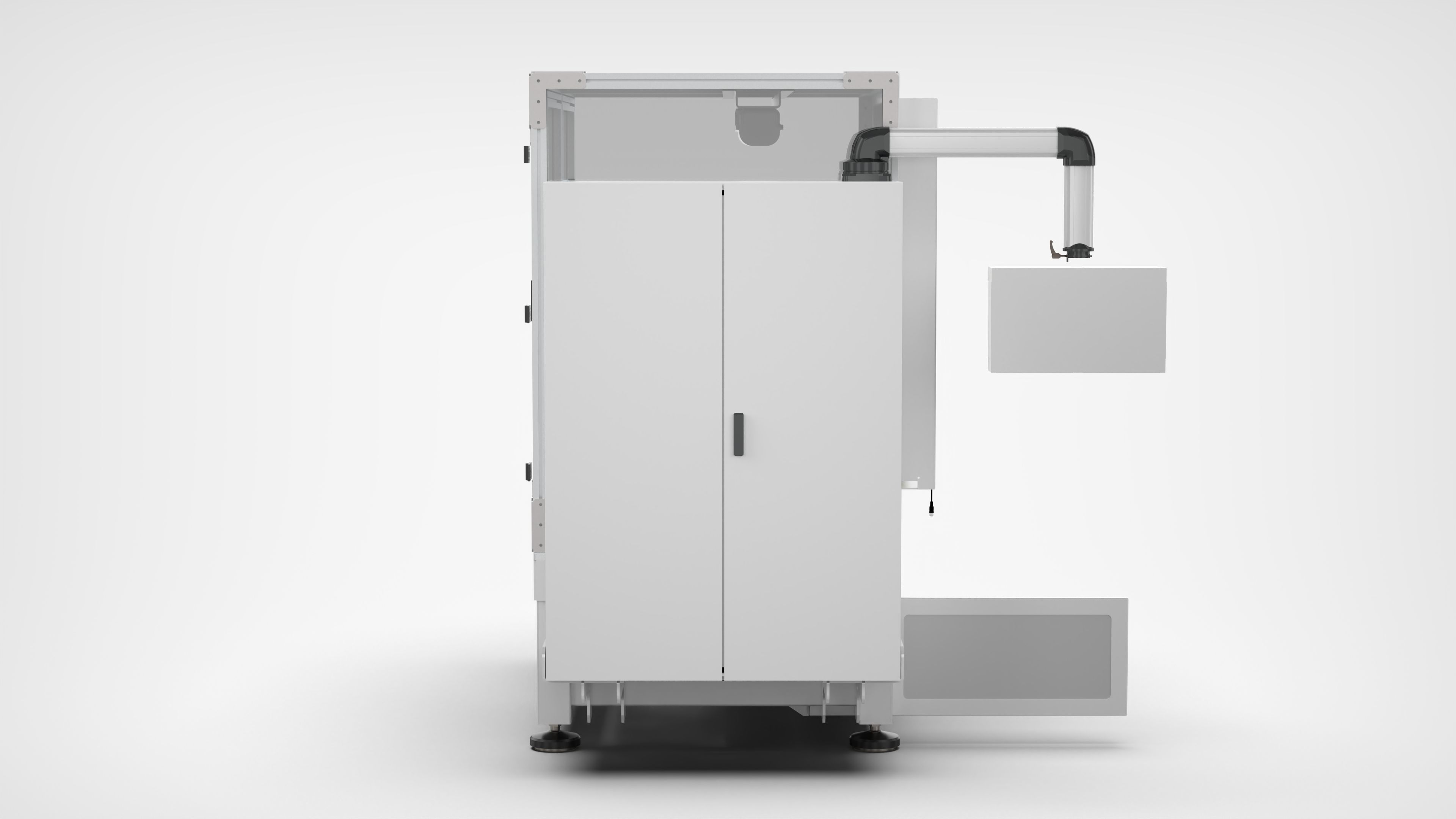

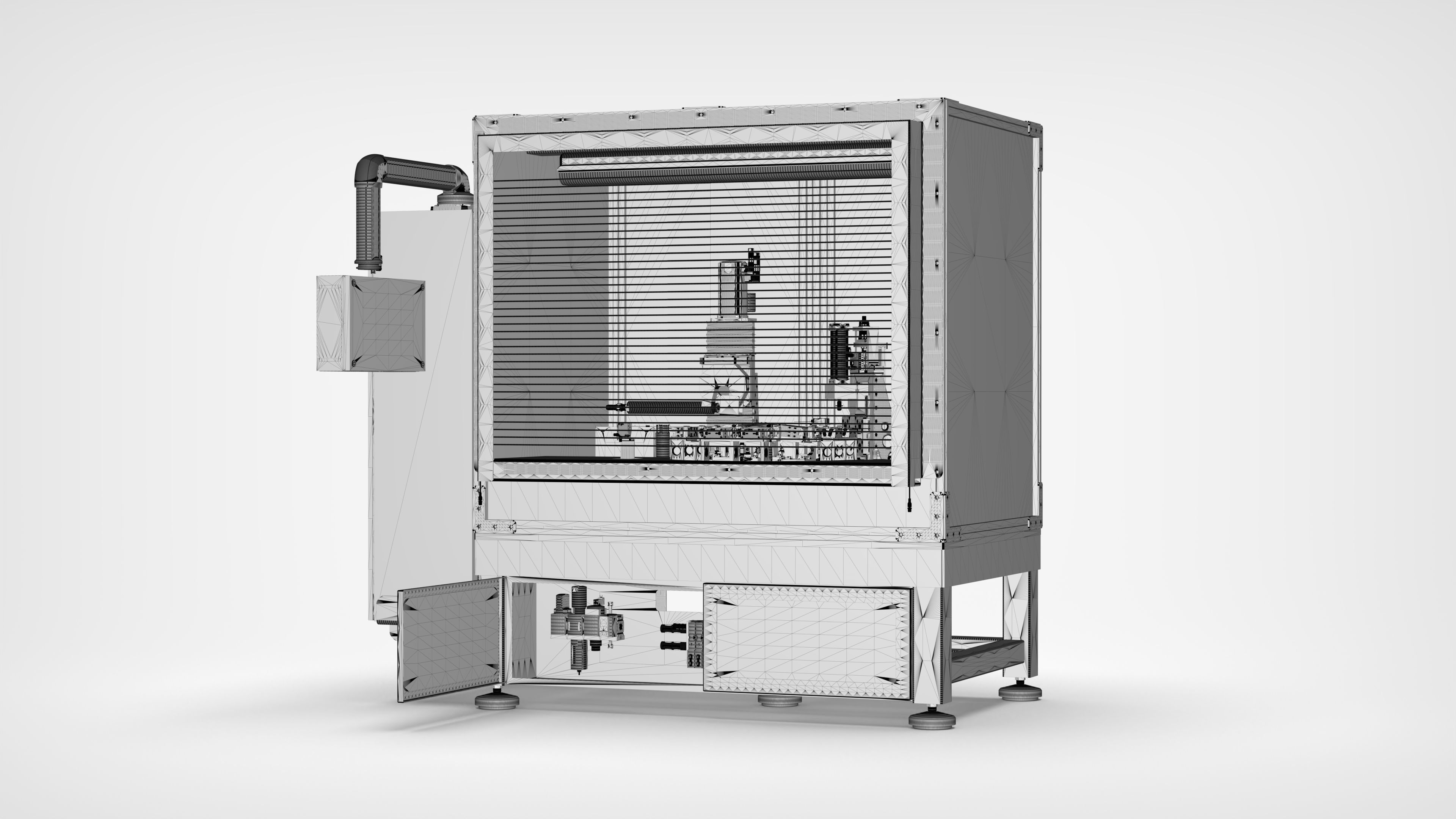

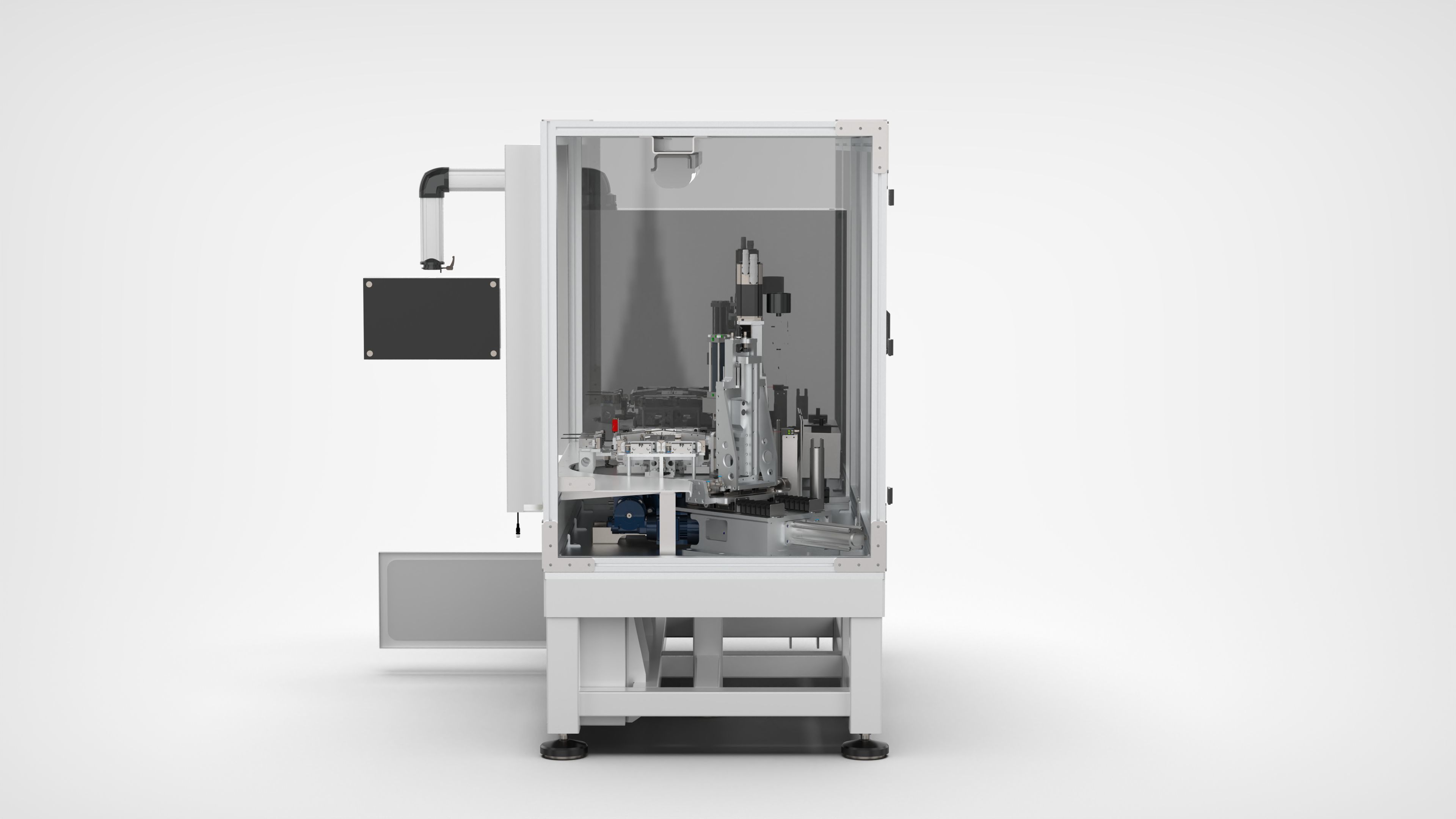

Automatic Resistance Plug-in Machine
Introduction
(Resistance) plug-in machine design model This is a device specially used for resistor plug-in, which is to automatically insert some regular electronic components (also called automatic plug-in machine) into the conductive through holes of the printed circuit board machinery inside.
File Formats
- SolidWorks 2018 | Keyshot 10
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
Geometry
- Polygons: 444,050
- Vertice: 1,332,150
Automatic Resistance Plug-in Machine
Royalty Free License
Automatic Resistance Plug-in Machine
Royalty Free License
3D Modeling
Rendering
Post Production
PBR modeling
3D Model formats
Format limitations
Native
- SolidWorks (.sldprt, .sldasm, .slddrw)33.7 MBVersion: undefinedRenderer: Mental Ray 3.0
Exchange
- OBJ (.obj, .mtl)185 MB
- IGES (.ige, .igs, .iges)186 MB
- Stereolithography (.stl)122 MB
- STEP (.stp)46.8 MB
- KeyShot (.bip, .ksp)322 MB
3D Model details
- Publish date2023-04-26
- Model ID#4461770
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 444,050
- Vertices 1,332,150
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
