Automatic Profile Cutting Punching Fastener Assembly Line 3D model

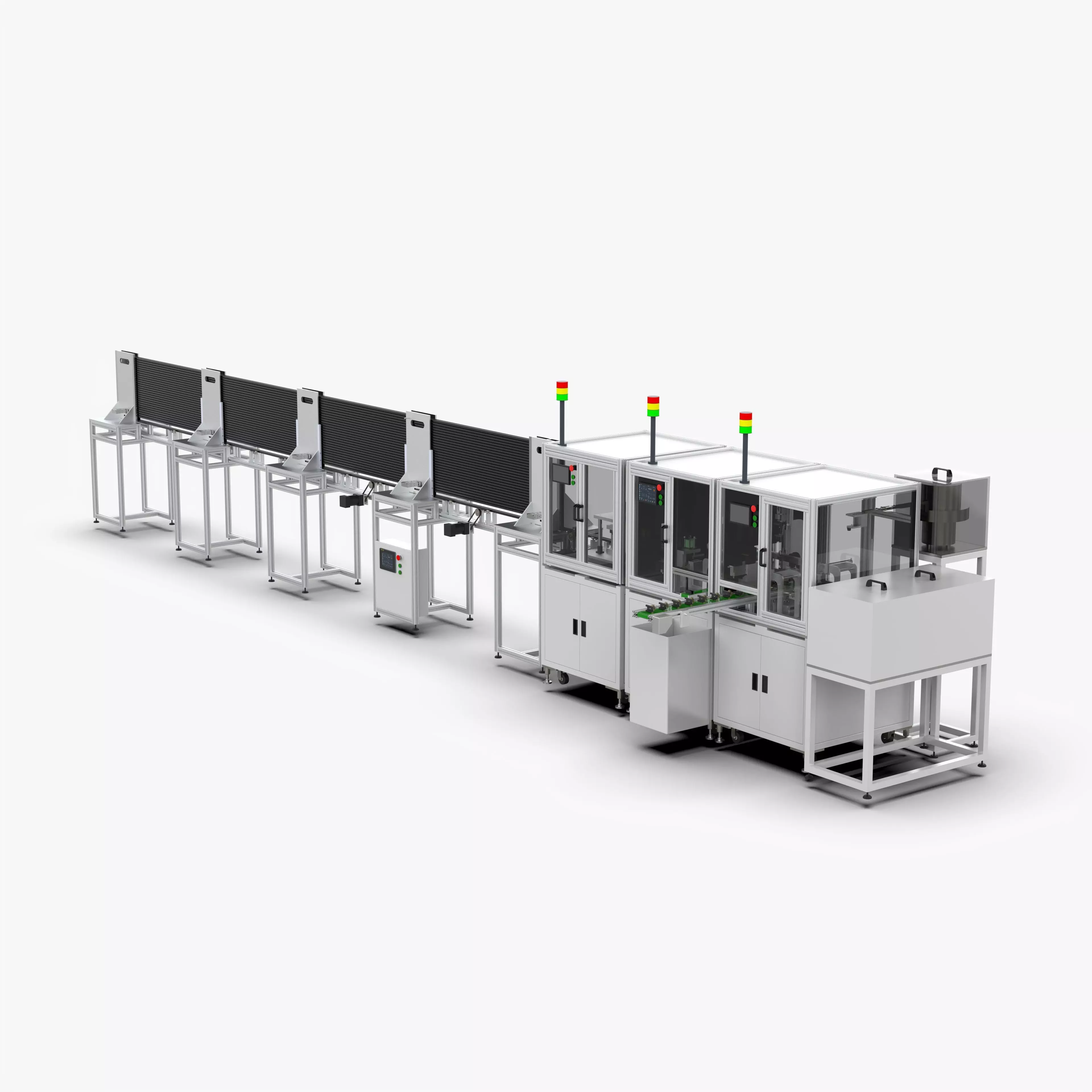

Automatic Profile Cutting Punching Fastener Assembly Line

Introduction

In order to facilitate the operation and maintenance of the machine, the profile cutting punching fastener assembly line equipment (including PPT) specially designed the workbenches of punching equipment, cutting equipment and assembly equipment at a uniform level; punching equipment, cutting equipment and assembly equipment The appearance and size of the three devices are the same, which enhances the neat and beautiful appearance of the production line; the lower cylinder first extends, and the upper cylinder returns, and the product will fall on the feeding partition; the lower cylinder returns, and the bottom product will fall on the subsequent on the moving wheel, and then the motor drives the product to feed.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 1,587,809
• Vertice: 4,763,427
