DESCRIPTION

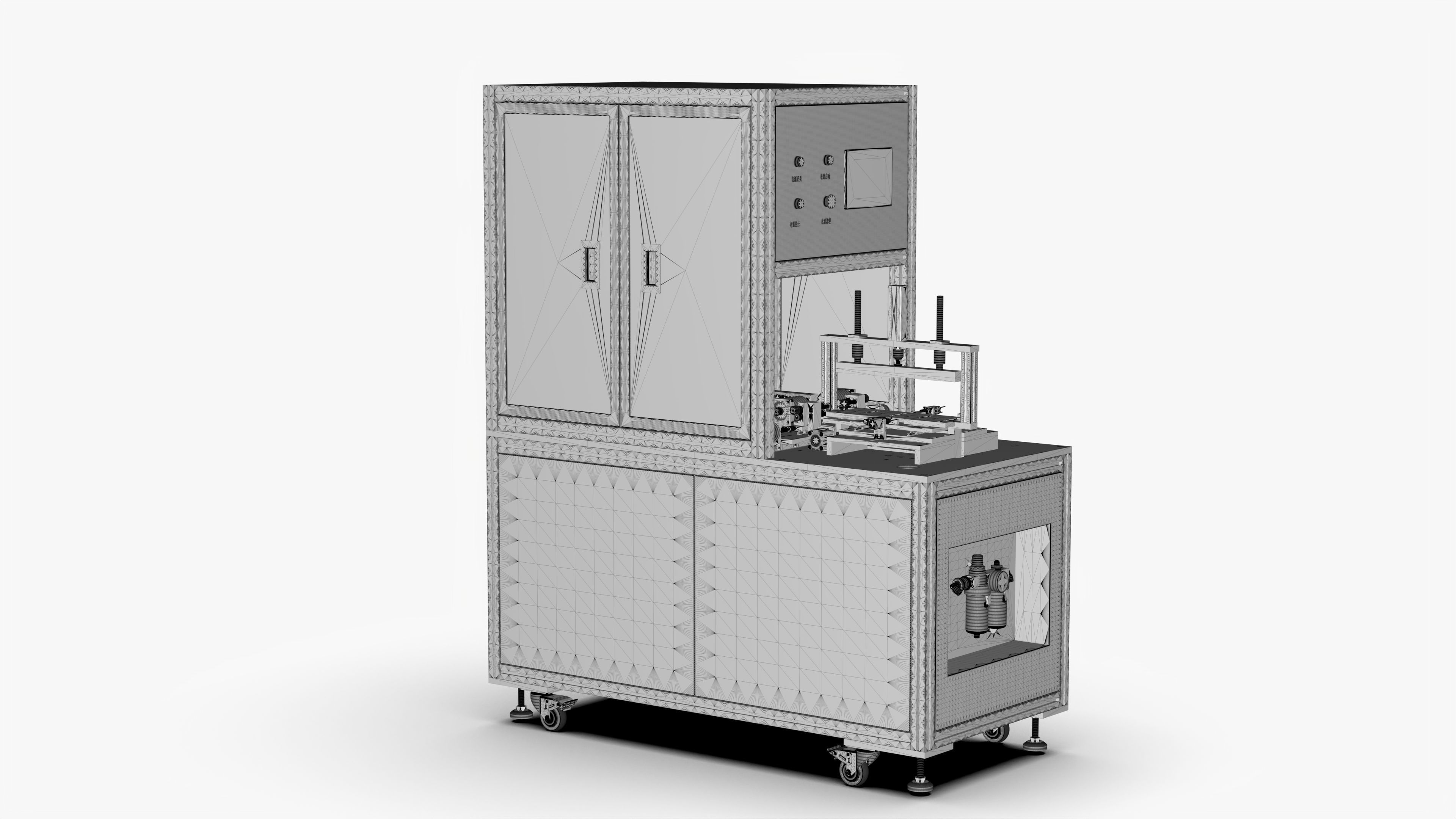

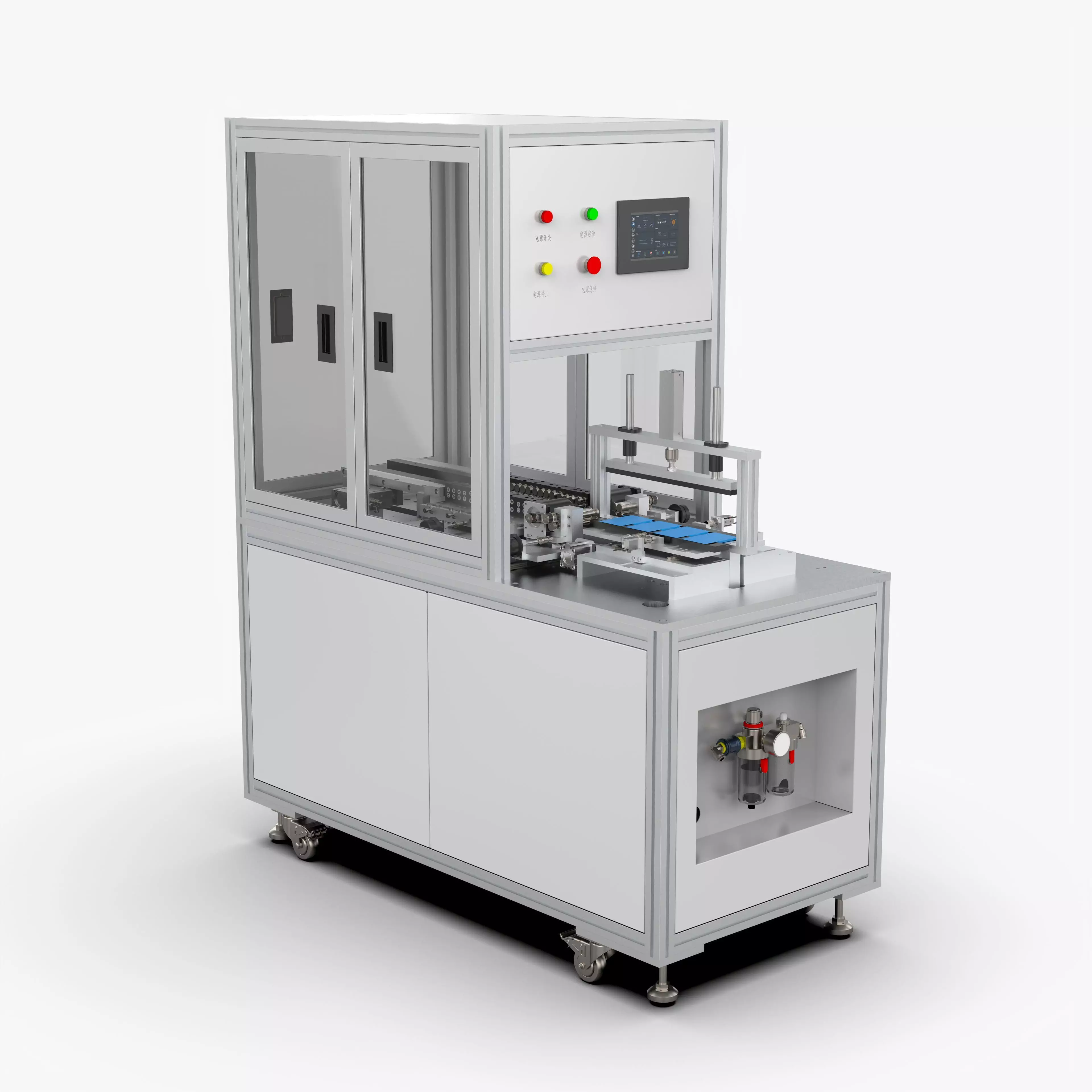

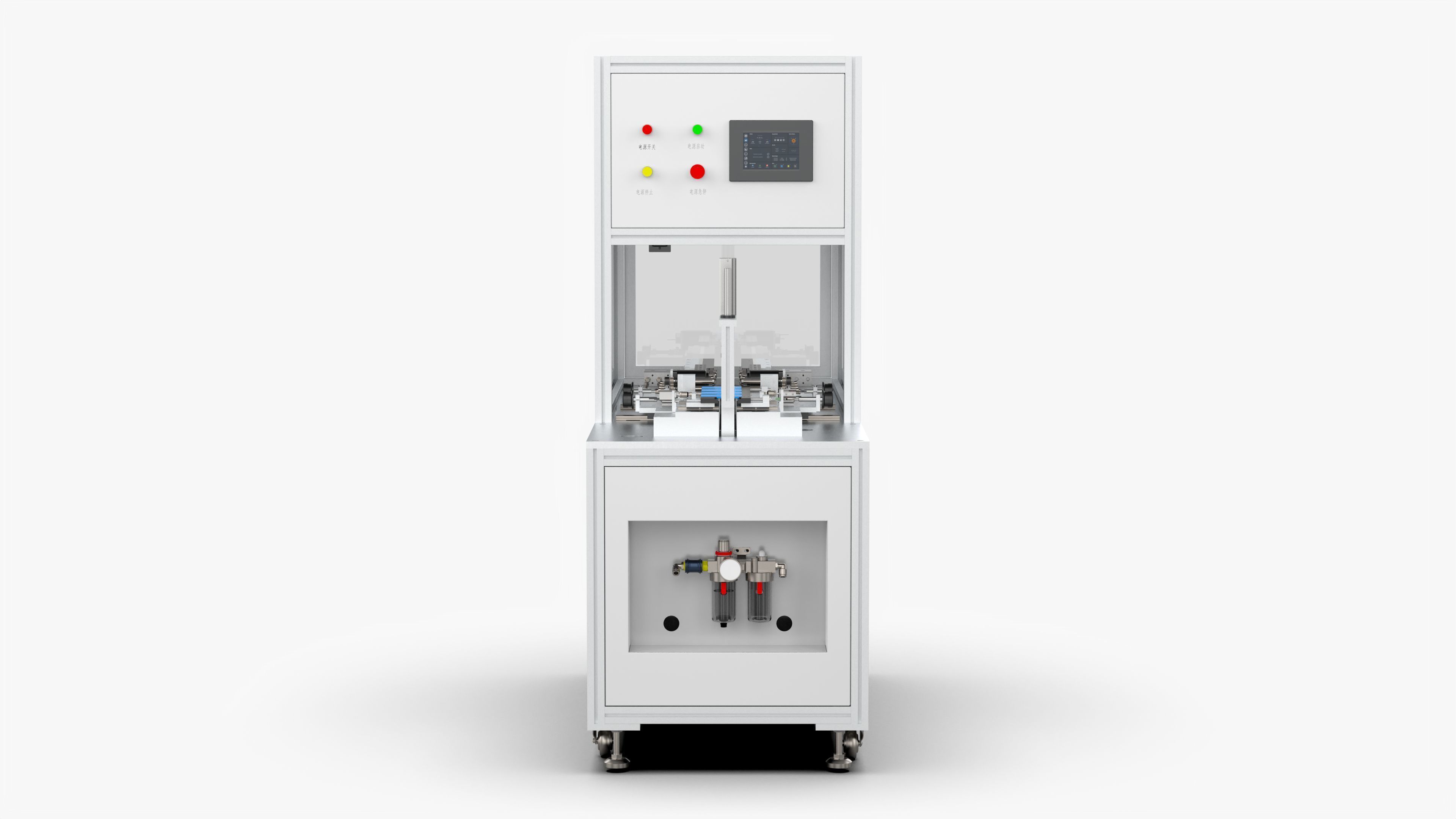

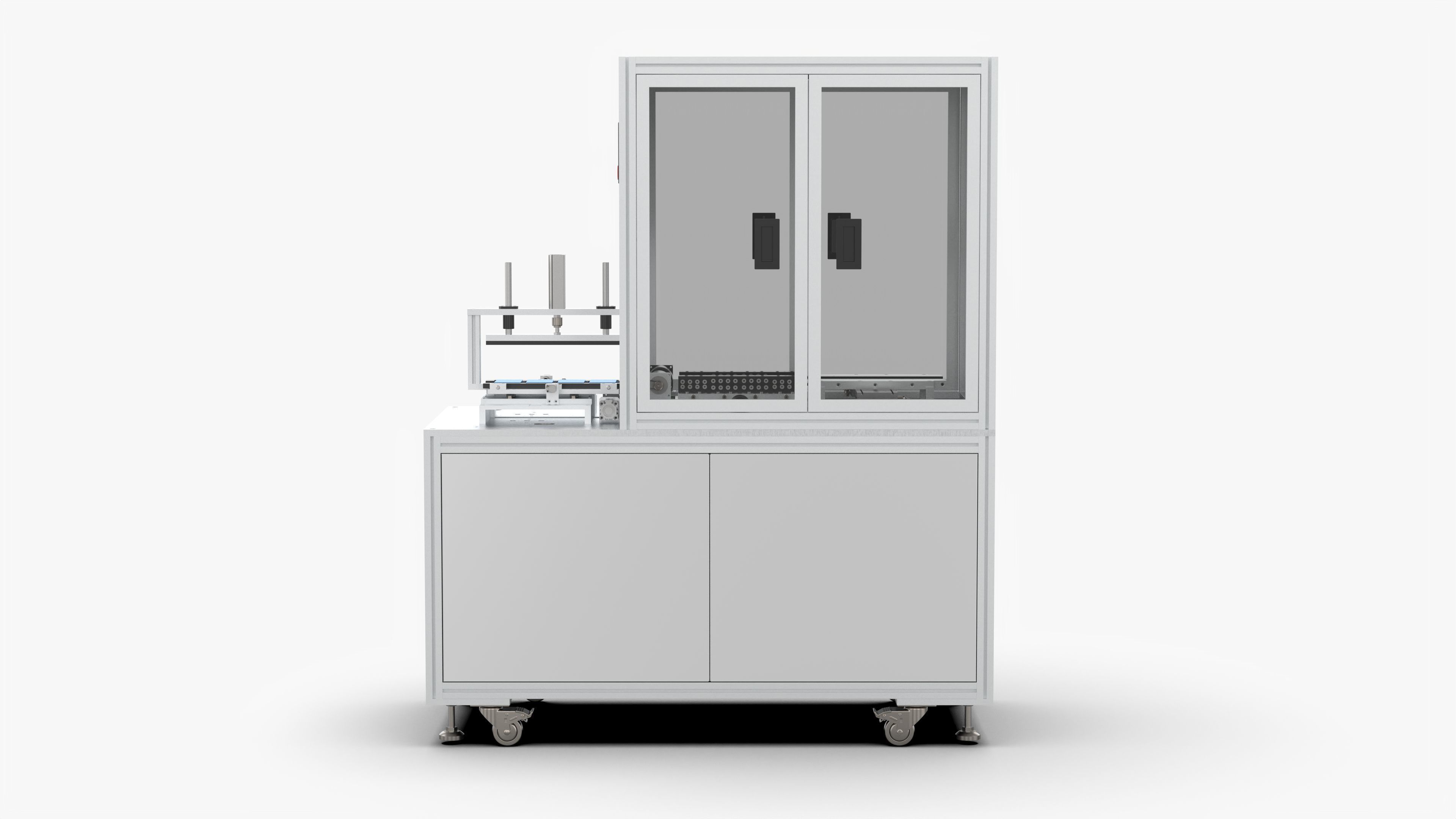

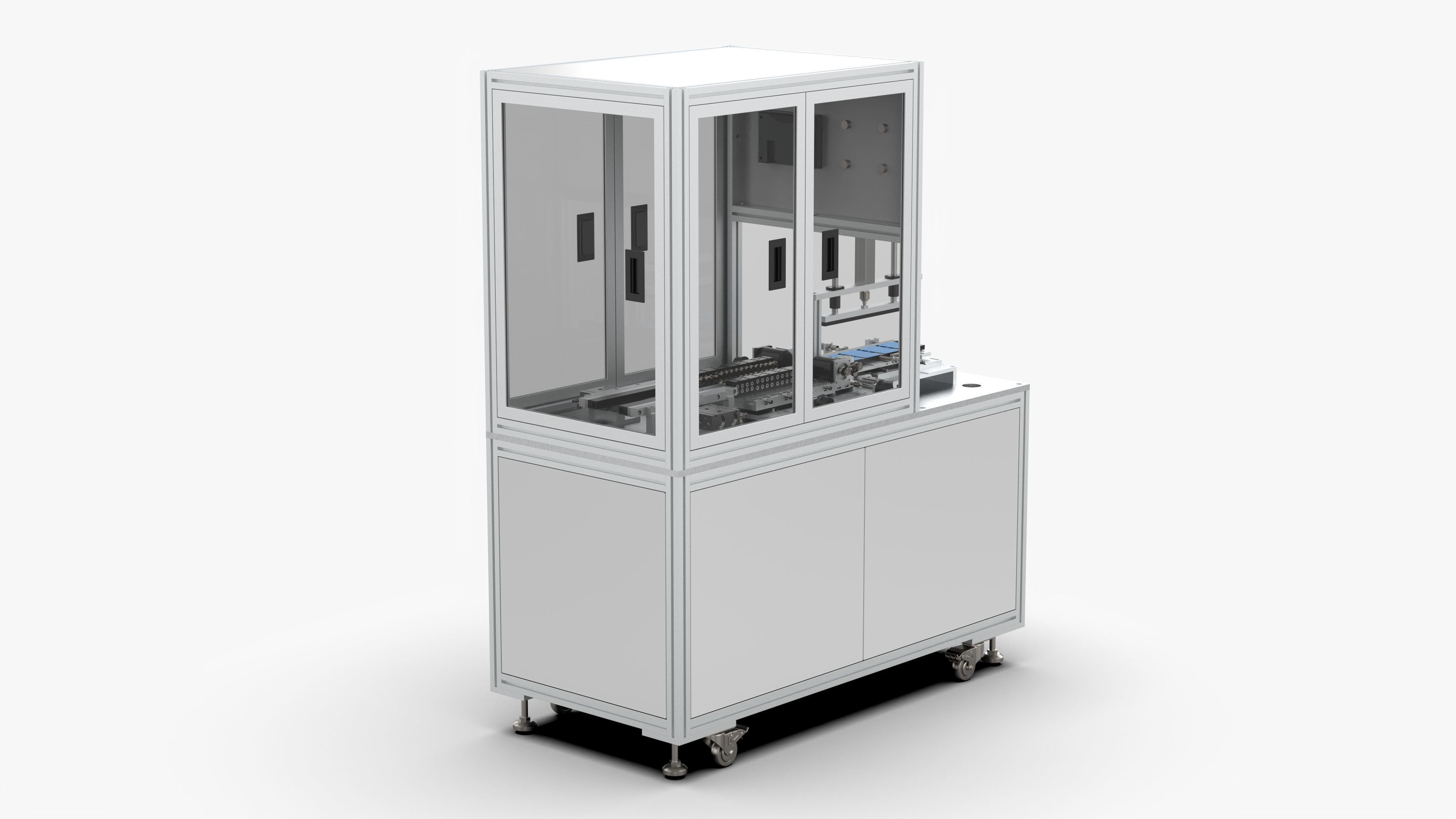

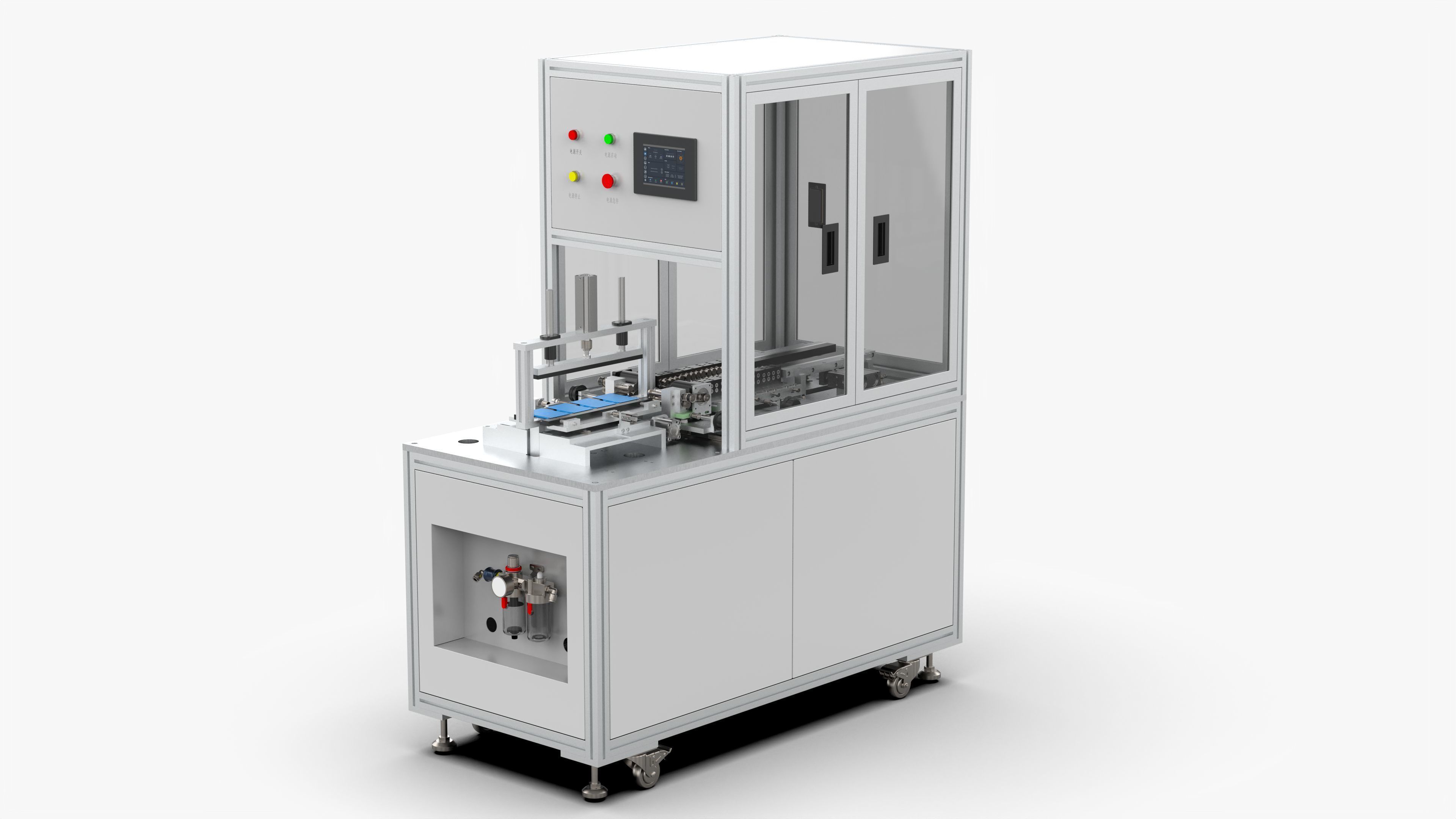

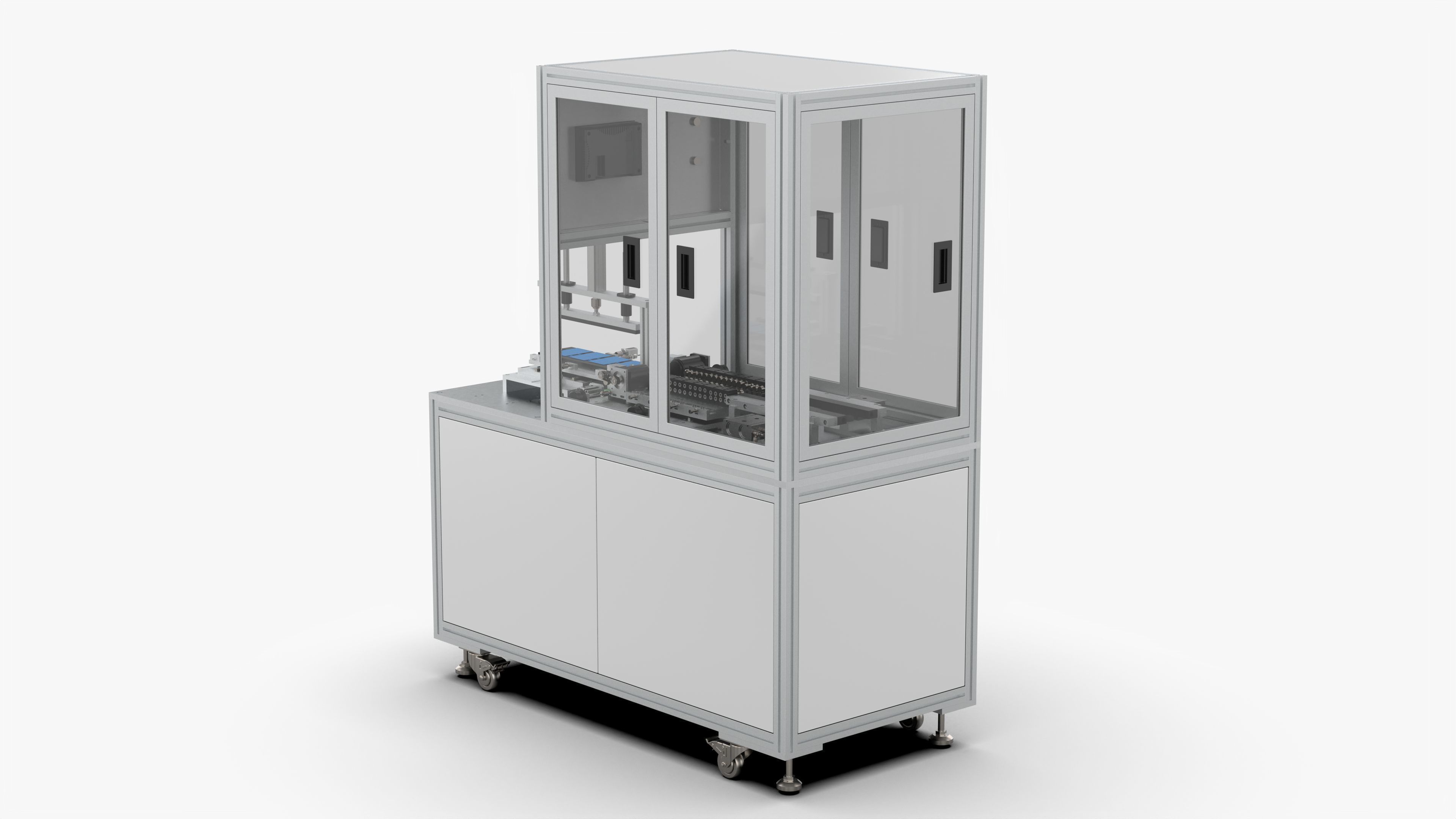

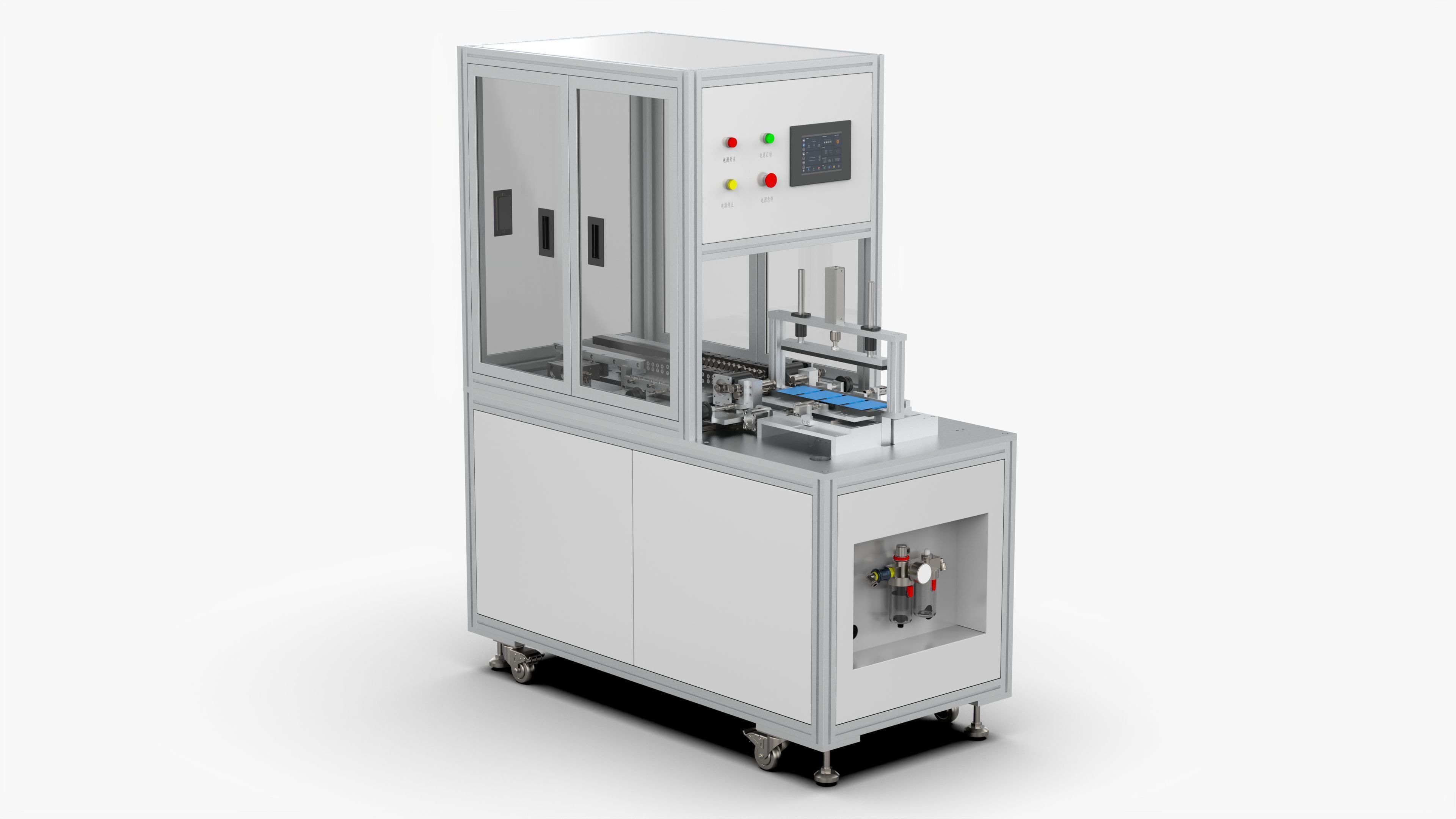

Automatic Polymer Battery Cutting Folding and Ironing Machine

Introduction

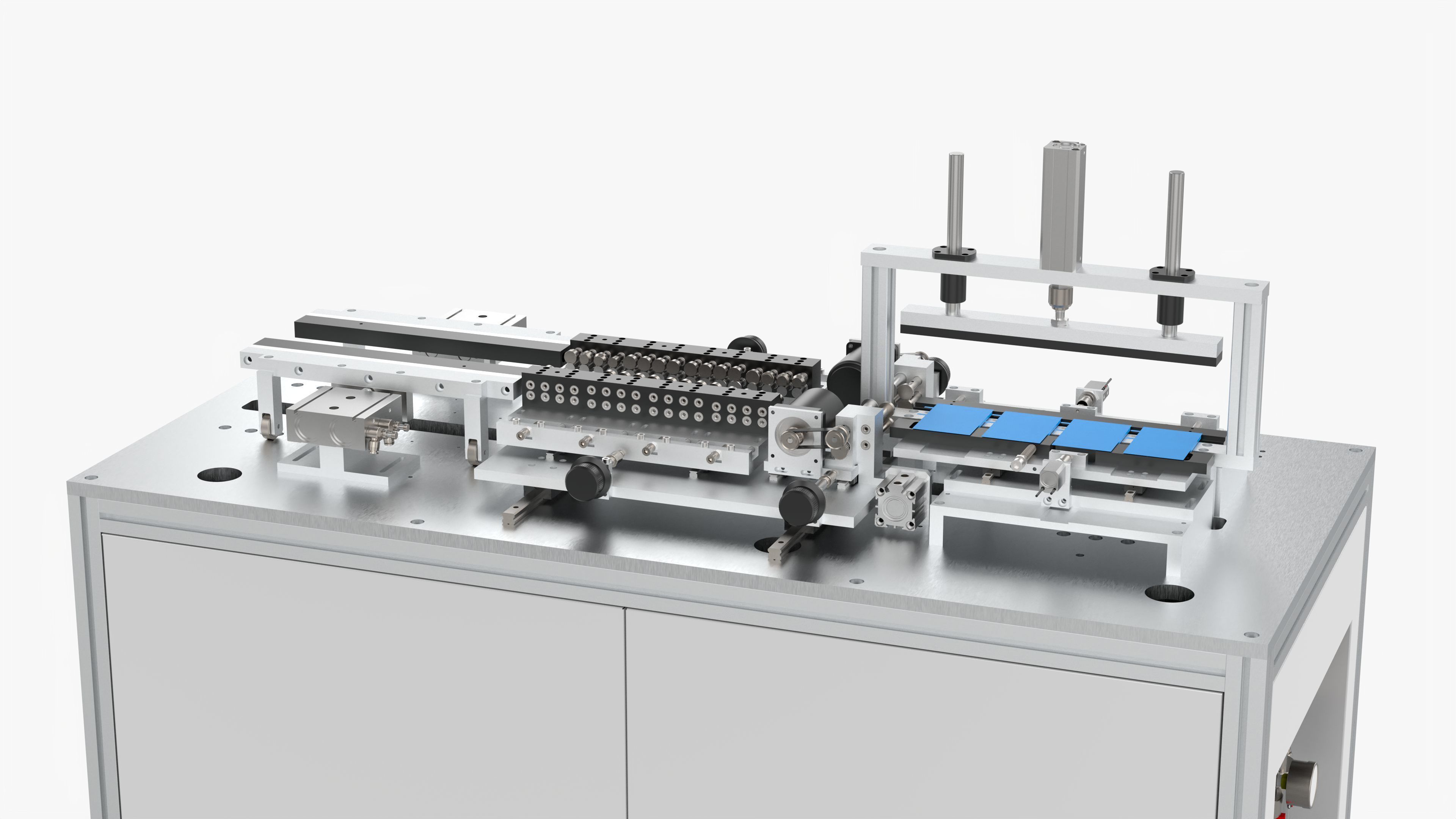

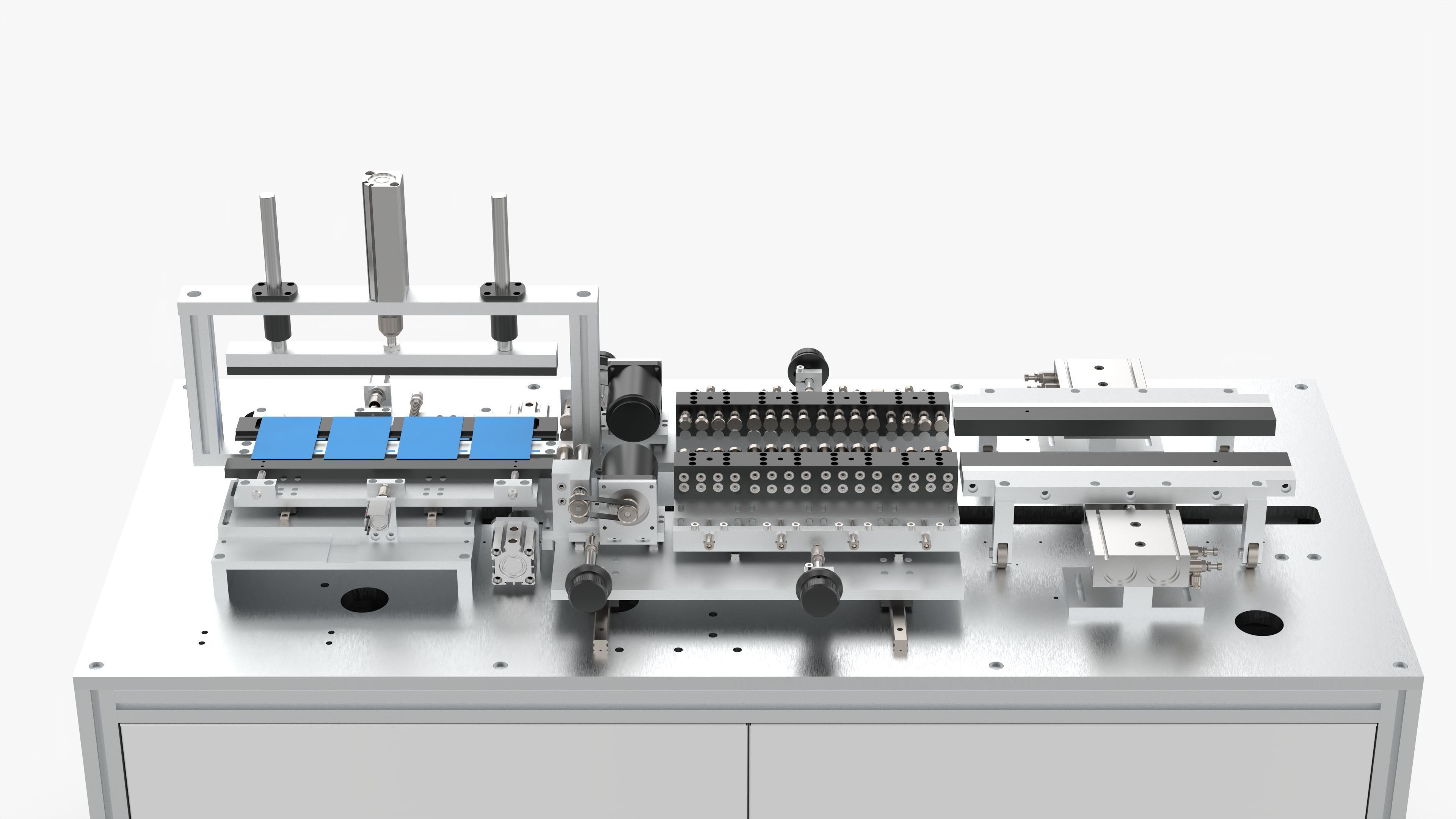

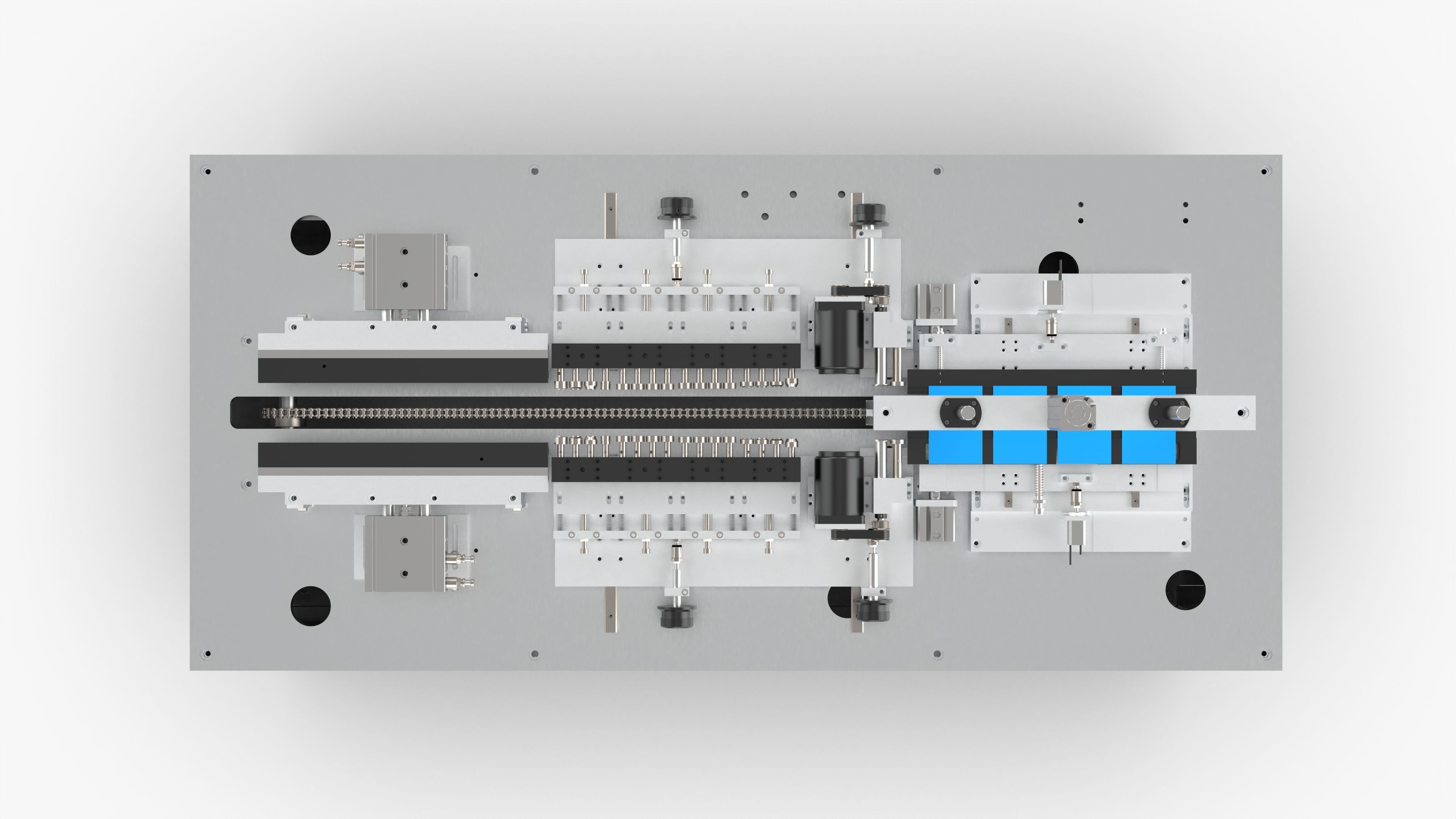

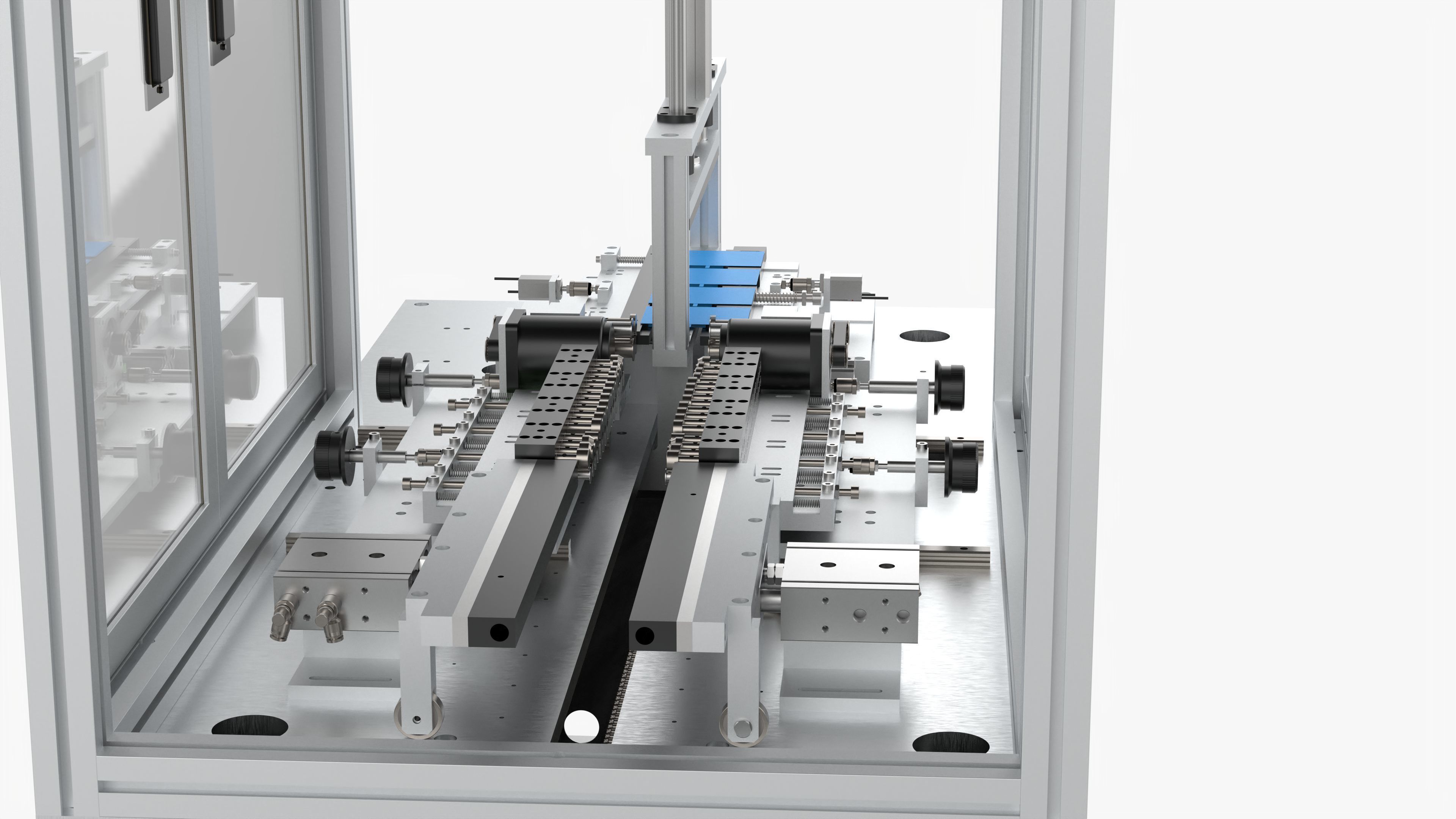

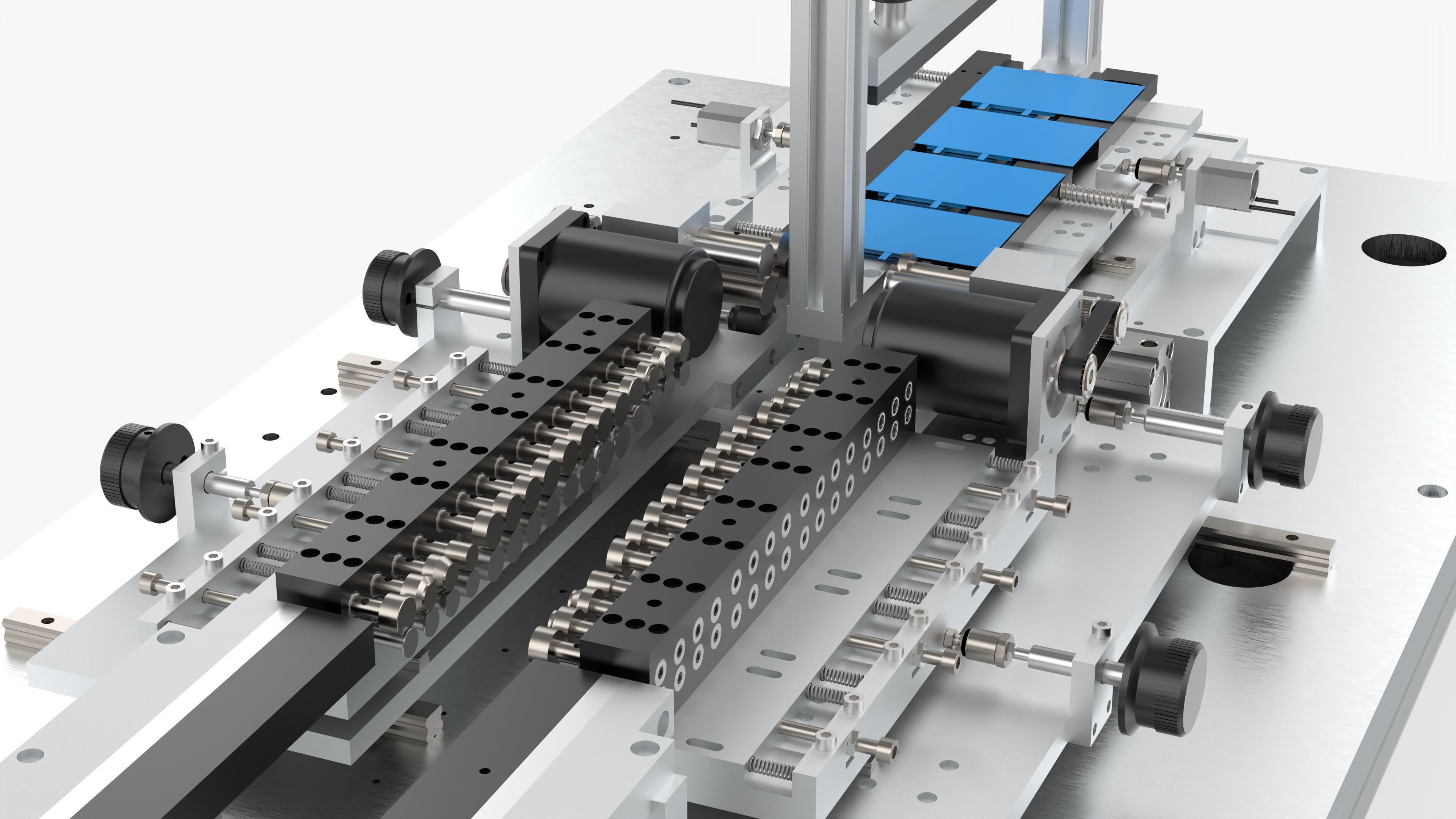

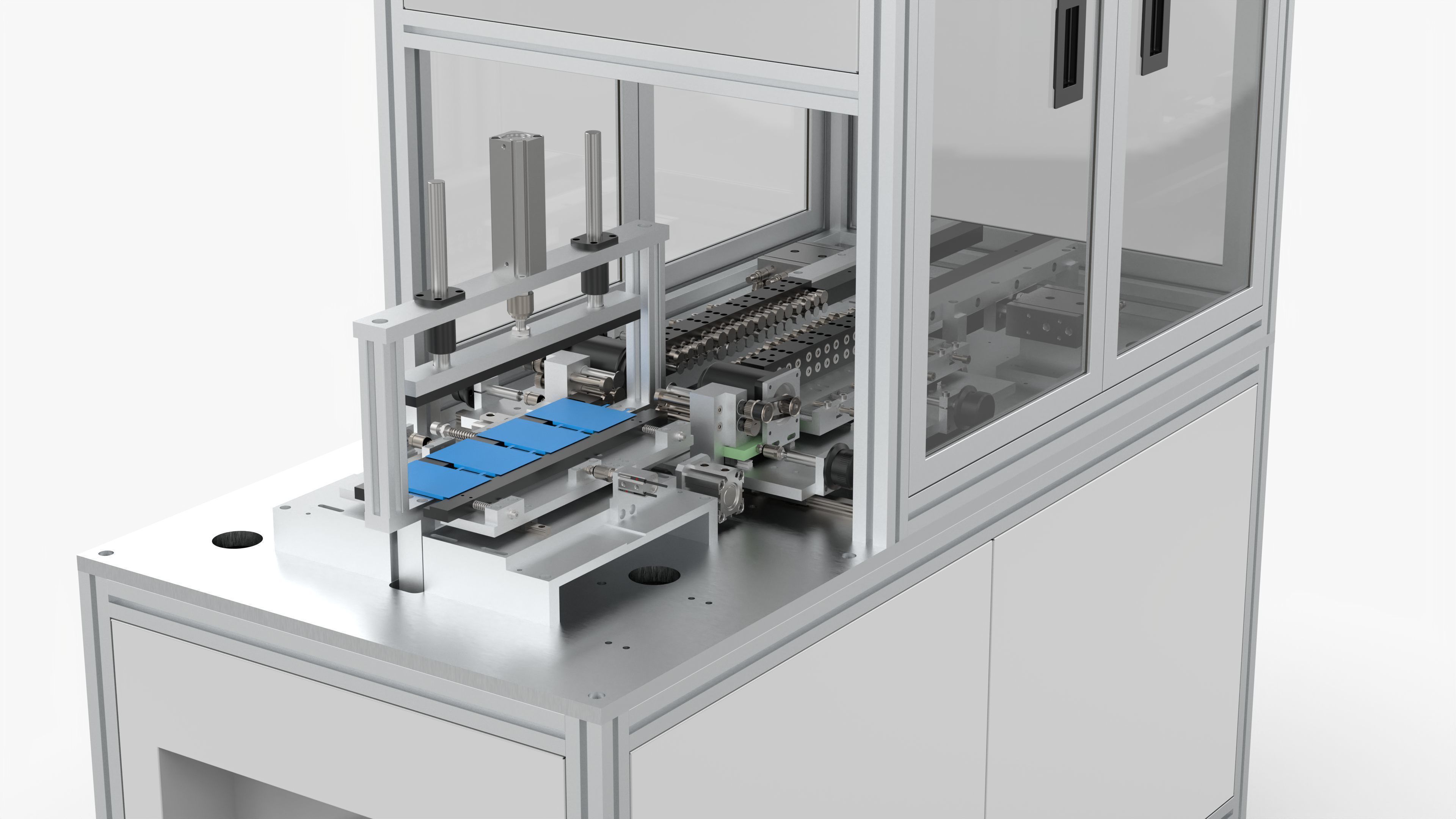

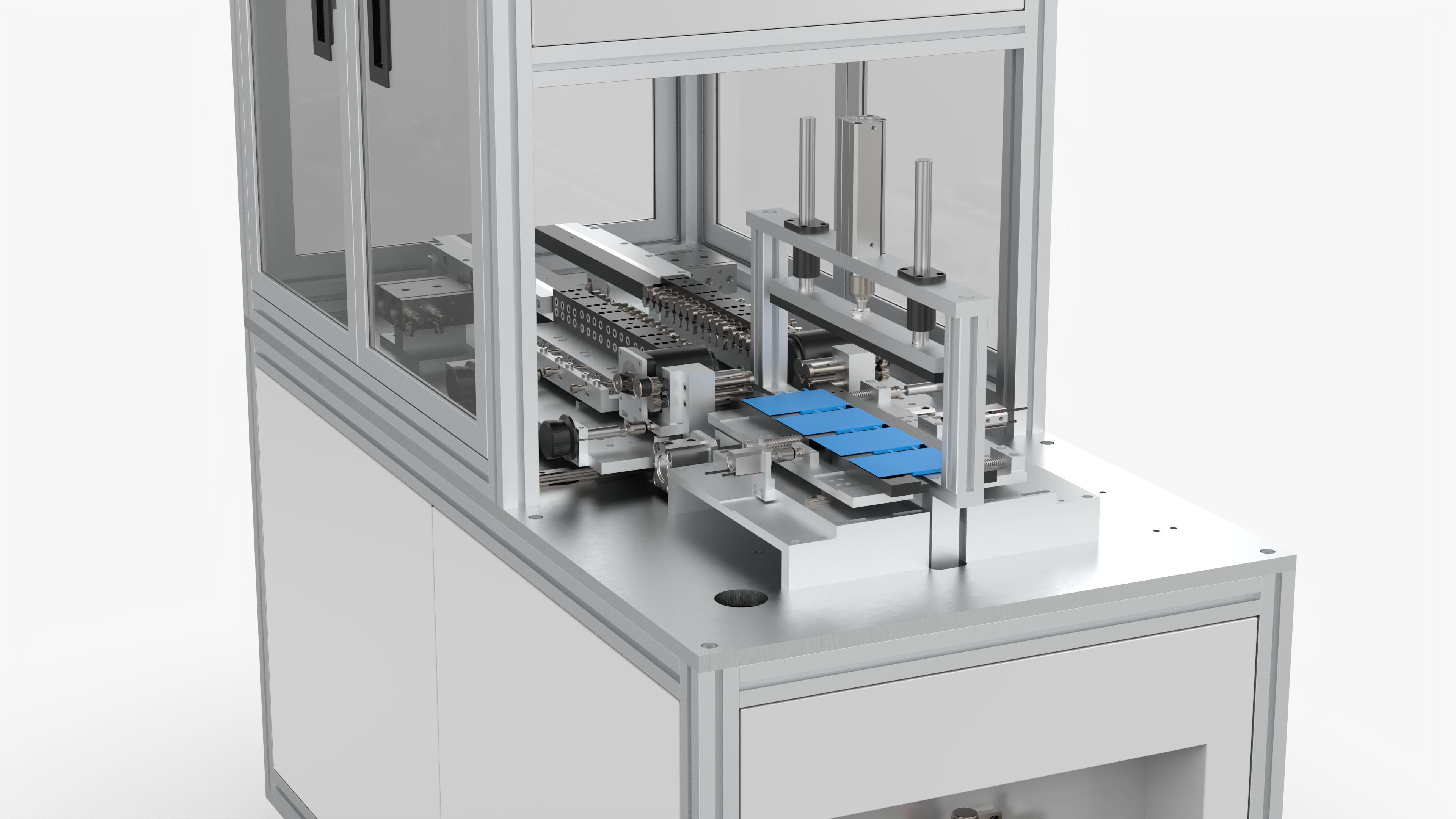

This equipment is a three-in-one machine for cutting, folding and ironing polymer batteries. Manually put the battery into eight loading jigs, and after being positioned by the cylinder, the conveyor pulls the battery through the trimming and folding machine for trimming and folding. Then pull to the ironing mechanism for ironing. After completion, return to the origin and manually cut the material.

File Formats

  • SolidWorks 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 7,677,471
  • Vertice: 23,032,413
