Automatic Plug-in Induction Vibration Feeding Soldering Machine 3D model
Description

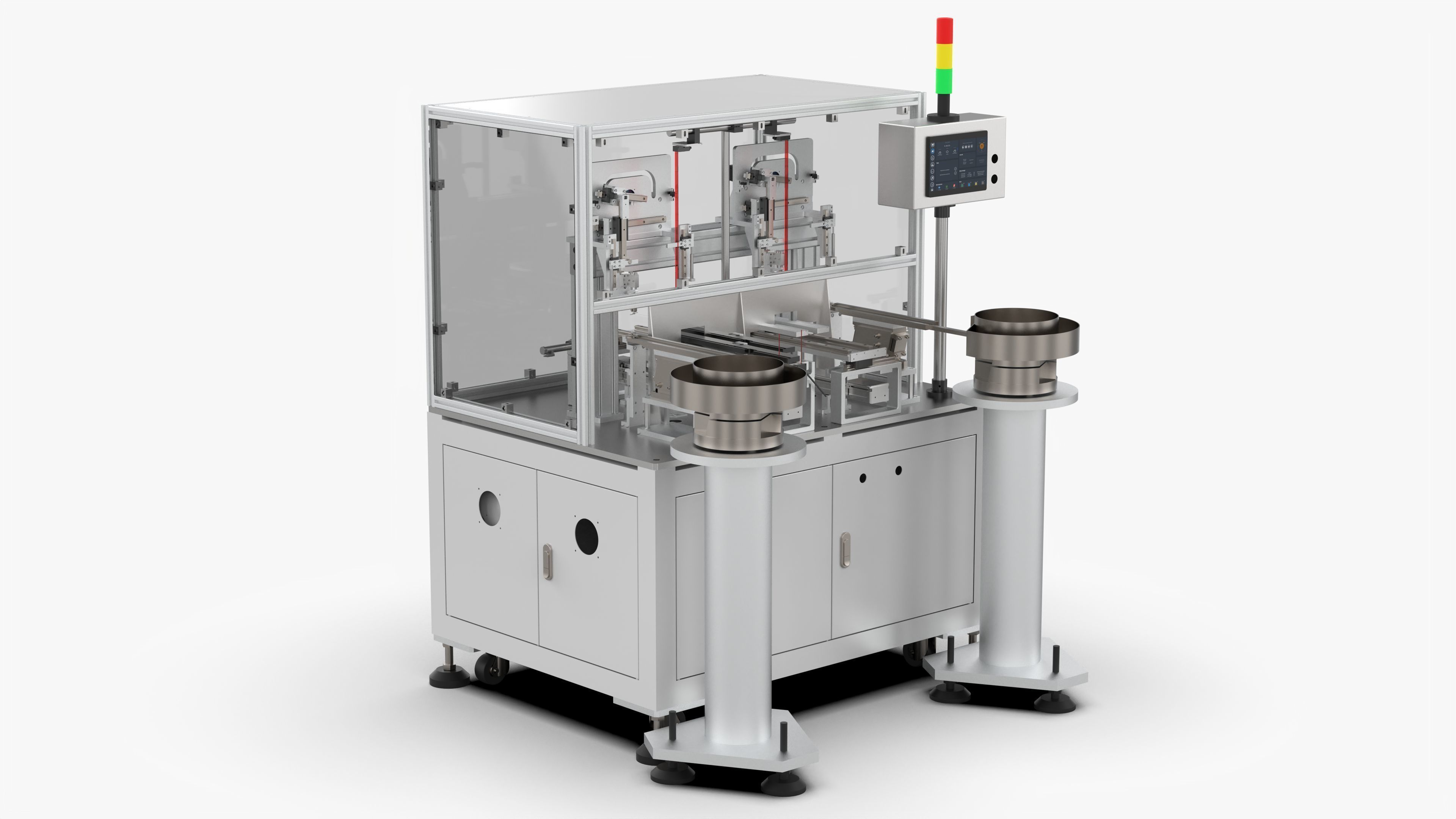

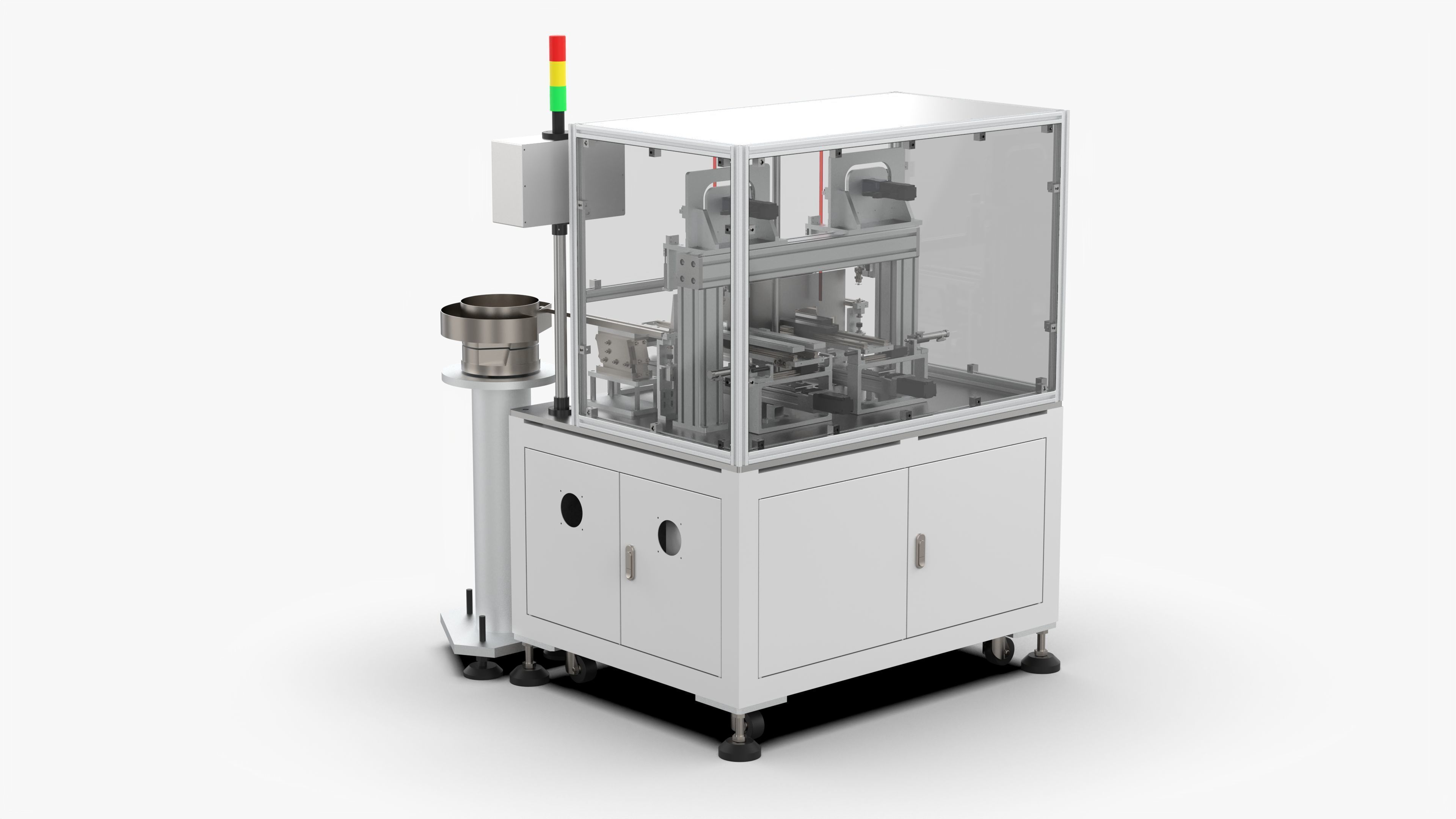

Automatic Plug-in Induction Vibration Feeding Soldering Machine
Introduction

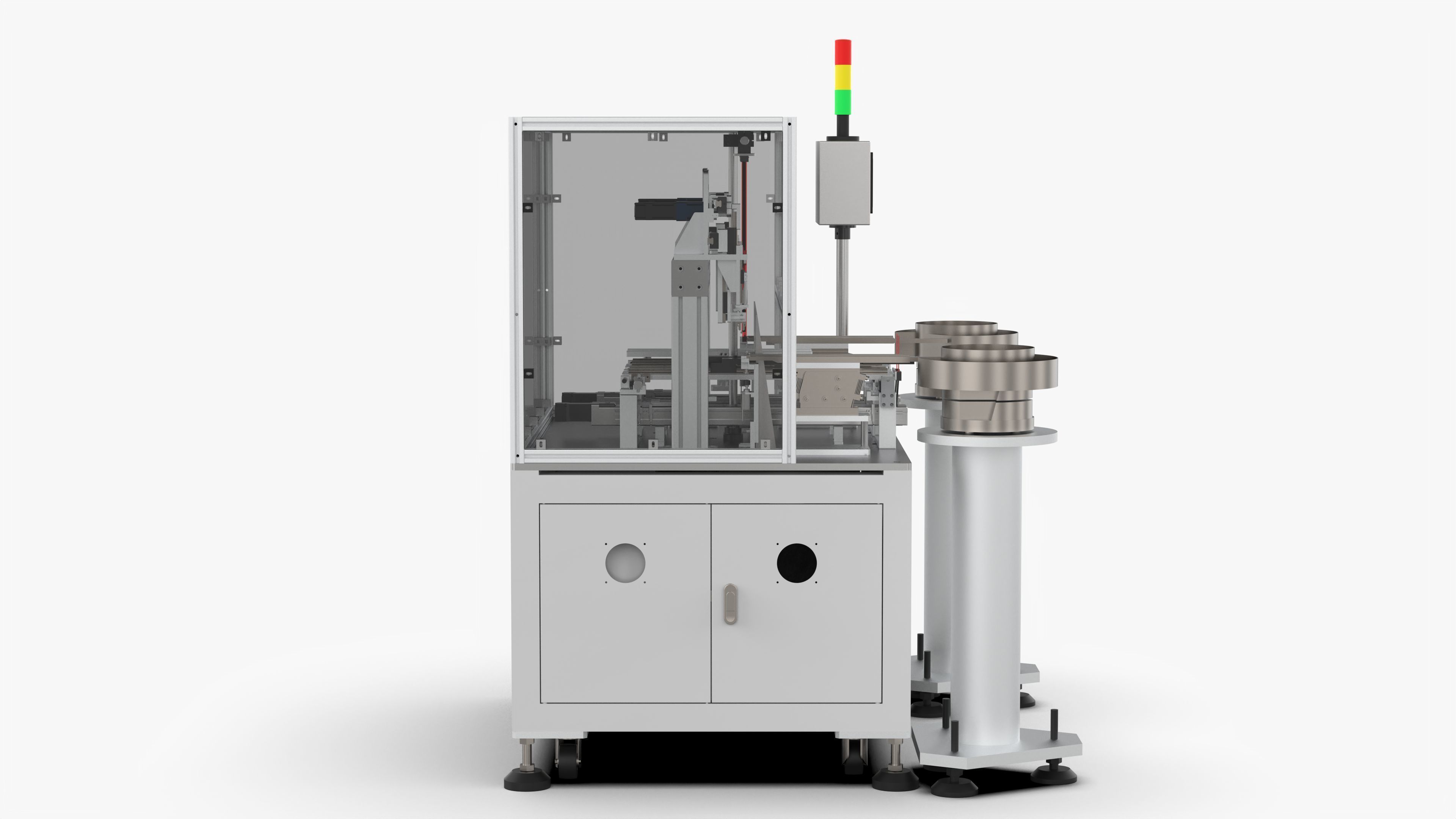

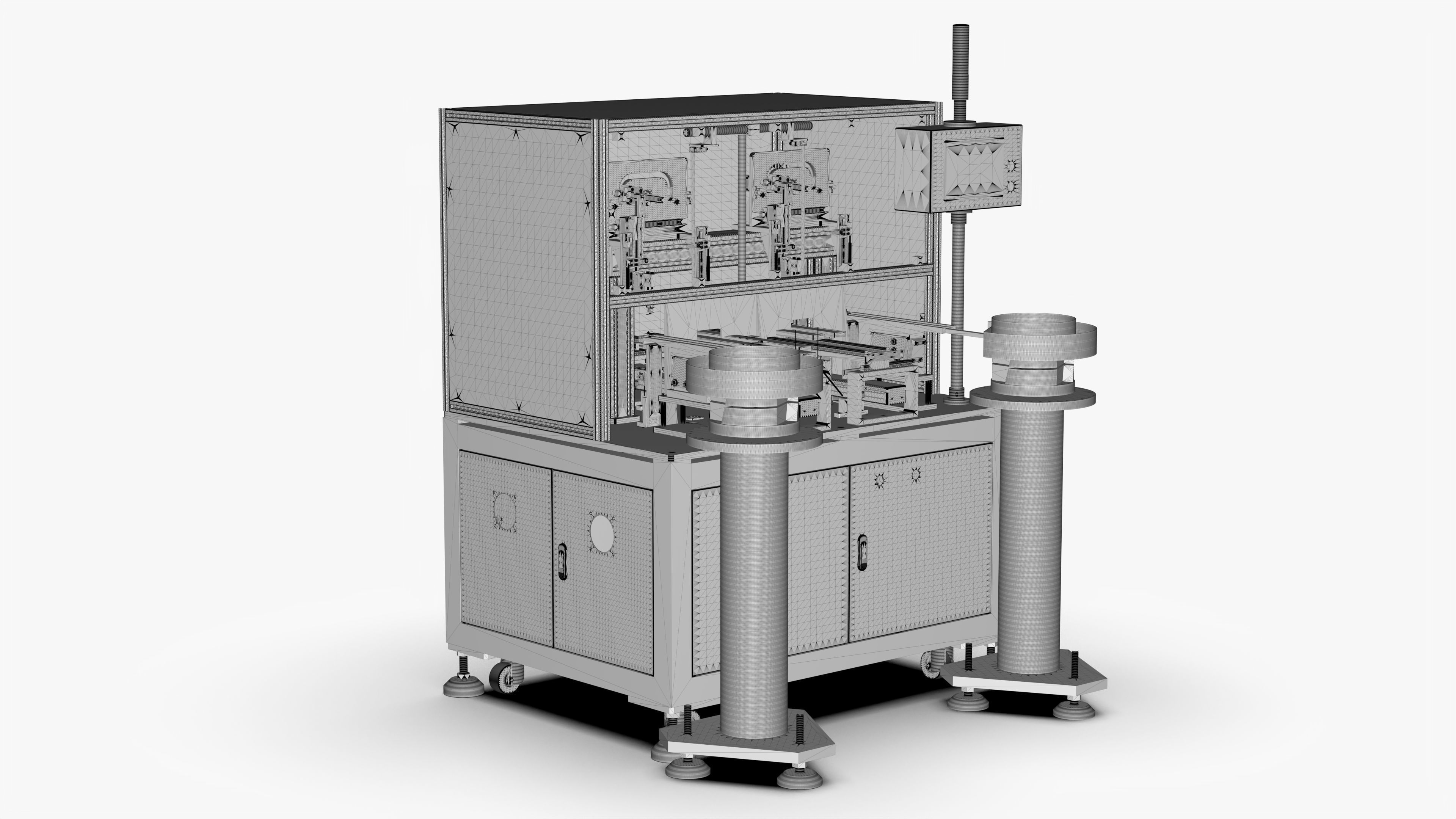

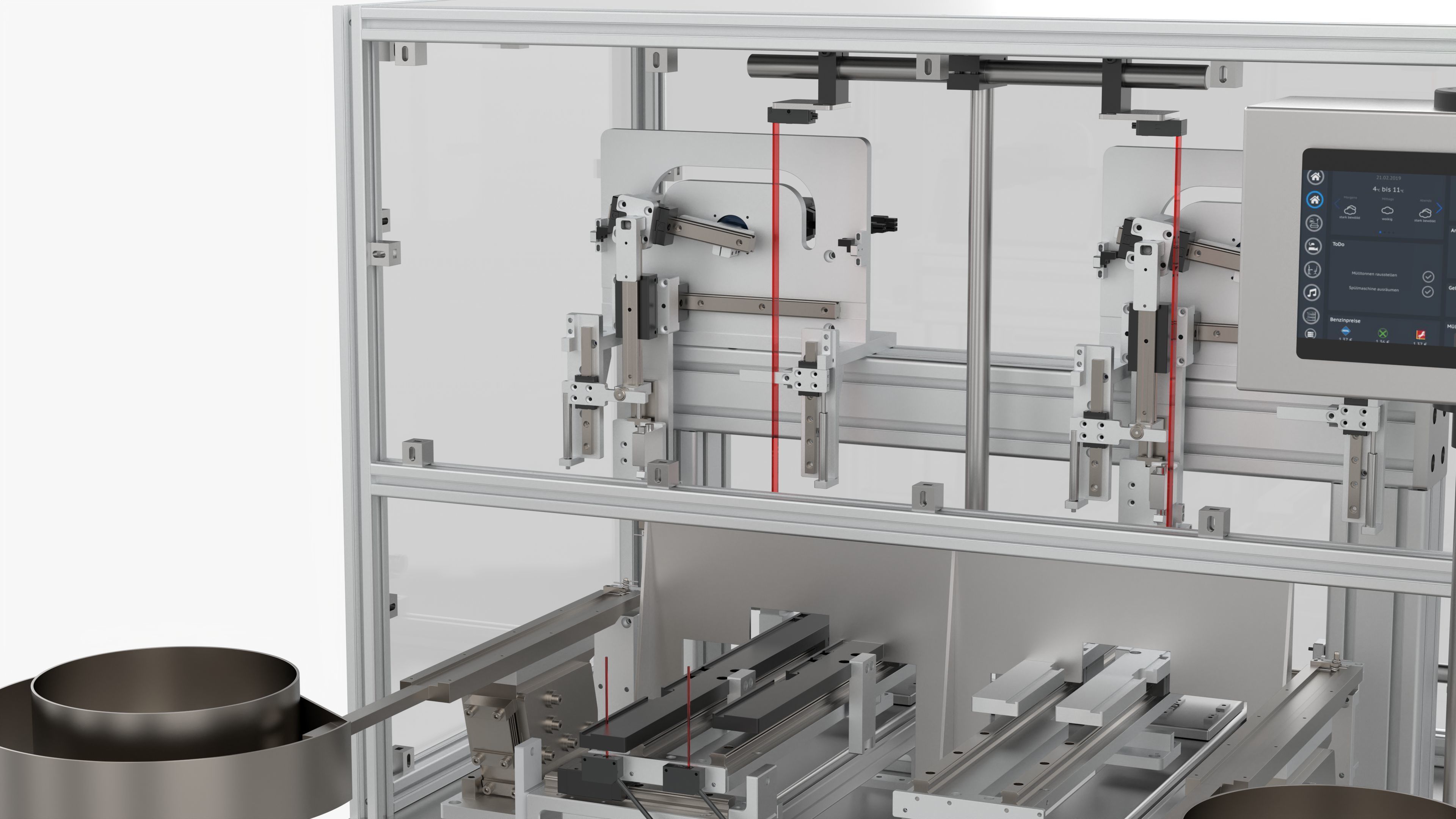

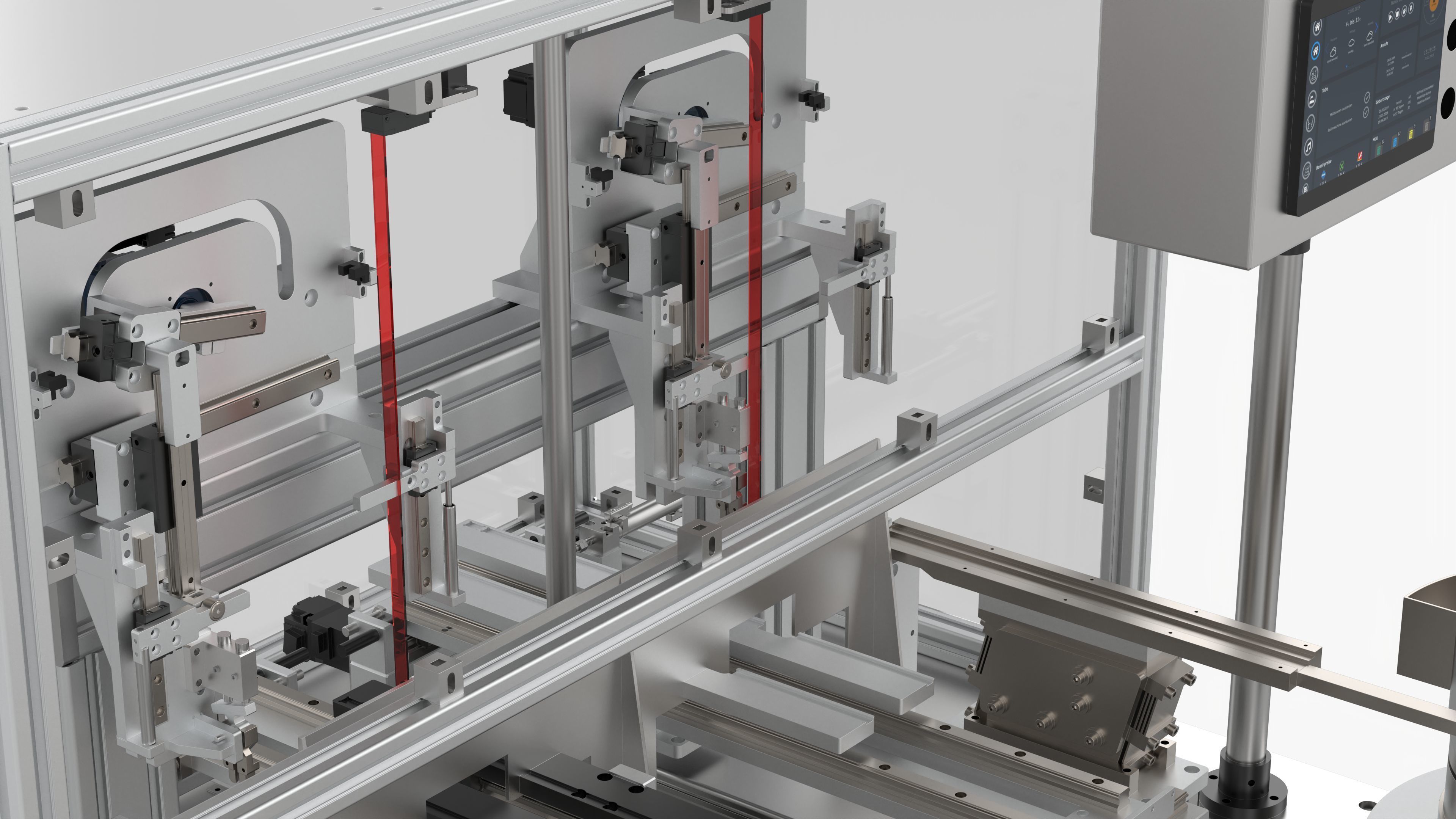

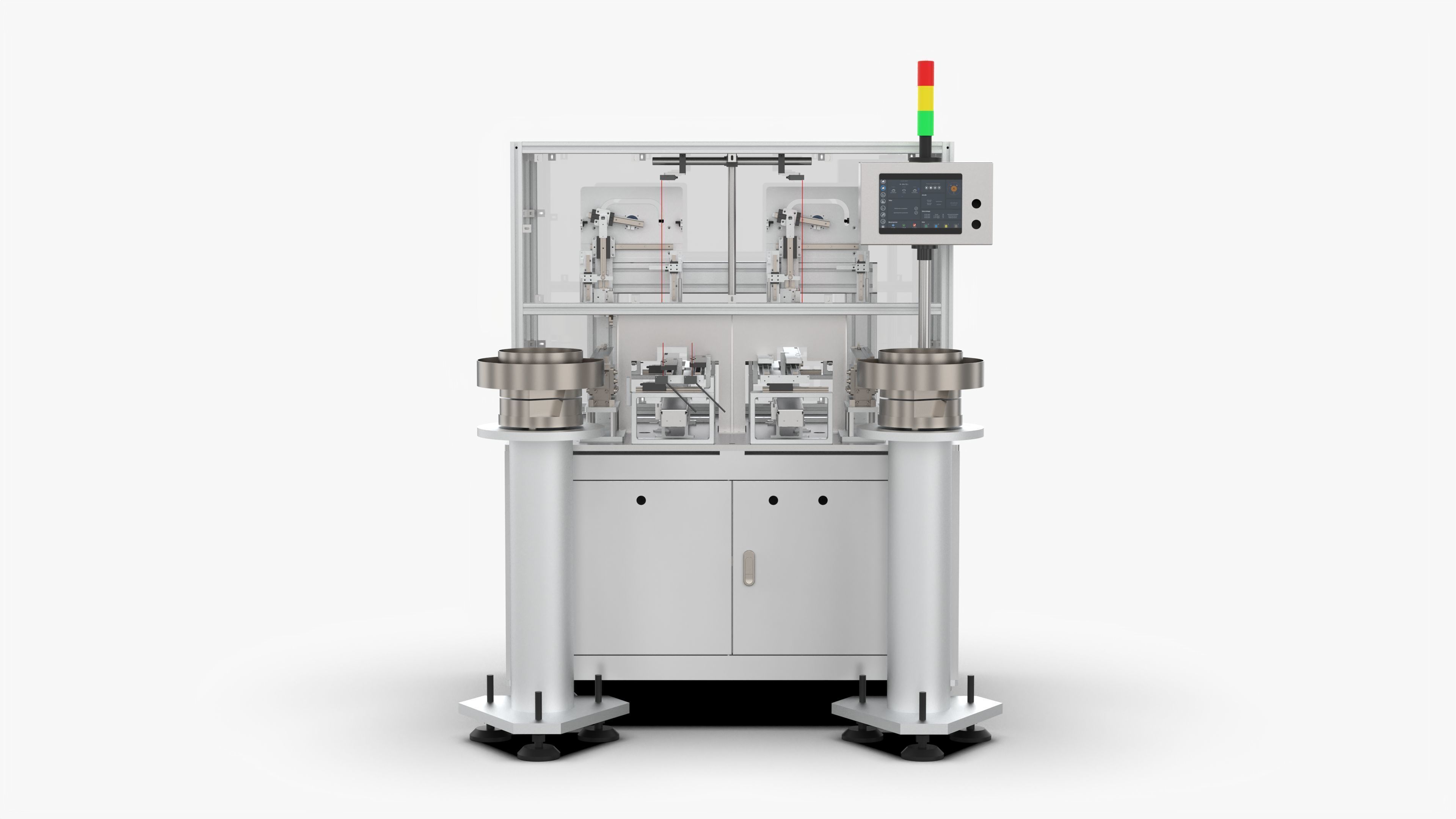

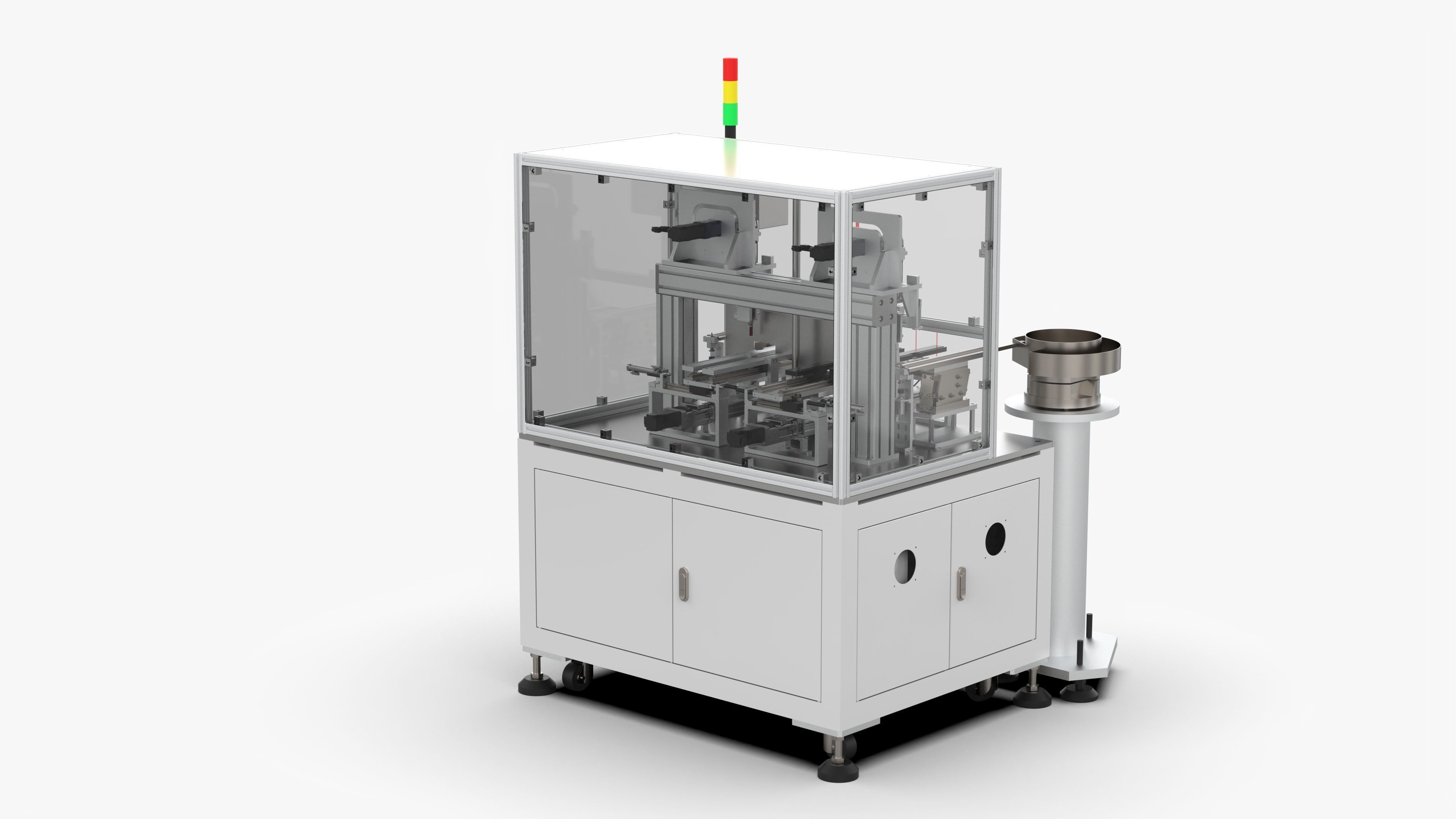

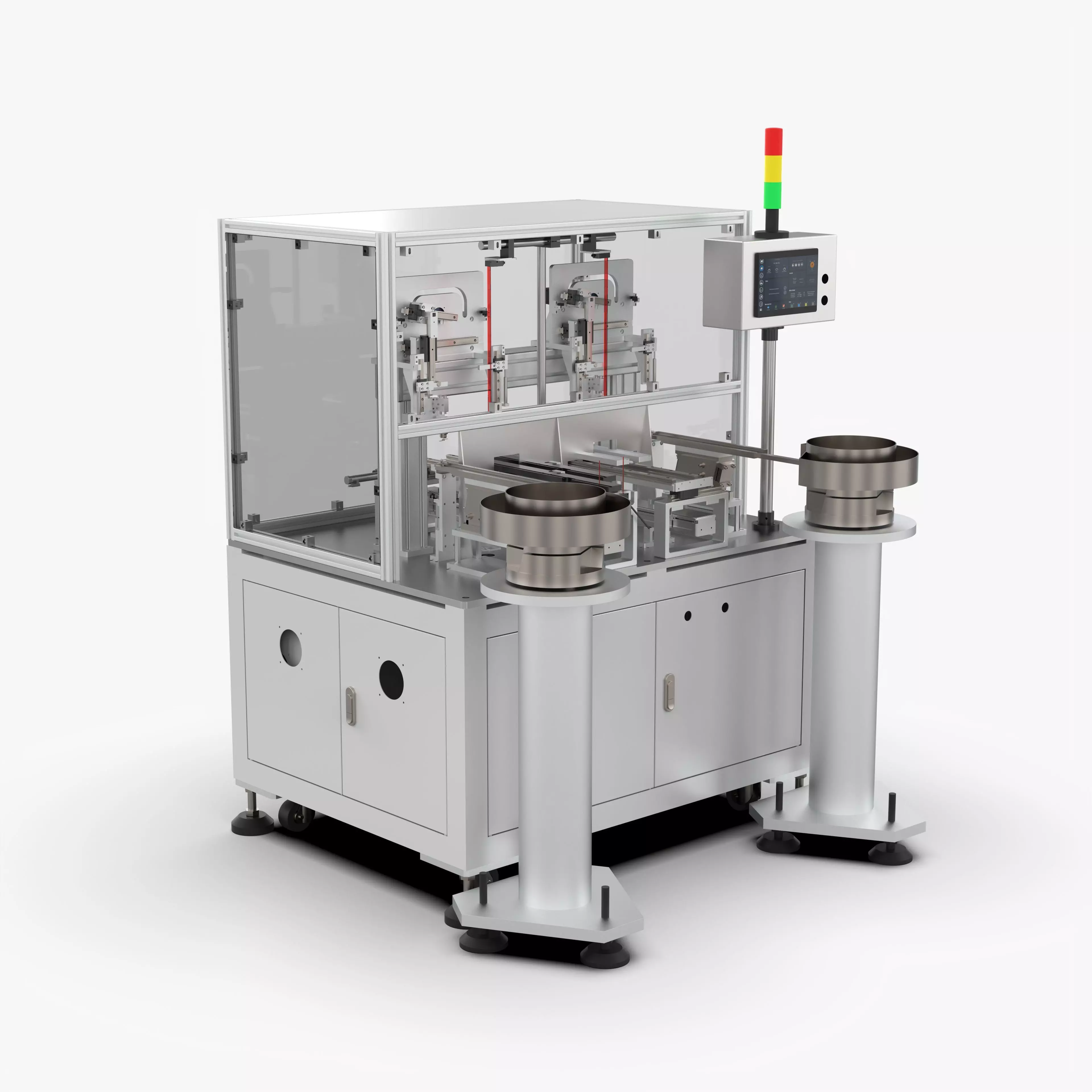

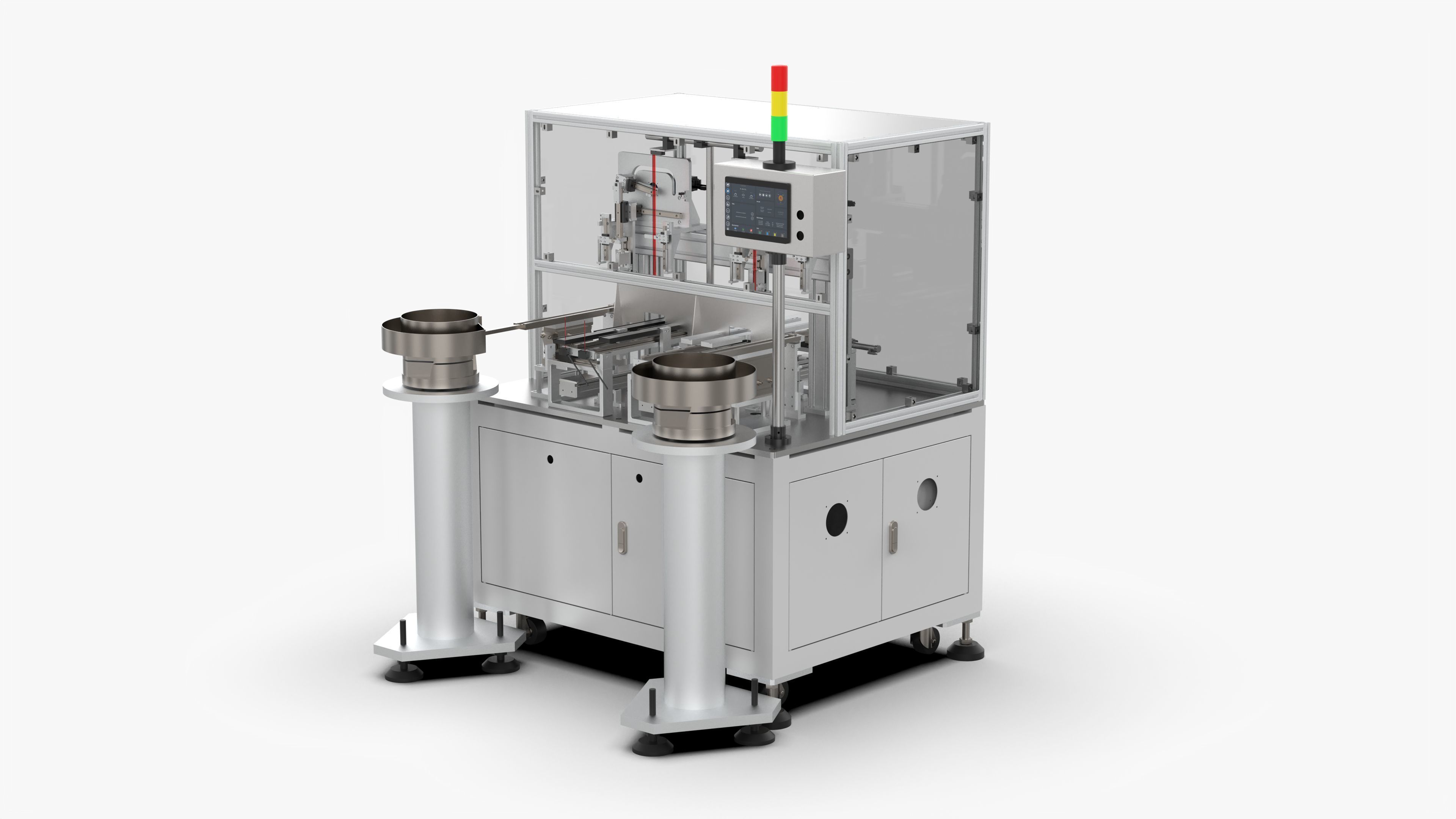

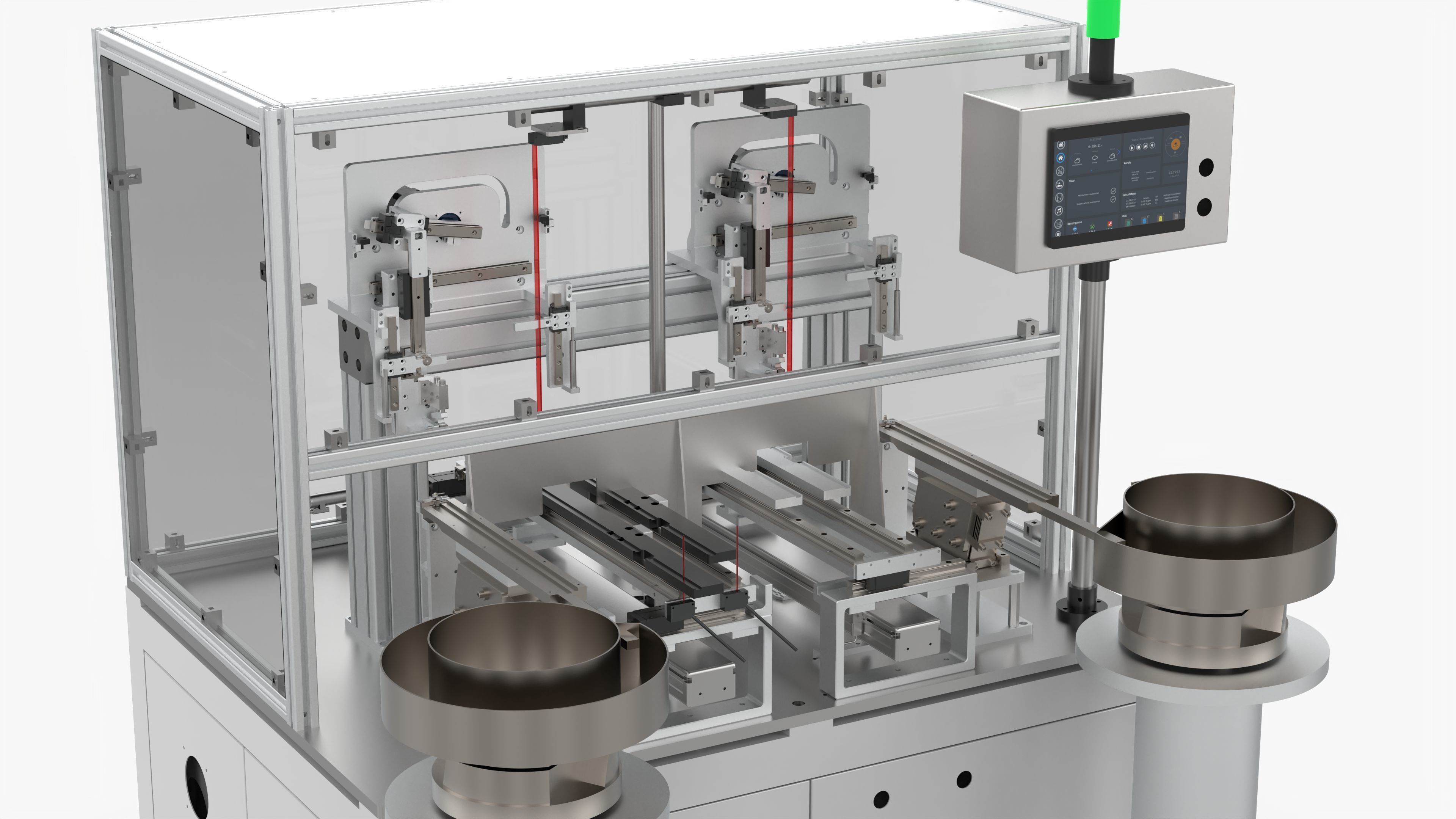

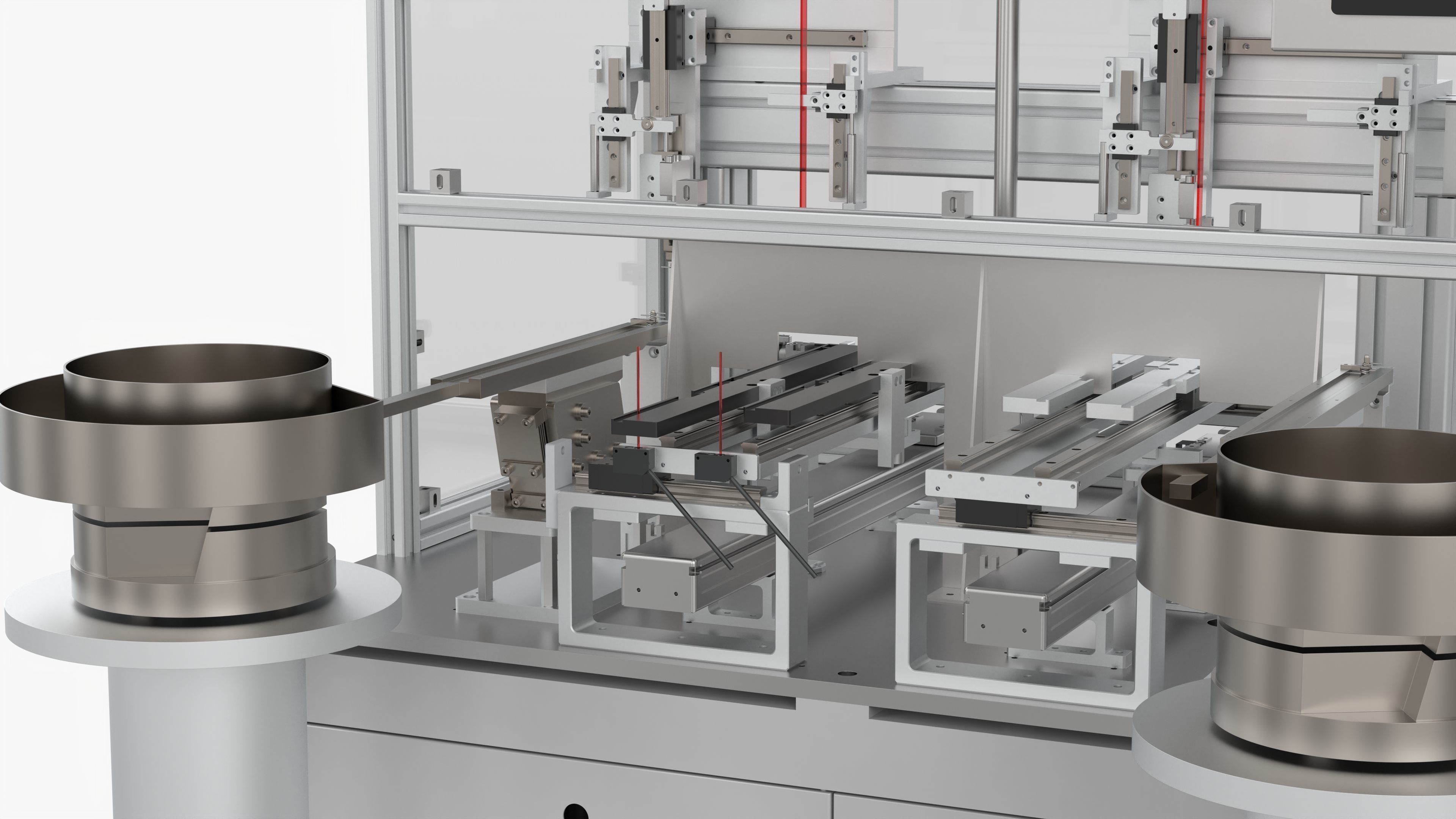

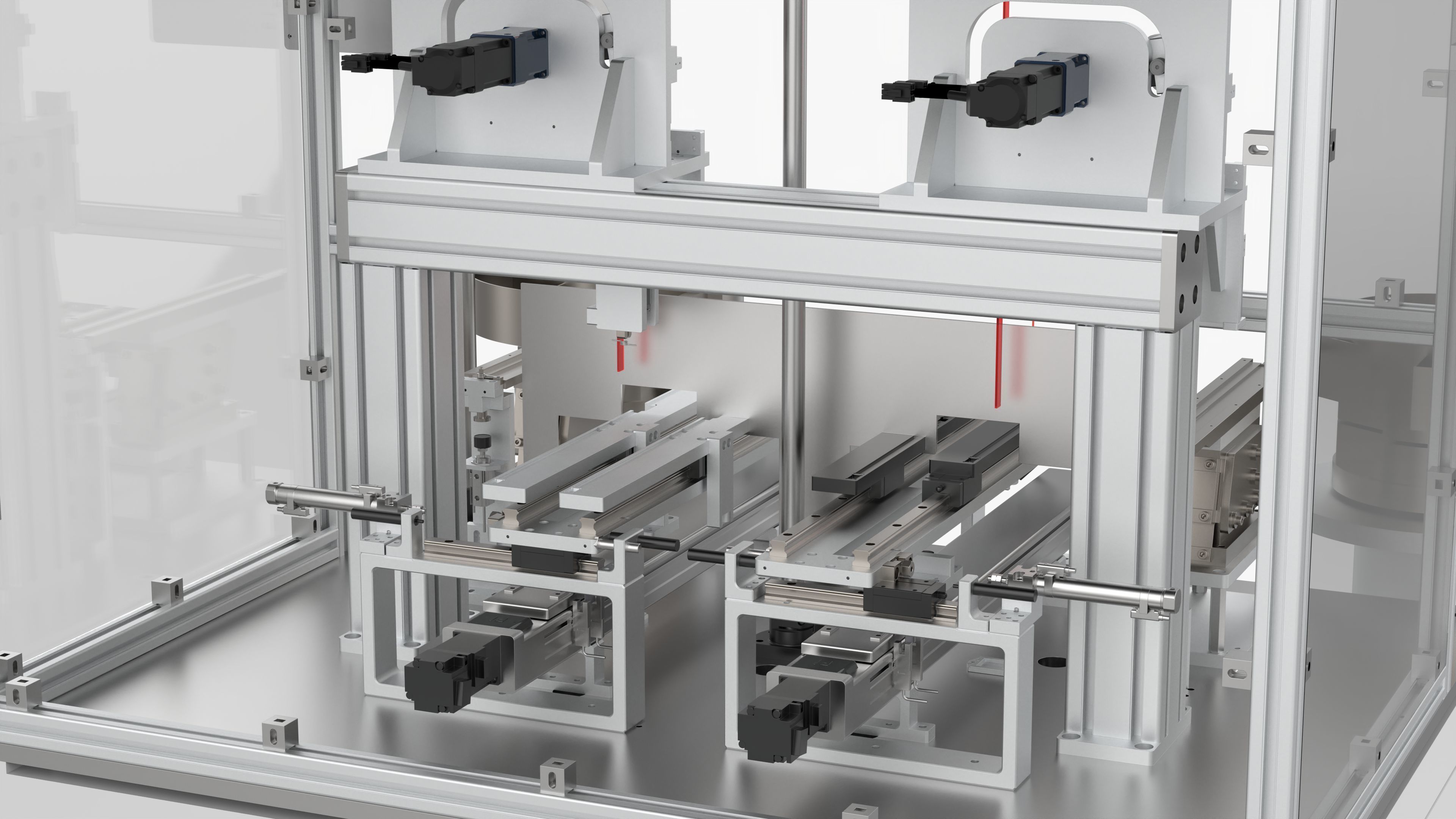

This device is a device that needs to be soldered and dipped in the corner after the inductor is wound. There is a vibrating plate to feed the material, and then the gantry pick-up mechanism picks up the inductor, first dips the flux and then dips the tin on the tin furnace, then cools and finally puts the product on the assembly line and releases it.
File Formats
- SolidWorks 2018 | Keyshot 10
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
Geometry
- Polygons: 1,459,052
- Vertice: 4,377,156
Automatic Plug-in Induction Vibration Feeding Soldering Machine
Royalty Free License
Automatic Plug-in Induction Vibration Feeding Soldering Machine
Royalty Free License
3D Modeling
Rendering
Post Production
PBR modeling
3D Model formats
Format limitations
Native
- SolidWorks 2018 (.sldprt, .sldasm, .slddrw)22.1 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
- Stereolithography (.stl)69.6 MB
- IGES (.ige, .igs, .iges)110 MB
- OBJ (.obj, .mtl)106 MB
3D Model details
- Publish date2023-03-10
- Model ID#4351400
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 1,459,052
- Vertices 4,377,156
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
