Automatic Pipe Cutting Machine 3D model

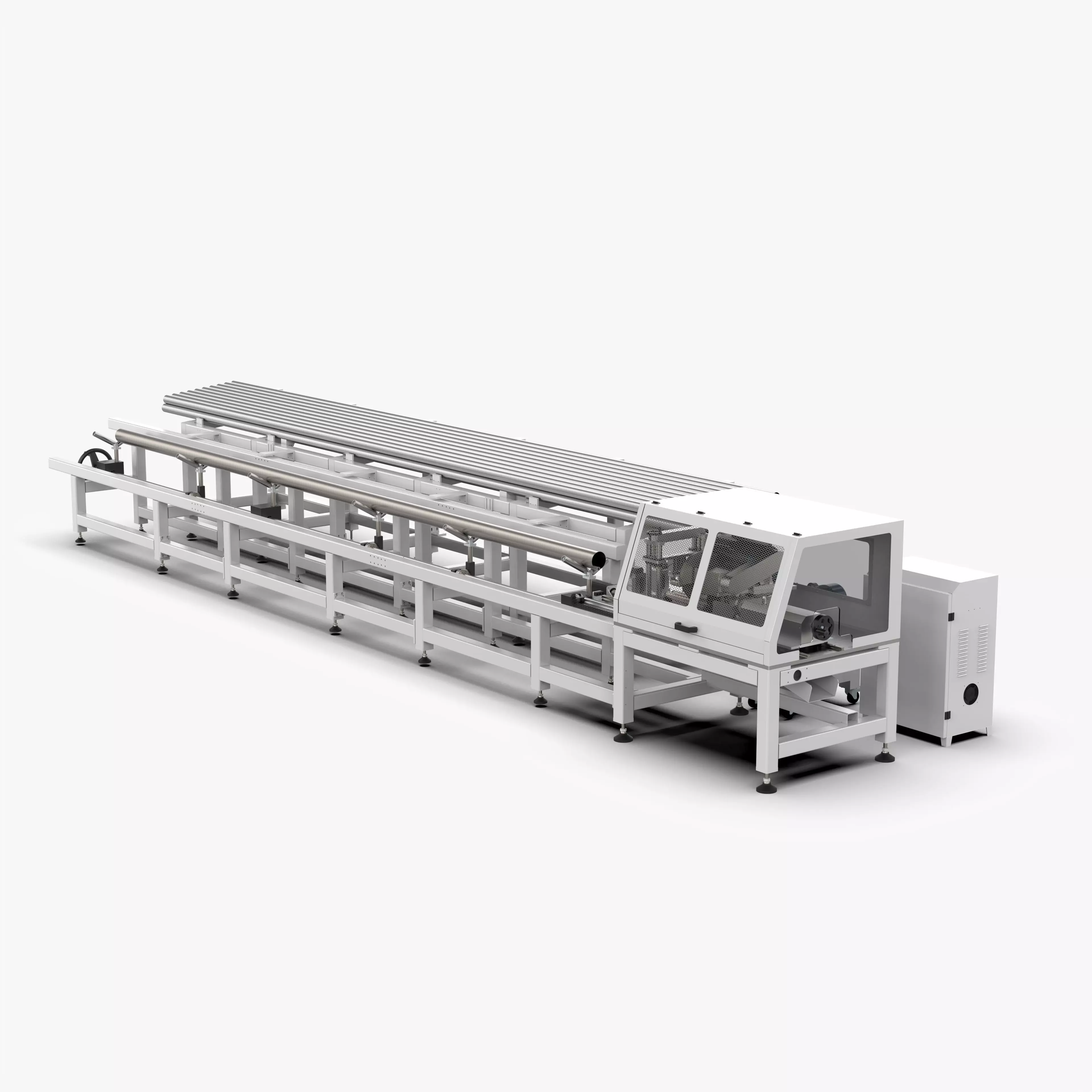

Automatic Pipe Cutting Machine

Introduction

The drawings of the automatic pipe cutting machine include the parts diagram, the assembly drawing of the components, the general assembly drawing, the drawings are clearly classified and detailed, and you can directly download the production automatic pipe cutting machine. , rubber tubes, composite tubes, copper tubes, aluminum tubes and other soft and hard materials. Pipe cutting diameter ?10-200mm, pipe cutting length: 0.5-100M, pipe cutting precision: ±(0.1%+2mm). The cutting line speed can be adjusted steplessly within the range of 1-150M per minute.

The pipe cutting machine has the functions of fixed-length cutting of plastic pipes, setting of unit output and shift output, and realizes functions such as automatic counting and automatic alarm after reaching the set output value. Through the touch screen, the user can set the cutting length of plastic pipes, set the output per unit and per shift, switch between automatic and manual pipe cutting methods, and restore the position of the cutter.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 4,006,332
• Vertice: 12,018,996
