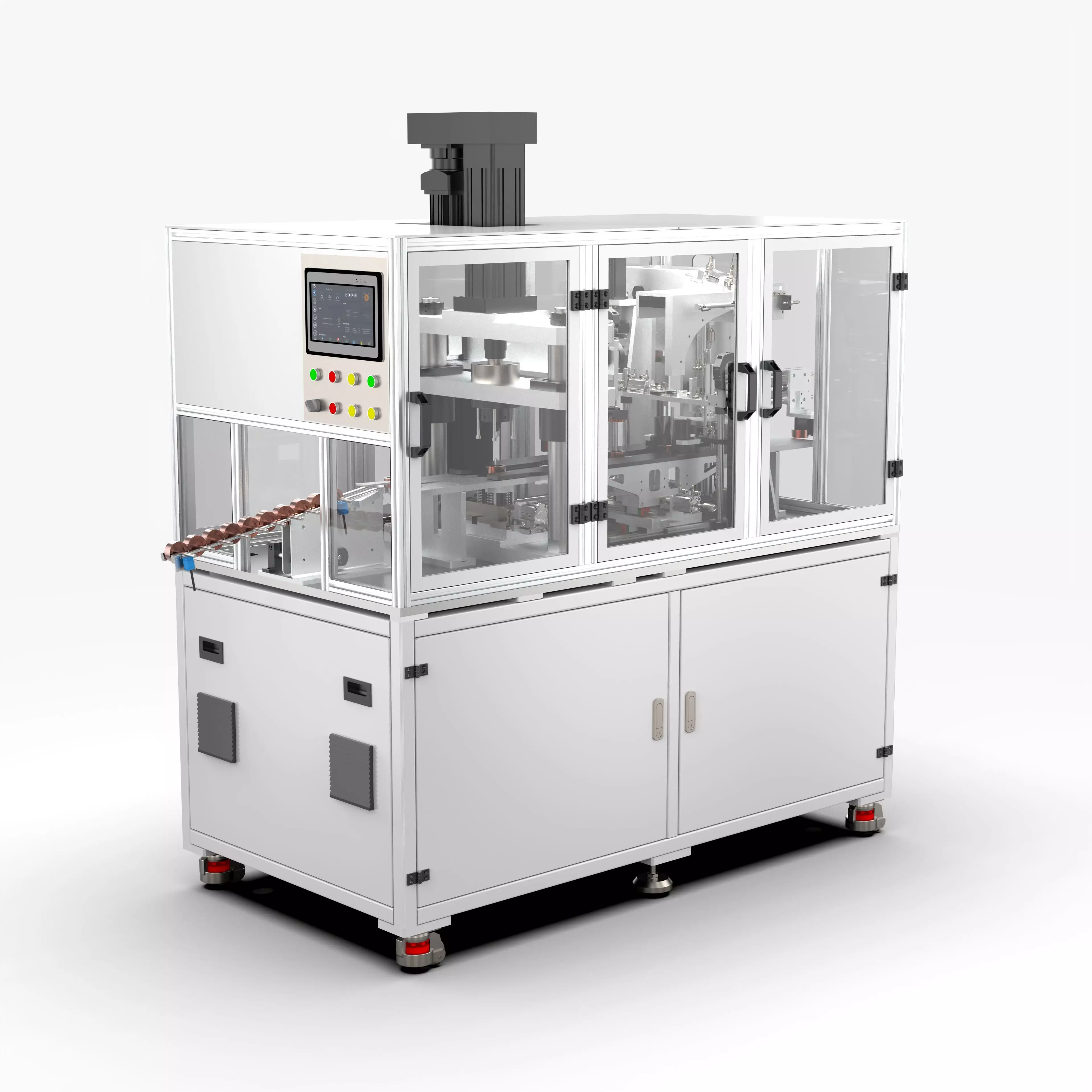

Automatic Permanent Magnet Rotor Into Shaft Assembly Machine 3D model

Automatic Micro Motor Permanent Magnet Rotor Into Shaft Assembly Machine

Introduction

This equipment is used for the assembly and production of rotors in the micro-motor industry. The main products used are 95 series rotor specifications of DC brushless motors. The whole machine mostly adopts servo mechanism. The characteristics of the equipment are that the rotor shaft storage mechanism has a large storage capacity. At the same time, the vertical shaft entry mechanism is conducive to the rotor shaft sliding into the rotor core. At the same time, the pre-threading mechanism presses the rotor back through the cylinder. In the iron core, the efficiency of the rotor shaft passing through the shaft hole is greatly improved, and the abnormal operation of the equipment is reduced. The transfer mechanism part adopts linear synchronous transfer, and the servo module facilitates machine adjustment. The riveting part uses a 5-ton equivalent servo electric cylinder for riveting. The beat of the whole machine is controlled at 5s, and the riveting depth and riveting pressure are fed back and recorded in real time through the pressure curve.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 3,020,671
• Vertice: 9,062,013
