Automatic PCB Circuit Board Assembly Machine 3D model
Description

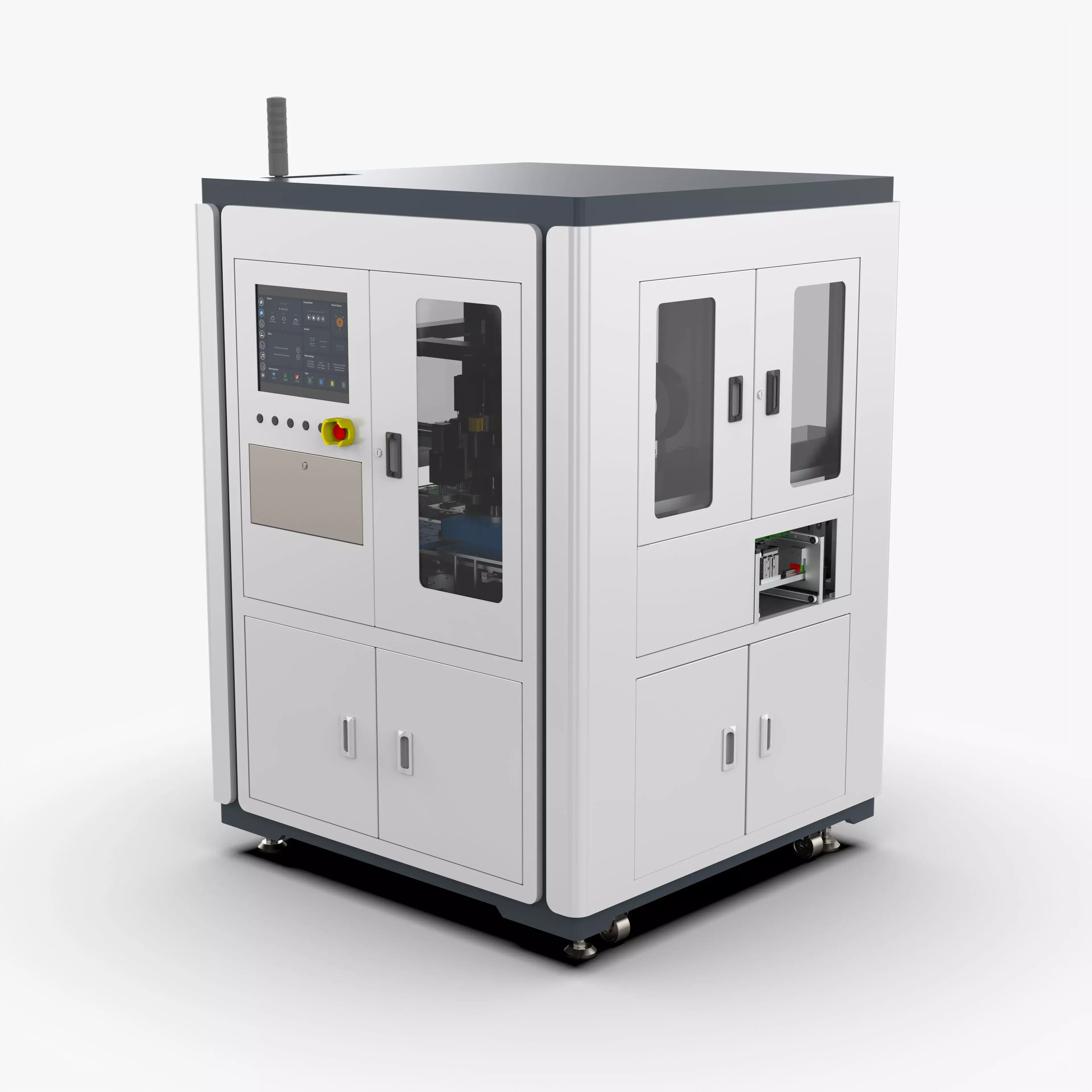

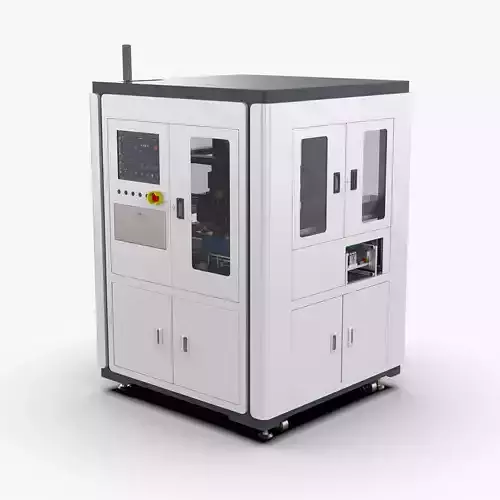

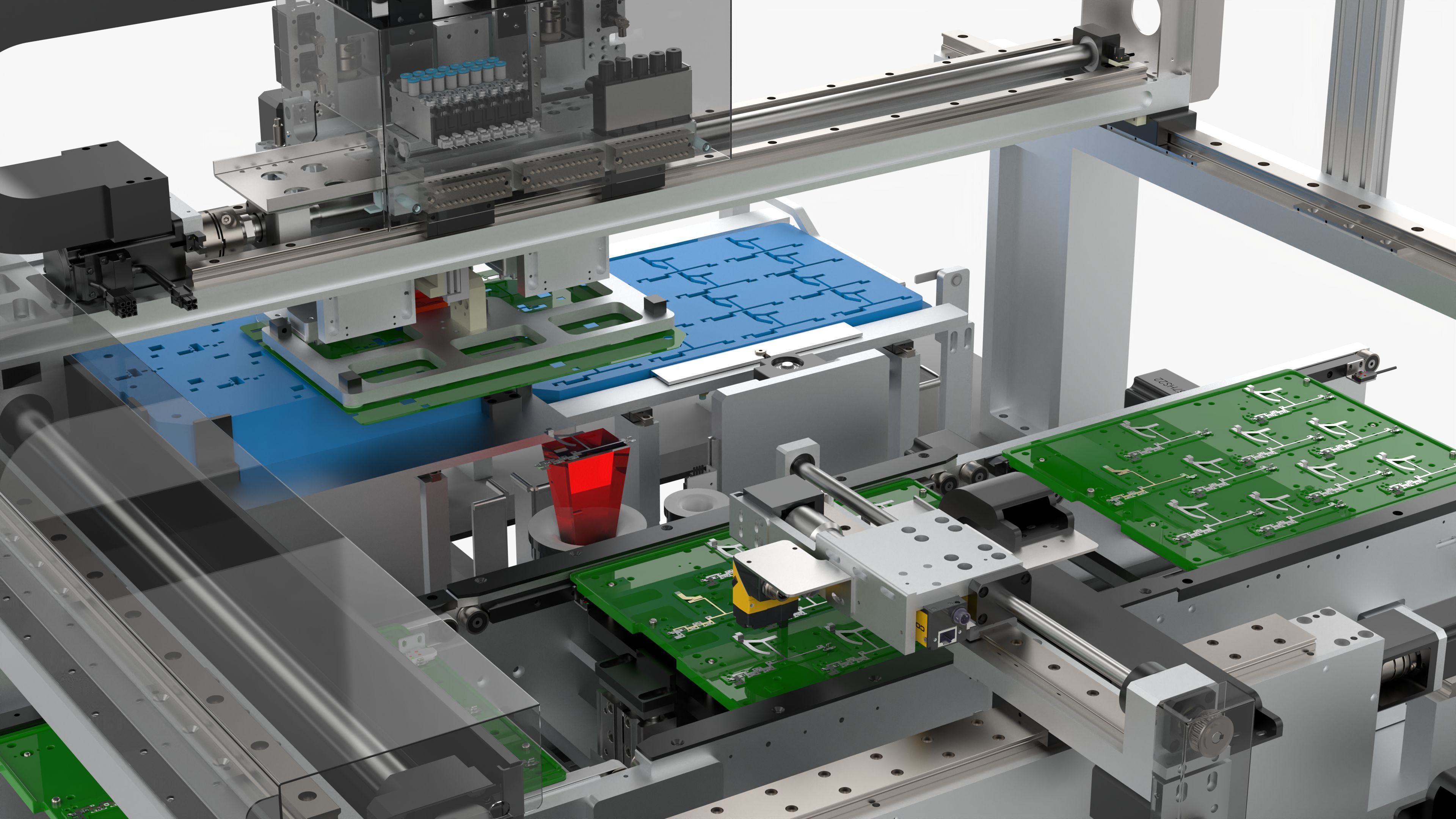

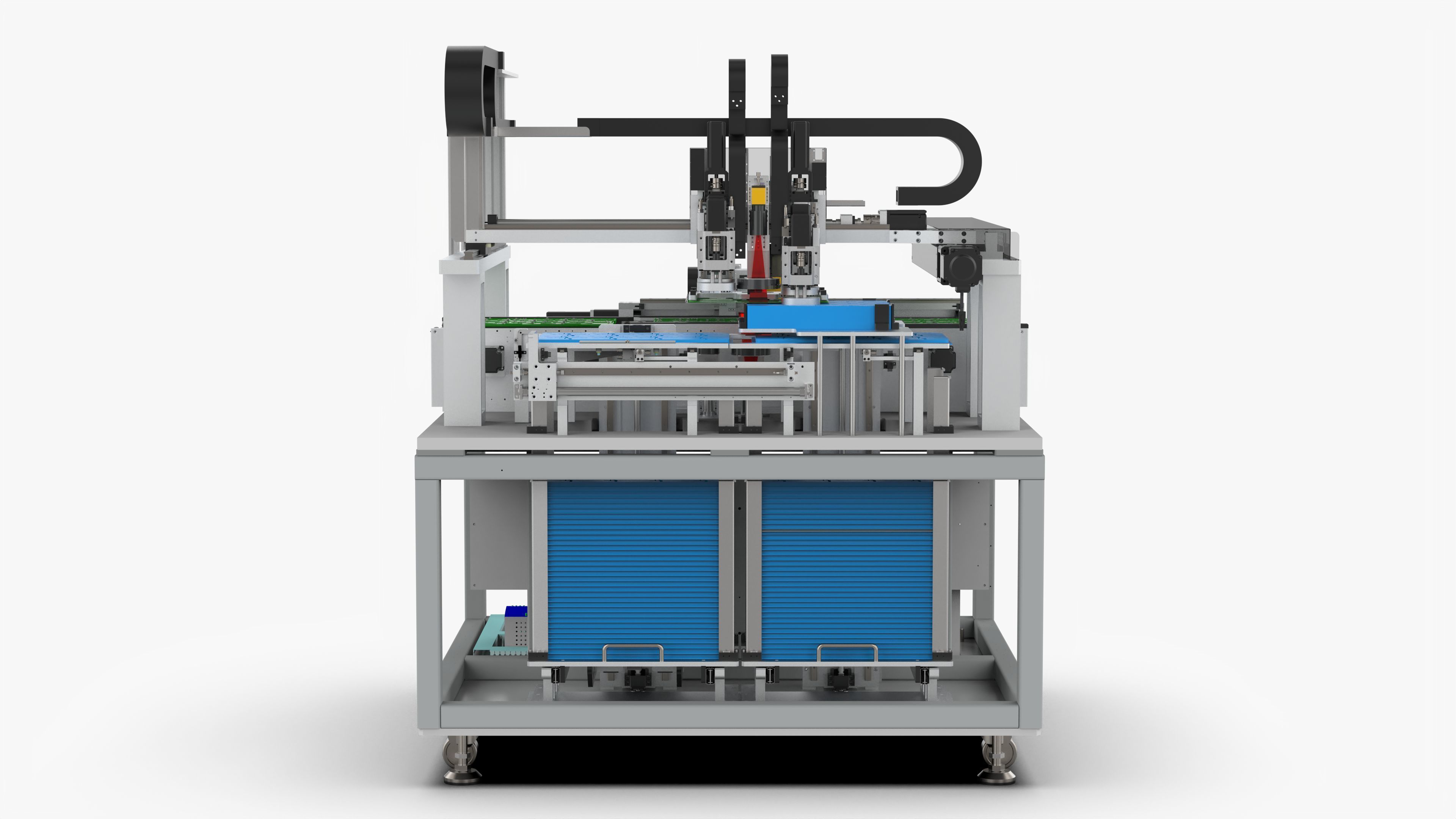

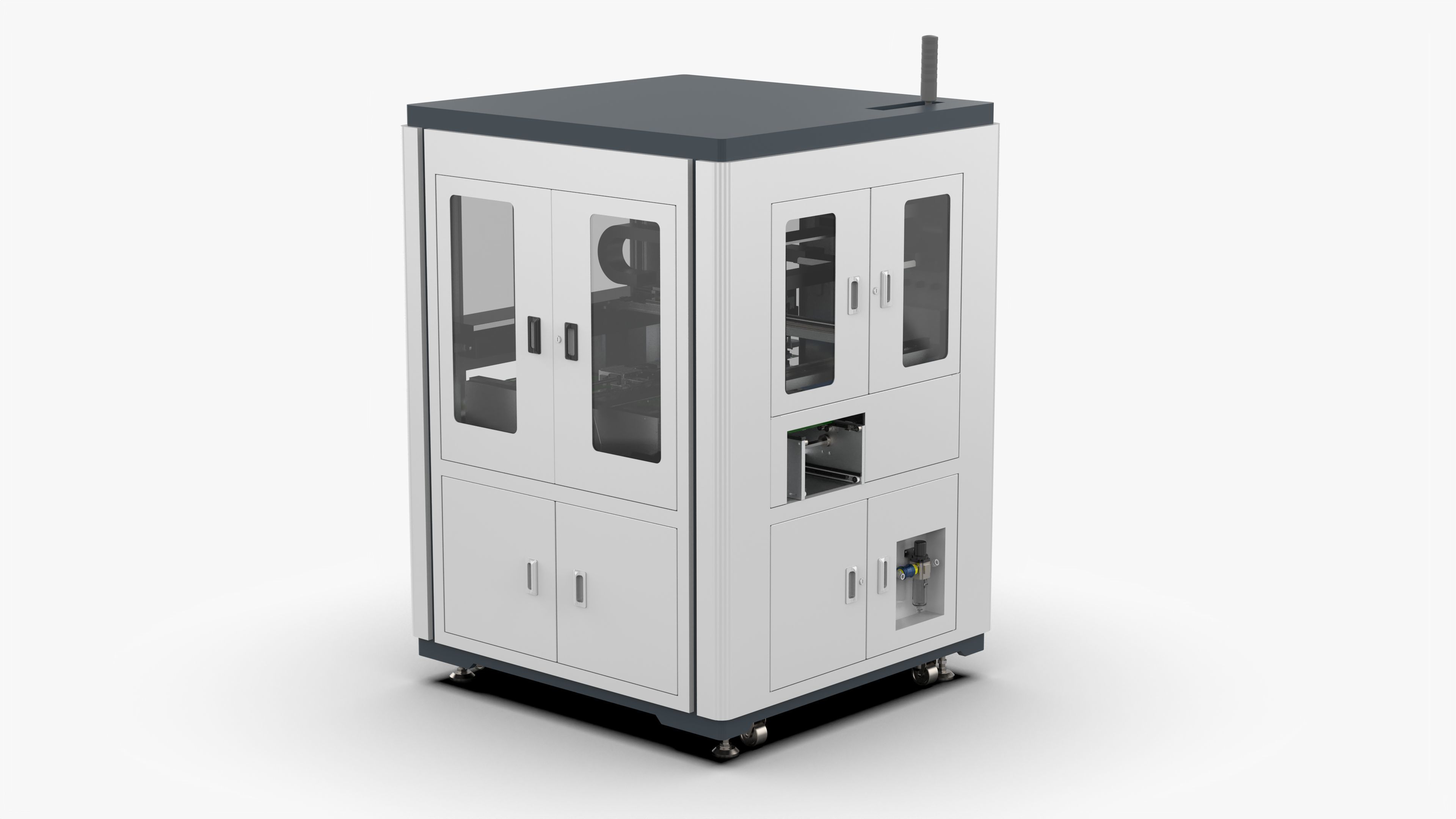

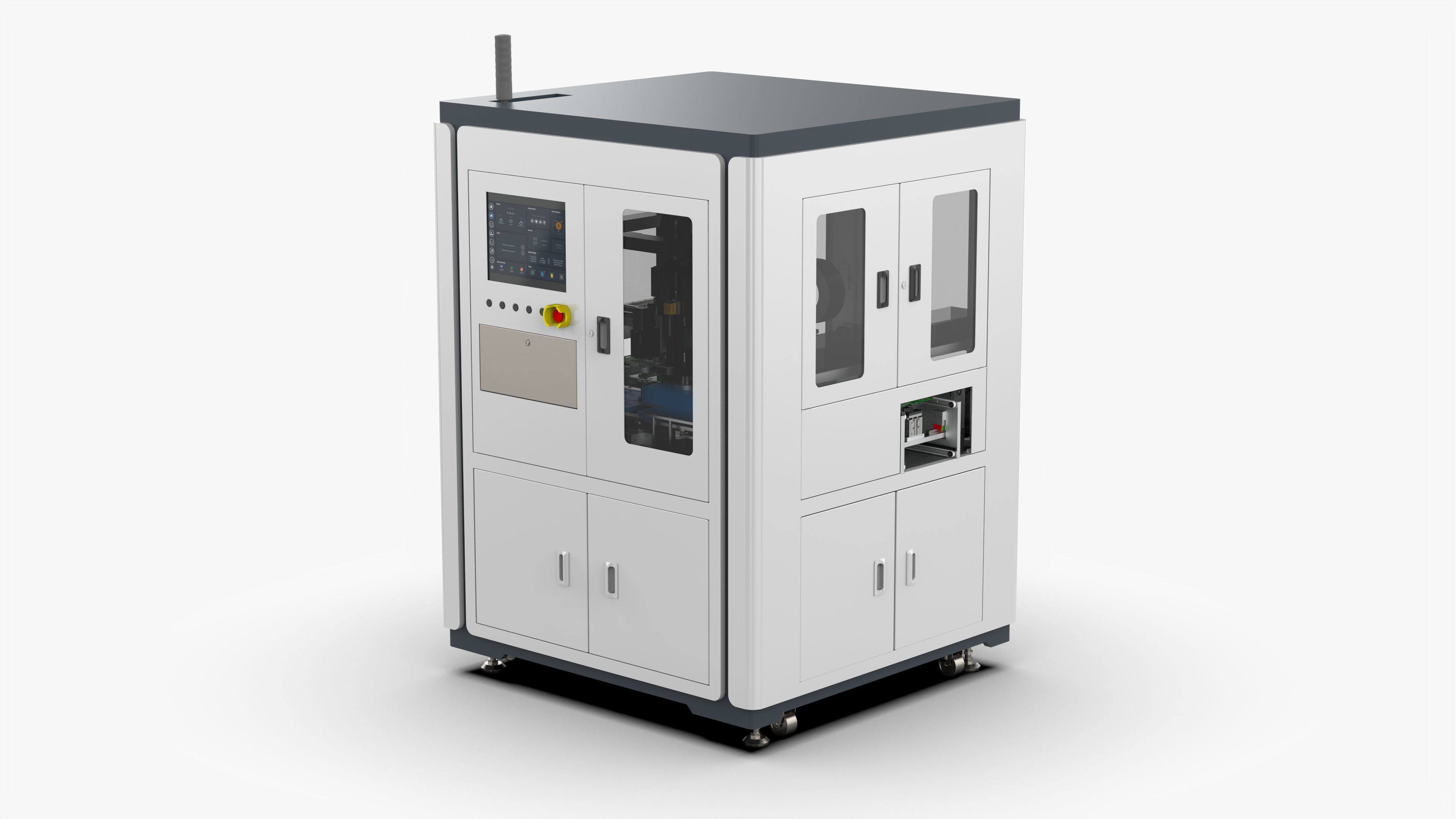

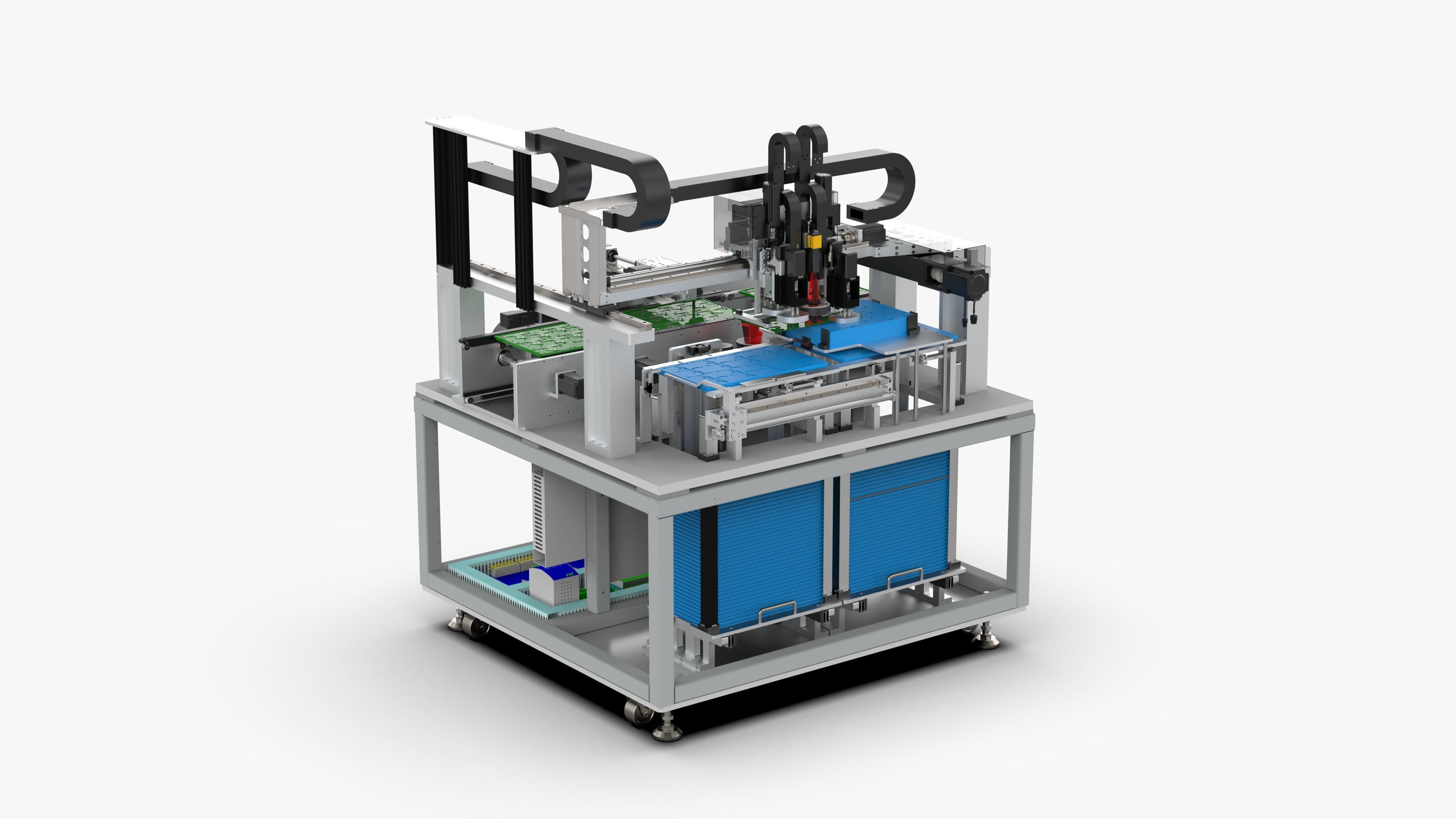

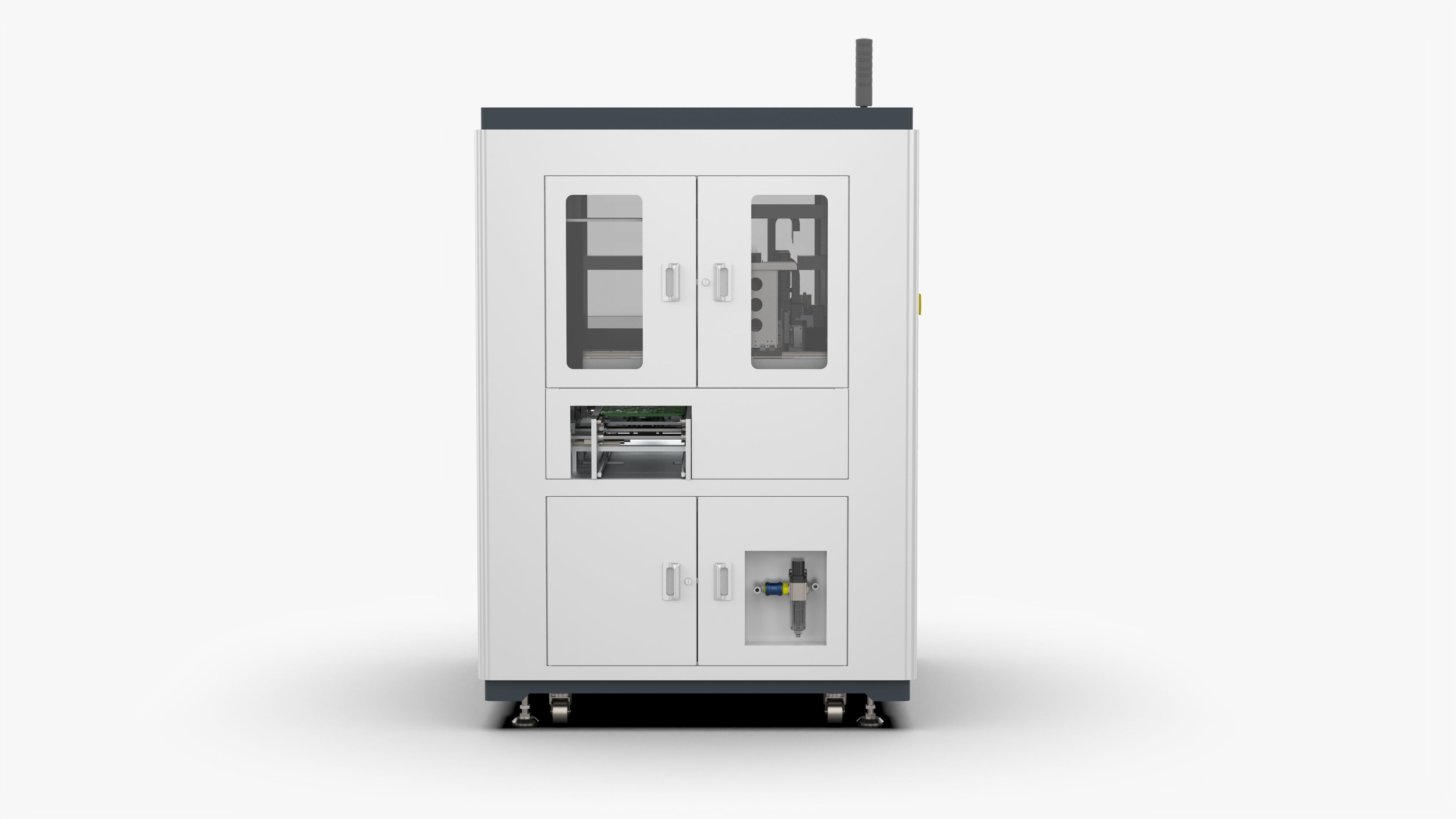

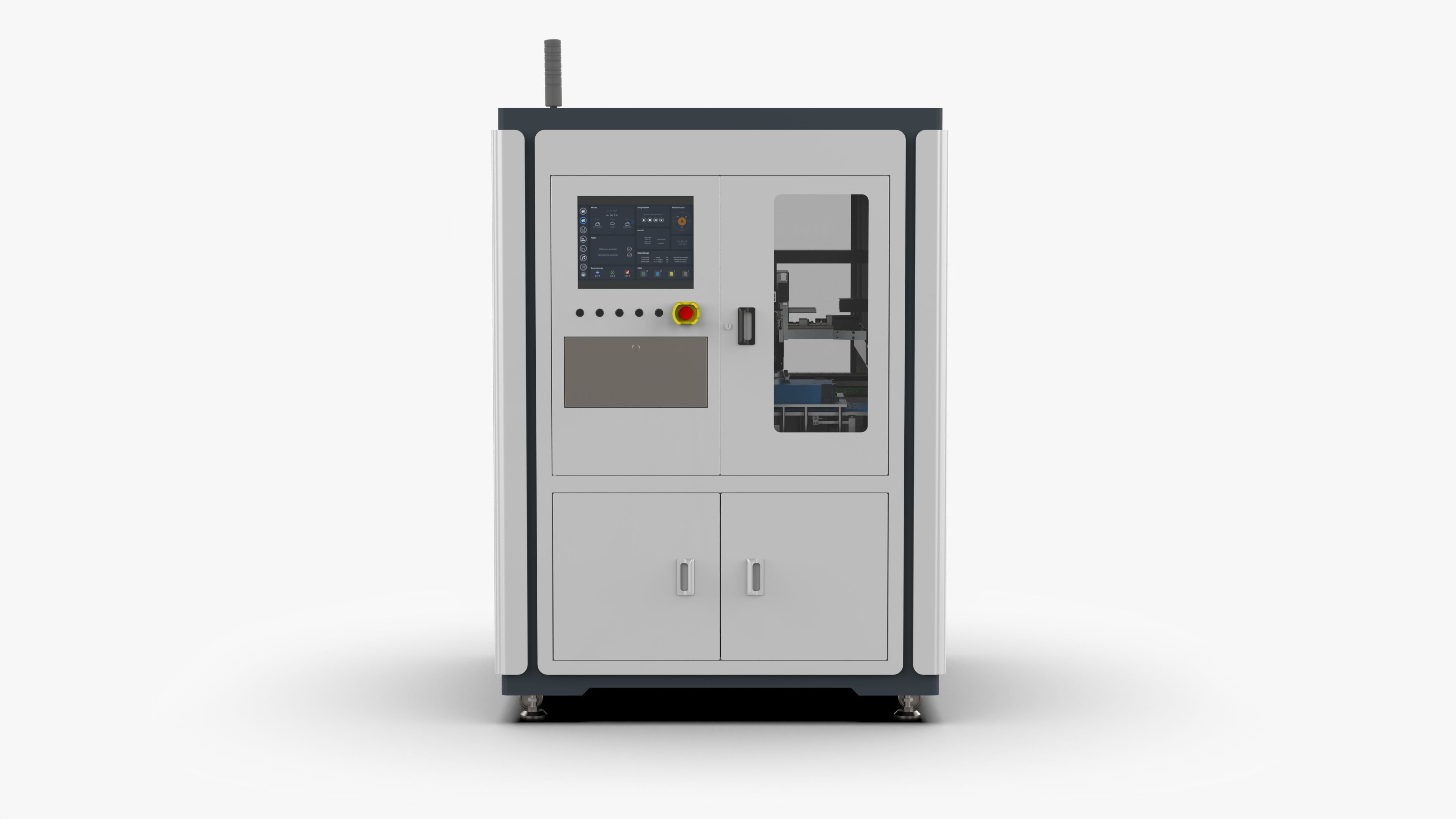

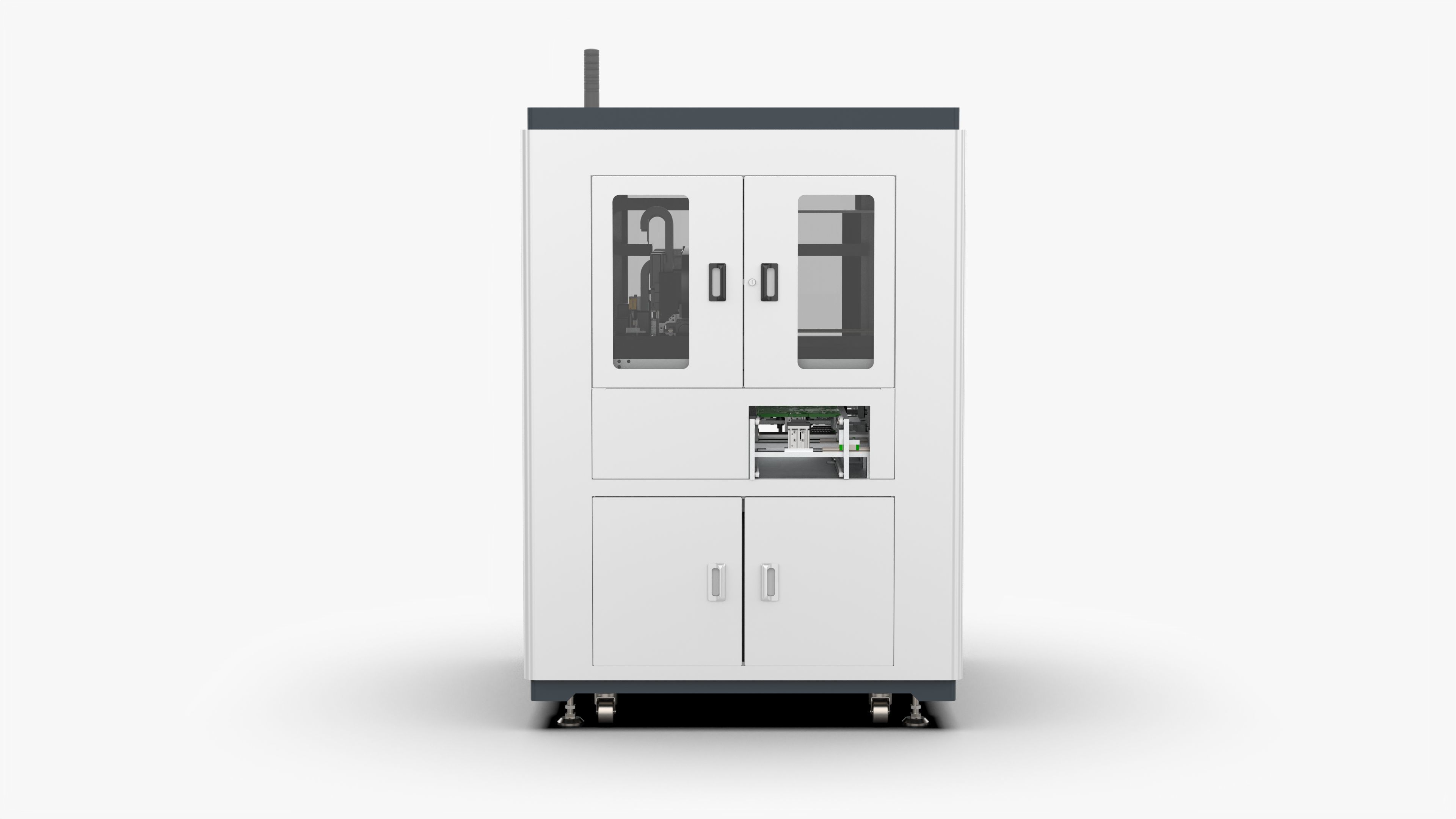

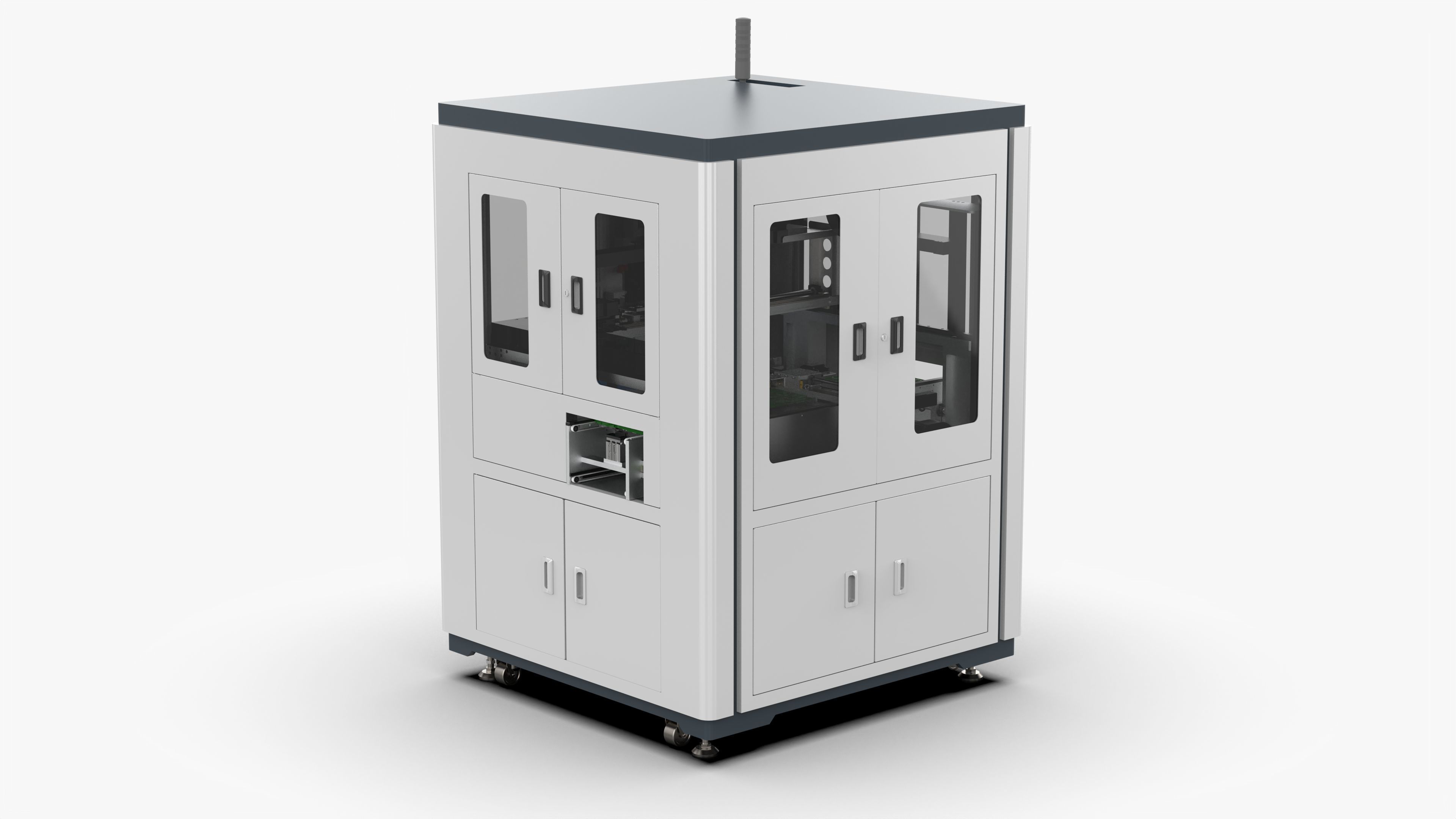

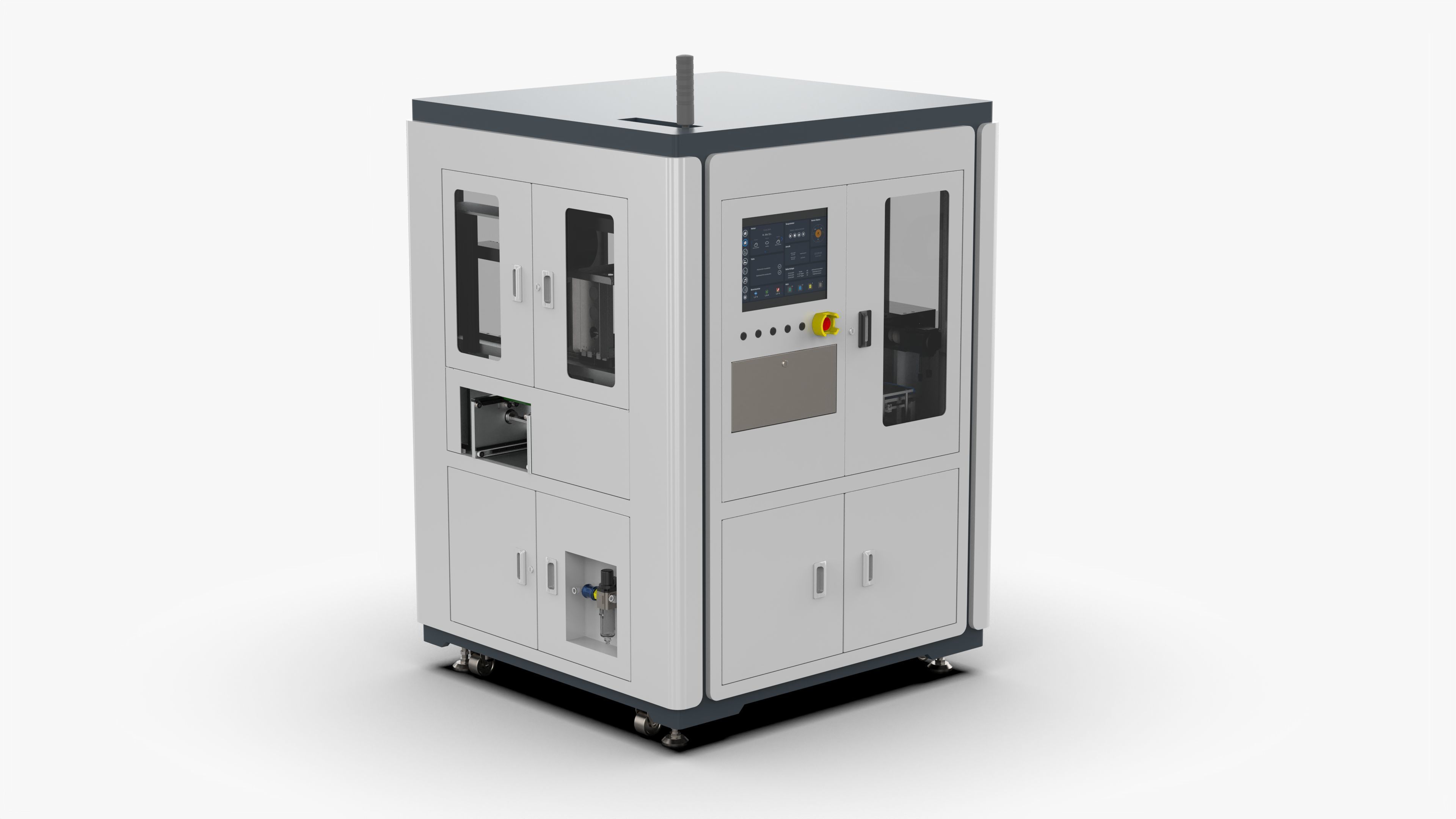

Automatic PCB Circuit Board Assembly Machine
Introduction

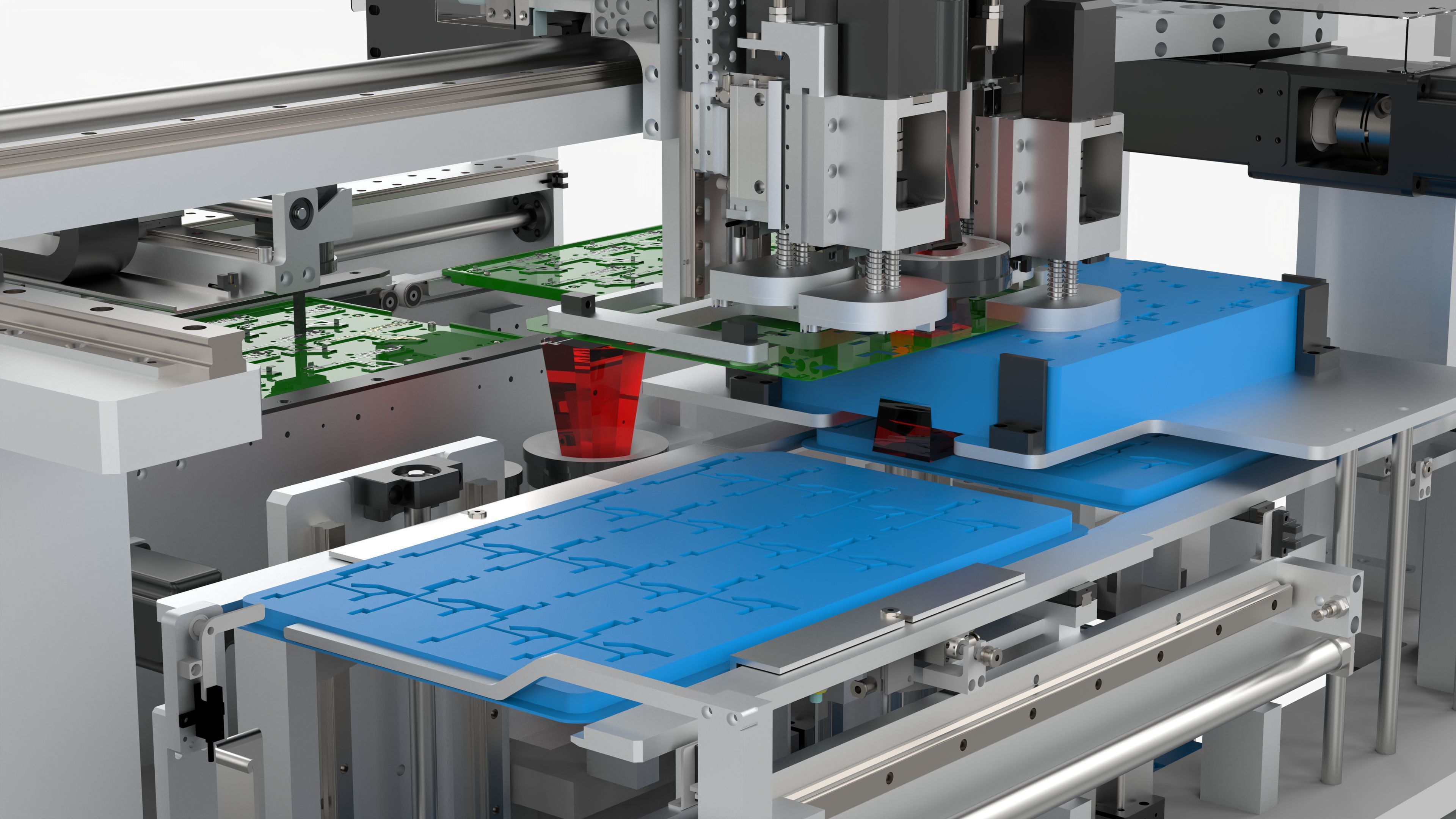

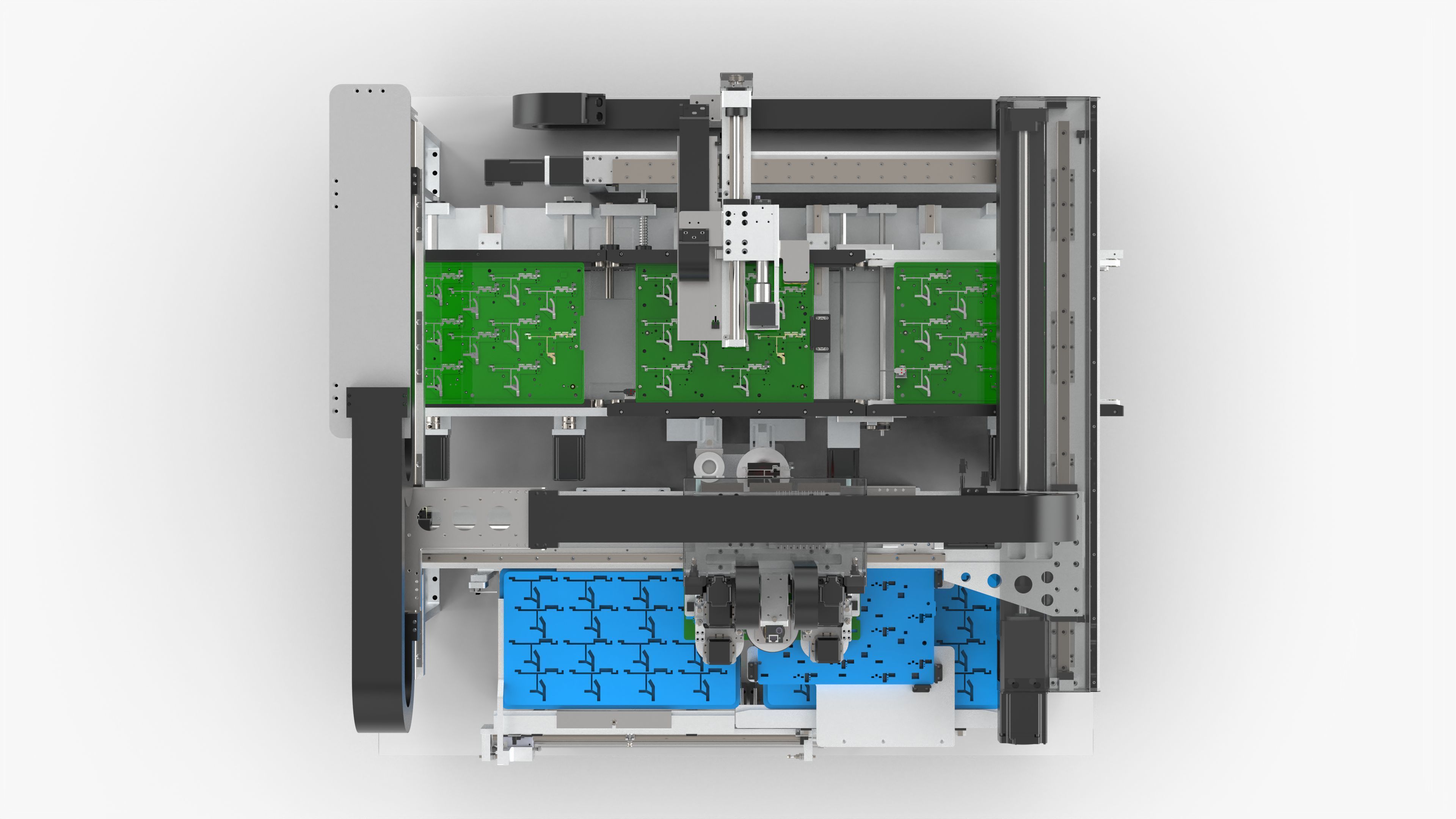

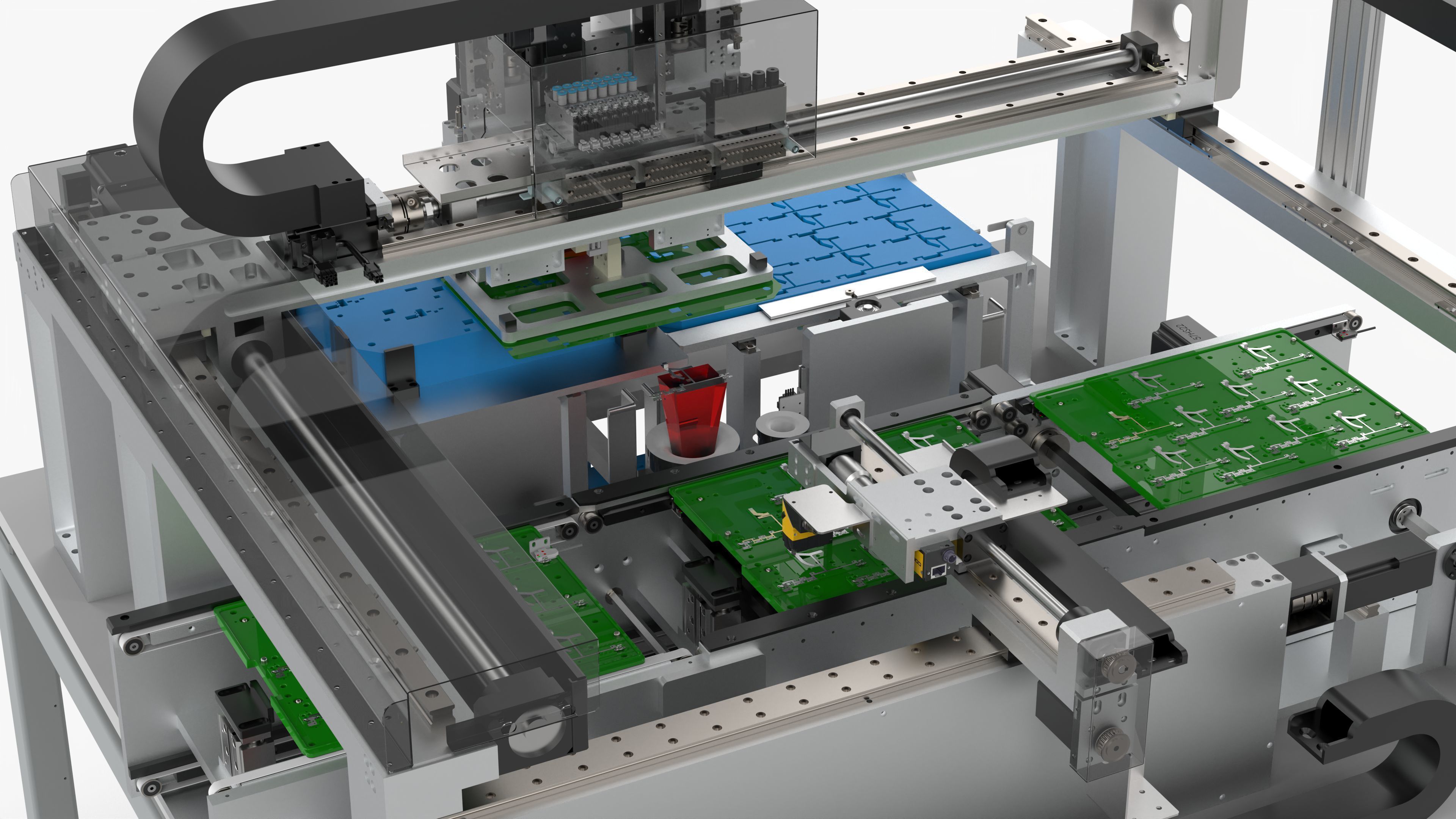

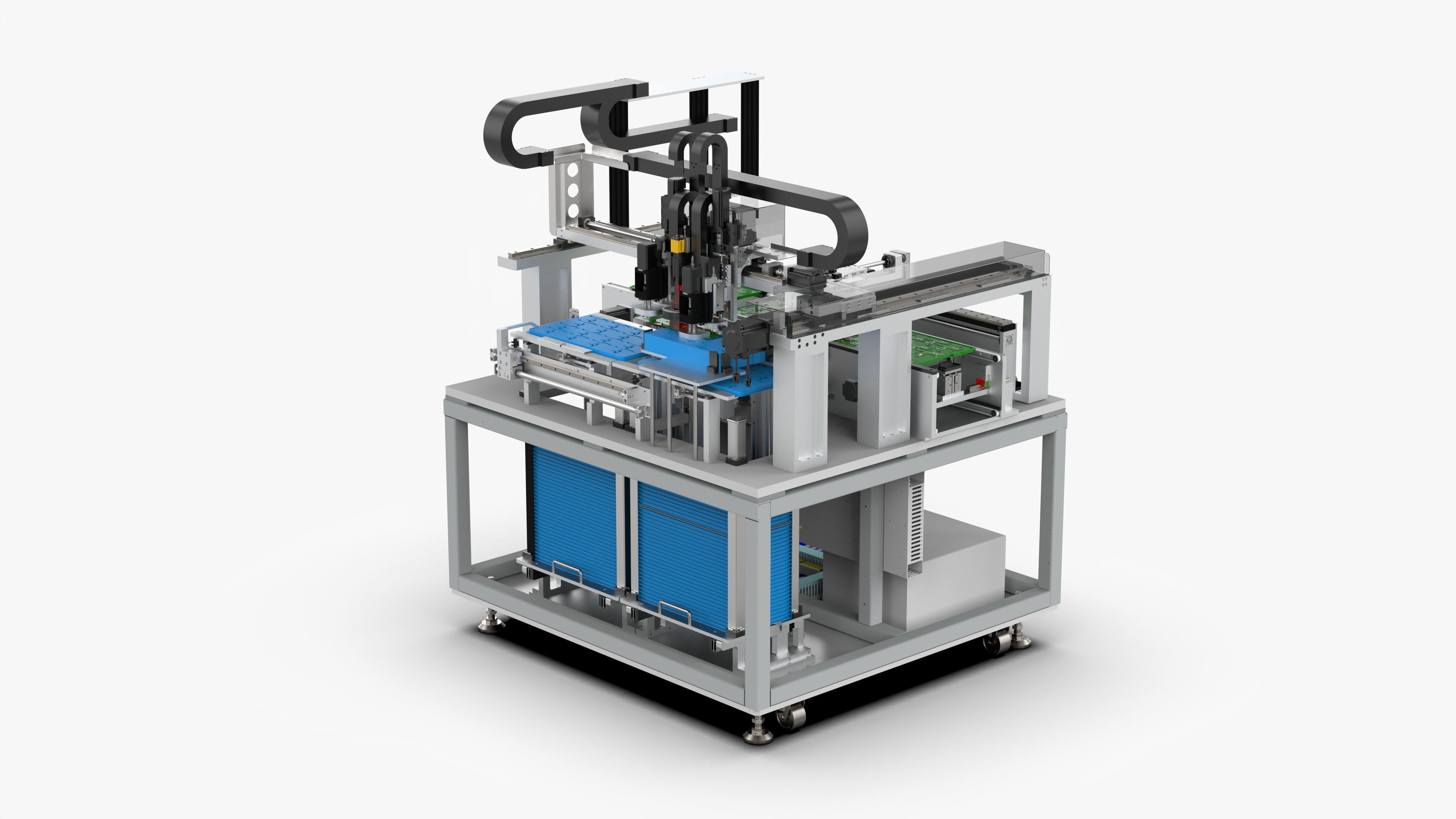

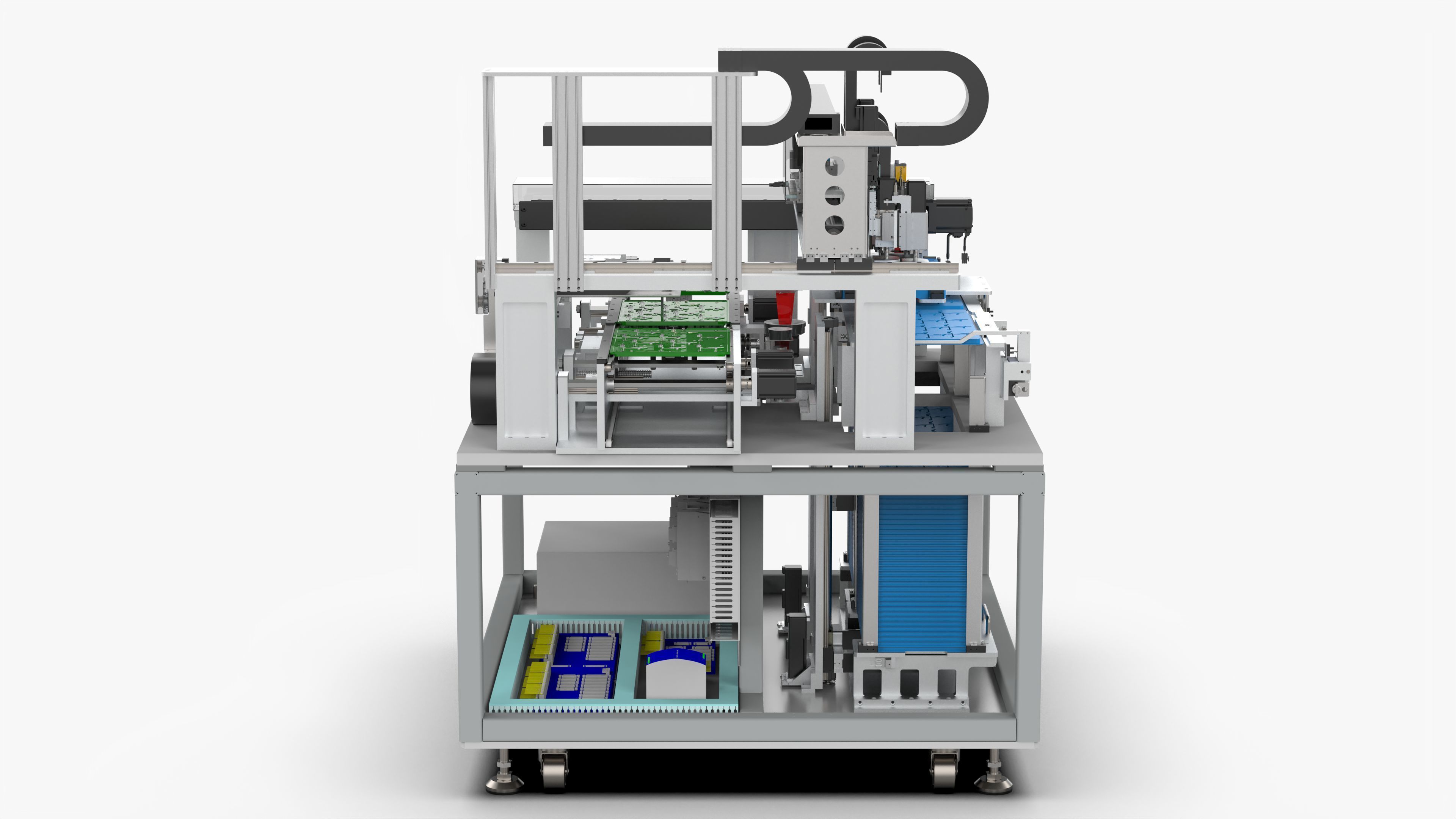

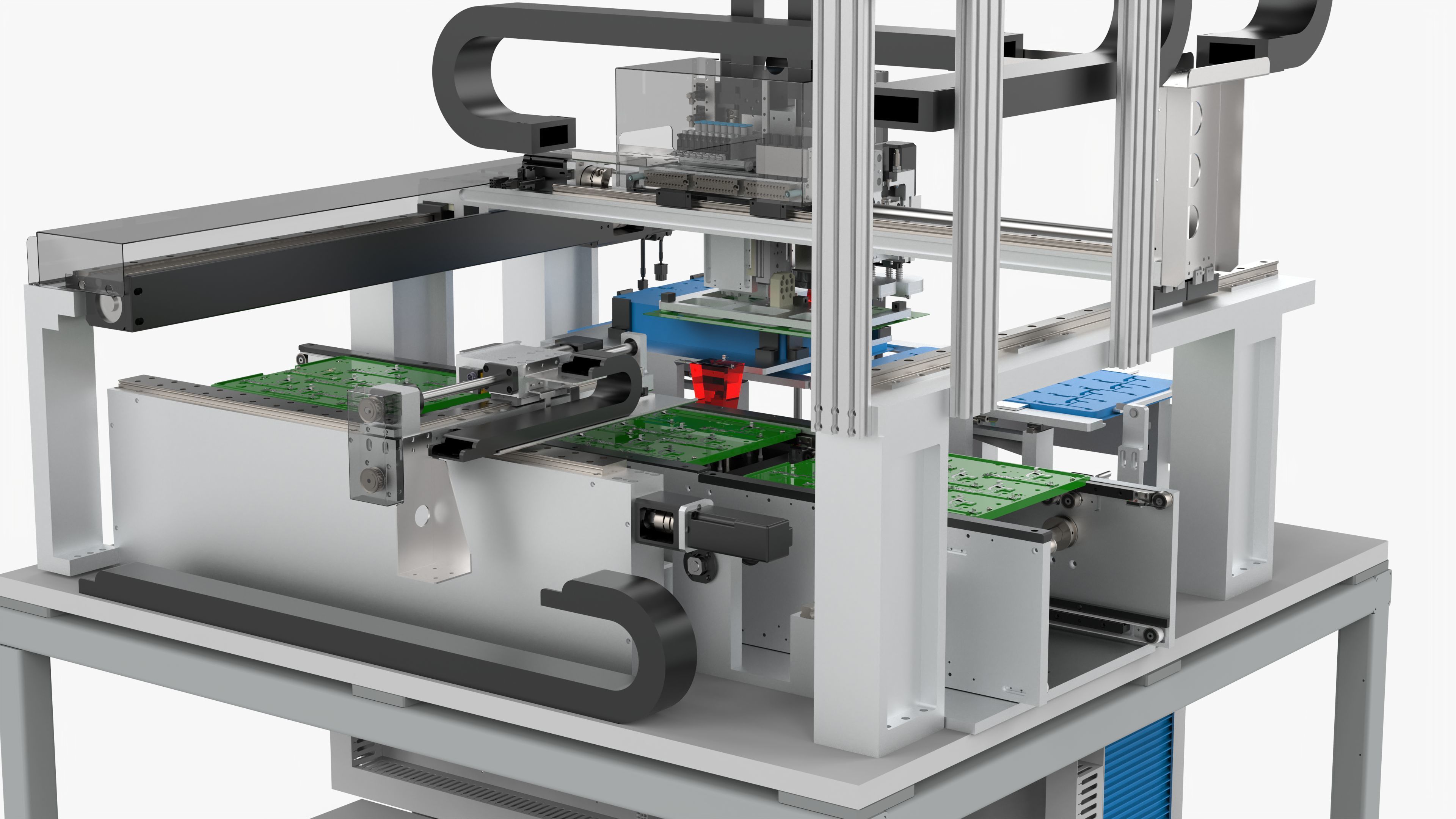

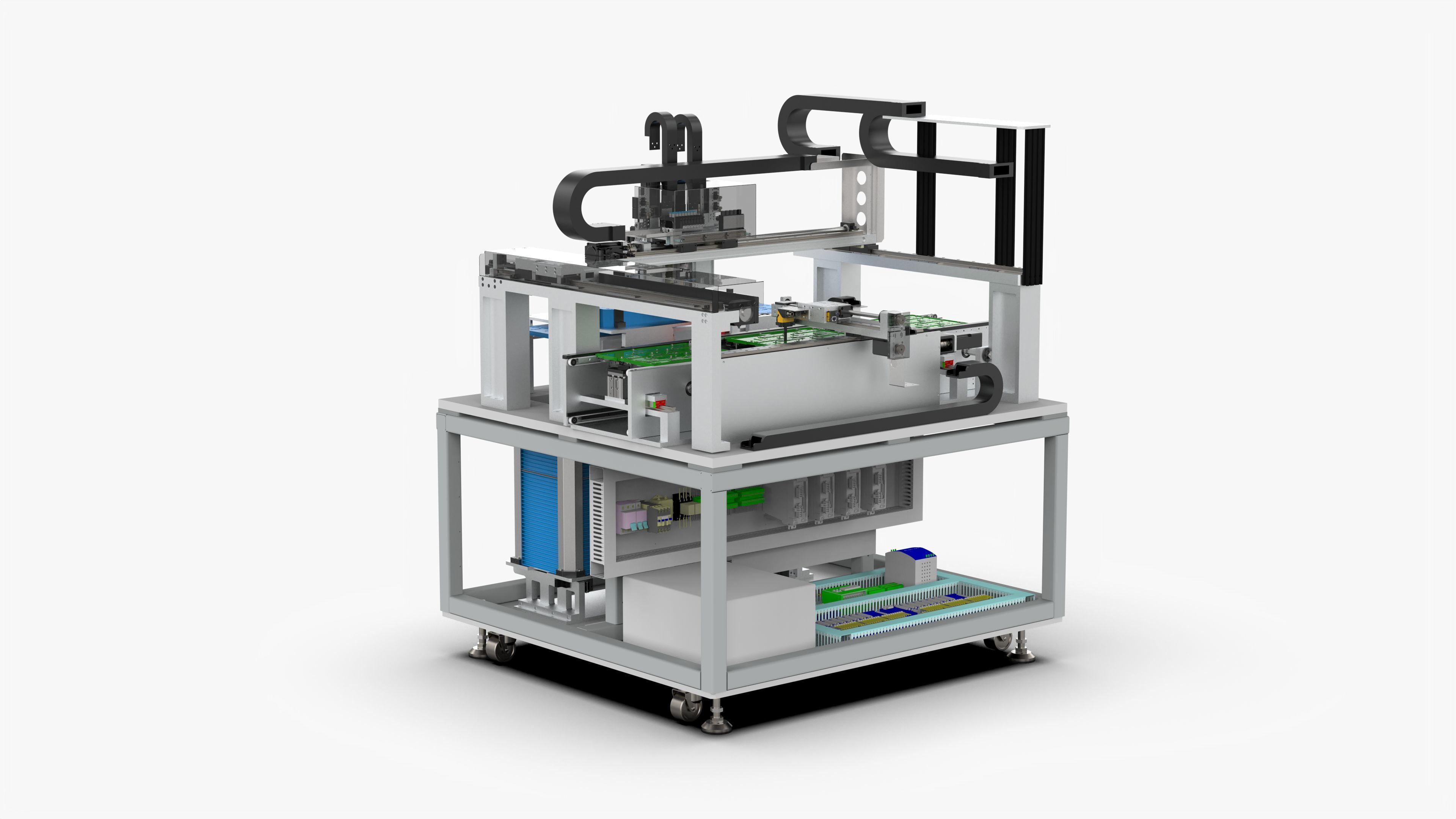

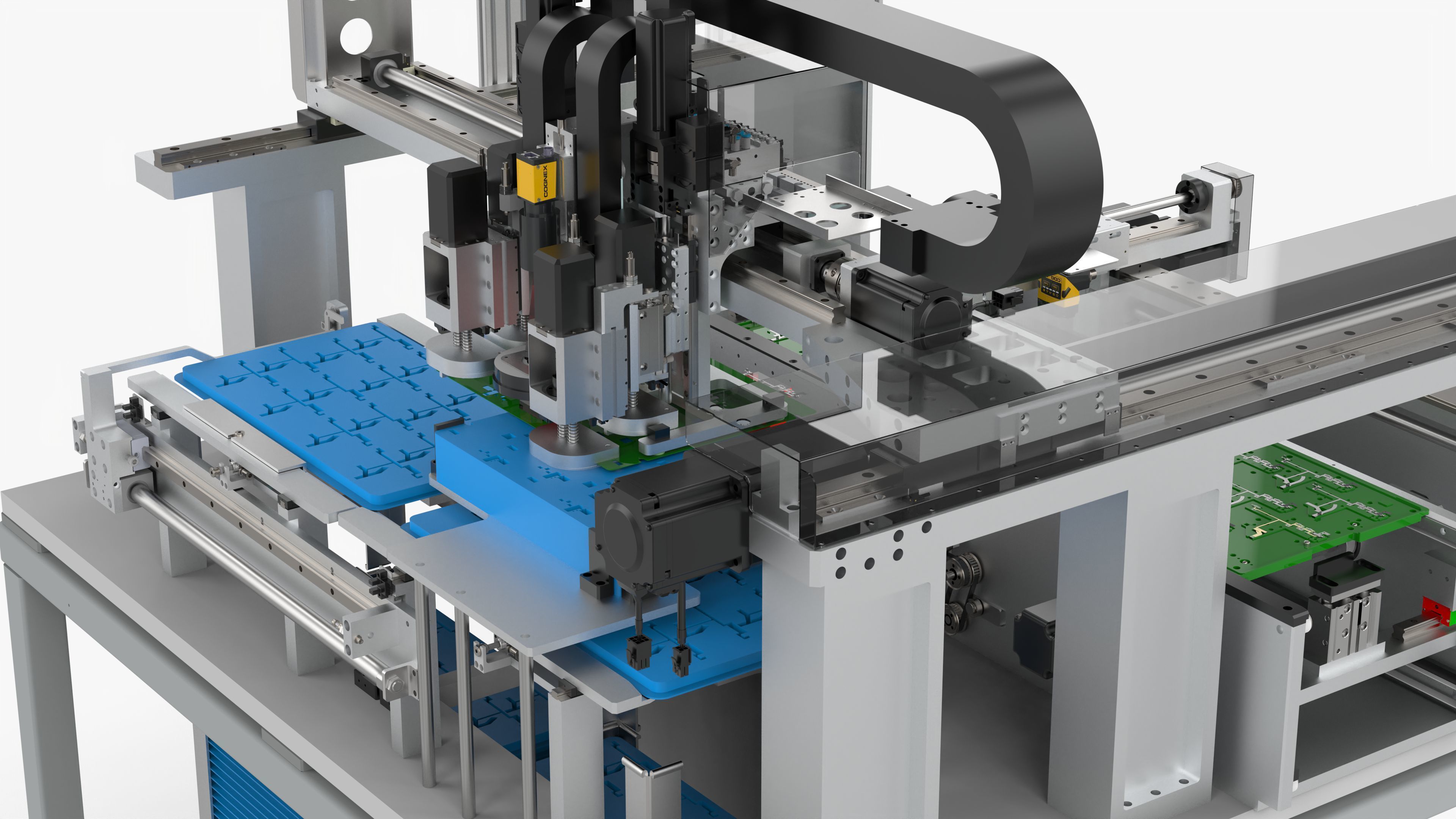

This equipment is used for PCB and chip automatic assembly machine, with tray, automatic feeding, CCD photo detection, flipping station, automatic adjustment of assembly line track, online production, mass production.
Welcome to download.
File Formats
- SolidWorks 2018 | Keyshot 10
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
Geometry
- Polygons: 10,437,889
- Vertice: 31,313,667
Automatic PCB Circuit Board Assembly Machine
Royalty Free License
Automatic PCB Circuit Board Assembly Machine
Royalty Free License
3D Model formats
Format limitations
Native
- SolidWorks 2018 (.sldprt, .sldasm, .slddrw)258 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
- IGES (.ige, .igs, .iges)369 MB
- STEP (.stp)97.9 MB
- OBJ (.obj, .mtl)823 MB
- Stereolithography (.stl)498 MB
3D Model details
- Publish date2023-02-18
- Model ID#4304743
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 10,437,889
- Vertices 31,313,667
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
