Automatic Mobile Phone LCD Screen Assembly Line 3D model

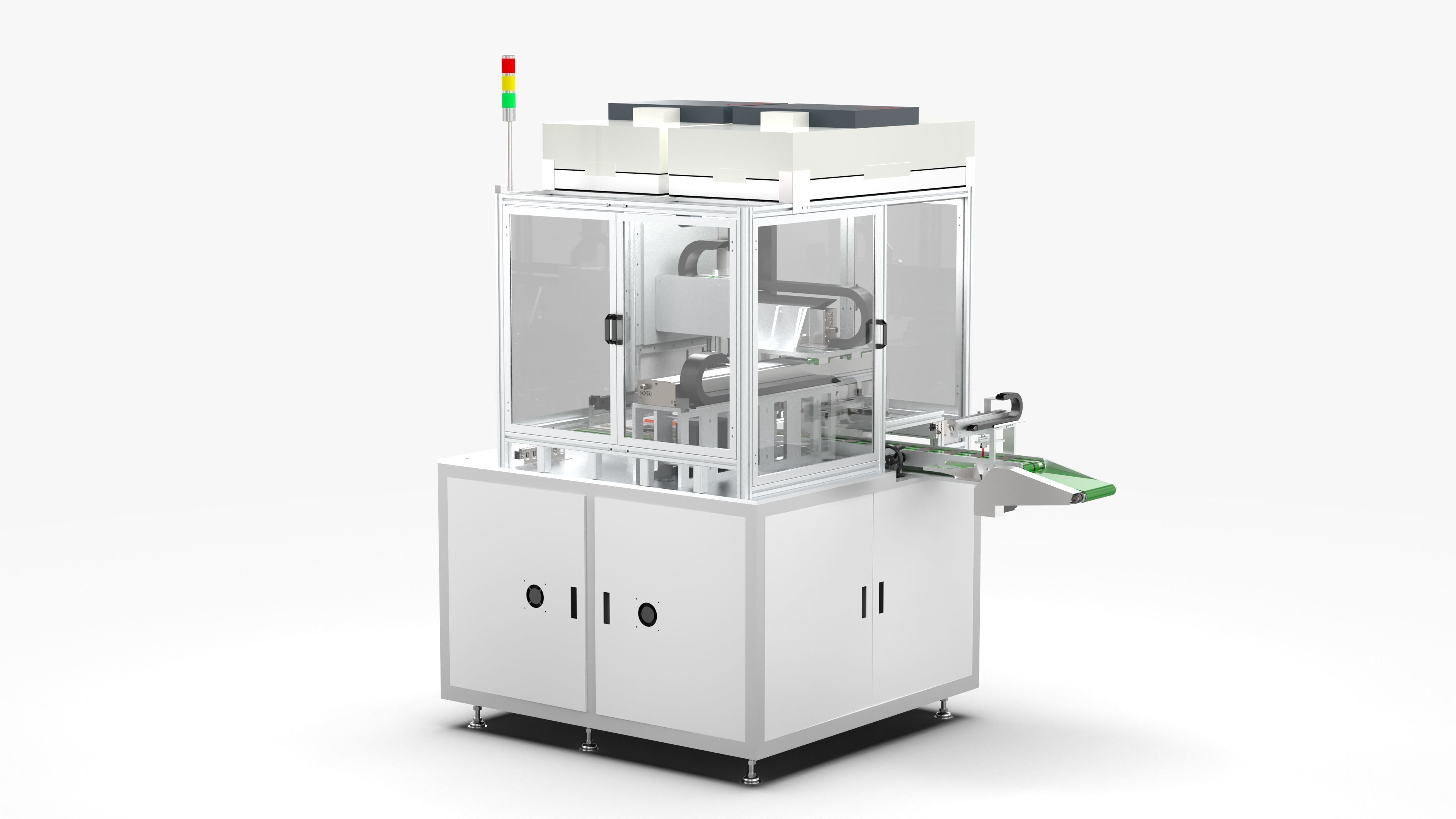

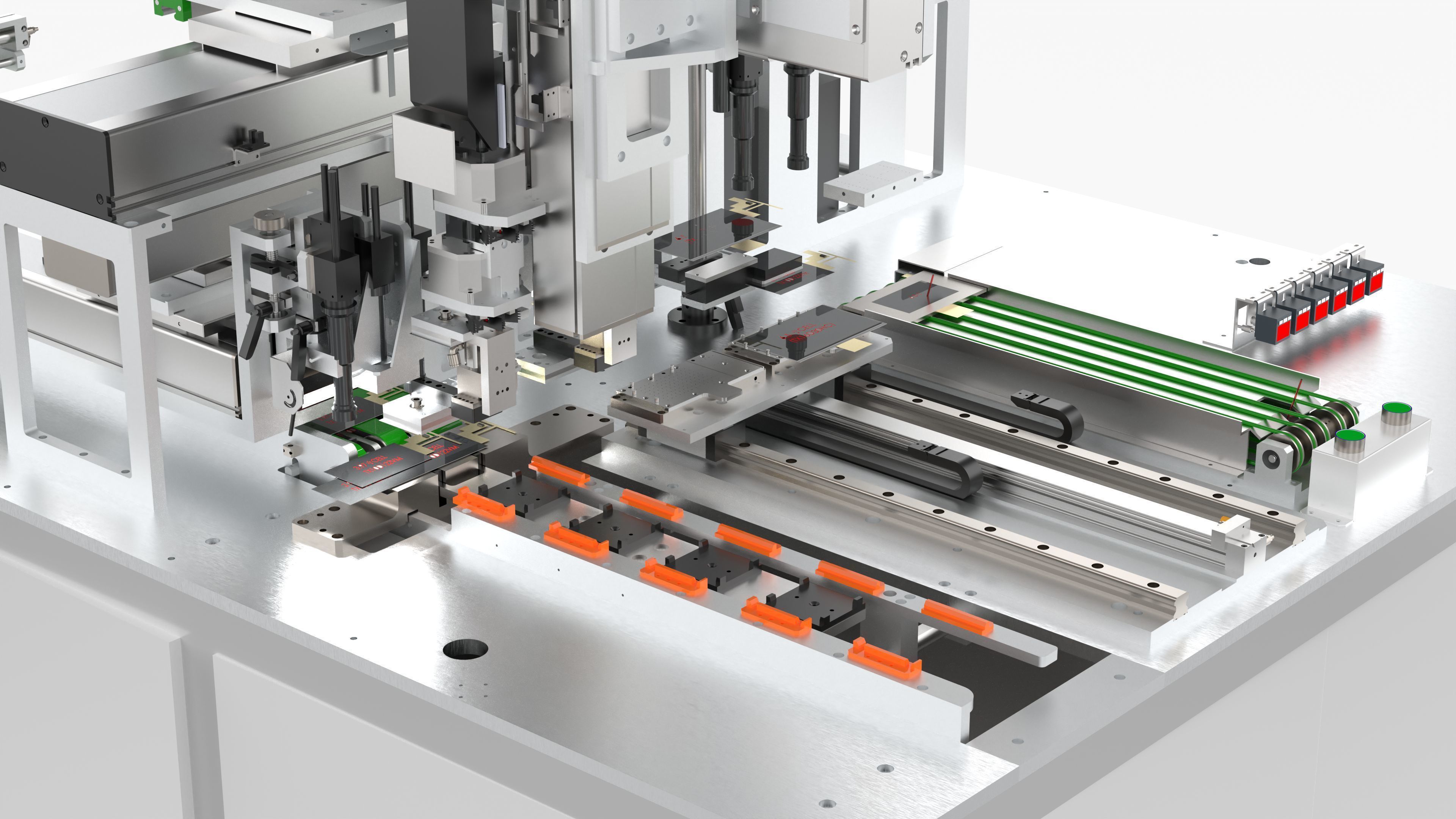

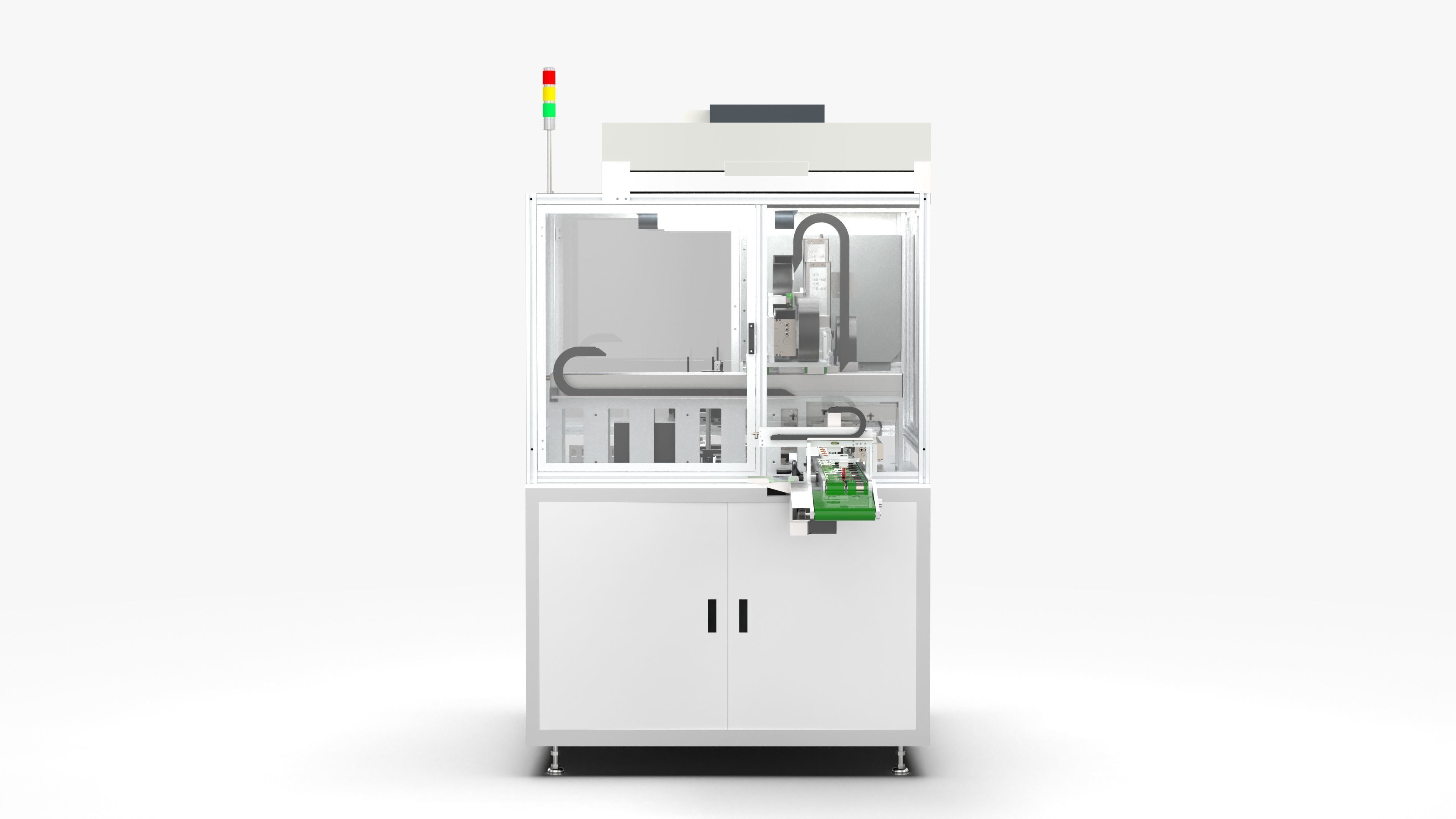

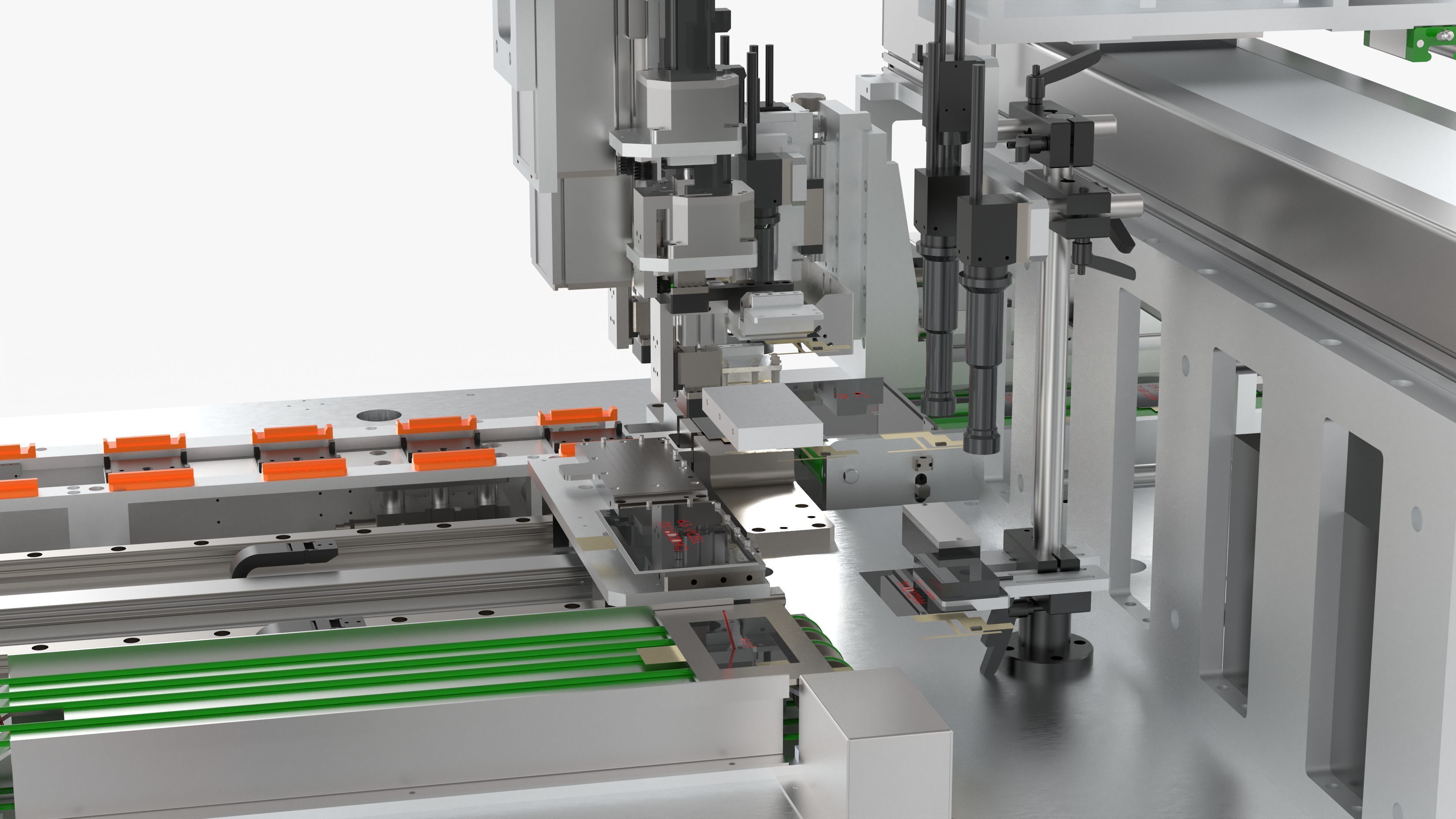

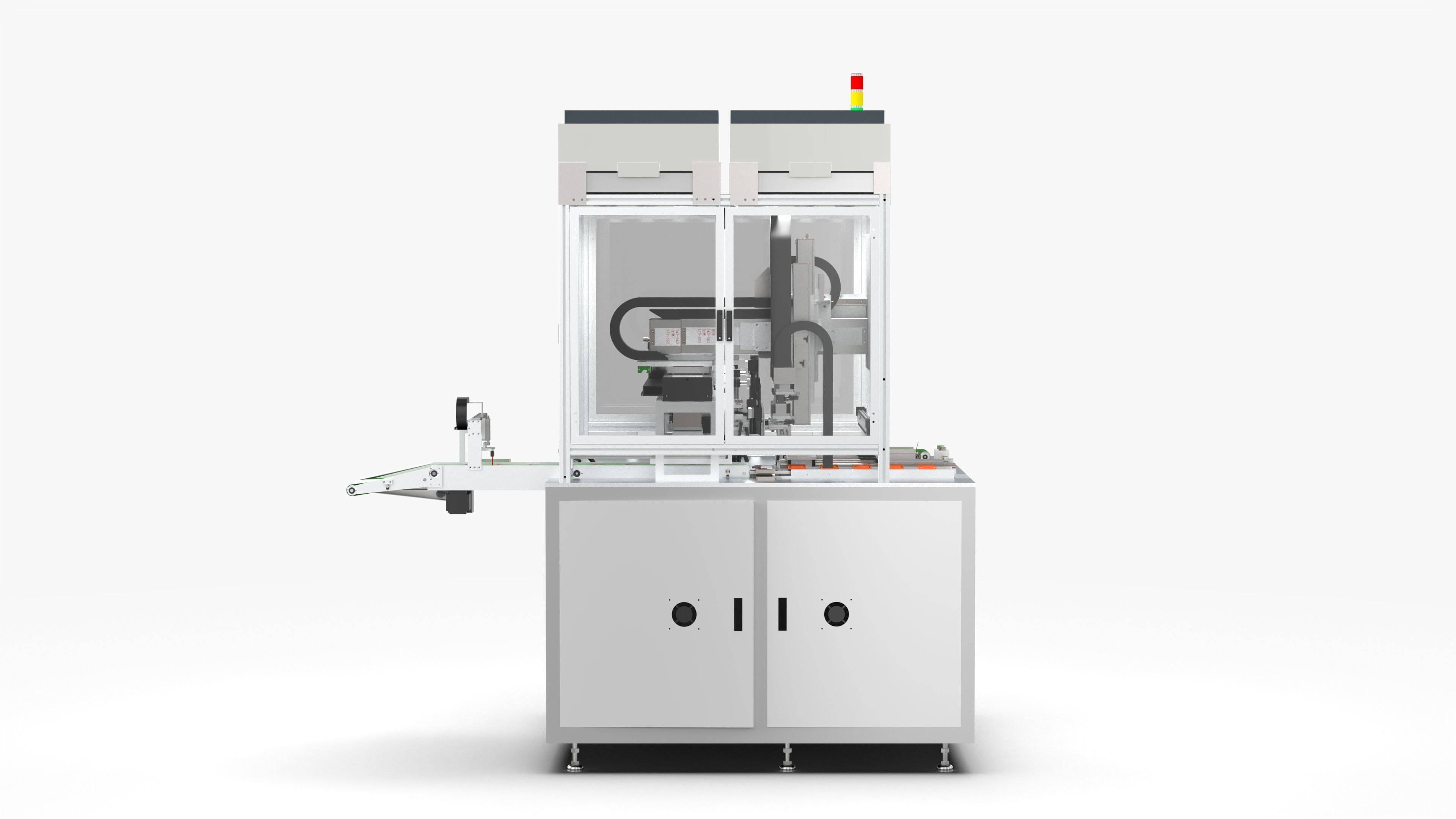

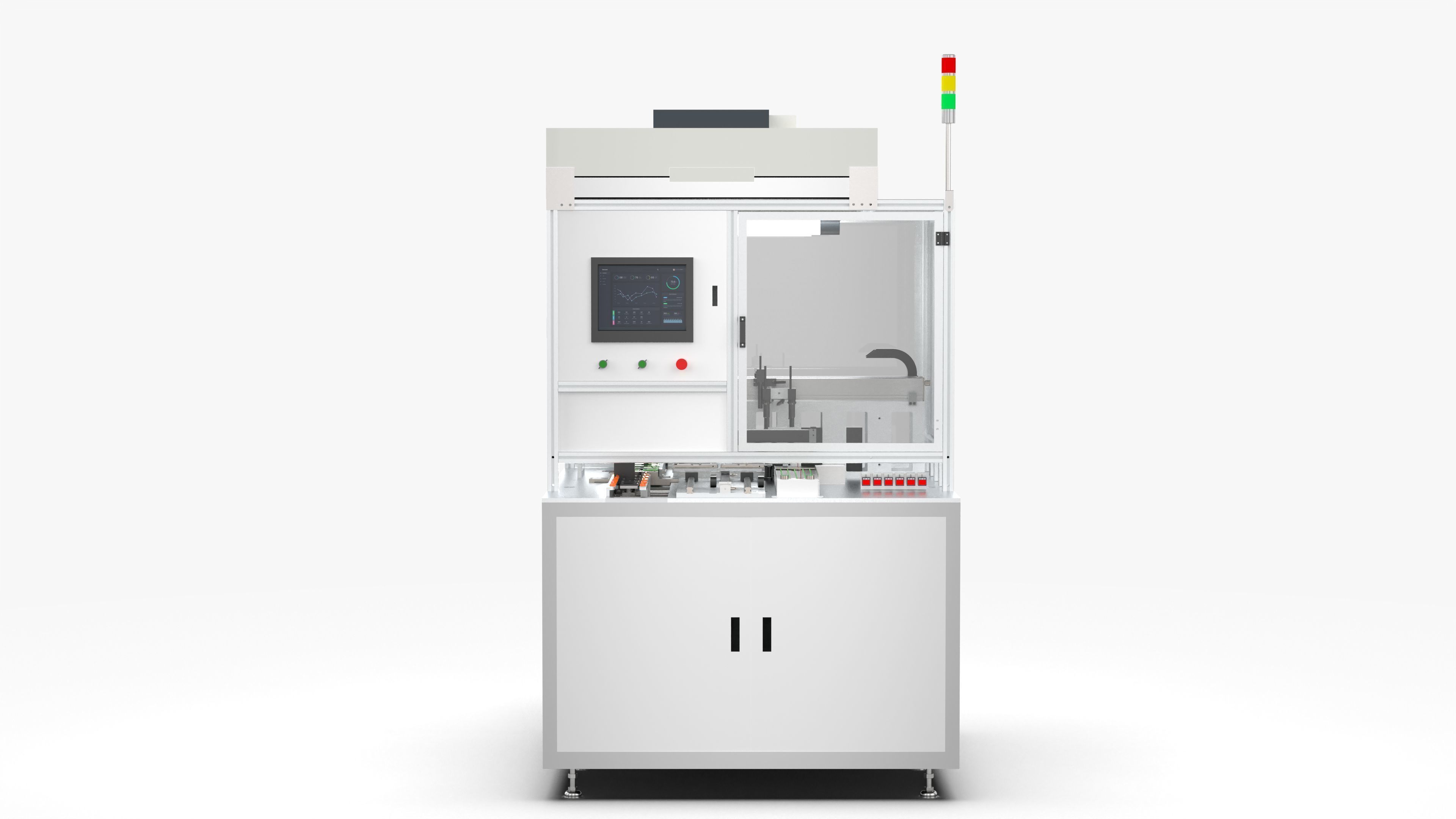

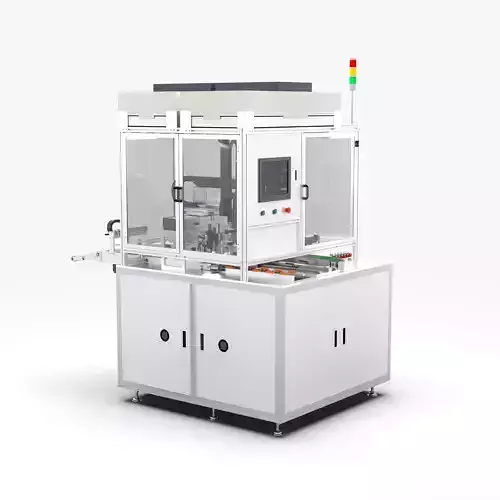

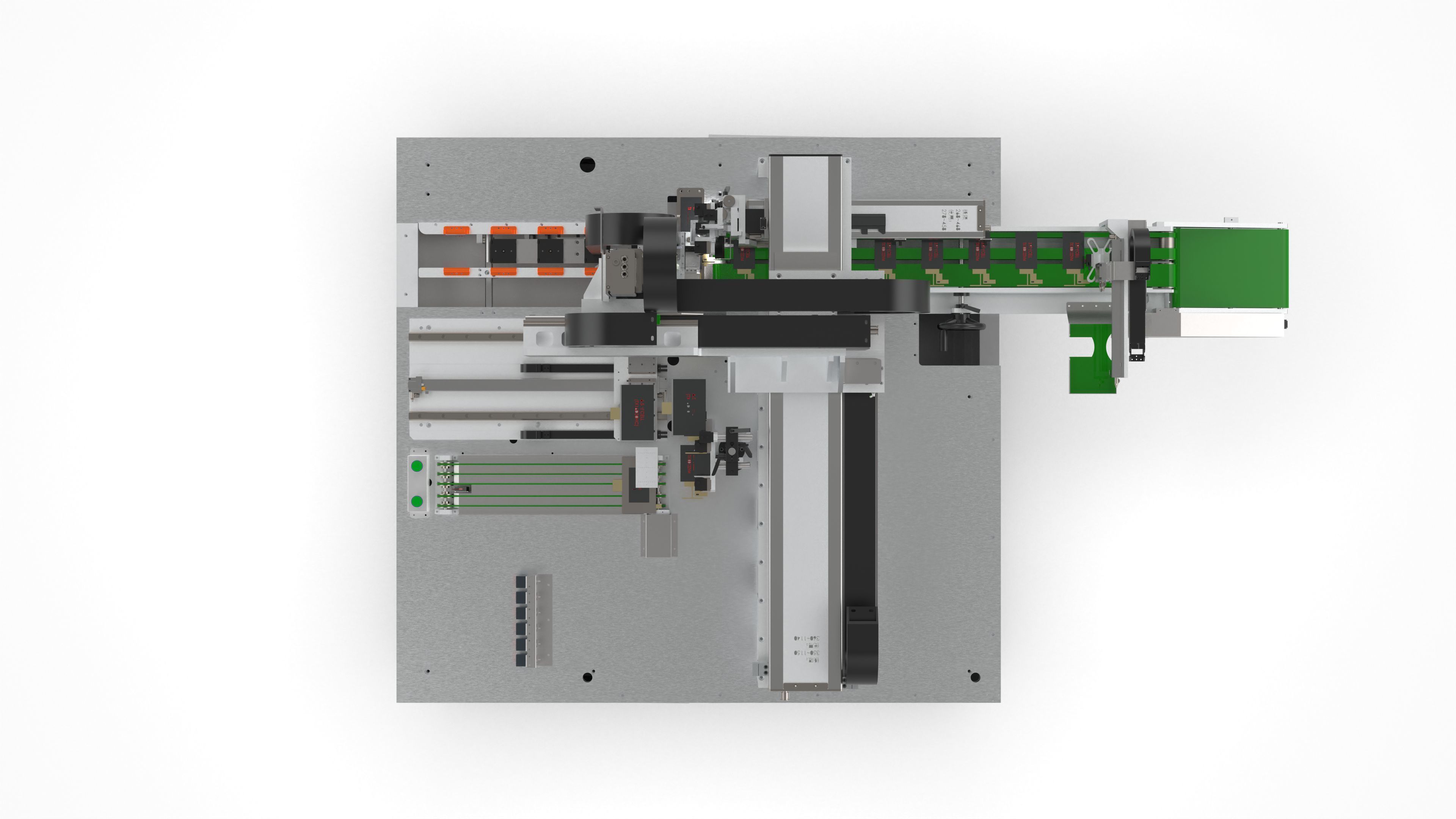

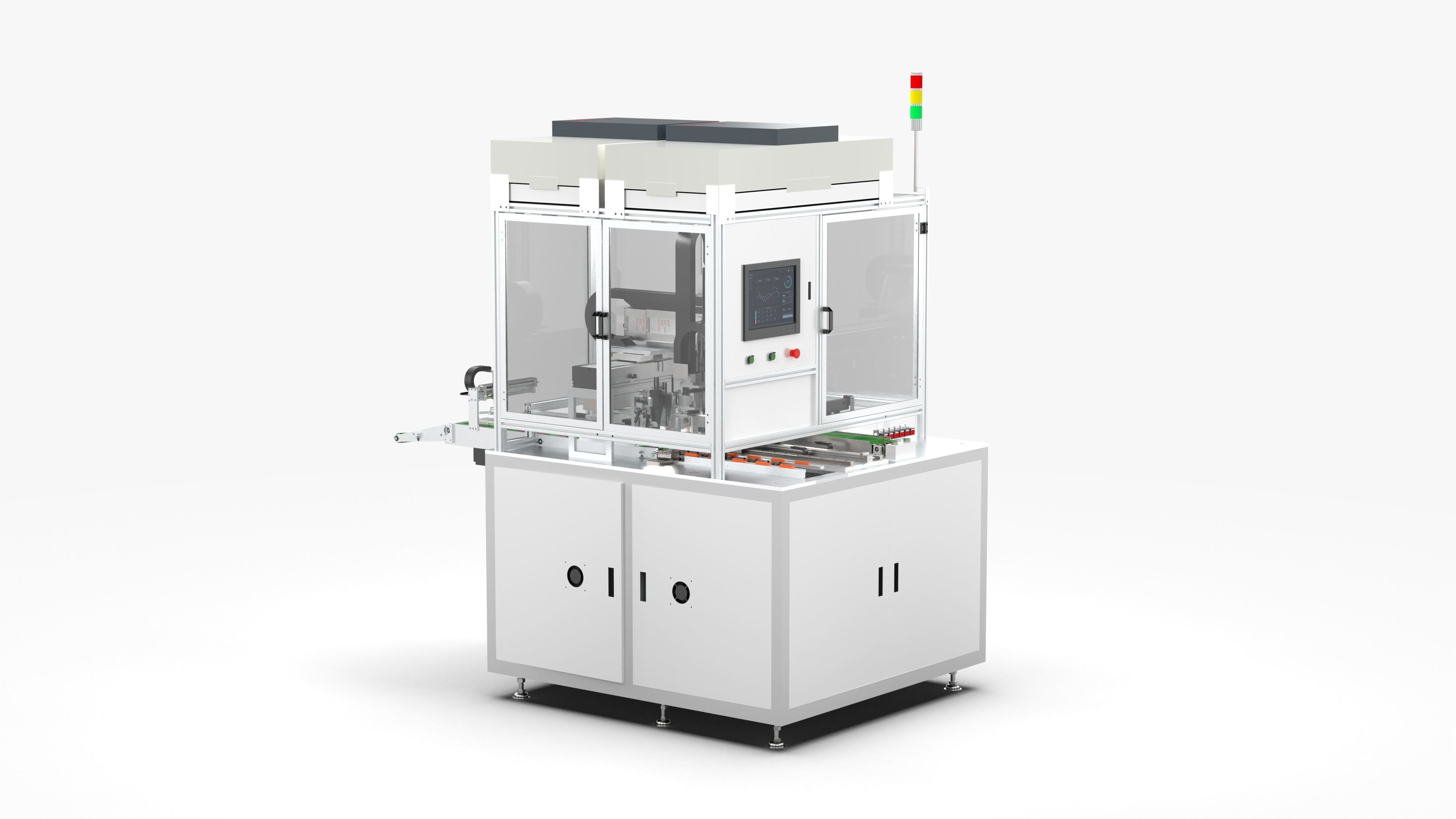

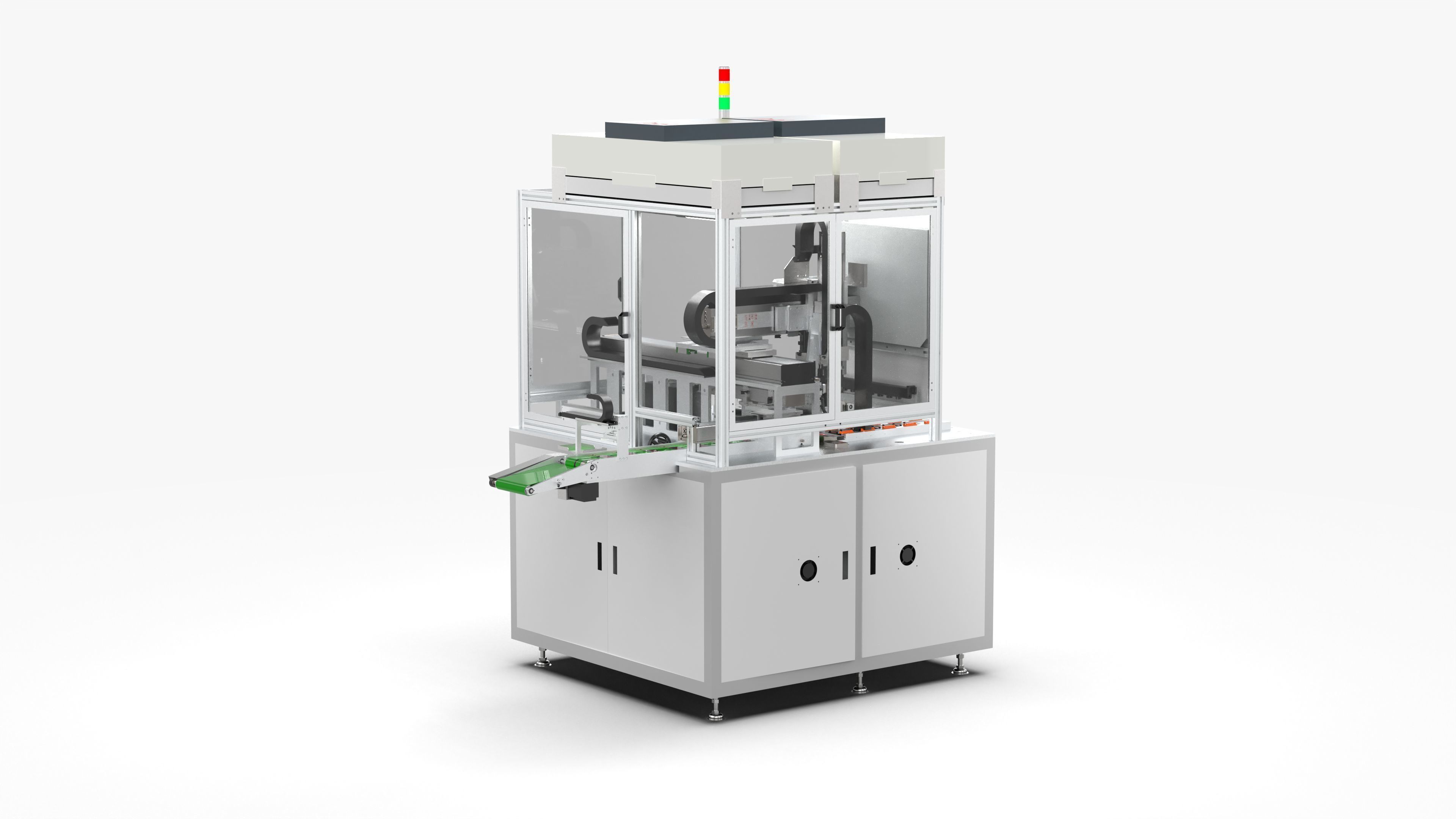

Automatic Mobile Phone LCD Screen Assembly Line

Introduction

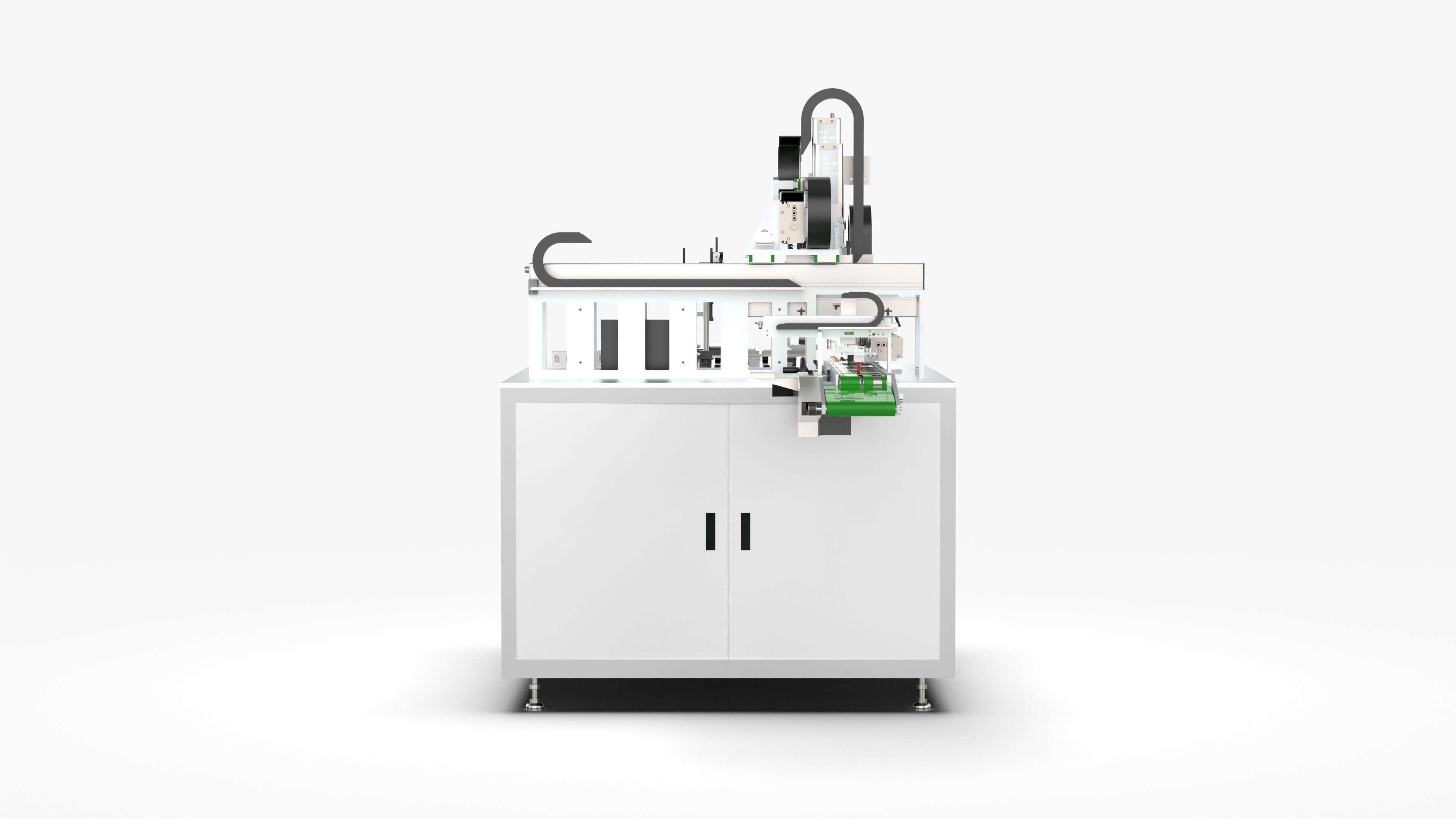

BCA attachment equipment mobile phone LCD screen and backlight automatic assembly machine CCD vision correction

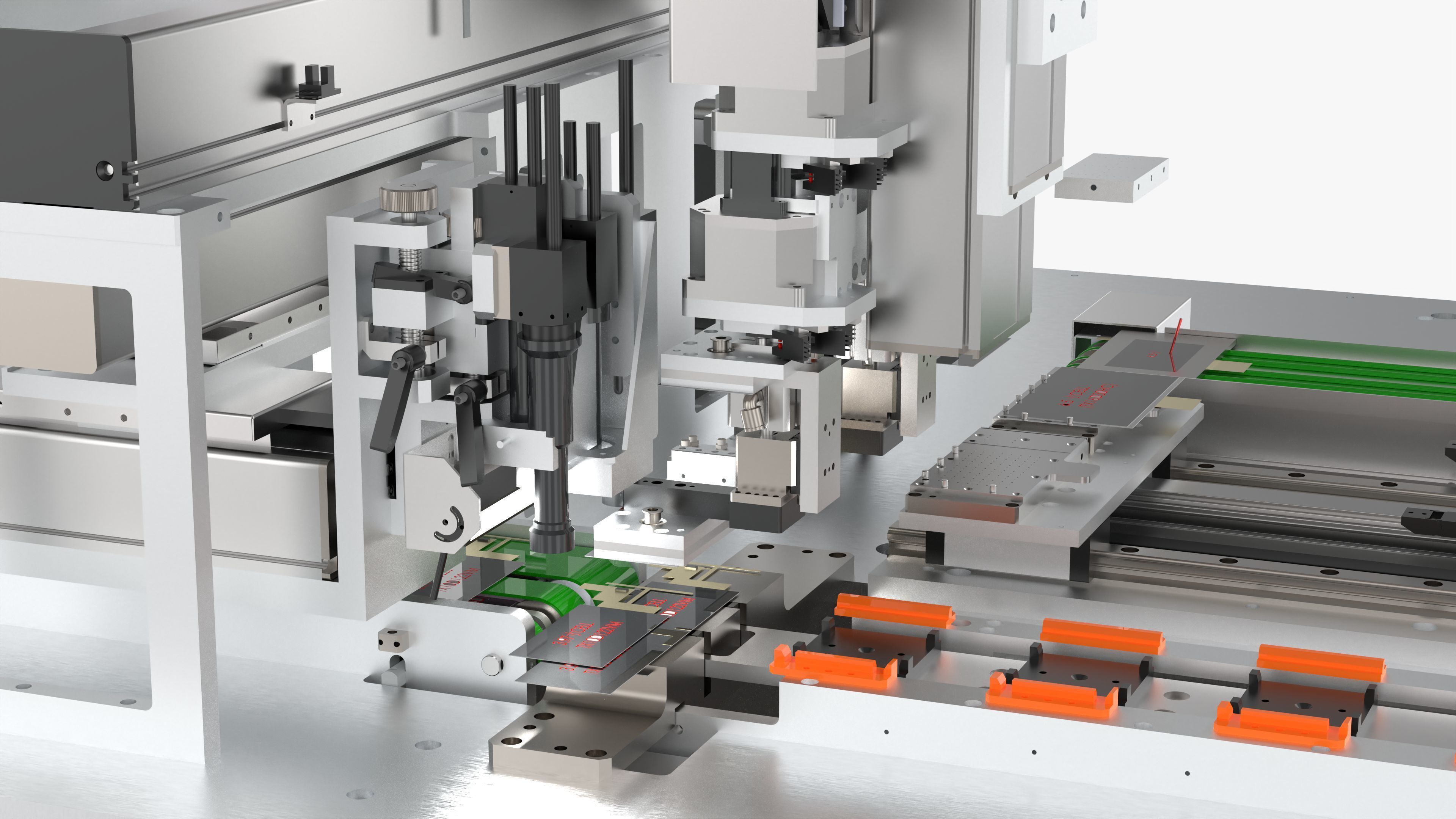

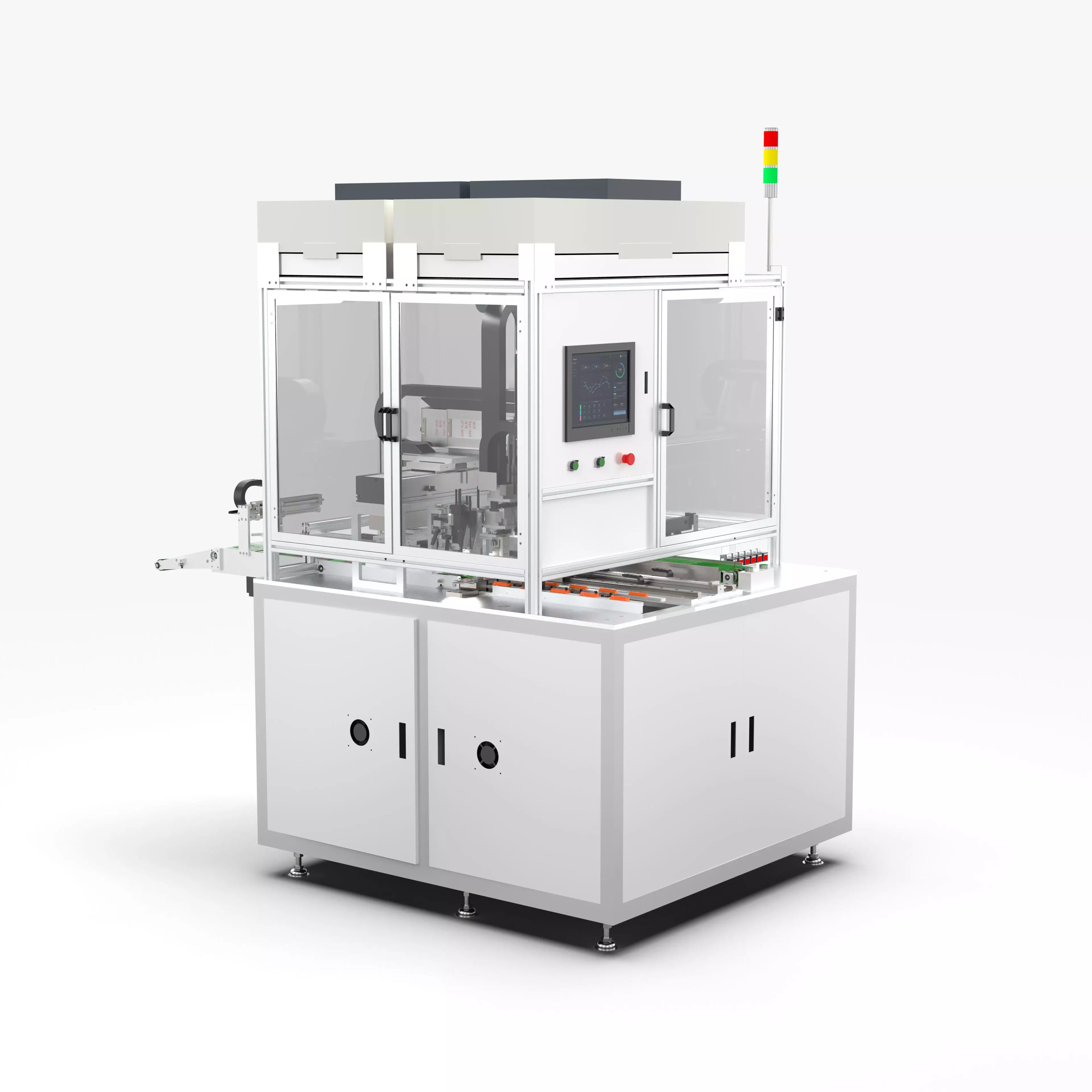

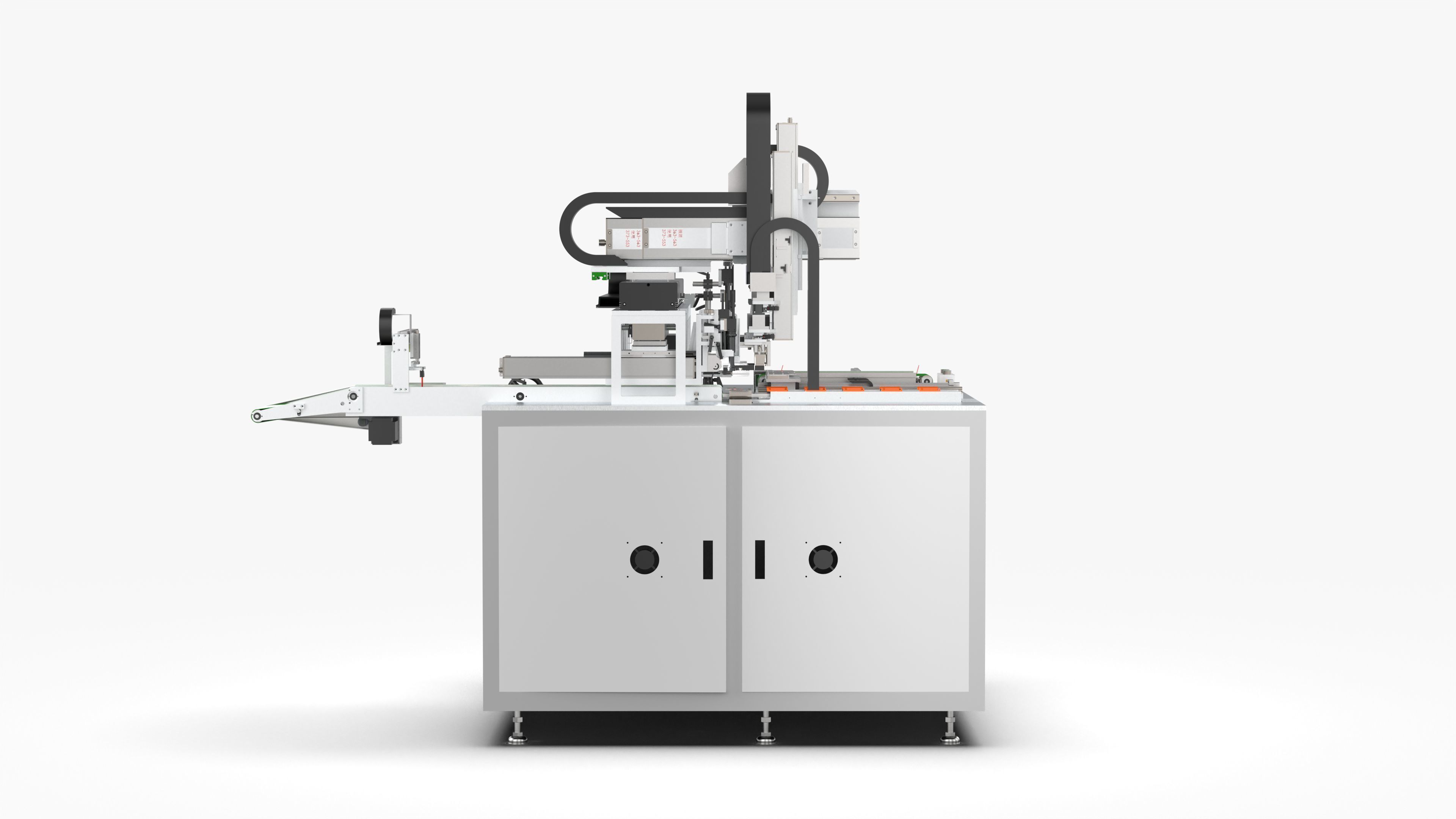

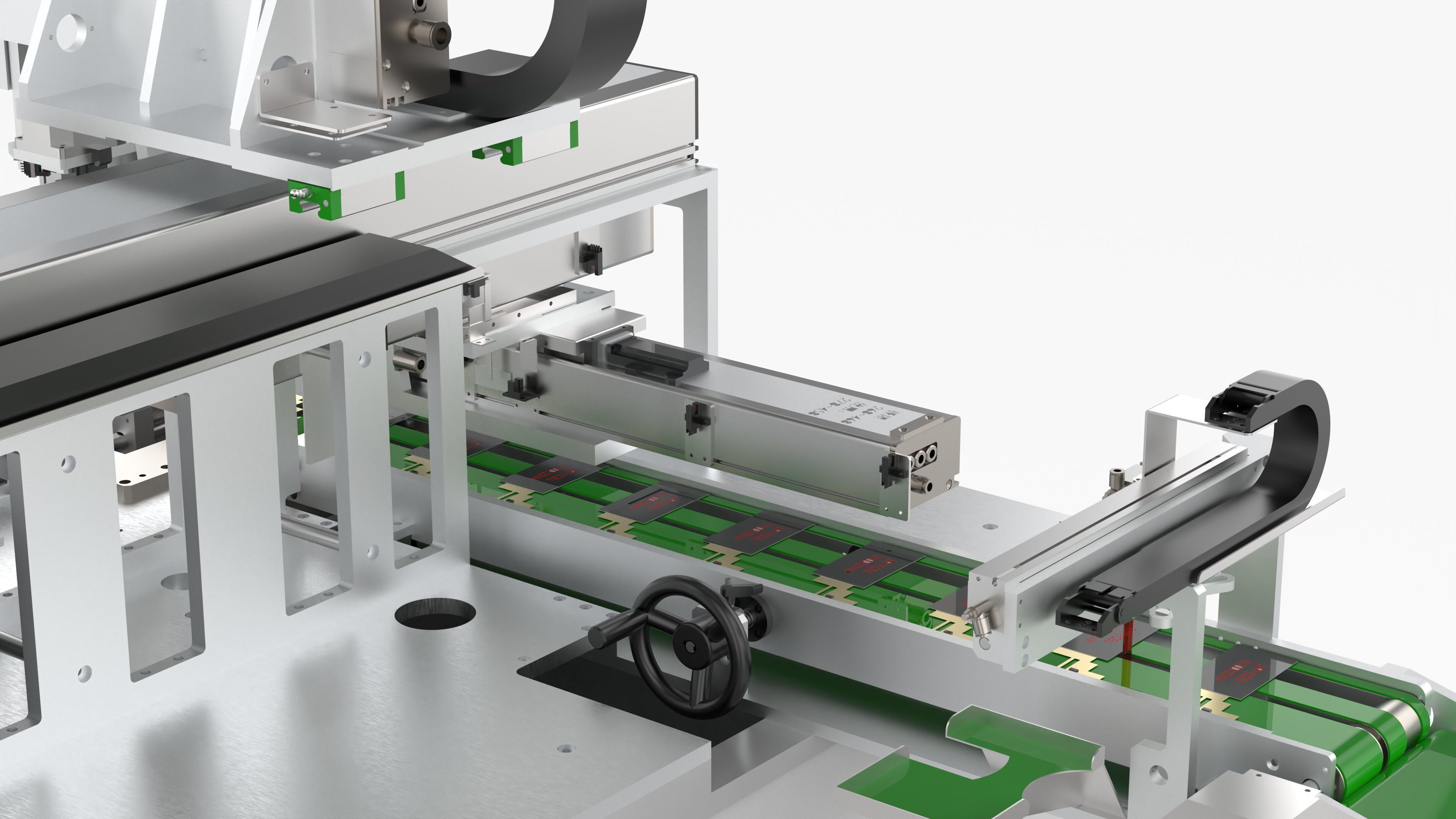

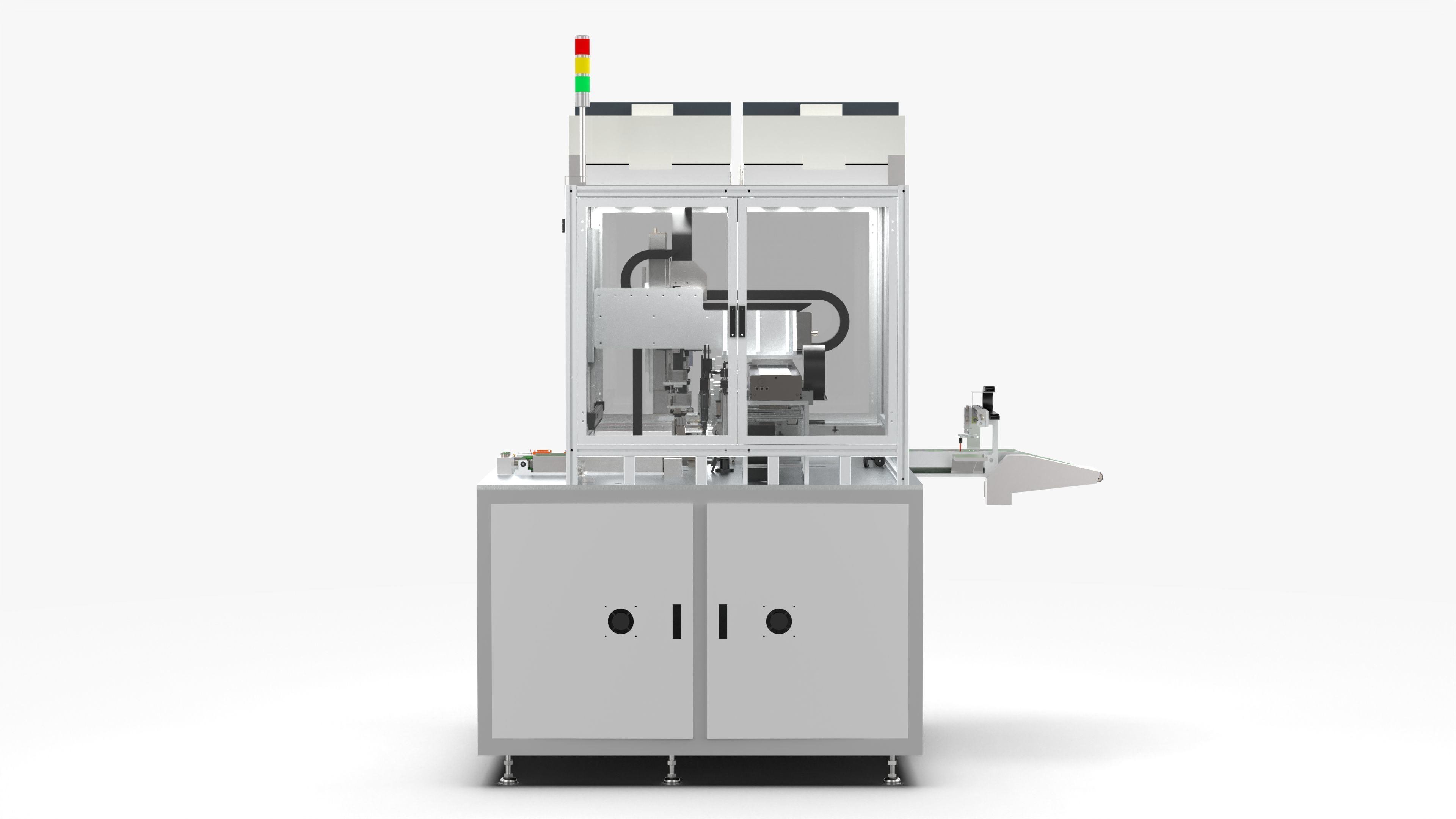

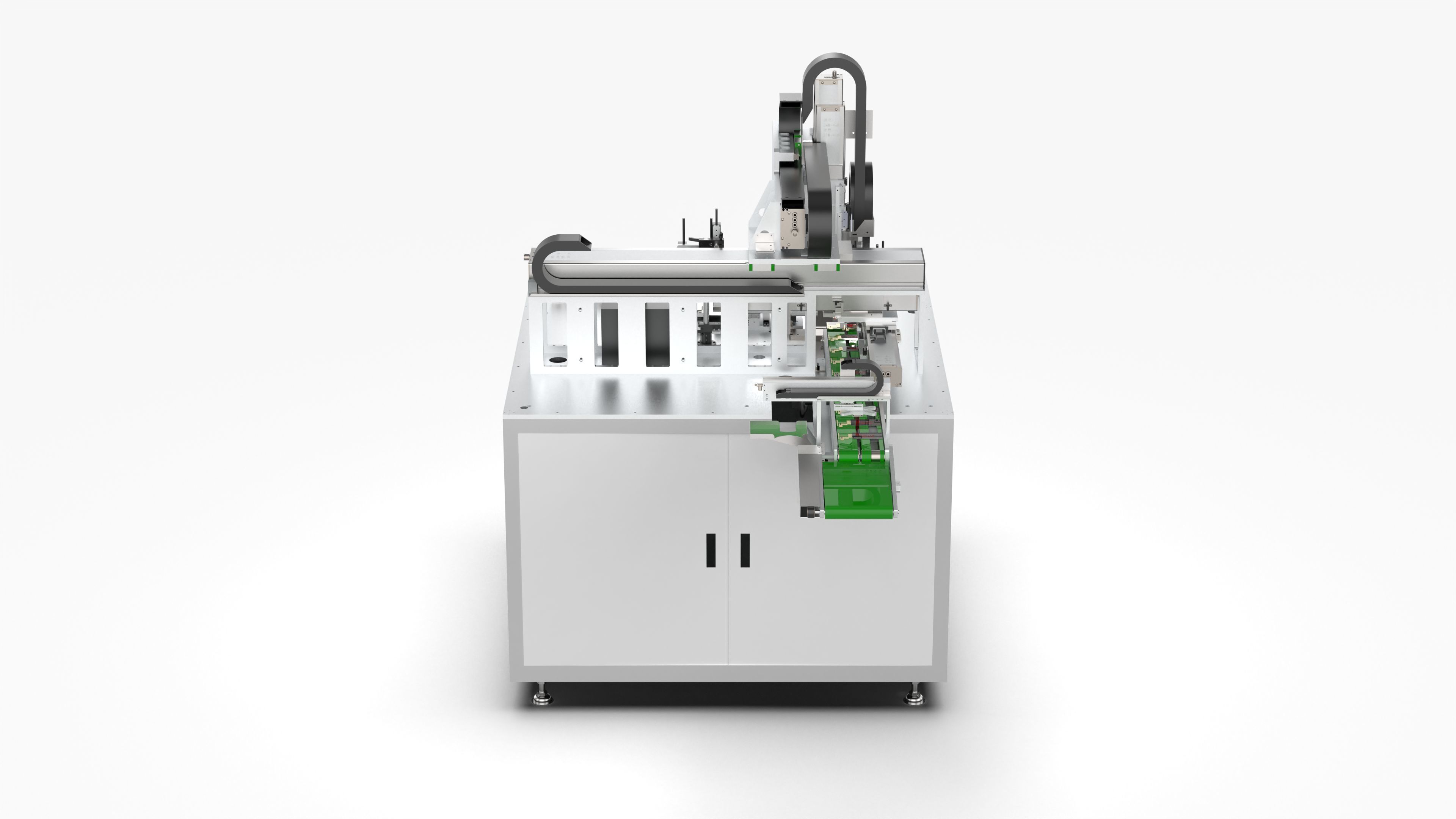

This equipment is a 3.2-5 inch mobile phone LCD screen and backlight automatic attachment equipment. The main function is to manually put into the mobile phone LCD screen. The first group of visual corrections get the position, and at the same time the backlight of the mobile phone is input from another line, the second group of visuals takes pictures to get the position, and then the manipulator grabs the LCD glass and automatically attaches it to the backlight to complete the automatic assembly of the LCD glass and the backlight, and then passes through the third group After visual inspection, the attachment accuracy is inspected. After completion, it is discharged from the machine through the assembly line. The internal CCD of this equipment has many visions and complex mechanisms. It is a relatively advanced automatic machine. This machine has been delivered to a large state-owned optical technology company and put into use.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 2,472,116
• Vertice: 7,416,348
