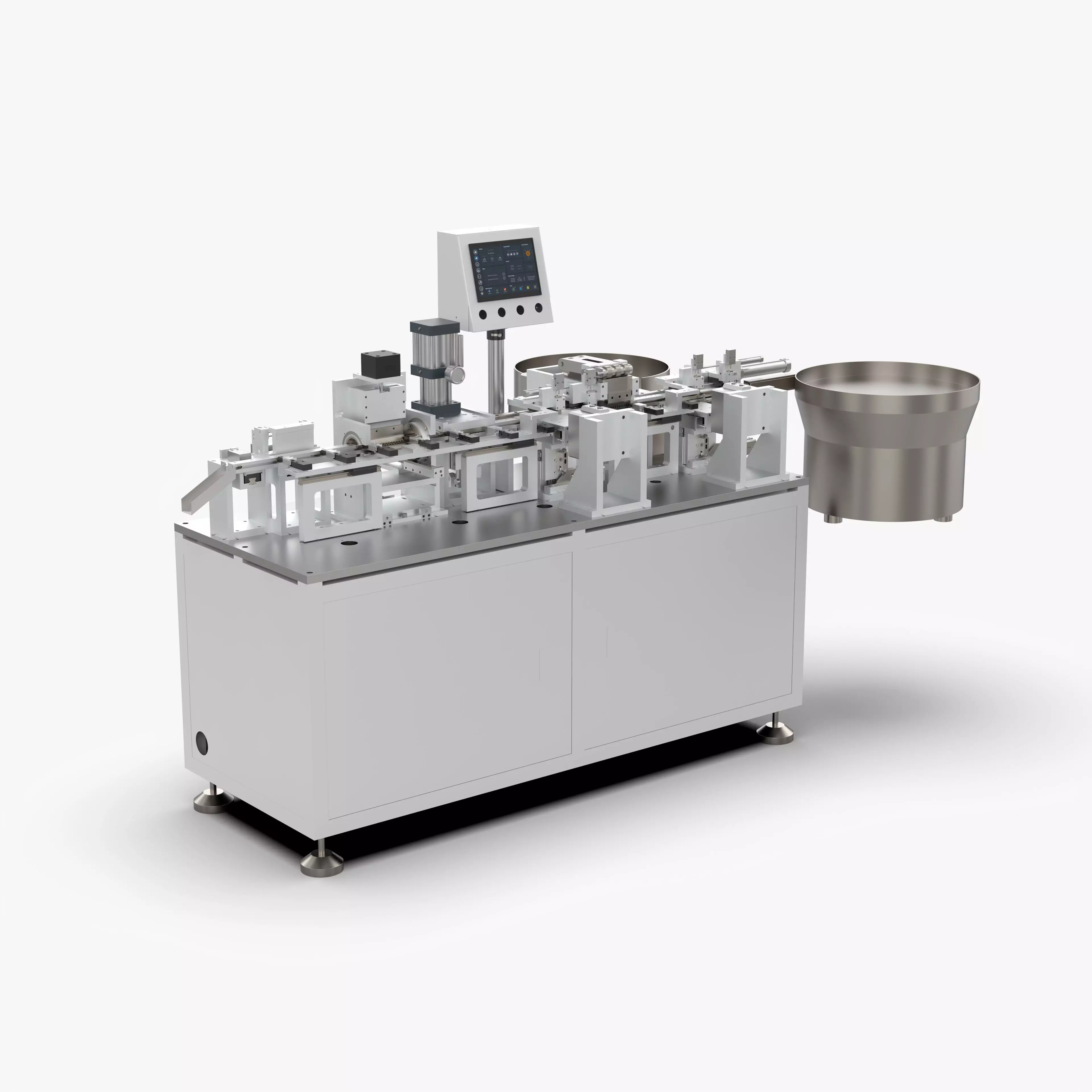

Automatic Loose End Pin Insertion Machine 3D model
Description
Automatic Loose End Pin Insertion Machine
Introduction
A target loose-end pin insertion machine, including automatic loose-end feeding, plastic parts feeding, automatic pin insertion, a new type of two-stage booster mechanism with a boost of more than 10 times, a device that can protect the tinned layer of the terminal from The scratched new bending mechanism, hook forming, long and short needle detection and other mechanisms, the equipment has been put into production, and the cycle time and quality meet the product requirements.
File Formats
- Inventor 2018 | Keyshot 10
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
Geometry
- Polygons: 854,658
- Vertice: 2,563,974
Automatic Loose End Pin Insertion Machine
Royalty Free License
Automatic Loose End Pin Insertion Machine
Royalty Free License
3D Model formats
Format limitations
- Autodesk Inventor 2018 (.iam, .ipt)67.8 MBVersion: 2018Renderer: Octane 3.0
- AutoCAD (.dwg)67.8 MB
- Autodesk Inventor (.idw)67.8 MB
- fbm (.fbm)67.8 MB
- Stereolithography (.stl)40.8 MB
- IGES (.ige, .igs, .iges)141 MB
- OBJ (.obj, .mtl)58.9 MB
- STEP (.stp)43.6 MB
3D Model details
- Publish date2023-03-27
- Model ID#4391863
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 854,658
- Vertices 2,563,974
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
