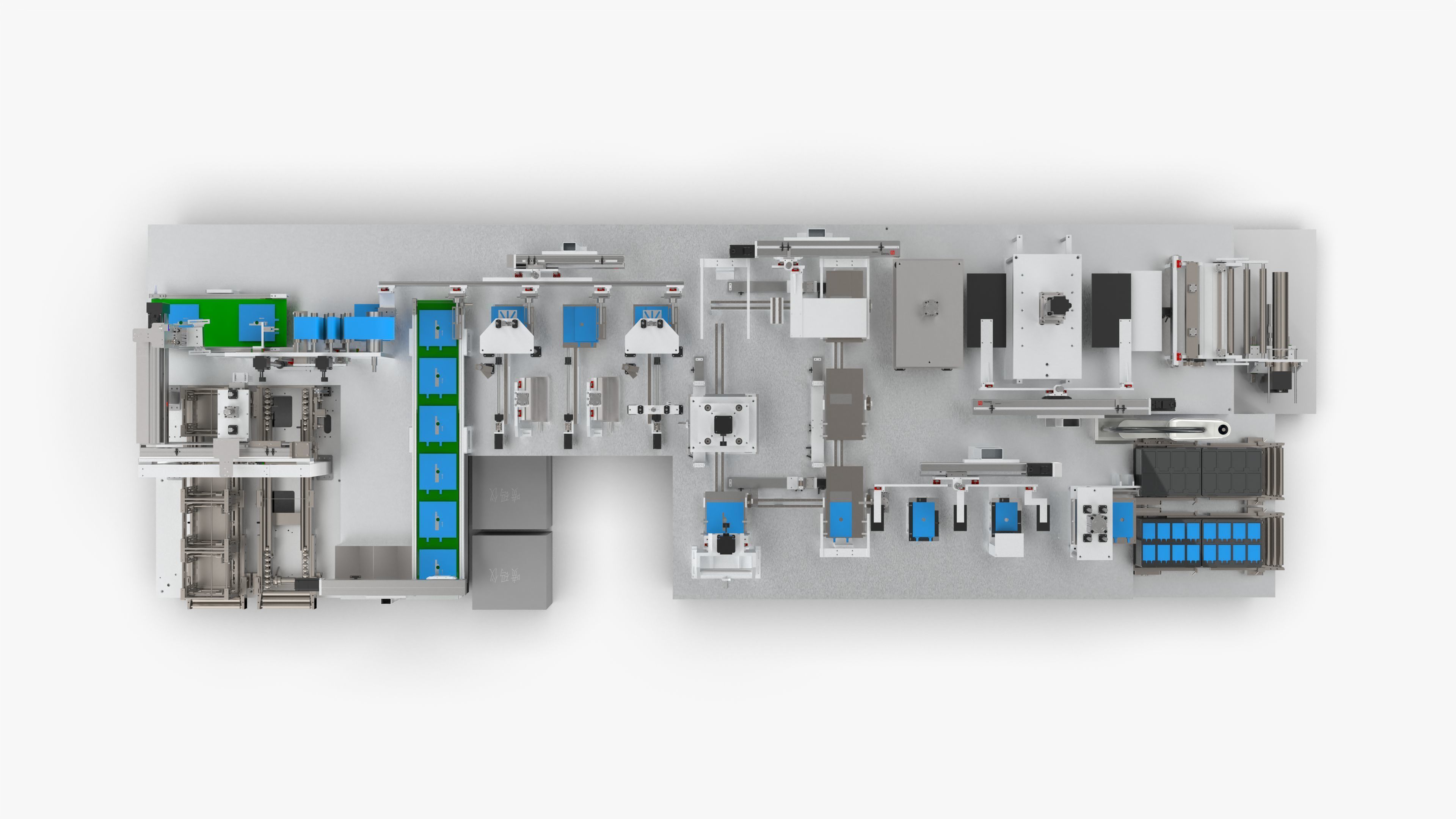

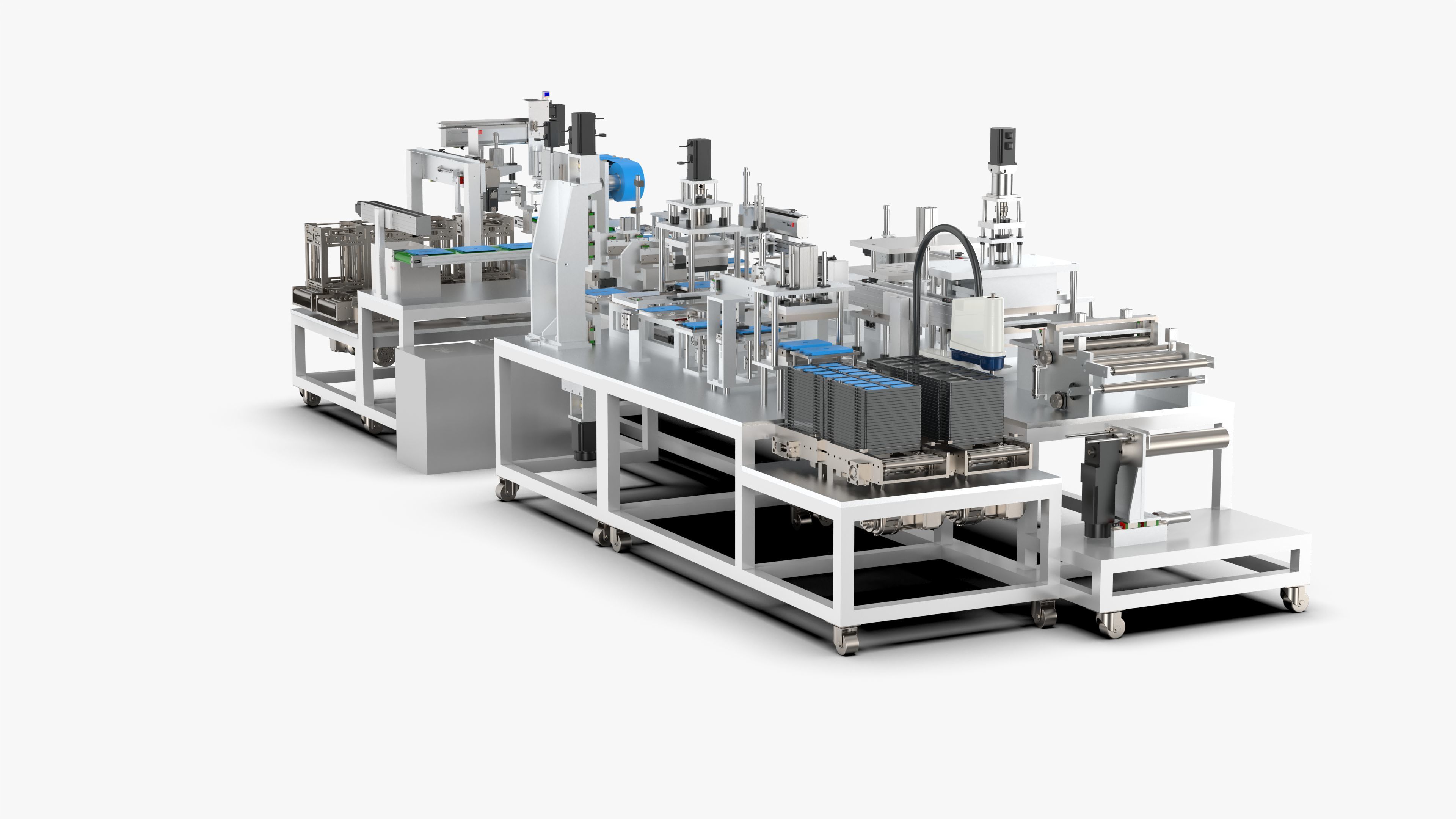

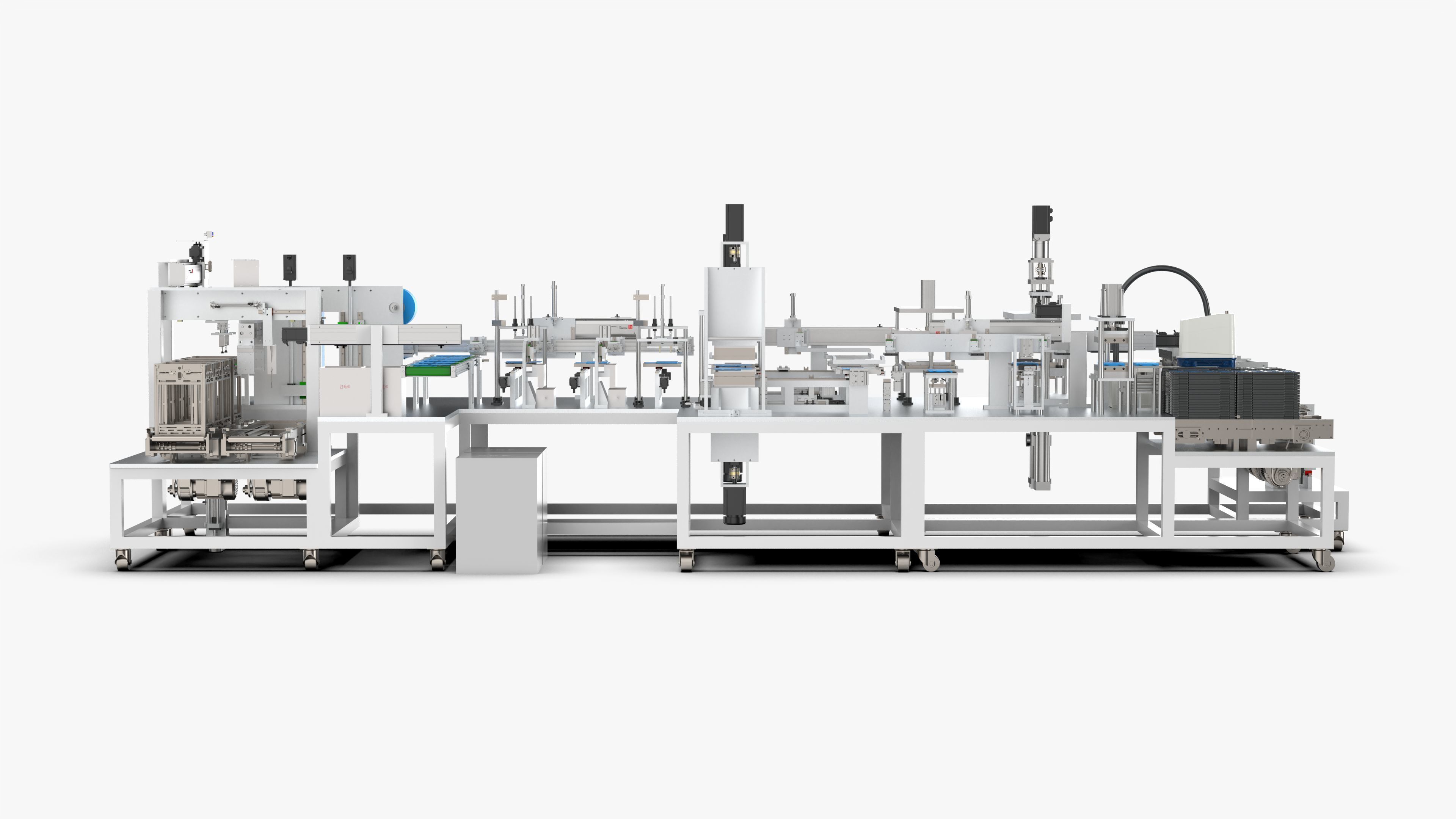

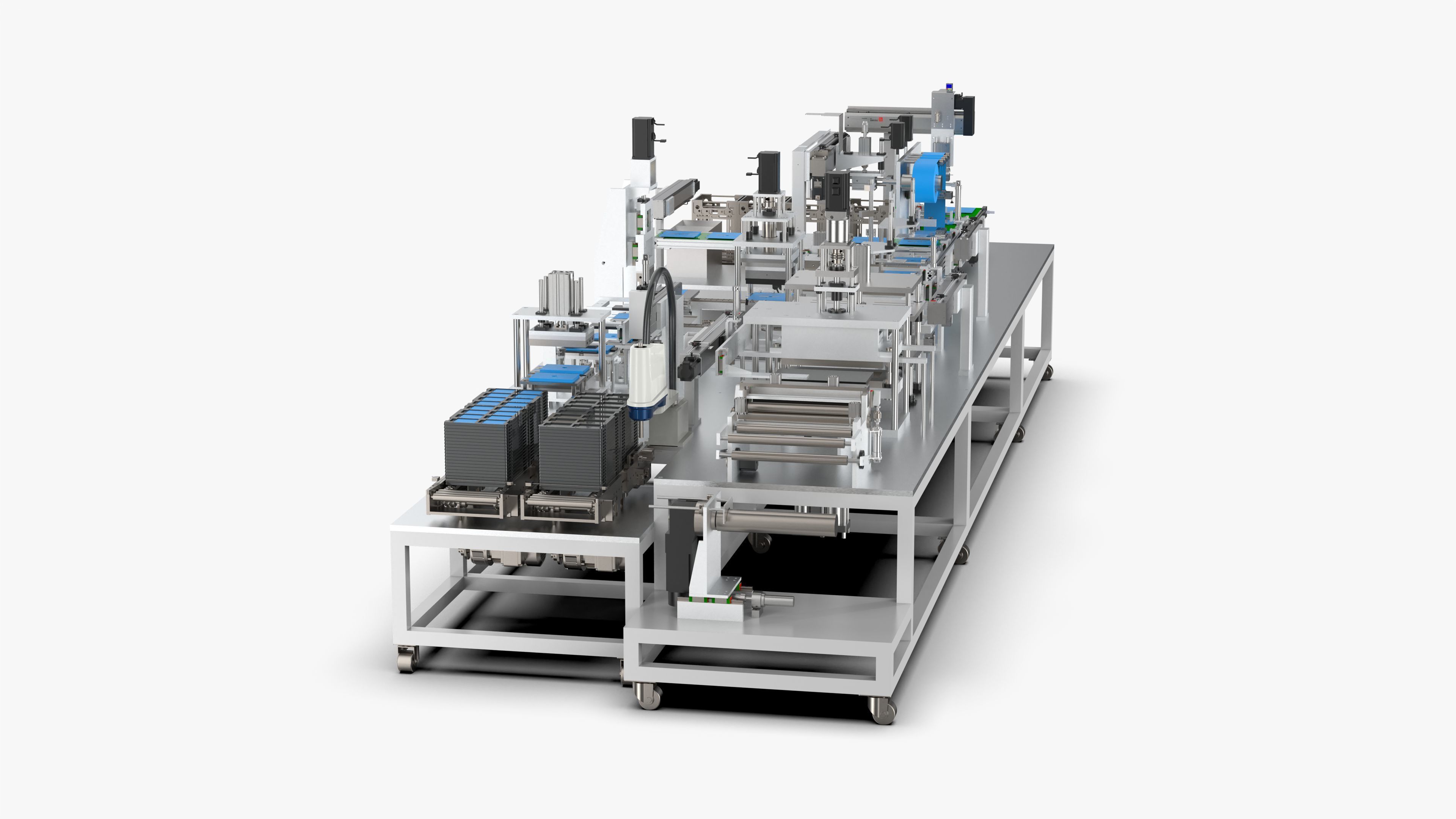

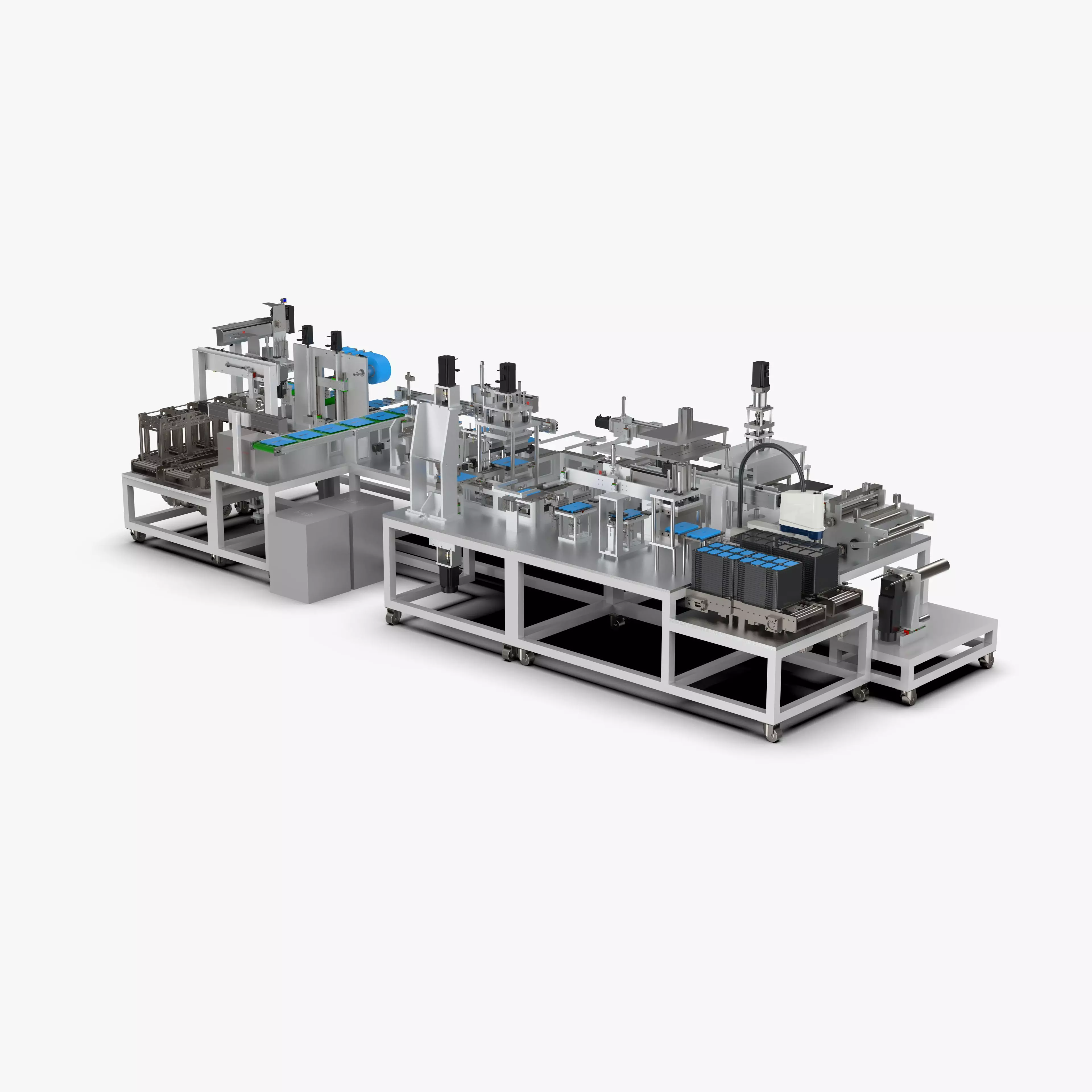

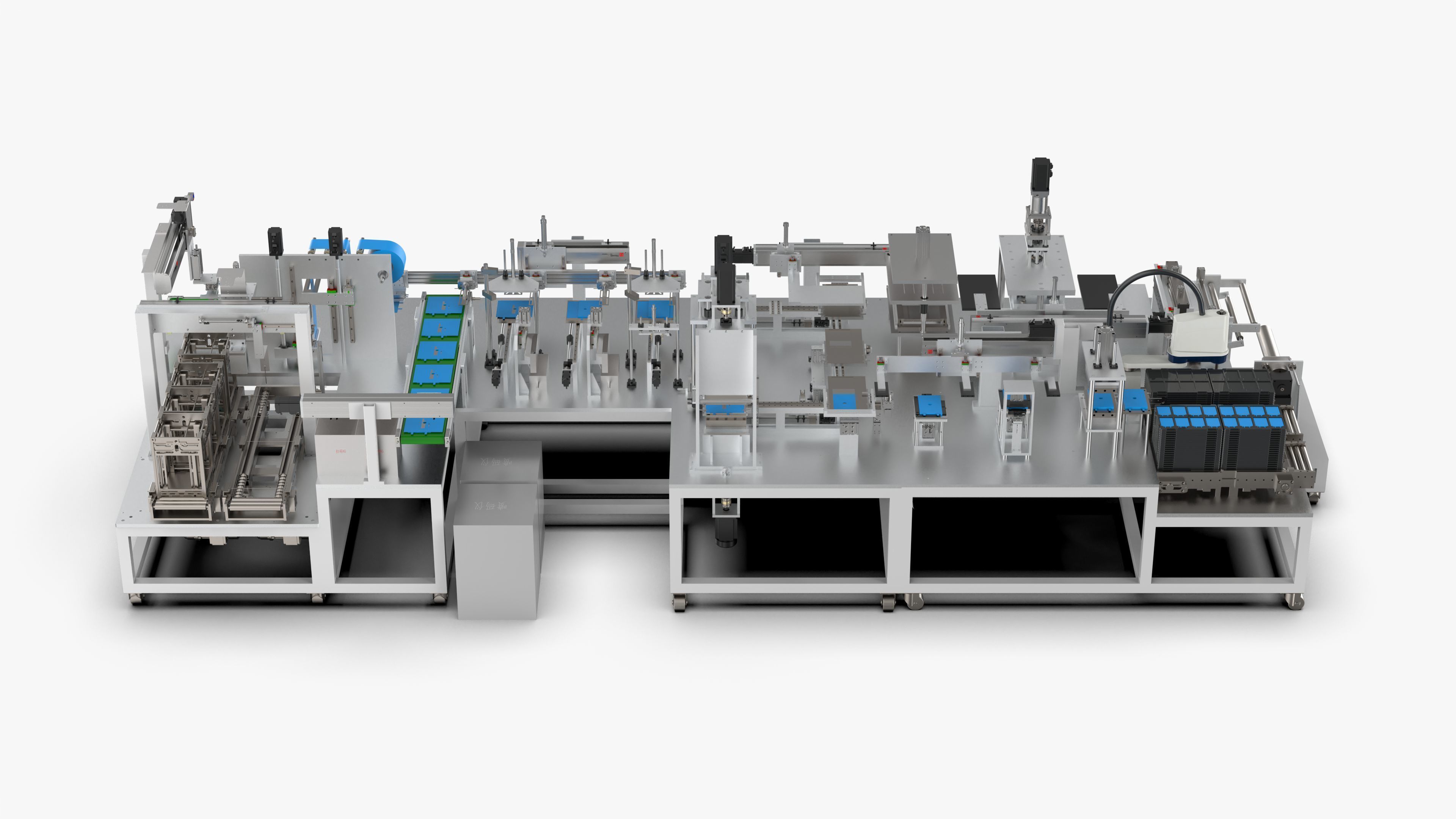

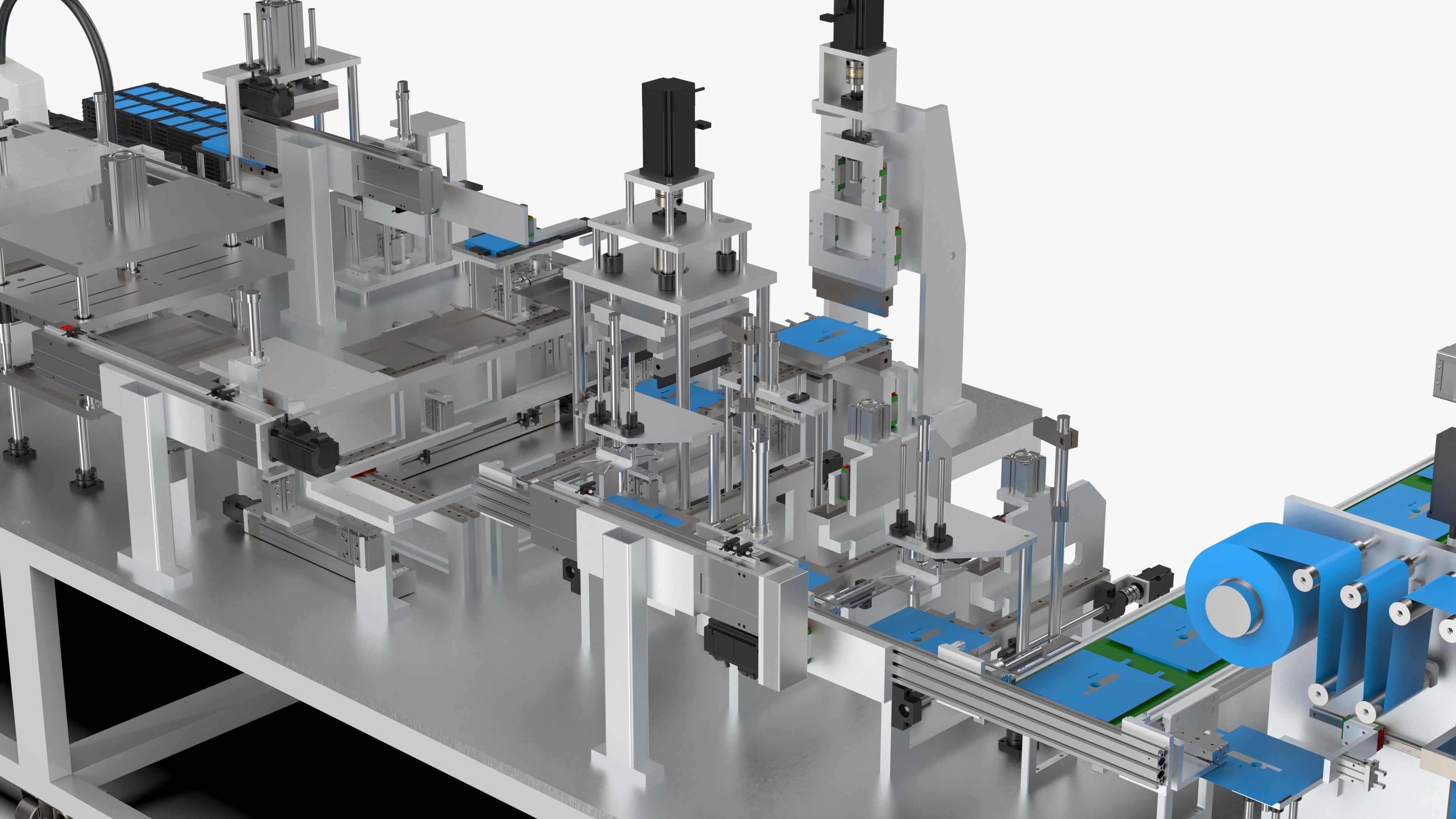

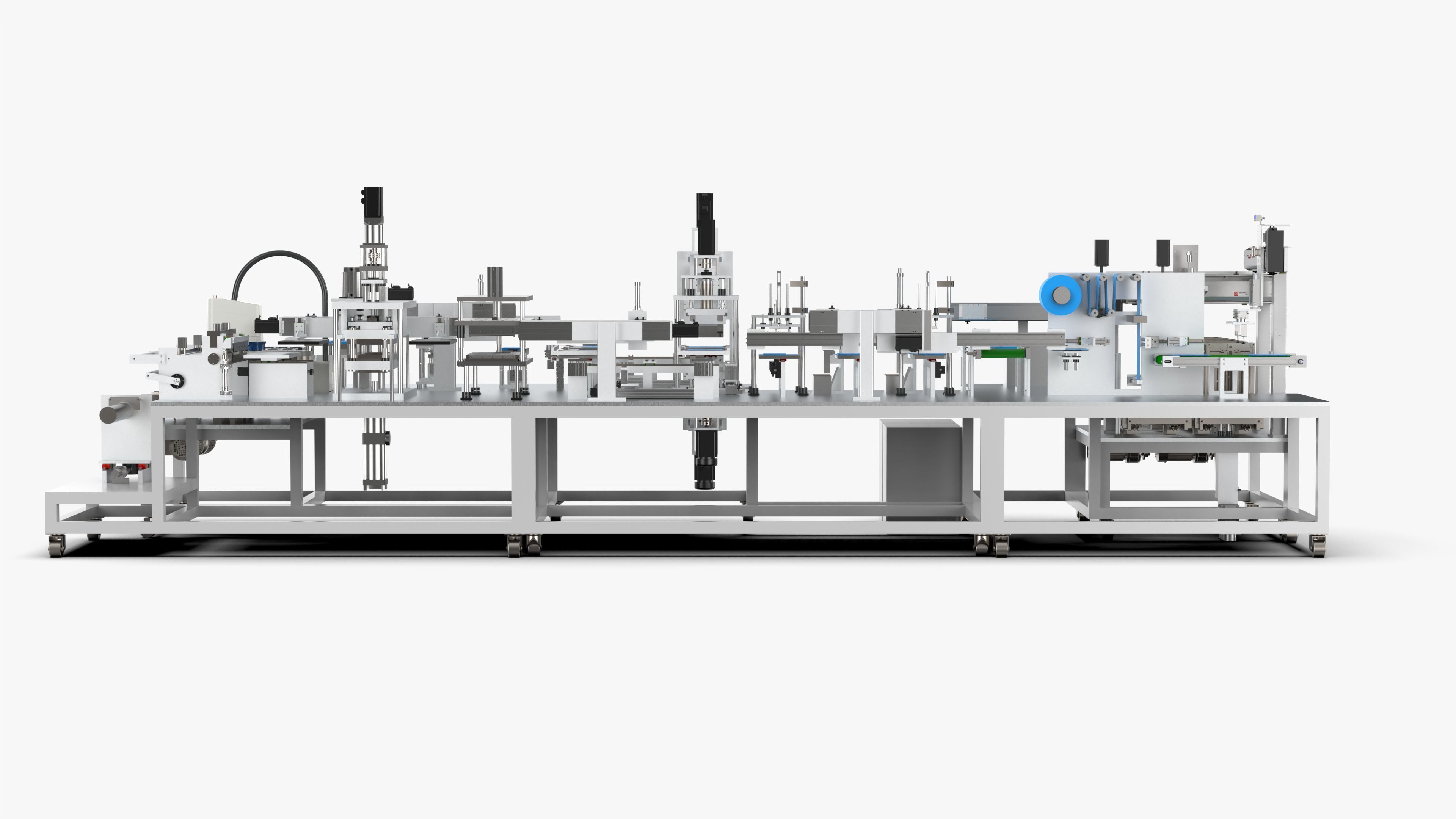

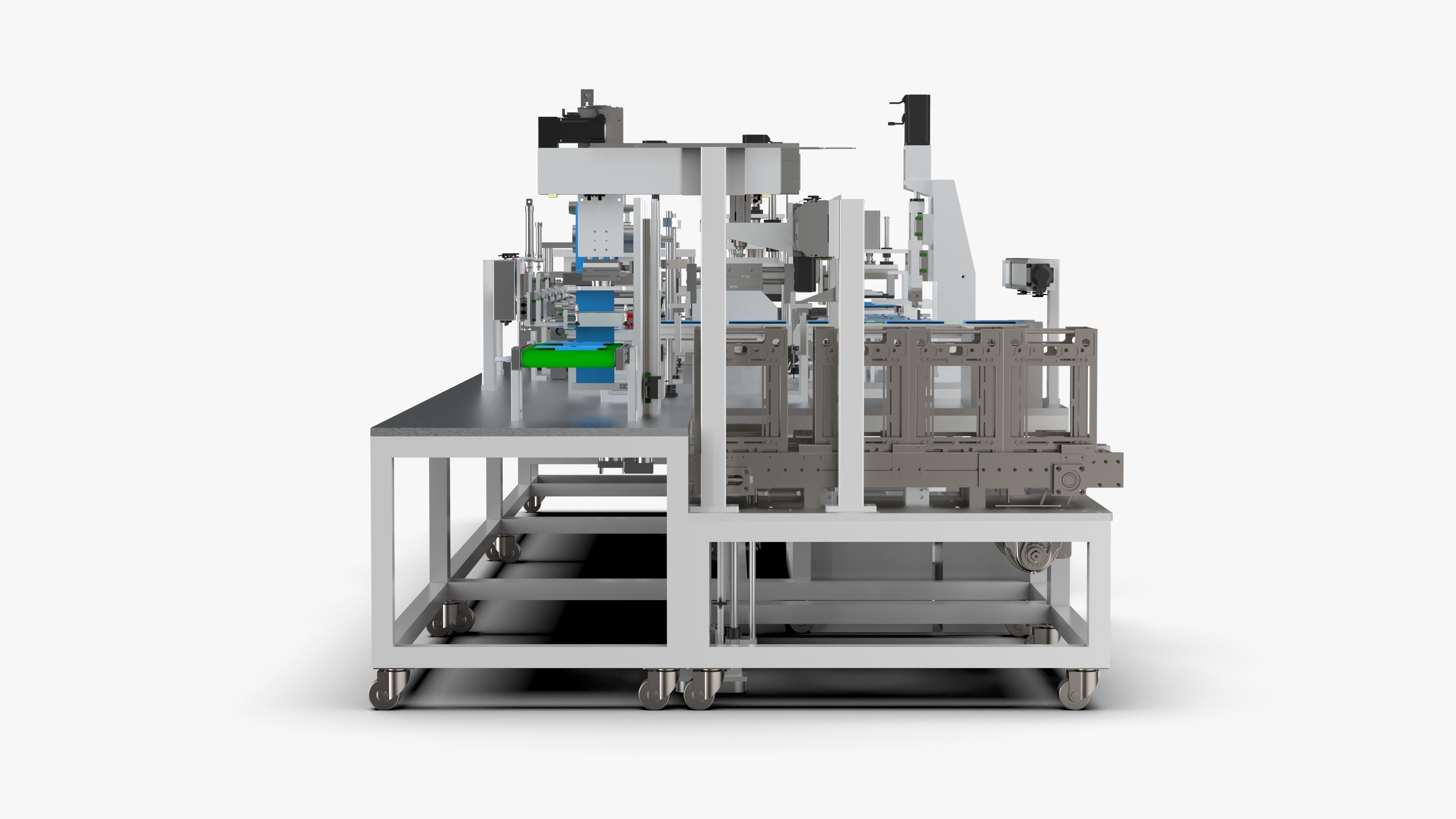

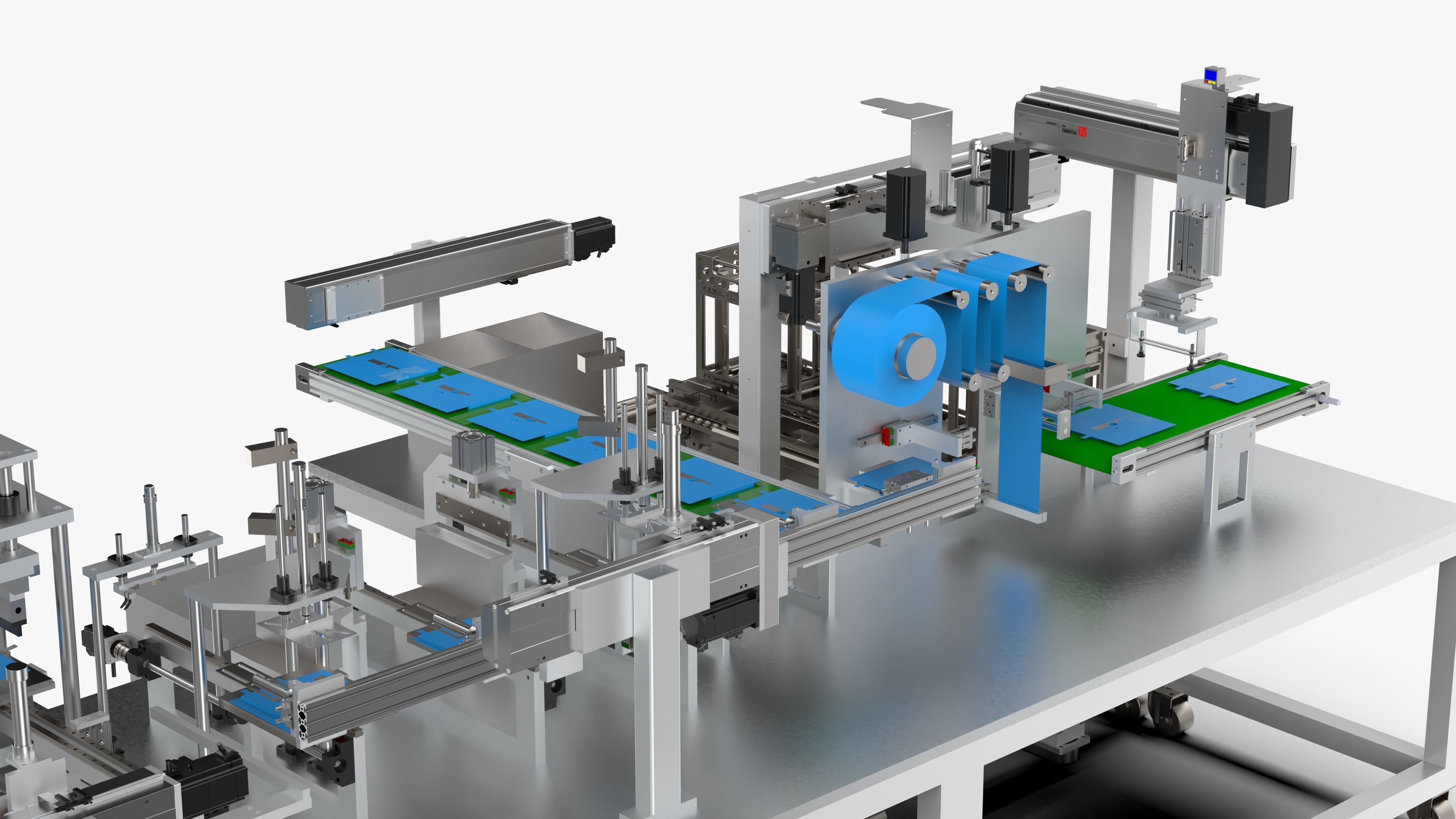

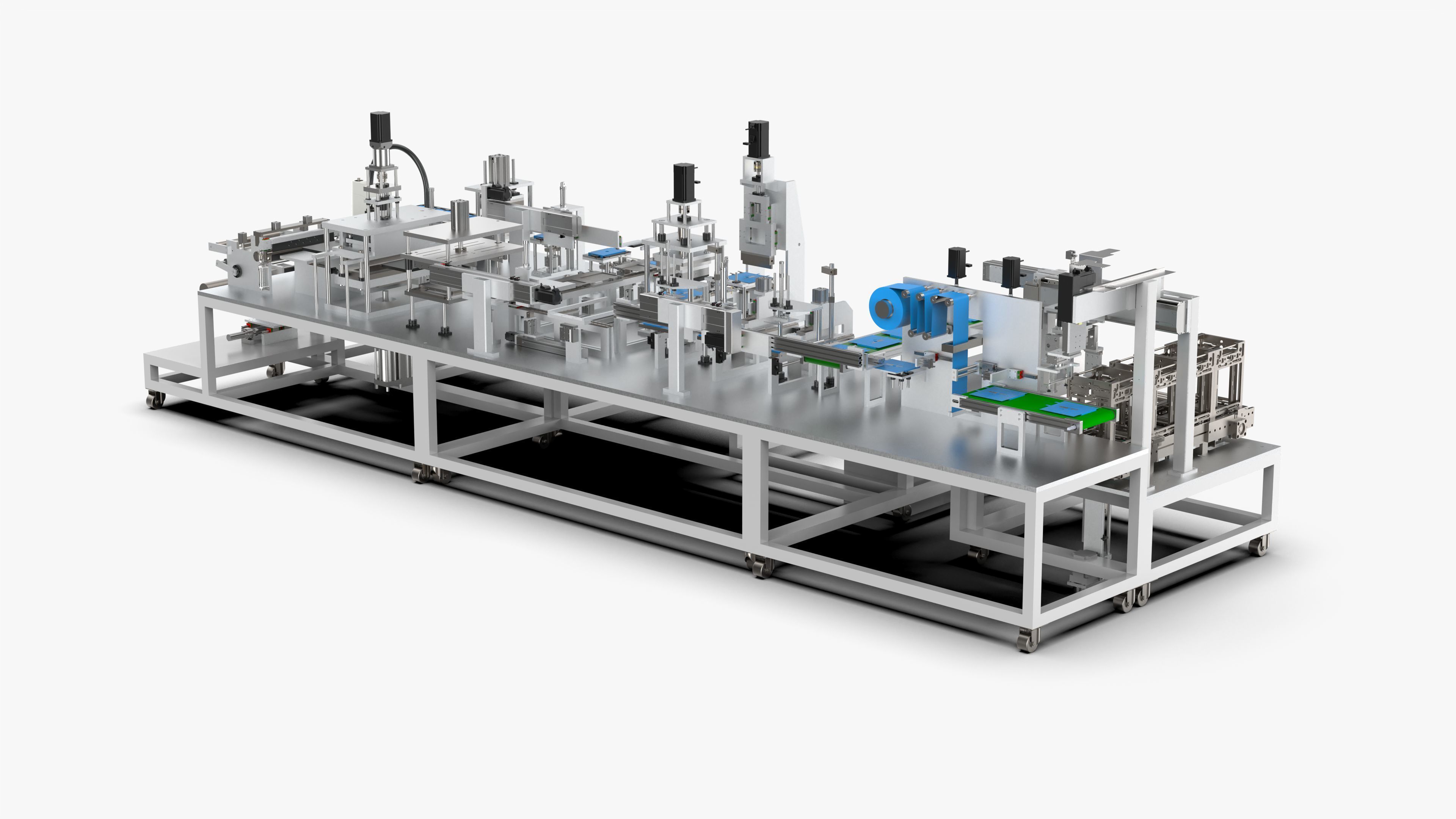

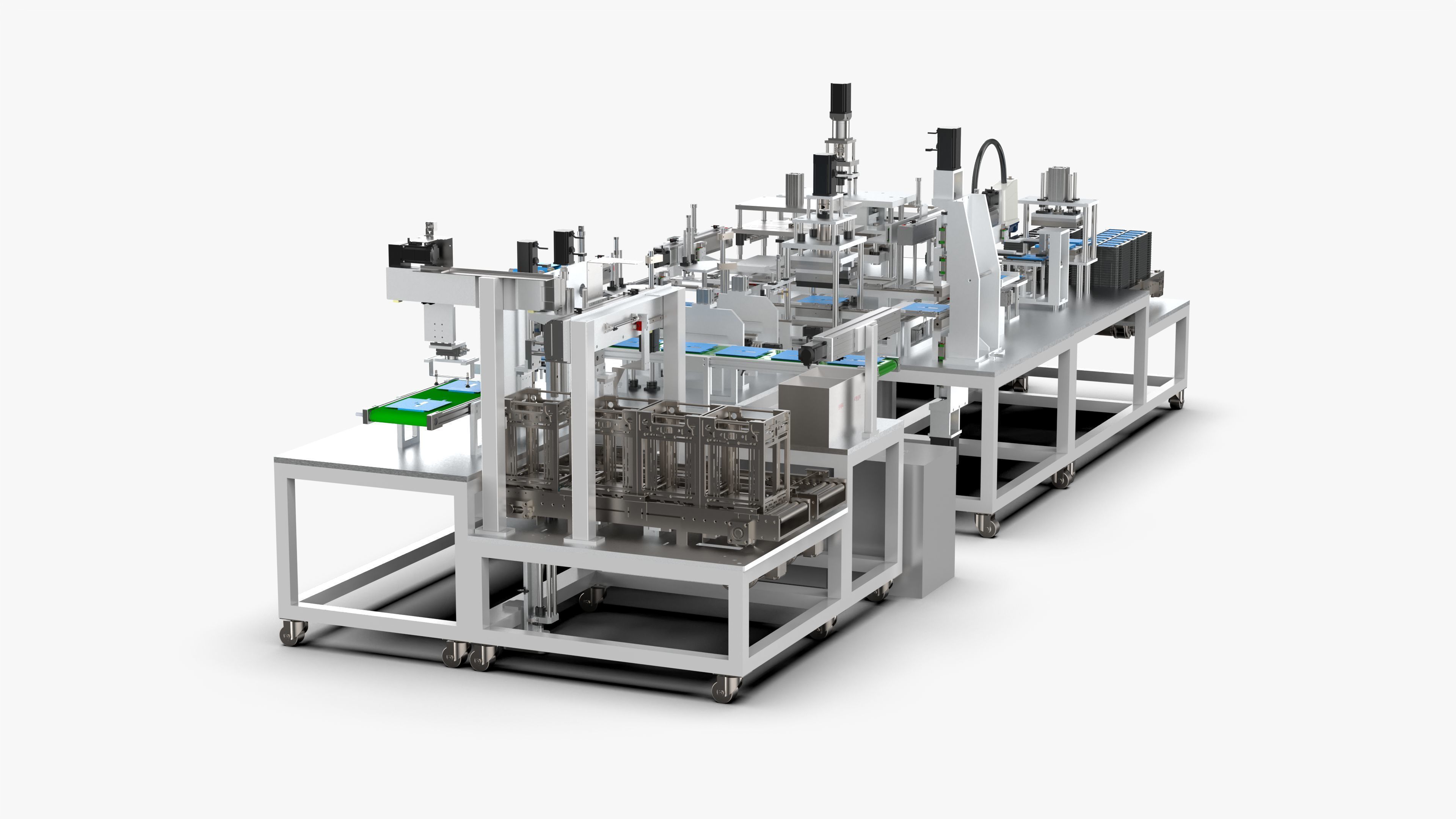

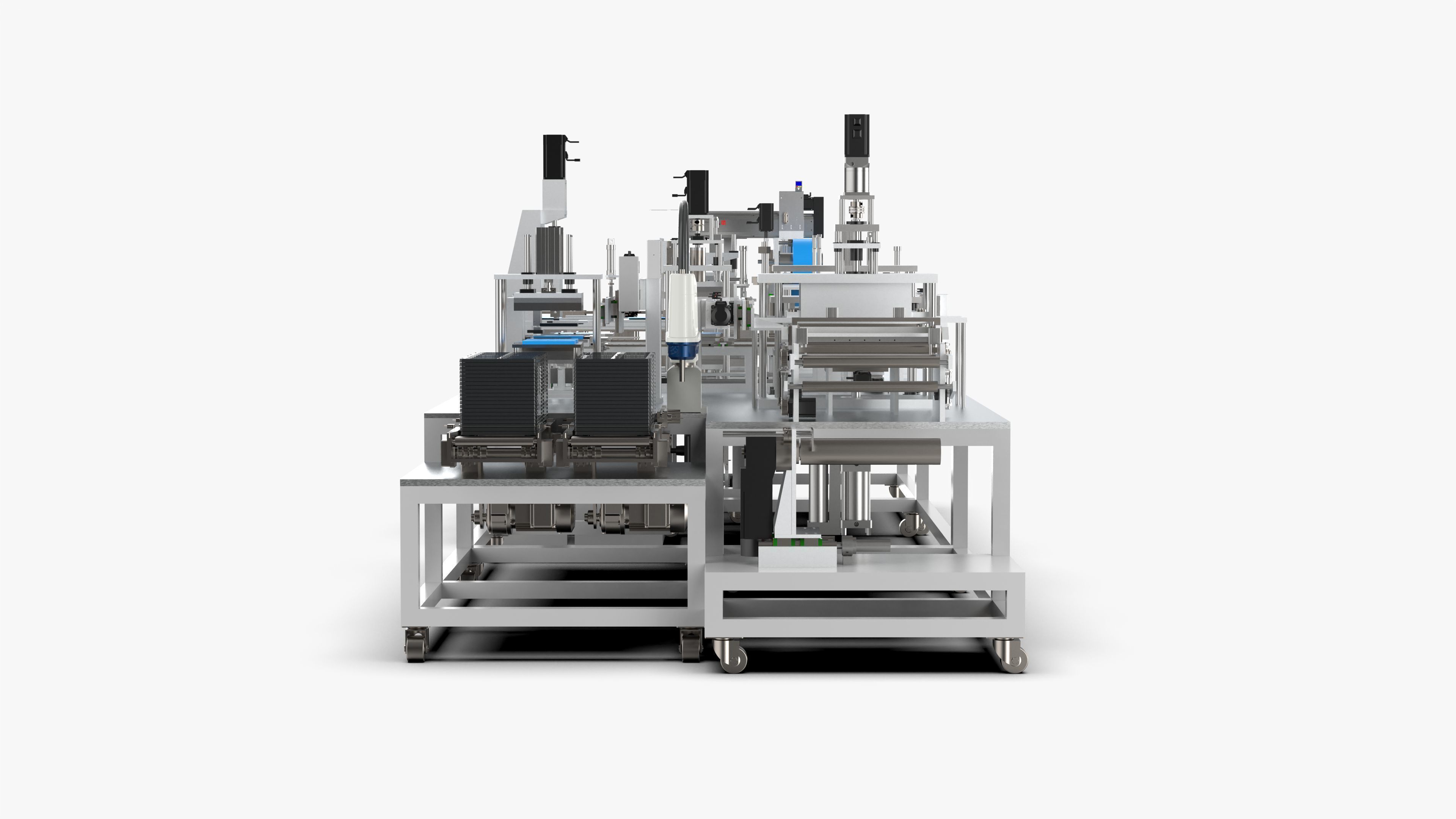

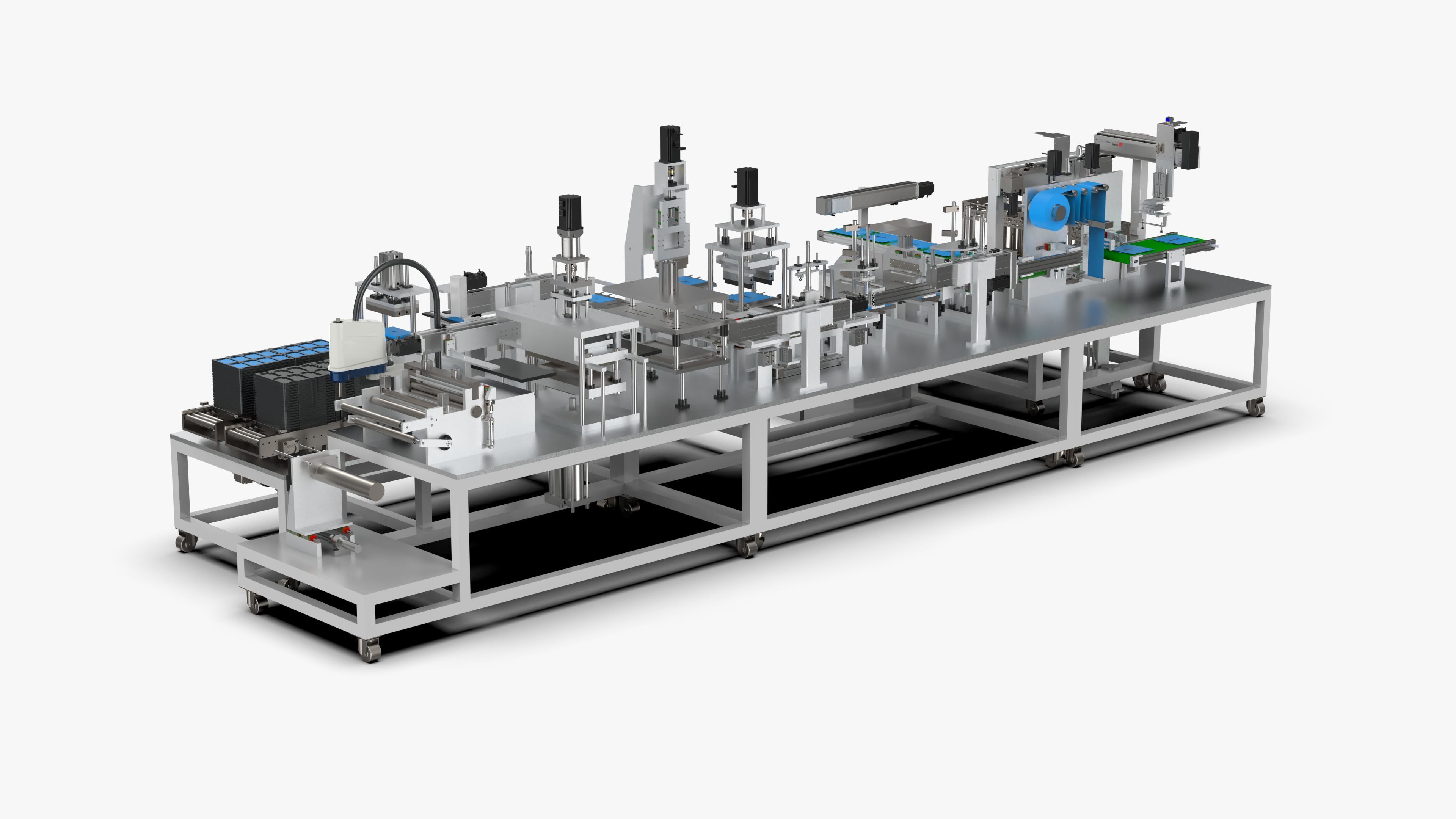

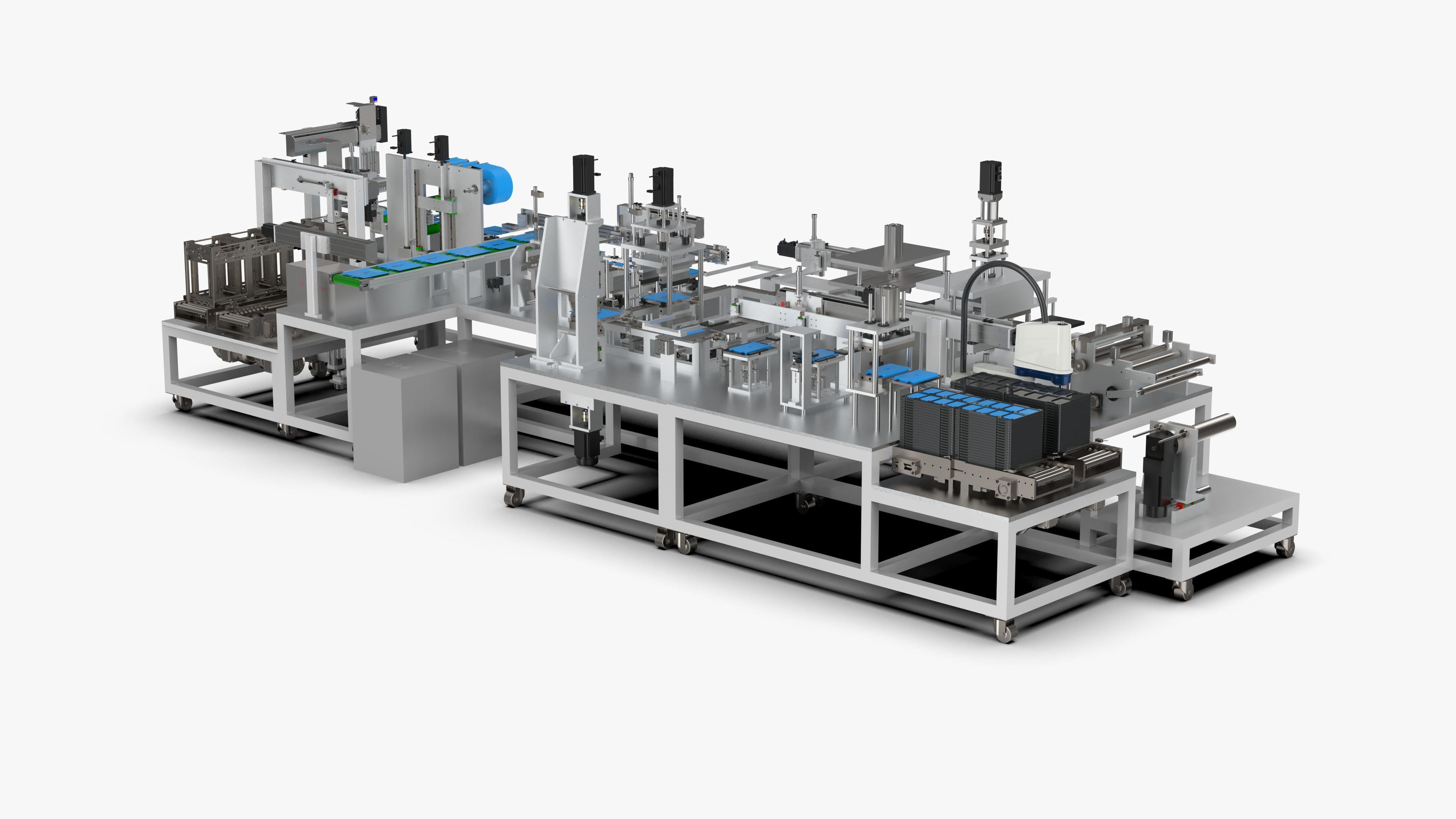

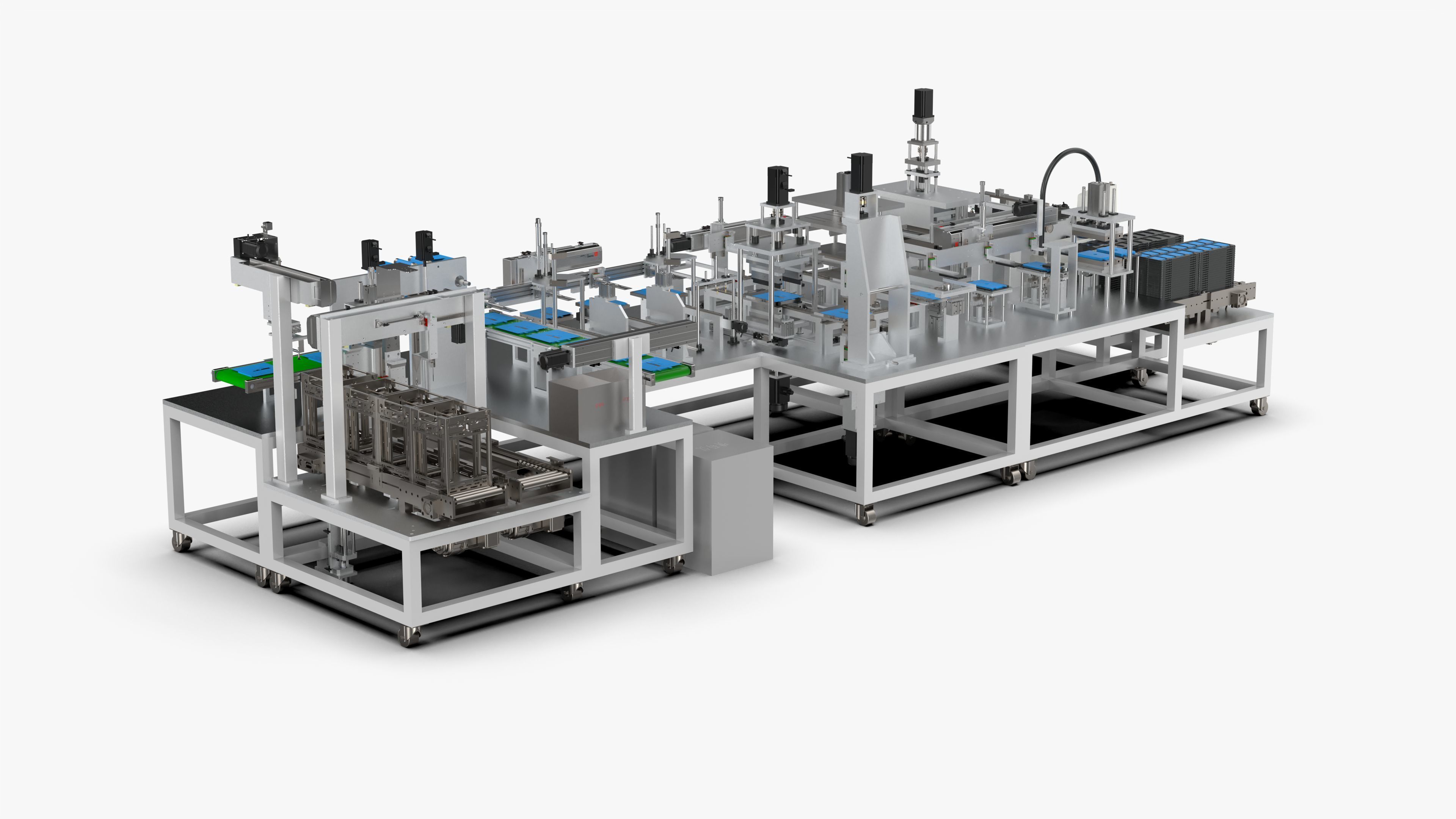

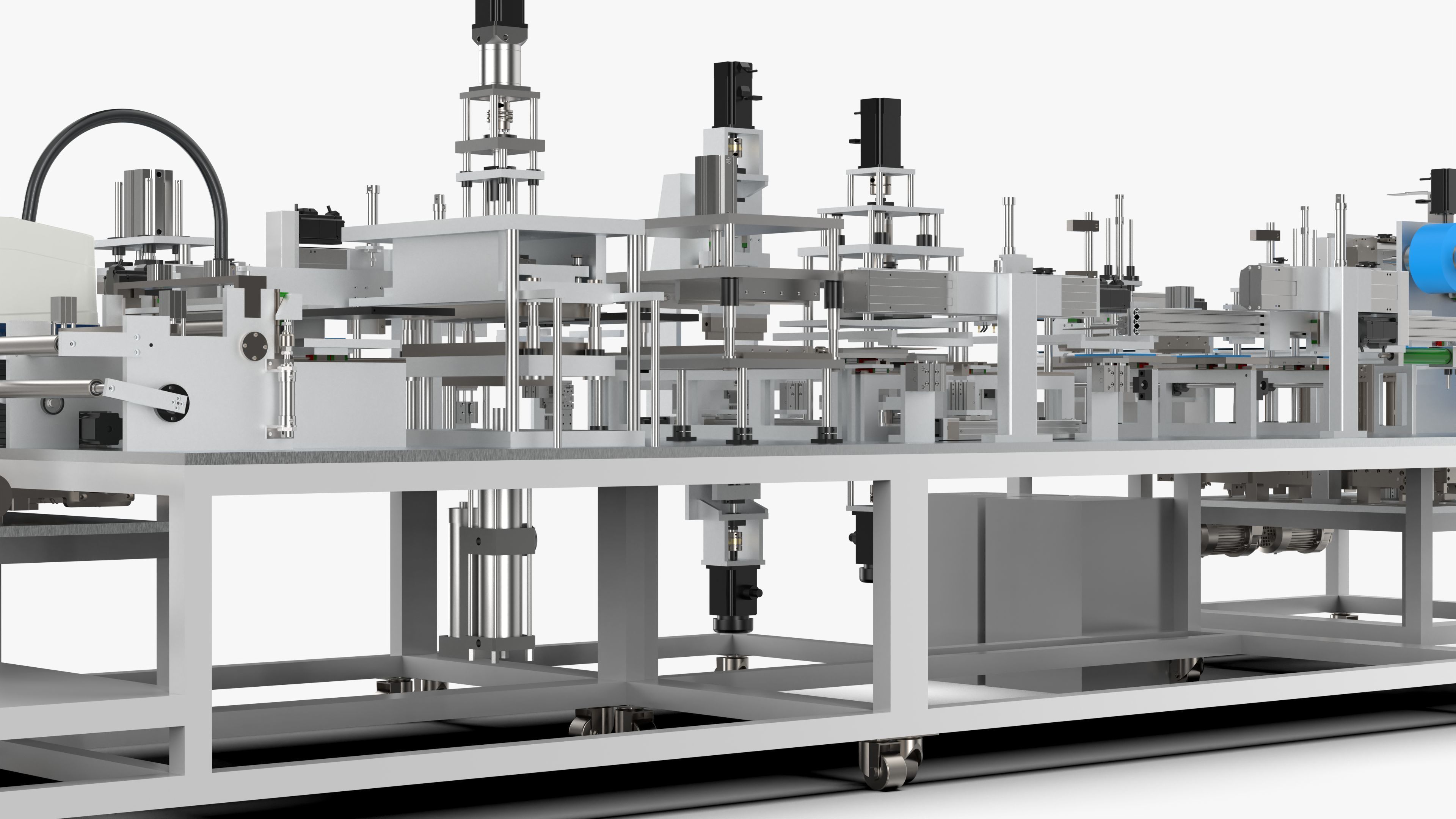

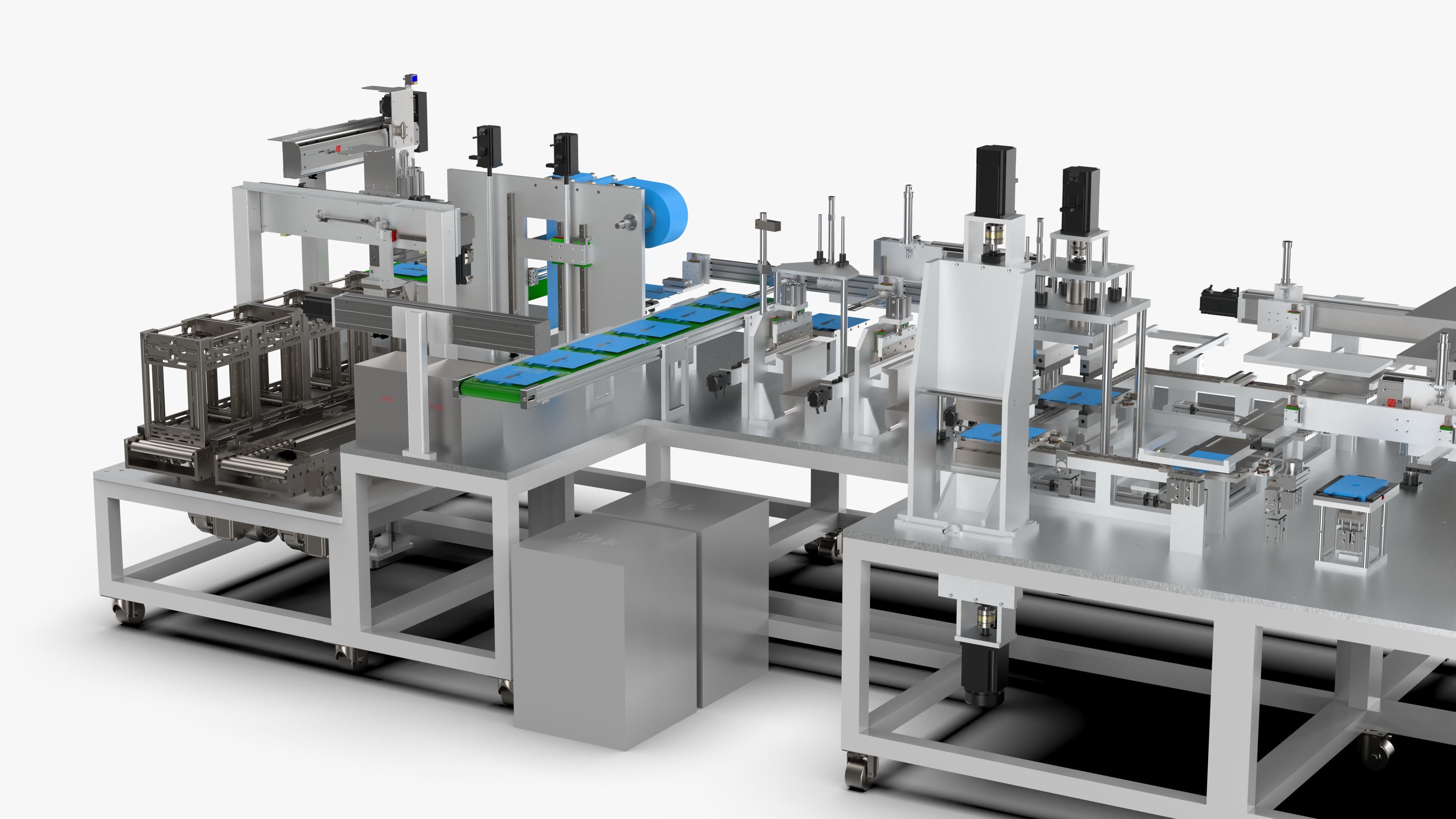

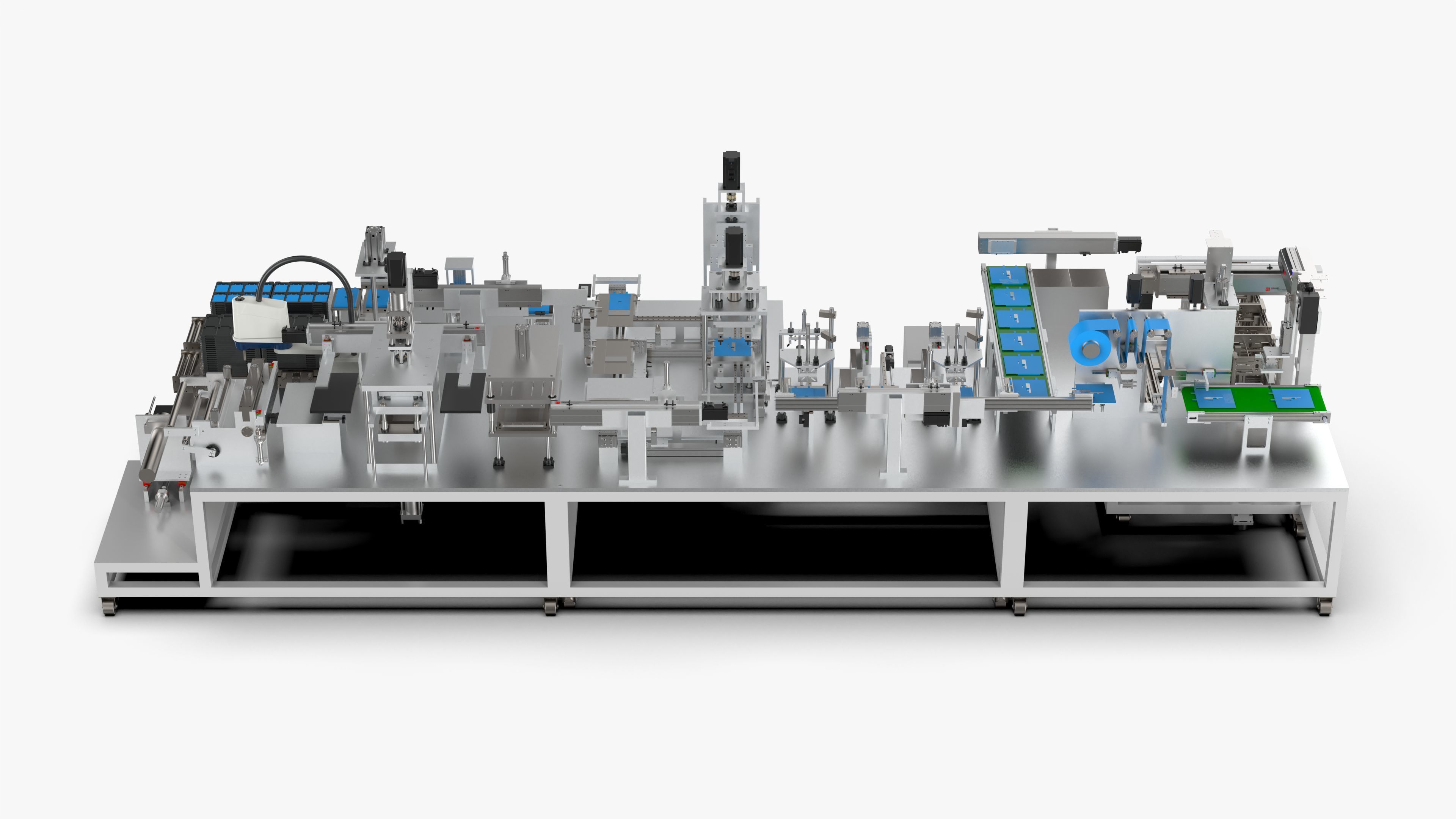

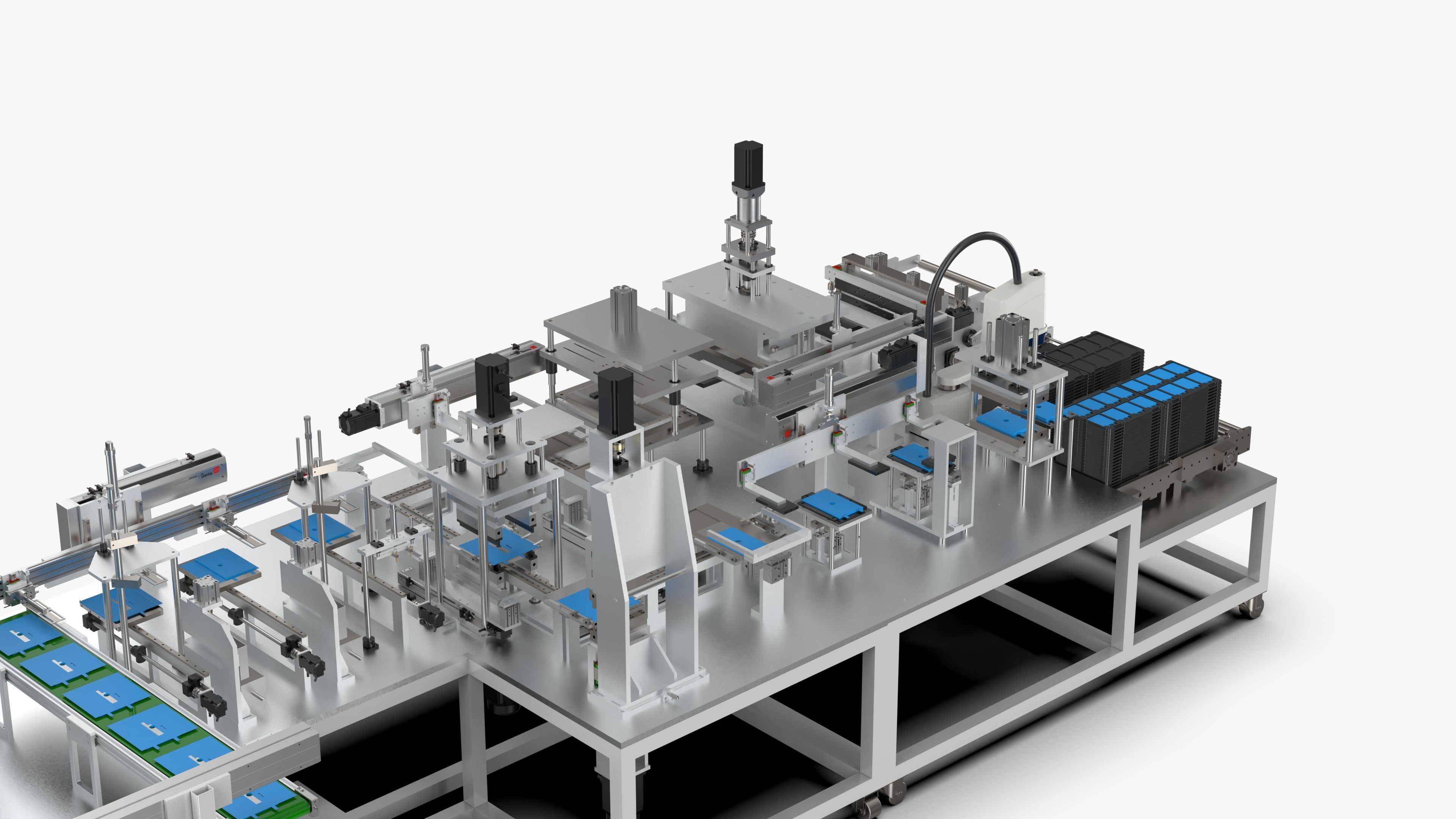

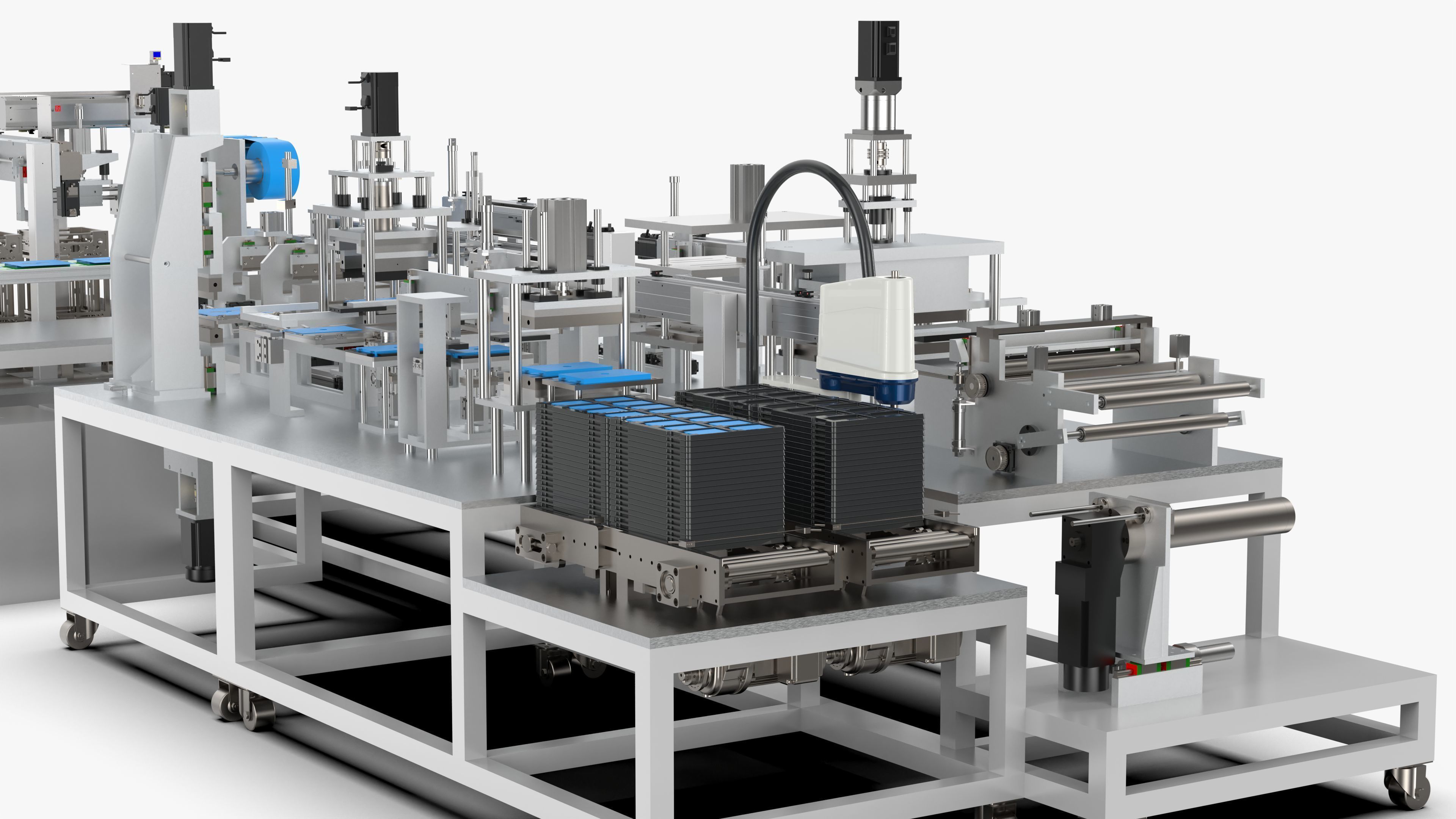

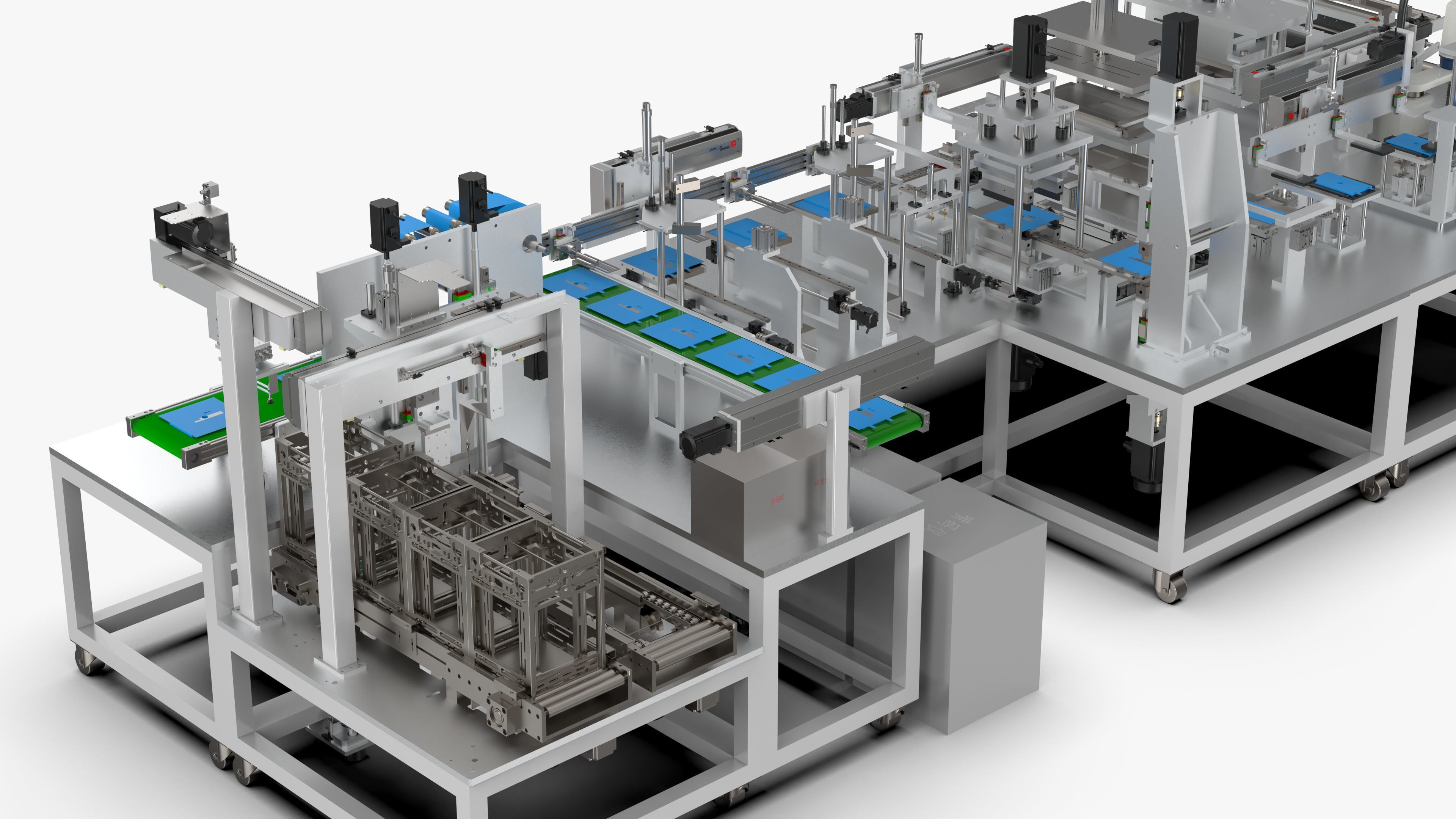

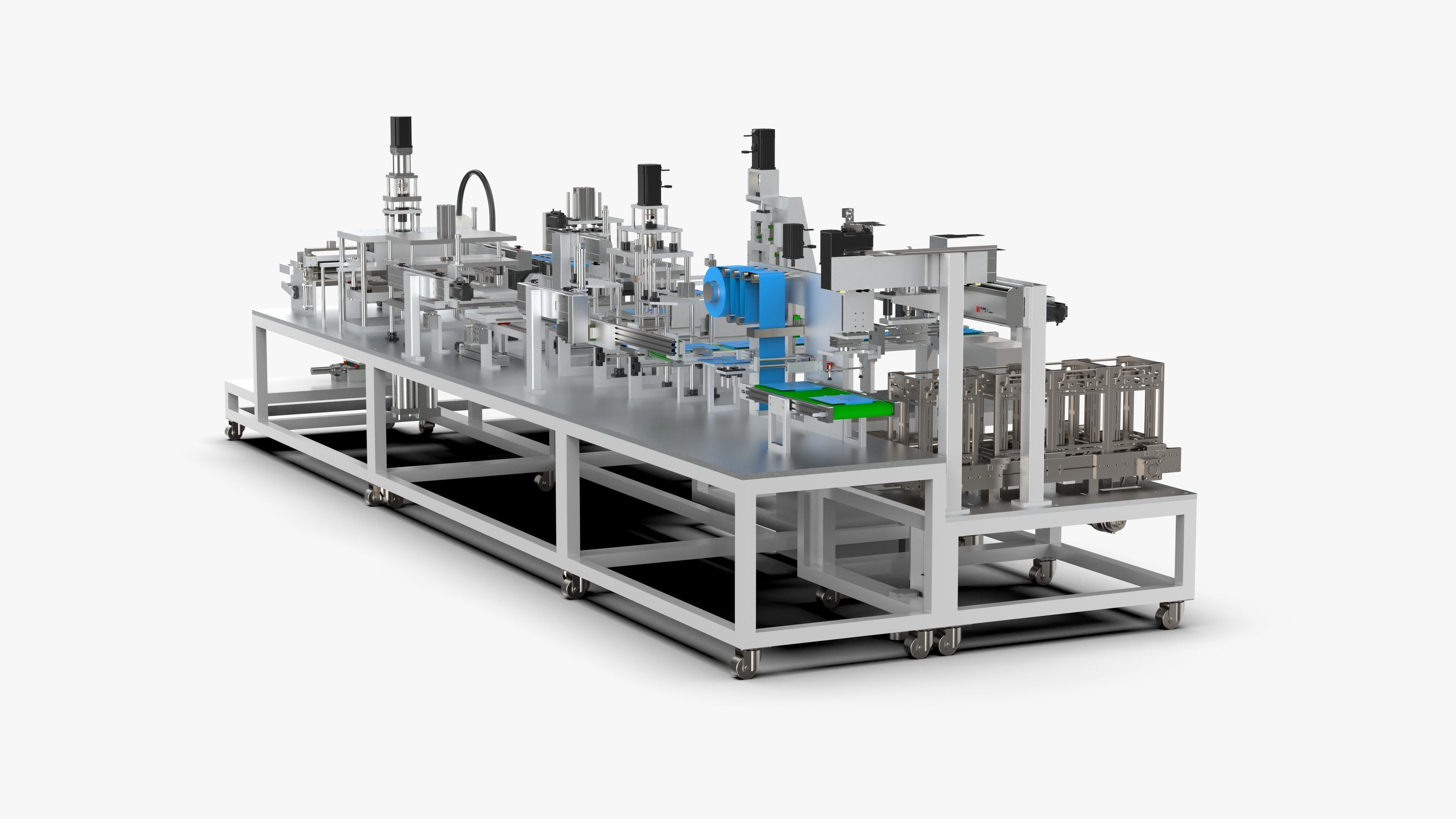

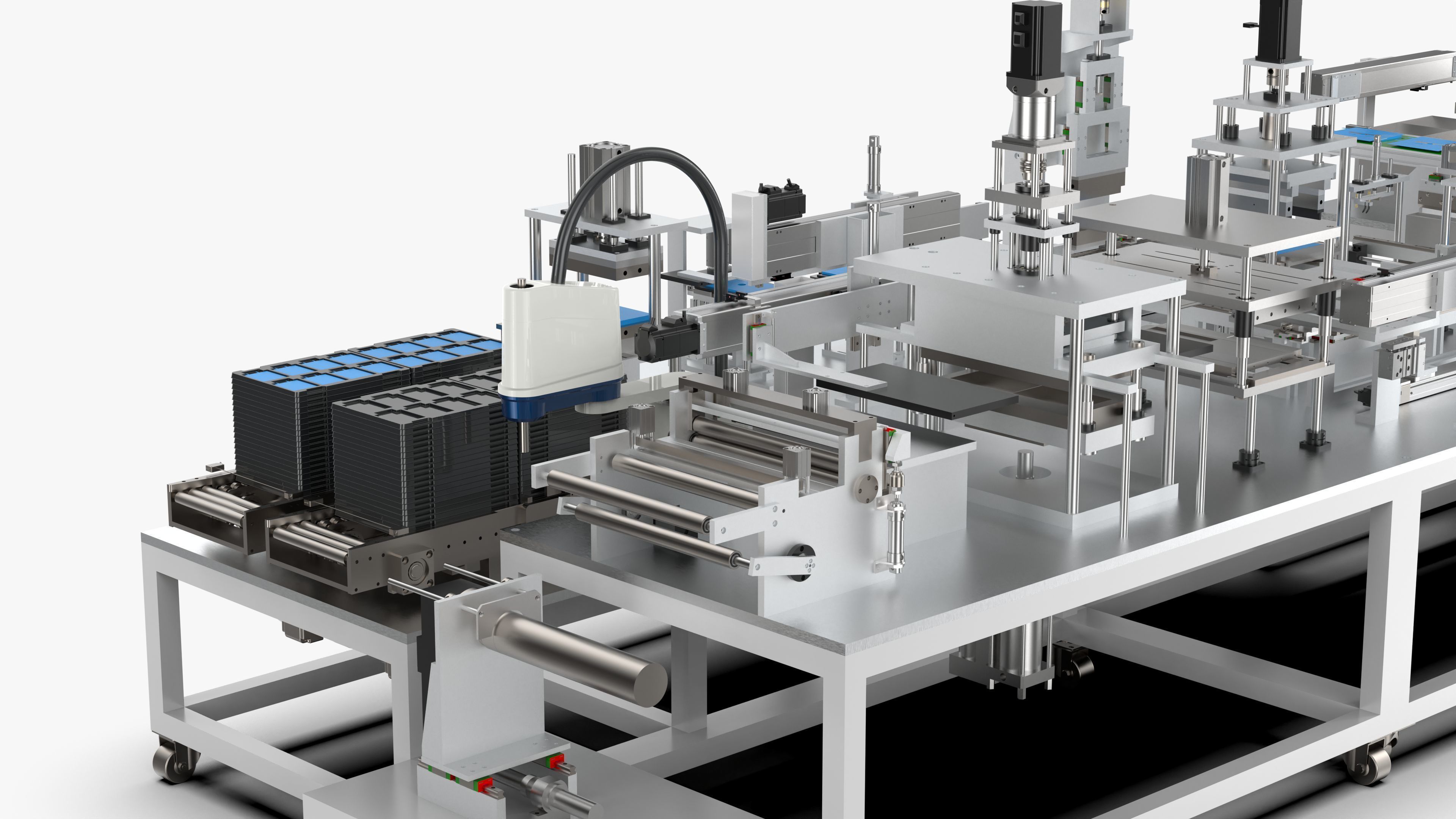

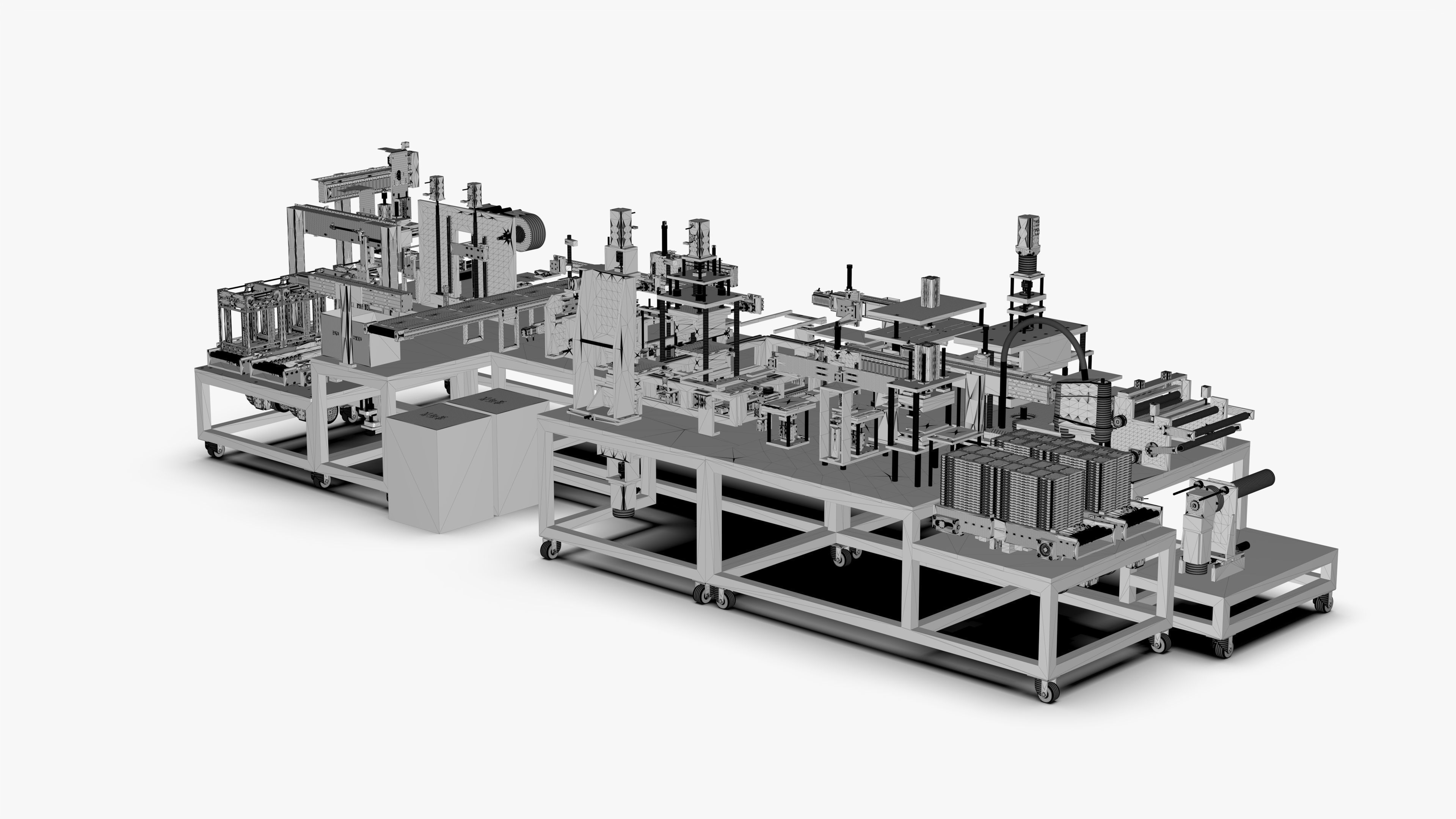

Automatic Lithium Battery Corner Sealing Machine 3D model

Automatic Lithium Battery Corner Sealing Machine

Introduction

Lithium-ion battery corner pre-sealing machine. In the lithium-ion battery industry, the aluminum-plastic film punching and corner pre-sealing machine in the packaging process has been stably mass-produced.

1. The structure is reasonable, easy to operate and adjust, and it is convenient to adjust according to the width of the battery.
2. Select common standard parts, the processing materials are common, and the processing accuracy is easy to control.
3. The post-maintenance is simple and easy.
4. The spare parts are easy to make and the price is cheap.

Lithium battery automatic folding and punching aluminum plastic film automatic front sealing + automatic side sealing cell automatic folding side trinity automation equipment, the production capacity is 1000-1500PCS/H, which greatly saves labor costs and improves the company's production efficiency. The equipment can be seen from the picture It is very complicated, so it is also very valuable to download and learn this drawing.

File Formats

• Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 9,454,570
• Vertice: 28,363,734
