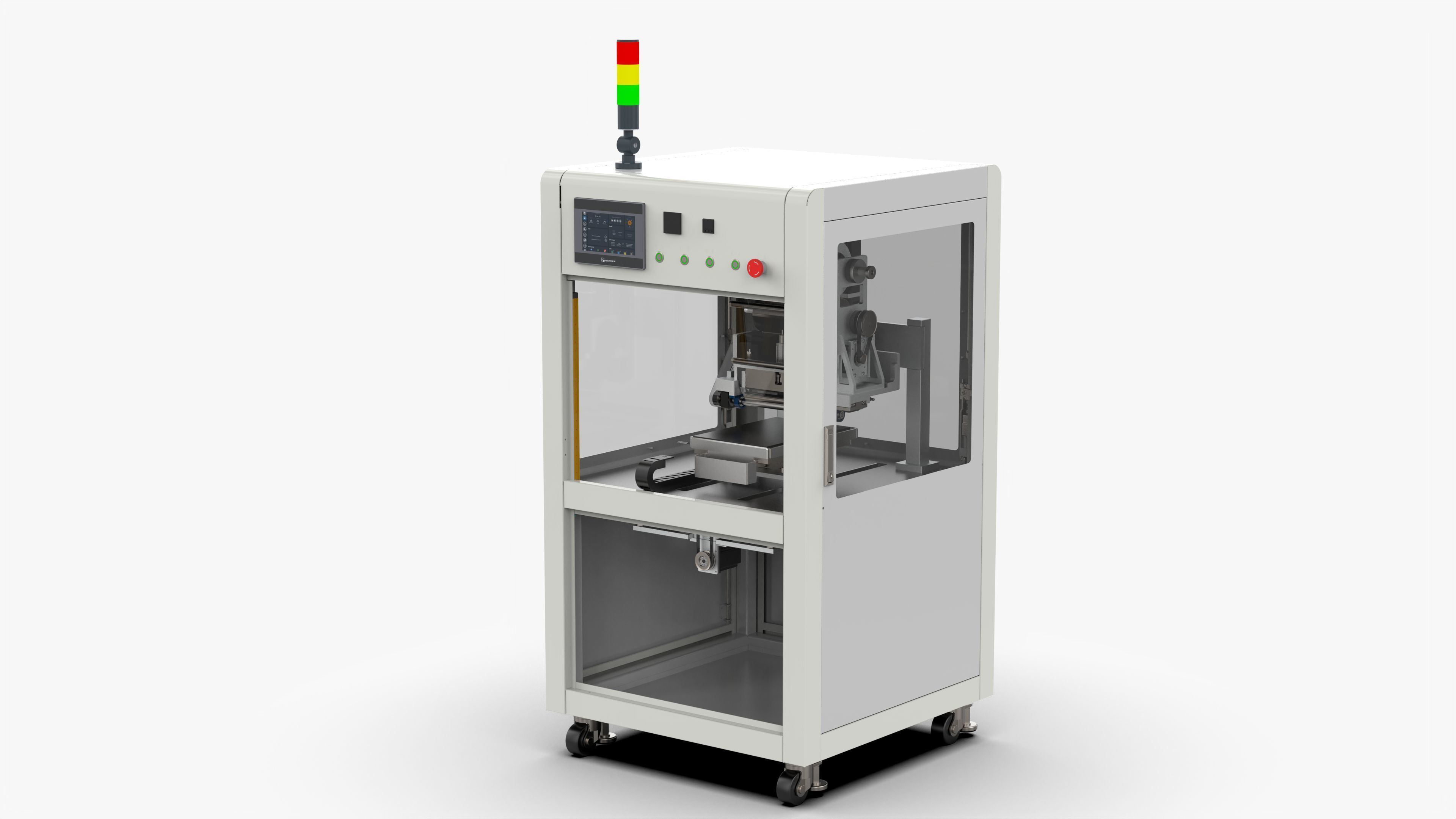

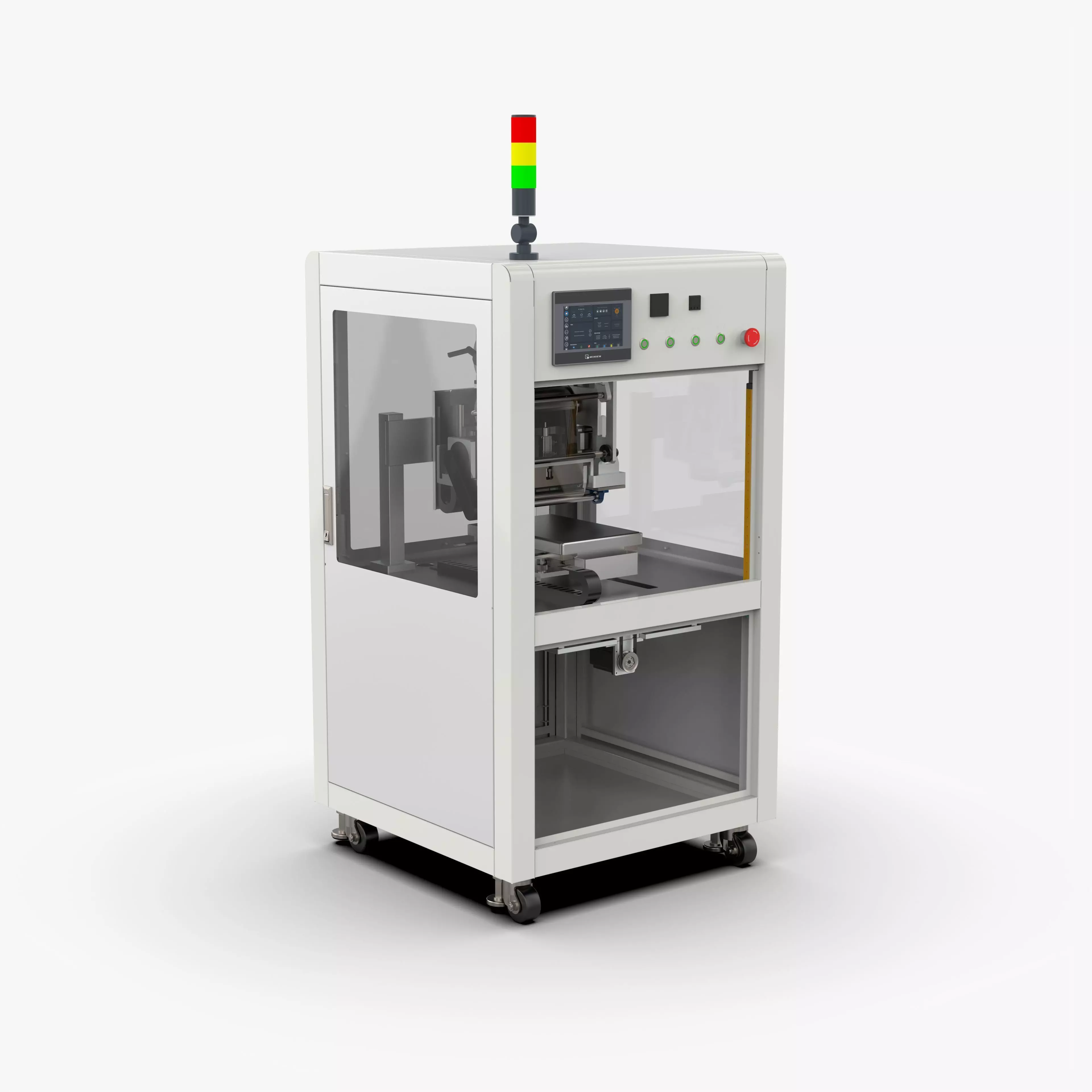

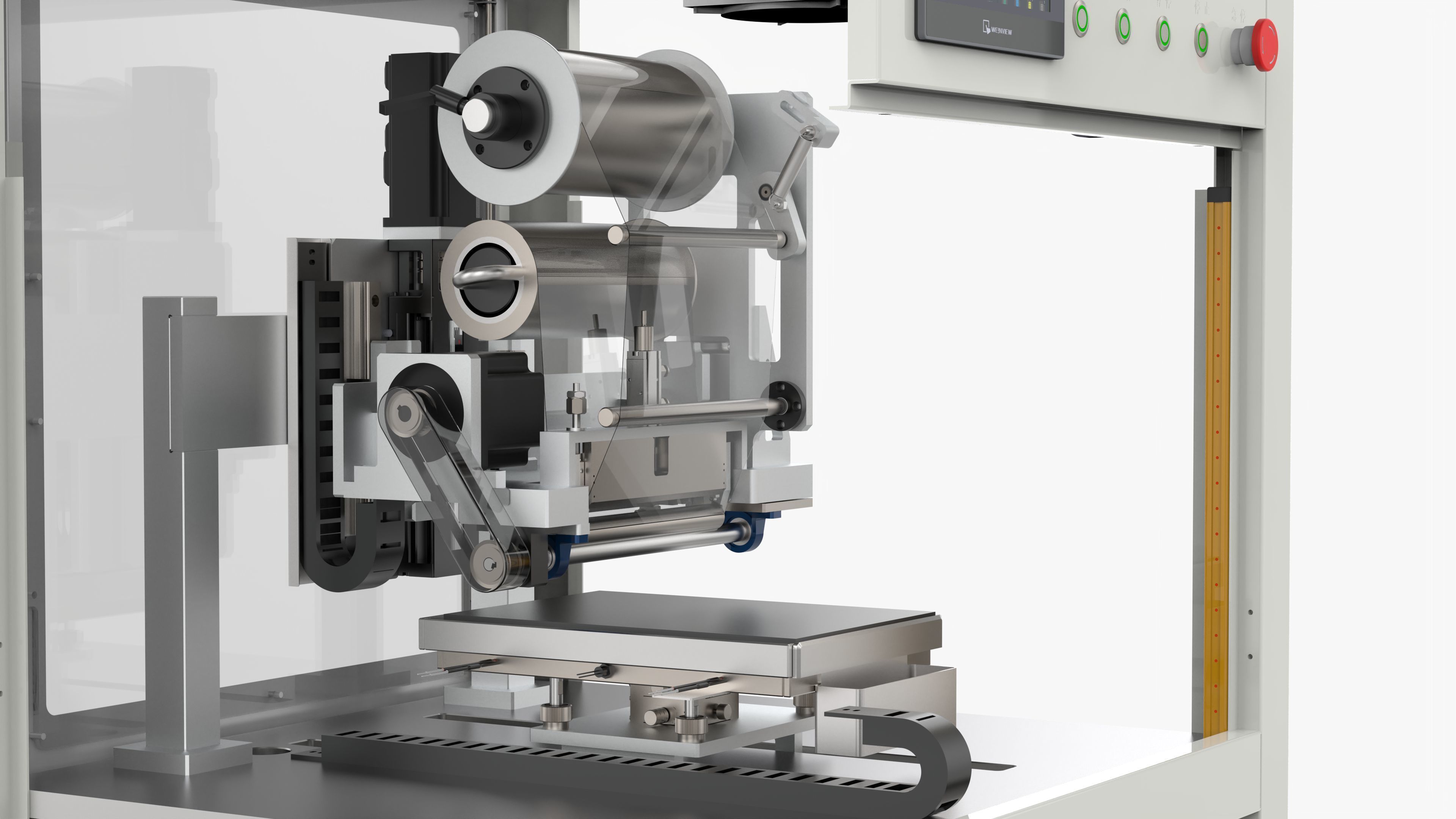

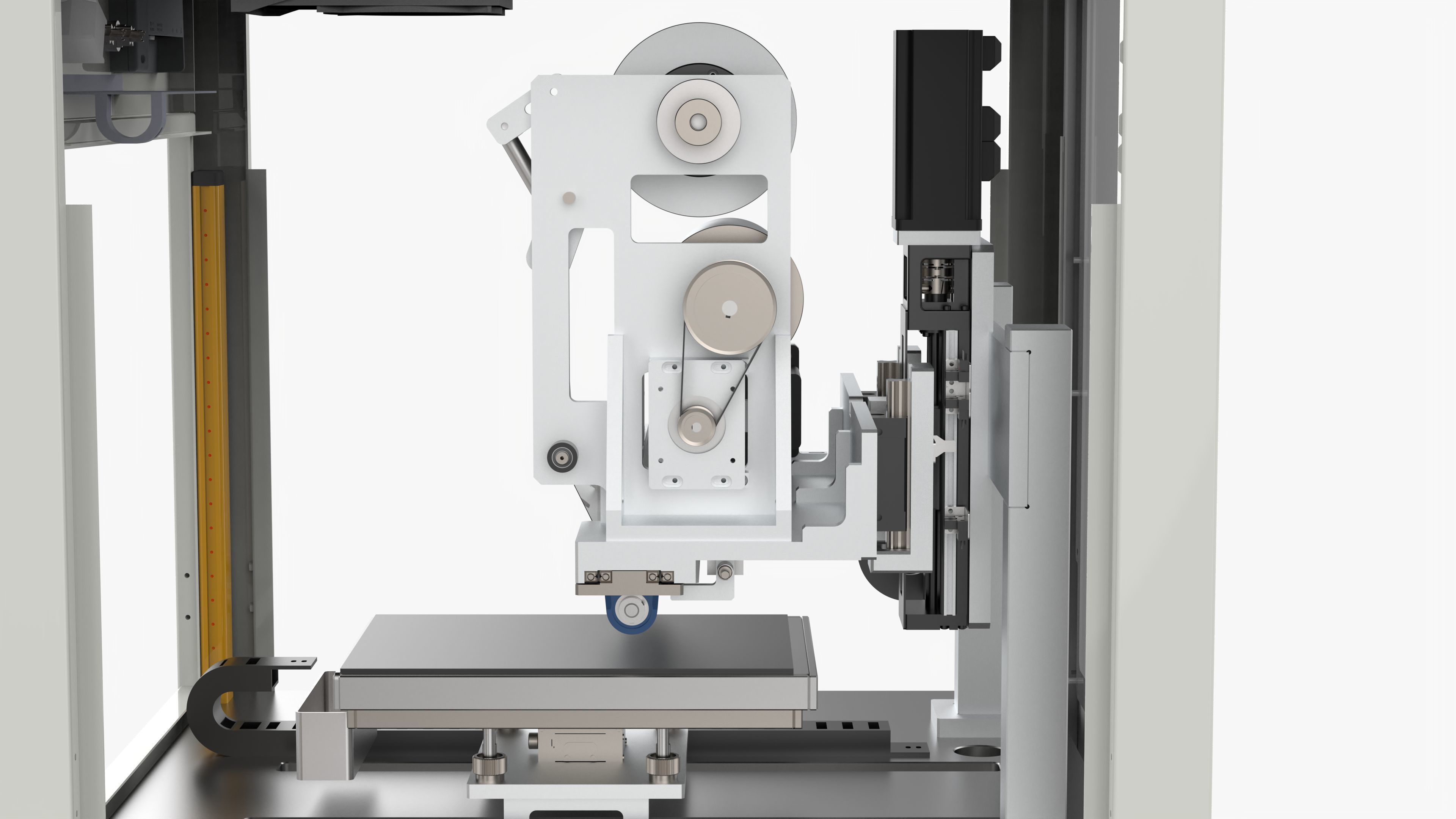

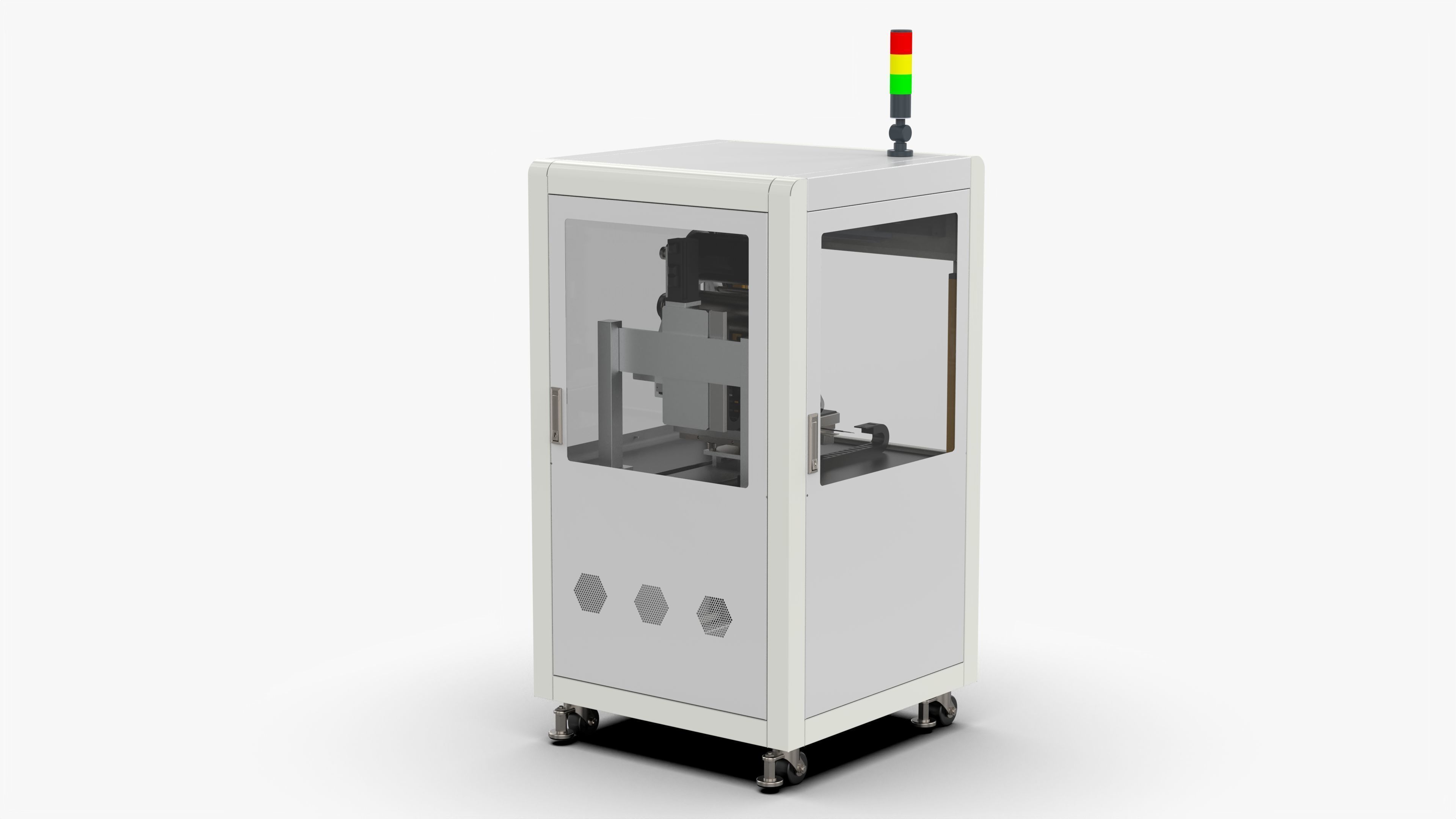

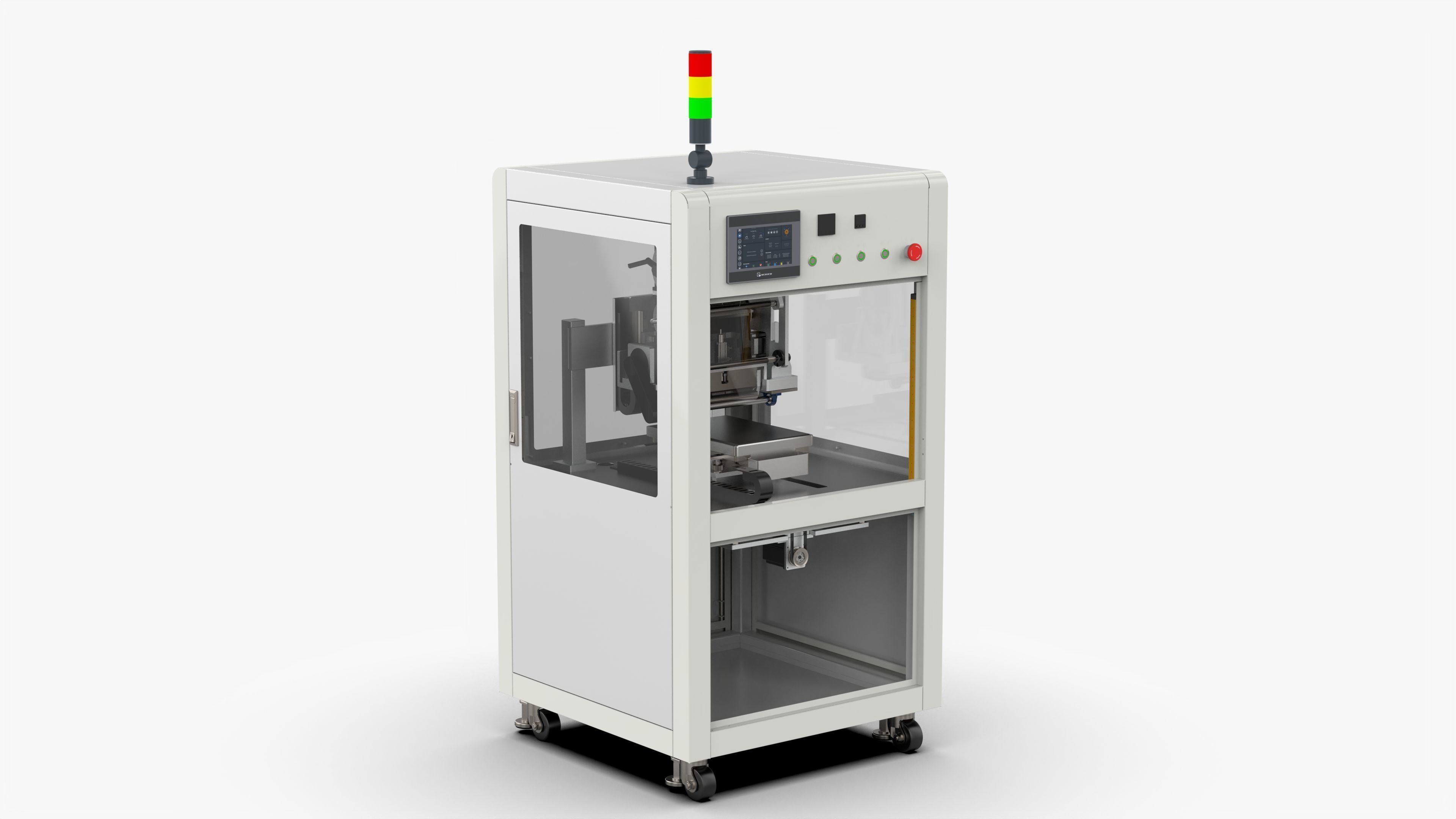

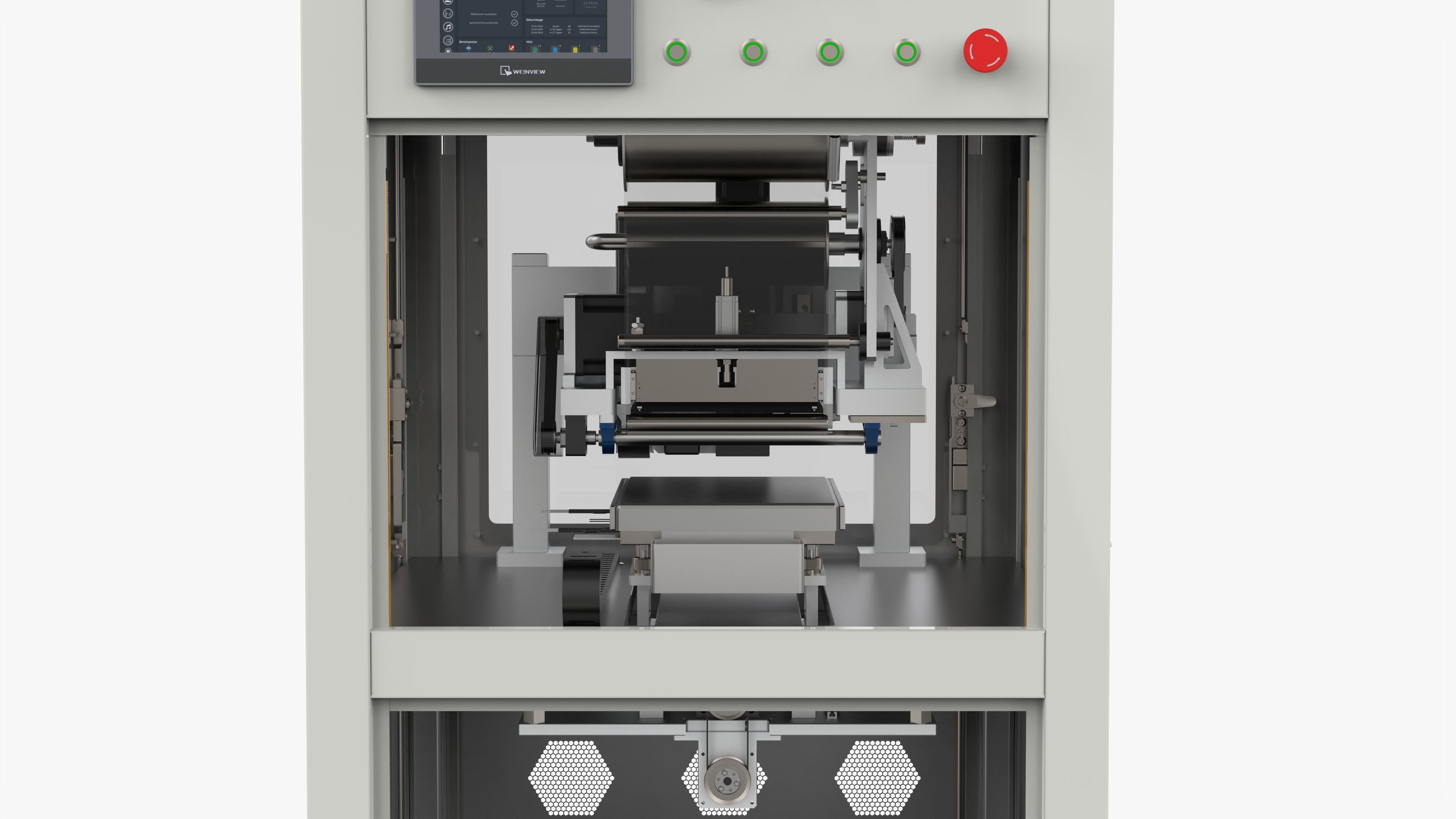

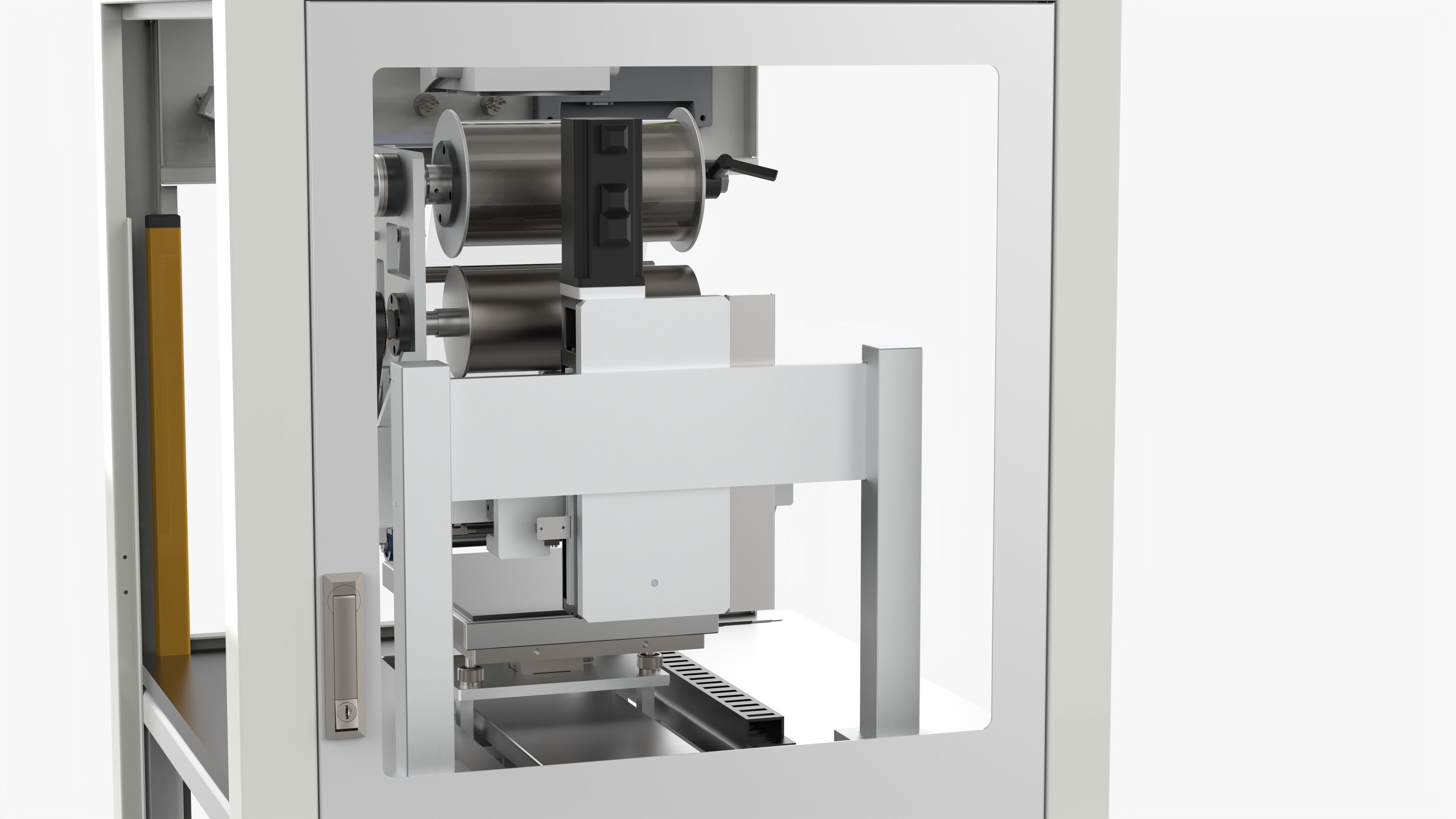

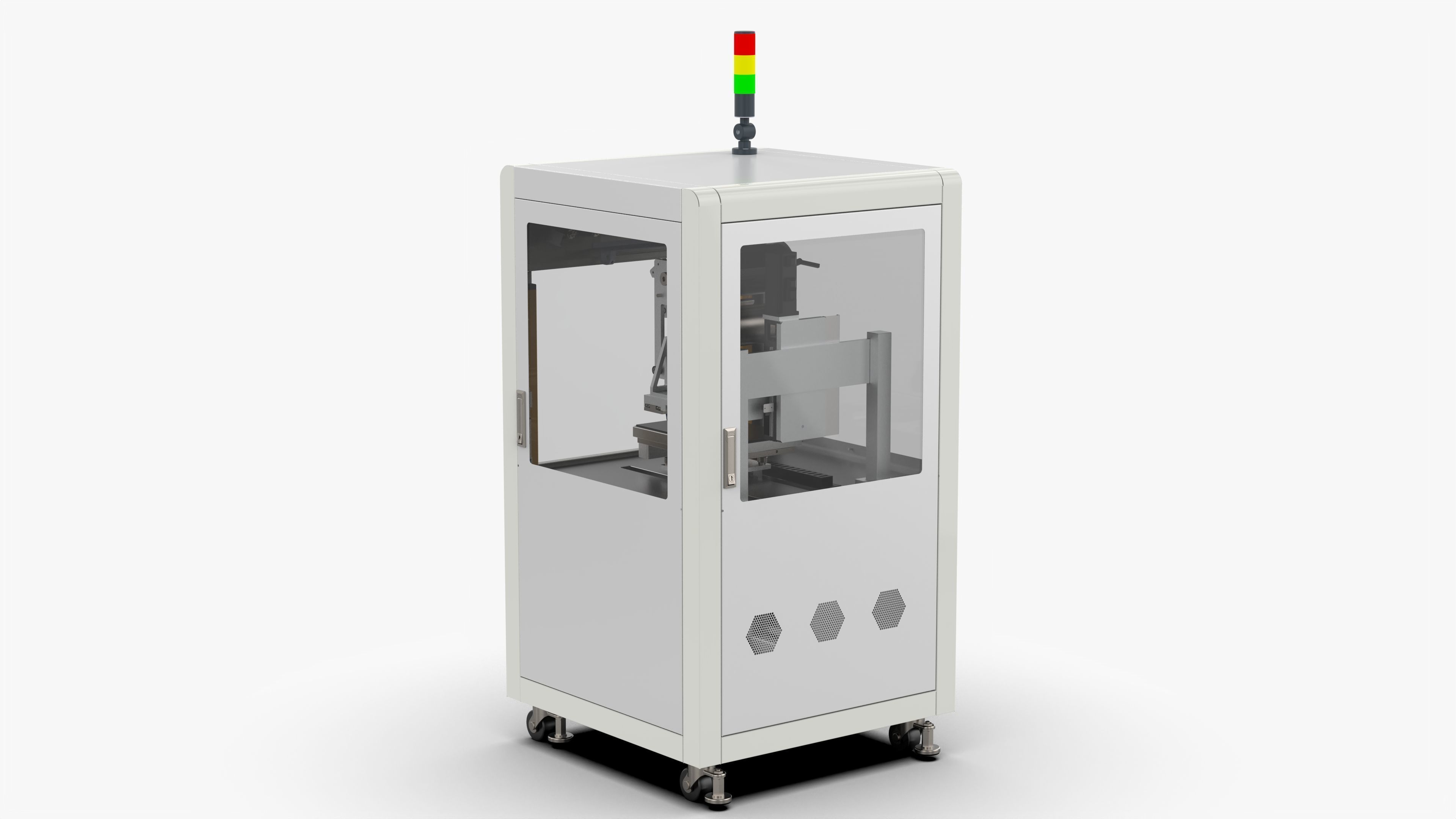

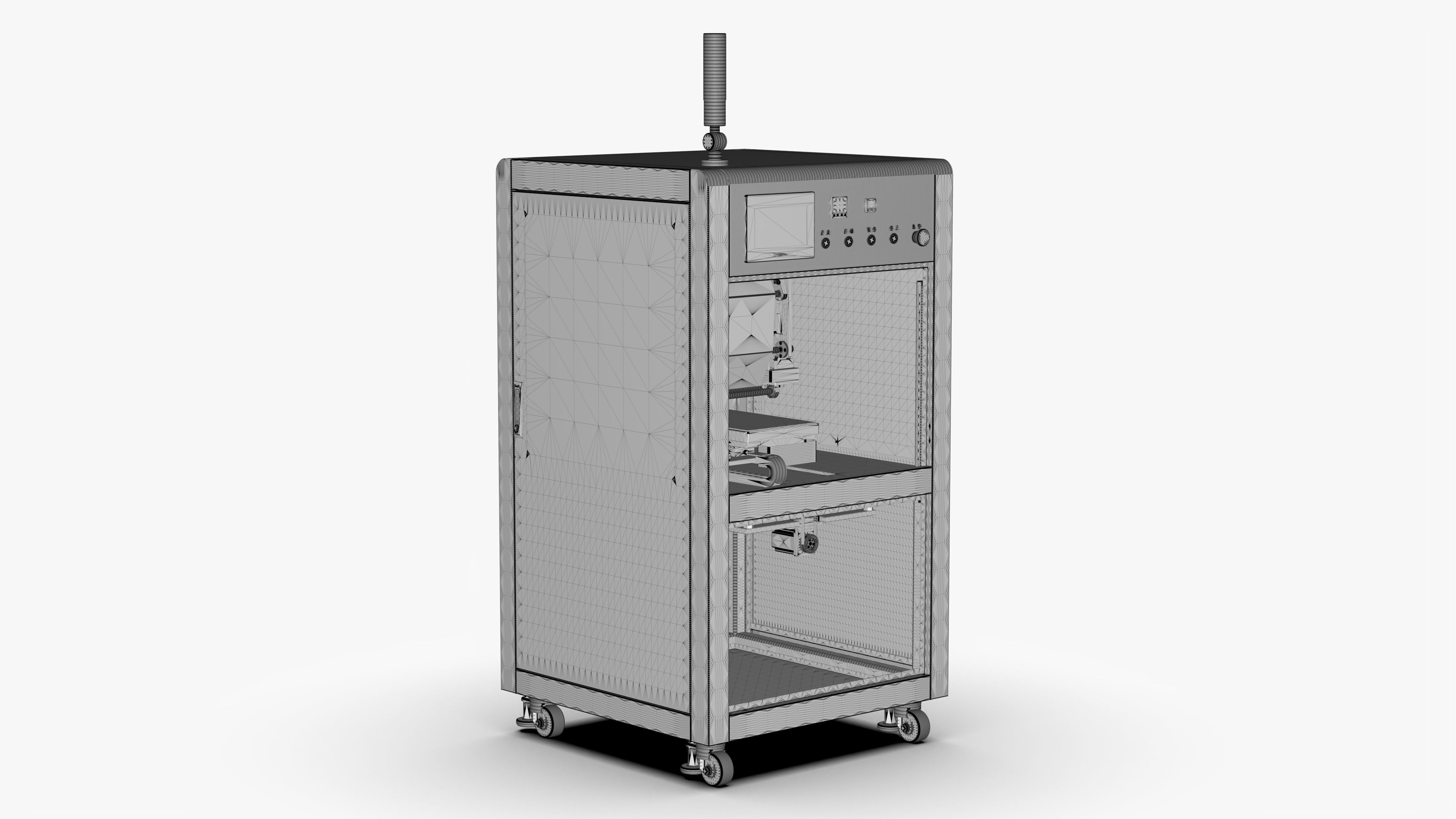

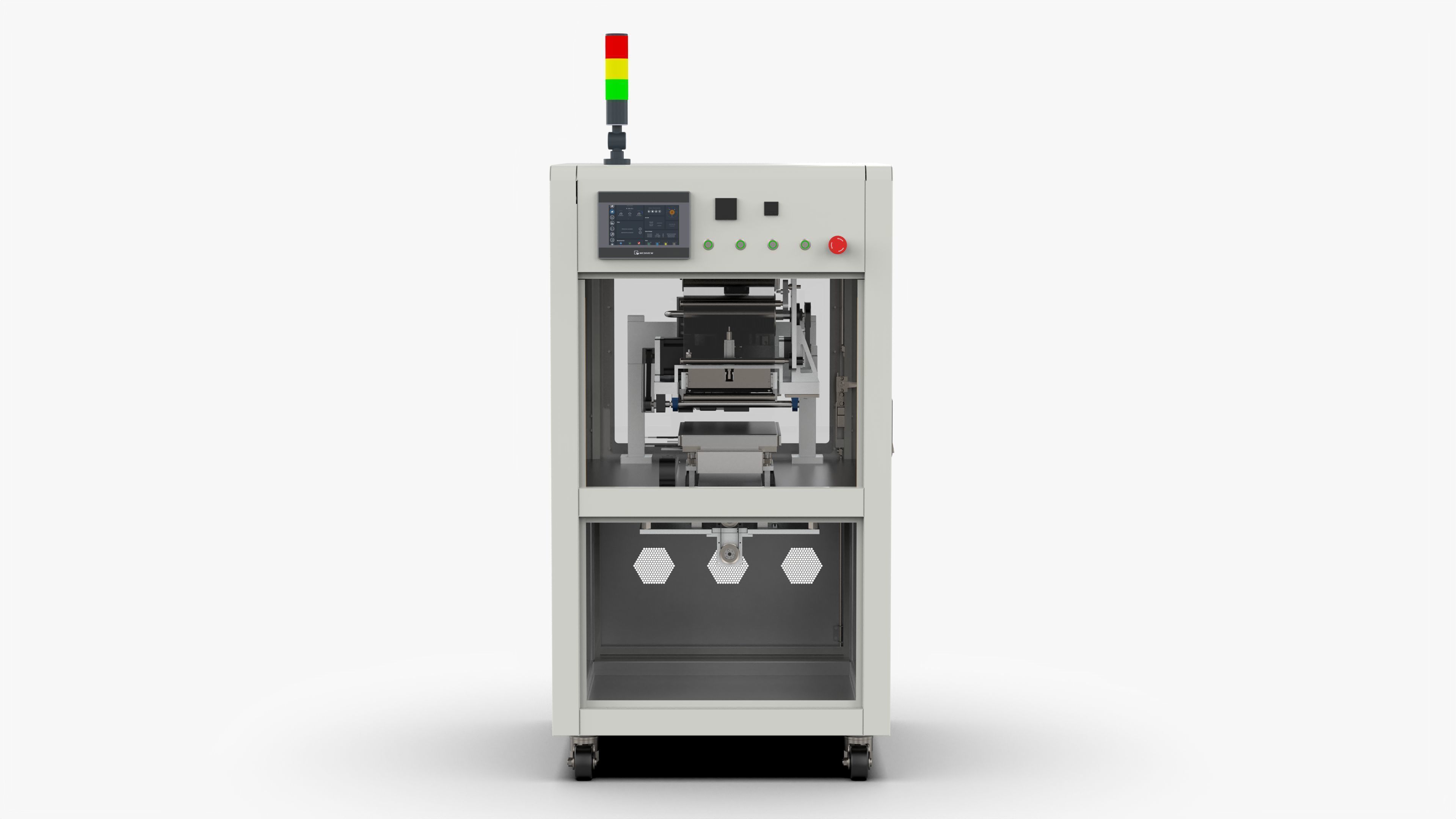

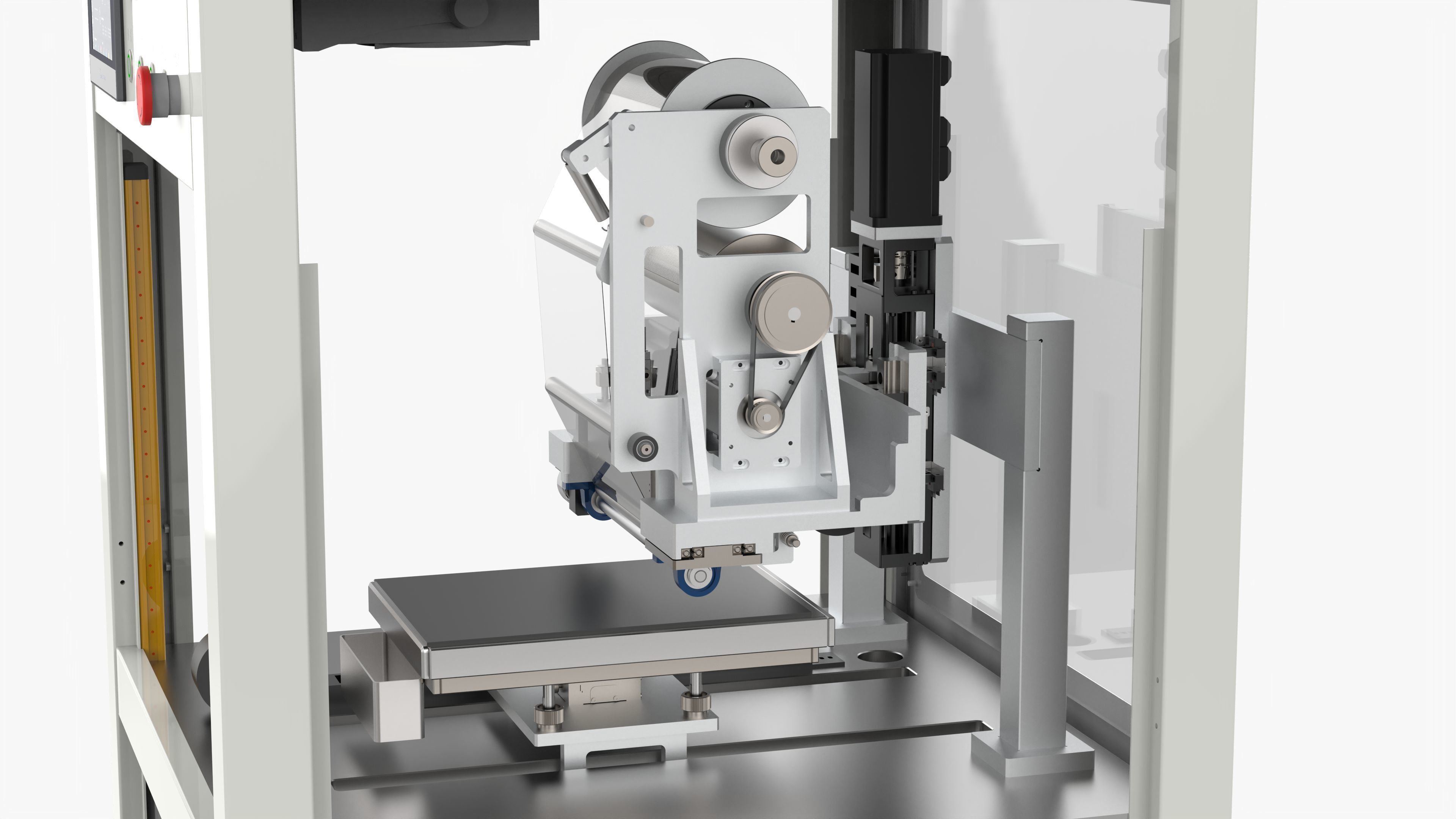

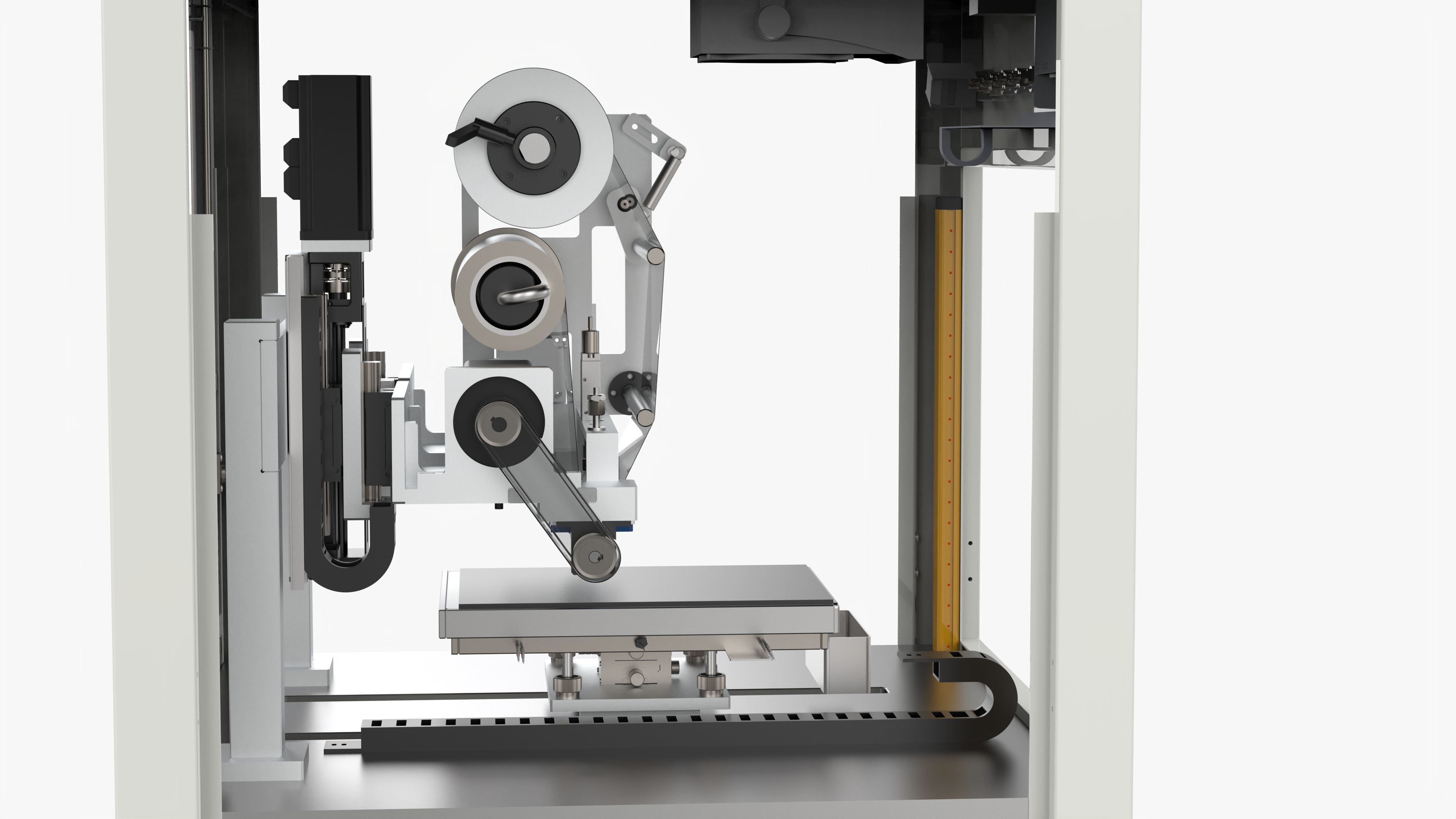

Automatic Glue Removal Machine 3D model

Automatic Glue Removal Machine

Introduction

1. Applicable product specifications for glue removal: 3.5?~13?
2. Tact timeCG/TP=20s, LCD=40s (calculated based on 6.0-inch products)
3. Removable thickness: meet 60um~300um
4. Degumming temperature: Max 90°
5. Panel/TP/CG is adsorbed by the platform
6. Vacuum in the factory can be used, and a vacuum pump (small) is required.
7. Panel/TP/CG is adsorbed by the platform, and the size of the vacuum adsorption area of ??the platform can be controlled. The moving speed of the platform can be quantitatively adjusted
8. The temperature of the platform can be set, and it will automatically alarm when it exceeds the set temperature
9. The height of the roller can be set quantitatively
10. Relative humidity: 30% ~ 80%
11. Environmental noise: below 80dB
12. Voltage: 3 phase, AC208V±5%, 50Hz±2Hz
13. Air pressure: 5kg/cm²

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 1,200,426
• Vertice: 3,601,278
