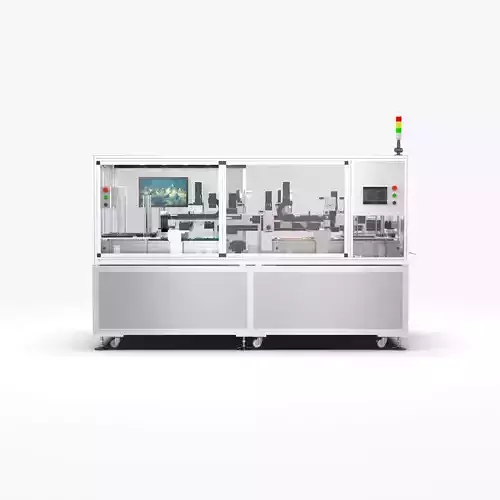

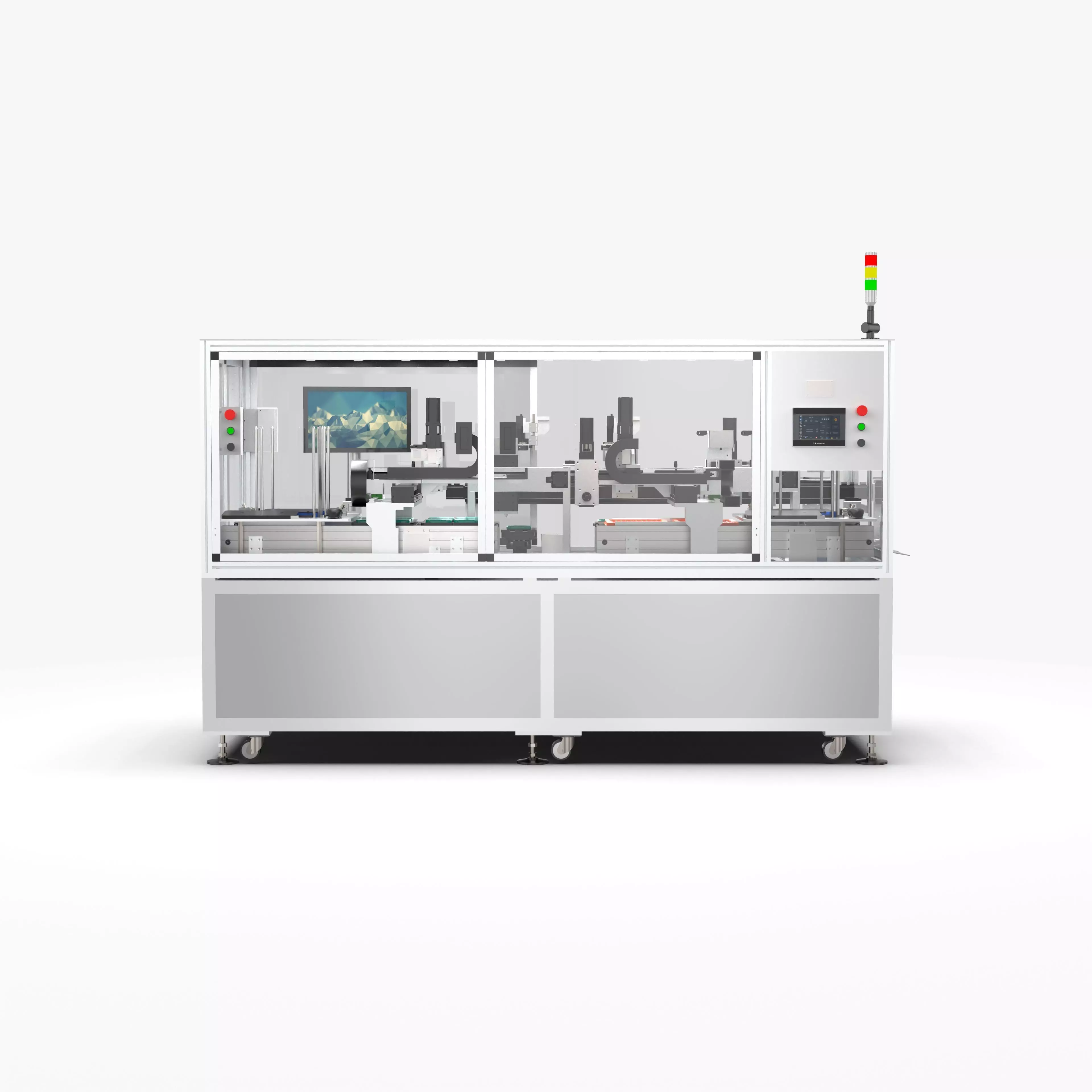

Automatic Film Fingerprint Recognition Assembly Machine 3D model

Automatic Mobile Phone Film Fingerprint Recognition Assembly Machine

Introduction

Mobile phone back cover fingerprint visual detection assembly automatic machine mobile phone fingerprint module automatic assembly machine The machine automatically feeds materials for assembly, and they are all mature and mass-produced. The equipment design is exquisite and practical.

This equipment is a fully automatic assembly machine for the back cover of the mobile phone and the fingerprint module. The manipulator picks up/places, flips/transfers; automatic glue dispensing, CCD automatic detection, alignment, manual only needs to load/unload materials at designated stations.

1. The manipulator automatically picks up/places, flips/transfers.
2. CCD automatically aligns and detects.
3. Automatically rejects defective products.
4. The dispensing shape can be modified and the dispensing is uniform.
5. The machine compatibility is relatively strong ,easy to use.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 2,246,683
• Vertice: 6,740,049
