Automatic Electronic Product Visual Inspection Machine 3D model

Automatic Electronic Product Visual Inspection Machine

Introduction

This model is a visual inspection platform for electronic products, including full parameter parts + detailed engineering drawings + parts BOM list, the content is super detailed; this equipment model is suitable for reference learning by assistant engineers who have just entered the job, the content Including:

1. 3D design in the automation industry;
2. Engineering drawing output specifications;
3. Sheet metal parts + aluminum profile frame construction specifications, etc.

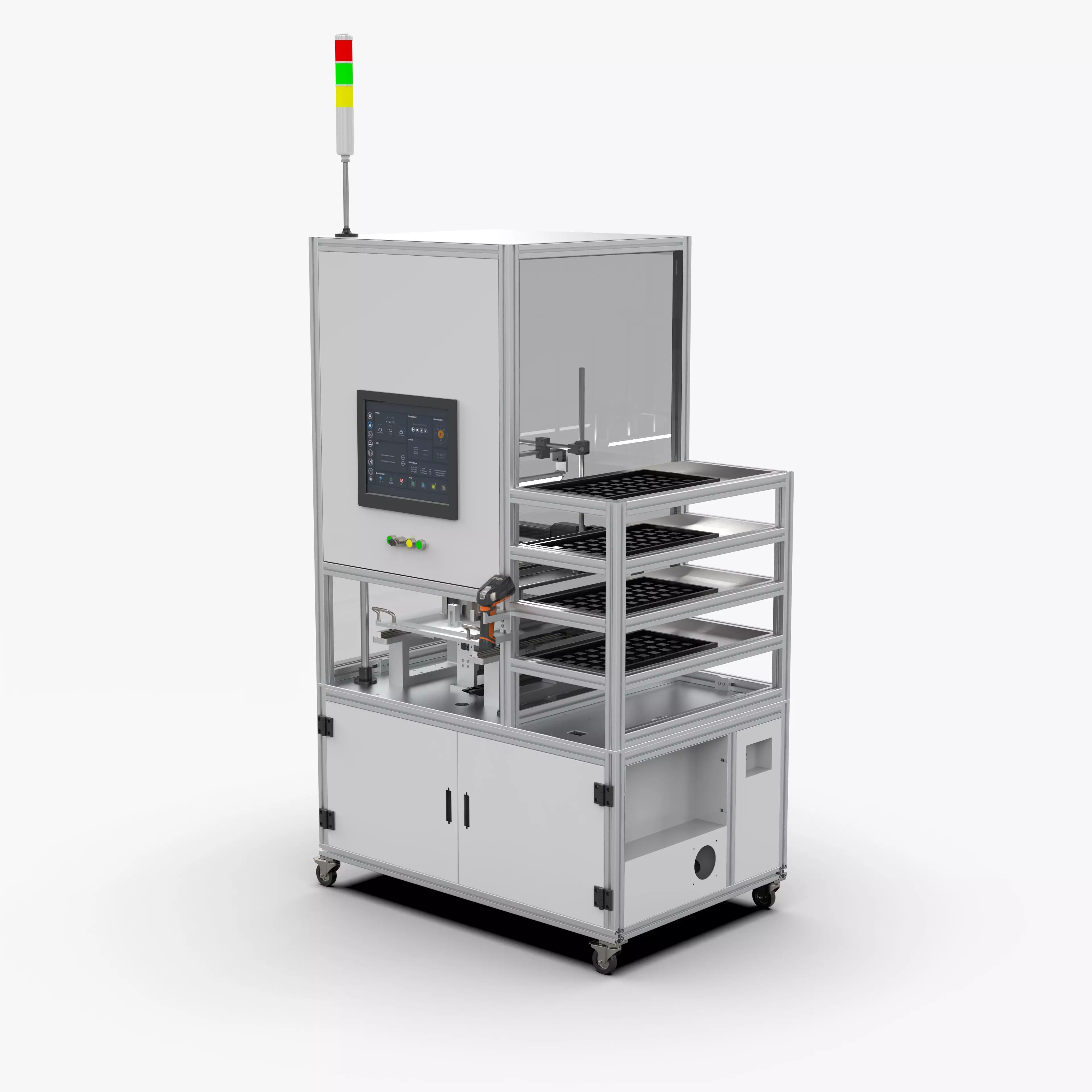

This model is a visual inspection platform for electronic products, which is divided into four parts: a workbench frame made of aluminum profiles + sheet metal, a code scanning mechanism combined with 2-axis modules, a camera component, and a shelf shelf.

The basic operation process is:

1. The operator takes the product from the TRAY tray on the right and puts it into the fixture of the inspection platform;
2. The vision system automatically judges whether the product is OK or NG. If the product is NG, the equipment will alarm and prompt to reject it.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 1,249,072
• Vertice: 3,747,216
