Automatic Battery Tray Loading and Unloading Coating Machine 3D model
Description

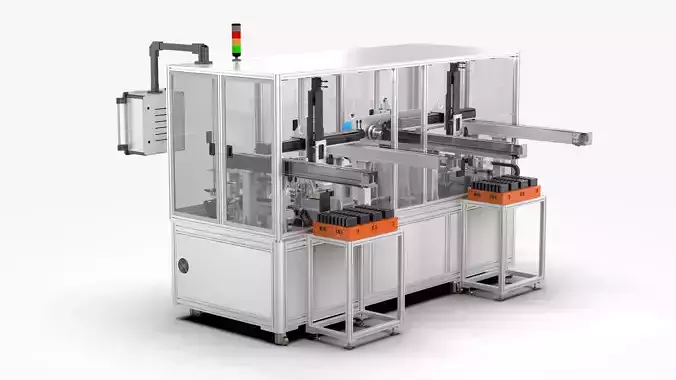

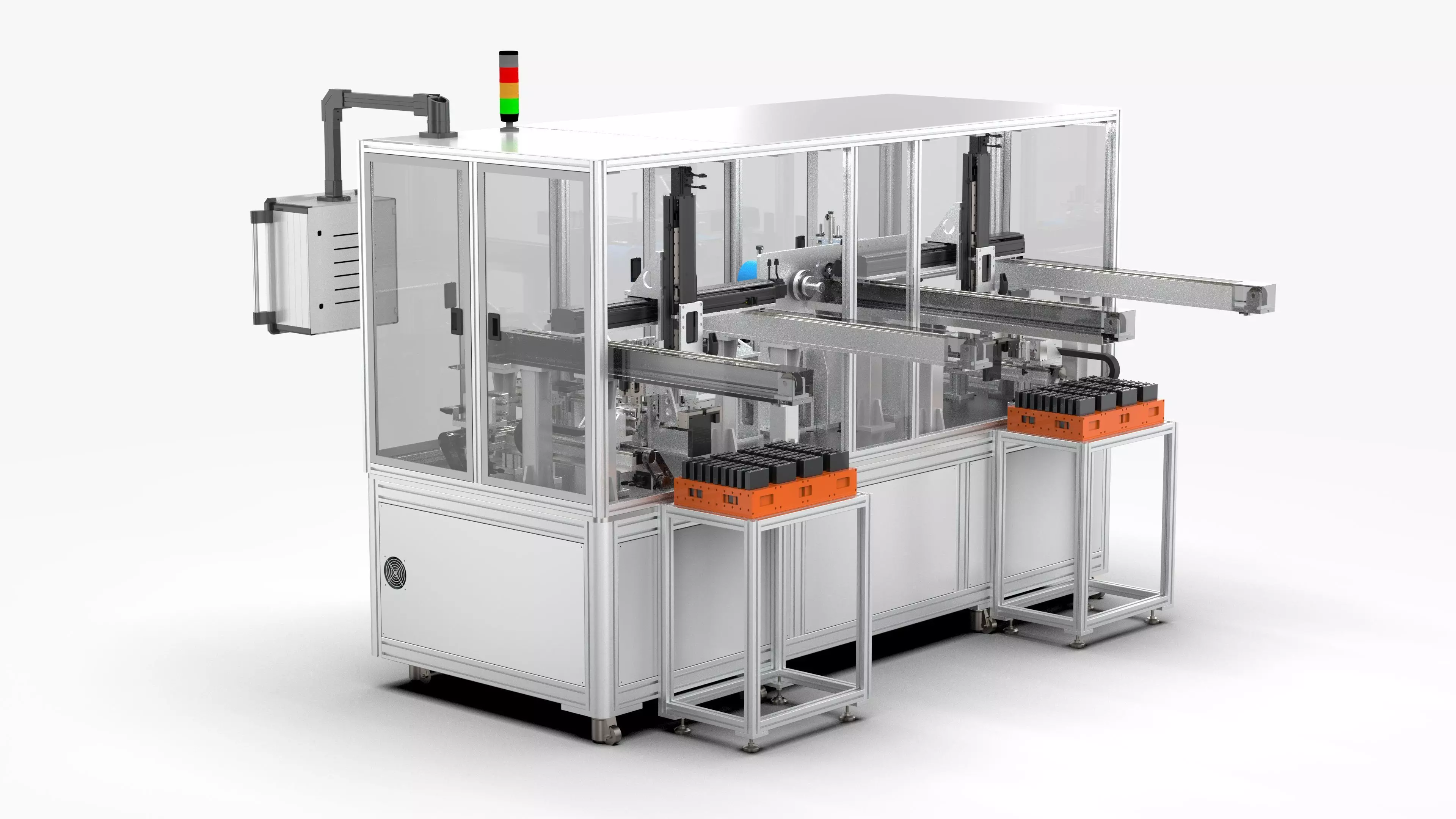

Automatic Battery Tray Loading and Unloading Coating Machine
Introduction
Battery tray type loading and unloading coating machine This equipment is a power battery coating, folding, size measurement, integrated automation equipment. The material is stored in a tray and picked up by a manipulator. By controlling the tension of the insulating film and the speed, hardness and pressure of the roller to ensure that the insulating film sticks to the surface around the cell; the rubber roller mechanism is pushed by the cylinder to complete the folding and sticking of the insulating film. After completion, use the manipulator to put back the blanking tray.
File Formats
- SolidWorks 2018 | Keyshot 10
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
Geometry
- Polygons: 5,392,559
- Vertice: 16,177,677
Automatic Battery Tray Loading and Unloading Coating Machine
Royalty Free License
Automatic Battery Tray Loading and Unloading Coating Machine
Royalty Free License
3D Modeling
Rendering
Post Production
PBR modeling
3D Model formats
Format limitations
Native
- SolidWorks 2018 (.sldprt, .sldasm, .slddrw)228 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
- OBJ (.obj, .mtl)411 MB
- STEP (.stp)60.1 MB
- IGES (.ige, .igs, .iges)257 MB
- Stereolithography (.stl)257 MB
3D Model details
- Publish date2023-03-10
- Model ID#4351597
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 5,392,559
- Vertices 16,177,677
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
