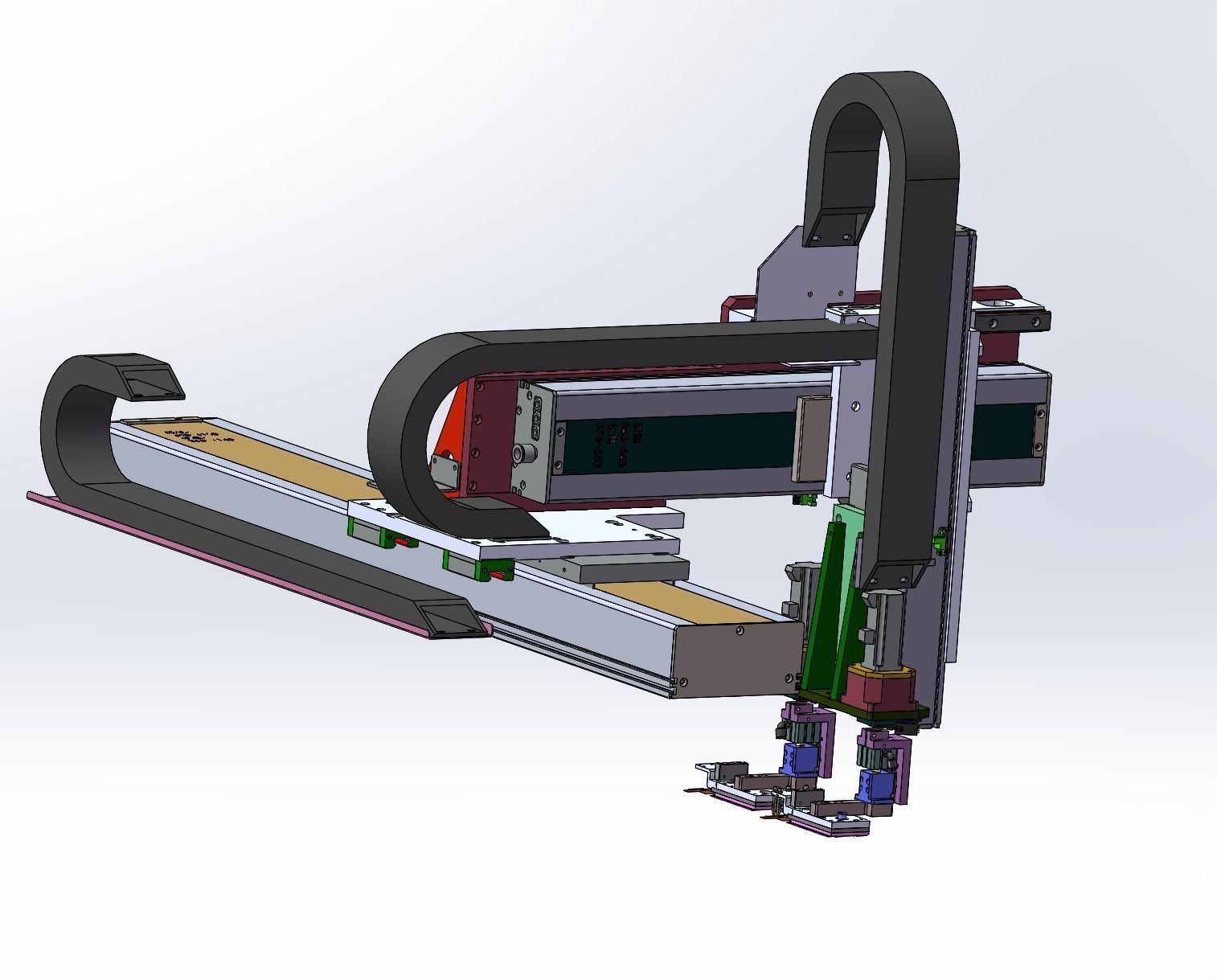

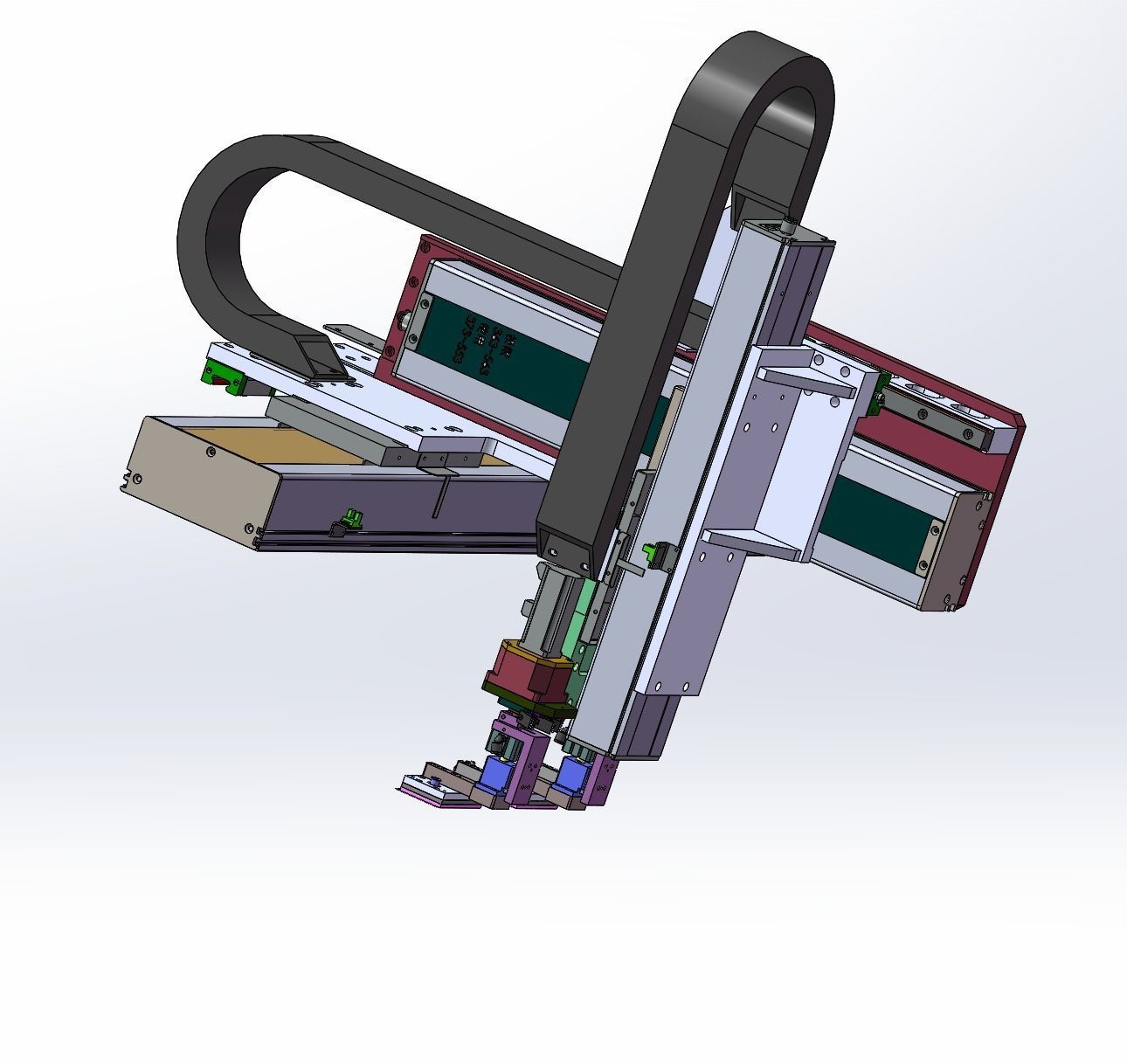

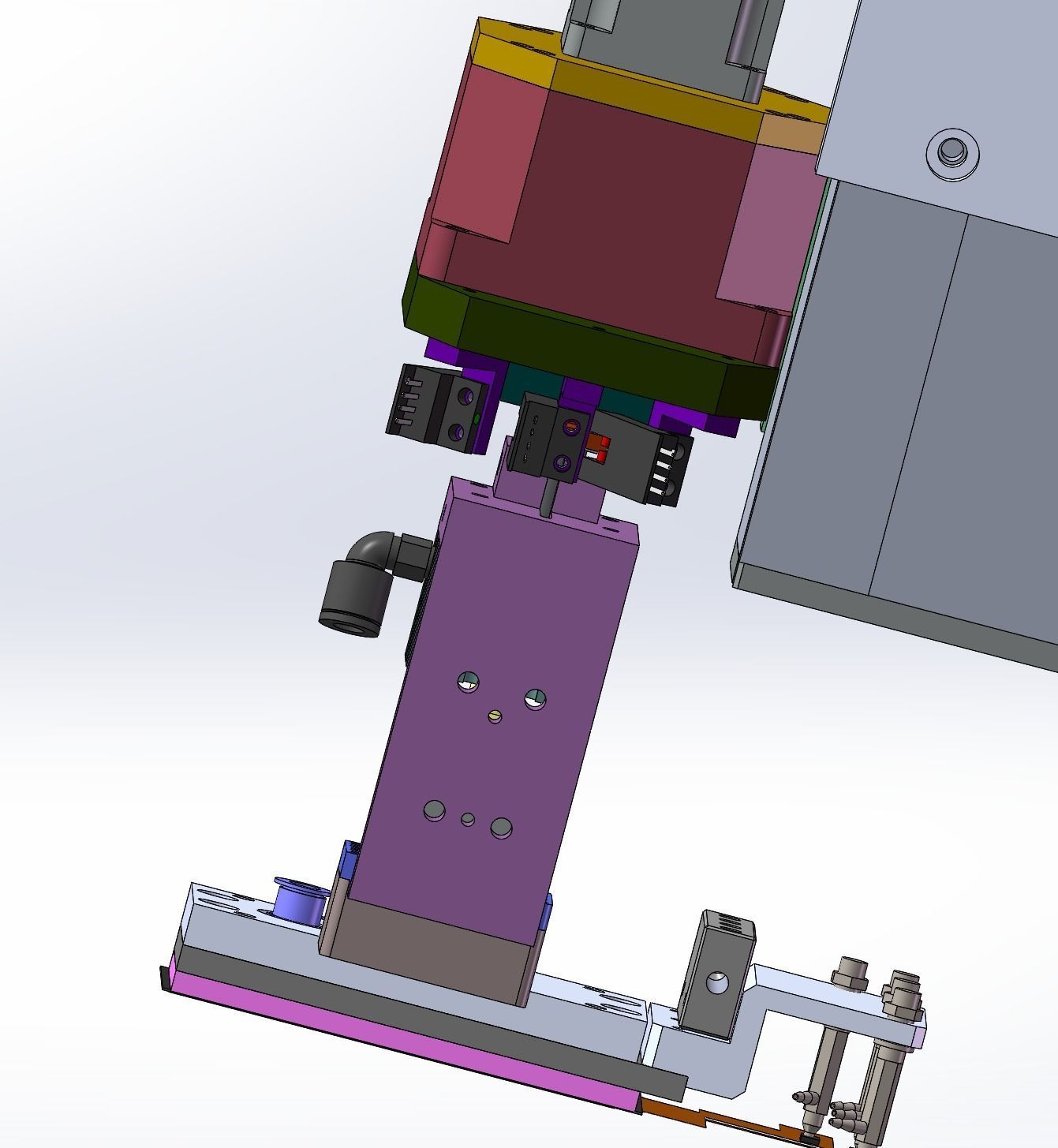

Automatic assembling of touch screen 3D model

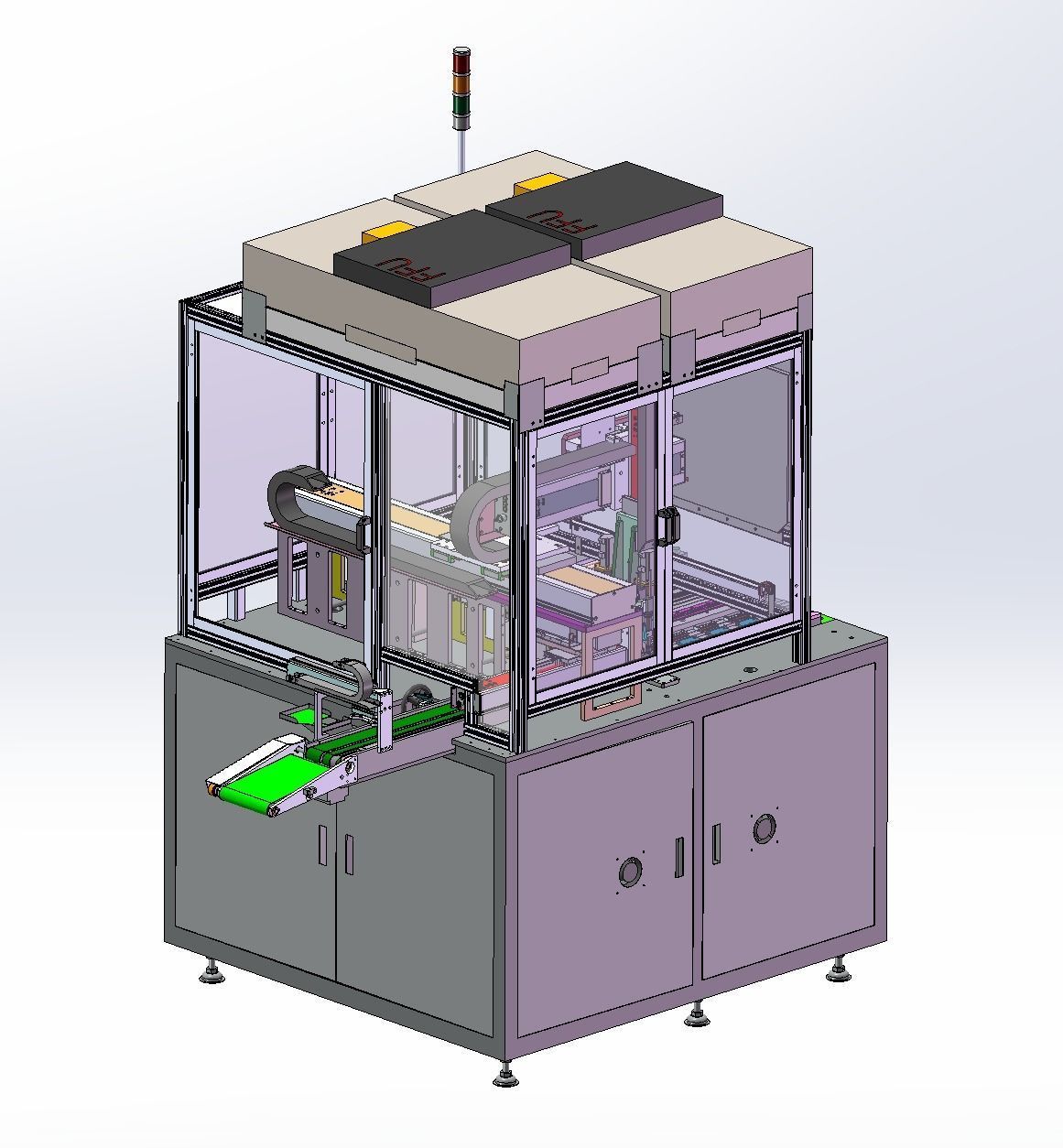

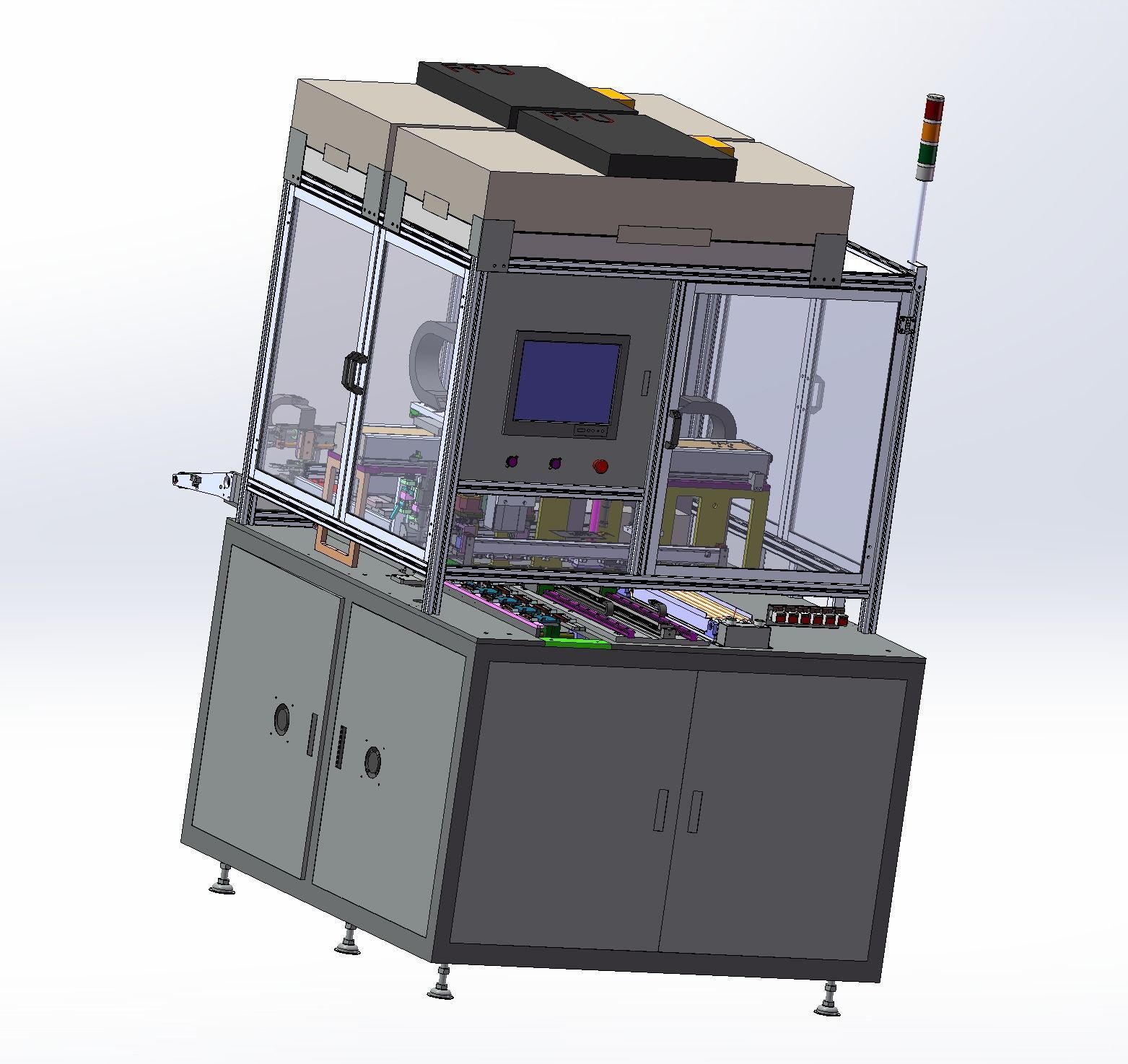

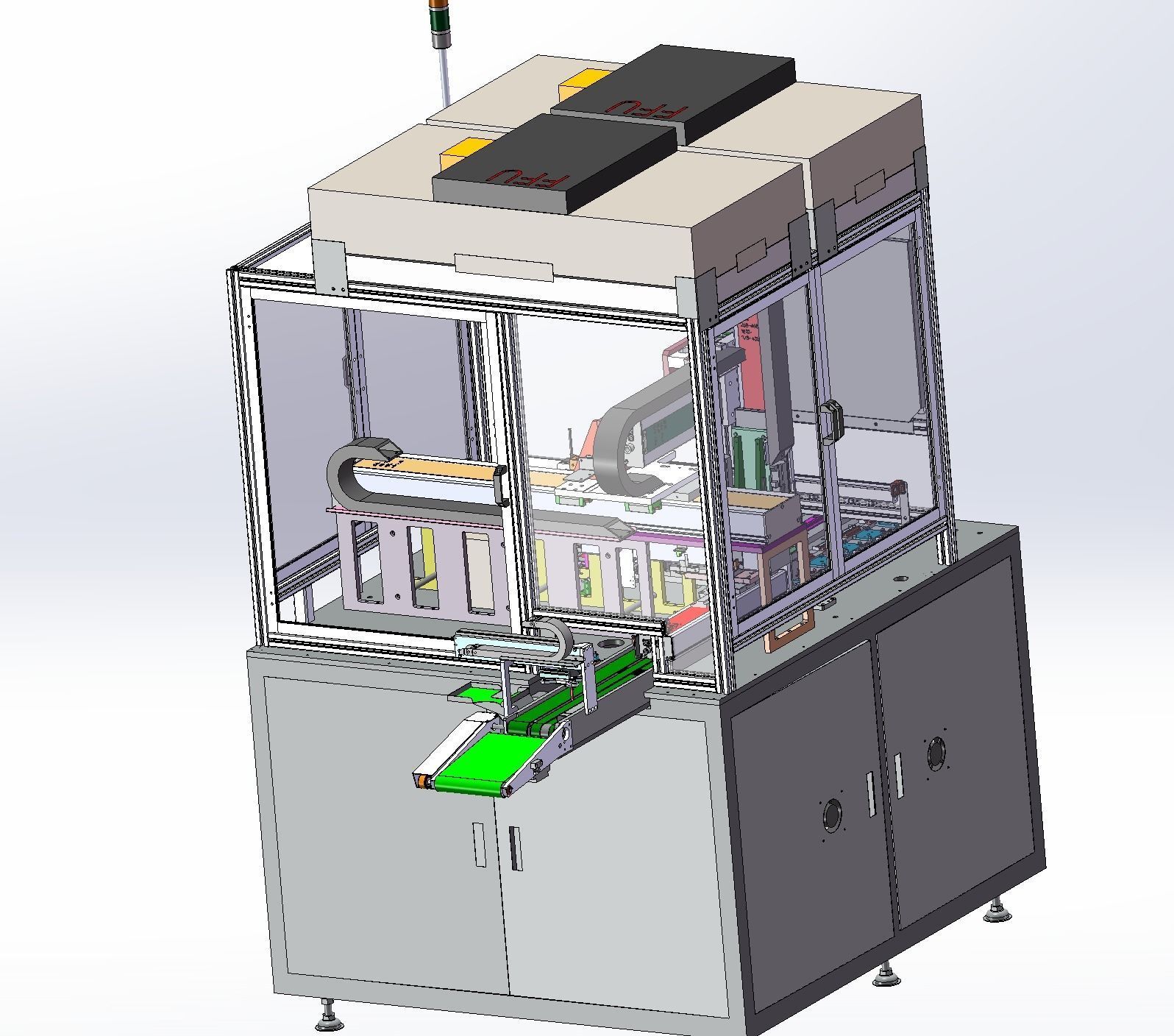

Automatic assembling of touch screen, this machine is used to assemble the touch screen of electronic products, which is made up of automatic assembling of mechanical hand and small materials on the assembly line by taking pictures of CCD
mechanism include

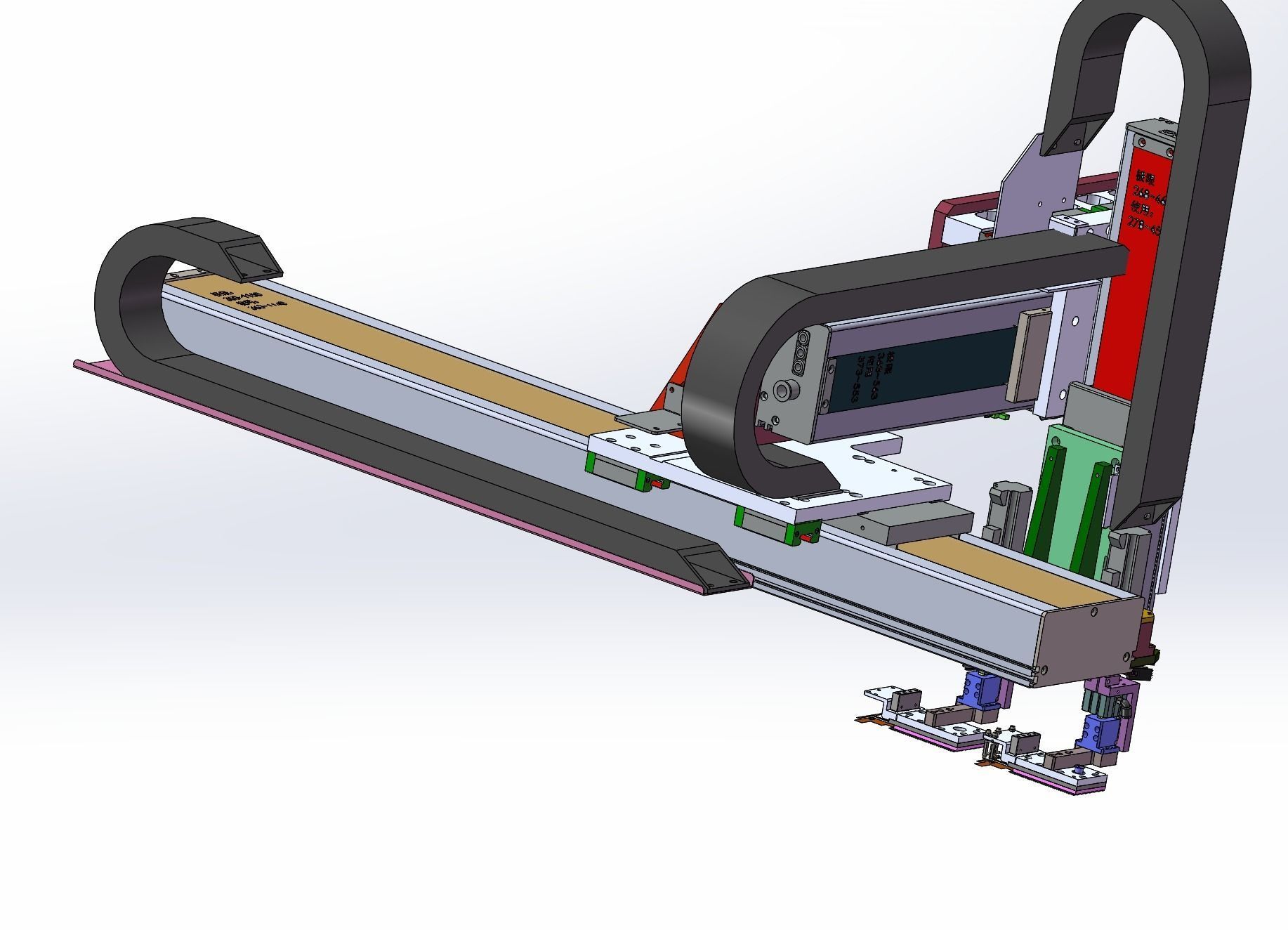

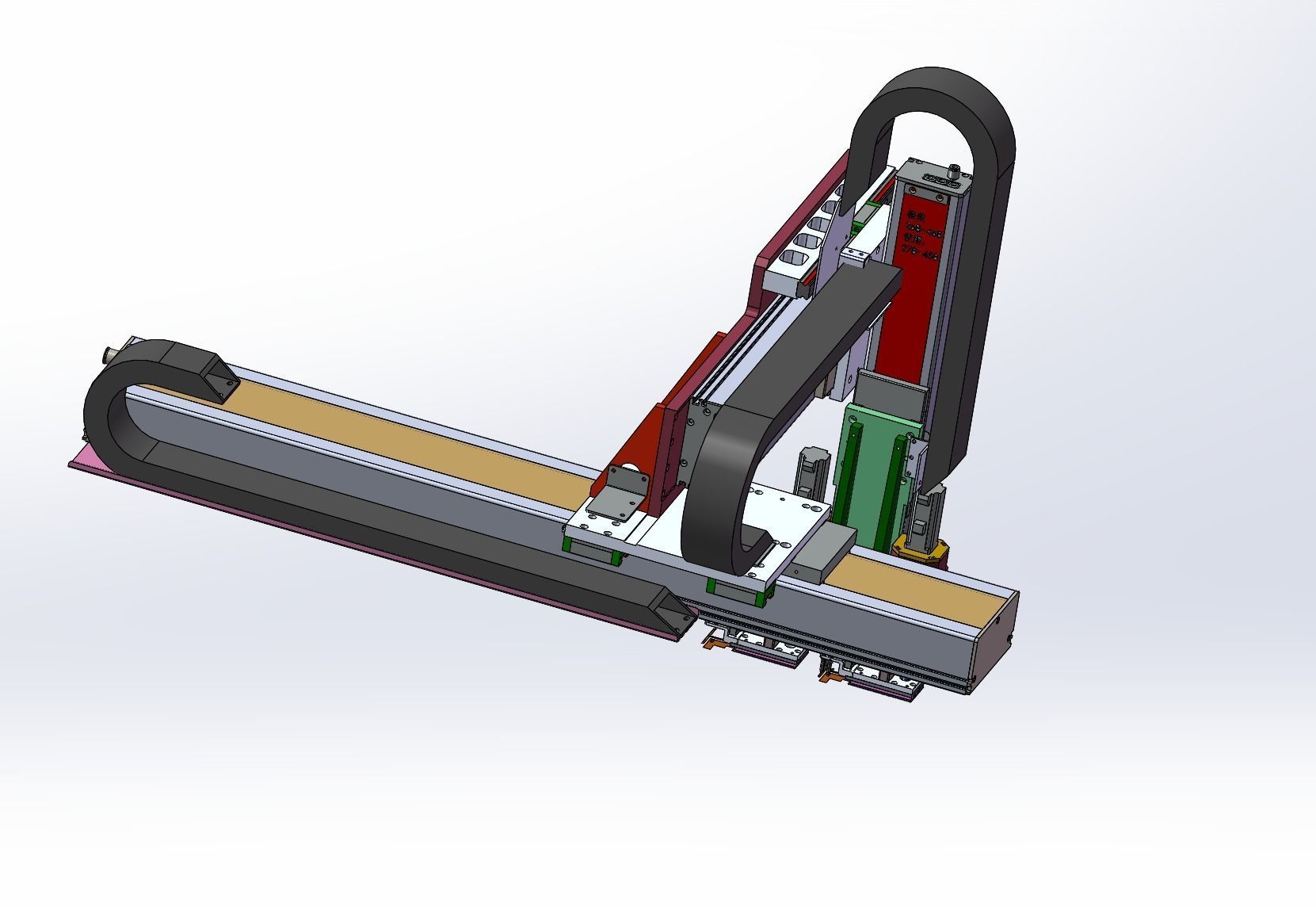

1. Feeding mechanism of xy axle module
2. CCD camera correction mechanism

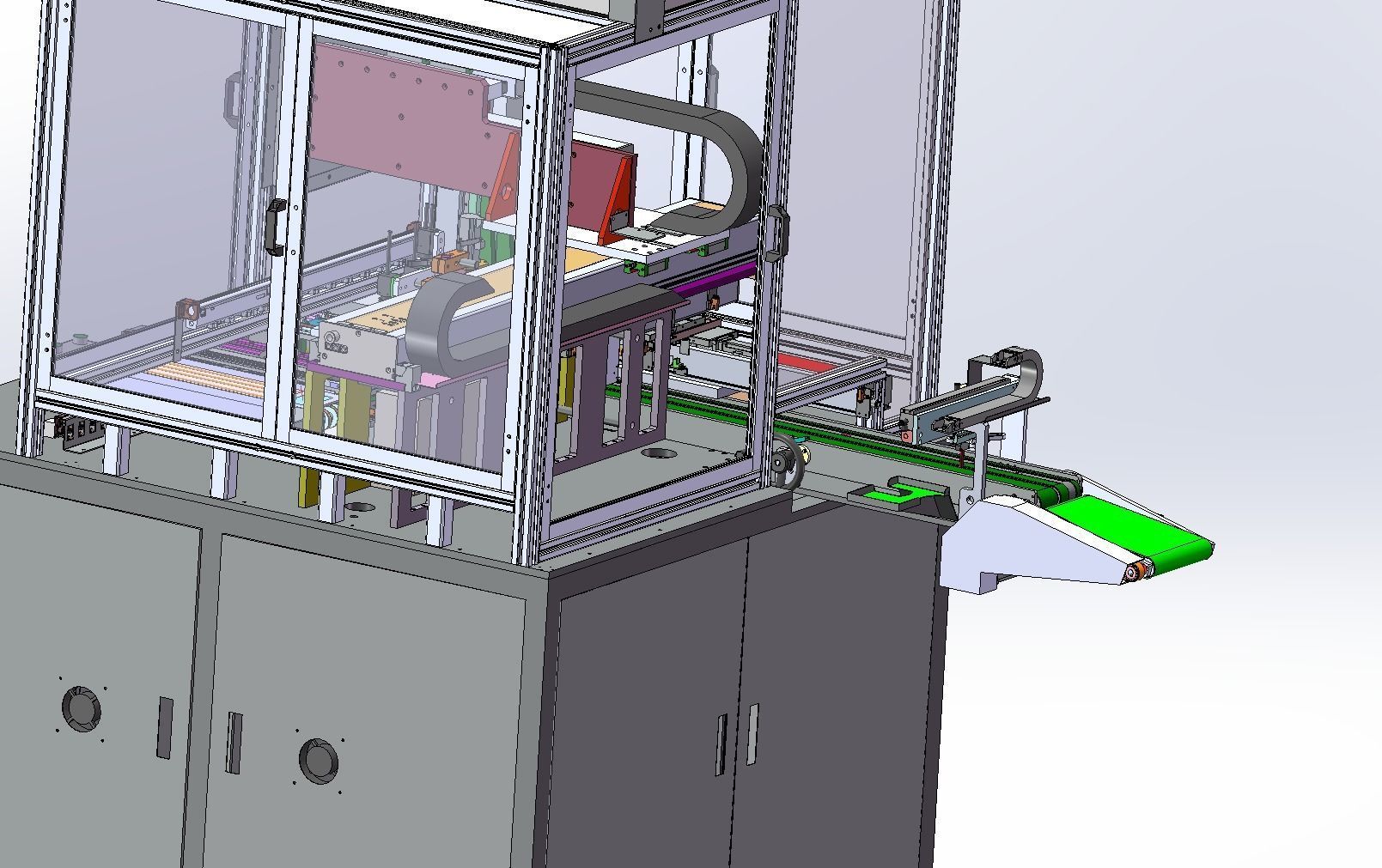

3. Assembly line positioning feeding mechanism
4. PLC electronic control system
**************************************
Files format contains
-solidworks 2017
-step
-iges
-stl
-obj
-3ds
-Fbx
-3dmax
- and other formats
**************************************
If you like,you can buy for you to get this models or if you have any questions also you can email to me.

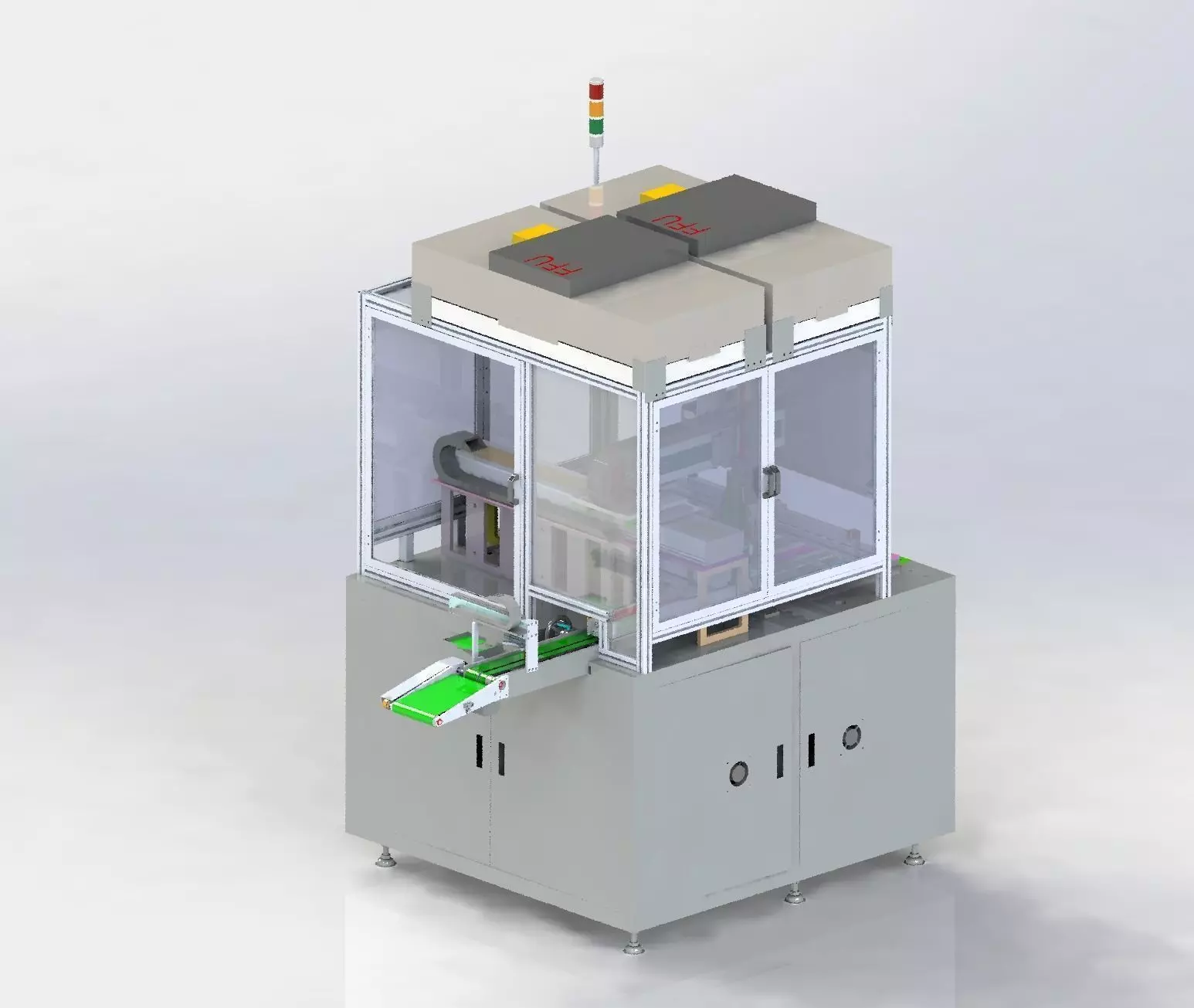

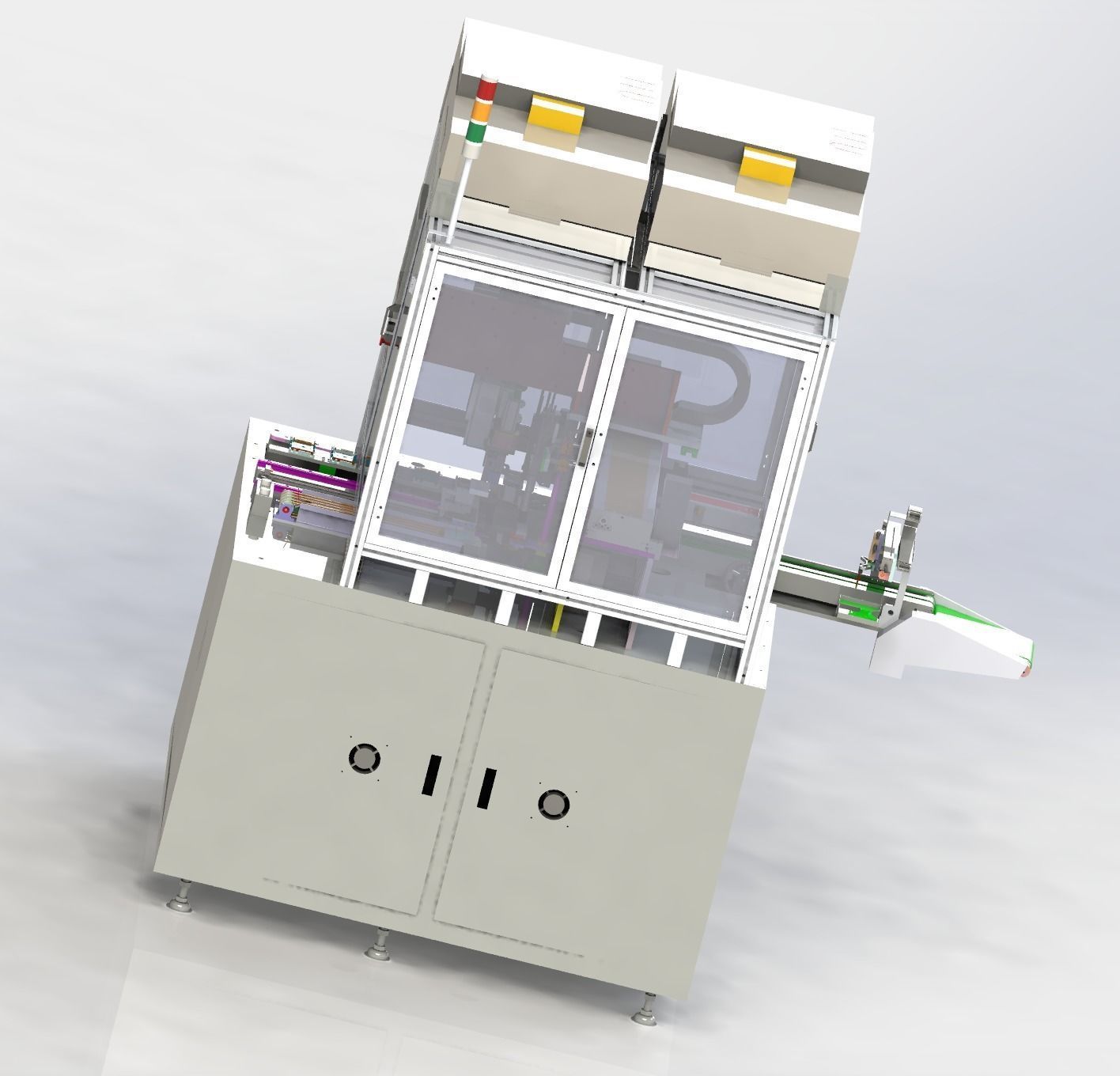

Designed with SolidWorks 2017, render with PhotoView 360
**************************************
3D Model formats
Format limitations
- SolidWorks 2017 (.sldprt, .sldasm, .slddrw)44.5 MBVersion: 2017Renderer: Mental Ray
- STEP (.stp)87.5 MB
- 3D Studio (.3ds)188 MB
- OBJ (.obj, .mtl) (2 files)283 MB
- Autodesk FBX (.fbx)219 MB
- IGES (.ige, .igs, .iges)199 MB
- Autodesk 3ds Max 2017 (.max)541 MBVersion: 2017Renderer: Default (Scanline)
- Stereolithography (.stl)482 MB
3D Model details
- Publish date2018-11-08
- Model ID#1030915
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 5,048,766
- Vertices 10,100,707
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
